*UPDATE*

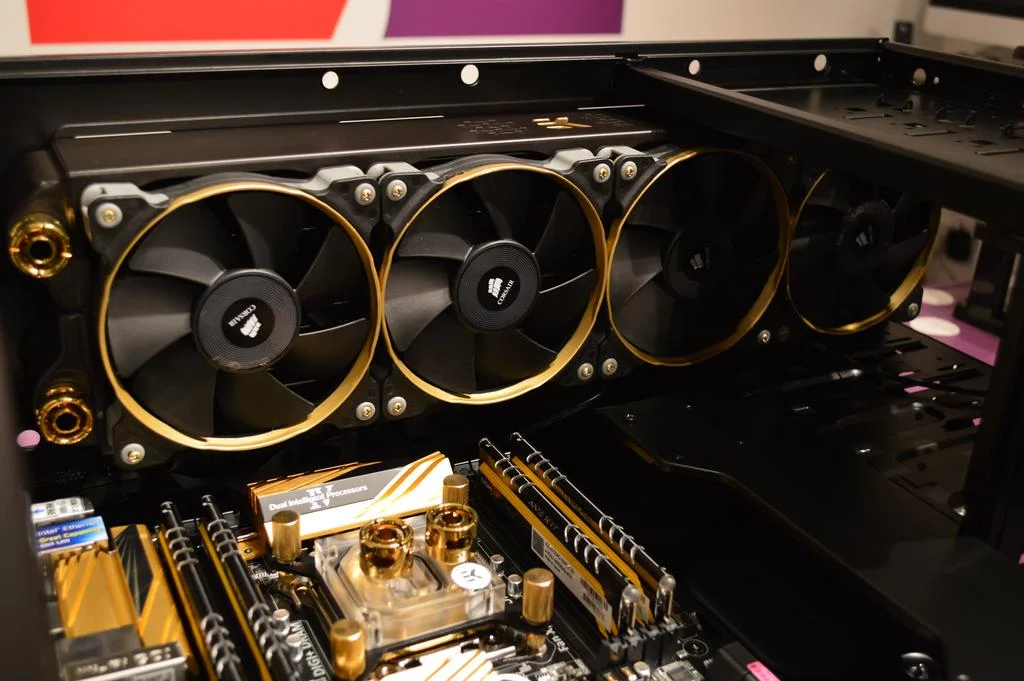

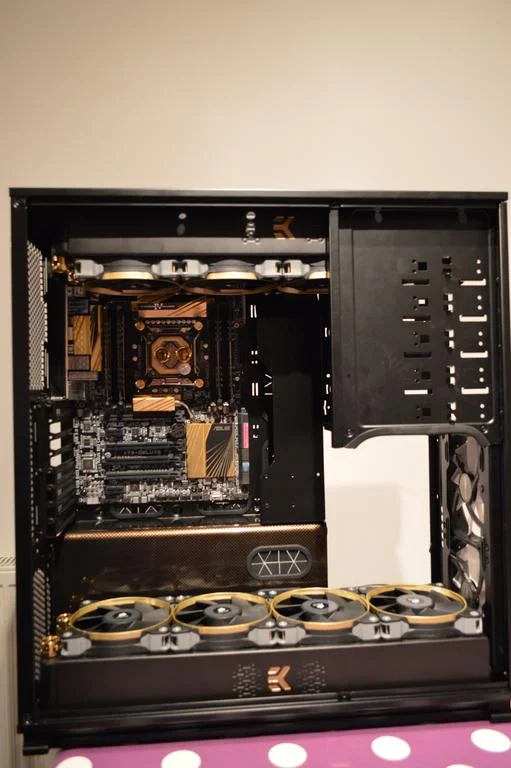

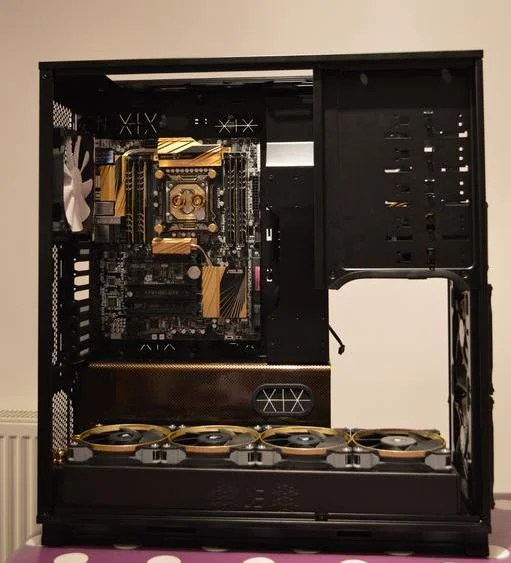

Ok I decided to chop some more off the optical bay side panel. I really want the rad and fans to be in full view, otherwise what's the point of that little side window right ?

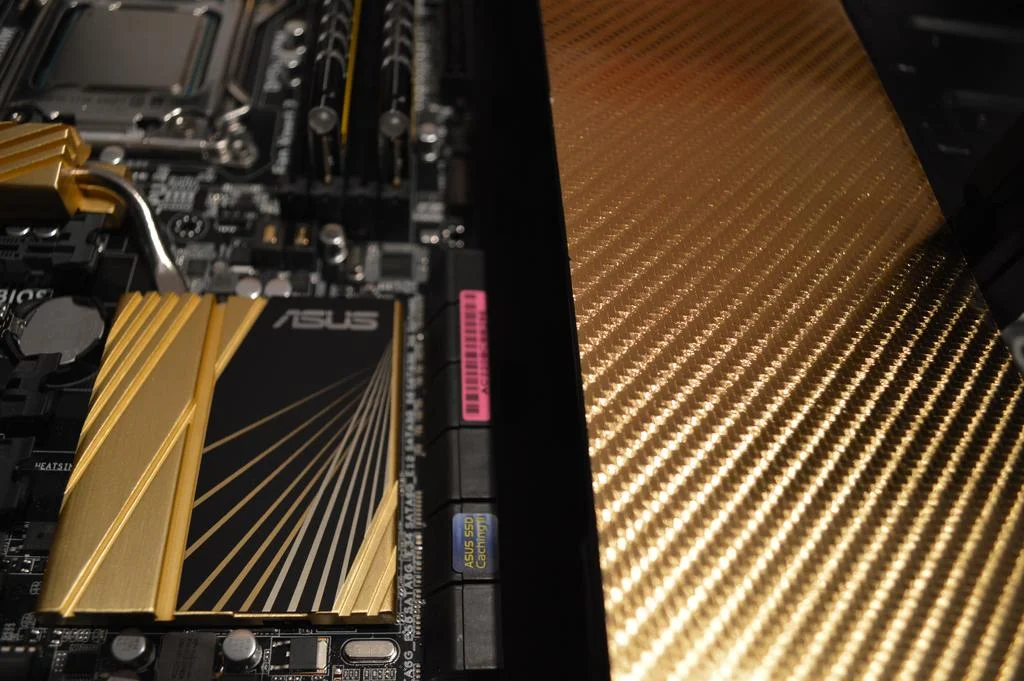

As you can see I also removed the plastic cover from the vertical cable cover, this allows you to fit a longer gfx card.
Just for fun I mocked in my old refrence gtx 680 and a gtx 680 Direct CU II which as you can see from the last image is too big and you'd need to remove the whole cable/gromit cover to accommodate that bad boy. Hope that's a wee reference for anyone who would be using those parts. Of course mine will have the 780 ti's.

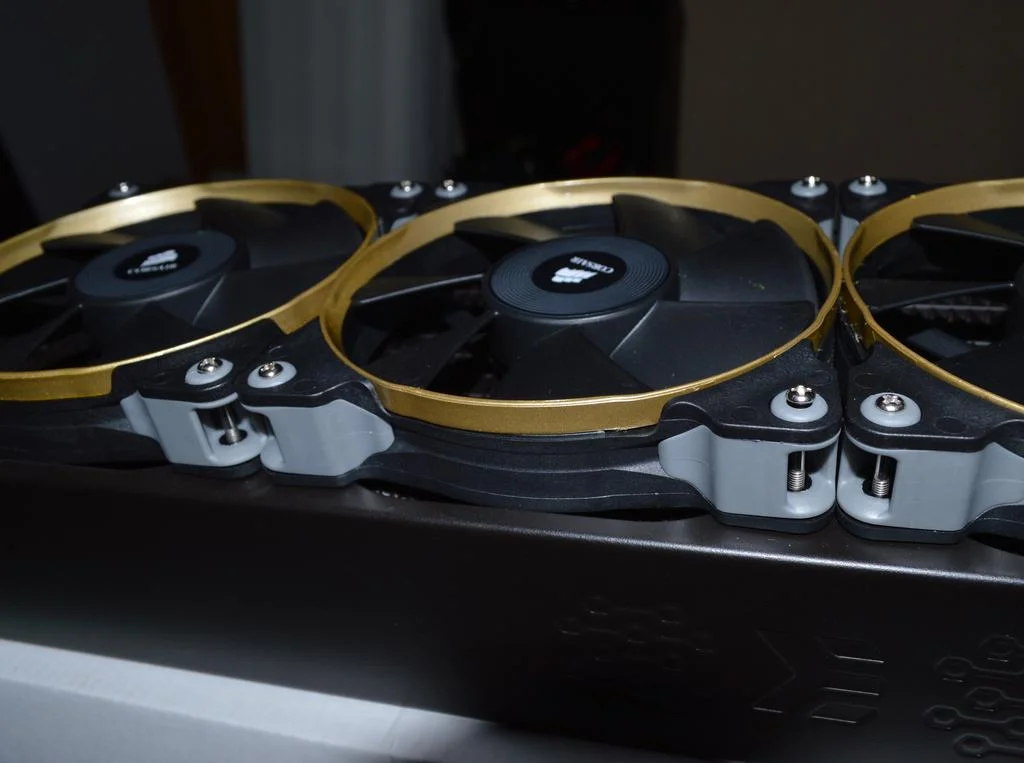

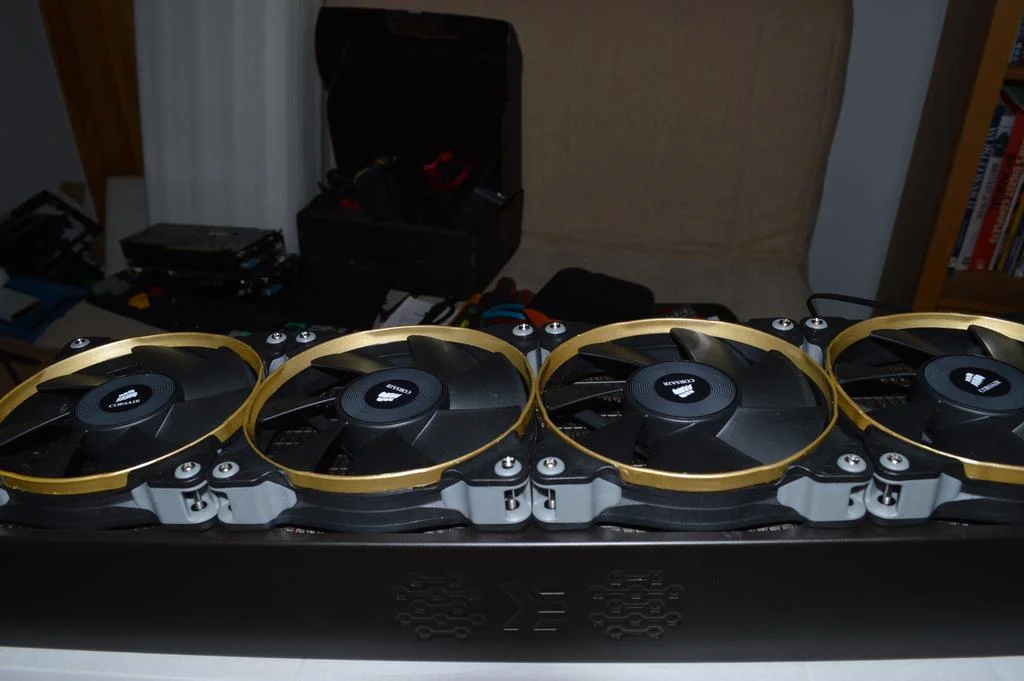

One other thing. Something my cousin pointed out yesterday, "Aye it's looking good, but whit yie doin' aboot those 140 fans min?"
Had to laugh, totally forgot to order AF140's..... cheers Bof !
Oh forgot something else, my damaged rad has been replaced and is on its way, thanks OcUK

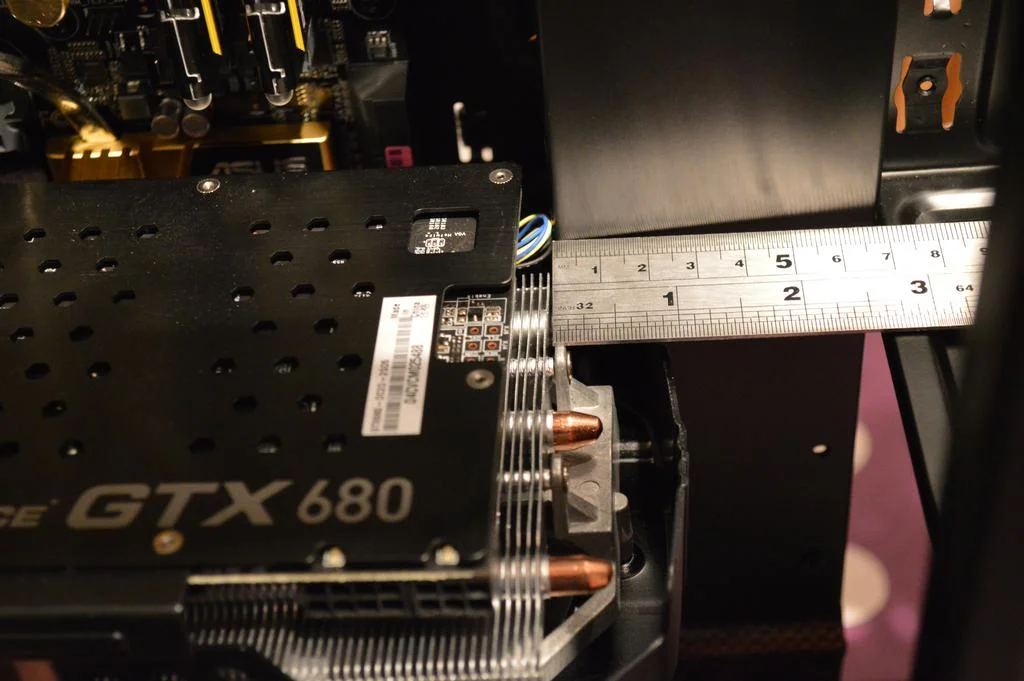

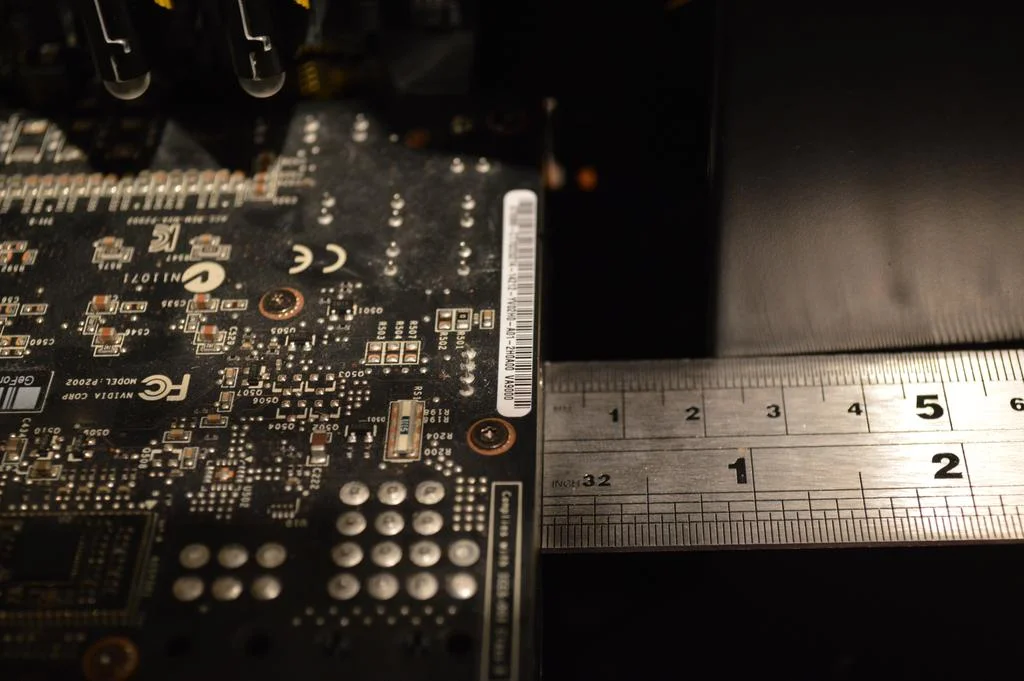

GTX 680 Ref leaves you with 20mm space
GTX 680 Direct Cu II (Needs about another 25mm for clearance, so that panel would have to come out)
