Project Shazoo

Brizzles · 22 May 2017 at 15:11

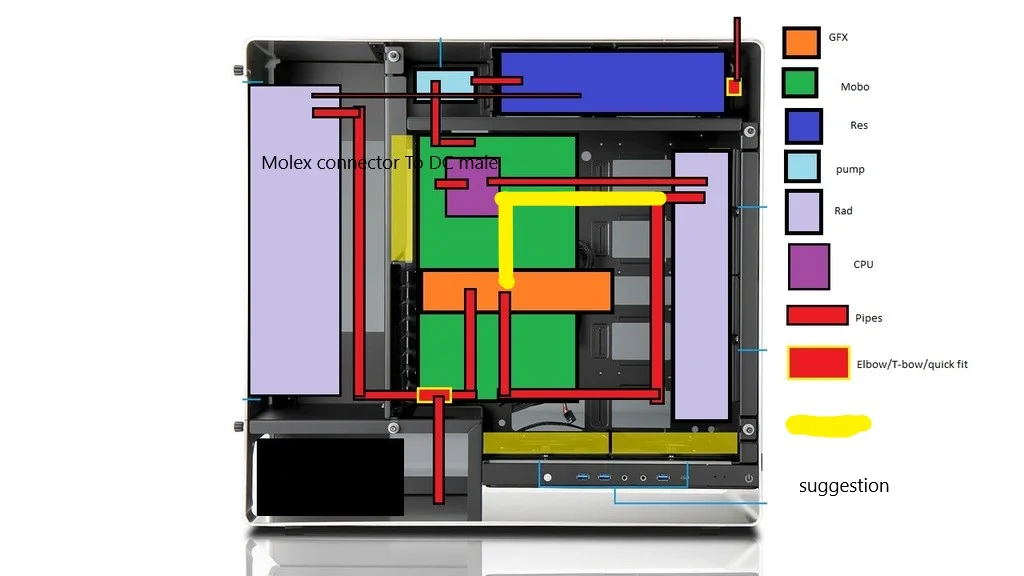

Could try this small change to your layout. Cuts out 2 x 90 degrees and will make drainage easier.

Marvel at my paint skills

Ignore the text 'molex connector to dc male' no idea how i put that there !

Thorhax · 22 May 2017 at 20:33

looking forward to seeing finished!

Lee French · 23 May 2017 at 06:48

Thank you guys, Going for it this week and getting everything together. Brizzles ill show you the layout now and see if you think its better. I love your paint skills :-)

Lee French · 23 May 2017 at 07:06

So this is the new layout the criss cross is going to be a double helix, a seperate res and pump for the 2nd loop in the same position

Brizzles · 23 May 2017 at 19:59

Are you bending the double helix piping from scratch i.e. a straight length of tubing ?

Lee French · 23 May 2017 at 20:01

Yeah gonna bend it from scratch do one whole length cut it in half and screw it together if that makes sense?

Lee French · 23 May 2017 at 20:01

I have not seen it done by anyone and think it would look great aiming to have each fluid going the opposite direction also.

Brizzles · 23 May 2017 at 20:09

Lee French said:
I have not seen it done by anyone and think it would look great aiming to have each fluid going the opposite direction also.

Lee French said:
Yeah gonna bend it from scratch do one whole length cut it in half and screw it together if that makes sense?

Impressive, look forward to seeing it

Lee French · 29 May 2017 at 06:37

Well Had a long go at this and being my first time managed to get it all done apart from a bit of a clean up.

Have to get some cable combs to tidy it up a bit more, these unruly cables

Last one is the worst one but easily fixable

LewisRaz · 29 May 2017 at 11:43

Thats looking good for a first try. Well done mate.
