The Utterly Imbalanced CaseLabs TX10-D build(s)- waiting for x99!

Welcome to my build log! This will be one going on concurrently over on OCN and Linustechtips forums as well as I feel the audience across these 3 forums can provide great feedback together.

Background

My first ever build originated late last year with the Corsair 900D, Asus Maximus VI Formula, i7 4770k and dual AMD R9-290x cards all on a custom loop. But even before I could finish the loop, the mining craze hit and I sold off my Hawaii cards for a small profit and went with 2x EVGA 780 Ti Classified KPEs instead. So that went well for a few weeks till I realized a single Corsair AX1200i jsut wasn't enough power for this system when benching on water. I began looking towards CaseLabs then and put on a feeler post on Craigslist to sell the 900D. Then the magic happened :D

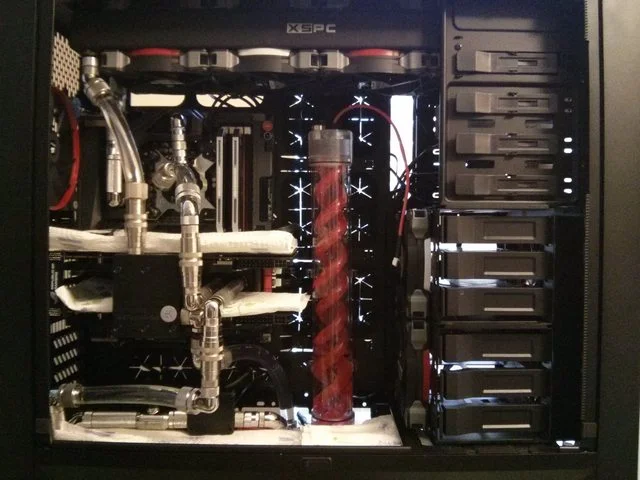

I traded my 900D build (As seen below during the leak test stage):

for this:

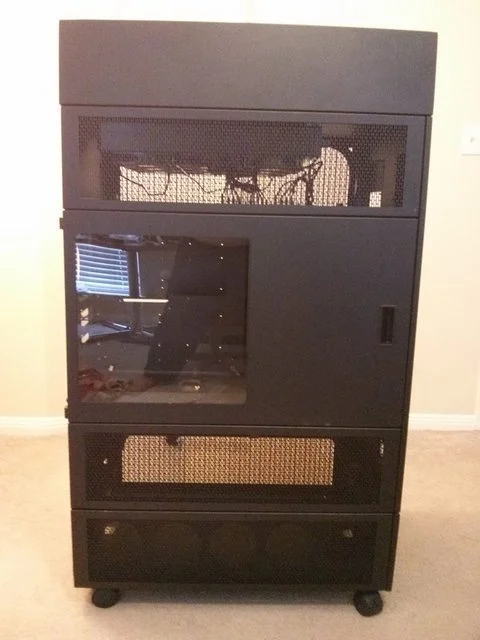

f5b2WN7l.png.jpg dKPF2FAl.jpg

Excuse those potato pictures since they were taken with excitement without setting up my dSLR. I really made out like a bandit in this trade. That is a TX10-D with pedestal and extended top along with plenty more goodies. So now, I do a massive benching/gaming rig on one side and one that's, well, just there for my girlfriend to replace her aging laptop that is pretty much a desktop these days due to the degraded battery.

Last edited:
Components for side 1: Modelling/Benching/Gaming

Main Components
Platform: x99 only if the $600 Haswell-E chip is an octacore, else z79
Processor: Intel i7 5930k (Anticipated, not obtained yet)
Motherboard: Undecided
Ram: DDR4, brand/model undecided
GPUs: 2x EVGA 780 Ti Classified K|ngp|n Edition cards (Bought)
PSUs: Corsair ax1200i, EVGA Supernova 1300G2 (Both bought)
OS: Windows 7 (Bought)
SSD: Undecided
HDD: Hitachi Travelstar 1 TB 7200RPM (For Steam, bought)
HDD: Toshiba 3 TB 7200RPM (For backup and storage, bought)
External HDD: Hitachi 4TB USB 3.0 (Bought)

Cooling

1) CPU/Motherboard/RAM loop

CPU Block: EK Supremacy/Koolance 380I (Have the Koolance block, will see if the EK block is better for Haswell-E)
Motherboard block: Depends on the board (Undecided)
RAM block: Undecided, depends on if DDR4 even benefits from watercooling
Radiators: Alphacool Monsta 480mm (Bought)
Fans: Corsair SP120 QE PWM push/pull on the Monsta (Bought)
Fan controller: Aquaero 6XT w/loop temperature sensors and flow meter
Reservoir(s): FrozenQ Mods 400mm Liquid Fusion Cylinder in Fluorescent Red (Bought)
Pump: Laing D5 (Undecided on exact model)
Tubing: Primochill Advanced LRT Clear in 1/2" x 3/4"
Fittings: Assortment from various brands
Coolant: Undecided

2) GPU loop

GPU Block(s): EK GTX 780 Classy in Acetal/Nickel (Bought)
Radiators: Watercool Mo.Ra 3 Pro 9.140, Hardware Labs Black Ice SR1 560mm
Fans: Gelid Wing 14 in push/pull on the Mo.Ra (Bought), Undecided on the SR1
Fan controller: Same Aquaero 6 XT as above + secondary voltage controller for Mo.Ra fans (Undecided)
Reservoir: FrozenQ Mods 400mm Liquid Fusion Cylinder in Fluorescent Blue (Partly bought)
Pump: Swiftech mcp35x2 or the upcoming mcp50x2 (Not bought)
Tubing: Primochill Advanced LRT Clear in 1/2" x 3/4"
Fittings: Assortment from various brands
Coolant: Undecided

Peripherals
Monitor: Dell U2713HM (Bought)
Keyboard: Roccat Ryos MK Pro w/Cherry MX Brown switches (Bought)
Mouse: Roccat Kone XTU w/FiiO e17 (Bought)
Speakers: Creative GigaWorks T40 Series II (Bought)
Headphones: Sennheiser HD598 (Bought)

The cooling here isn't set in stone, I got plenty of space to put in a Phase change unit for the CPU but I am not a big fan of the noise. I might also consider a Bong cooler as the front flex bay compartment will be mostly unoccupied. I am open to thoughts and suggestions!

Last edited:
Components for side 2: Productivity

Main Components
Platform: Z87
Processor: Intel i7 477k(Bought)
Motherboard: Asus Maximus 6 Formula (Bought)
Ram: Corsair Dominator Platinum 2x8 GB 1866 C9 Kit (Bought)
GPUs: A mid end card for CUDA and Adobe CS Live (Undecided)
PSU: Something 500-600 W max (Undecided)
OS: Windows 7
SSD: Samsung 830 512 GB (Bought)
HDD: Toshiba 3 TB 7200RPM (Bought)

Cooling
CPU block: Either EK Supremacy or Koolance 380i (See above for Side 1)
GPU block: Undecided
Motherboard block: EK M6F Acetal/Nickel
Radiator: Phobya G-Changer 120, XSPC AX480
Fans: Corsair SP120 QE PWM (Bought)
Fan Controller: Undecided
Reservoir: Bitspower Z Multi Water Tank 400mm (Bought)
Pump: Swiftech mcp35x (Bought)

Peripherals
Monitor: Acer 1080p Monitor (This is what she has now, I really want to get a better one for her soon)
Mouse: Logitech Performance Mouse MX
Keyboard: CM Storm Trigger w/Cherry MX Blue switches
Speakers: Undecided

Ya, and then the guy who originally bought it also got a pedestal, extended top and other accessories such as radiator mounts, HDD rack etc. Pretty sure it was close to $1500 for him when everything was shipped. So i ended up with a massive deal.

You really do have to post a pic of someone standing next to it :)

I got asked the same thing on OCN. That's definitely on my to-do list. Till then, I got a picture from Seross- the guy who has the same case with 3 pedestals (beating me by 2 pedestals):

LL


He is 5'9" tall and once he puts on the extended top, the case is taller than he is. Here is the link to his insane build log if anyone is interested: http://www.overclock.net/t/1374618/...triple-pedestals-sponsored-by-ek-water-blocks


Patience, Scotty, still the same "today" for me here :D

My DSLR battery charger died yesterday so that's a setback till I get a new one. I will end up using my phone till then. Definitely some more pics coming up today!
