Project: Negative10

Removed User 345456 · 18 Jun 2022 at 23:48

TheNoviceModder said:
Hey everyone, it's been a few years since I last posted anything to these forums as I've been out of the custom pc game due to money shortage but I'm making a comeback slowly now.

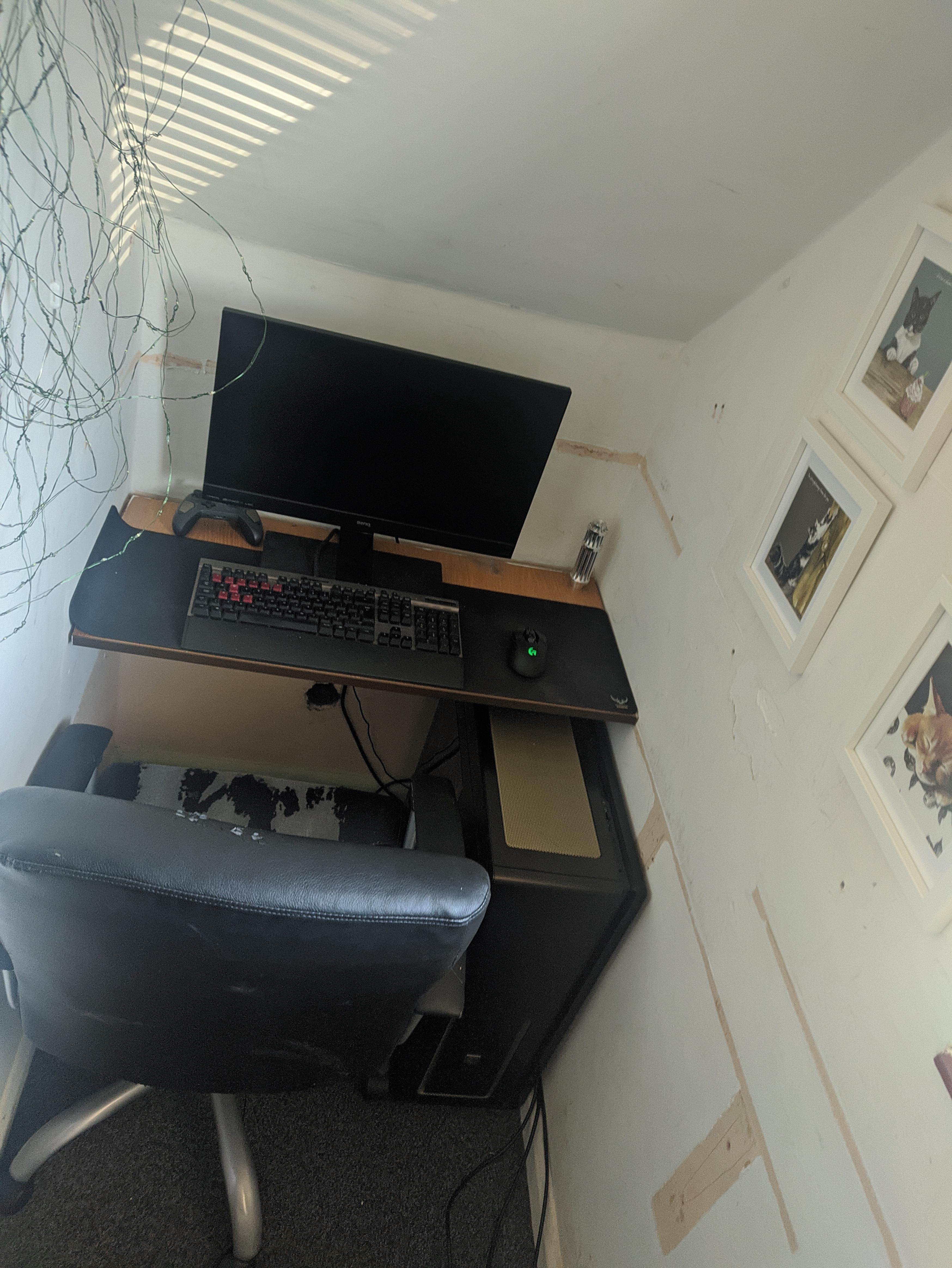

My new build has been inspired by the fact I moved into a house with my partner and the only room I can have my pc in is the cupboard under the stairs so having a tower is out of the question. Especially seeing as the case I was using for my system was the phanteks enthoo primo. As you can see, this was never going to work!

Haha! My chair is like that on the arms and at the lower back!

TheNoviceModder · 19 Jun 2022 at 12:29

keef247 said:
Haha! My chair is like that on the arms and at the lower back!

Lol, yeah it's got worse since that photo was taken. I've also removed the arms & back because they kept hitting the table when I got up & sat down really need a better seat for in there!

Oh Ed not again. · 19 Jun 2022 at 12:39

Now, this might be an unpopular notion but have you considered an ITX build? Or a desk/shelf build?

Removed User 345456 · 19 Jun 2022 at 13:02

TheNoviceModder said:
Lol, yeah it's got worse since that photo was taken. I've also removed the arms & back because they kept hitting the table when I got up & sat down really need a better seat for in there!

hahaha it's not just me that has that issue with the arms then? I have to lower it right down to tuck mine under the high big ass desk I have. as I'm 6ft8 so I put a longer piston in the chair so I keep the hip/leg angle I require. so everytime I get it out I have to raise it up lol.

B1ng · 19 Jun 2022 at 15:21

A great looking build so far! Always nice to see creativity & DIY to the rescue.

I've been looking into a wallmount case to tidy up my rats nest of cables, but the few purchase-able options are pricey. Following with great interest.

TheNoviceModder · 19 Jun 2022 at 15:22

randal said:
Now, this might be an unpopular notion but have you considered an ITX build? Or a desk/shelf build?

I did consider an ITX build but I literally have no room on the desk for it and if I have a shelf build I may as well do the wall mounted build instead.

TheNoviceModder · 19 Jun 2022 at 16:18

keef247 said:
hahaha it's not just me that has that issue with the arms then? I have to lower it right down to tuck mine under the high big ass desk I have. as I'm 6ft8 so I put a longer piston in the chair so I keep the hip/leg angle I require. so everytime I get it out I have to raise it up lol.

I took the left arm rest off because it was getting in the way when I got up to get out of the room. I then took the other arm rest off and because the back was only connected via the arm rests, that came off too lol. Now I'm considering just getting a static armless chair instead.

TheNoviceModder · 19 Jun 2022 at 16:20

B1ng said:
A great looking build so far! Always nice to see creativity & DIY to the rescue.

I've been looking into a wallmount case to tidy up my rats nest of cables, but the few purchase-able options are pricey. Following with great interest.

Thanks so much! I've corrected the mounting holes for the psu now so that sits how it originally should have will get the GPU bracket sorted next. I may even order the side window too

Removed User 345456 · 19 Jun 2022 at 23:58

TheNoviceModder said:
I took the left arm rest off because it was getting in the way when I got up to get out of the room. I then took the other arm rest off and because the back was only connected via the arm rests, that came off too lol. Now I'm considering just getting a static armless chair instead.

Hahaha amazing! a man of my own heart.
I'm going go make a proper reclining bucket seat car chair. hate all these cheap Chinese tacky fake bucket seats. so tacky and overpriced. I'd rather use a real recaro and just add arms to it. so simple as well if you know how car seat rails work.

TheNoviceModder · 7 Jul 2022 at 08:09

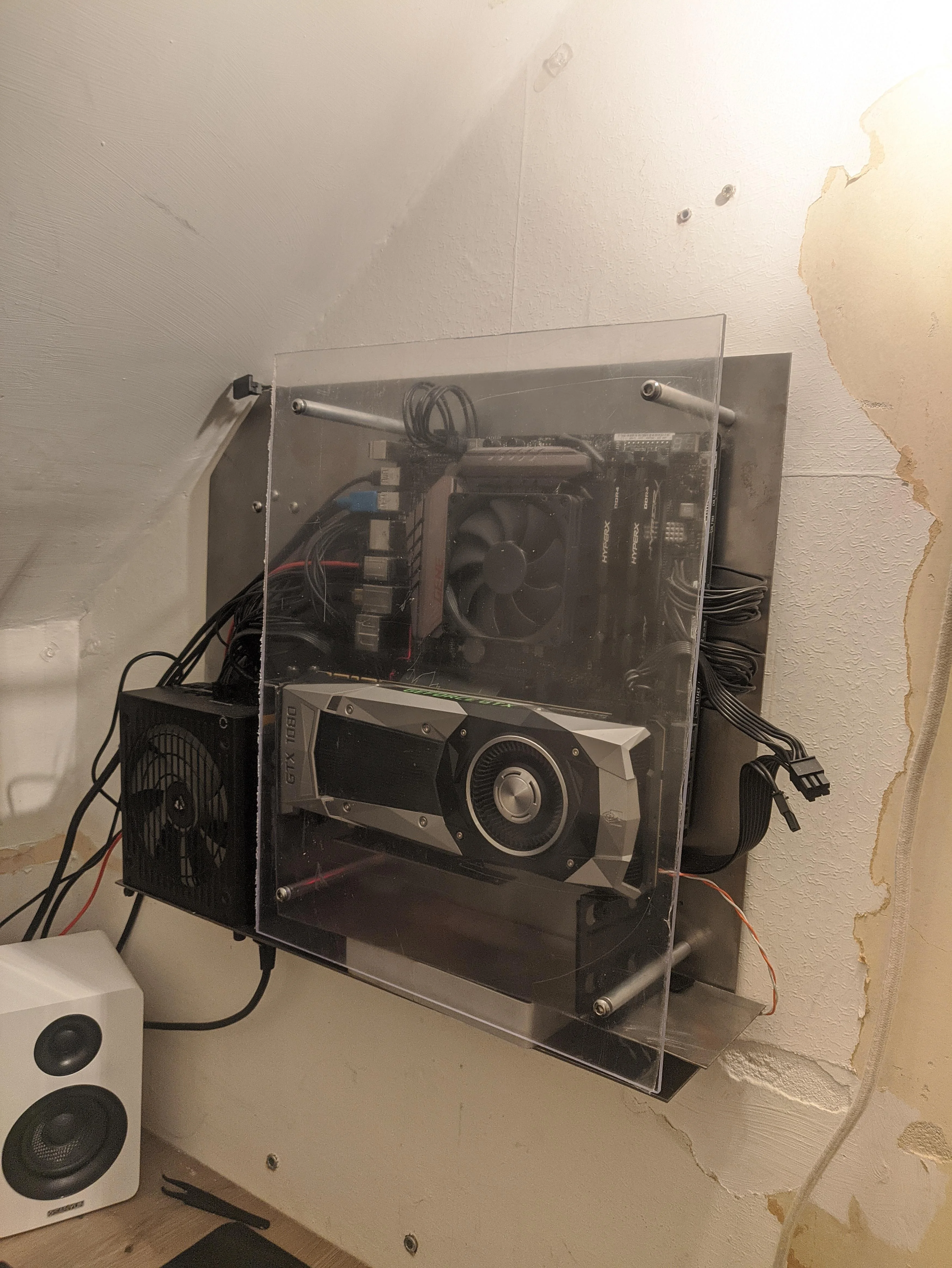

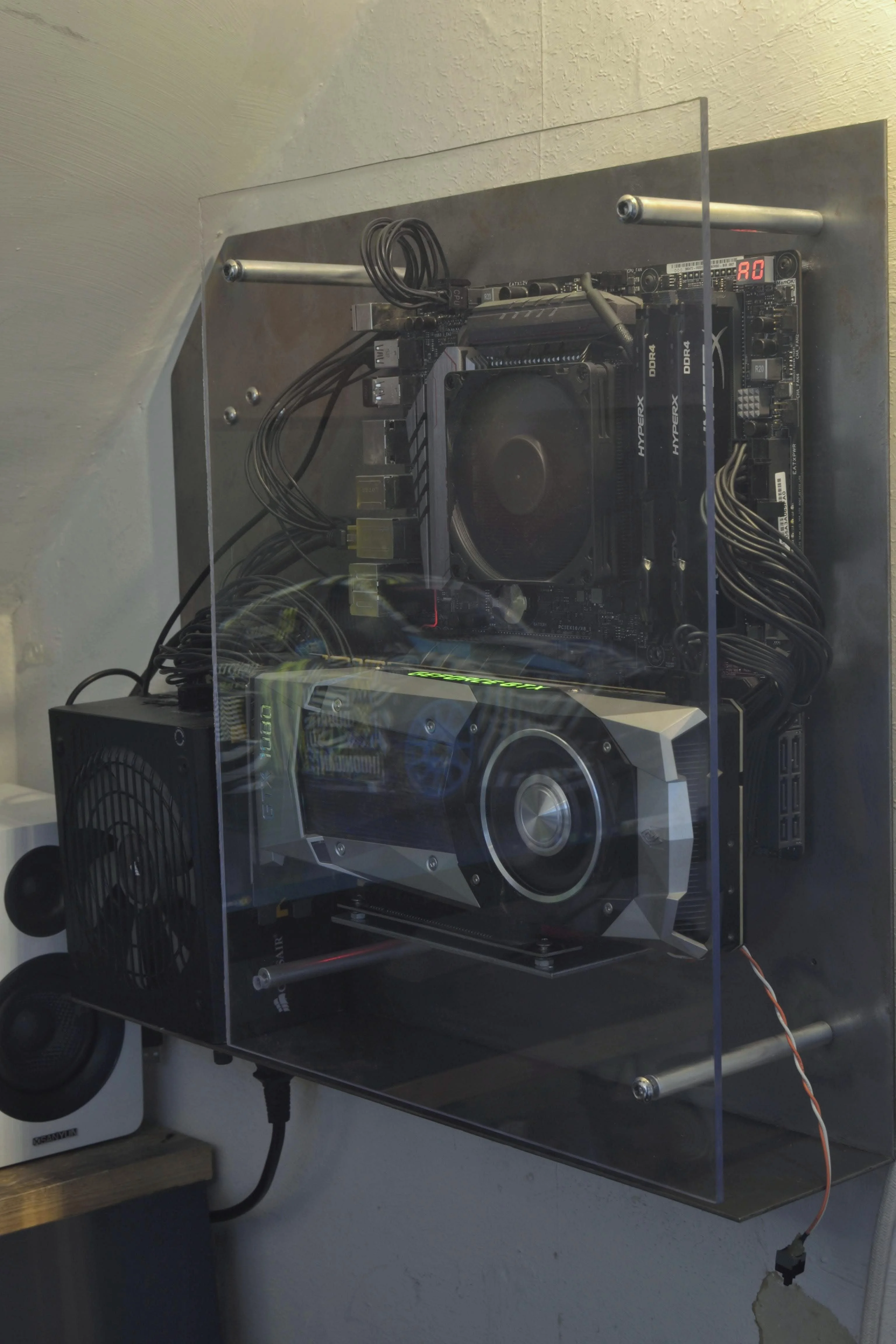

Found time this week to get the polycarbonate window cut to size since the company I bought the sheet off didn't cut it like I asked them to so there's some rough edges I need sanding smooth. Holes drilled & threaded, so this is how it looks mounted. Pretty happy with it tbh.

Once I'm done sorting the window, it's back to making the GPU mount which is also coming along nicely! That'll be later this week though probably.

| Side note |
I've got plans for this window & the proof of concept has worked so far, I just need to work out how to cleanly pull it off! Can't give too much away until its completed though

Monkey Puzzle · 7 Jul 2022 at 13:15

Looks good

What's left to do? Cutting, or frosting for the window?

TheNoviceModder · 8 Jul 2022 at 07:09

Monkey Puzzle said:
Looks good What's left to do? Cutting, or frosting for the window?

Things currently left to do include:

• sand the window edges
• finish the GPU brackets
• make the psu cover
• figure out how to achieve the desired lighting setup
• work out how to integrate a clever power button
• begin weight reduction on the main metal plate

Monkey Puzzle · 8 Jul 2022 at 18:52

TheNoviceModder said:
Things currently left to do include:

• sand the window edges
• finish the GPU brackets
• make the psu cover
• figure out how to achieve the desired lighting setup
• work out how to integrate a clever power button
• begin weight reduction on the main metal plate

Cool cool - what's in the metal box in the middle at the bottom?

TheNoviceModder · 8 Jul 2022 at 19:01

Monkey Puzzle said:
Cool cool - what's in the metal box in the middle at the bottom?

It's not a box. If you look carefully, on the first page you'll spot in one of the photos near the top of the thread, the psu is being held up by two of those bits of metal. They used to be a one meter ruler & I cut them down, bent them & turned them into a bracket to hold the psu up lol. The one you're referring to is being used to hold up the current GPU bracket as the pci-e riser is too short to reach the board when the GPU bracket is at the bottom without that bit of metal holding it up. It's not a permanent solution don't worry lol

Monkey Puzzle · 8 Jul 2022 at 20:03

TheNoviceModder said:
It's not a box. If you look carefully, on the first page you'll spot in one of the photos near the top of the thread, the psu is being held up by two of those bits of metal. They used to be a one meter ruler & I cut them down, bent them & turned them into a bracket to hold the psu up lol. The one you're referring to is being used to hold up the current GPU bracket as the pci-e riser is too short to reach the board when the GPU bracket is at the bottom without that bit of metal holding it up. It's not a permanent solution don't worry lol

Haha - looks like one of those little mac boxes.

TheNoviceModder · 15 Jul 2022 at 18:39

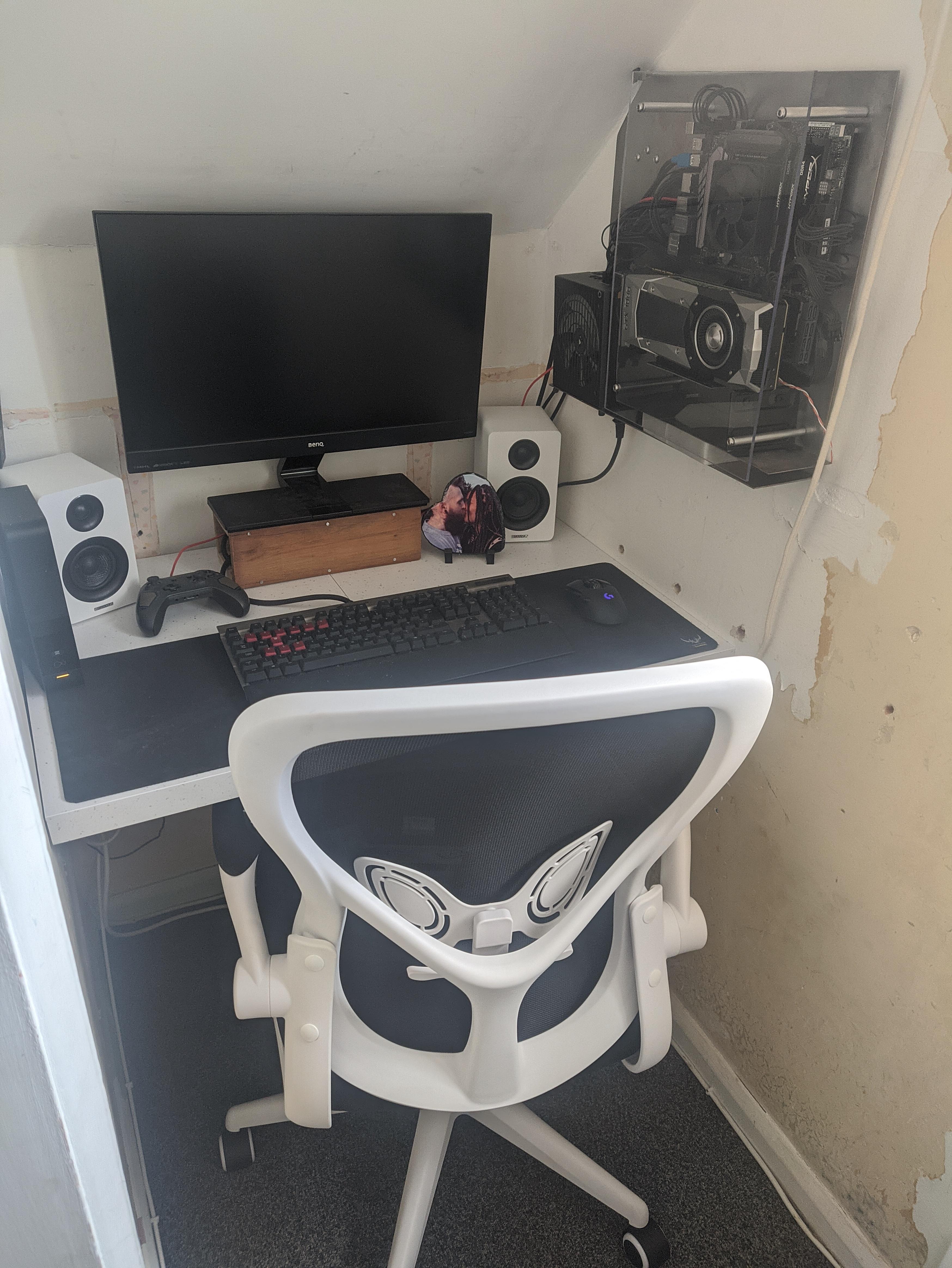

Finally caved & bought myself a new chair. This one has rotating arms so I can move the left one up so I can leave the room easier. I also made a new desk top out of two excess pieces of kitchen worktop and as I was taking this photo, I realised I've accidentally settled on a colour theme for this build, black & white. I swear this wasn't planned :cry:

TheNoviceModder · 7 Apr 2023 at 16:23

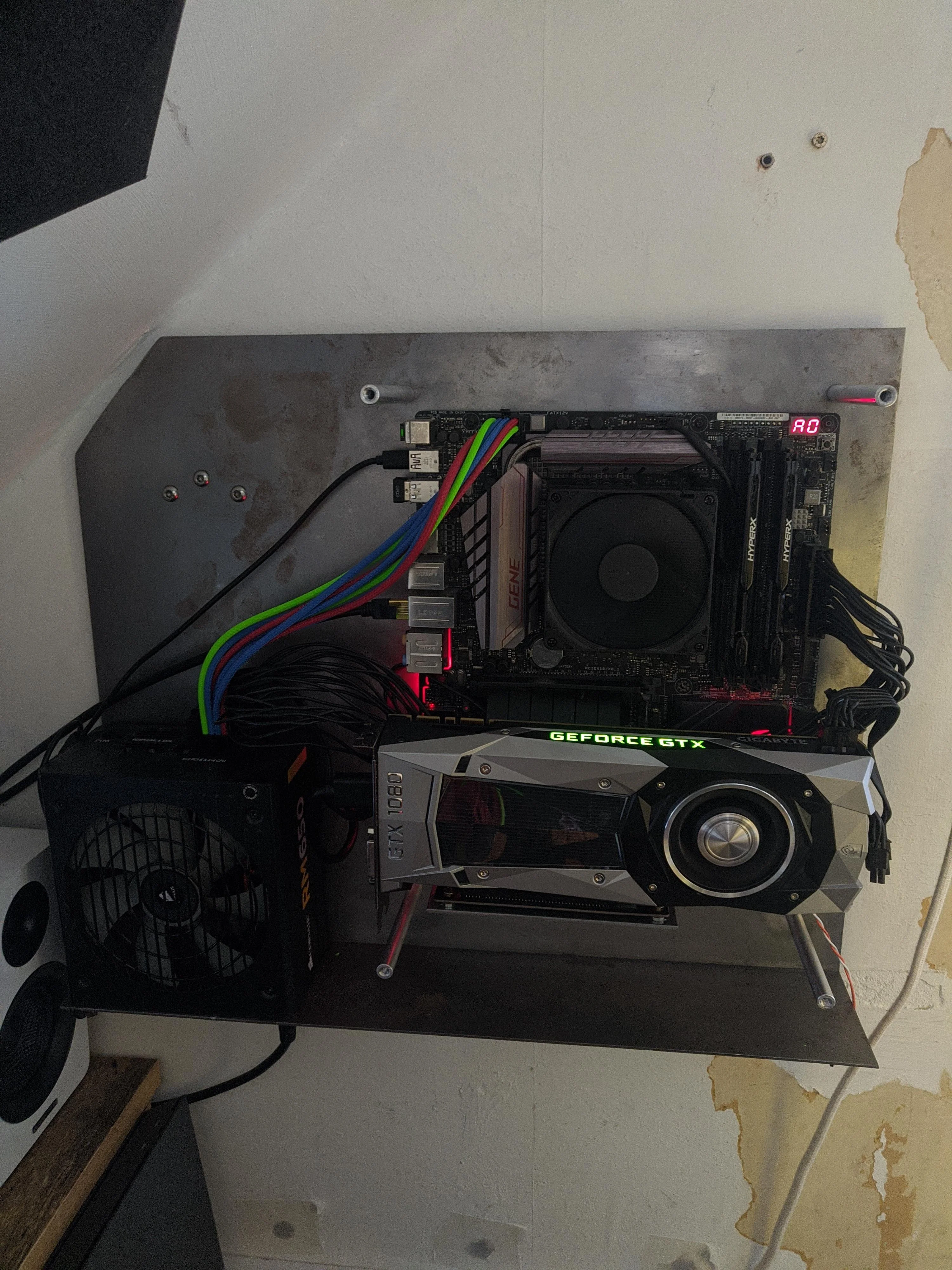

Been a while since anything was done with this build. Managed to scavenge some 90° steel from work recently, so using the angle grinder I cut it to length. Then I drilled & tapped two holes for the GPU riser bracket to mount to. Then drilled & tapped three holes to mount this new GPU bracket to the motherboard tray.

GPU power cable and 24 pin motherboard power cable both now get routed down and along the back between the GPU and motherboard. 8 pin power cables do a loopty loop in the corner & I'm not sure how I can do anything else with them to tidy them up? Eventually I will make the custom sleeved cables, which will help with tidying up. I just need to make a PSU bracket so it has a fixed location, and in turn means the cables have a final fixed length to be made to.

Current dimensions;
50cm x 41cm x 10.7cm

8mm to shave off until I've met my target! Two places this can be done are the PSU being swapped for a slimmer one and the GPU could be mounted further back in a revised bracket.

Would love to hear people's thoughts on how this is looking now!

TheNoviceModder · 16 Apr 2023 at 08:19

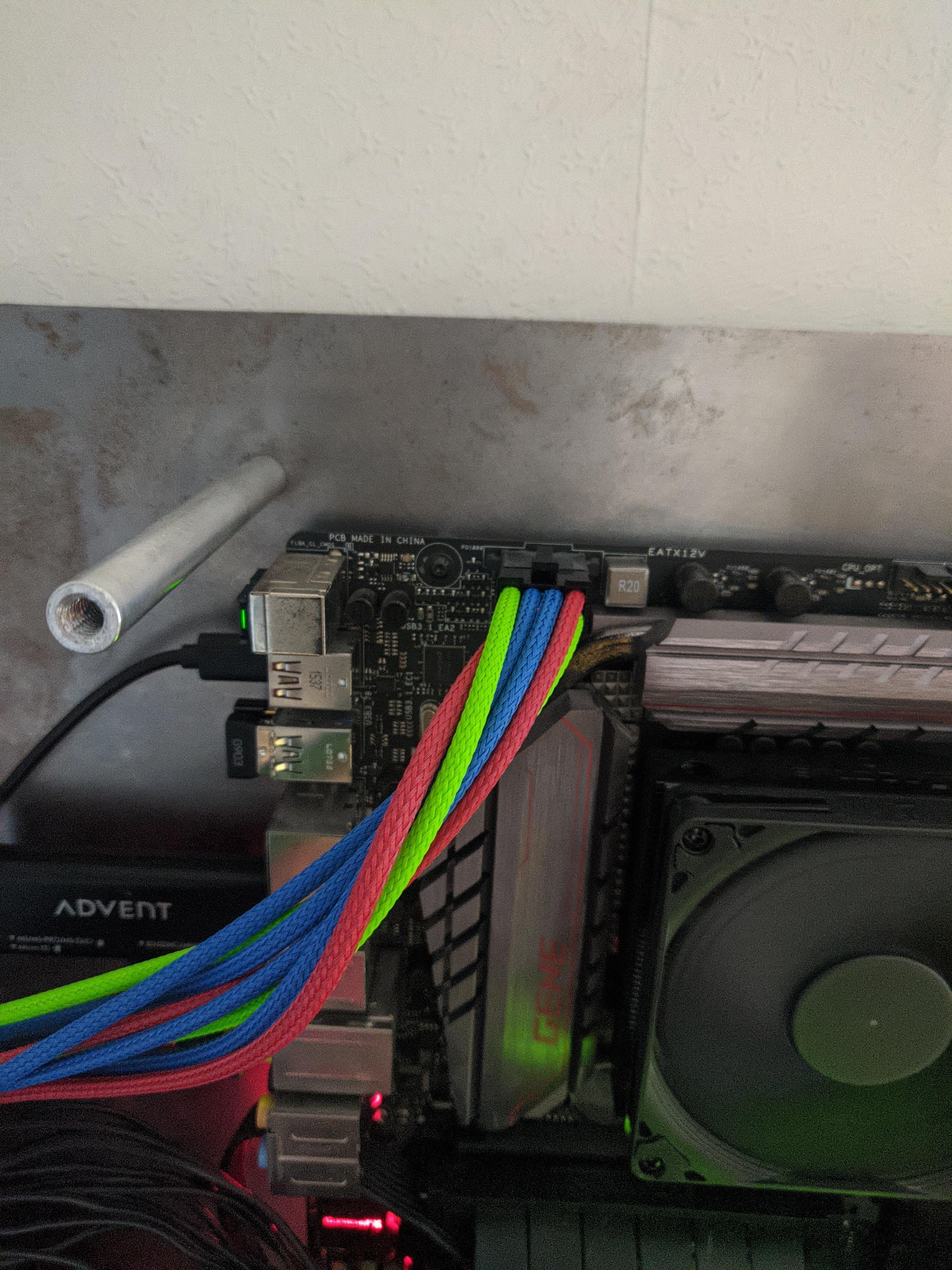

After having the kit to make my custom cables for nearly two years, I finally found the time & motivation to get the 8pin eps cables done! Somehow I made an error with the length of one cable? It's shorter than the rest which I don't understand. It still, just about, reaches without tension so I'm happy to install it but I will redo it at another stage.

I bought less blue than I did red & green, but because it's been so long since I planned which colours would go where, I've forgotten. So for now I winged it but looking back on it I'm thinking to replace with two blue's with a green and red.

qbhatti · 19 Apr 2023 at 16:20

This looks good but was there any possibility of fitting it behind the wall?

TheNoviceModder · 19 Apr 2023 at 17:29

qbhatti said:
This looks good but was there any possibility of fitting it behind the wall?

Do you mean the other side of the wall it's mounted on? If so, then no because that's an external wall. Other than mounting it on the wall behind my chair (like pictured in one of the previous photos further up) and using long cables to connect the monitor & psu to the sockets, this is the best position I've got.
