What is the point of this?

nlel1975 · 5 Mar 2024 at 14:45

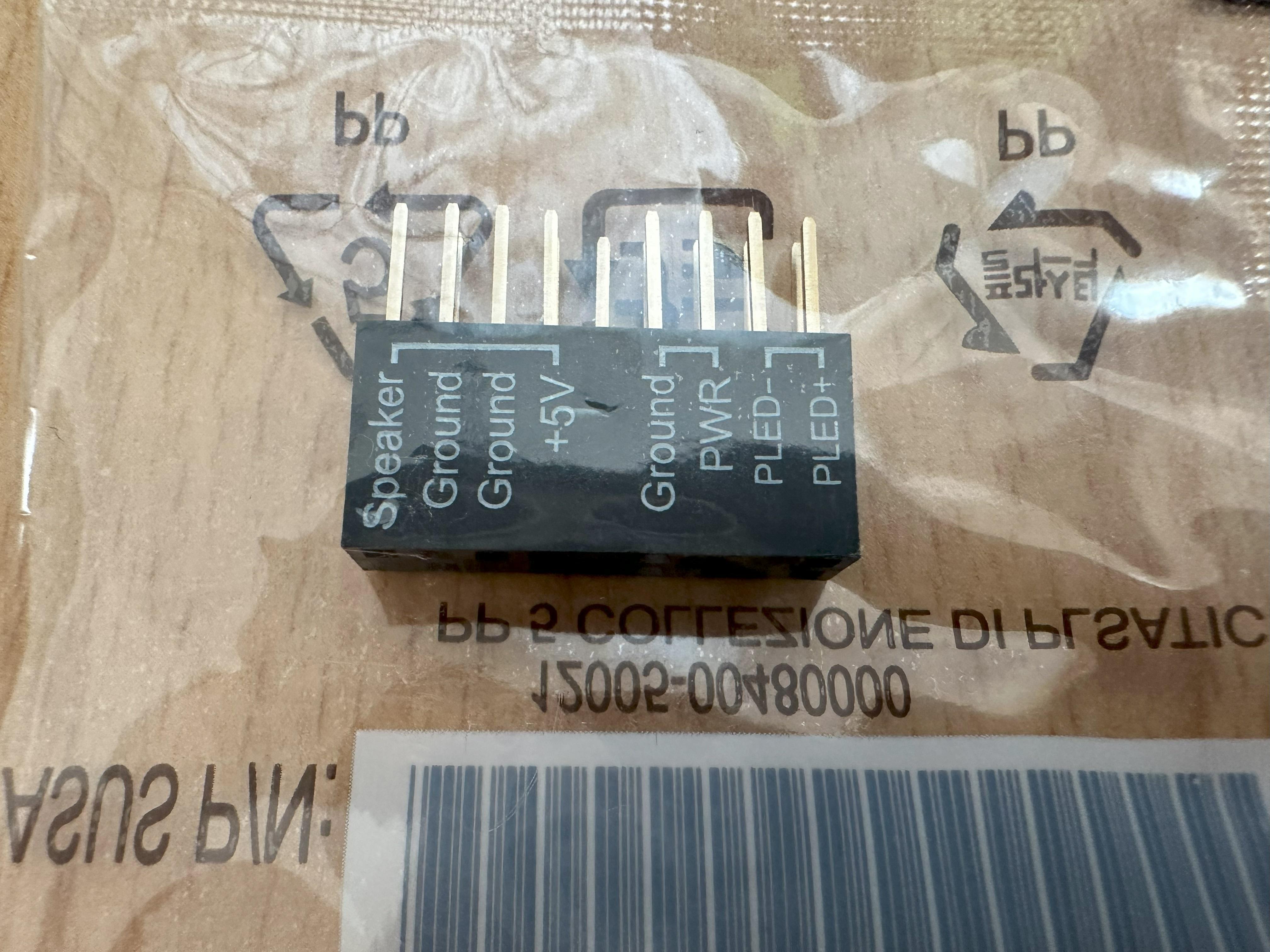

I looked at the bits in my motherboard box and found this front panel connector thingy...

What's the point of it? I've already got my power button, power LED and reset switch from the case connected to the motherboard without using this adapter. Is it just to make it easier to know what each pin is for?

Tetras · 5 Mar 2024 at 14:52

nlel1975 said:
Is it just to make it easier to know what each pin is for?

Yeah, it is just for ease of use and is less fiddly, especially with a small case where it is difficult to get at them when installed.

Raggs · 5 Mar 2024 at 14:57

my old asus board came with one of those new one didn't i was cursing asus, just makes the job so much easier having that little block

adidan · 5 Mar 2024 at 15:03

nlel1975 said:
What's the point of it?

nlel1975 said:
Is it just to make it easier

Yes

nlel1975 · 5 Mar 2024 at 15:25

I guess it could be handy if you sold the motherboard without the manual so the new owner would know what each pin is for without searching the internet. I just looked in the manual and connected the case wires directly to the motherboard.

mattyfez · 6 Mar 2024 at 03:58

Makes it easy as you can plug all the fiddly little wires into the block, and then just plug the whole block into the motherboard header socket.
Can be a god send on tight or small PC cases.

Should be a mandatory feature if you ask me!

Rroff · 6 Mar 2024 at 04:02

It does make it slightly easier, my Z790 board came with one, but wouldn't say it was an earth shattering difference.

darkblade · 6 Mar 2024 at 08:15

Also makes it easier to disconnect and reconnect it from/to the board should you need to.

pastymuncher · 6 Mar 2024 at 10:48

I have never used them as it makes the most untidy wires in my case look even more untidy by raising them up even further.

nlel1975 · 13 Mar 2024 at 10:00

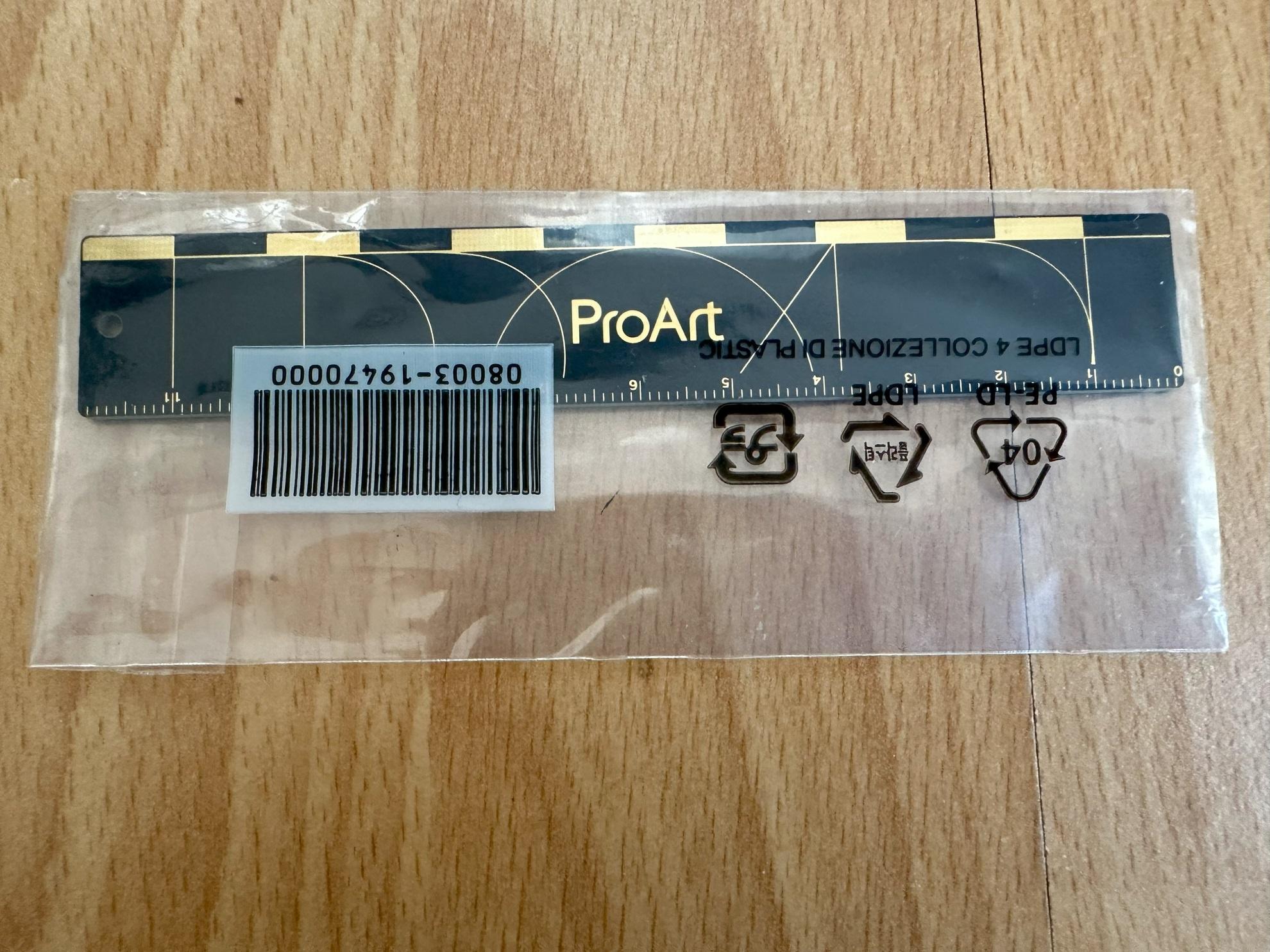

Also found this in motherboard box...

What's this for?

Armageus · 13 Mar 2024 at 10:02

nlel1975 said:
What's this for?

Measuring things and drawing straight lines?

Vimes · 13 Mar 2024 at 10:14

Armageus said:
Measuring things and drawing straight lines?

Hopefully, if it is plastic, you can also twang it on the edge of a desk, shortening it etc, to make different tones.

Tetras · 13 Mar 2024 at 15:12

nlel1975 said:
Also found this in motherboard box...

What's this for?

I've seen a lot of weird accessories with motherboards, but a ruler? That's a new one

Armageus · 13 Mar 2024 at 15:16

Tetras said:
I've seen a lot of weird accessories with motherboards, but a ruler? That's a new one

It's to help you put your NVME heatsink back on straight

Got to get something to justify the £500 price tag of a ProArt though
