On to today's update - been a while since the last one as I was away on holiday, but it's a good one!
And it starts with this rather blurry picture:

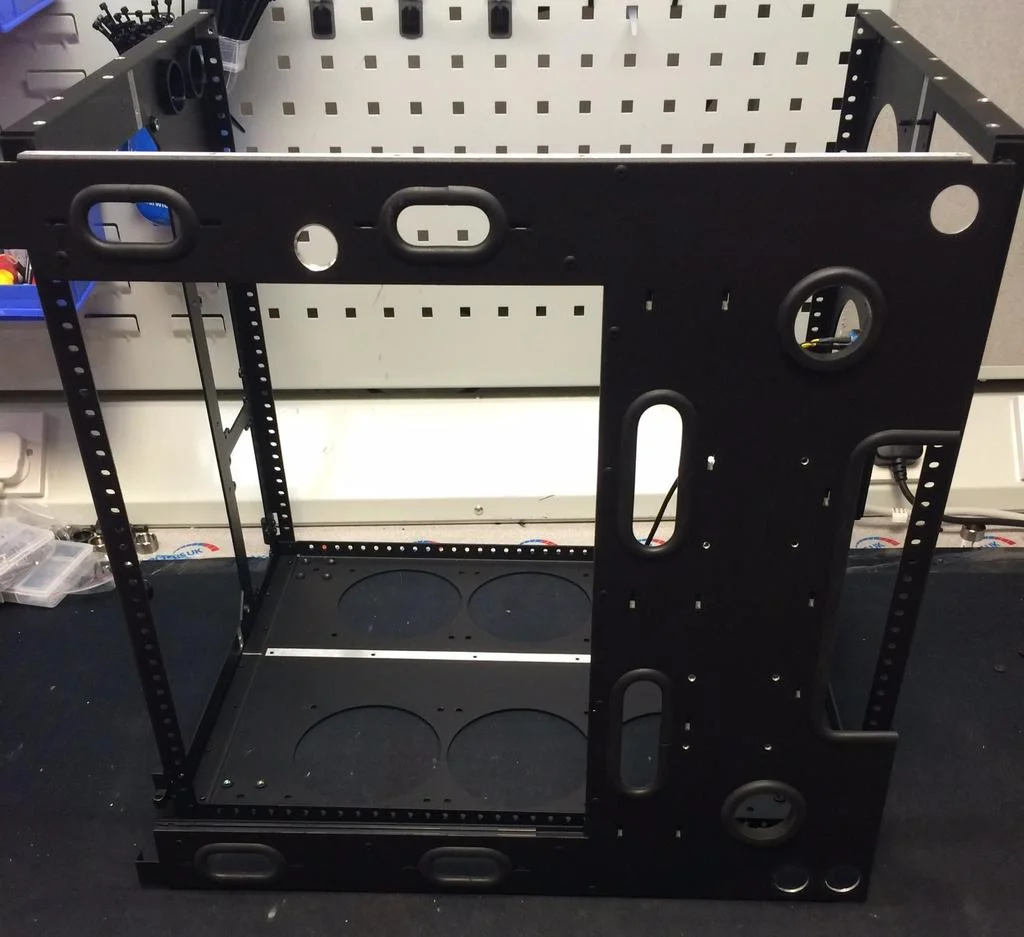

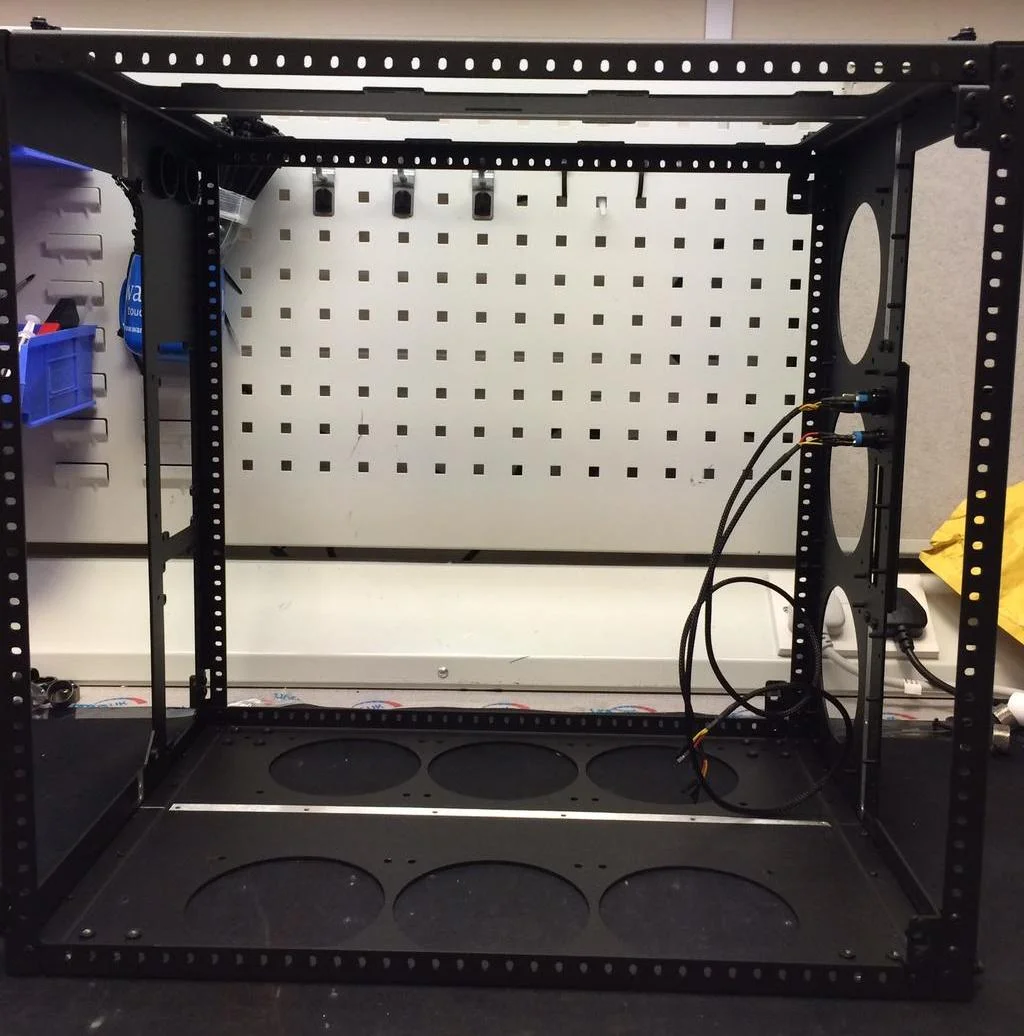

As this case came pre-assembled, some disassembly was required.

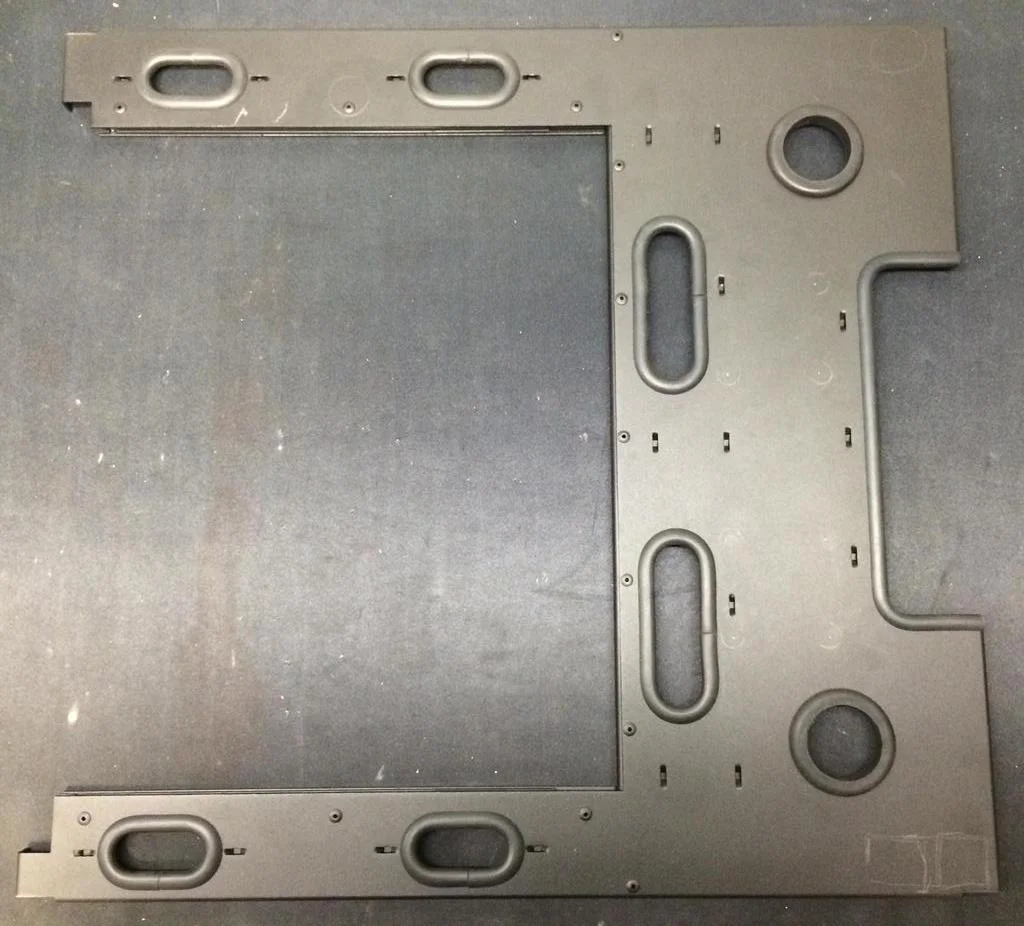

Midplate marked out
and cut

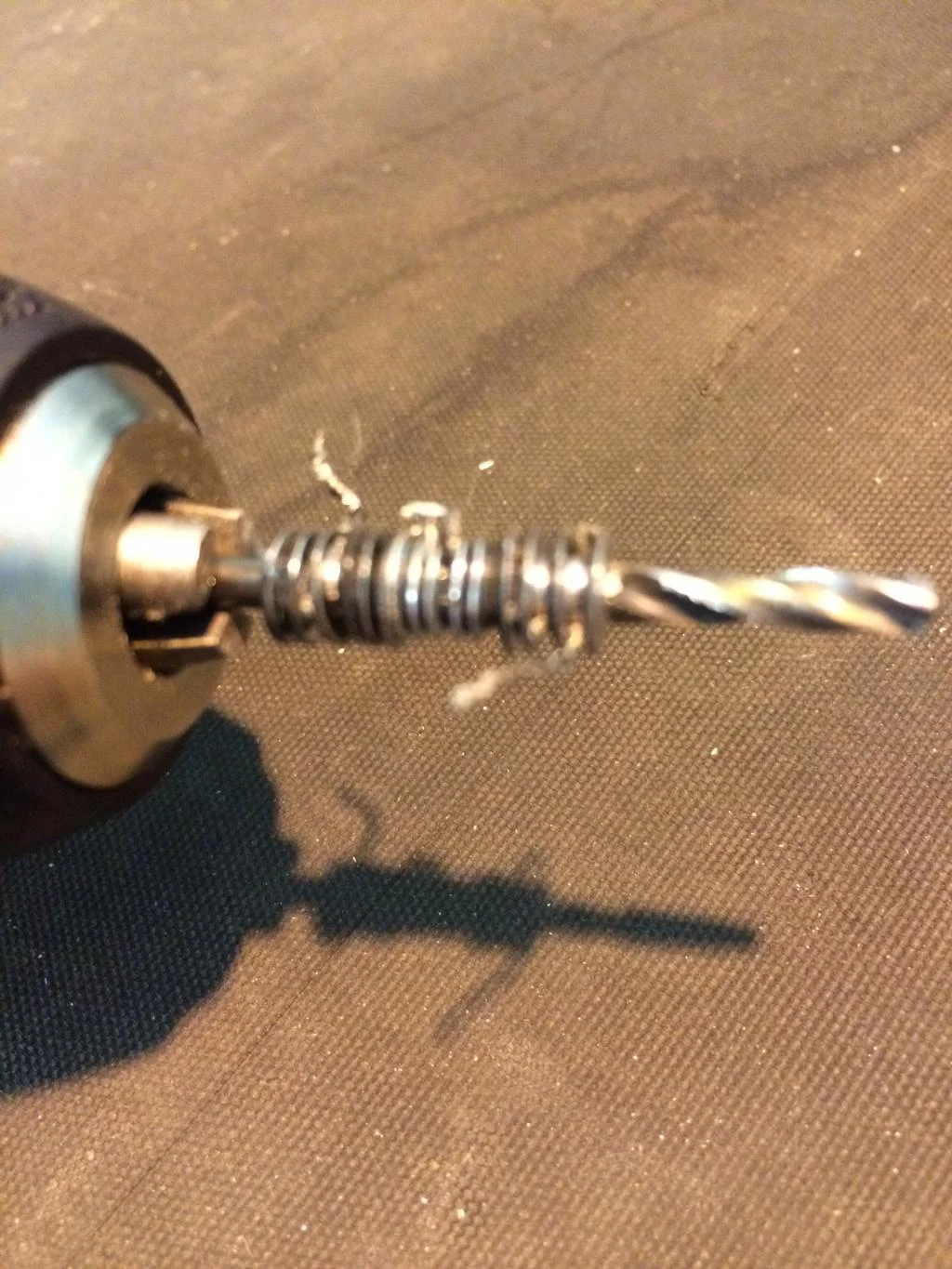

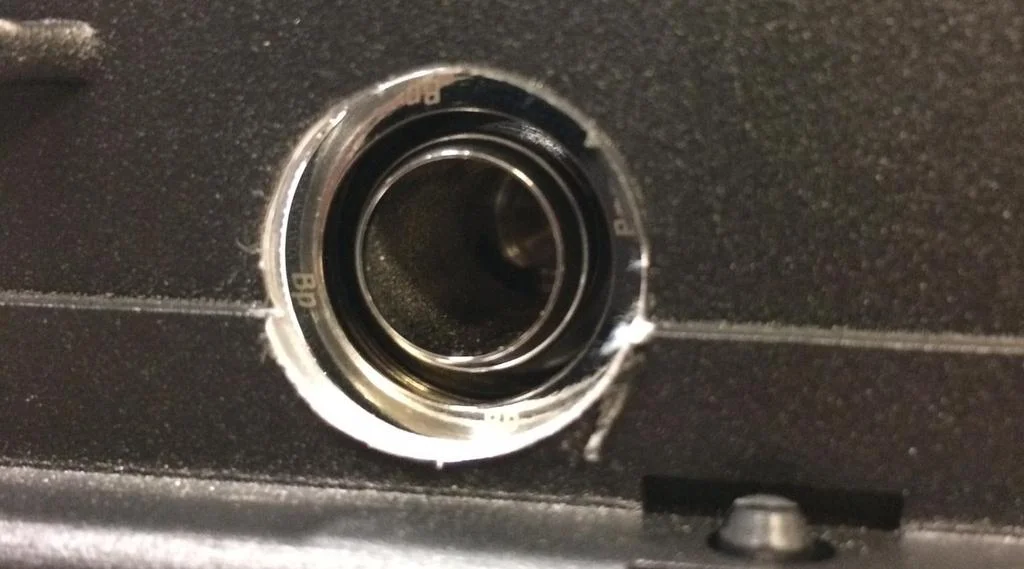

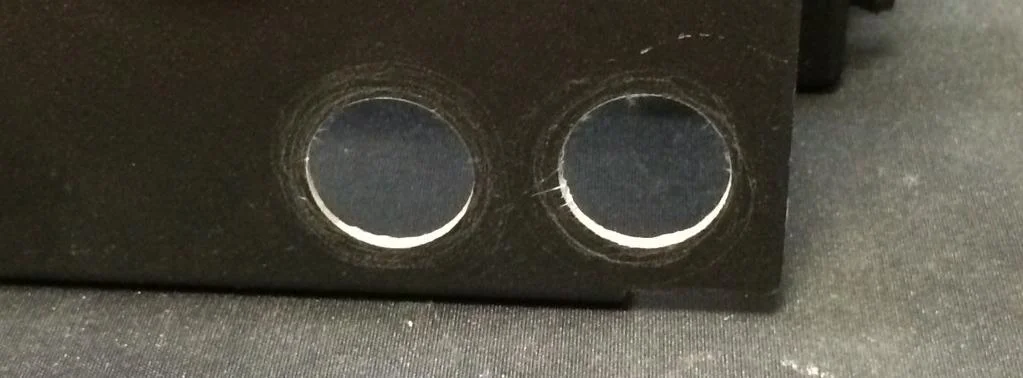

close up of the holes, cut with a stepper drill bit
and the best hole I have ever cut
couldn't have been any more accurate.

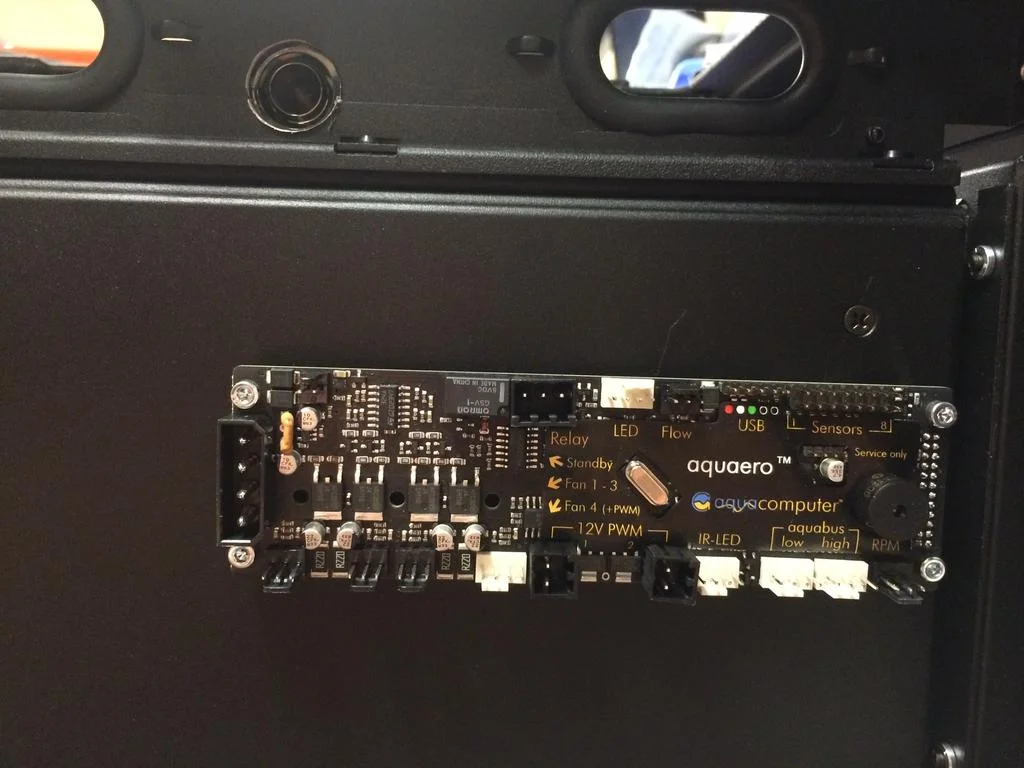

also mounted the Aquareo to the back of the motherboard tray

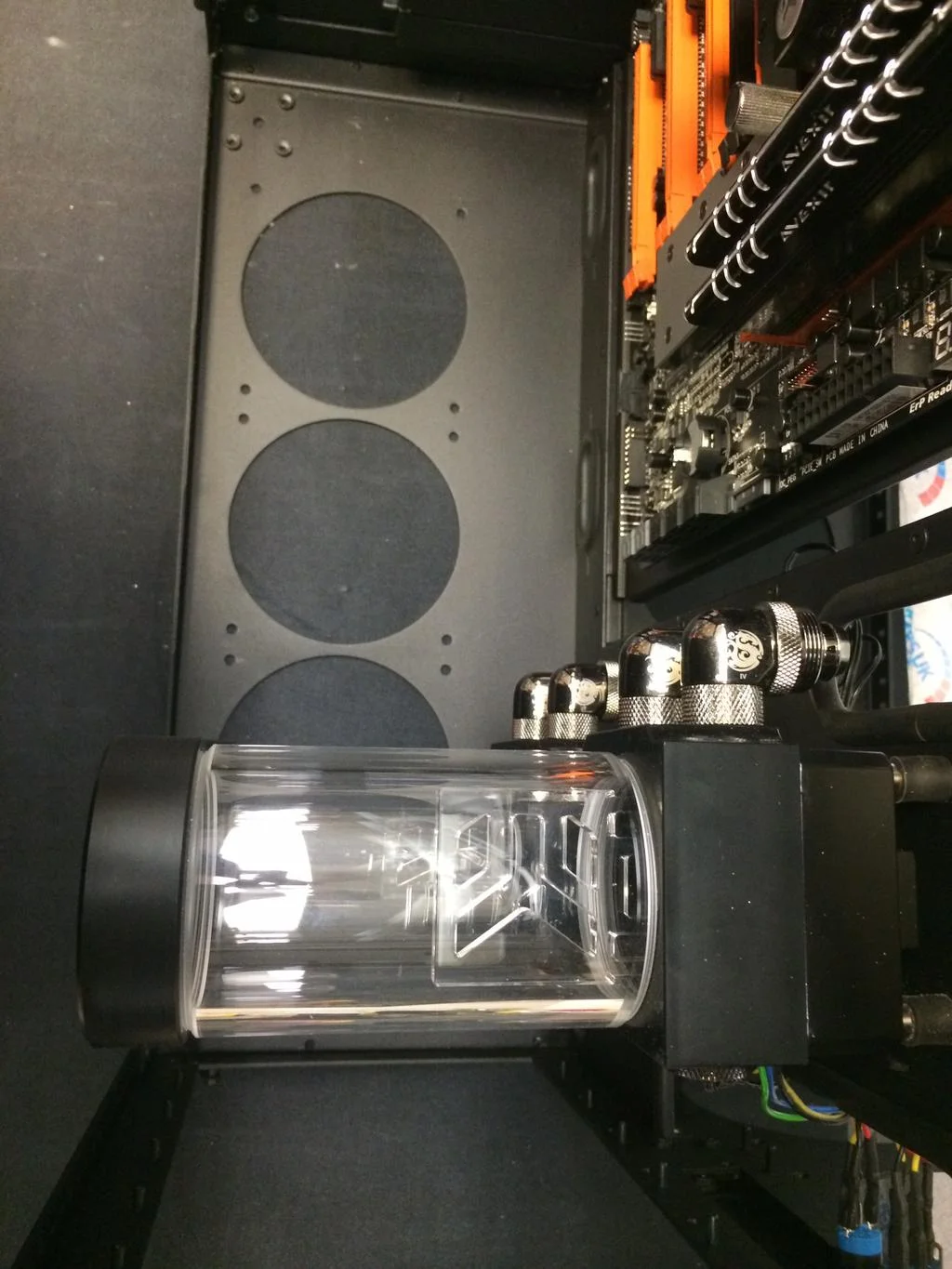

Now on to my favourite part.. The eagle eyed amongst you may have noticed 8 circular markings on the mid plate arranged in 2 squares.. but how many of you realised those were mounting holes for the pumps?!

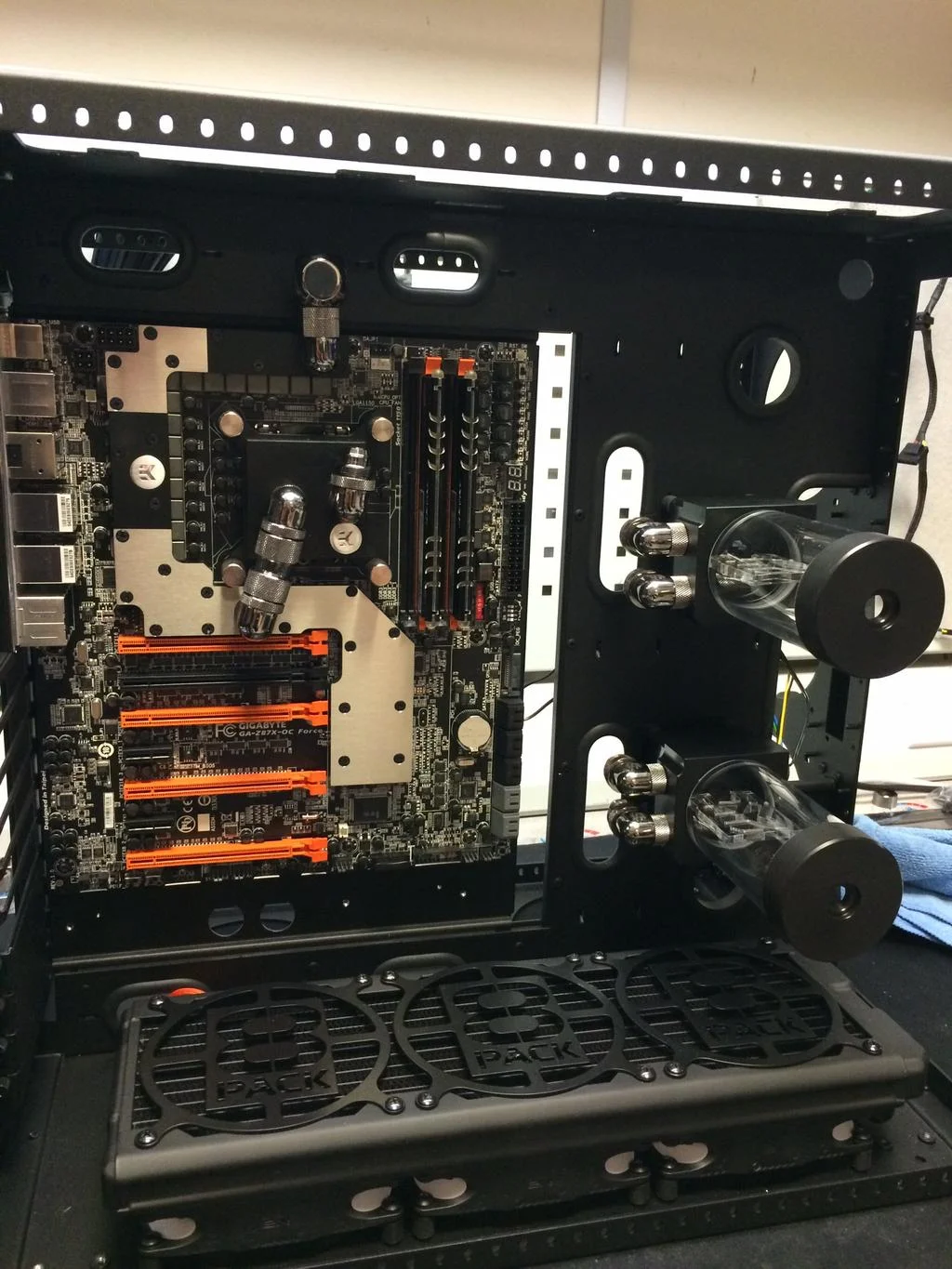

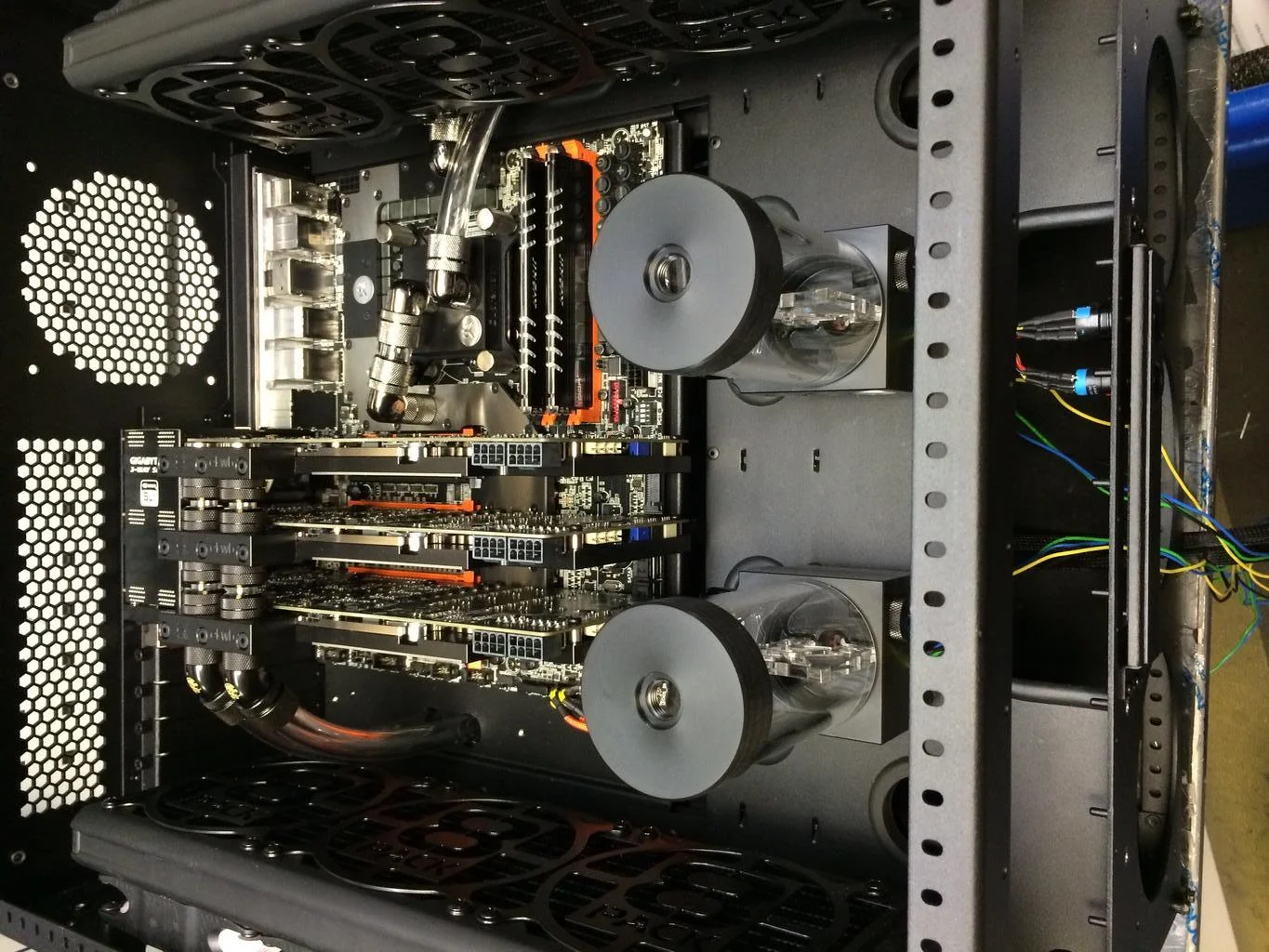

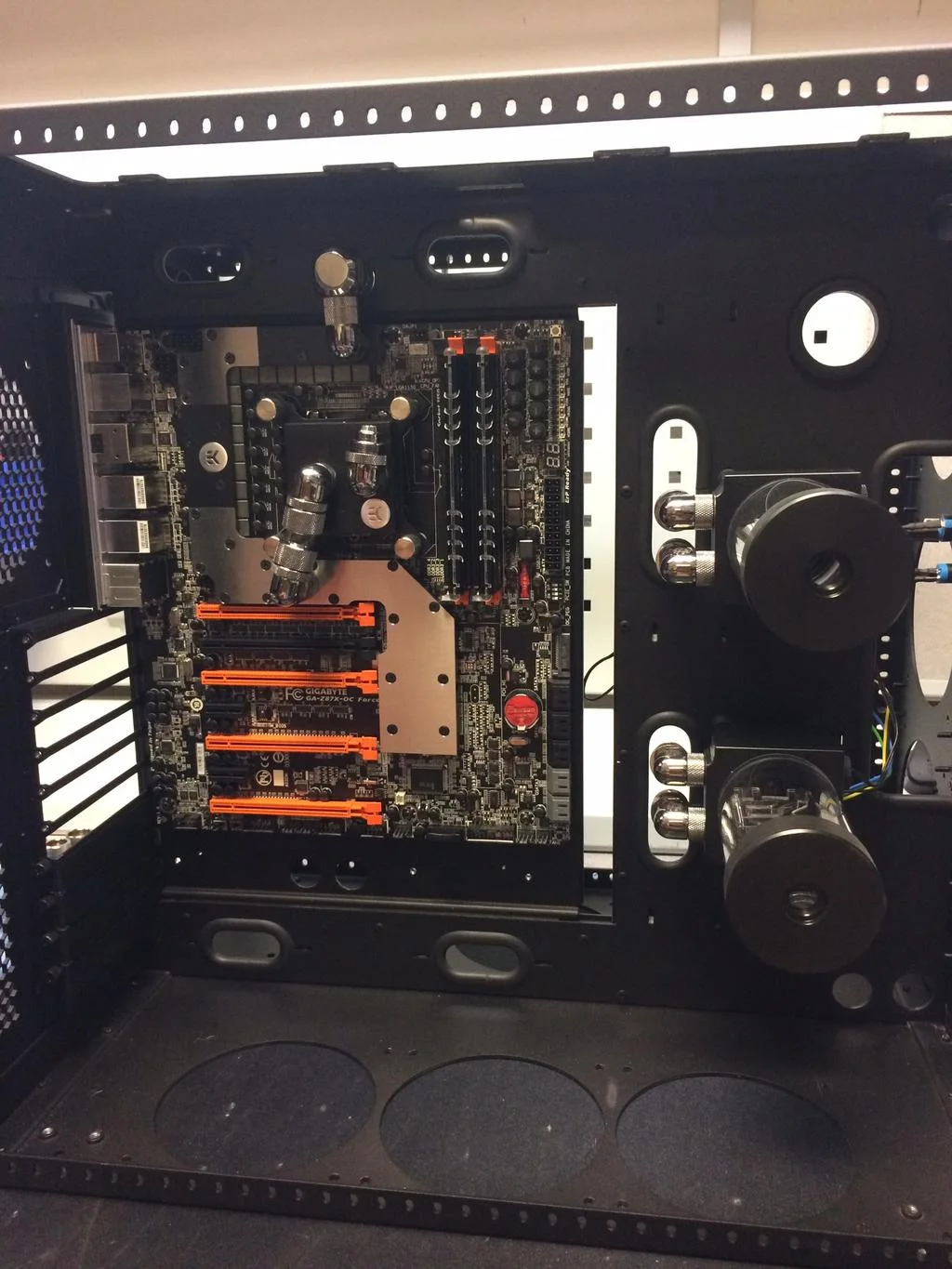

TADA!
This originally started out as a joke, but the more I saw it, the more it made sense.
They fill up some empty space, as well as cleaning up the tubing runs
And they used the pre-existing cable management holes to make things easier.

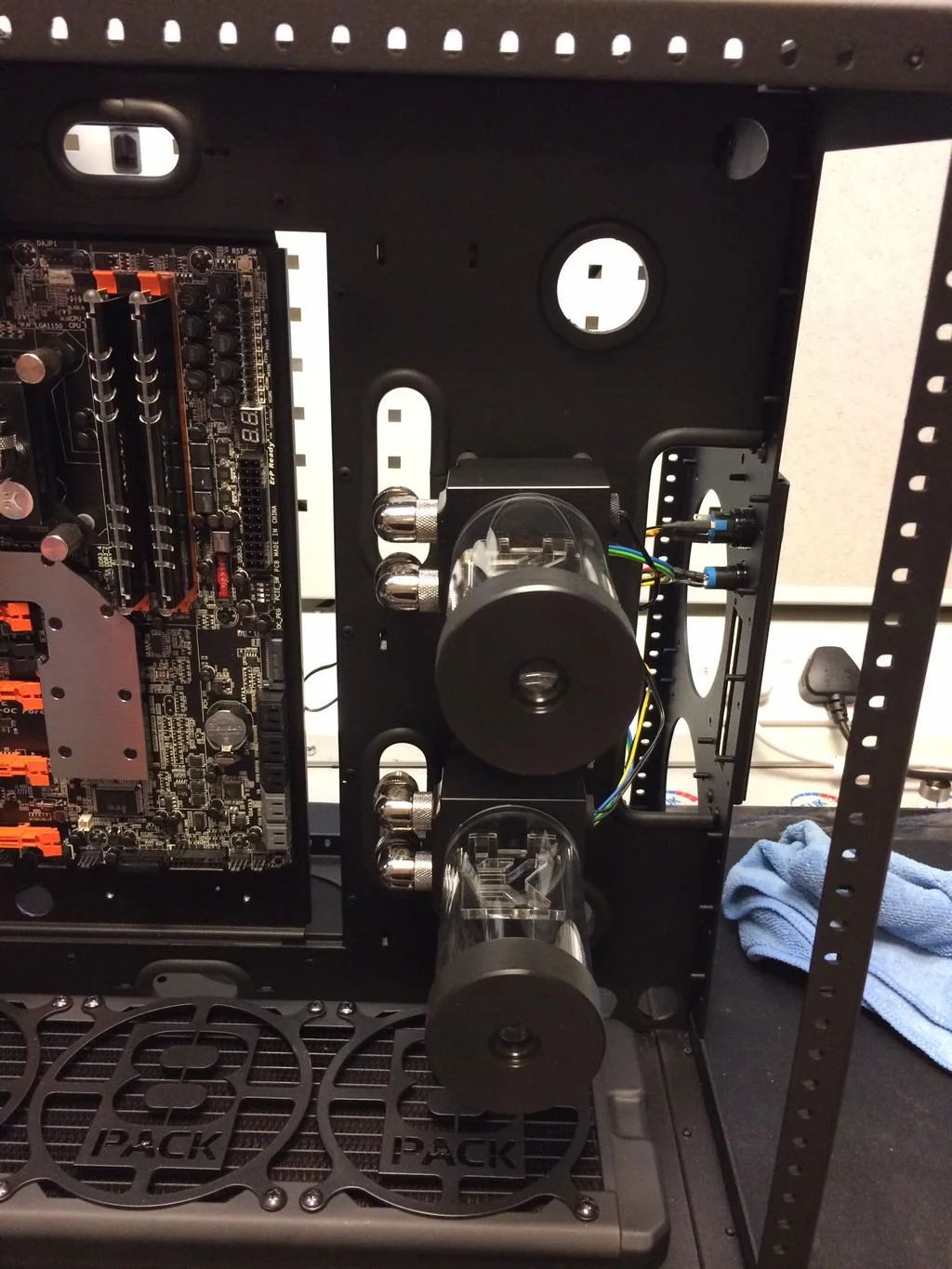

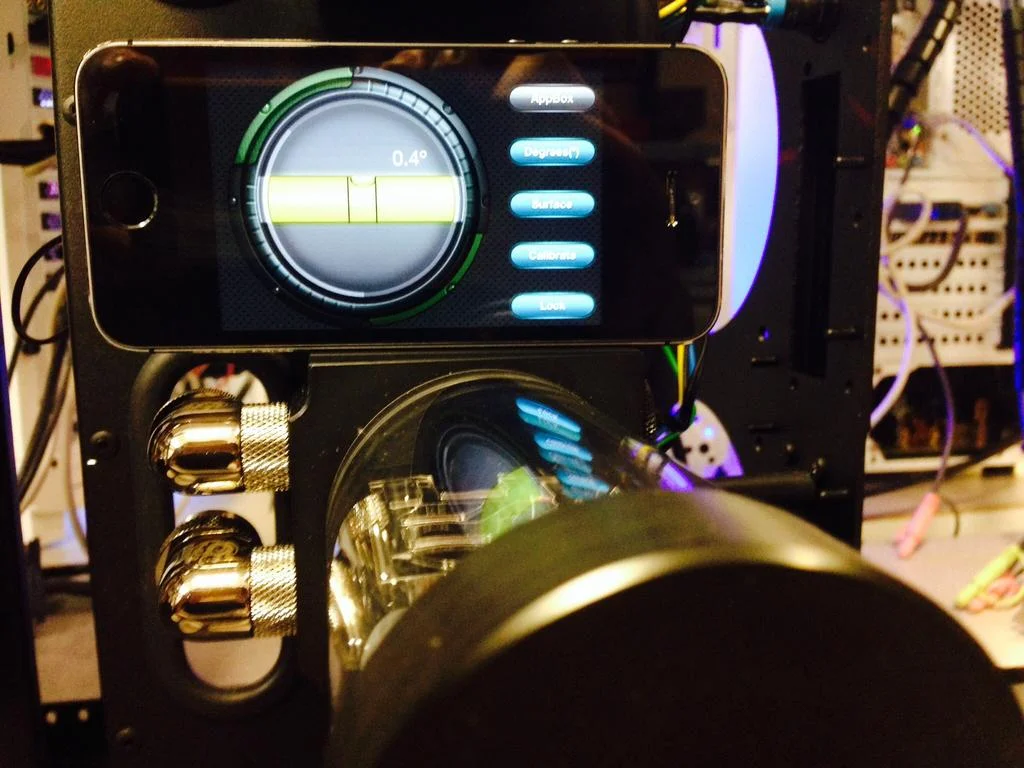

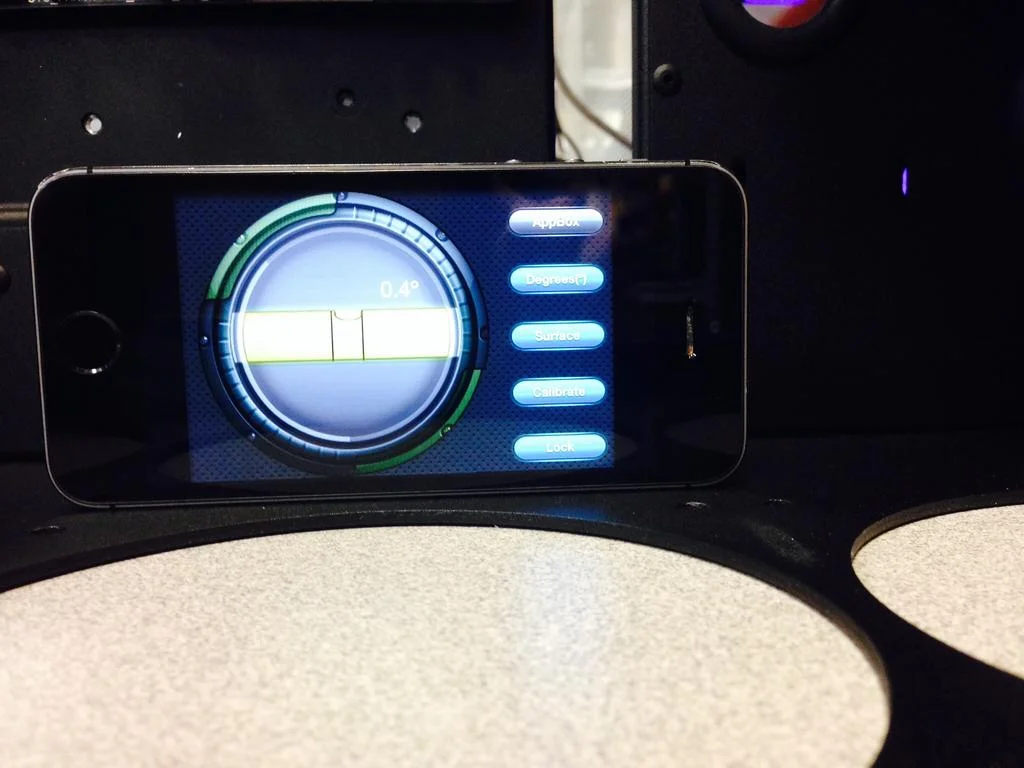

Testing to make sure they're level
The bench was not.
But the pumps were
That's it for this update - though I would like to plug my own personal build log that I have just completed. Click the sig to take a look.
Soldato
- Joined
- 7 Feb 2011
- Posts
- 6,056
Moderators, please ban this man for posting hardcore pornography on the forums.
Soldato
First time i have seen the pumps mounted sideways.
Moreee!
Moreee!
Associate
That looks amazing, had no idea those pumps worked when sideways?? May have to alter my build now...
Yeah, 8pack is in constant contact with the customer to let them know what's goin on and to keep them updated. All part of the 5atar service.
That looks amazing, had no idea those pumps worked when sideways?? May have to alter my build now...
Yup, as long as they're not starved of water, then can be used in any orientation. Some bay reservoirs even mount them upside down, though that's not recommended outside of those reses.
Soldato
Really enjoy these build logs, great stuff.
Associate
Any more updates? Pretty please?
Any more updates? Pretty please?
Yeah, sorry. Didn't realise it had been so long since an update.
On to the tubing
As always, I get myself into very tight spaces.
It was hard enough to cut the tubing down there

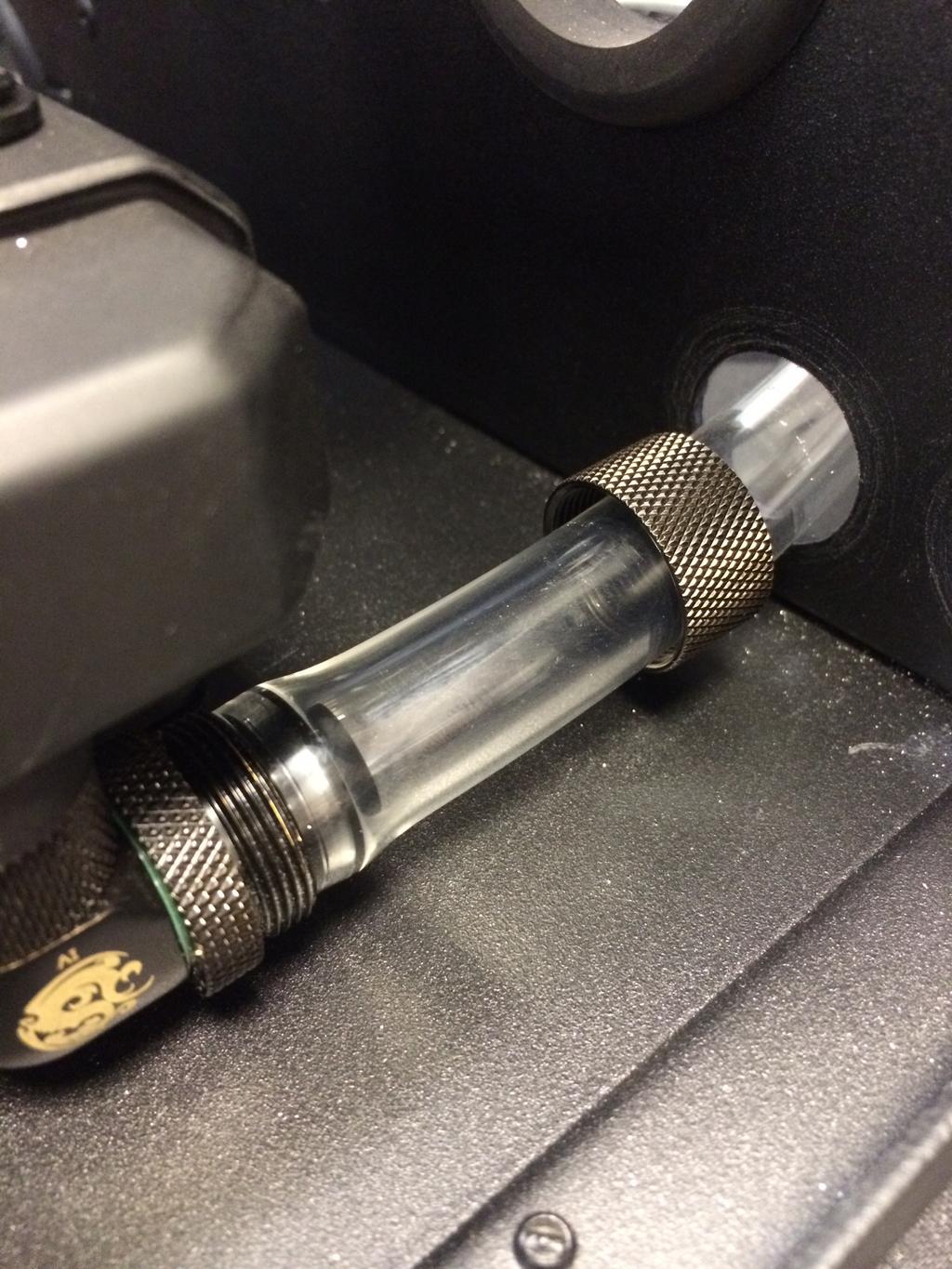

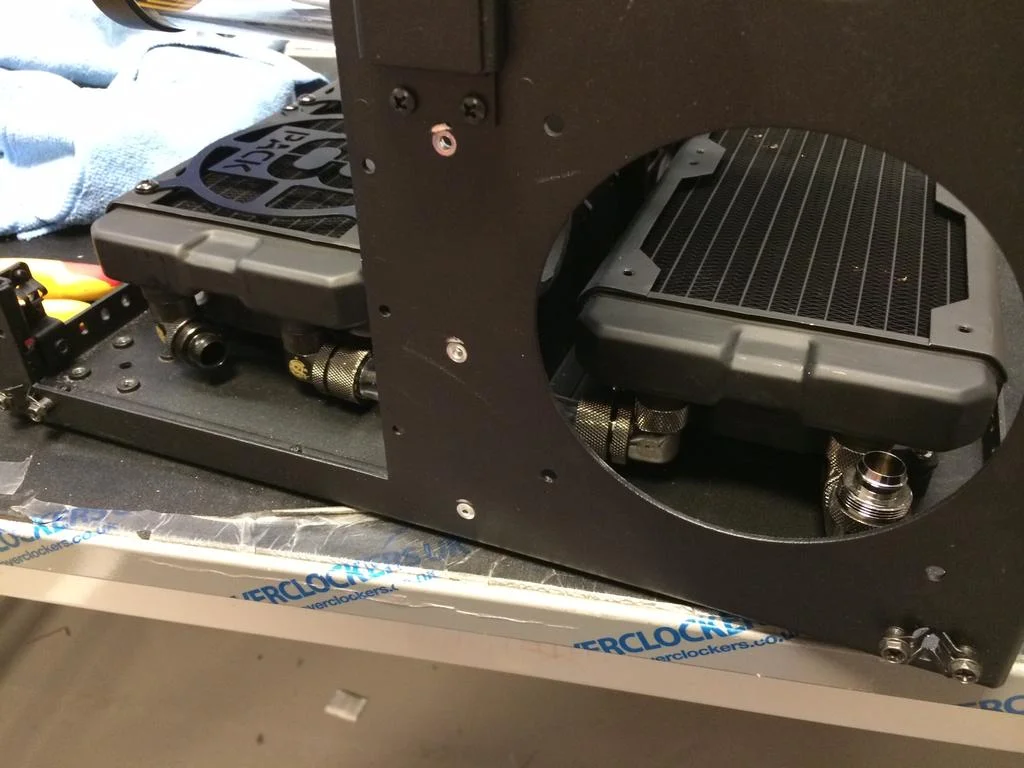

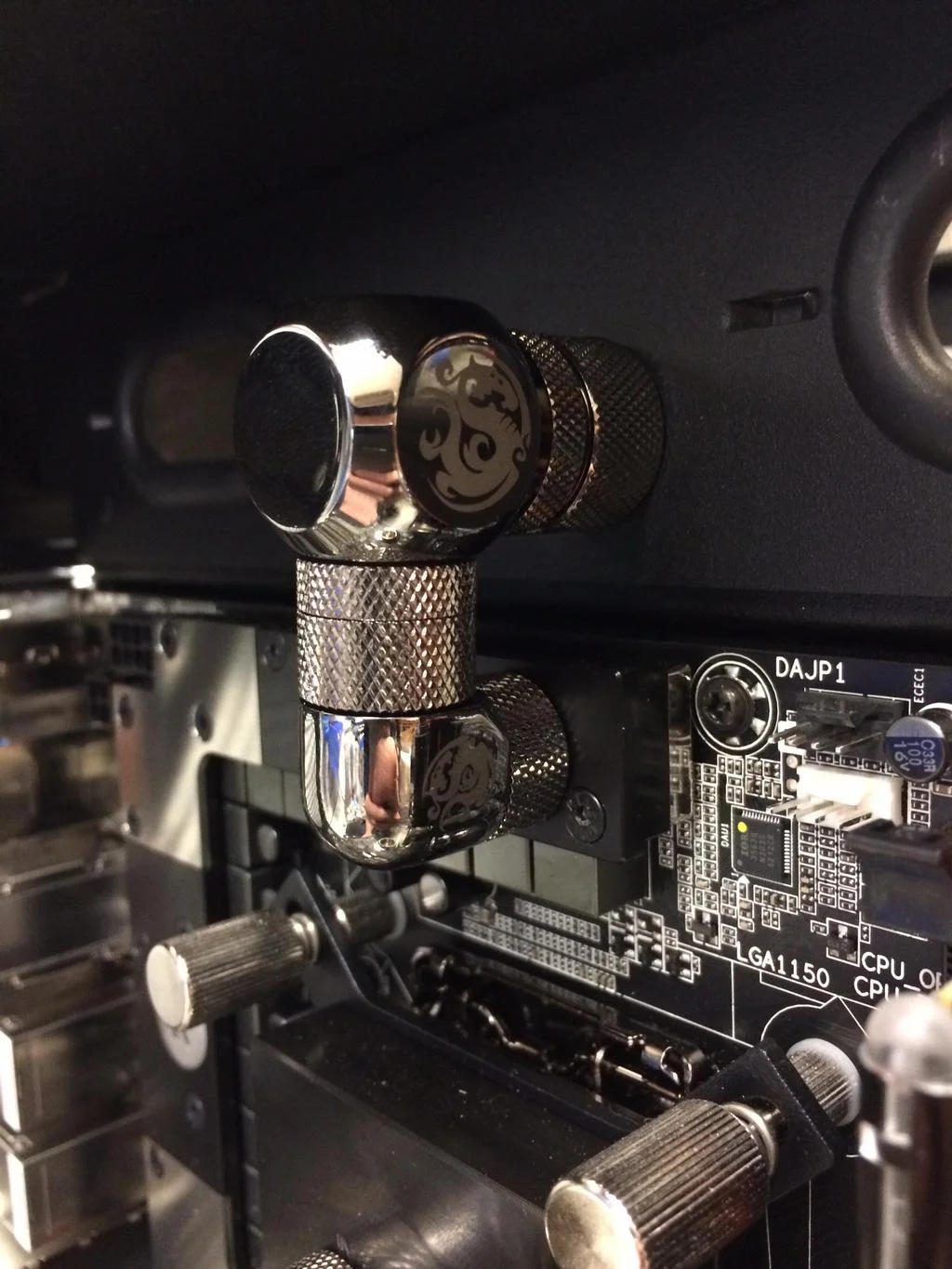

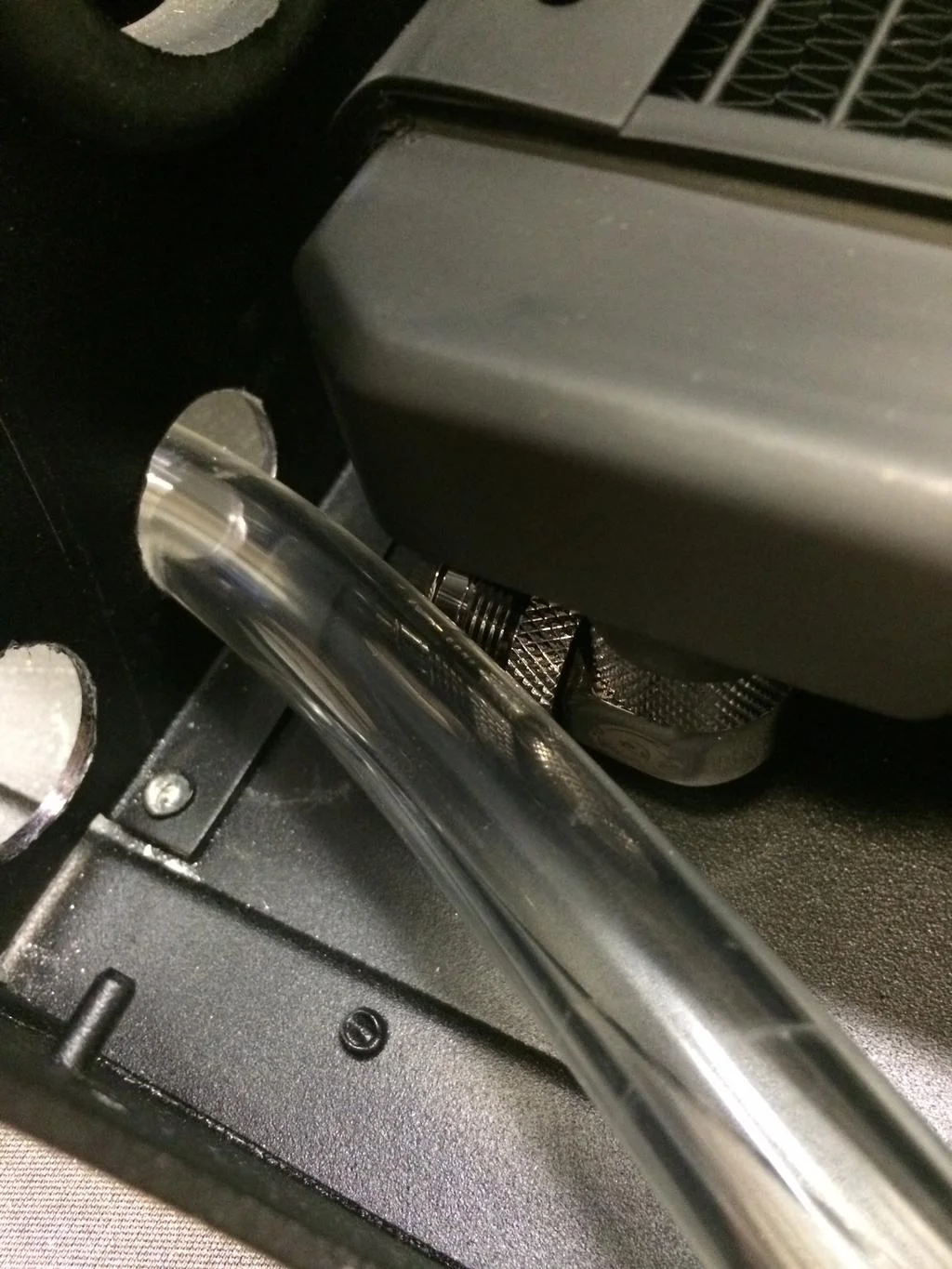

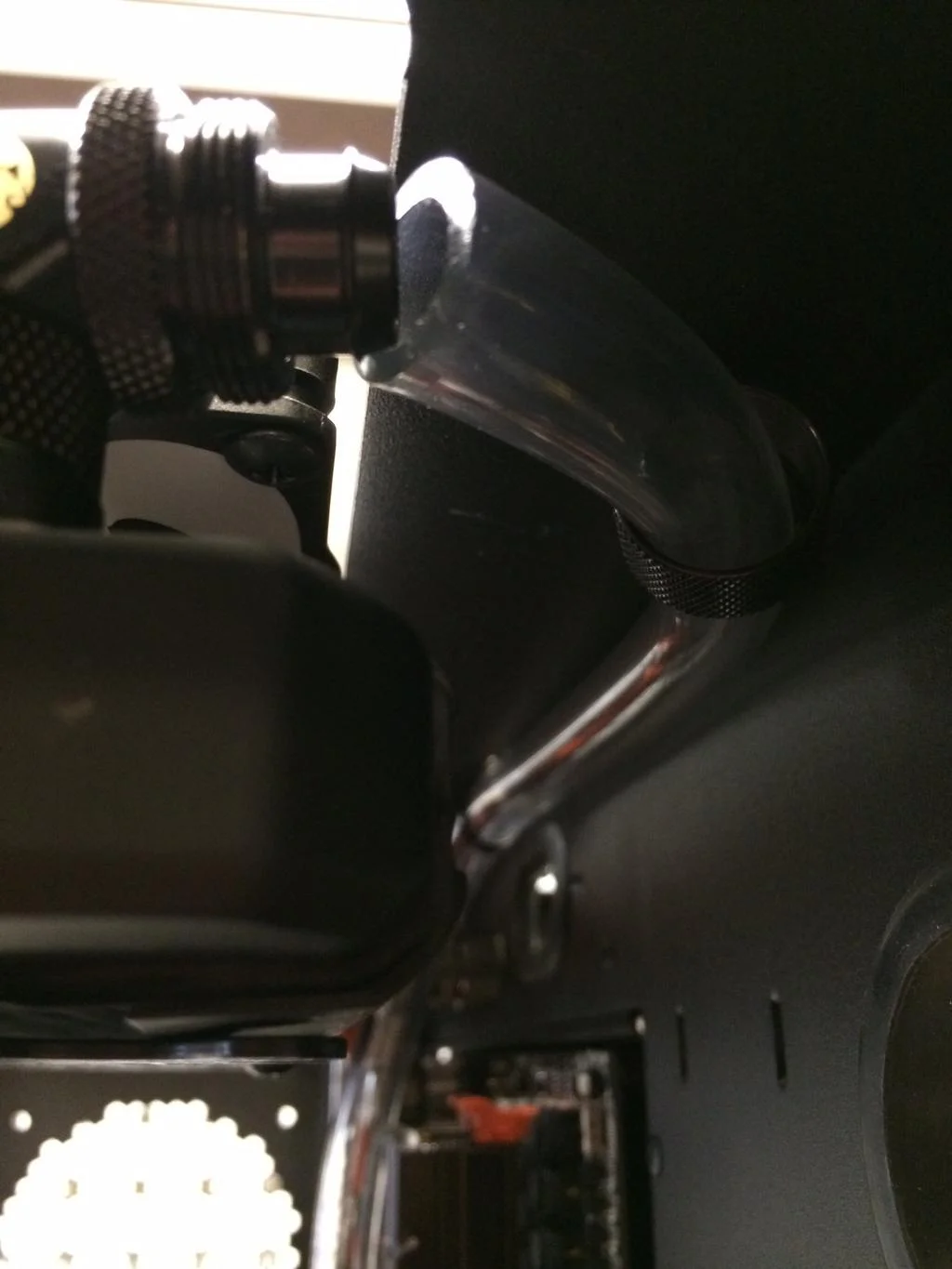

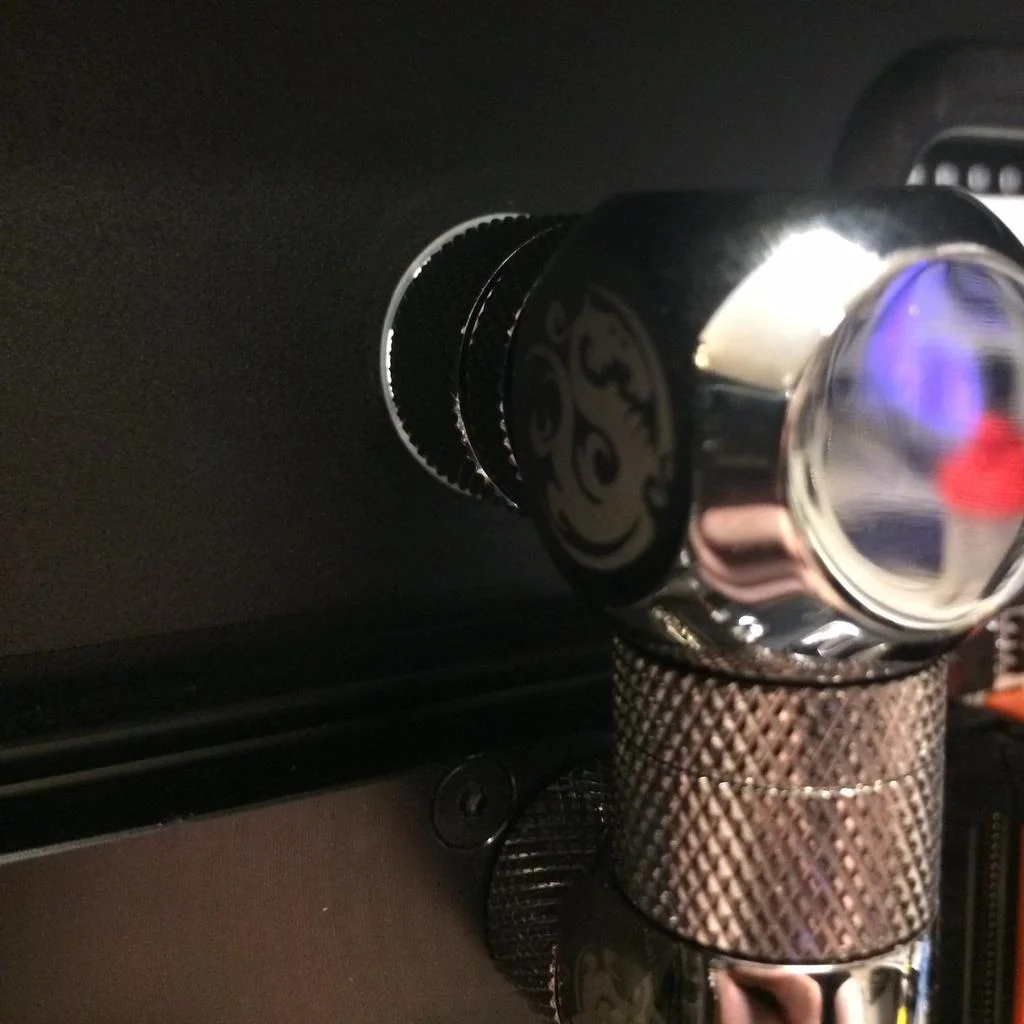

And it turned out impossible to fit it, so I had to remove the fittings from the rad to fit the tubing on

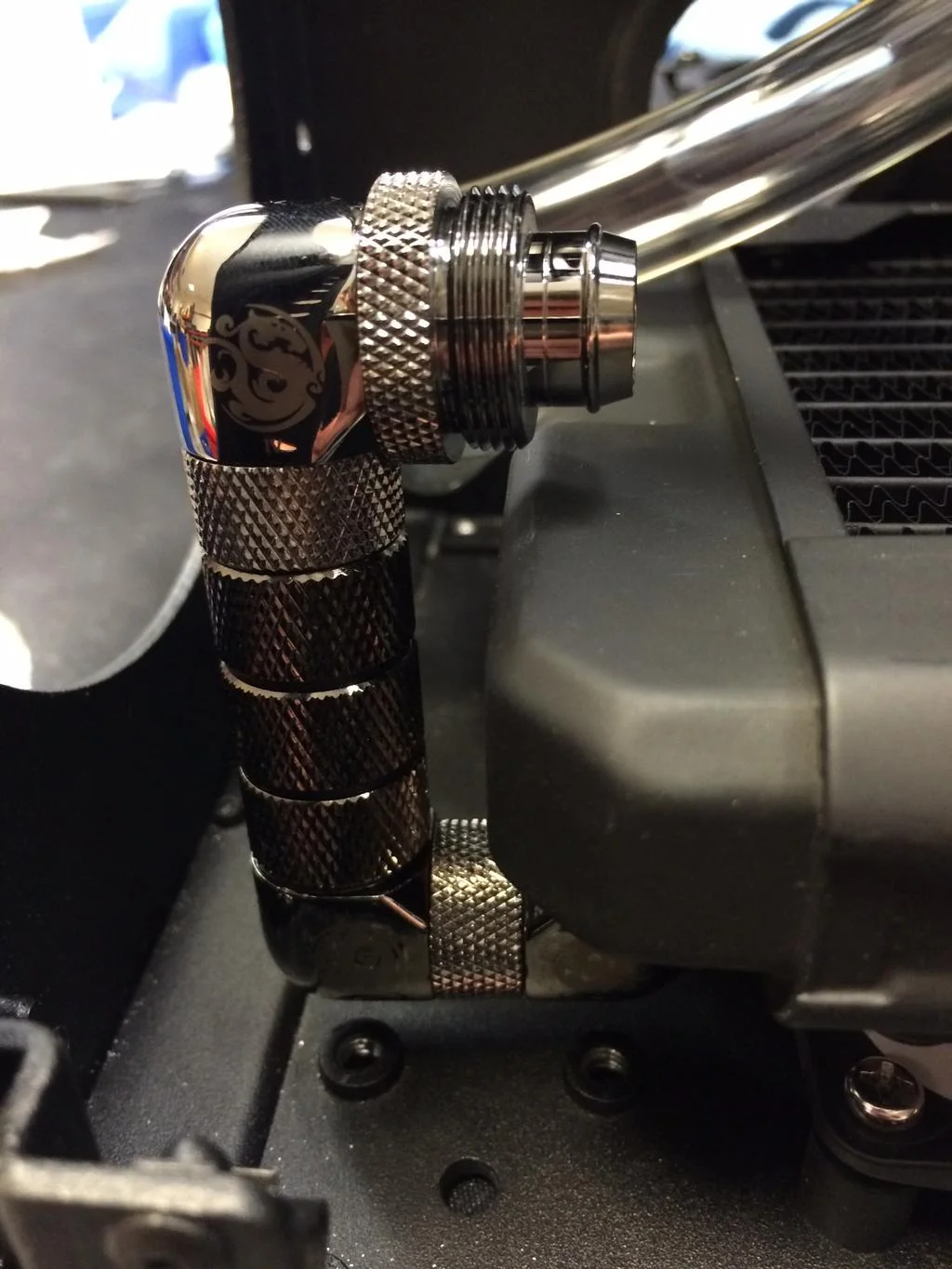

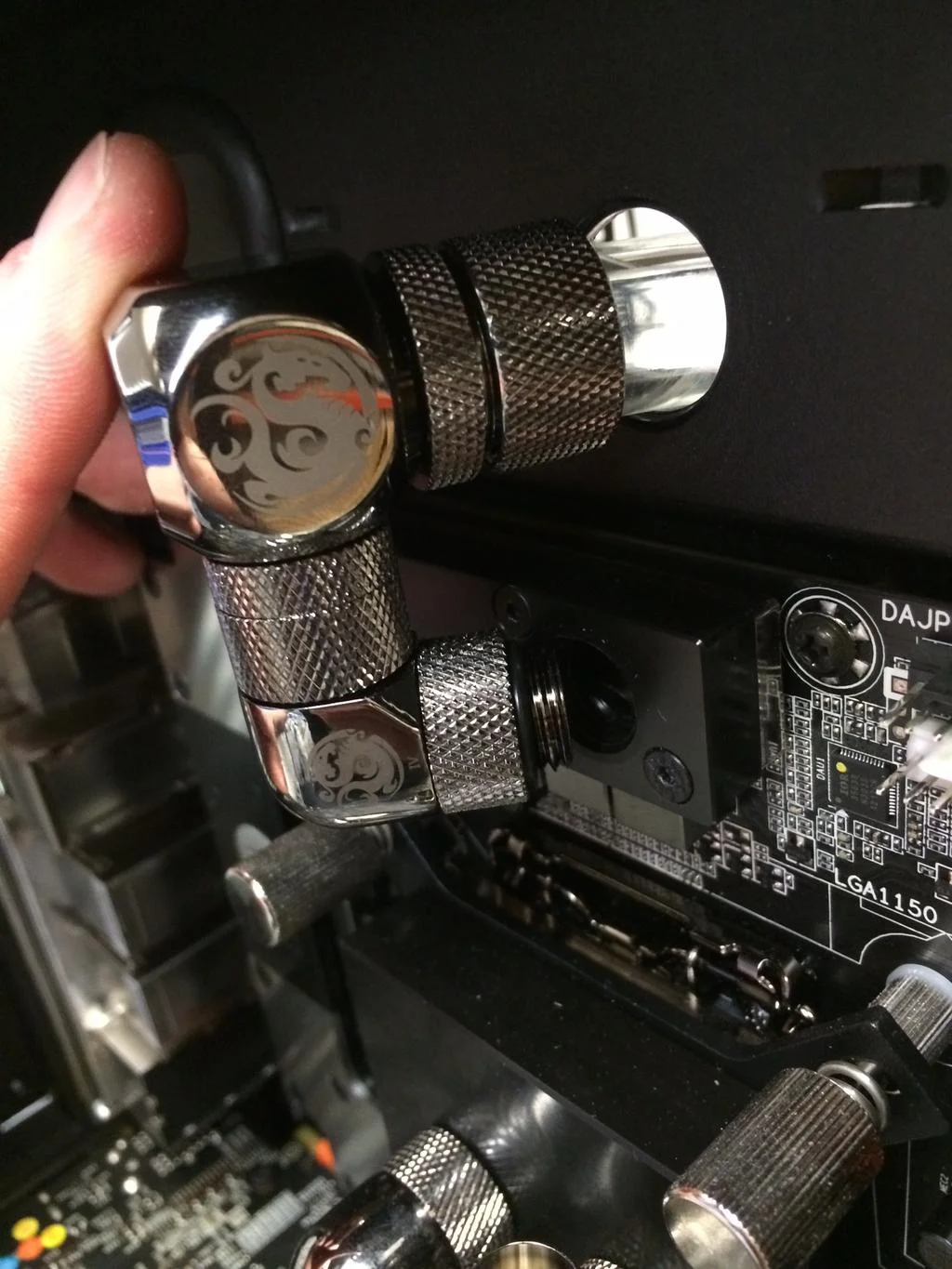

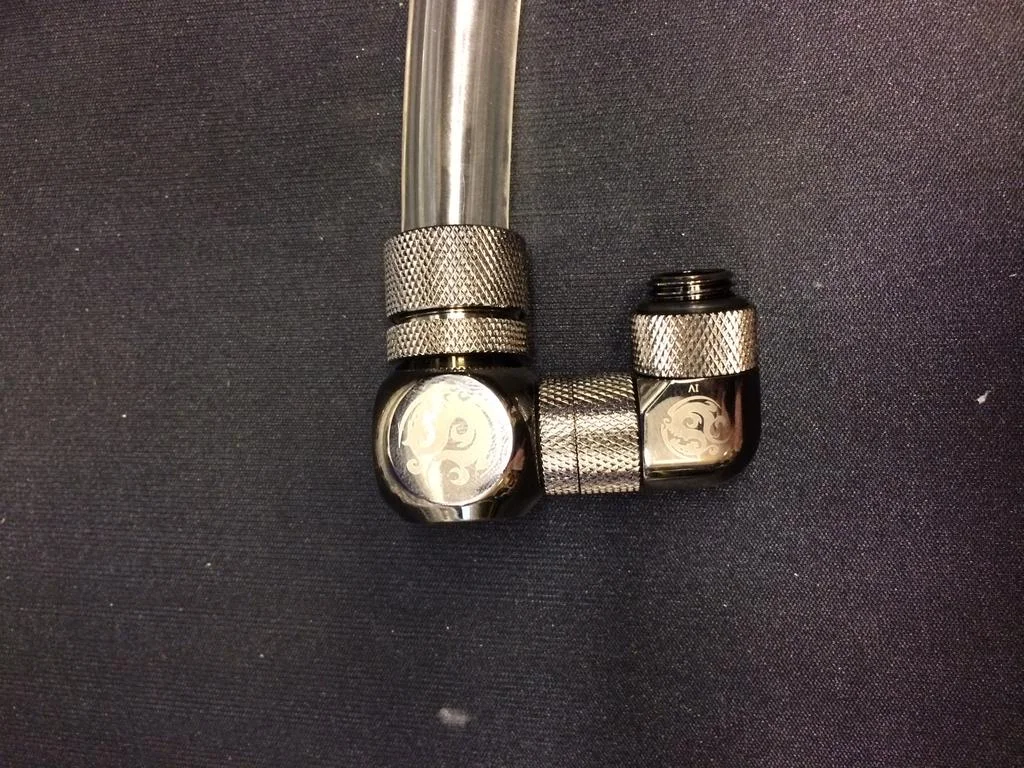

And then refit the fitting - one of the many benefits of rotaries!

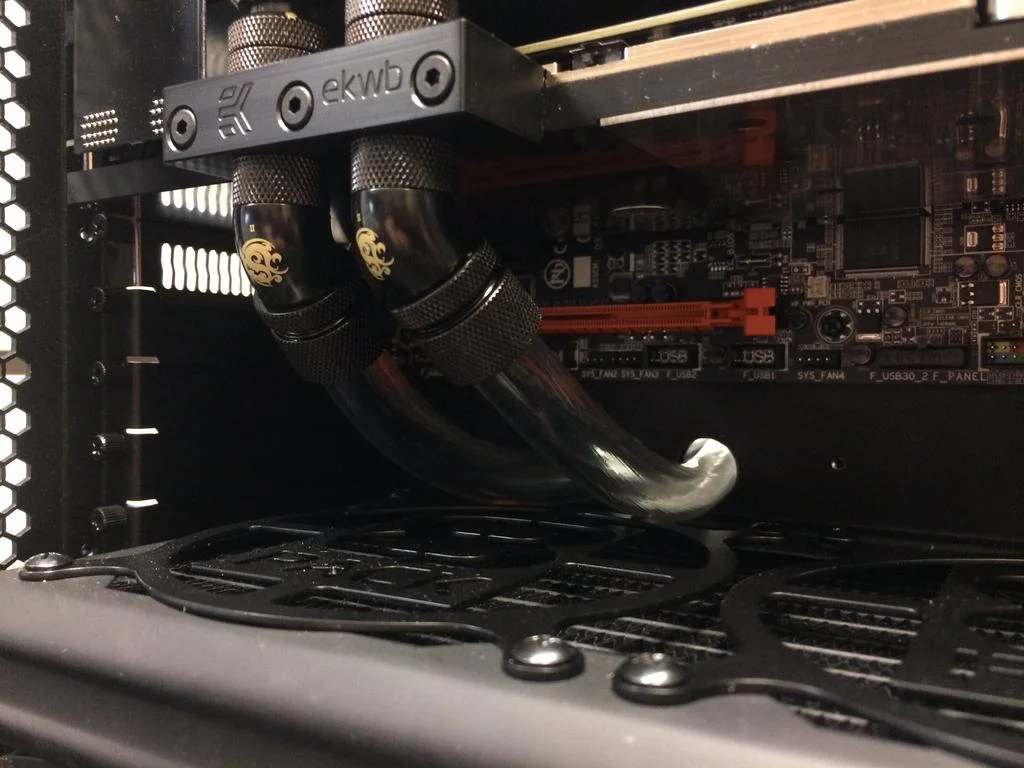

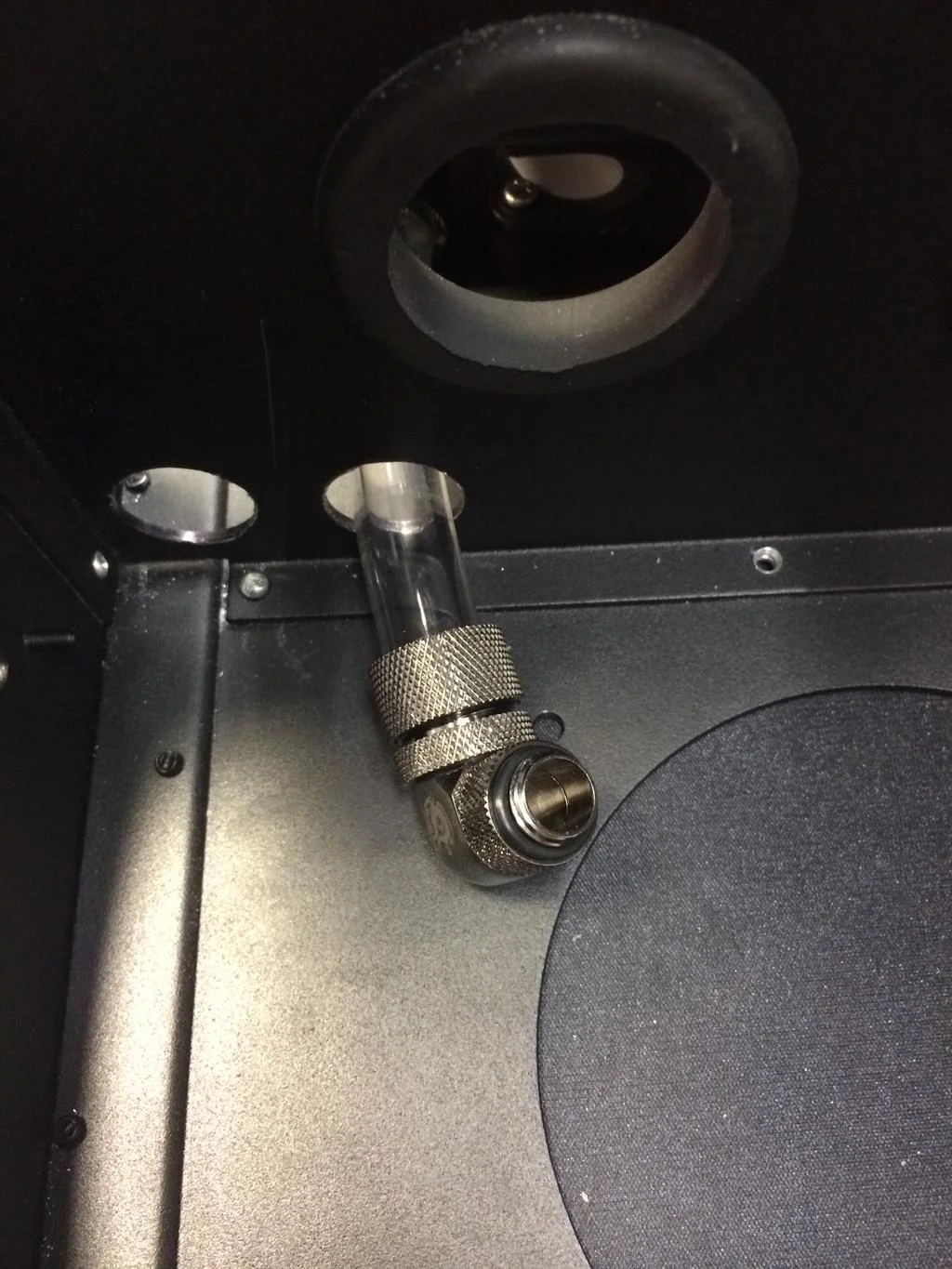

And here you can see the nice short, hidden run
The disadvantage of hiding the tubing from the front of the case, was the tubing needed to be routed from the other side of the rad. Multi port rads would have been great (if they'd fit), but rotaries and extensions are the next best thing.

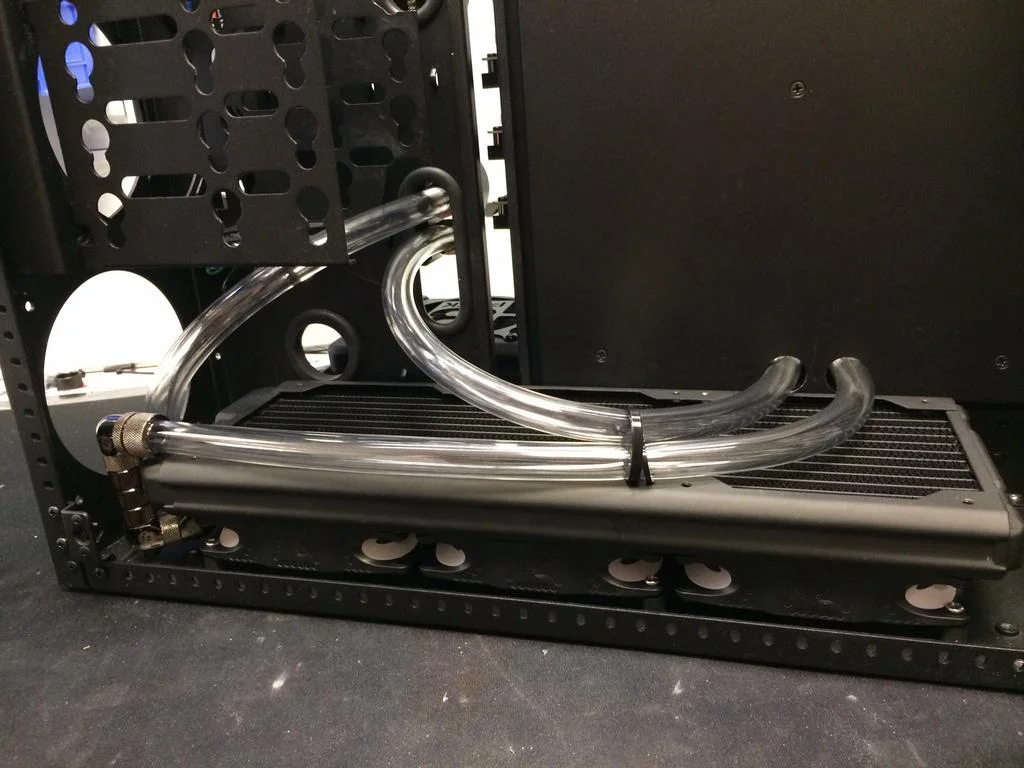

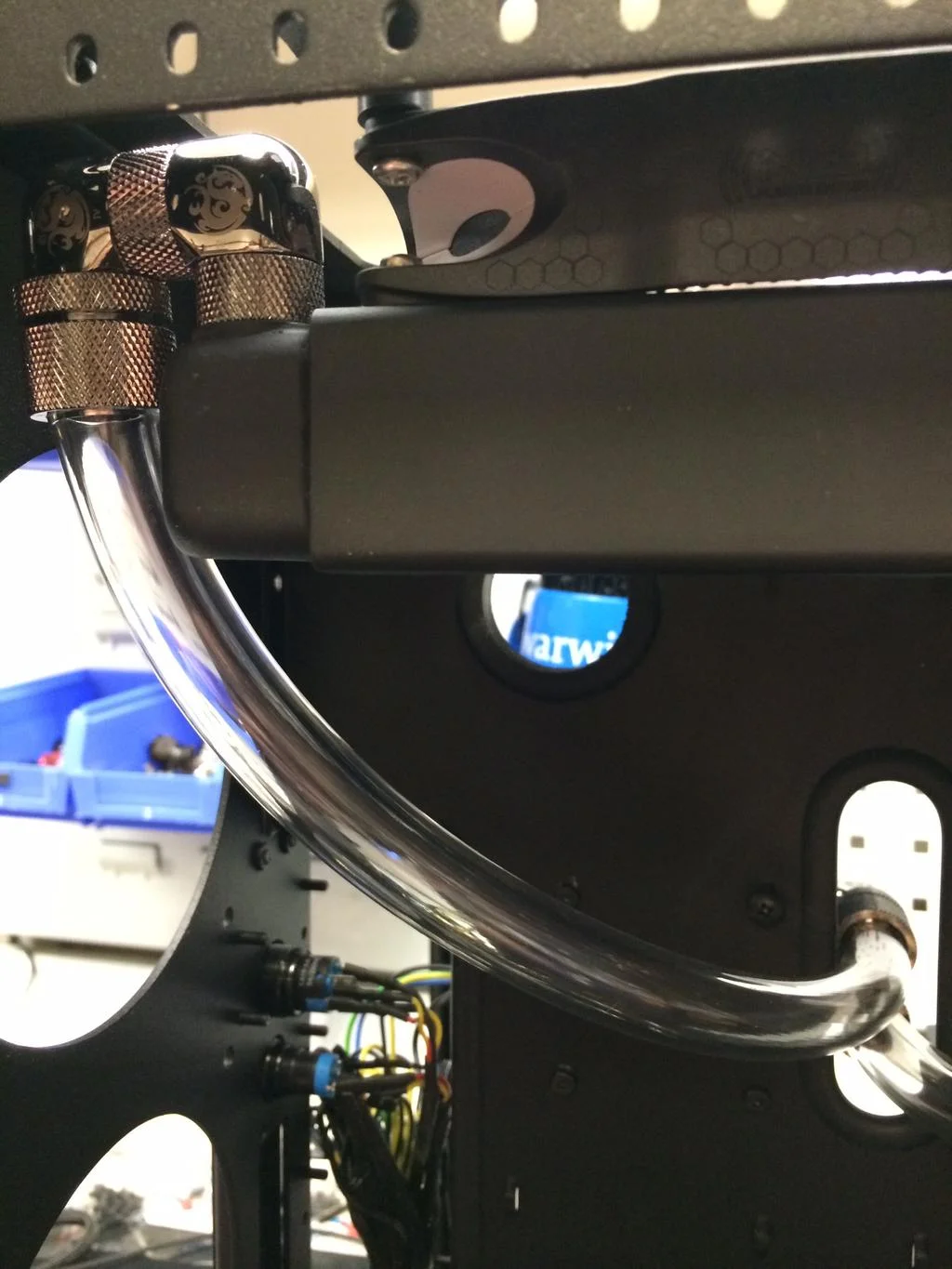

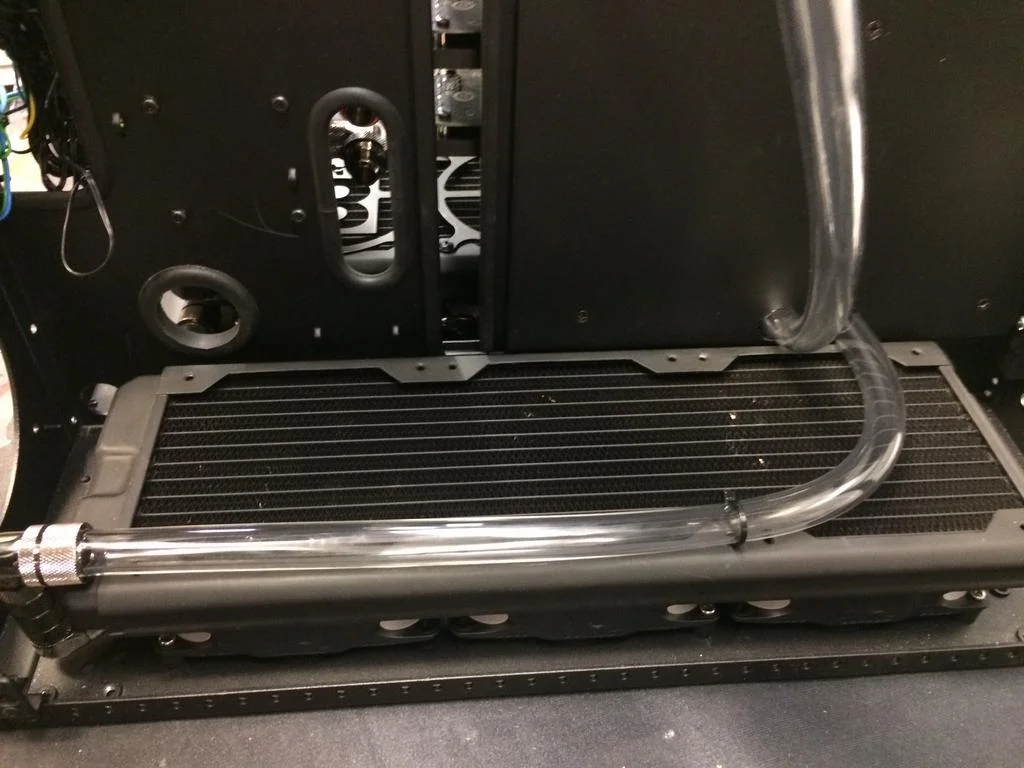

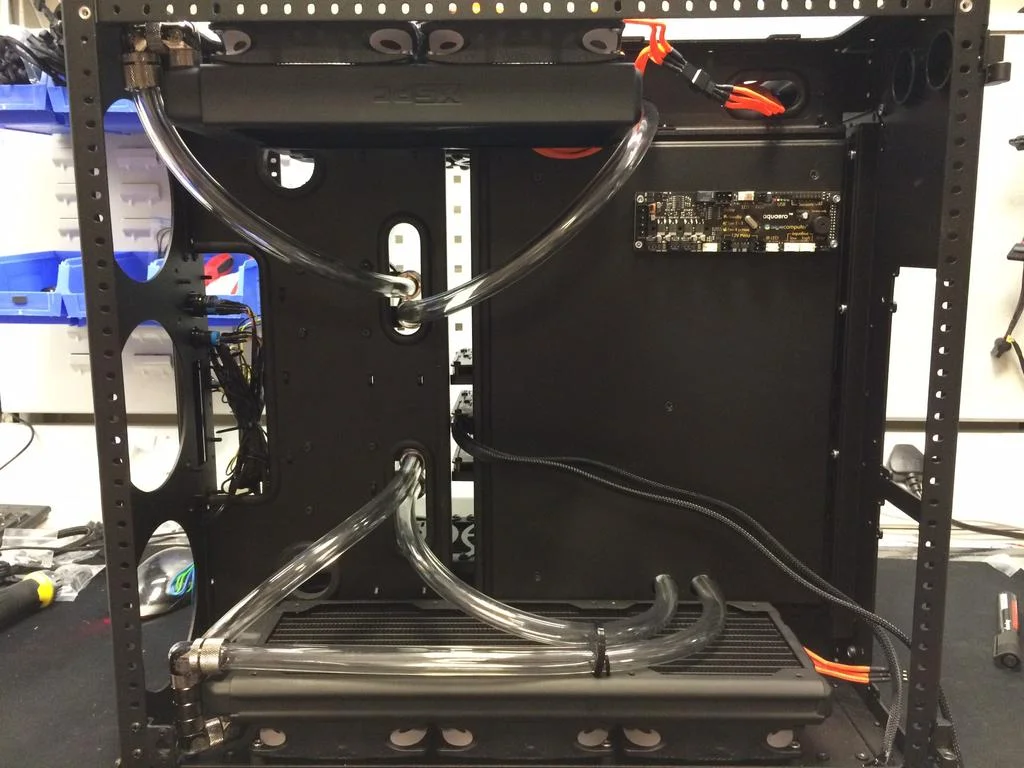

This run went across the radiator
to the GPUs

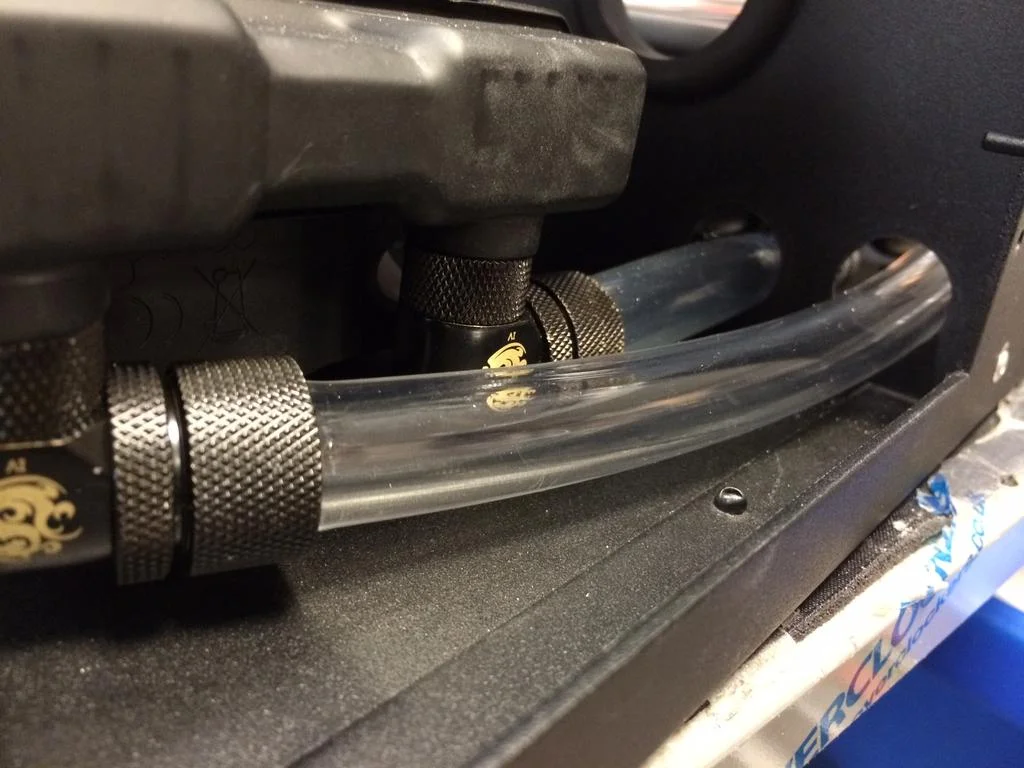

Back to the other side

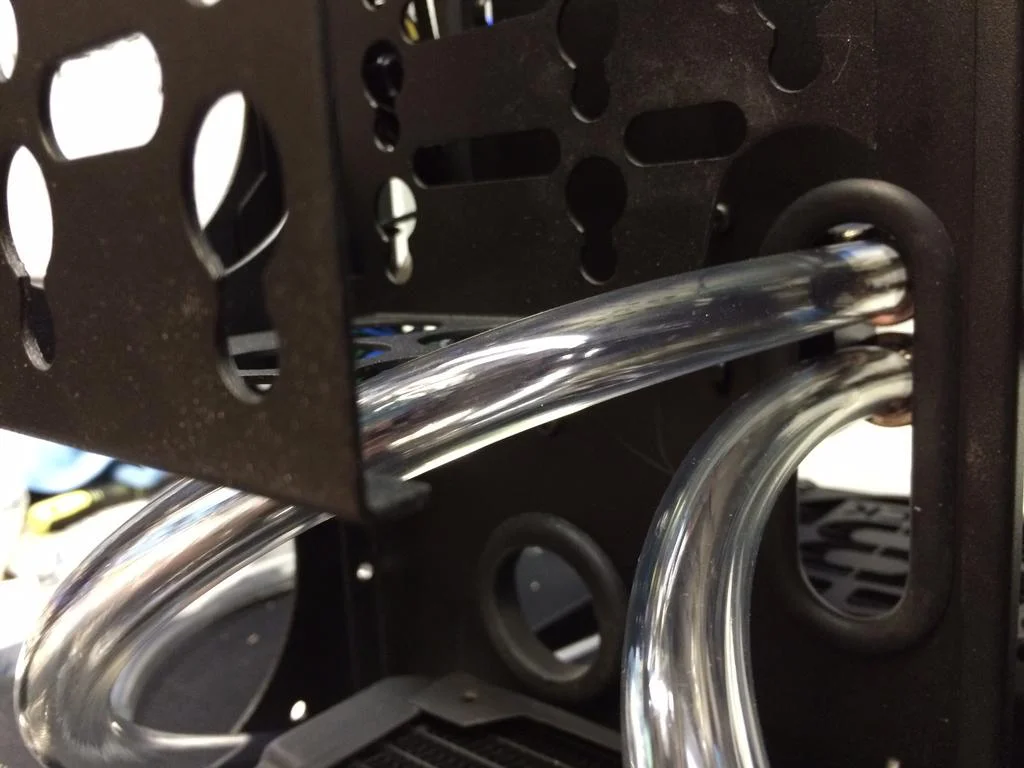

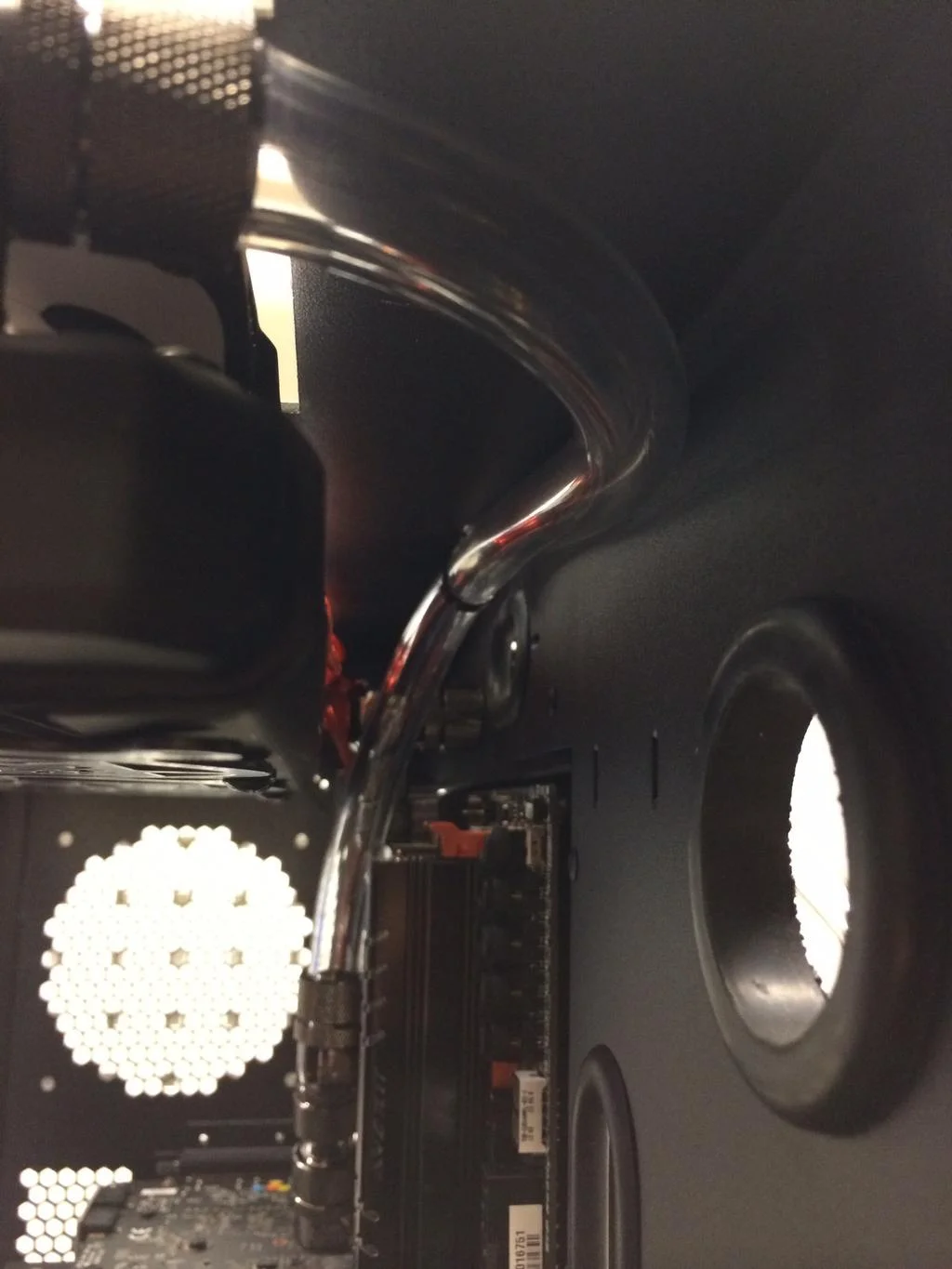

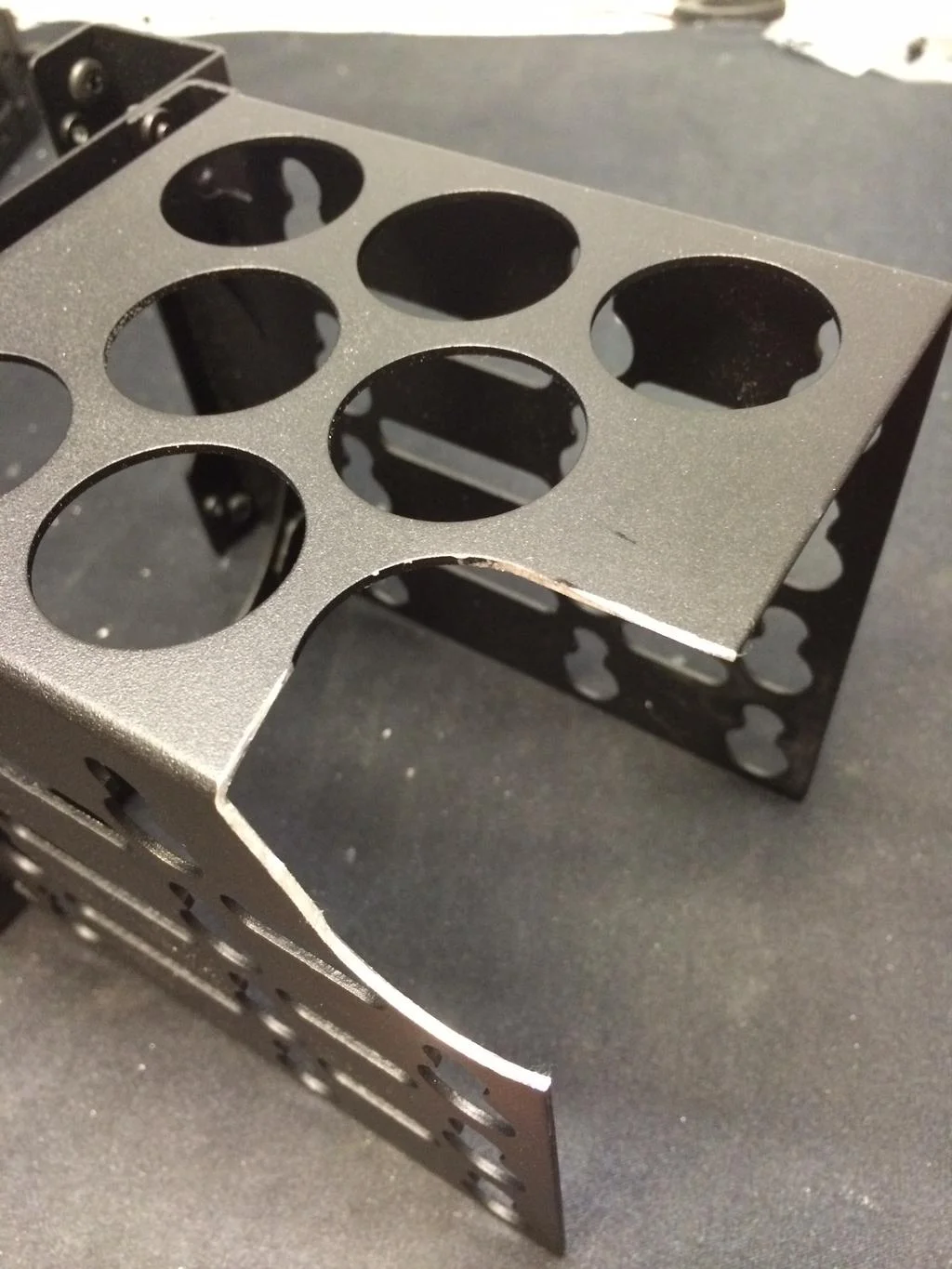

The HDD caddy had to be modified to fit the tubing through
No kinking
and the first loop is finished.

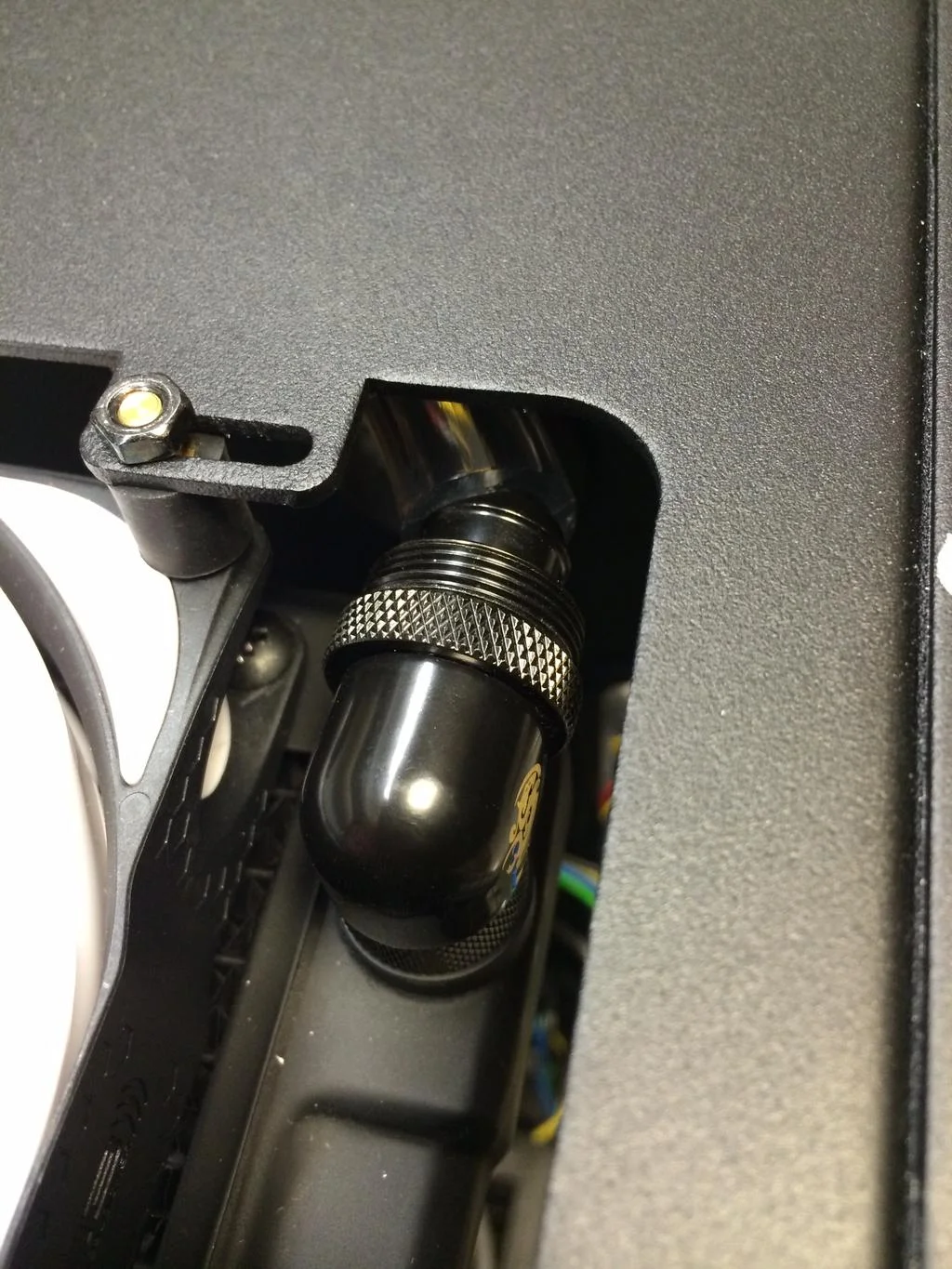

For the second loop, I had to remove some fittings to fit the tubing on once again

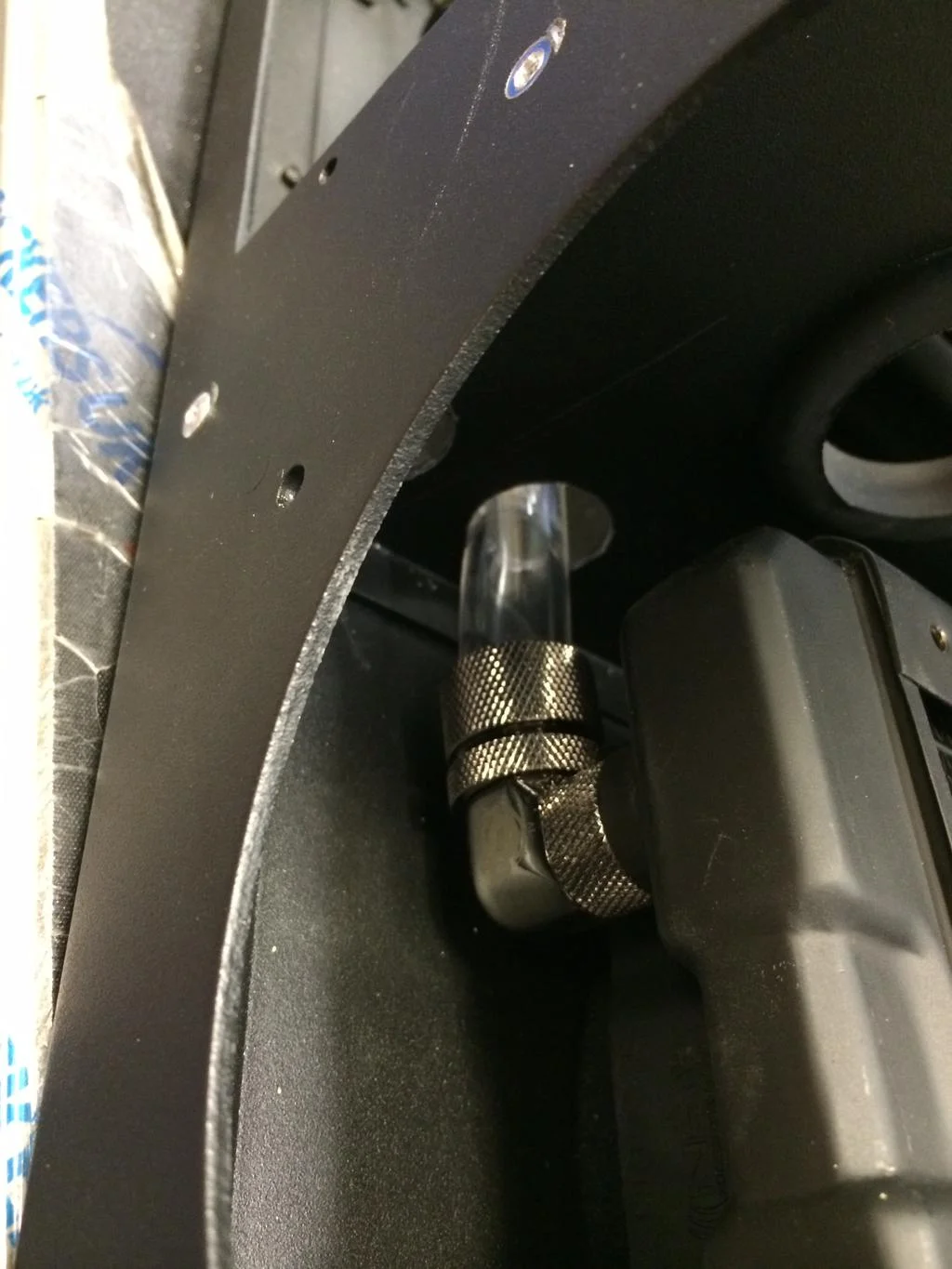

for another piece of hidden tubing
Perfect.
and from the other side

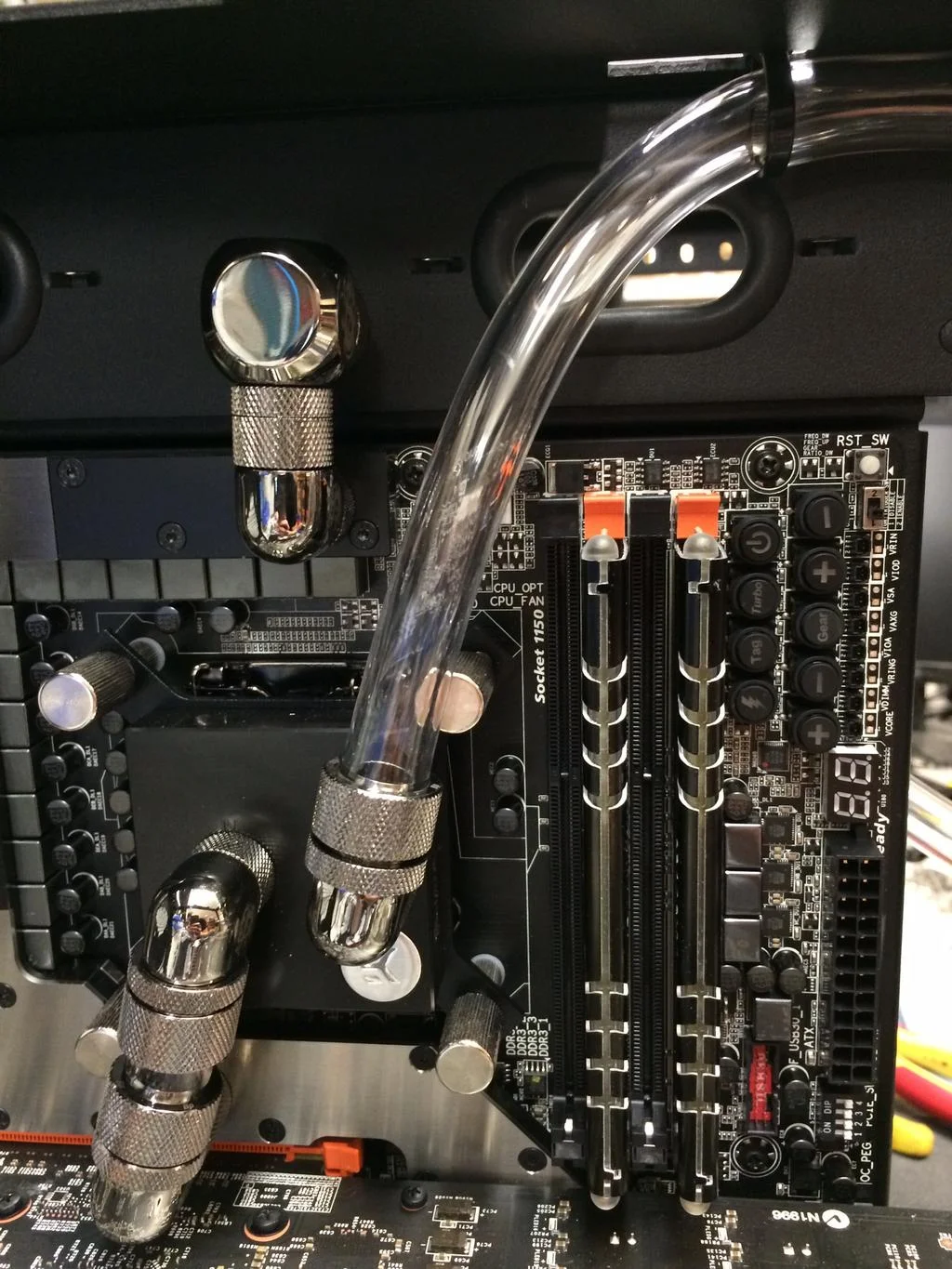

I originally wanted all vertical lines here. But the blocks just don't line up. So I thought I'd keep things parallel at least

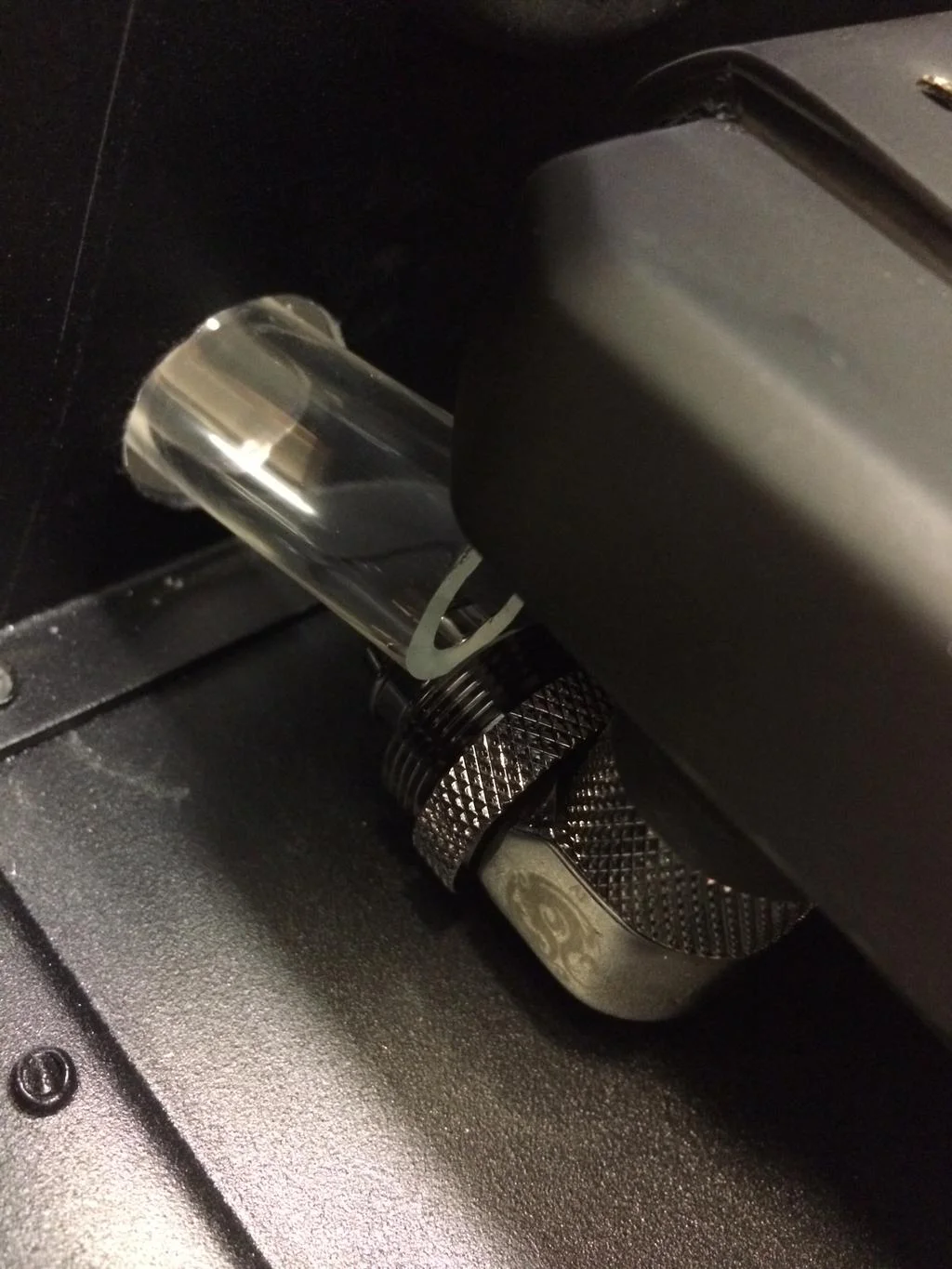

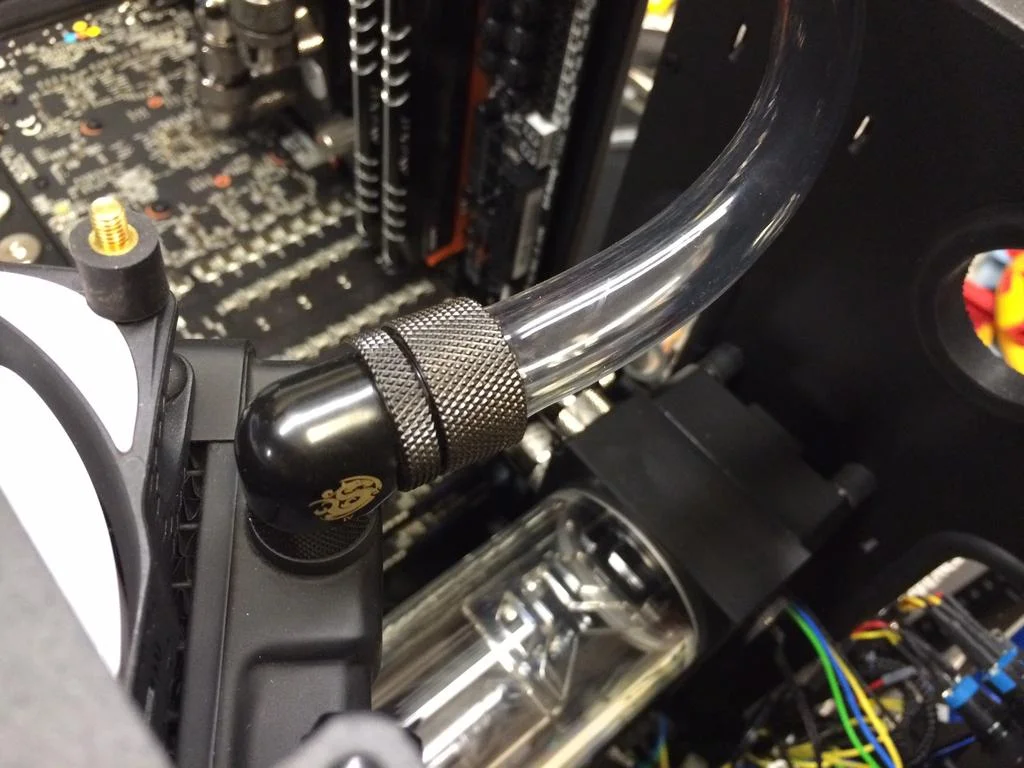

and at the other end of that tubing is another tight squeeze

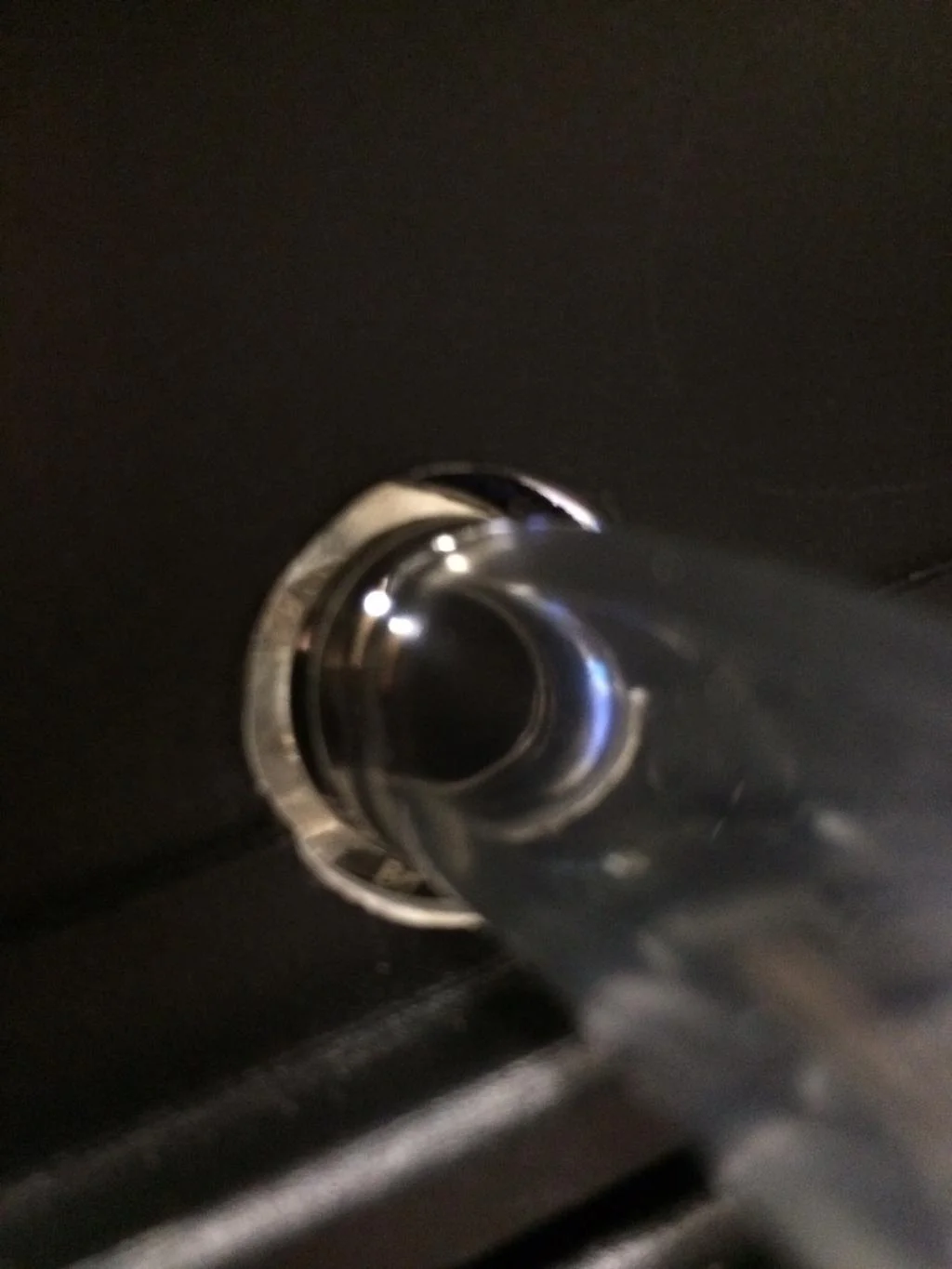

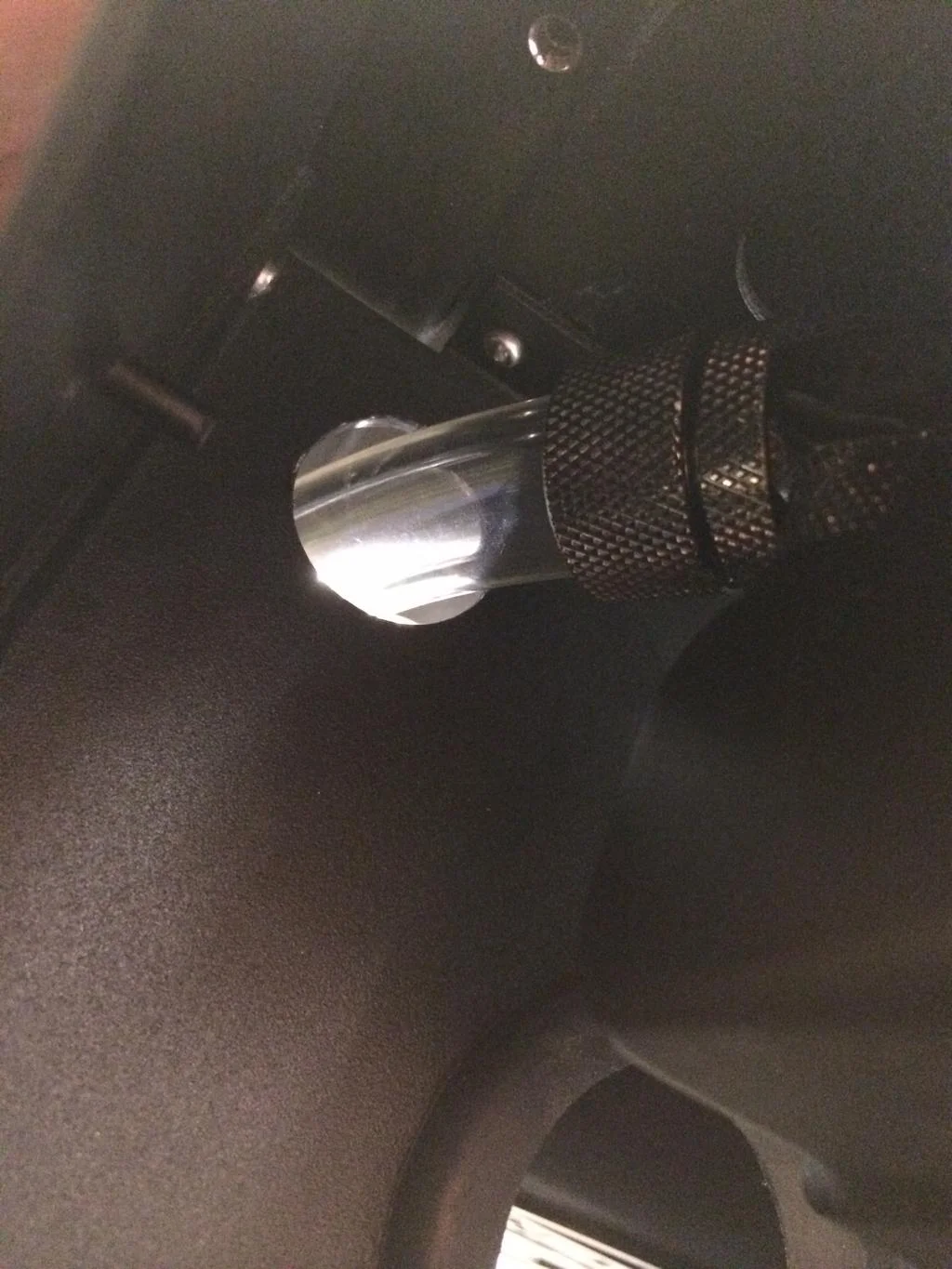

I'm not sure which was harder: trying to fit the tubing onto the fitting, or trying to take a picture through the case
Again, I had to remove the rad from the system to fit the tubing
Worth it though.
Some more tight spots linking the rads together

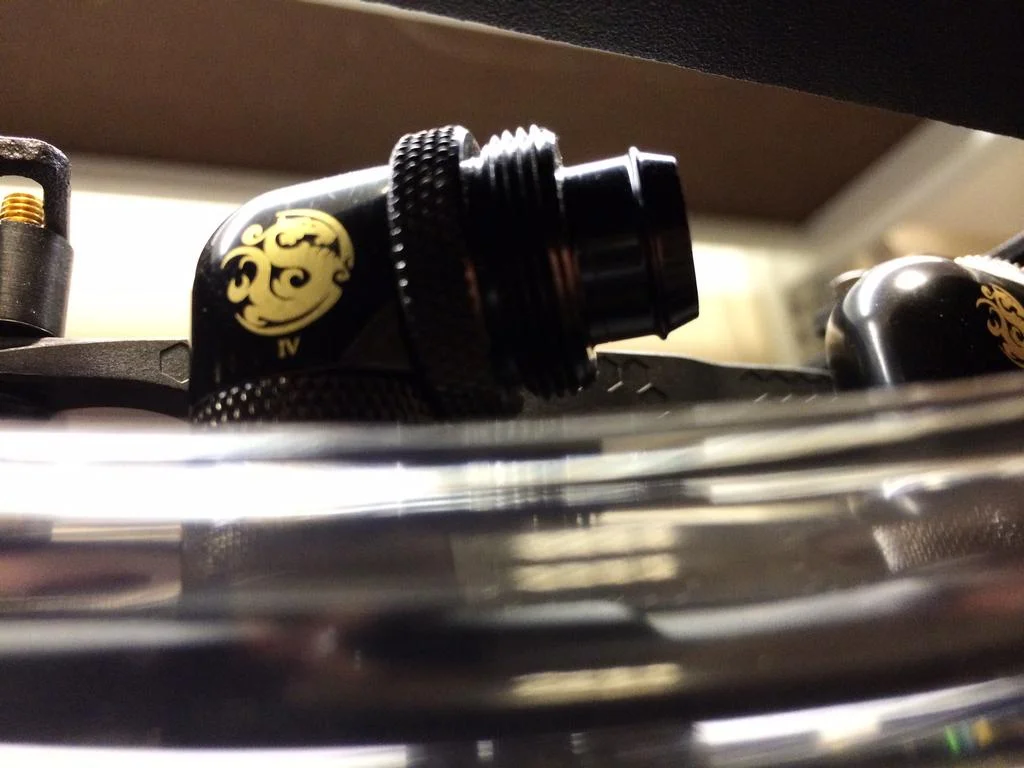

And some more rotary fittings
And there's loop 2 done!
As you can see, or rather can't see, everything is nice and clean with most of the tubing hidden from view.
Just got to fill her up next!
Soldato
A lot of thought must have gone into planning that.
Associate
Jesus thats... insane how much tubing thats using! And how much modding of the case you had to do. And how much fluid is that going to take to fill up??
Did you plan it beforehand or just play it by ear?
Did you plan it beforehand or just play it by ear?
Did you plan it beforehand or just play it by ear?
Most of the first day of this build was spent measuring, test fitting, and just sitting on a stool staring at the case. I do put a lot of time and effort into these big builds, and I'm glad you guys can tell.
I knew from the start I wanted the rads facing the wrong way to hide the tubing, and then the rest sorta fell into place. When I said earlier about mounting the rads on their sides being a joke - it was more of a "I need to mount the reservoirs like this to make everything come together, but that's not the normal way to mount a res". It cleaned up the tubing massively and filled a huge empty space inside the case, and just happened to be an unconventional way to mount the reservoirs.
Sometimes you've just gotta think outside the box - but keep the watercooling inside the box. External set ups are just yuk.
OcUK Staff
Very clean looking mate. The new layout has worked a treat!!
Soldato
That is really rather brilliant, cant wait to see it filling up etc.....a vid would be fantastic lol.
OcUK Staff
The rig is filled now and I don't think Tom did a video. Plenty more pics though I recon.
Associate
Yay for more pics! Im liking how each of these builds is so unique
Im liking how each of these builds is so unique
As 8pack said, the system has shipped and I didn't record any videos. There really wouldn't be that much to see, most of the tubing is hidden in the back section. It wouldn't be very exciting.
They can be, but there's no real need for it. All of the holes were filed down nice and smooth and touched up with some black paint (not that you can see it).
