As the title what are people's thoughts on this new layout, would custom loops be feasible. When will ocuk get them in stock, they are preorder atm.

Last edited:

Watercooled Case Gallery

Always had the same issue with phone cameras as well hence why i don't use it anymore. Doesn't depict reality at all, especially when phones these days use image smoothing and other tricks but in actuality i think it makes the image look worse. DSLR and a tripod with the correct settings...
forums.overclockers.co.uk forums.overclockers.co.uk

i did and managed a custom 360mm (x2) loop, gpu has been changed to a 4080s instead of the xtx in the post due to damage found.

once you work out the layout its a very unique design and cools well :)

Last edited:
I'll get some updated pics in the light of day, too dark now.

I was sceptical when i first saw the sup-01, but having lived with it for a few weeks its looks and design are growing on me in a good way, to have the ability to supoport 6x120mm fans or 3x120 and 2x140's in its footprint is very impressive, custom loops work very well.

There is one downside and that is lack of dust filters at the rear of the case, but a clean every few weeks will sort out the dust no problem.

Be very interested in pics too thanks, like the look of the case as an air option but thought a bit limiting for water. Have a pair of XR5 rads already so interested how you got them crammed in :D

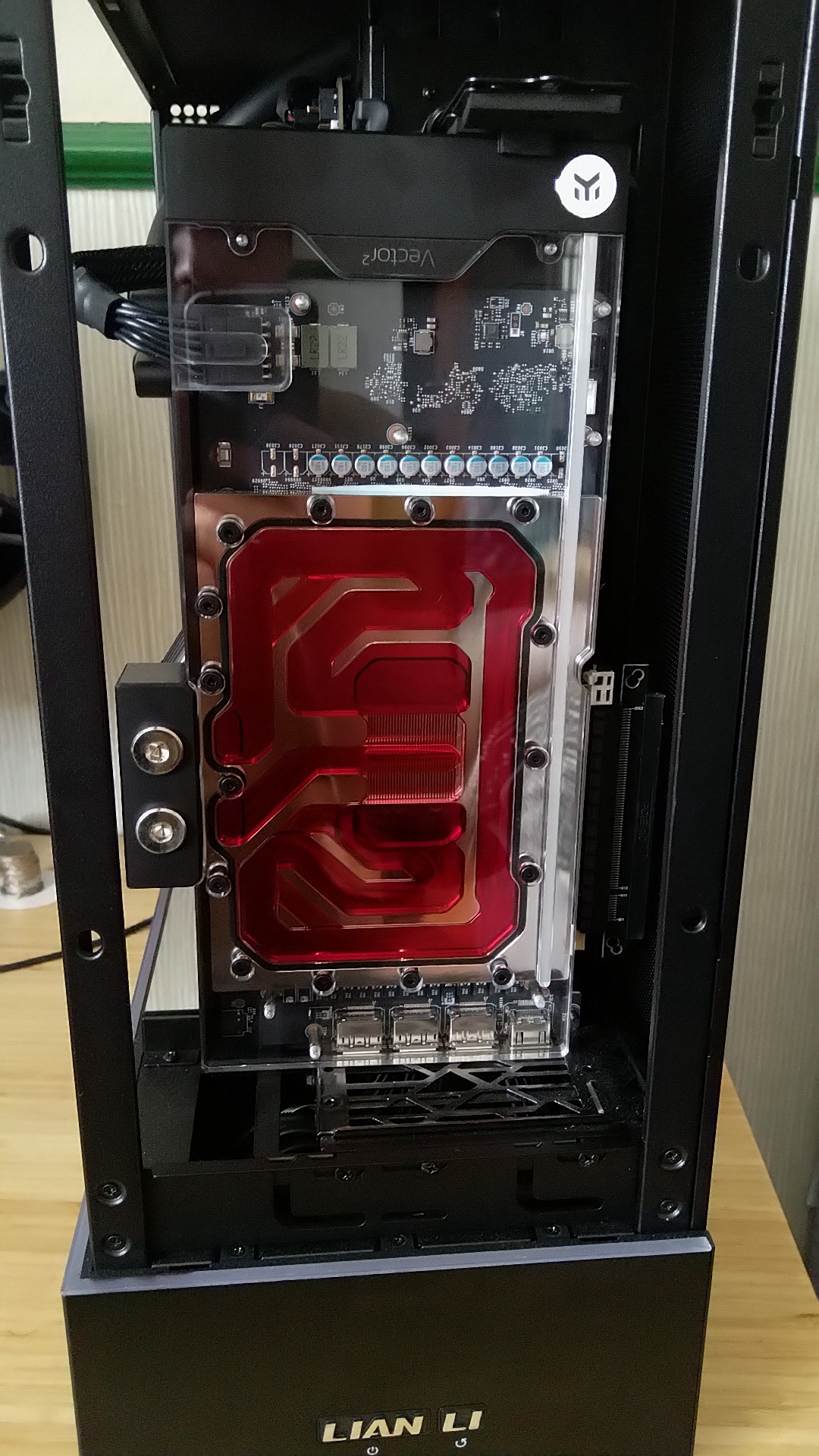

with out further or do here are updated pics of my sup-01 build

parts list

lian li sup-01
Asus x670e Hero
ryzen 9 7950x
Be Quiet Dark Power Pro 12 1500w Titanium
corsair dominator plat 6000mhz ddr5 (32gb kit)
MSI Suprim X 4080 Super
EK-Quantum Velocity ddc 4.2 pwm (pump/res/cpu block combo)
EK-Quantum Vector Trio 4080 GPU block
Corsair XR5 360mm radiators x2
6x120mm Noctua NF F12 pwm 2000rpm fans
Crucial T700 1TB M.2
Samsung 870 QVO 8tb SSD
EK-Quantum Torque Micro Rotary 90 fittings (used on the cpu to clear the glass side pannel)
EK-Quantum Torque STC 10/16 Fittings
EK ZMT 10/16 Tubing.
A few more angled fittings to help with pipe routing






Apologies for the red coolant, bit of a sin with a nvidia gpu, but i was running a all amd rig until my 7900xtx started to play up (didnt like the riser, noticed damage on the card that explained why)







Bit of a rats nest i wont lie, but only the rad fan cables, everything thing else critical is tied back to the mobo tray to give the maximum amount of room for the fans/rads, super close but it works.


Last edited:
Awesome thanks, looks very doable then given the gaps to route the tubes. I have a Leakshield I would want to incorporate so would probably need a res which would add some mess, the all in one pump/res/cpu block looks to help for sure.

IanAG said:
Awesome thanks, looks very doable then given the gaps to route the tubes. I have a Leakshield I would want to incorporate so would probably need a res which would add some mess, the all in one pump/res/cpu block looks to help for sure.
Click to expand...

i did think about a seprate pump/res but in the sup-01 room is at a big premium, the lower section in the front below the gpu is the only real place but you have to take into account the display cable that will be sticking out from the card, if your psu isnt too big you can move a pump/res unit back but have to plan like mad to manage the tubes and cables, going the cpu/pum/res way frees up room and possibilites.
