New build graphick card not working. SOLVED

lukasze

lukasze

lukasze

Associate
Joined
18 Dec 2022
Posts
10
Location
Belfast
Hi lads.

Grafik card not working no signal no fans spin :(

got myself new build ish

Msi bazooka mobo New
Msi AMD Radeon™ RX 6700 XT New
Power is 750w Articl red+ Old
Processors is ADM 5 5600X New
Old fractal case mATX
ddr4 corssair vengance new
nvme 1G samsung 950 clean no windows
old hdd not connected yet

Pc post working all fans spin but no on grafik card no signal fans dead.
There is one cable going to card splited 6 and 8 pin.
As u need two 8 pins for card got 6 to 8 pin end extenssion.
There is power on ends 7v checked with multimeter.
Old card msi 750 fans spin but no signal died few monts ago on old system.
Soo pcie working then.
Checked and replaced dhmi and monitor all good.
Sended one card back all reday as I thought its foulty

What im missing here ?
Plz help
lucas

Last edited:
Tried a different cable? DP instead of HDMI?

Do you have a different pci-e cable?

Can you take a pic of inside of the case?

Last edited:
Tetras said:
Tried a different cable? DP instead of HDMI?

Do you have a different pci-e cable?

Can you take a pic of inside of the case?
Click to expand...
Hi Tetras
Only hdmi tired with diffrent cables and monitors ( TV) hdmi to monitor I have is MSI qurved wathever it is model wise logo coms out
Olny one pcie cable comes out from psu with two connectors for card.
6 and 8 pin readed is abow story lol
Mabe can I try to check if card got contiunity with multi meter two if should post ?
How to reset Grafick Card without dislpay BIOS ? Can't get there yet
Yes will take picture firs find online storage ect...
Im barman bloody hell soo biuzy now towards xmass will have more time from 25th and more responce as well to thread.
Thanks for understanding im off PC from 10 monts now lol
Thanks 4 responce again

I would look for a better PSU.

Tried looking for yours online and what i found is not good. (if it's the correct one)

If you only have one PCI-E cable and have to use a splitter to get 2 x 8pin connectors, it is clearly not up to it.

Oh and only 12 months warranty. :eek:

Can't link to where i saw it, but this is the only review.

It measured in peak wattage and doesn't support 750 watts more like 350 watts. Do not buy or may smoke your PC. Additionally, the fan is extremely loud.
Click to expand...

I would swap it for something like this at a minimum.

My basket at OcUK:

Total: £96.65 (includes delivery: £8.70)​



​

You're spending your hard earned money on new kit, it deserves a better PSU.

lukasze said:
Hi lads.

Grafik card not working no signal no fans spin :(

got myself new build ish

Msi bazooka mobo New
Msi AMD Radeon™ RX 6700 XT New
Power is 750w Articl red+ Old
Processors is ADM 5 5600X New
Old fractal case mATX
ddr4 corssair vengance new
nvme 1G samsung 950 clean no windows
old hdd not connected yet

Pc post working all fans spin but no on grafik card no signal fans dead.
There is one cable going to card splited 6 and 8 pin.
As u need two 8 pins for card got 6 to 8 pin end extenssion.
There is power on ends 7v checked with multimeter.
Old card msi 750 fans spin but no signal died few monts ago on old system.
Soo pcie working then.
Checked and replaced dhmi and monitor all good.
Sended one card back all reday as I thought its foulty

What im missing here ?
Plz help
lucas
Click to expand...
I'd get a PSU with enough individual 8-pin cables to feed whatever GPU you are using. Convertors, adapters and daisy-chained stuff isn't great.

Could be psu issues as already suggested.

I would disconnect everythign and reconnect, ensuring both ends are correctly connected. Maybe you're missing a connection?

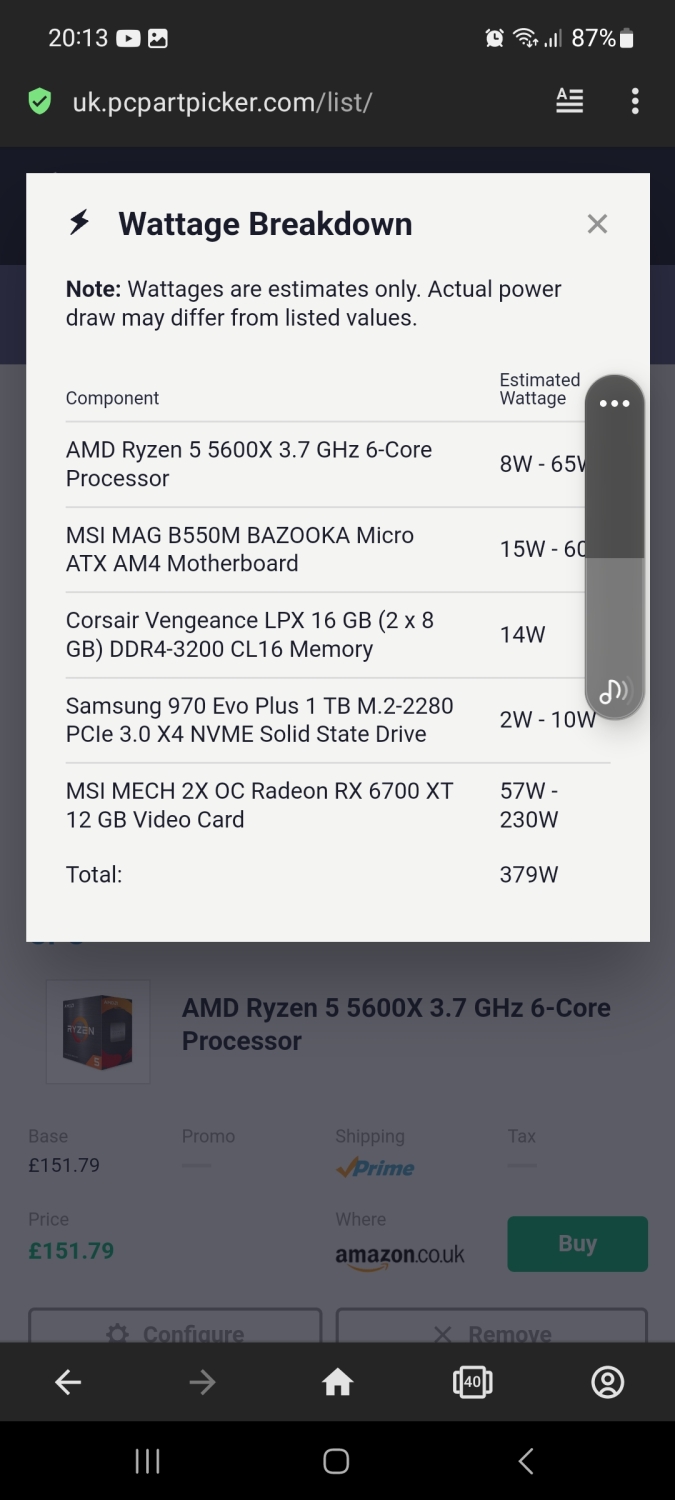

Another thing worth to mention.
files.fm

Screenshot_20221225_201341_Opera

Visit this link to download: Screenshot_20221225_201341_Opera
files.fm files.fm
And this
files.fm

Screenshot_20221225_202258_Opera

Visit this link to download: Screenshot_20221225_202258_Opera
files.fm files.fm

Will buy new PSU any way.
Will try to buy from overclockers.
One special cable for graphic card 1 cord splited on end by manufacturer with 8 and 6 pin
So that only 6 to 8 pic adapter needed.
And not working.
Should be enough " W " in old one mabe.
But any way.
Will check dimensions and go for new.
Let u now hows ti go.

Hi Lads sad news got myself Corsair RM 650gold.
Still no signal from graphics card.
Fans dead on card.
Even plug it with 2 pcie wires separately and nothing coming through to monitor.
There is probability this same card it's foulty again ?
Mabe should reset BIOS with button on MoBo.

Last edited:

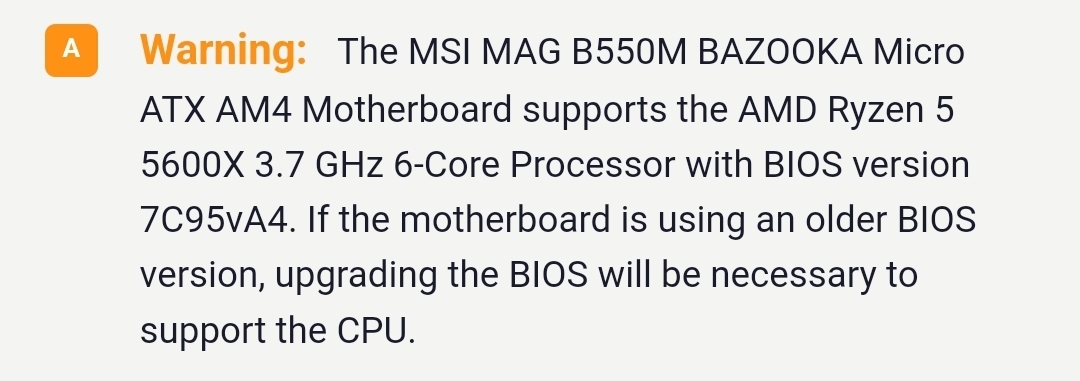

5600X is supported from bios 7C95vA7, there is a chance you are on a earlier version. (your board has a bios flash button so you don't need another CPU)

Shame the new PSU never solved your problem but feel you did need a better one anyway.

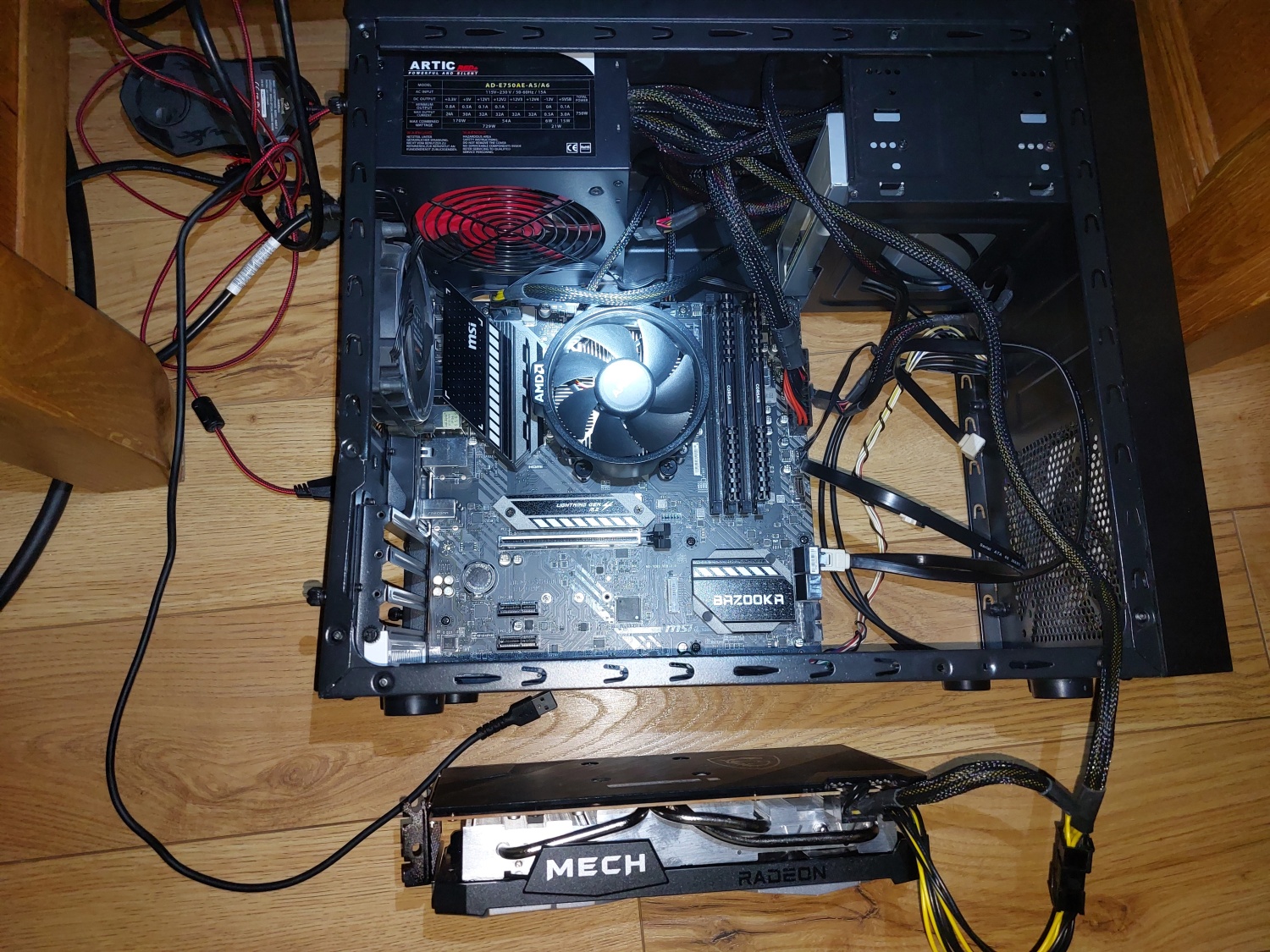

Regarding the photo of your setup, you are plugging the GPU into the motherboard and not trying to run it outside of the case? ;)

Not to be taking the **** but that pic clearly shows the card NOT plugged into the mobo
You ARE plugging the card into the mobo when testing it right?
EDIT Beaten by freddie64 like a ginger stepkid :cry:

Last edited:
