NVIDIA PCI-Express Resizable BAR Performance Test - 22 Games, 3 Resolutions, RTX 3000 series.

KompuKare said:
Just noticed that the review only had 16GB.

Which makes me wonder if there wouldn't be more benefit is system RAM was a lot bigger than VRAM.
For your Cyberpunk experience, how much RAM do you have?
Click to expand...
Just 16GB RAM too, nothing special either, only running at 3000MHz.

varkanoid said:
bit naughty claim there @chrcoluk ;)
Click to expand...

I never credited myself just posted on here what I found on guru3d. ;)

Whats interesting is a few of us tried to open discussions about this on the nvidia subreddit, and the mods (who claim to have no affiliation with nvidia) kept deleting the posts with no reasons given.

The speculation is it is because most games outside of the whitelisted ones wont have much of a benefit if any at all, and it doesnt look good for marketing.

Nexus18 said:
Just 16GB RAM too, nothing special either, only running at 3000MHz.
Click to expand...
Okay, there goes that theory.
Would still like to see some tests with at least 32GB with a 3090 or 6800 or 6900 as having more (the 3090) or the same (Navi 21) amount of VRAM as system RAM doesn't seem like it would show SAM / Resizeable Bar in the best possible light.
Especially with whatever title is the most demanding on swapping out assets. Unsure what that would be though. MS Flight? Some crazy texture mod for Cyberpunk? TES VI with similarly crazy texture mods (wouldn't hold my breath waiting Bethesda though)?

I've followed Nvidia's walkthrough on Resizable BAR and it doesn't work for me

My motherboard: ASUS STRIX X570-F
CPU: AMD Ryzen 9 5900X,
GPU: MSI GeForce RTX 3080 Gaming X Trio

Updated my motherboard BIOS to the latest one which is a beta version
Version 3603 Beta Version
https://rog.asus.com/motherboards/rog-strix/rog-strix-x570-f-gaming-model/helpdesk_bios

Within the Mobo BIOS settings I have these settings applied:
https://imgur.com/Ktw3YPo
Above 4G Decoding enabled
Re-size Bar Support auto

GPU
I have the latest BIOS from MSI website
https://www.msi.com/Graphics-Card/support/GeForce-RTX-3080-GAMING-TRIO-10G.html
Low Noise BIOS (Default)
Version: 94.02.26.40.9B
Release Date: 2020-10-16

I also have the very latest GPU Driver

Yet Resizable BAR is still disabled

Is the GPU causing this issue?

Patrickman said:
I've followed Nvidia's walkthrough on Resizable BAR and it doesn't work for me

My motherboard: ASUS STRIX X570-F
CPU: AMD Ryzen 9 5900X,
GPU: MSI GeForce RTX 3080 Gaming X Trio

Updated my motherboard BIOS to the latest one which is a beta version
Version 3603 Beta Version
https://rog.asus.com/motherboards/rog-strix/rog-strix-x570-f-gaming-model/helpdesk_bios

Within the Mobo BIOS settings I have these settings applied:
https://imgur.com/Ktw3YPo
Above 4G Decoding enabled
Re-size Bar Support auto

GPU
I have the latest BIOS from MSI website
https://www.msi.com/Graphics-Card/support/GeForce-RTX-3080-GAMING-TRIO-10G.html
Low Noise BIOS (Default)
Version: 94.02.26.40.9B
Release Date: 2020-10-16

I also have the very latest GPU Driver

Yet Resizable BAR is still disabled

Is the GPU causing this issue?
Click to expand...

I heard nvidia has a tool on there site that scans computer and tells you what the issue is.

I havent tried it my self.

Patrickman said:
I've followed Nvidia's walkthrough on Resizable BAR and it doesn't work for me

My motherboard: ASUS STRIX X570-F
CPU: AMD Ryzen 9 5900X,
GPU: MSI GeForce RTX 3080 Gaming X Trio

Updated my motherboard BIOS to the latest one which is a beta version
Version 3603 Beta Version
https://rog.asus.com/motherboards/rog-strix/rog-strix-x570-f-gaming-model/helpdesk_bios

Within the Mobo BIOS settings I have these settings applied:
https://imgur.com/Ktw3YPo
Above 4G Decoding enabled
Re-size Bar Support auto

GPU
I have the latest BIOS from MSI website
https://www.msi.com/Graphics-Card/support/GeForce-RTX-3080-GAMING-TRIO-10G.html
Low Noise BIOS (Default)
Version: 94.02.26.40.9B
Release Date: 2020-10-16

I also have the very latest GPU Driver

Yet Resizable BAR is still disabled

Is the GPU causing this issue?
Click to expand...


Is your boot drive set to GPT not MBR and are you turning off CSM and using UEFI too boot in the motherboard bios too ? You can only use UEFI to boot of windows if set to GPT or the pc will not boot. You can't use ReBar without UEFI.

Purgatory said:
Is your boot drive set to GPT not MBR and are you turning off CSM and using UEFI too boot in the motherboard bios too ? You can only use UEFI to boot of windows if set to GPT or the pc will not boot. You can't use ReBar without UEFI.
Click to expand...
Yes Hard Drive set to GPT and yes CSM is disabled by default on my mobo and yes booting via UEFI

It's so puzzling

KompuKare said:
Just noticed that the review only had 16GB.

Which makes me wonder if there wouldn't be more benefit is system RAM was a lot bigger than VRAM.
For your Cyberpunk experience, how much RAM do you have?
Click to expand...

It doesn't work that way. All sam/rebar does is allow the CPU to access all the VRAM at once, instead of 256MB chunks at a time.

Patrickman said:
I was thinking it must be the GPU

Thanks for clearing that up for me

Very strange it's not out yet
Click to expand...


You need to read this for your card :-

https://nvidia.custhelp.com/app/answers/detail/a_id/5165

Important part for you is this part at the bottom of the link above, it says you need to update with dragon centre or the msi liveupdate :-

MSI - (select GPU -> Support -> Utility -> choose MSI Dragon Center or MSI Live Update)


This link you need and download Live update.

https://www.msi.com/Graphics-Card/support/GeForce-RTX-3080-GAMING-X-TRIO-10G#down-driver&Win10 64

Title
MSI Live Update 6
Version
6.2.0.73
Release Date
2021-03-30
File Size
30.91 MB

Description
• Online update BIOS/Driver/Firmware/Utility.
• Live Monitor auto-detects and suggests the latest BIOS/Driver/Utilities information.
Note
1. .net framework 4.0 is required.
2. Antivirus Software need to be disabled to prevent conflict when using Live update utility.
3. The vBIOS of RX 5600 XT 14Gbps memory speed is available on LIVE UPDATE.
4. The BIOS of RX 6800 XT is available on LIVE UPDATE.
5. The MSI ReBAR BIOS is available on LIVE UPDATE
6. Link to the NVIDIA resizable BAR blog: https://www.nvidia.com/en-us/geforce/news/geforce-rtx-30-series-resizable-bar-support/
7. Link to the NVIDIA resizable BAR BIOS update information page, containing general flashing instructions and info on error codes: https://nvidia.custhelp.com/app/answers/detail/a_id/5165

Purgatory said:
You need to read this for your card :-

https://nvidia.custhelp.com/app/answers/detail/a_id/5165

Important part for you is this part at the bottom of the link above, it says you need to update with dragon centre or the msi liveupdate :-

MSI - (select GPU -> Support -> Utility -> choose MSI Dragon Center or MSI Live Update)


This link you need and download Live update.

https://www.msi.com/Graphics-Card/support/GeForce-RTX-3080-GAMING-X-TRIO-10G#down-driver&Win10 64

Title
MSI Live Update 6
Version
6.2.0.73
Release Date
2021-03-30
File Size
30.91 MB

Description
• Online update BIOS/Driver/Firmware/Utility.
• Live Monitor auto-detects and suggests the latest BIOS/Driver/Utilities information.
Note
1. .net framework 4.0 is required.
2. Antivirus Software need to be disabled to prevent conflict when using Live update utility.
3. The vBIOS of RX 5600 XT 14Gbps memory speed is available on LIVE UPDATE.
4. The BIOS of RX 6800 XT is available on LIVE UPDATE.
5. The MSI ReBAR BIOS is available on LIVE UPDATE
6. Link to the NVIDIA resizable BAR blog: https://www.nvidia.com/en-us/geforce/news/geforce-rtx-30-series-resizable-bar-support/
7. Link to the NVIDIA resizable BAR BIOS update information page, containing general flashing instructions and info on error codes: https://nvidia.custhelp.com/app/answers/detail/a_id/5165
Click to expand...

Thanks for the helpful reply Purgatory but I tried Live Update earlier today too, no luck

Im convinced it's MSI not having the new Bios ready yet for my card

Patrickman said:
Thanks for the helpful reply Purgatory but I tried Live Update earlier today too, no luck

Im convinced it's MSI not having the new Bios ready yet for my card
Click to expand...

Make sure to download the one I listed above as that live update tool has been updated to add the ReBar part to its search.

So uninstall any old version and reinstall the one I linked above:-

Title
MSI Live Update 6
Version
6.2.0.73
Release Date
2021-03-30
File Size
30.91 MB


Make sure to have .net framework 4.0 installed too and turn off any antivirus the period it's searching for new updates. Could be your virus checker refusing to do it, other people had virus protection cause issues too.

.net framework 4.0 download page :-

https://dotnet.microsoft.com/download/dotnet-framework/net40

Patrickman said:
I've followed Nvidia's walkthrough on Resizable BAR and it doesn't work for me

My motherboard: ASUS STRIX X570-F
CPU: AMD Ryzen 9 5900X,
GPU: MSI GeForce RTX 3080 Gaming X Trio

Updated my motherboard BIOS to the latest one which is a beta version
Version 3603 Beta Version
https://rog.asus.com/motherboards/rog-strix/rog-strix-x570-f-gaming-model/helpdesk_bios

Within the Mobo BIOS settings I have these settings applied:
https://imgur.com/Ktw3YPo
Above 4G Decoding enabled
Re-size Bar Support auto

GPU
I have the latest BIOS from MSI website
https://www.msi.com/Graphics-Card/support/GeForce-RTX-3080-GAMING-TRIO-10G.html
Low Noise BIOS (Default)
Version: 94.02.26.40.9B
Release Date: 2020-10-16

I also have the very latest GPU Driver

Yet Resizable BAR is still disabled

Is the GPU causing this issue?
Click to expand...

Latest AMD chipset drivers?

Purgatory said:
Make sure to download the one I listed above as that live update tool has been updated to add the ReBar part to its search.

So uninstall any old version and reinstall the one I linked above:-

Title
MSI Live Update 6
Version
6.2.0.73
Release Date
2021-03-30
File Size
30.91 MB


Make sure to have .net framework 4.0 installed too and turn off any antivirus the period it's searching for new updates. Could be your virus checker refusing to do it, other people had virus protection cause issues too.
Click to expand...

I could kiss you Purgatory

Worked like a charm

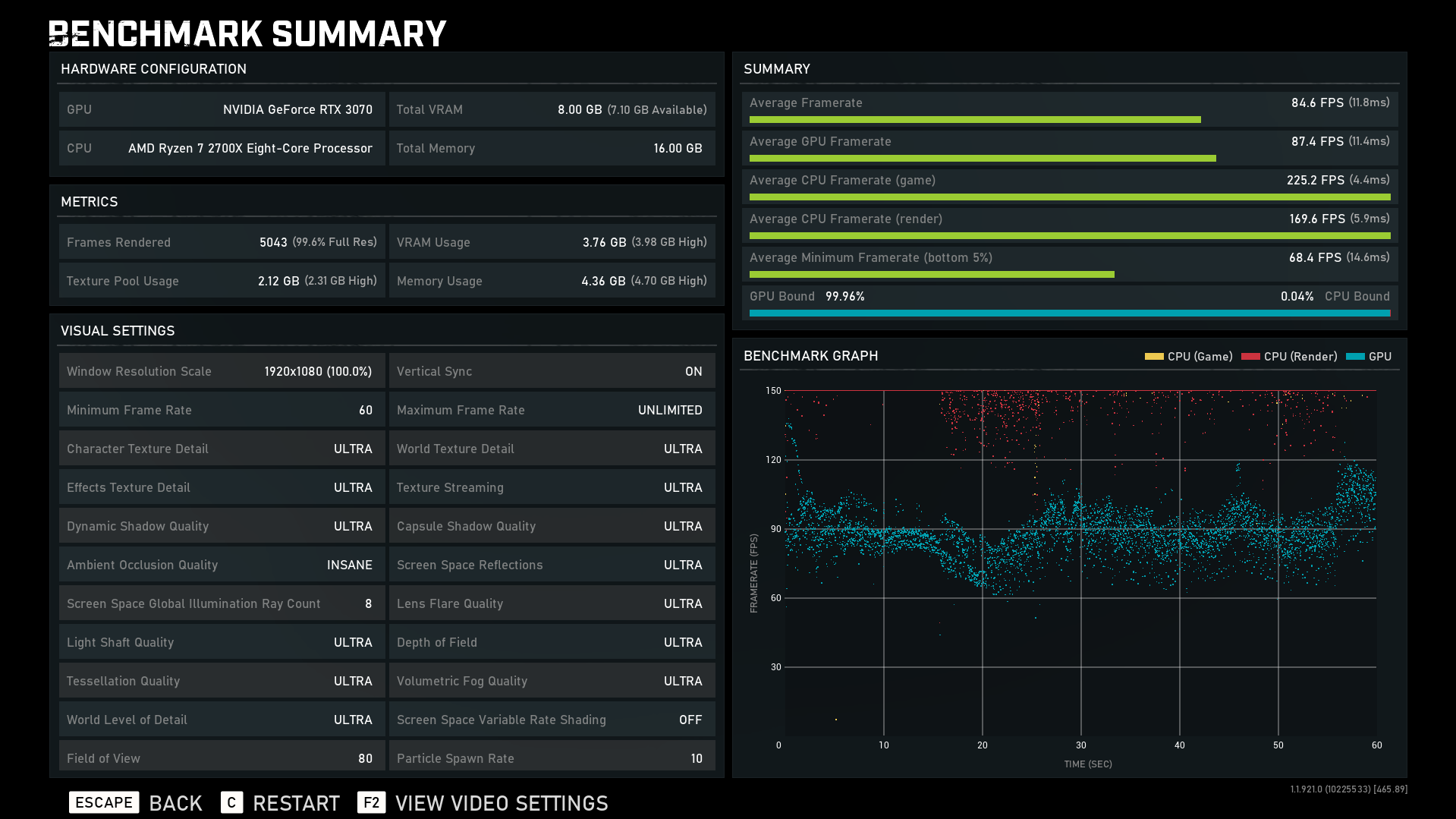

Can confirm Gears 5 gains on my 2700x as well (meaning rbar for zen+ works as efficient as 5000 series cpus)

rbar off


rbar on
