Project : Elemental ( a Jonsbo MOD1 build )


Build name : Elemental as it combines the 4 elements

Fire is represented by the heat of the components
Water is represented by the cooling
Air represented by the open chassis
Earth is represented by the 6ft of soil i'll be buried under when the missus finds out how much this is costing !

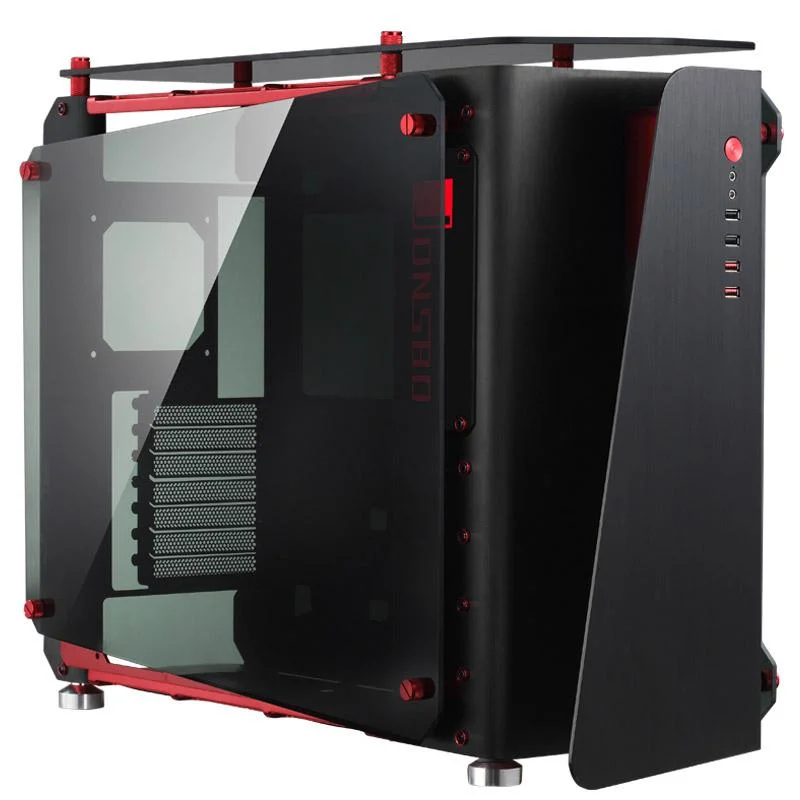

The case : Jonsbo MOD1


http://www.jonsbo.com/en/products_36_1.html

Not really a 'case', as such, more a semi enclosed frame.

To some this will be an 'ugly case' and will not appeal - Good, we are all different and the more experimental case manufacturers get, the better - in my humble opinion.
The design is 'similar' to the In-Win S frame, a case i could only have dreamt of owning.
Some might cringe at the price of £280 for this case, but in todays market it is priced quite reasonably compared to other 'high end' models.

Will it be whisper quiet with 10 x 120mm fans ? Doubtful
Will the semi-open frame attract dust ? More than likely
Is it an In-Win S Frame ? No, but it is £1000 cheaper :D

Personally, i bloody love it.

HARDWARE
Cpu : i5 4670K @ 4.6Ghz @ 1.26v
Mobo : MSI Z87-45 Gaming
Ram : 16Gb GSkill Trident DDR3 2400 Mhz
Gfx : MSI GTX 1070 Gaming X
Psu : Super Flower Leadex II 650w Modular

WATERCOOLING
Cpu block : Watercool Heatkiller IV
Gpu Block : EK - FC1080 GTX TF6 MSI + Backplate
Pump : Alphacool D5 Vario
Radiators : 2 x Magicool G2 Slim 360 / 1 x Alphacool 120 Crossflow
Reservoir : Monsoon MMRS + Pump housing
Tubing : EK 12/10mm
Fittings : Nanoxia Cool Force
Liquid : Mayhems Blood Red Premix
Fans : 7 x Thermaltake Riing 120 RED

MISC
Rad Cover : MNPCTech 360 Rotating Insert Aluminum Black
Sleeving : MDPC Diamond Red / Colour X / Black
Cable Extensions : Bitfenix Alchemy
Fan Control : NZXT Grid+
Random fittings : EK / Alphacool / Barrow
Those endless random screws and bolts : eBay

No real plan or direction, i'll basically just build on my desk as i go along, whilst balancing what i would like with what i can afford.

Enough waffle - Some pics to start with ;

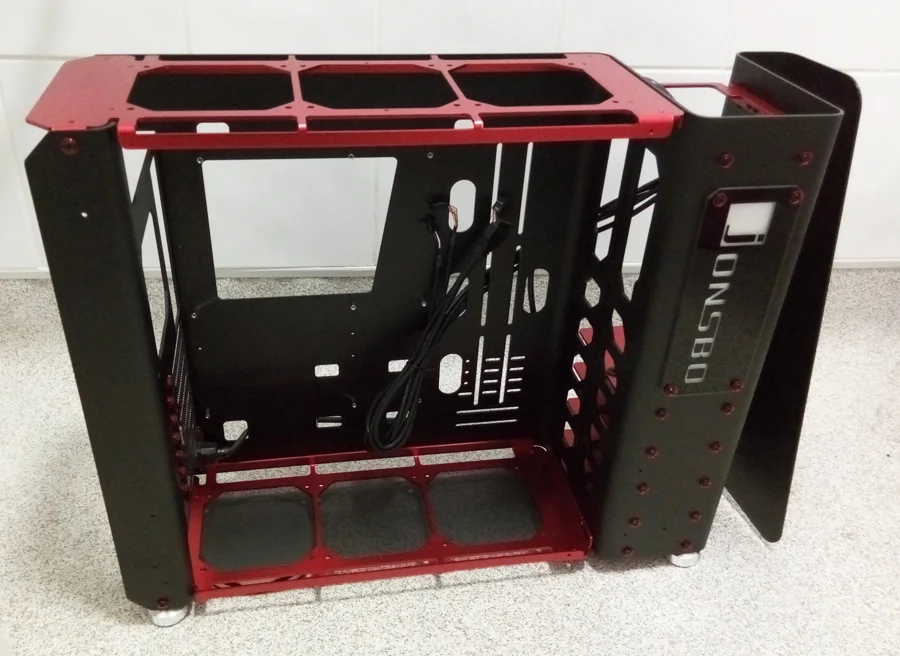

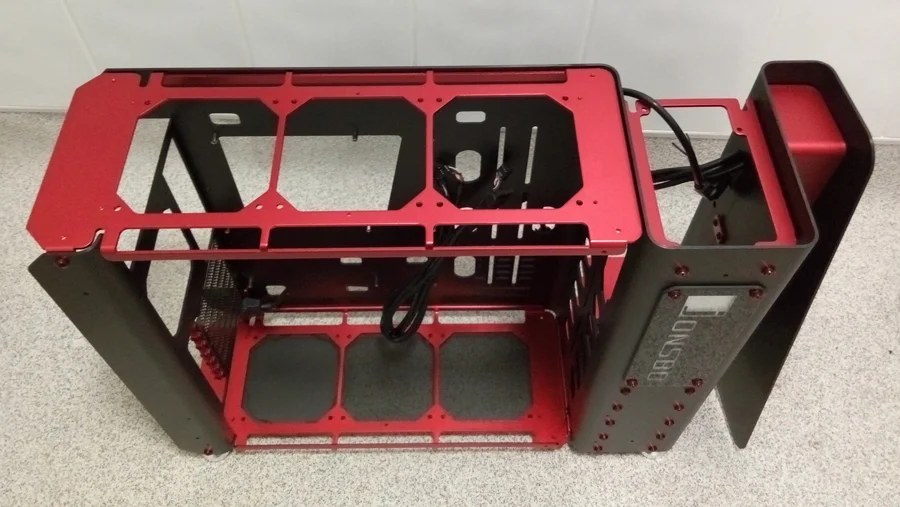

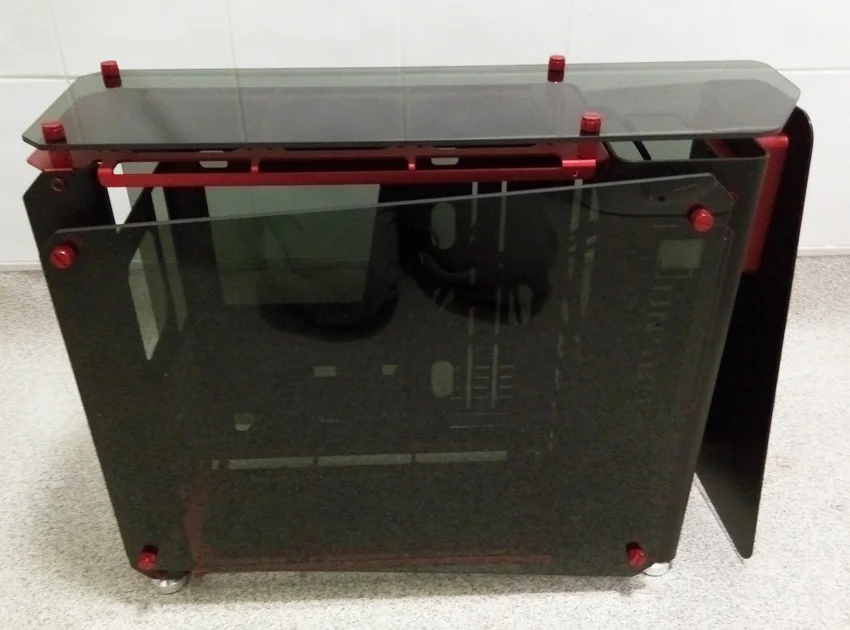

A box arrived today :

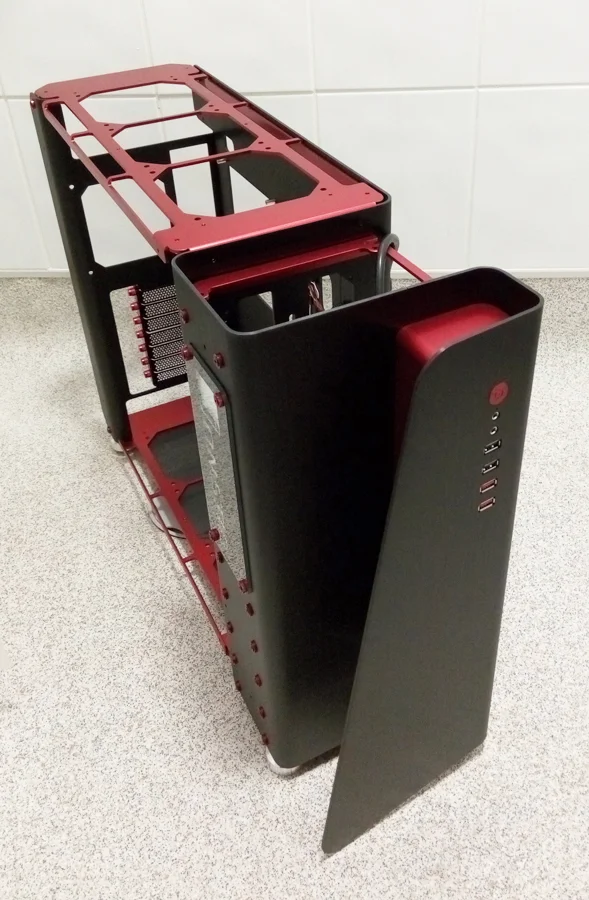

With another box inside :

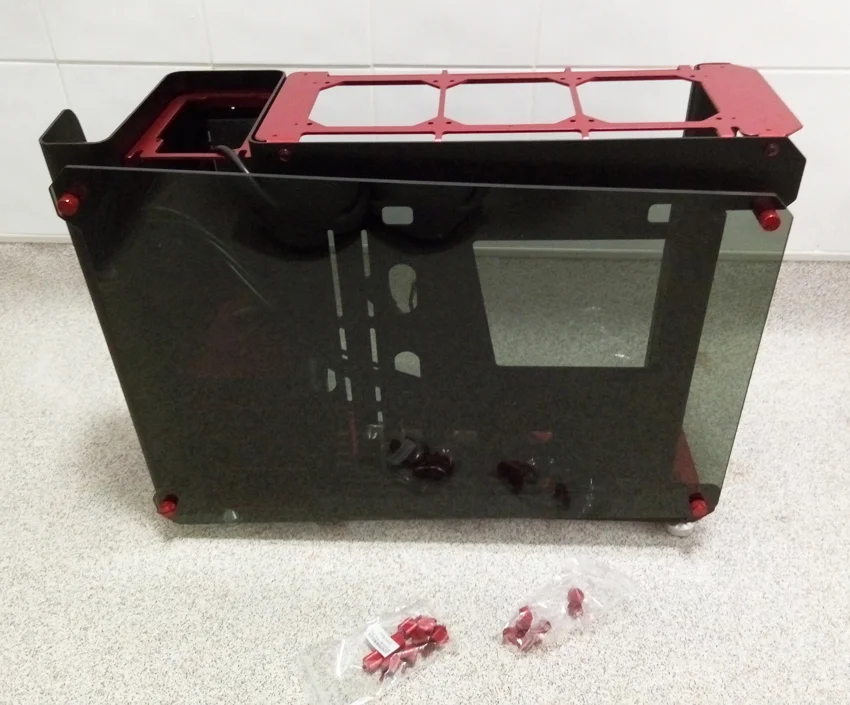

And something inside that box :


Last edited:
Soldato
Joined
23 Apr 2010
Posts
11,896
Location
West Sussex
Jonsbo make superb cases. I had a little ITX case and the whole thing was nice and thick and solid whilst looking gorgeous.

£280 is a lot of money for a case but when I look back I realise that if I had bought any of my Alienwares new I would have been paying £300-£500 for the case itself, especially in the case of the '08 ALX. They had a £600+ premium on them.

You're right though. It is basically a S frame and more for a good price. I paid more than that for a Cosmos II and it was awful.

Really looking forward to seeing this. I like it when people go out of their way to find something no one else has yet.

Man of Honour
OP
Joined
16 Mar 2005
Posts
8,052
Location
Clevedon , Bristol
Small update :)

Slowly gathering together some parts ;

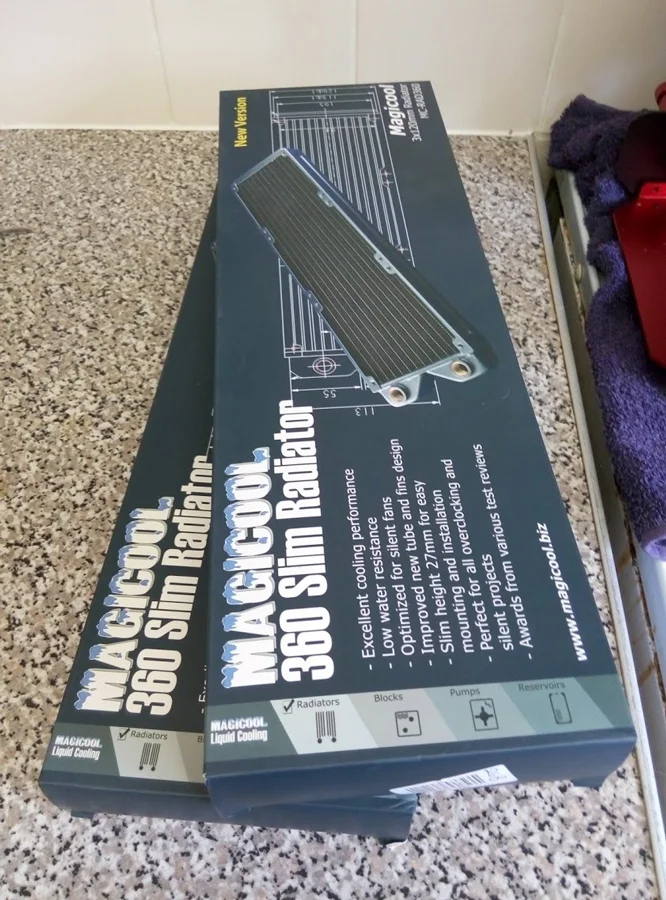

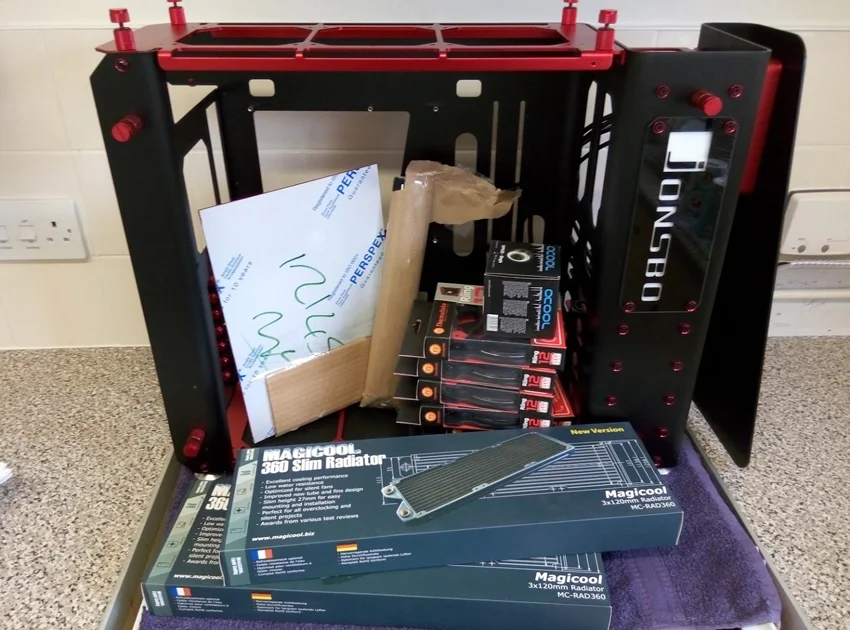

Slim radiators for top and bottom of case :

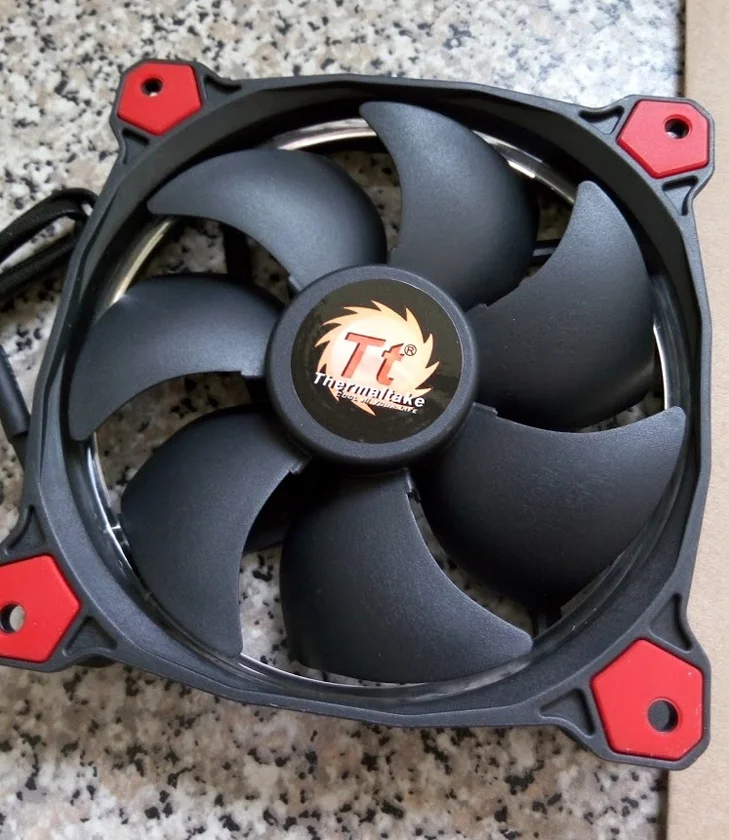

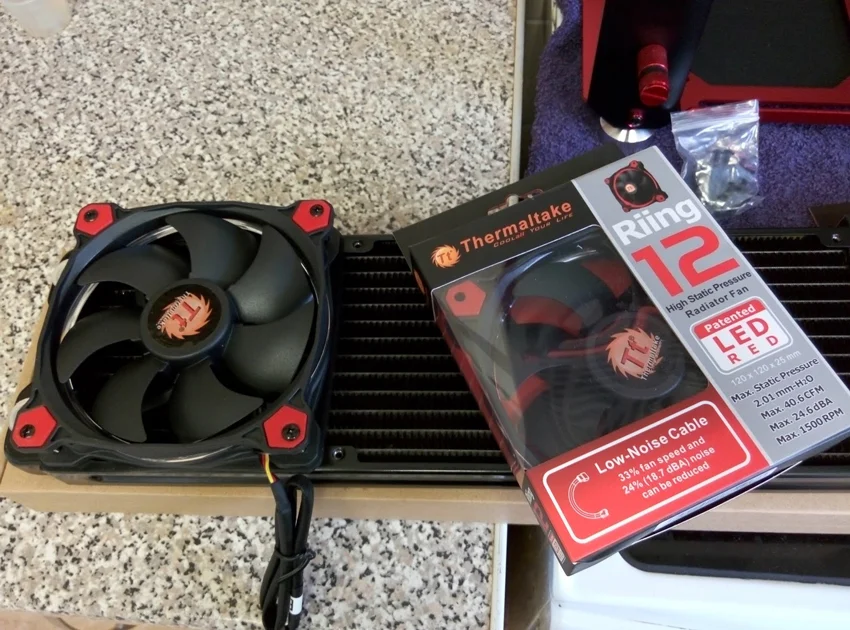

Fans :

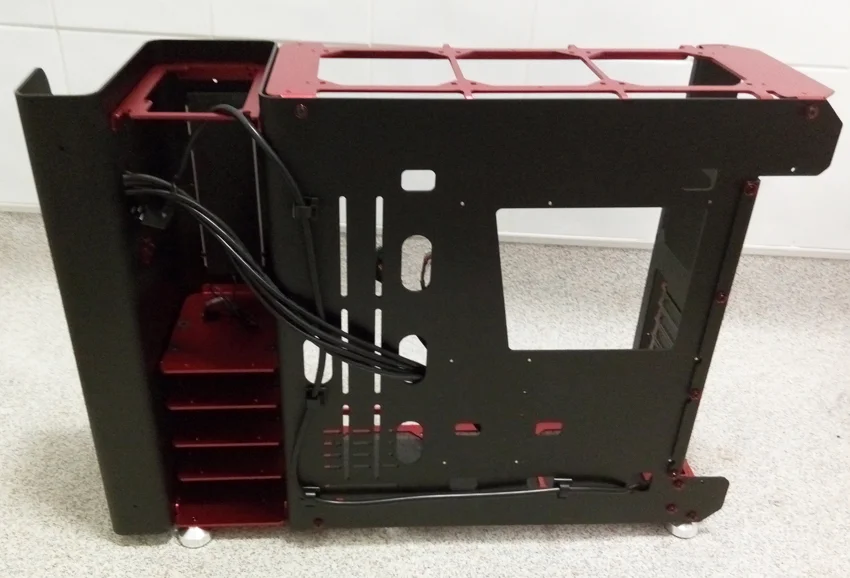

Radiators installed :

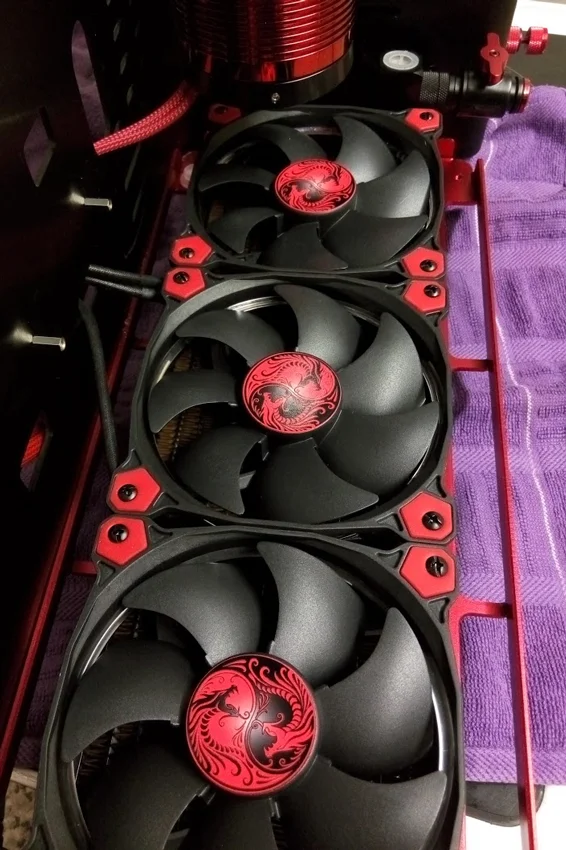

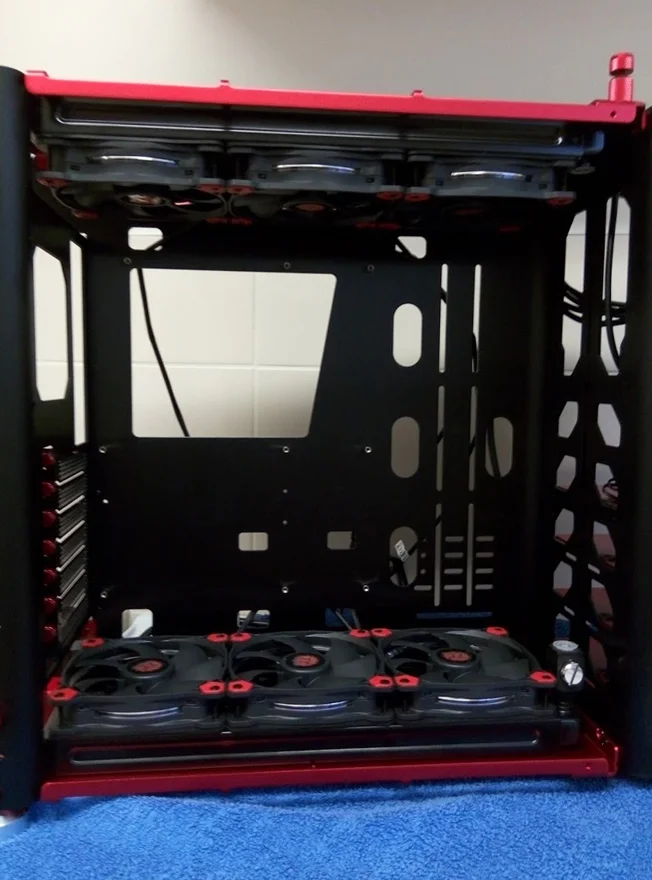

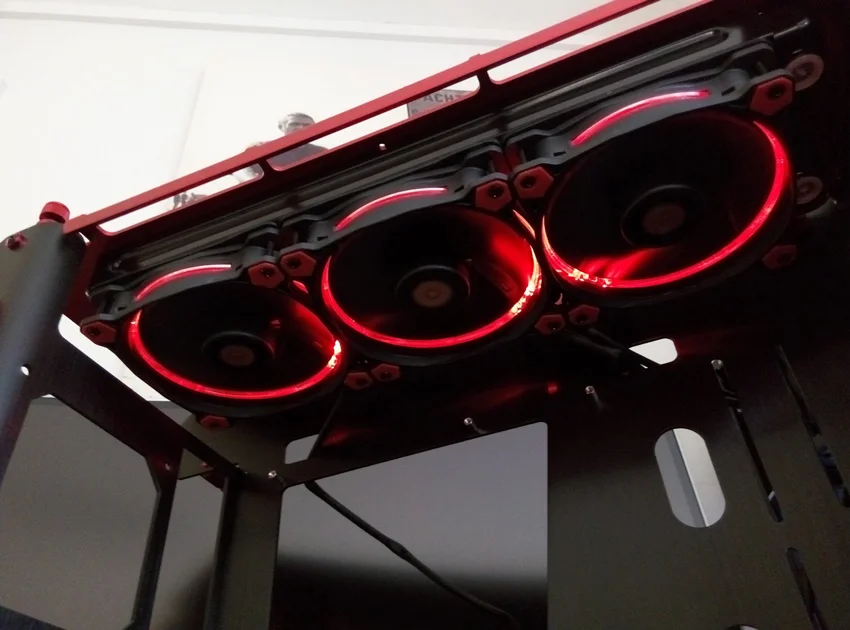

Fans ' in action' :



Started work on replacing the Jonsbo logo panel, and will update shortly

Thanks for popping by :D

Man of Honour
OP
Joined
16 Mar 2005
Posts
8,052
Location
Clevedon , Bristol
Thekwango;30477233 said:
That's a damn fine looking case. Looking forward to seeing your build progress.

Thanks :)

Logo panel update.

The case comes with a 'Jonsbo' logo which illuminates red.
Great if your name is Jon Sbo, but it needed changing.

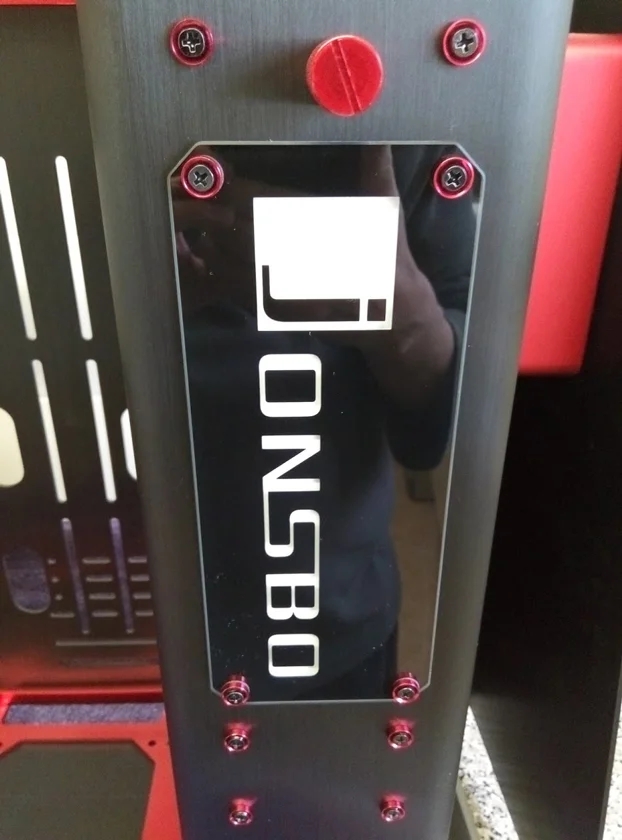

The glass logo panel simply unscrews;

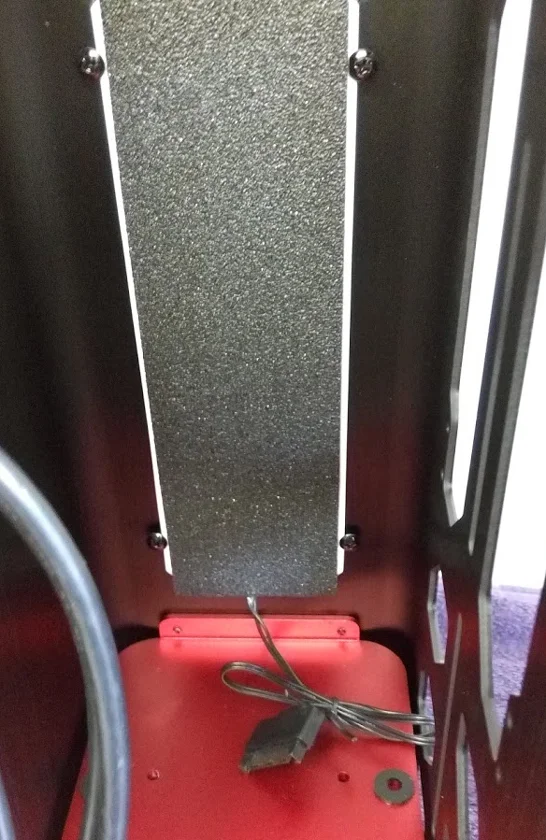

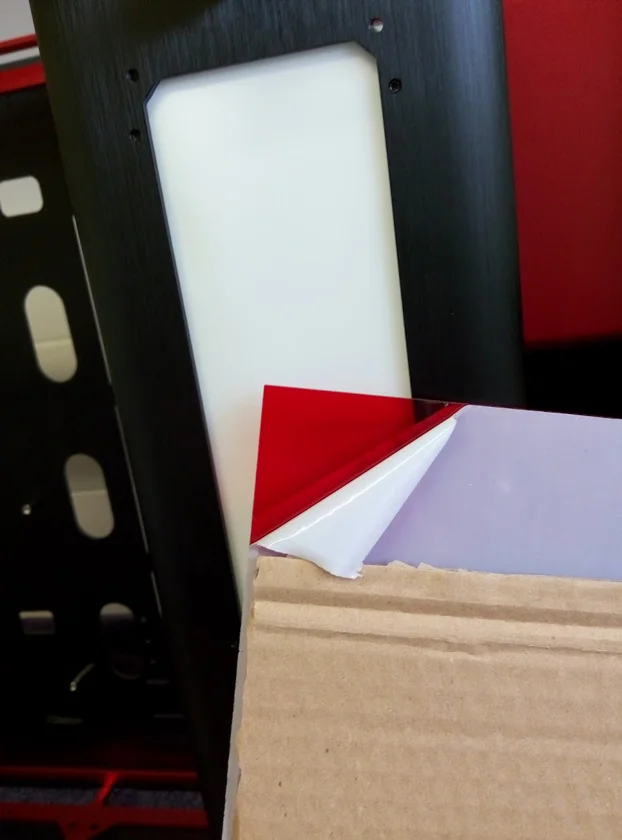

Behind it is a light panel which connects via SATA;

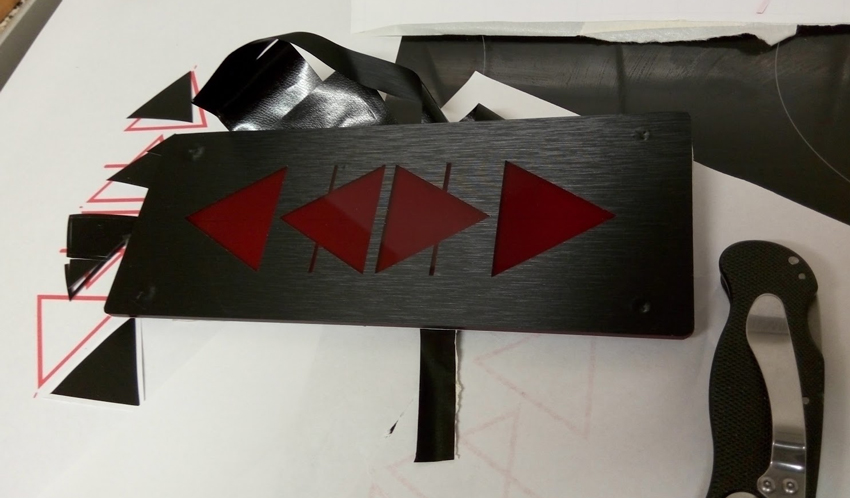

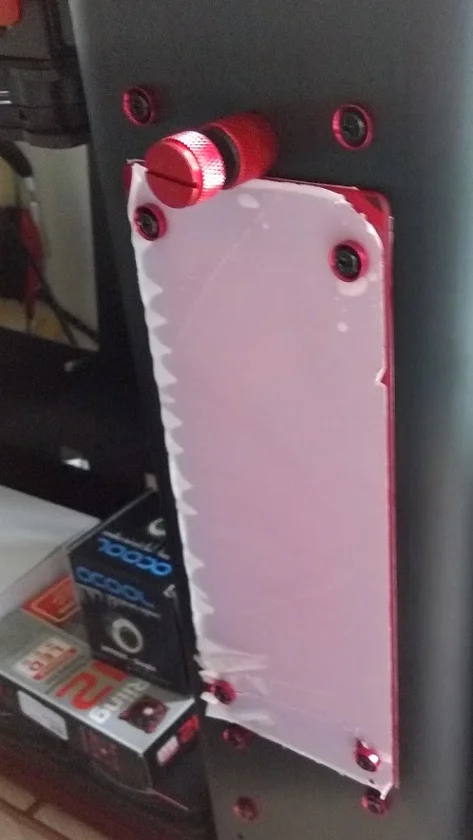

I made a new one using 3mm acrylic;

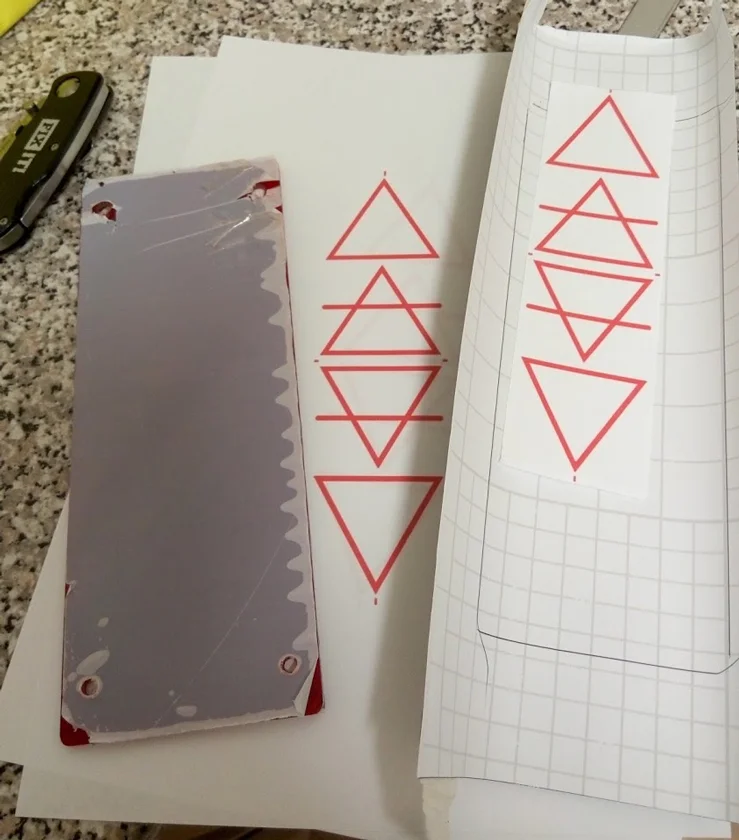

Next was to cover the acrylic in brushed aluminium effect vinyl, but first i had to hand cut the symbols from the vinyl.
The 4 symbols represent the 4 elements Fire,Water,Air and Earth;

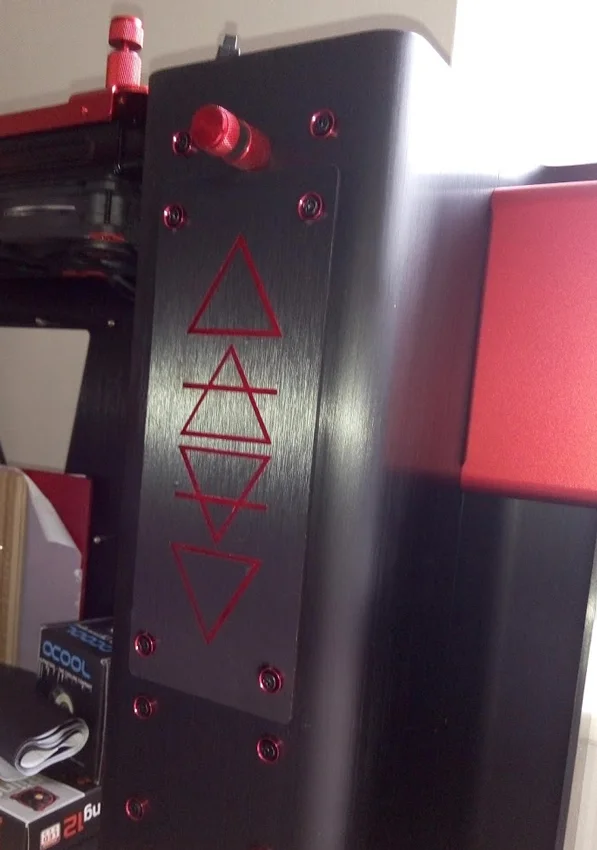

The finished article ;
/lFT7pzy.jpg/

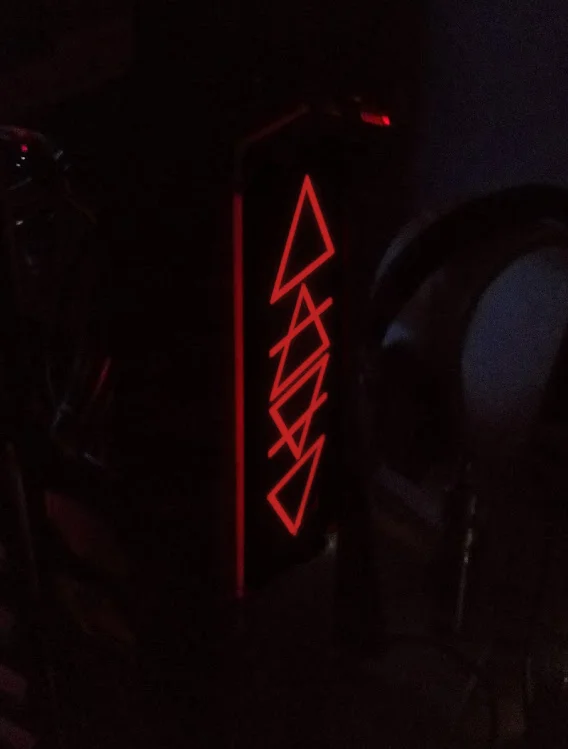

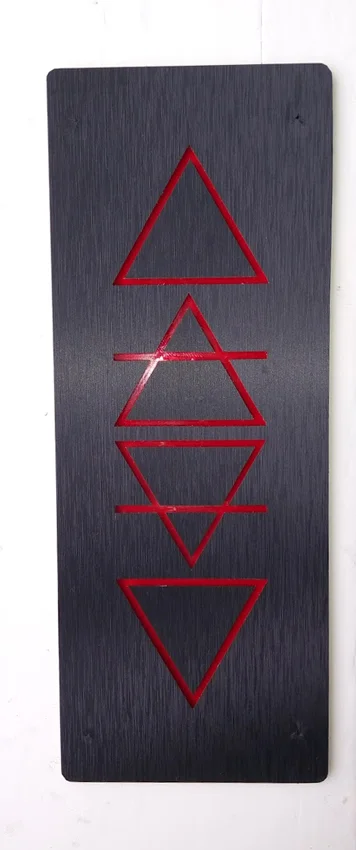

All lit up ;


Thanks for looking :)

Man of Honour
OP
Joined
16 Mar 2005
Posts
8,052
Location
Clevedon , Bristol
That looks great.

Thank you :)

Another small update

To try and keep the red and black colour scheme consistant, i chose the Monsoon MMRS and pump shroud.

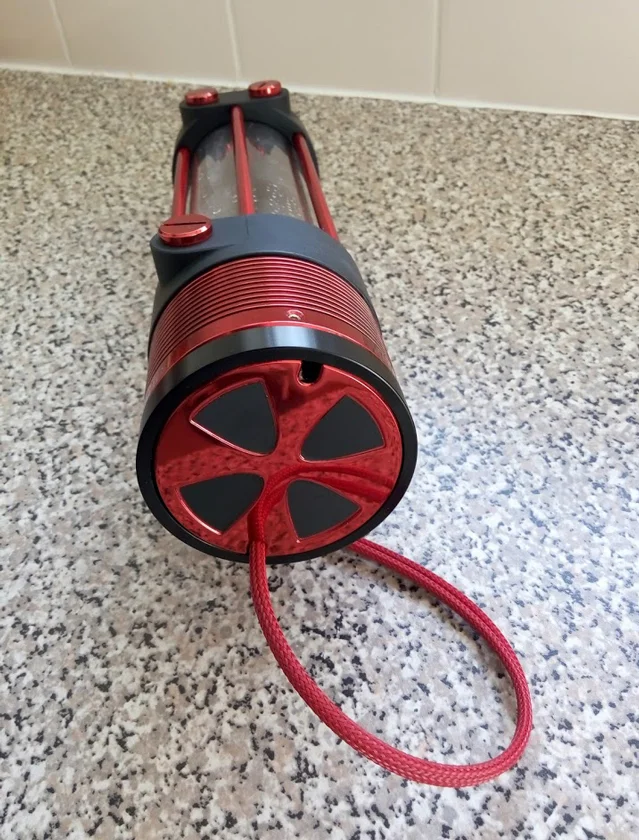

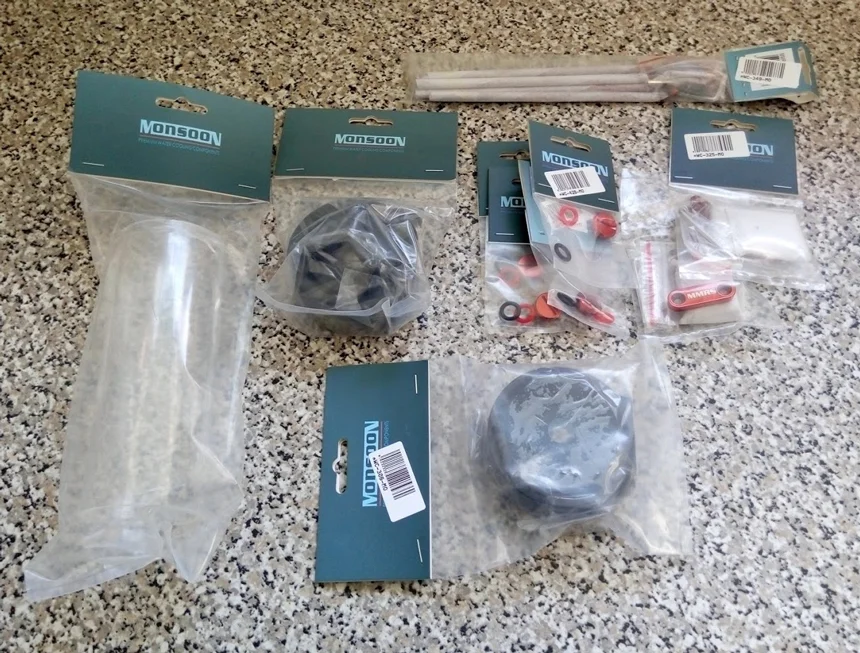

A selection of Monsoon goodies;

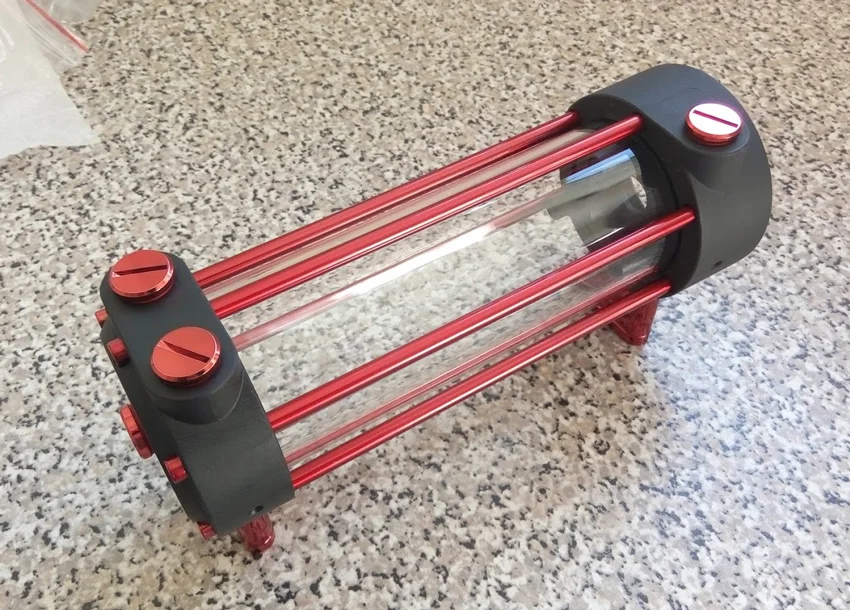

Assembly is straight forward enough;

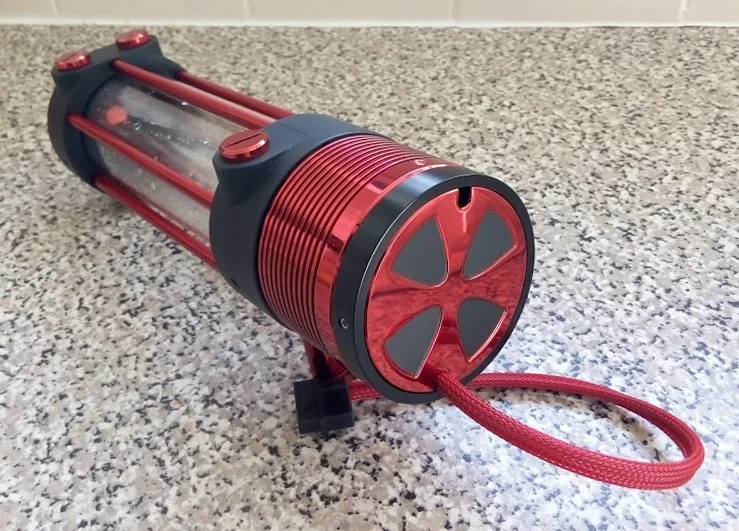

Then the pump shroud ;

I've chosen MDPC-X 'Diamond Red' as the sleeving/braid (as it is the closest match);

Despite the plethora of pre-cut mounting slots for pumps and reservoirs in the case, i still needed to widen a couple of slots to fit the reservoir ;

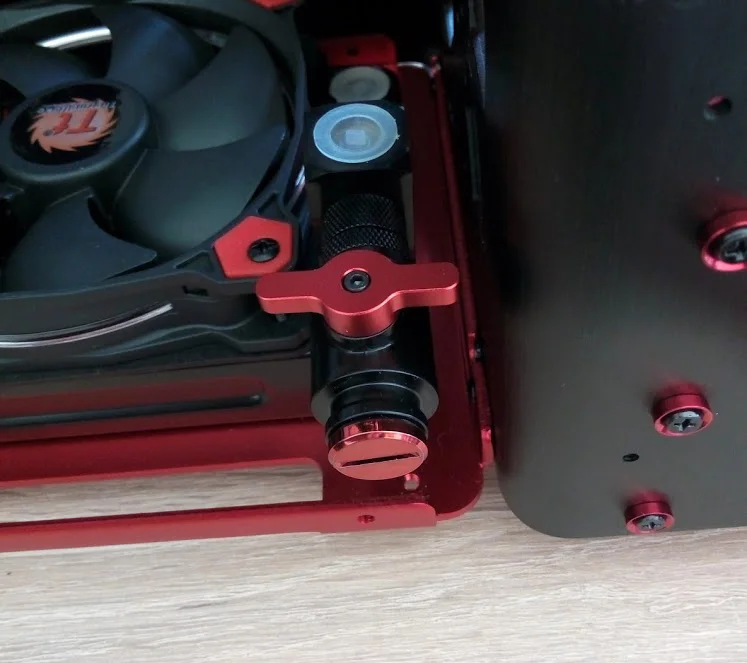

Quite pleased to find this little ball valve on eBay as it matches the colours perfectly;

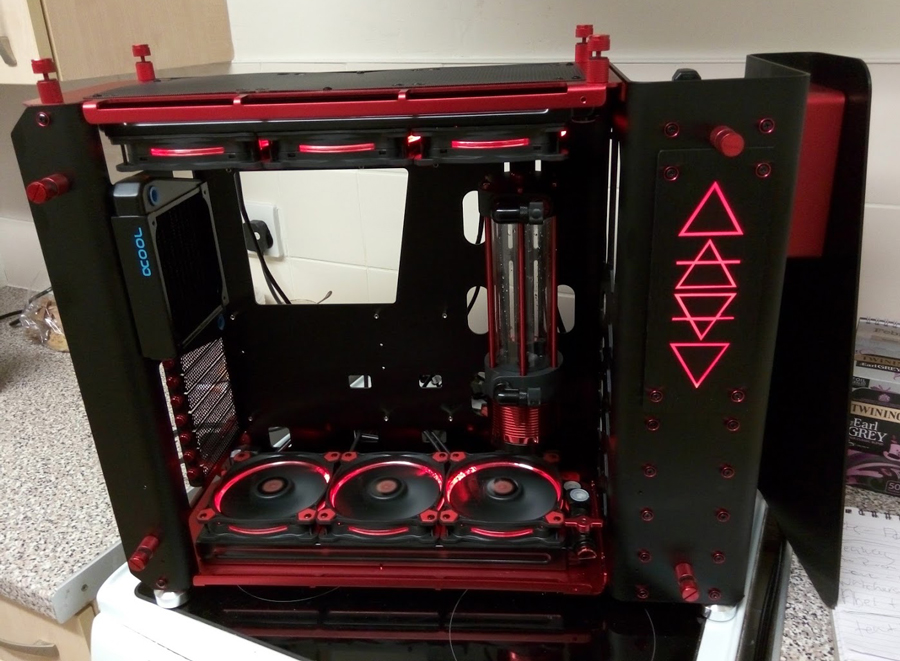

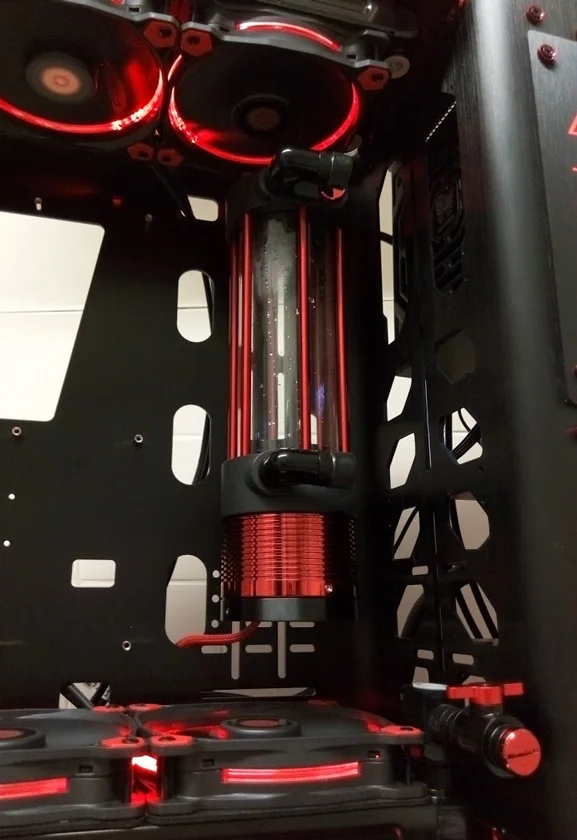

How it looks so far;

Thanks for popping in :)

Soldato
Joined
1 Dec 2015
Posts
18,514
Looking awesome mate . be sure to drop Cooltek an email with the finished article :)

Love what you've done with the Jonsbo panel, have that on the UMX4 . half tempted to cover like yourself

Soldato
Joined
4 Dec 2015
Posts
3,221
Location
London
Missed this one some how... I like the case, makes you realise just how insane the price on that inwin are, shame really or we would see more like this.

Nice work on the new panel, I would have made a total mess of it :)

Man of Honour
OP
Joined
16 Mar 2005
Posts
8,052
Location
Clevedon , Bristol
Looking awesome mate . be sure to drop Cooltek an email with the finished article :)

Love what you've done with the Jonsbo panel, have that on the UMX4 . half tempted to cover like yourself

Missed this one some how... I like the case, makes you realise just how insane the price on that inwin are, shame really or we would see more like this.

Nice work on the new panel, I would have made a total mess of it :)

Looks really nice. Can't wait to see more updates

Thanks for the comments - Much appreciated :)

Man of Honour
OP
Joined
16 Mar 2005
Posts
8,052
Location
Clevedon , Bristol
Update time again

Didn't like the logo on the fans


So set about rectifying that.

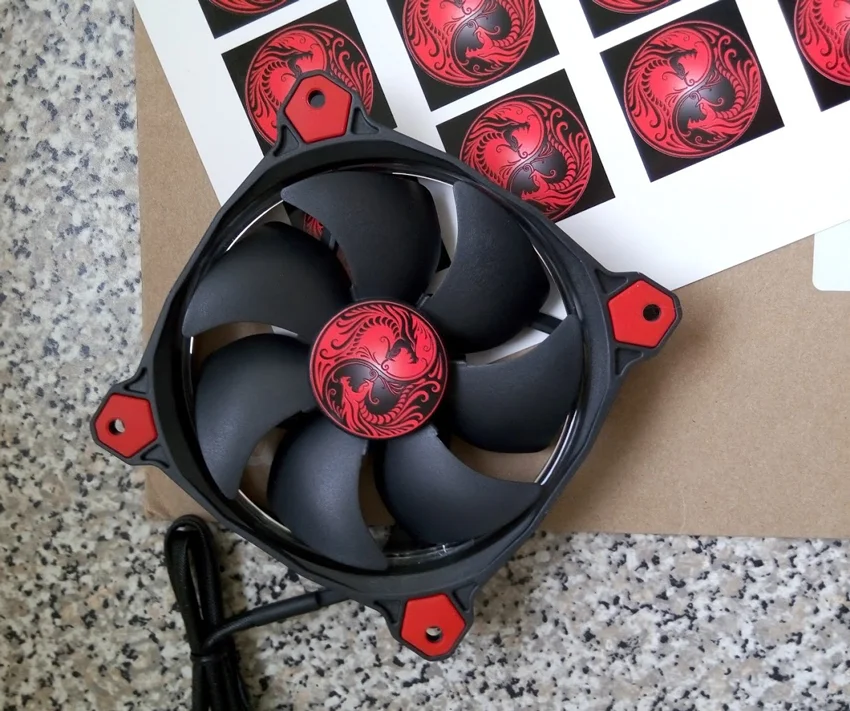

Had some stickers printed ;

Perfect fit ;


Next up, the watercooling blocks.

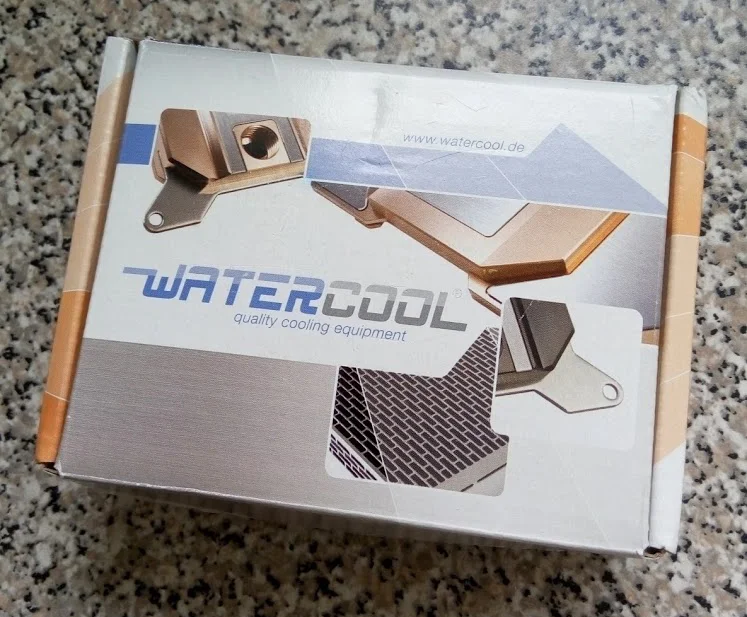

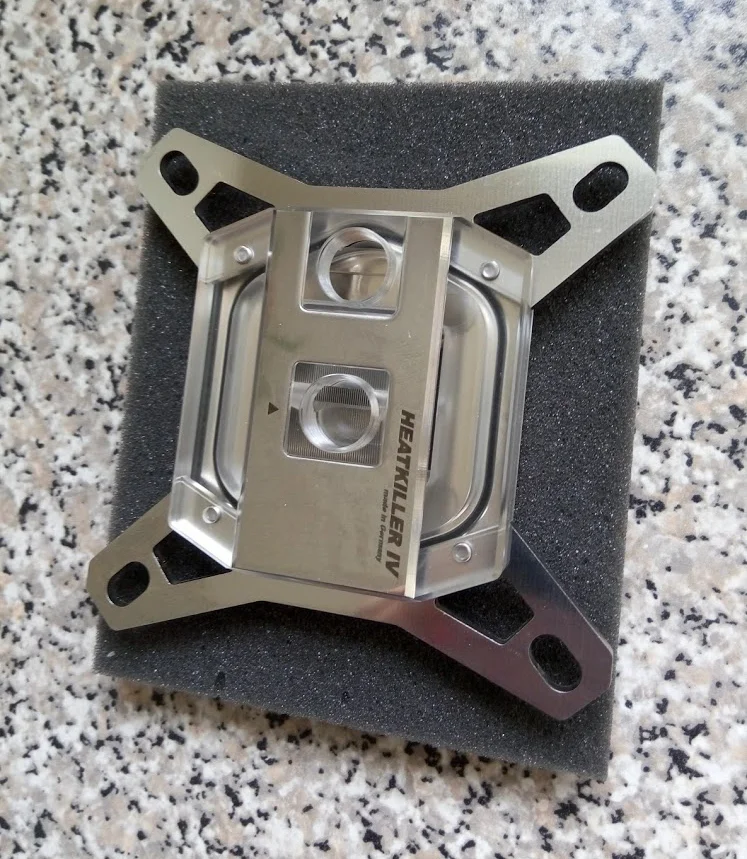

Watercool Heatkiller IV ;

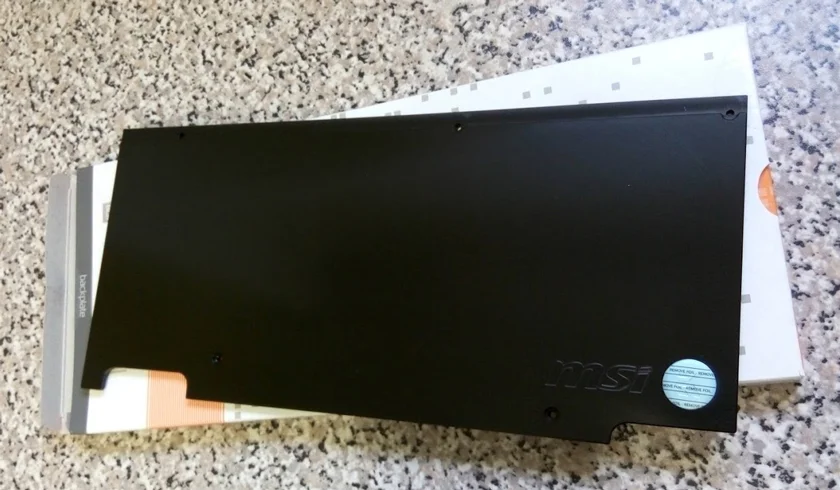

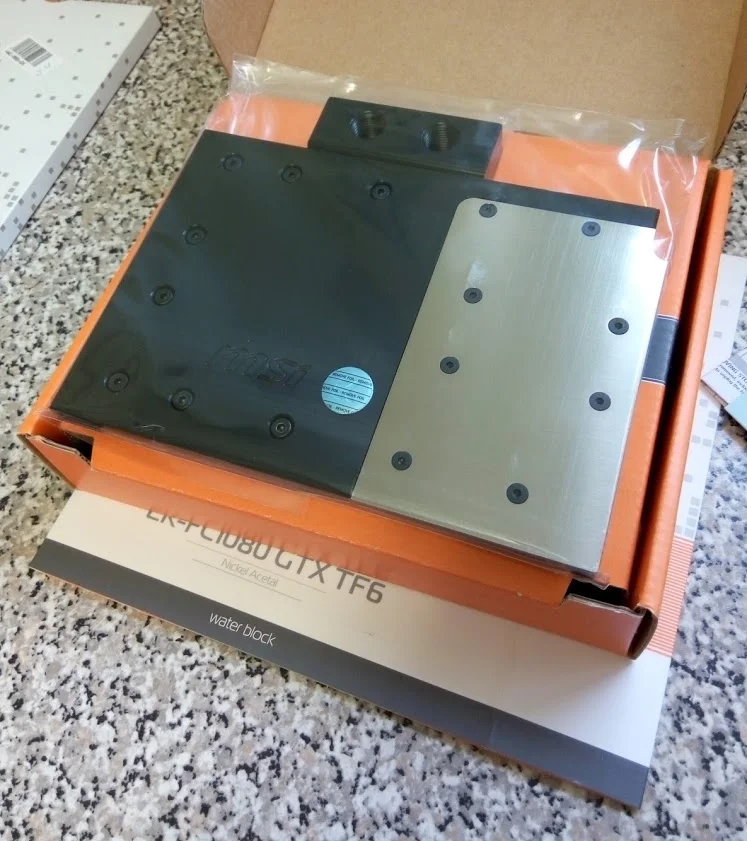

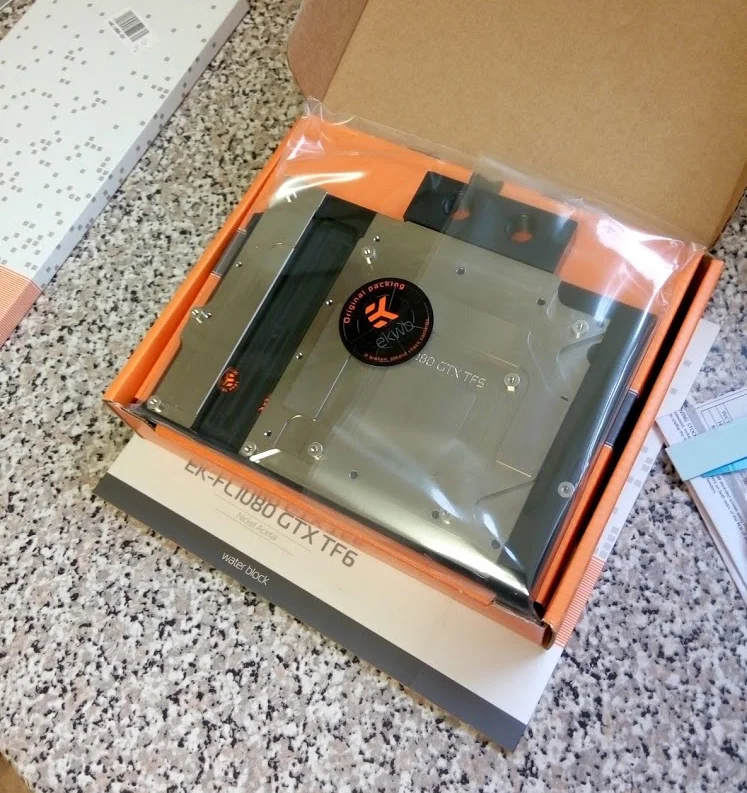

EK MSI GTX1070 block and backplate ;






Man of Honour
OP
Joined
16 Mar 2005
Posts
8,052
Location
Clevedon , Bristol
A couple of changes made.

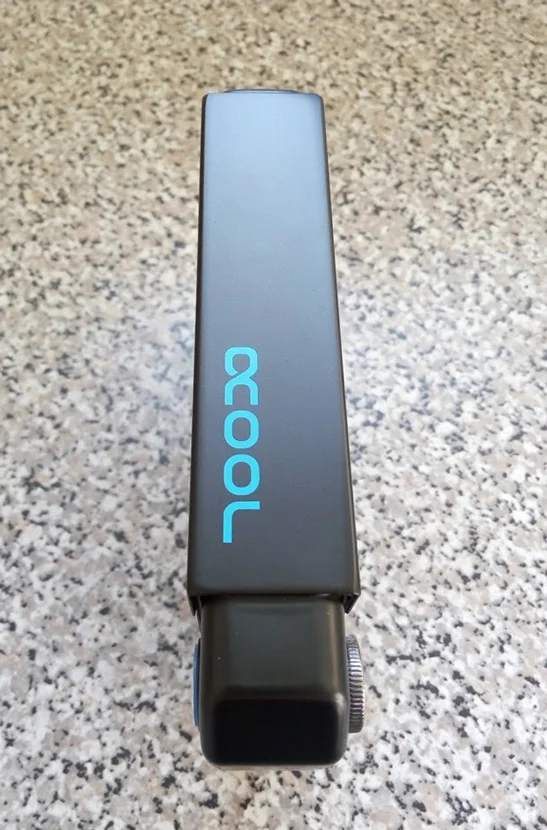

The blue Alphacool logo stuck out like a sore thumb ;

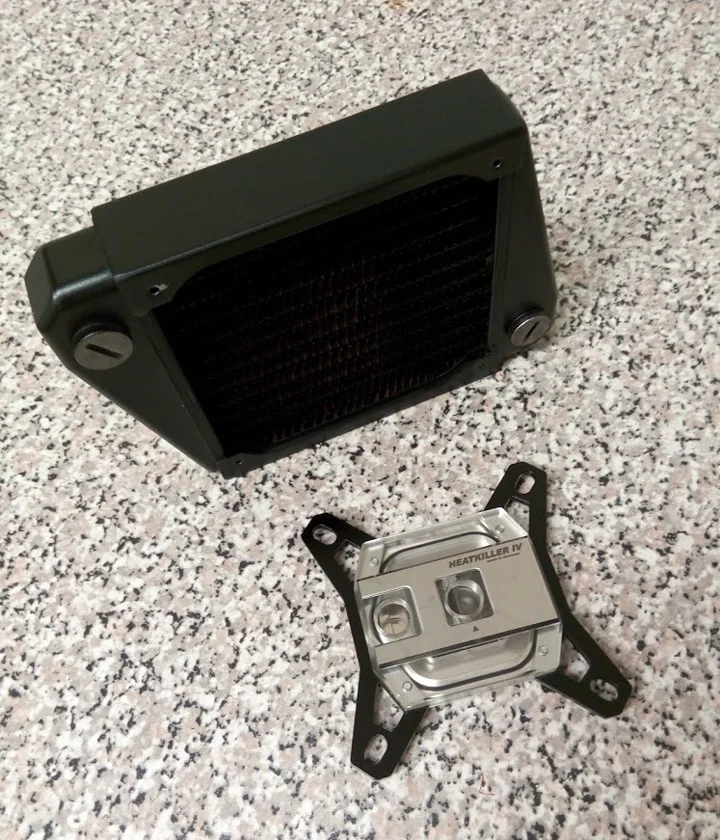

And the retention plate on the cpu block, i wanted black ;

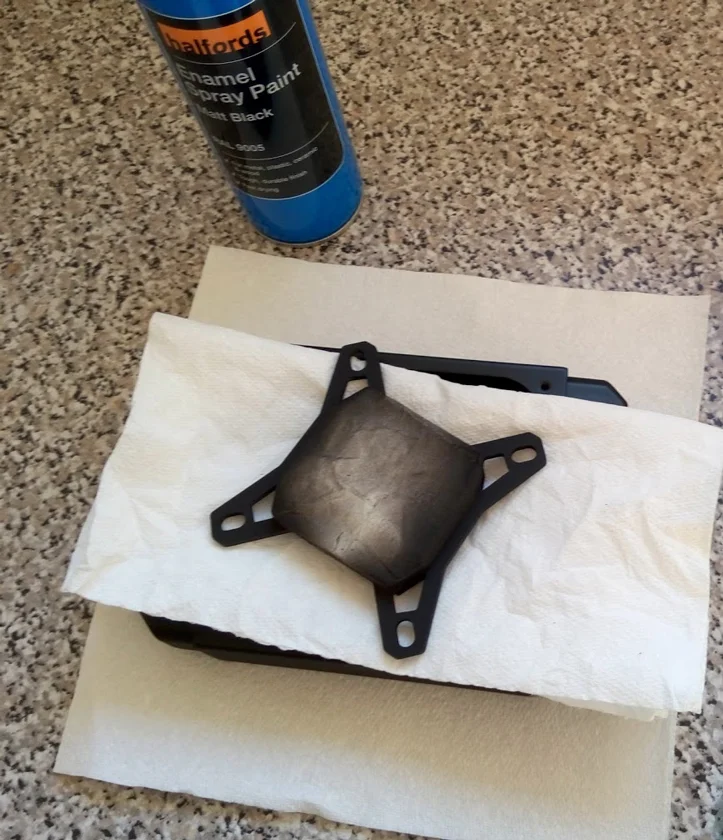

Spray paint and clear coat applied ;

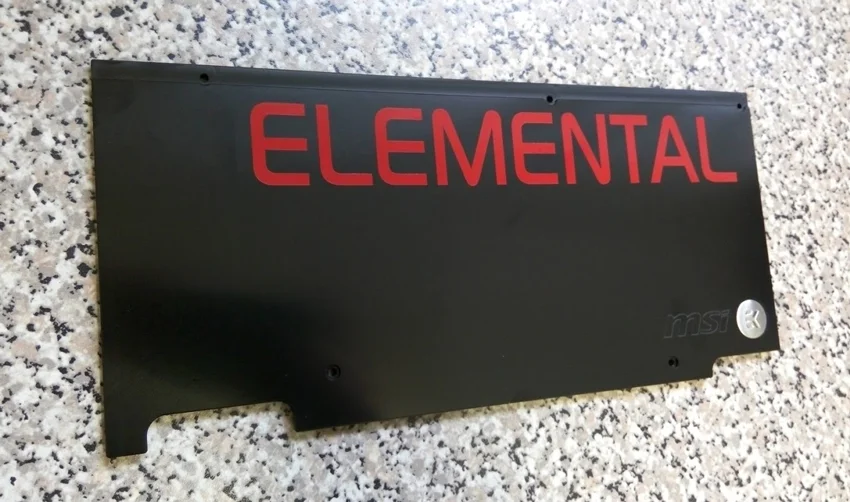

Graphic made for back-plate

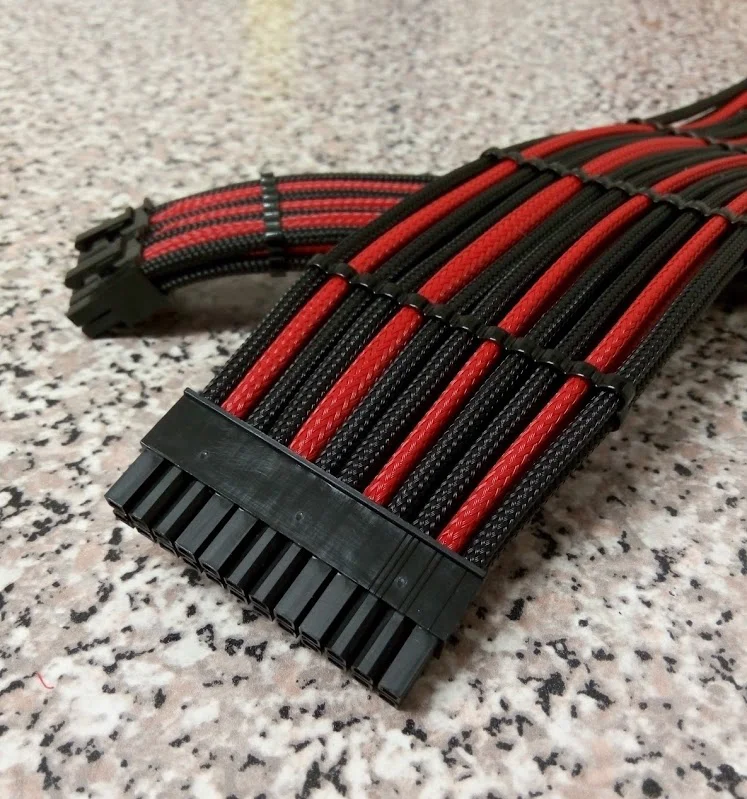

Braiding

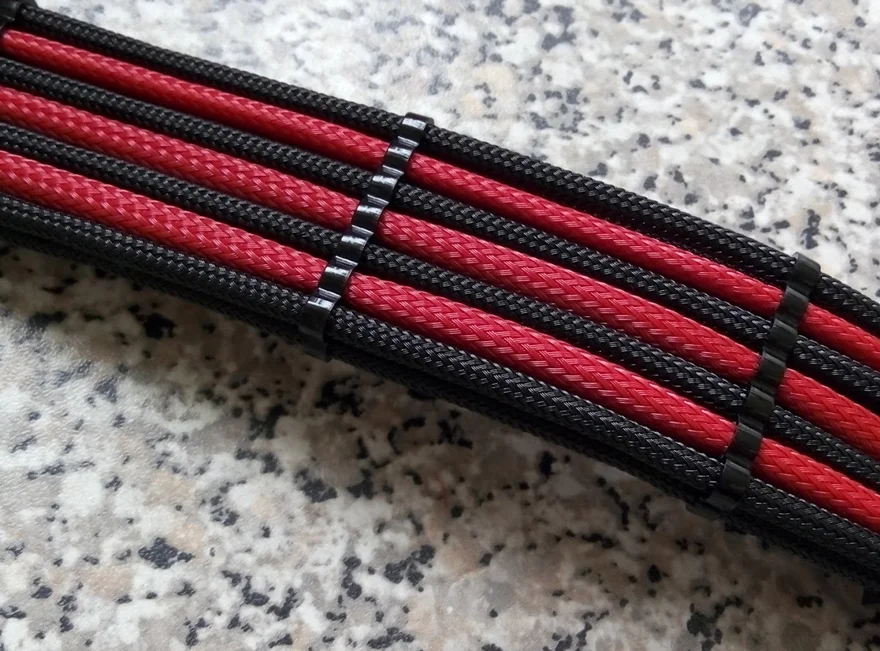

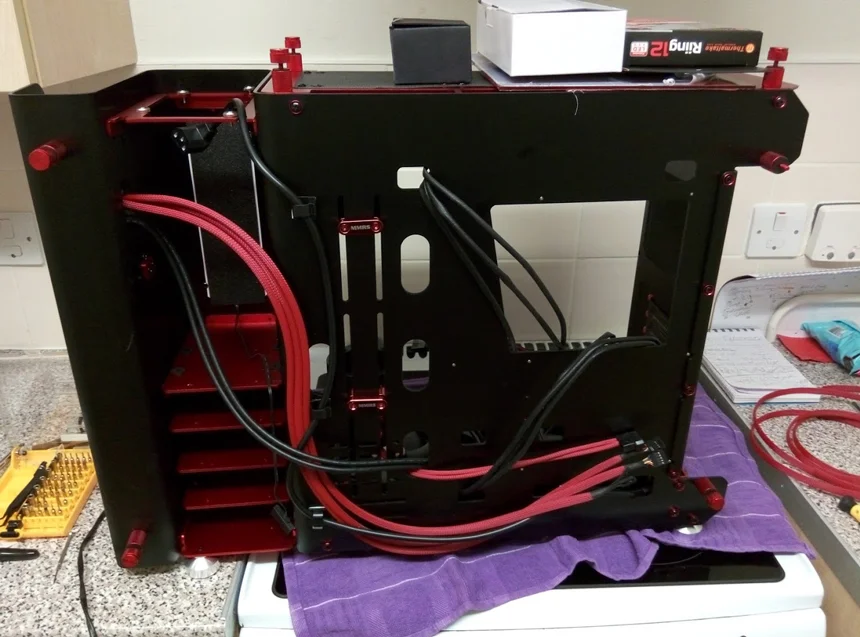

Had a braiding afternoon ;





Once again, thanks for popping in :)
