Project Legato - Long build project

fantasticCG · 18 Feb 2015 at 18:38

Can't wait to see more fantastic work dude.
What program did u use for the mock up work?

jacob1995knight · 18 Feb 2015 at 19:34

fantasticCG said:
Can't wait to see more fantastic work dude.
What program did u use for the mock up work?

Thanks

I use Google sketchup 8 for all of my 3D work at the moment.
Then I render the images with indigo renderer.

jacob1995knight · 20 Feb 2015 at 15:52

So not a large update, but got in contact with the supplier of my motherboard, as it still hasn't arrived yet!

They say that they are ordering it directly from asus AND it should* be with me by next week.......... i REALLY hope so!

jacob1995knight · 22 Feb 2015 at 23:33

Update 7

Soooo... sunday update

Thought i would buy the small parts of the build

shakmods GPU braided cable extensions 6 pin x 2

shakmods GPU braided cable extensions 8 pin x 2

shakmods CPU motherboard braided extension cable 6 pin

Bitspower Black Triple Rotary 90 Degree Fitting x 2

Bitspower Rotary Fitting 360 Degree Black

XSPC LCD Temperature Sensor (White) + Plug Sensor

Bitspower Dual High Flow Fitting Black Finish

Still a lot to order but getting there piece by piece

More to come

jacob1995knight · 26 Feb 2015 at 18:54

Update 8

Been a while...... sorry

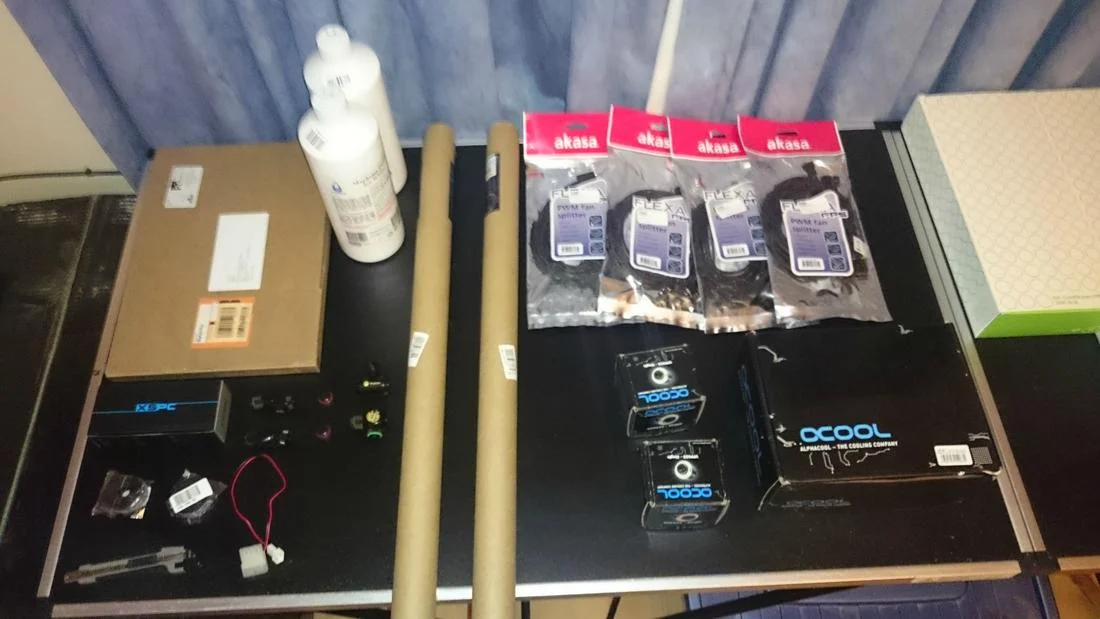

So some more stuff arrived, not a lot but some stuff

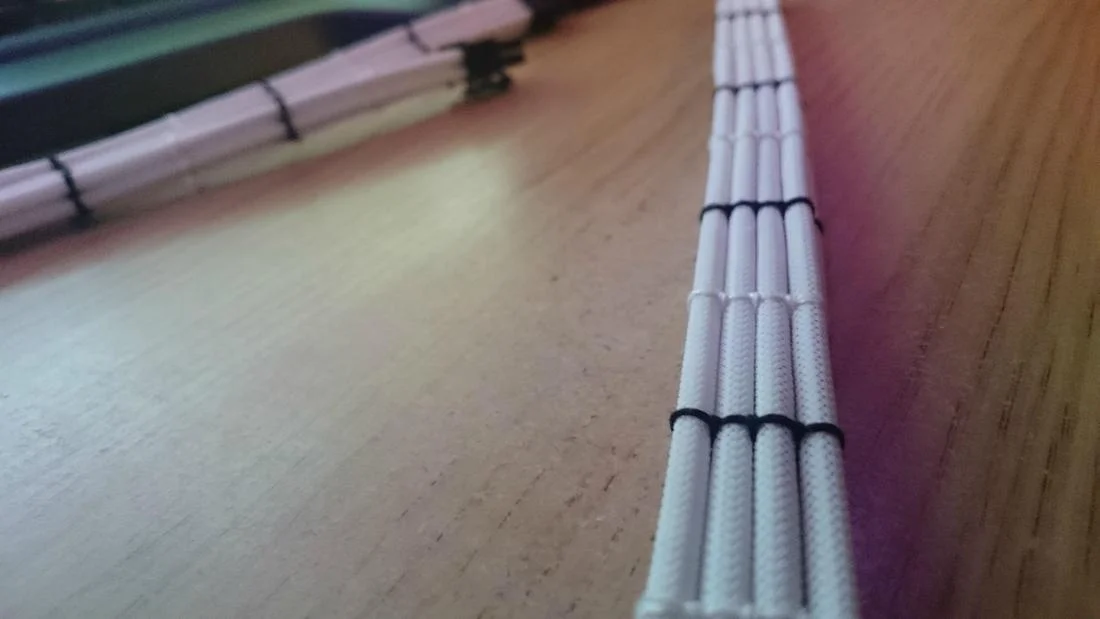

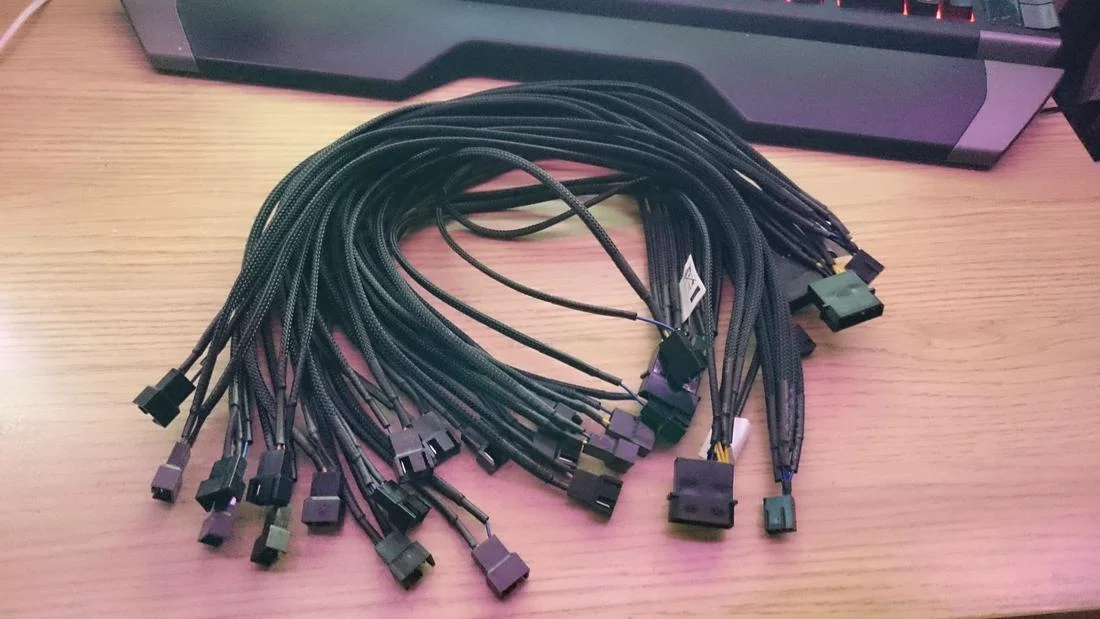

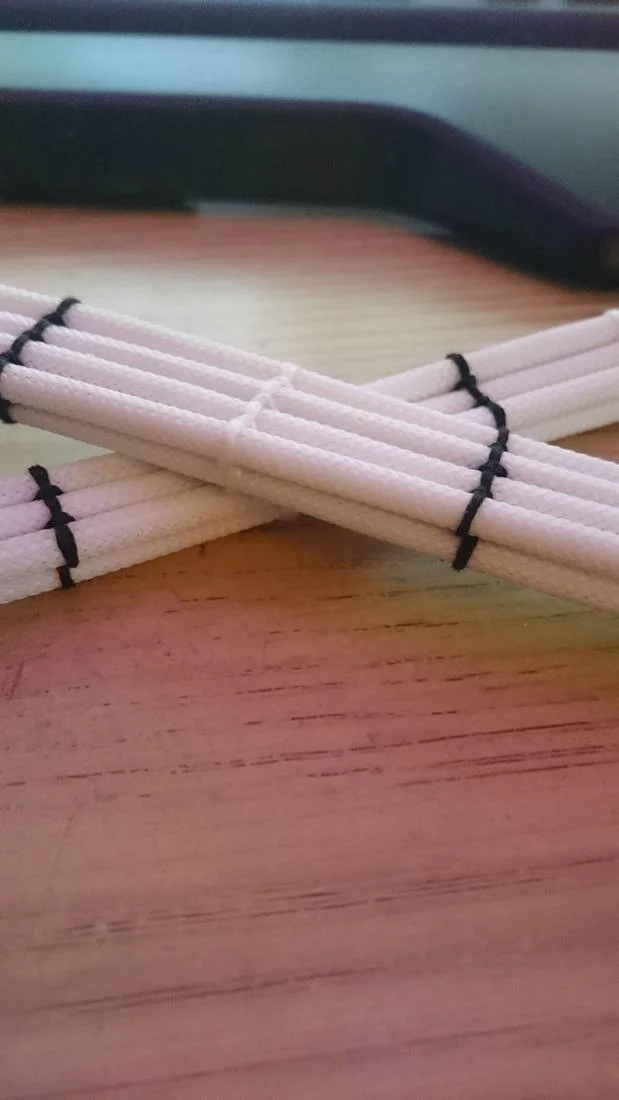

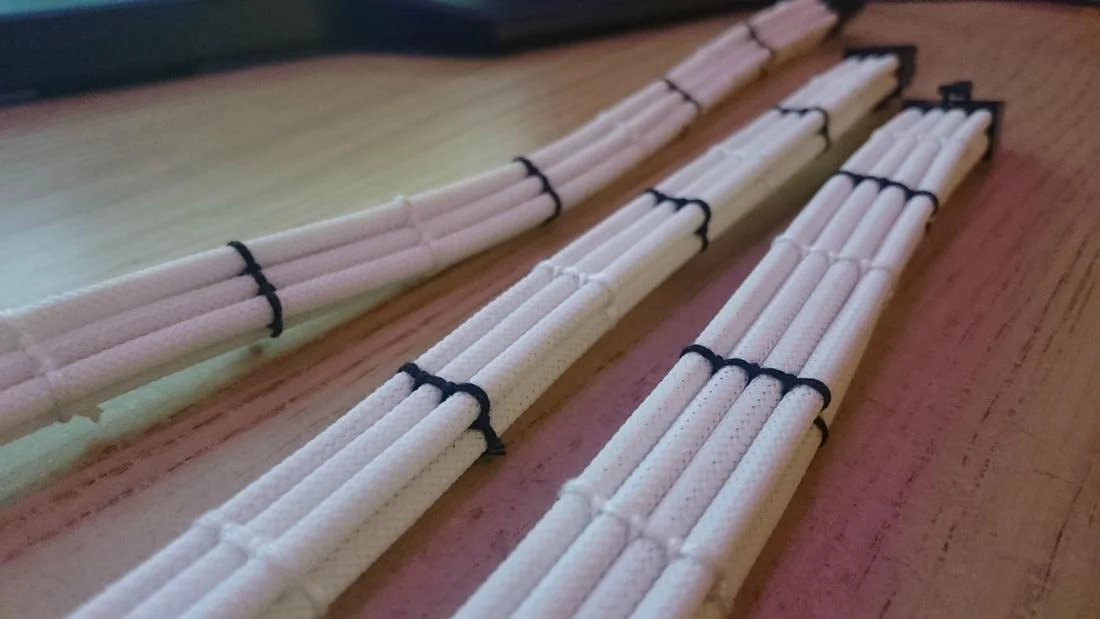

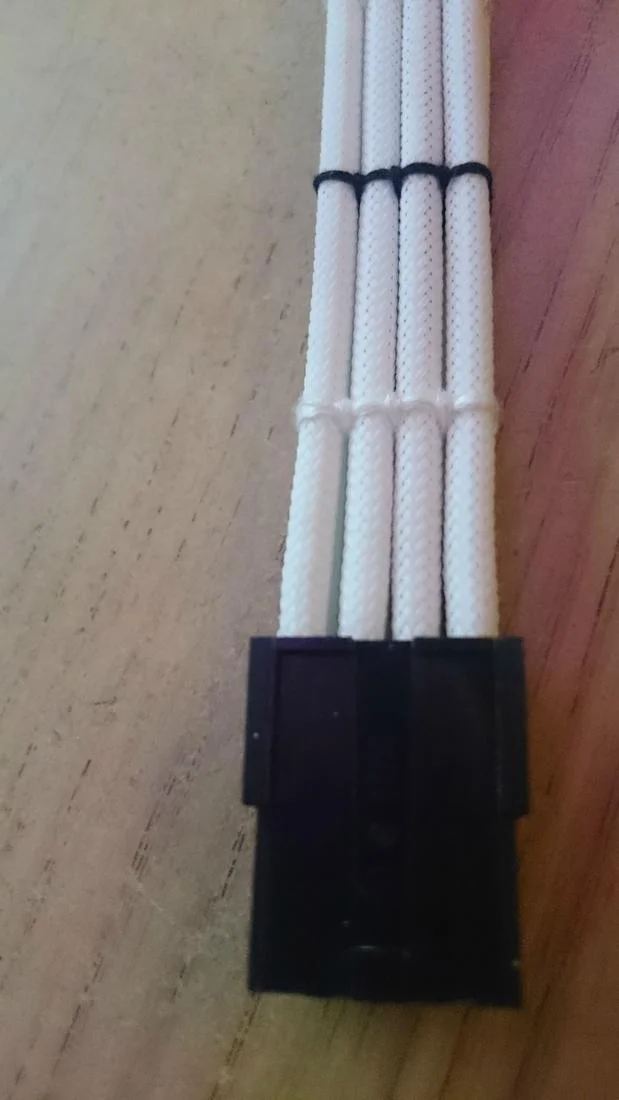

Cables......... look AWESOME!

On there own they where ok but after watching a five minute YouTube video, they now look awesome

(not all of the cables are finished yet however)

jacob1995knight · 27 Feb 2015 at 23:18

More updates coming soon

russell664 · 28 Feb 2015 at 23:23

Those cables, just wow.

jacob1995knight · 2 Mar 2015 at 18:36

Update 9

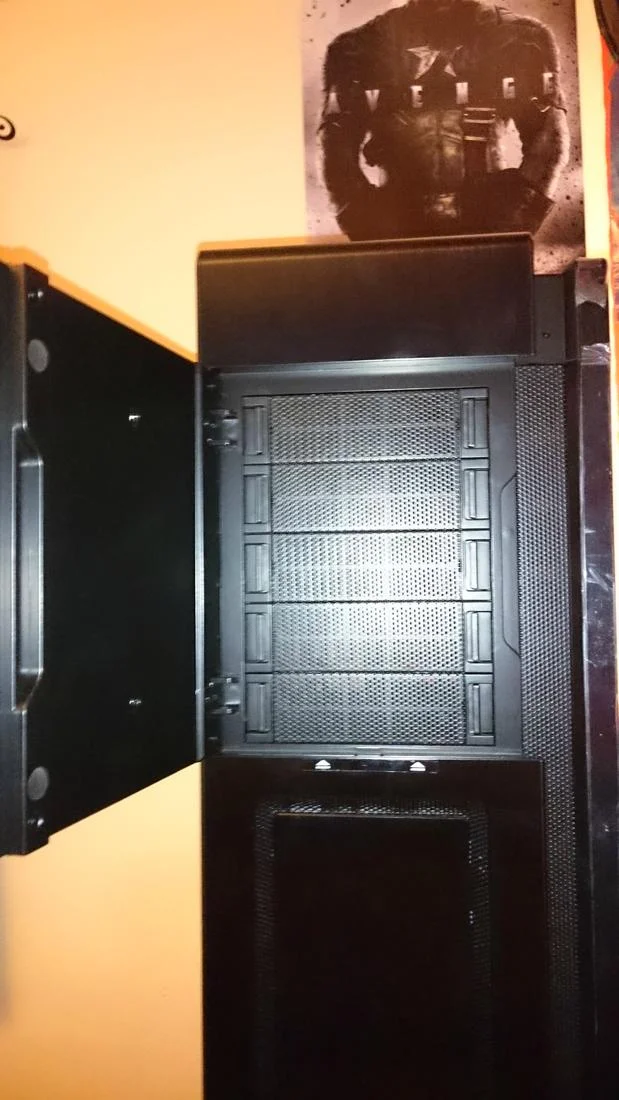

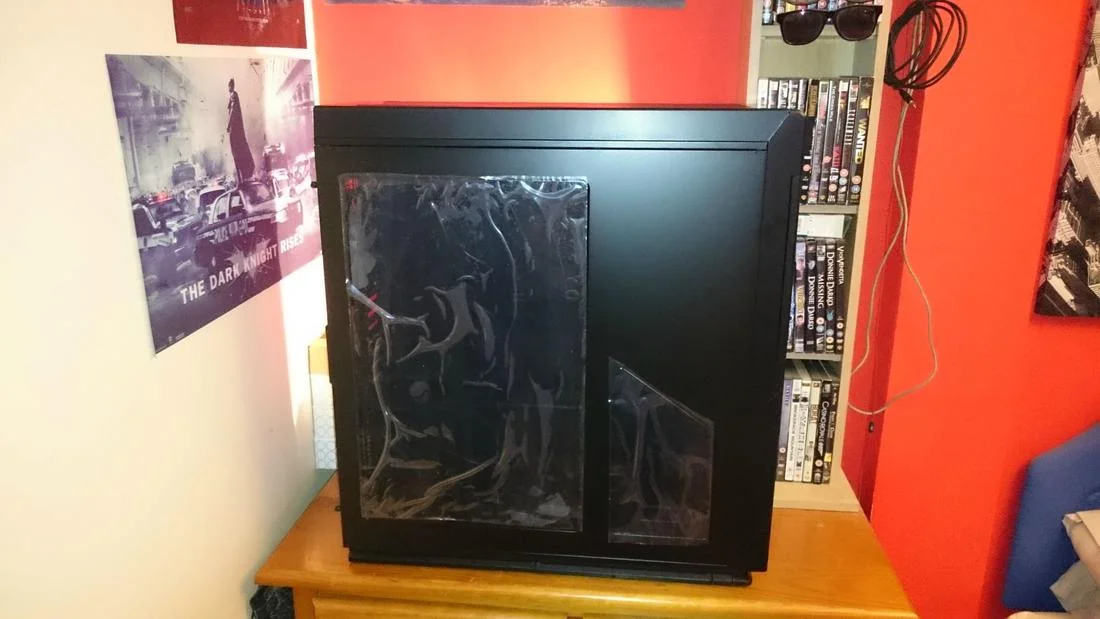

Sooo.... Case PURCHASED!

paulo7 · 2 Mar 2015 at 19:58

Looks like a monster!

jacob1995knight · 2 Mar 2015 at 20:07

paulo7 said:
Looks like a monster!

Sure will be

jacob1995knight · 4 Mar 2015 at 11:39

Update 10

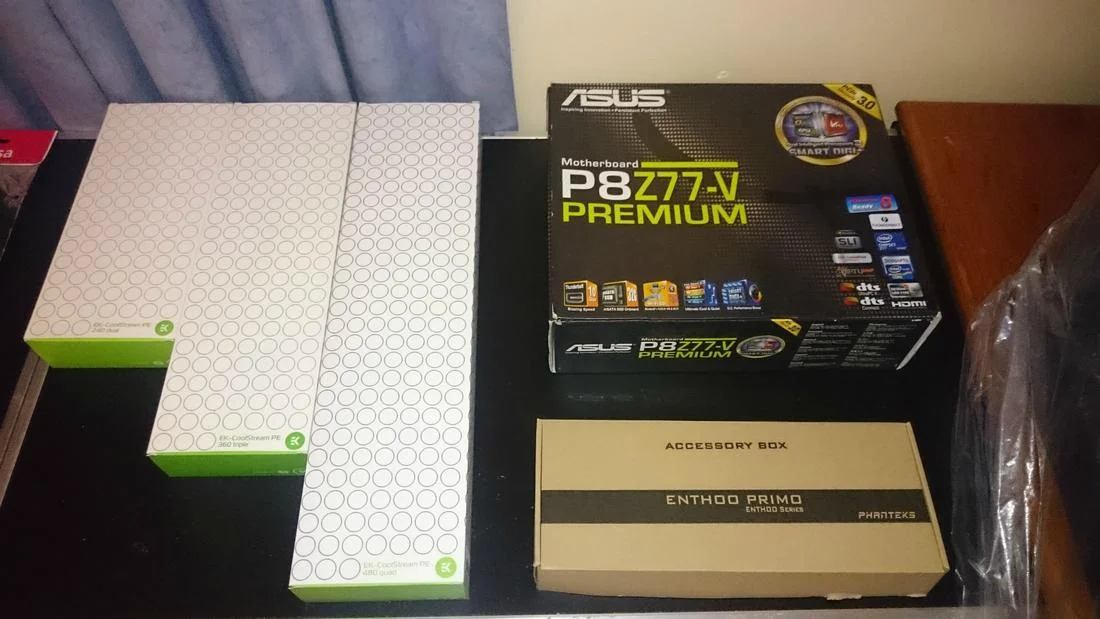

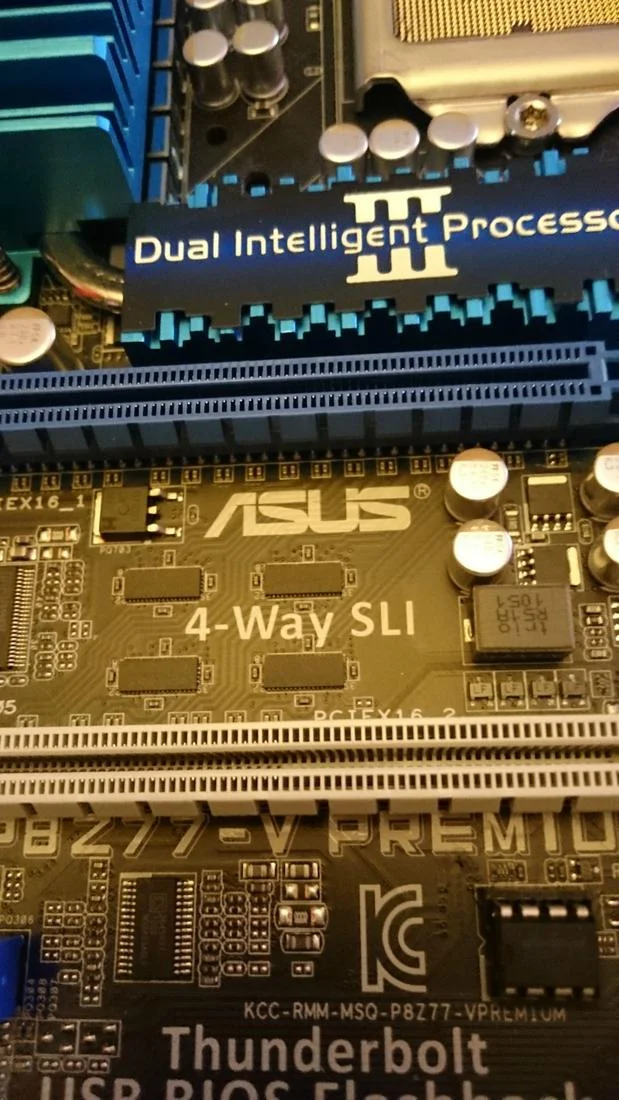

Got the case and the motherboard

McGraw · 4 Mar 2015 at 12:17

Looks awesome.

I wish I had the strength of will to spend some money on a bit of proper watercooling but every spare penny goes on drives/games/peripherals.

The fact that you attempted this on older kit is even more impressive.

jacob1995knight · 4 Mar 2015 at 14:34

McGraw said:
Looks awesome.

I wish I had the strength of will to spend some money on a bit of proper watercooling but every spare penny goes on drives/games/peripherals.

The fact that you attempted this on older kit is even more impressive.

Thanks, the kit is not that old

But a lot more to come soon

jacob1995knight · 4 Mar 2015 at 16:06

Update 11

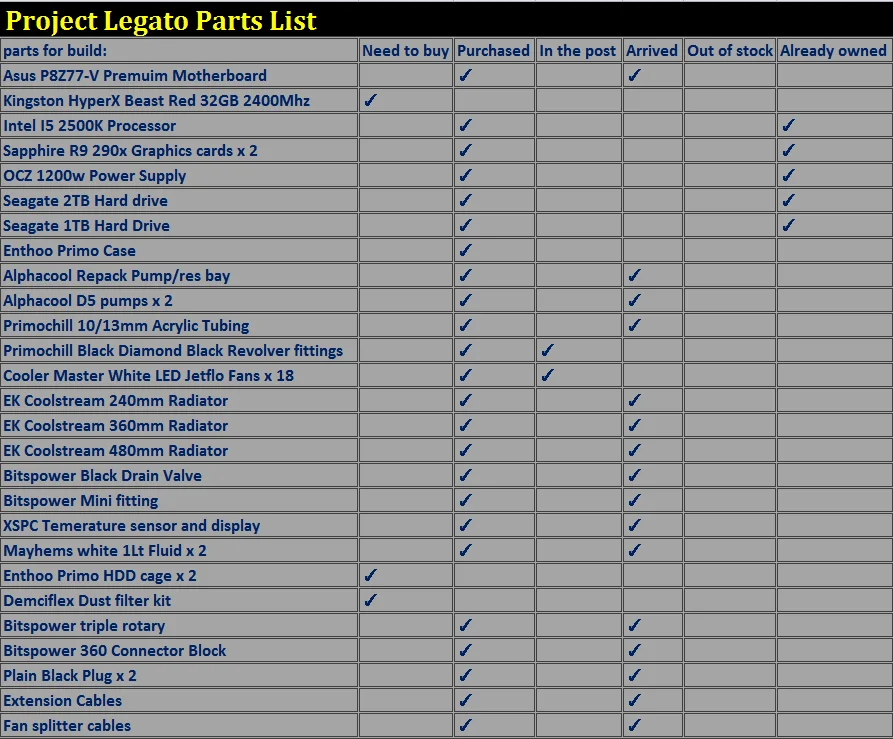

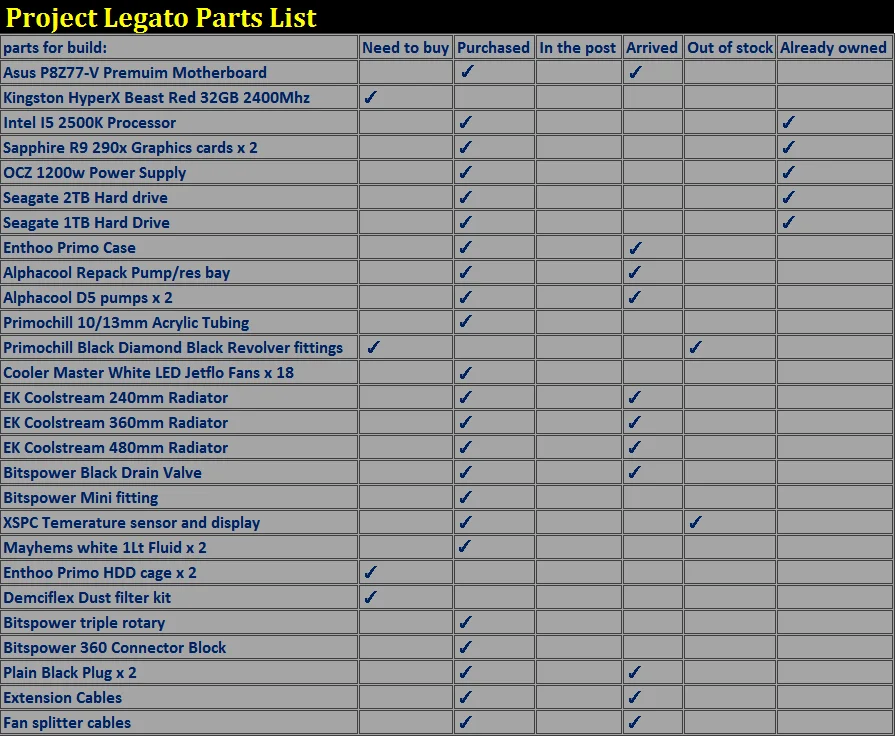

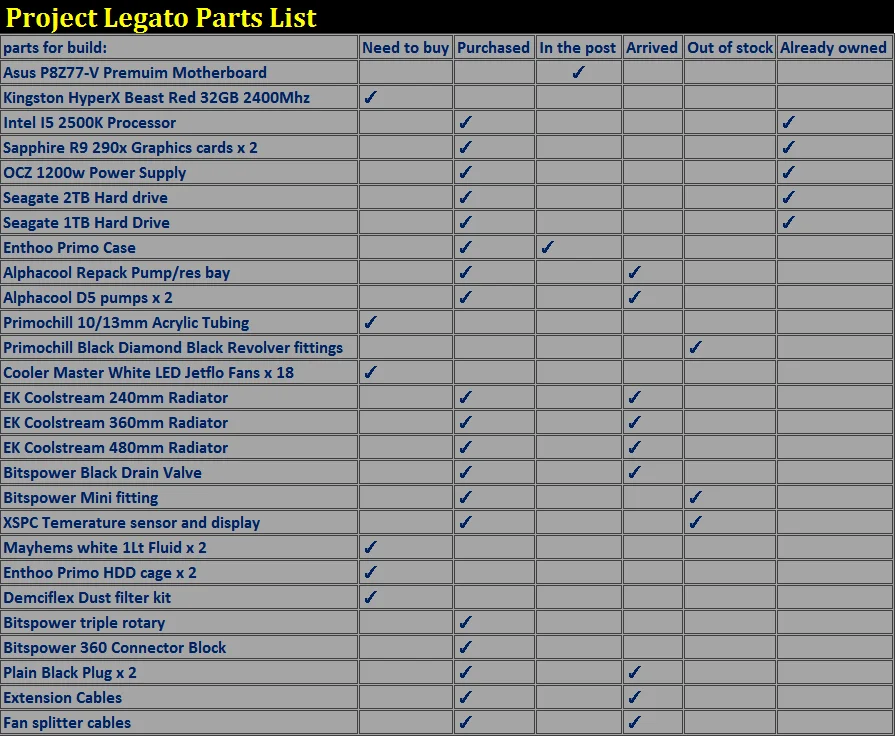

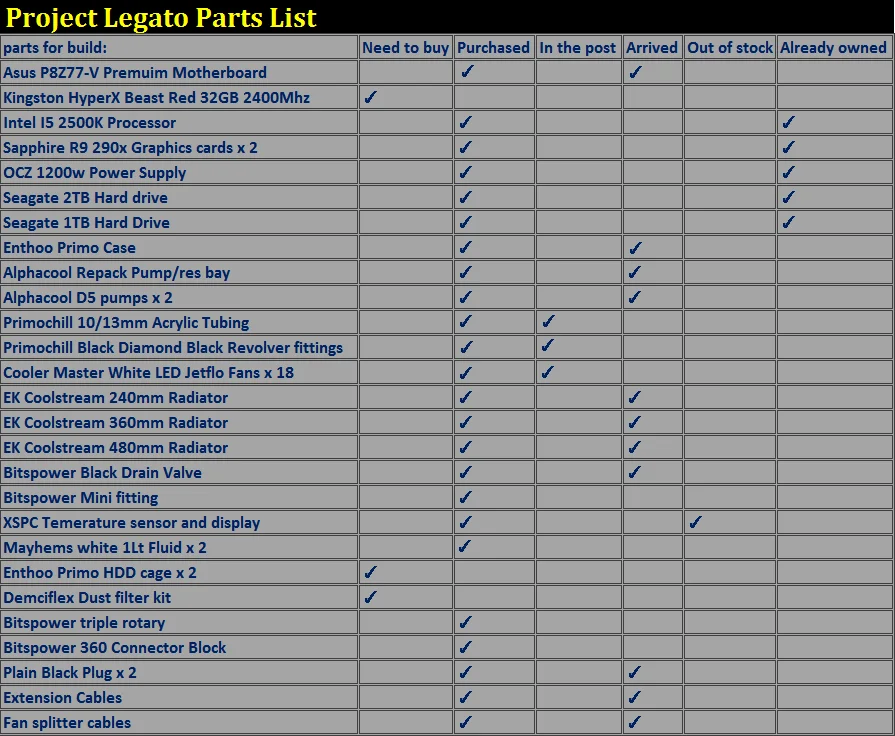

Well, spent a tonne of fittings but its pretty much all ordered now

bring on the building

jacob1995knight · 5 Mar 2015 at 20:19

Update 12

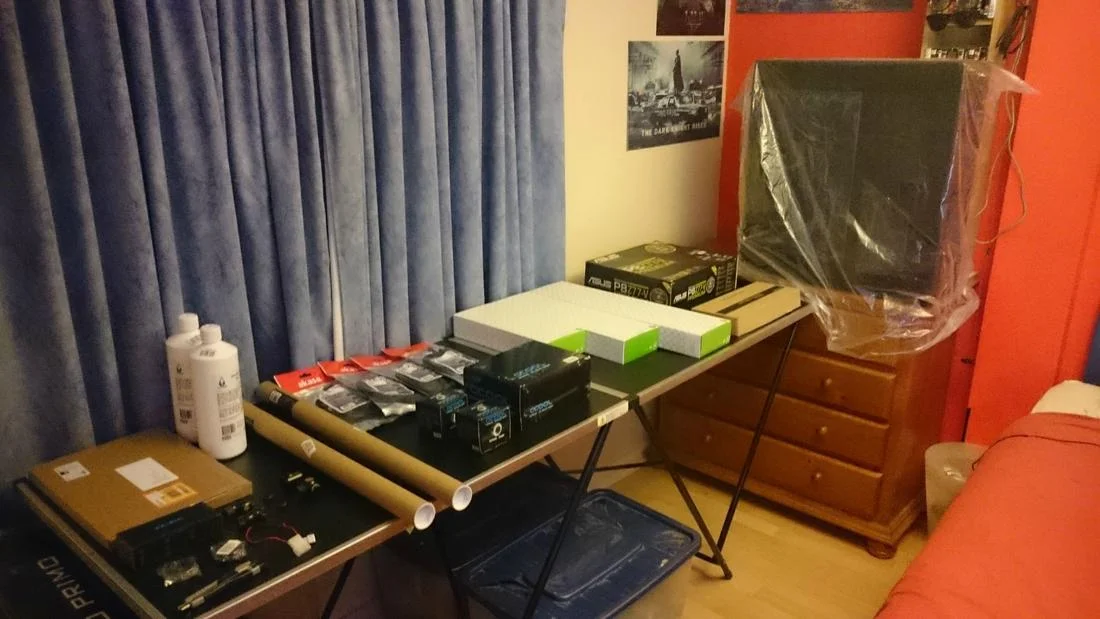

Sooo close!!

Last update until the build takes place

jacob1995knight · 7 Mar 2015 at 02:26

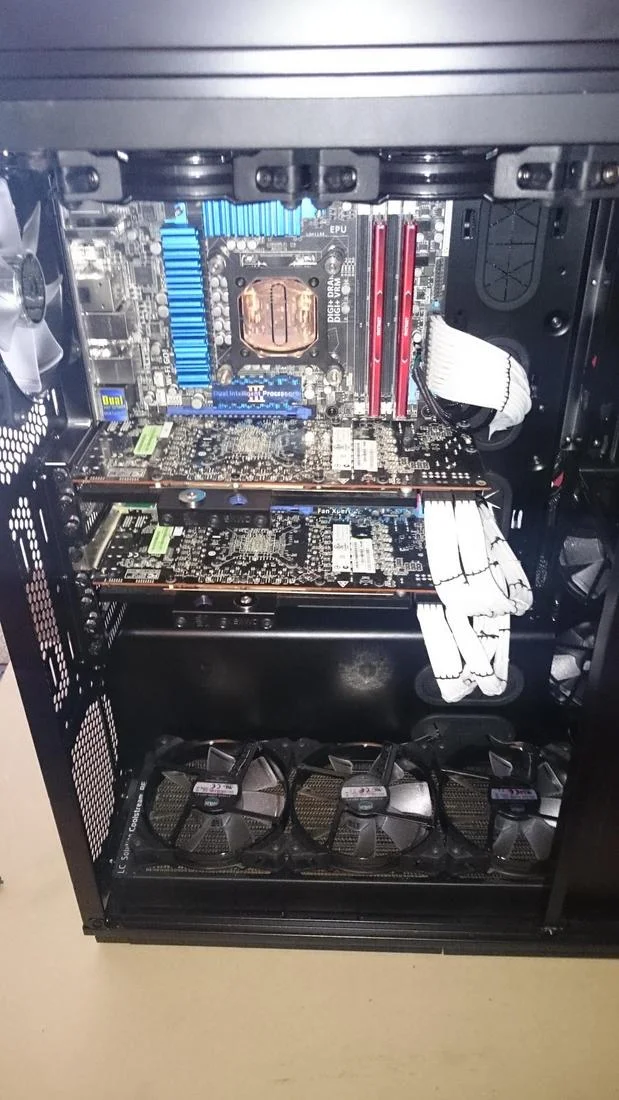

Update 13 THE BUILD!

Well finally, getting to put stuff into the case at the moment

So far, i have fitted:

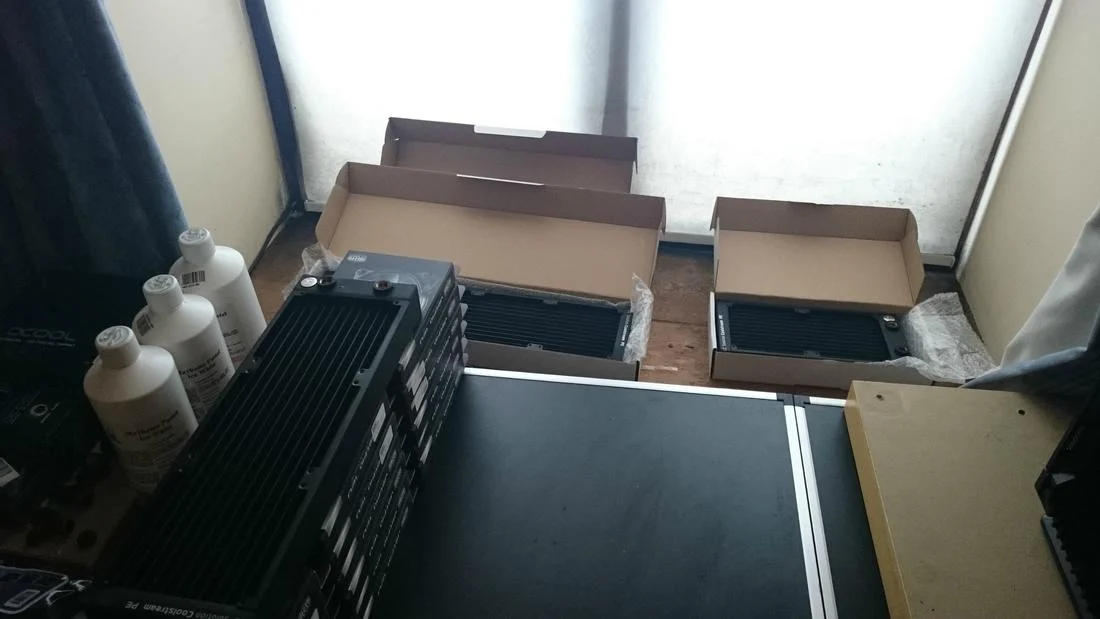

240 Radiator
360 Radiator
480 Radiator
all

18

fans hahahaha

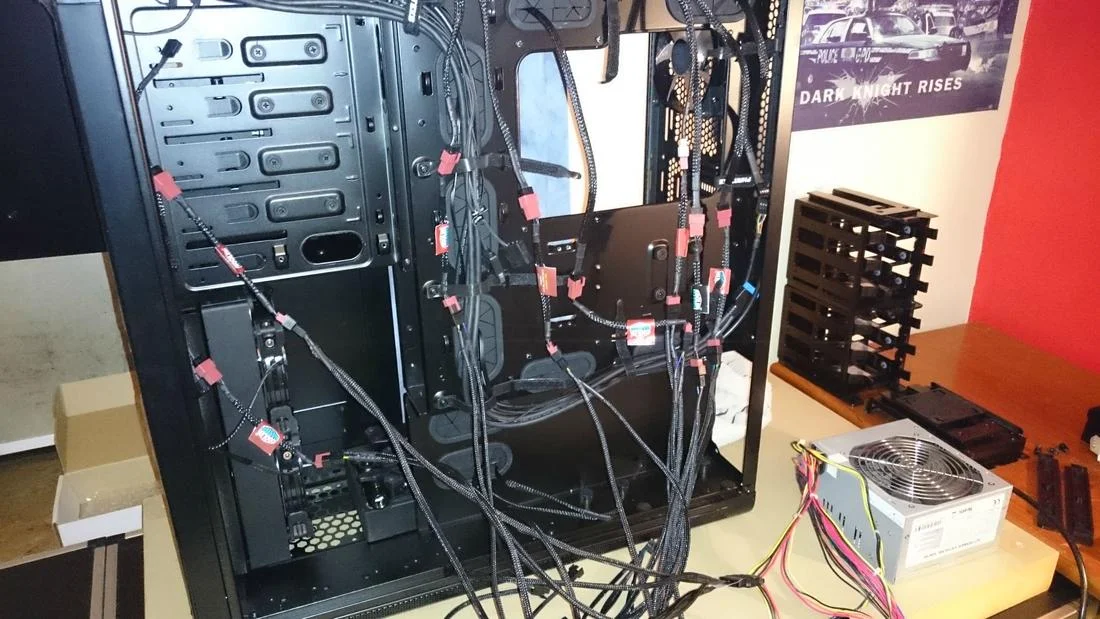

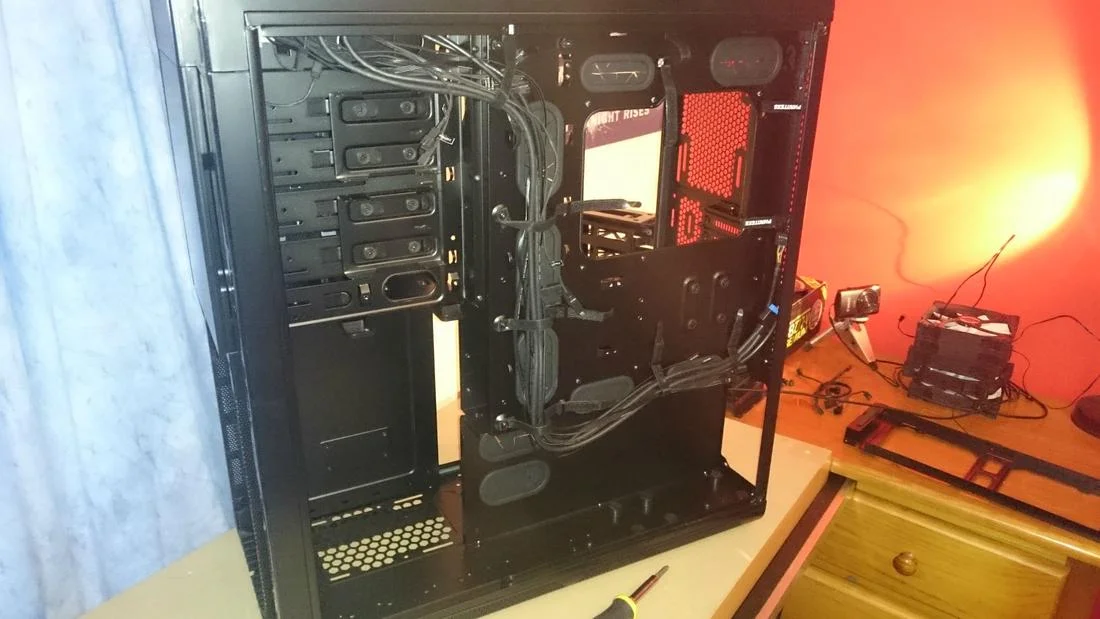

Routed all fan cables + extension cables as well

Not a lot of room but its enough

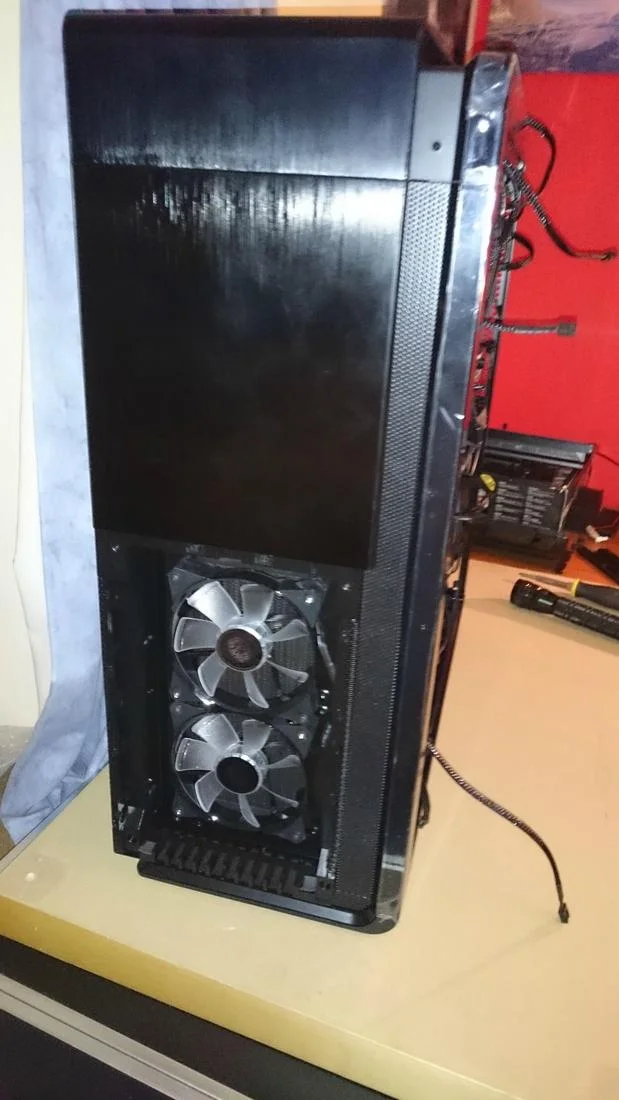

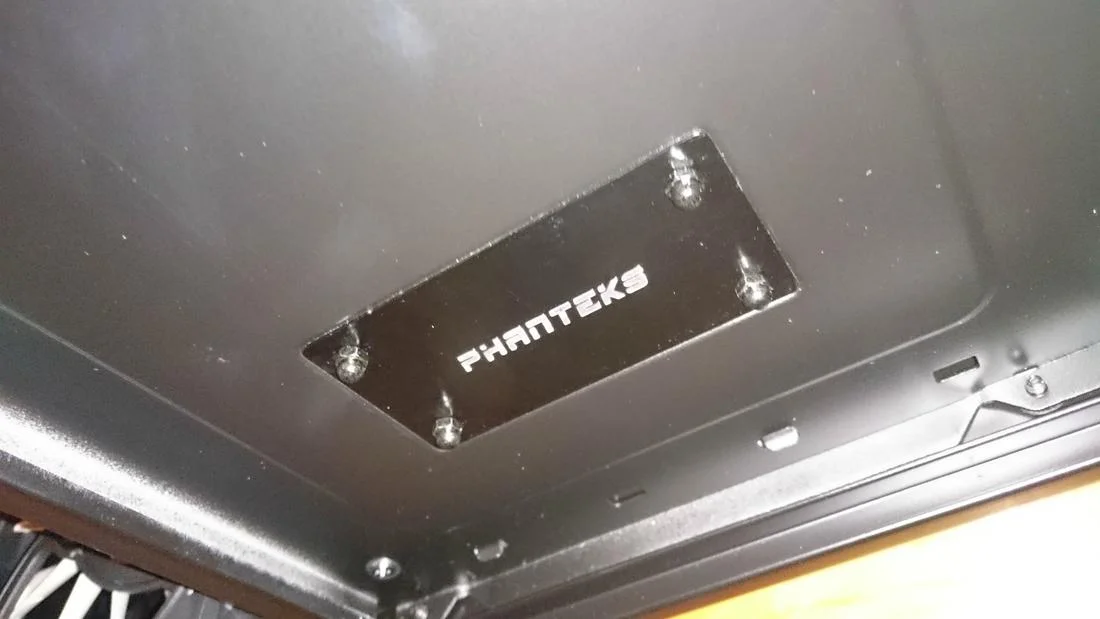

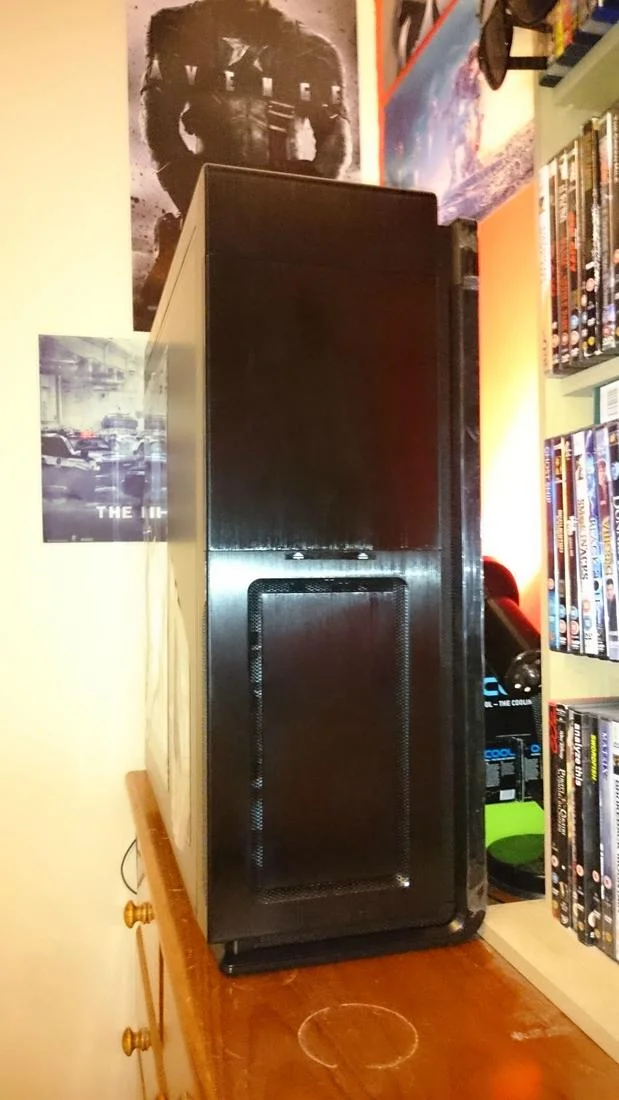

Sweet case

weighs more then me

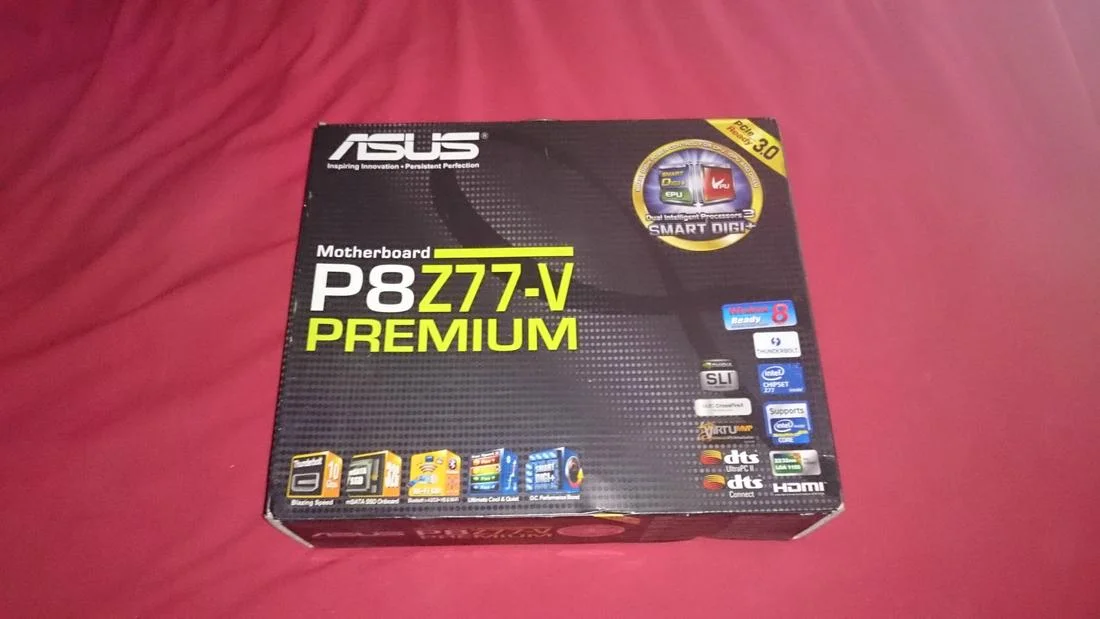

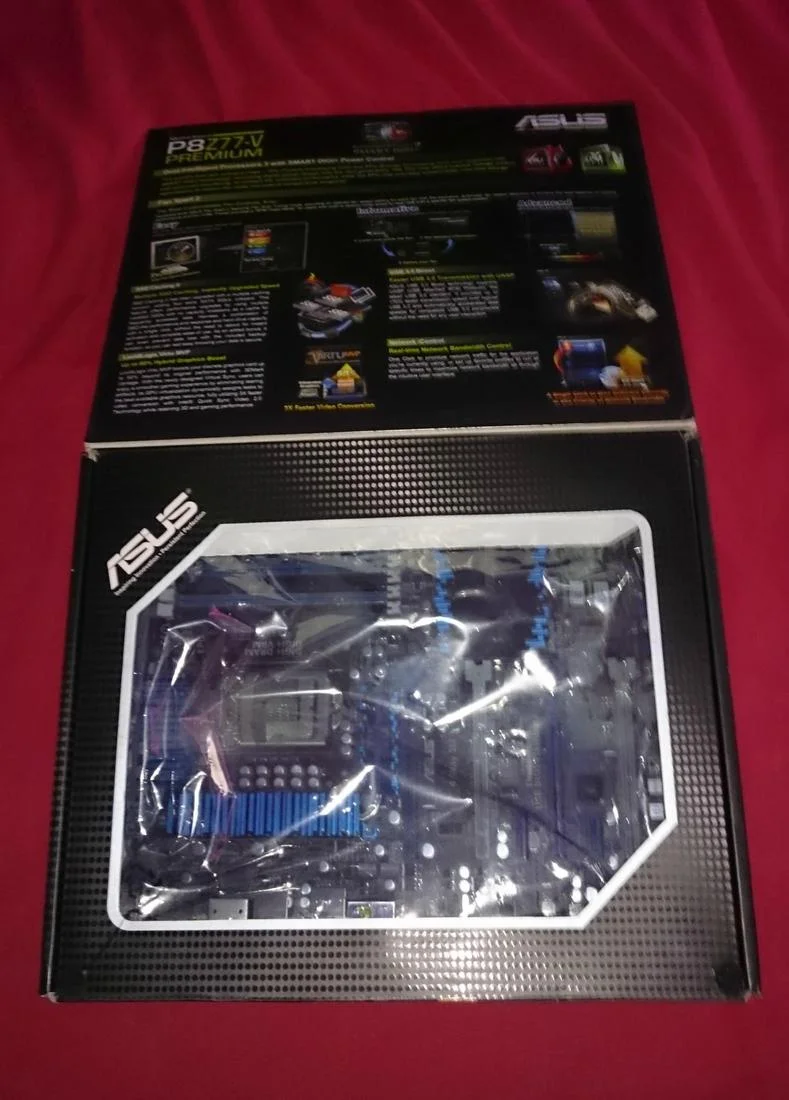

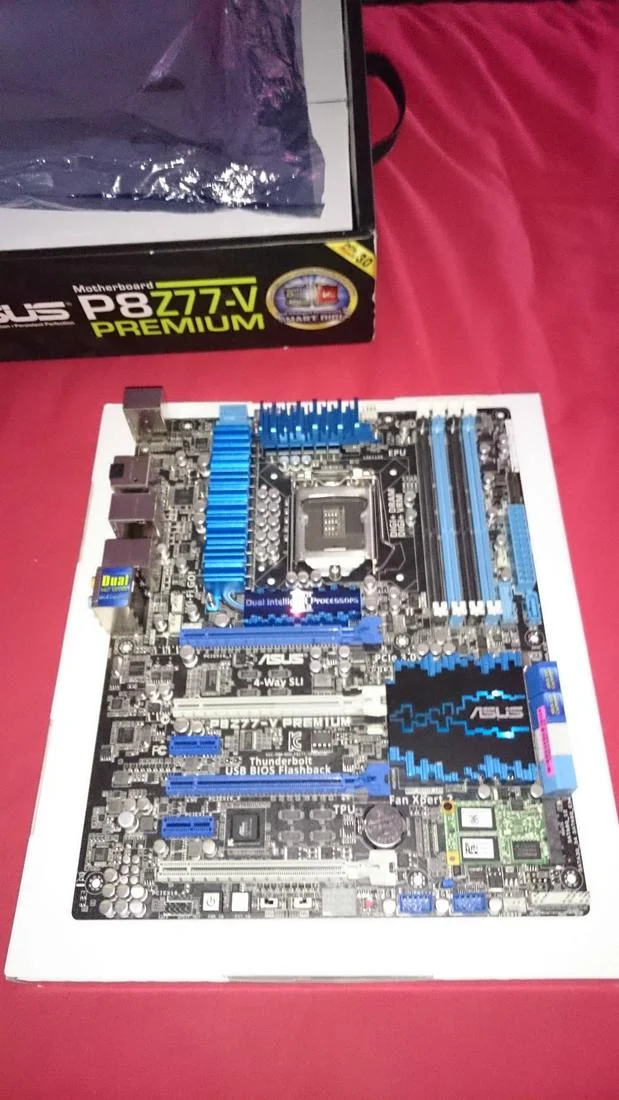

Finally got the motherboard!!!

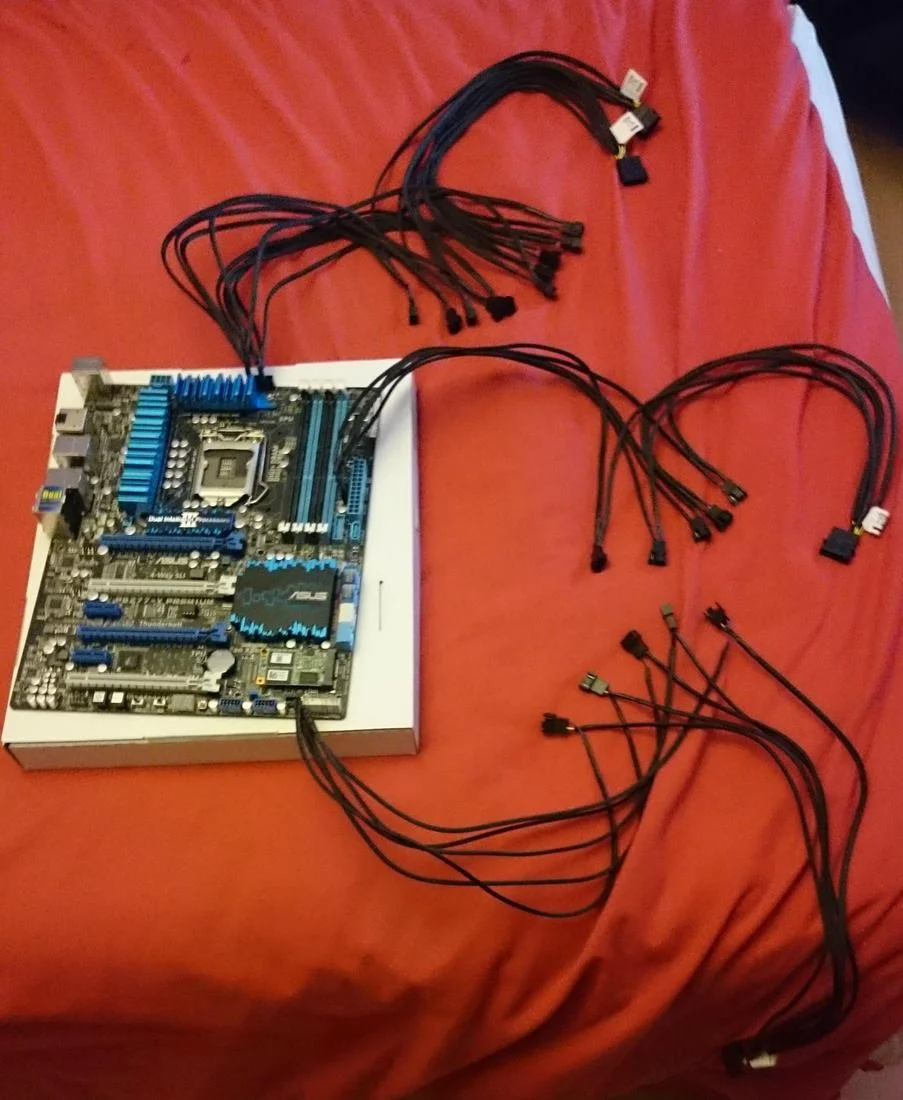

Now thats a lot of fan cables

Test fitting the new fan cables

Soooon

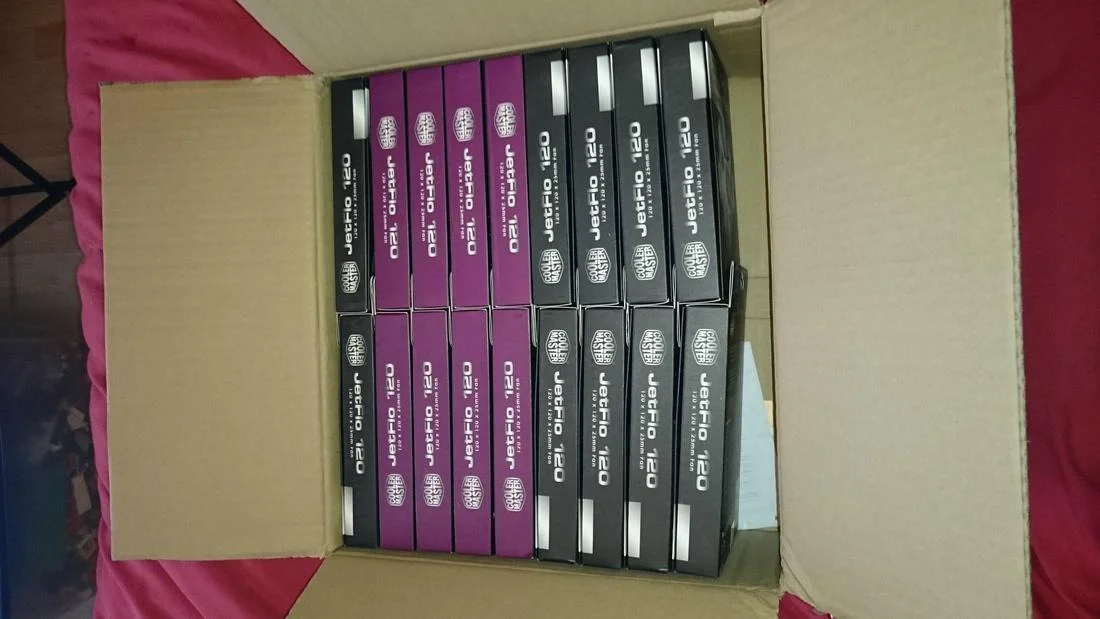

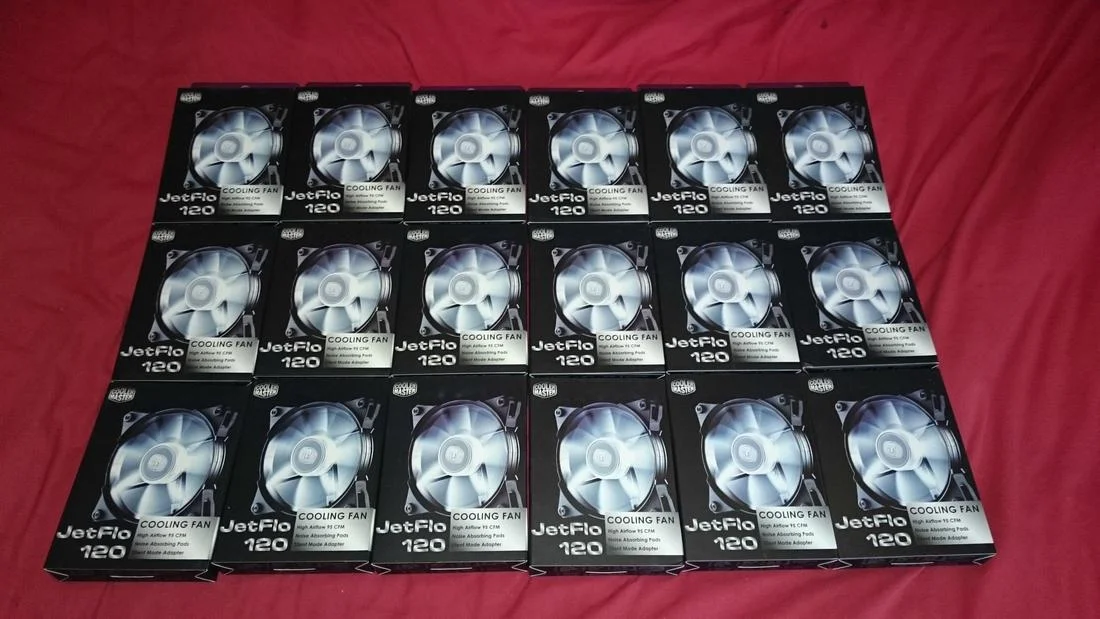

Now that if i may say so myself is a lot of fans

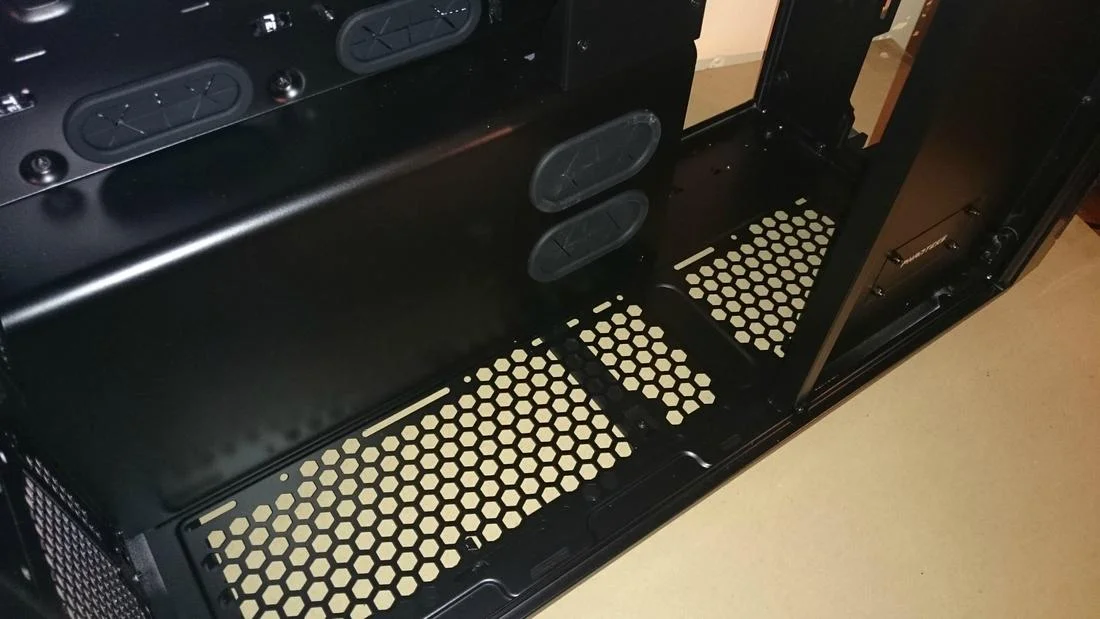

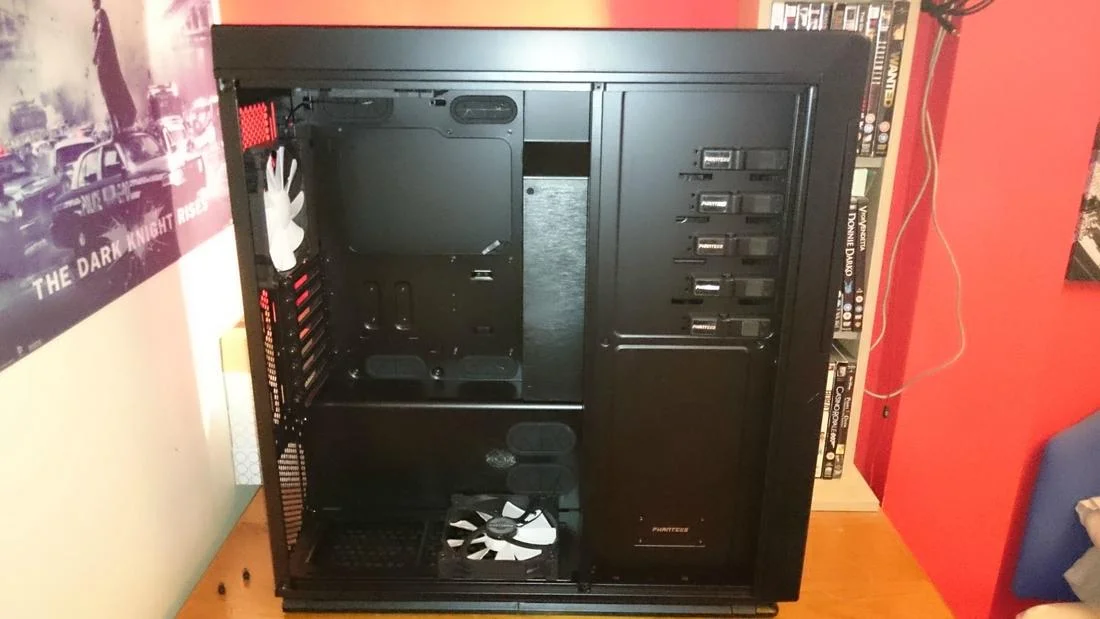

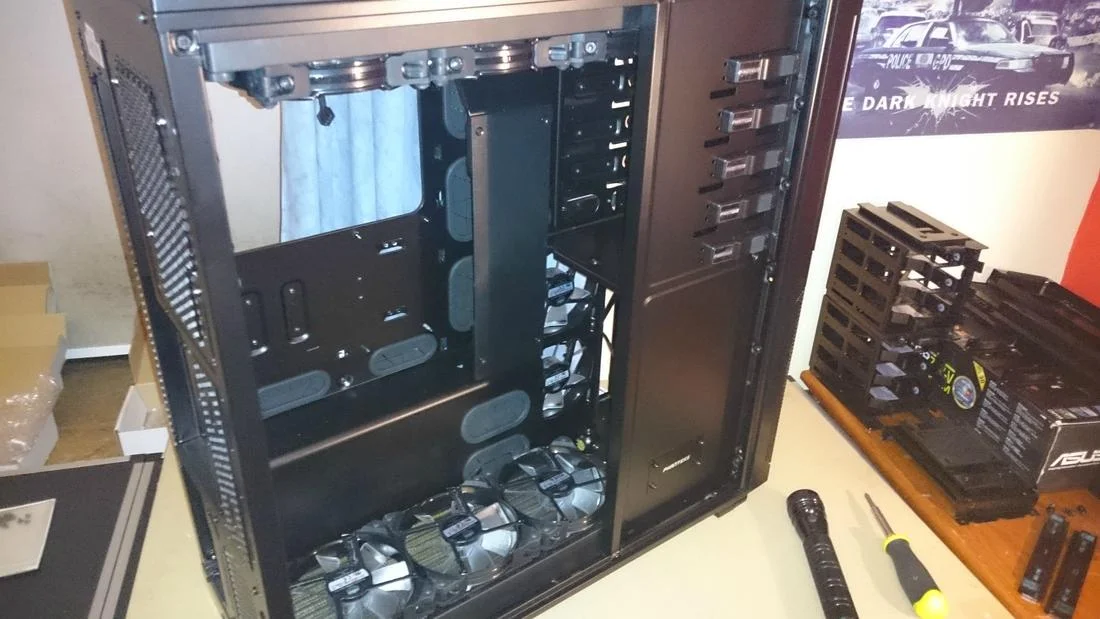

Stripping the case

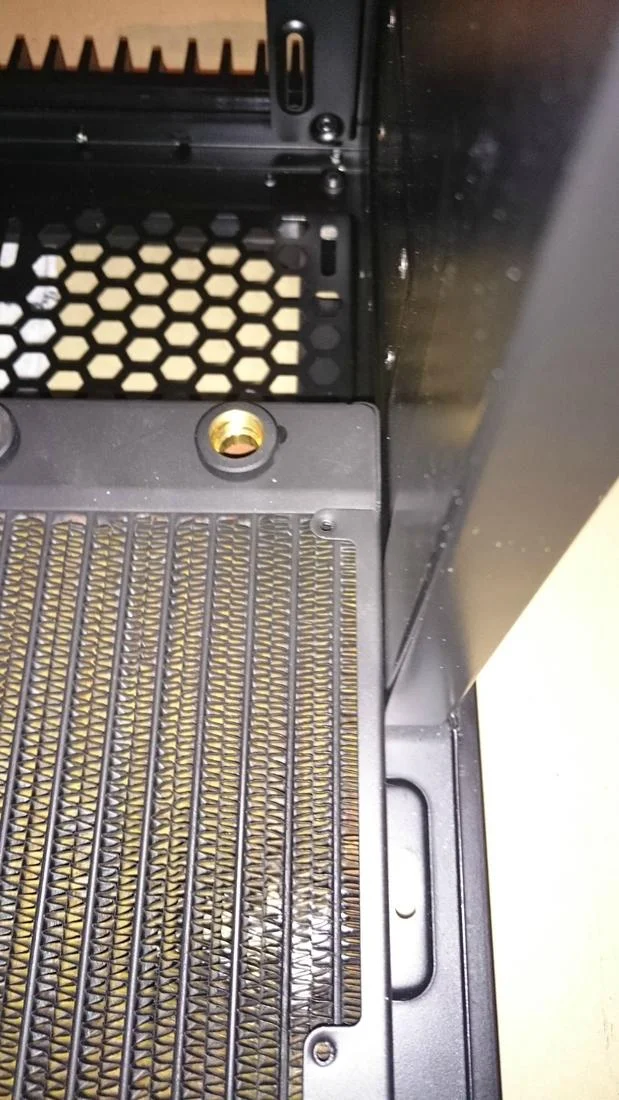

This was one hell of a challange!

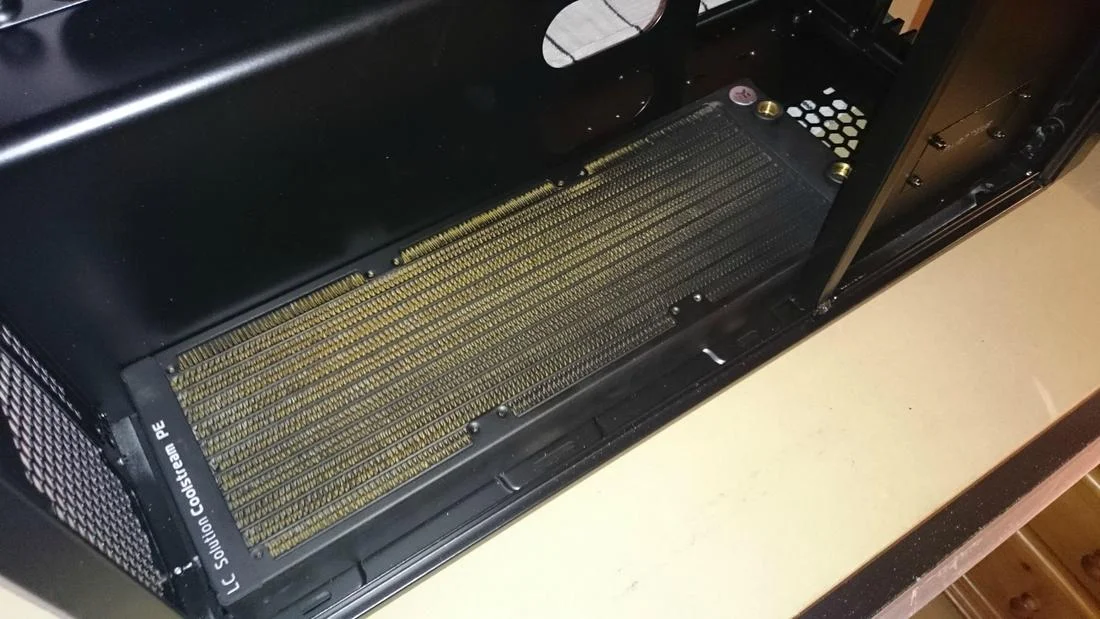

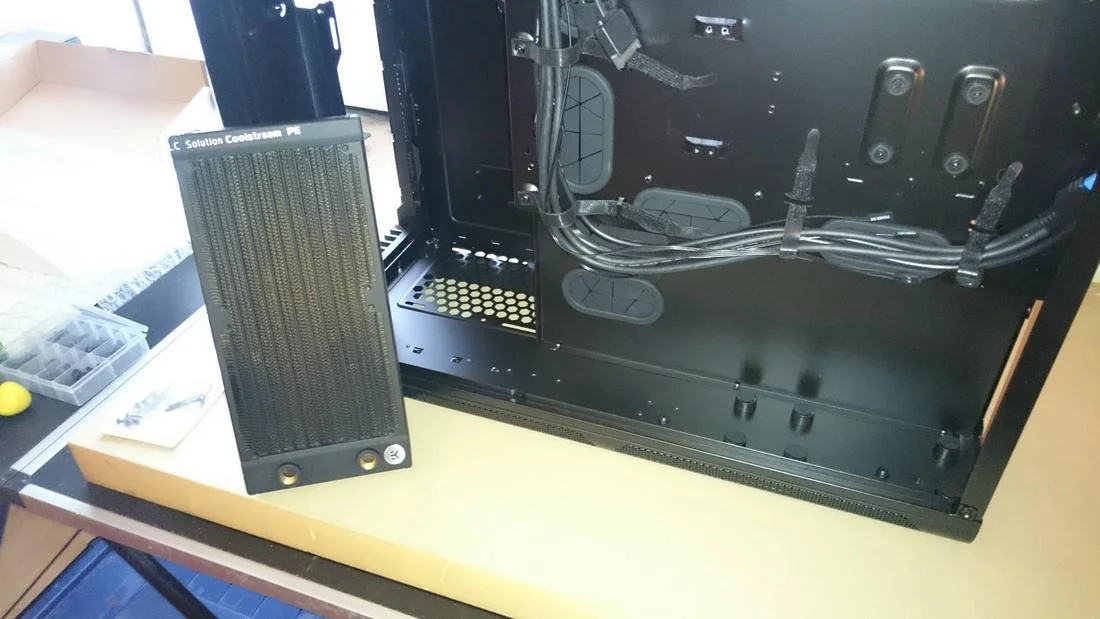

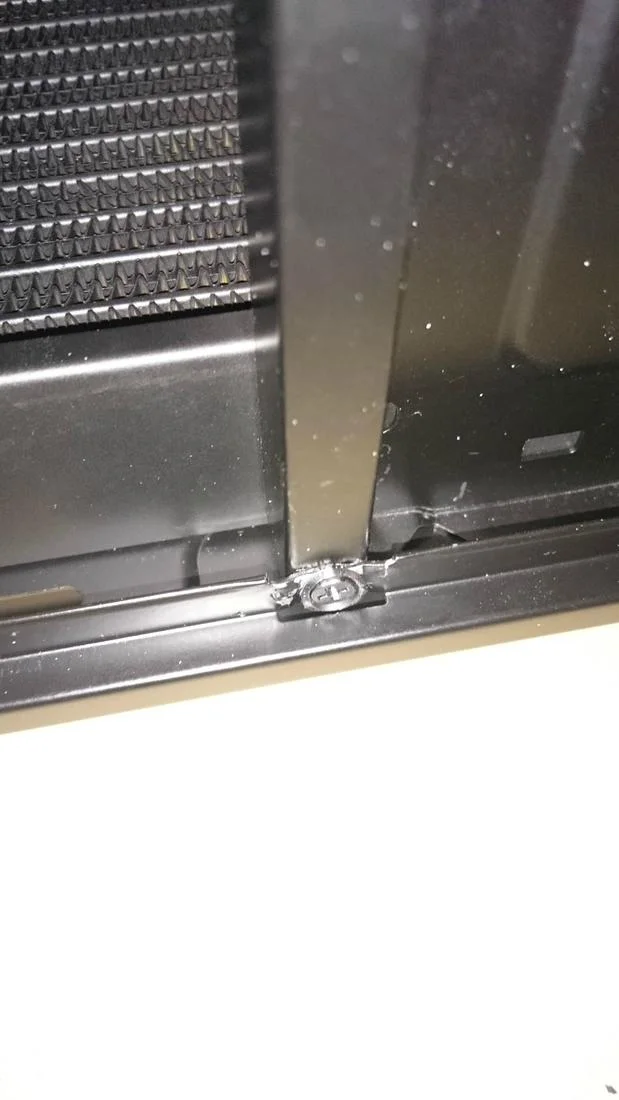

The PE series is very wide, as i found out....

had to mod the case a little

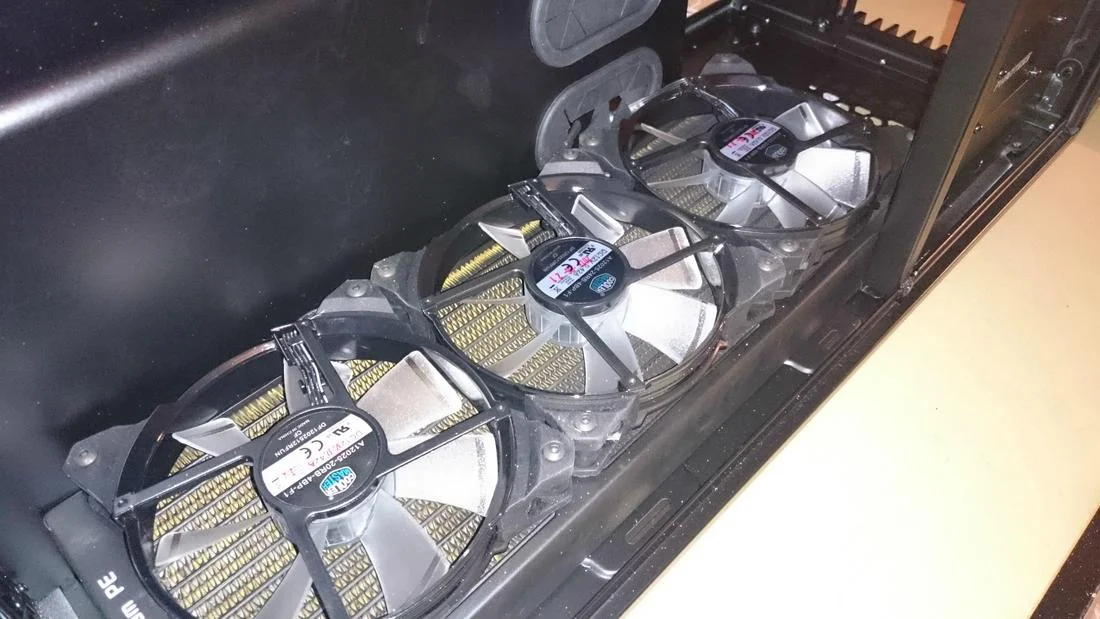

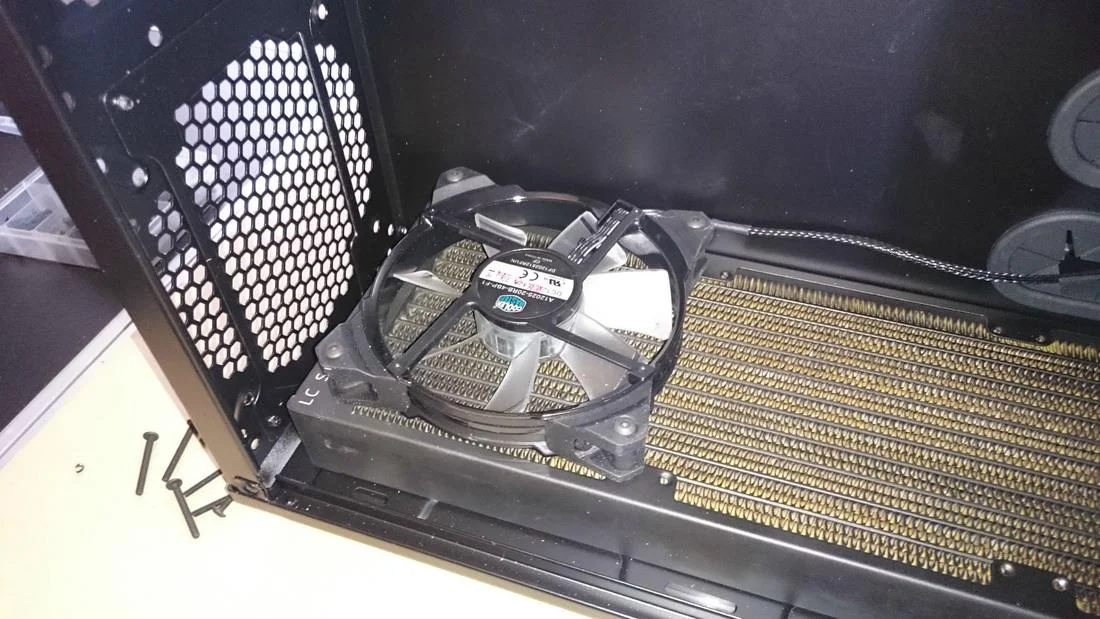

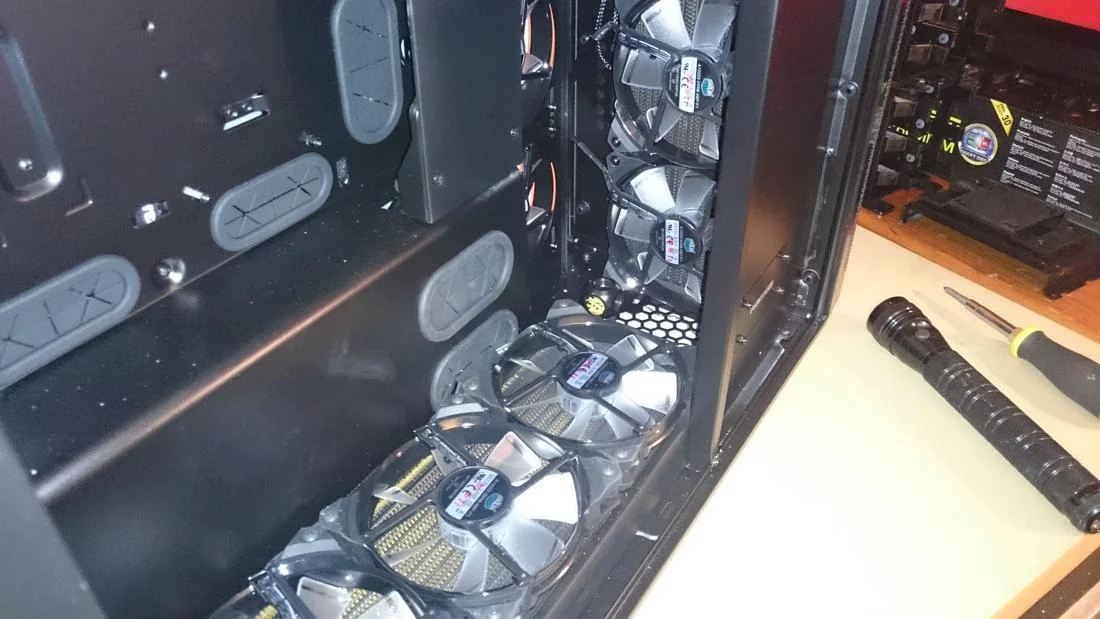

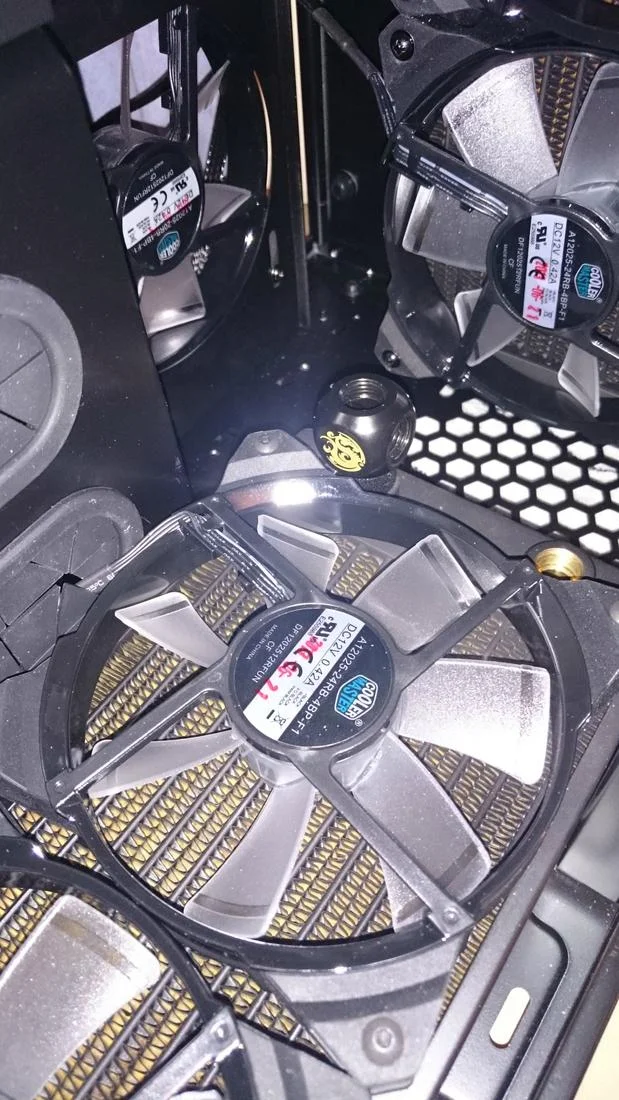

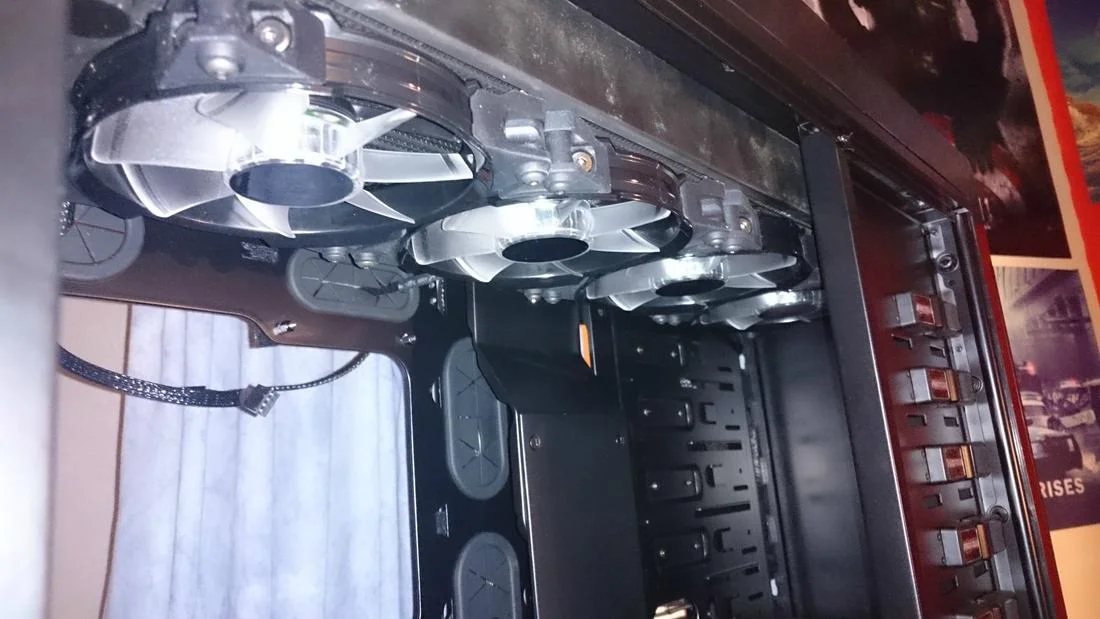

Fitting all the fans

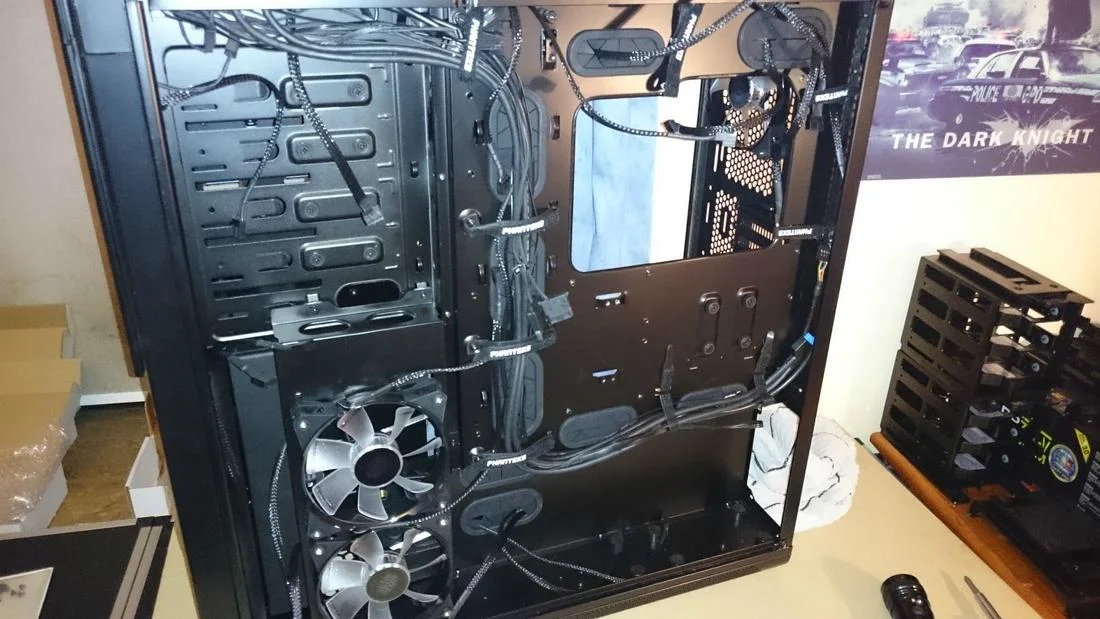

Working on the wiring

and then testing the fans

More to come, the fittings will arrive monday so bring on the bending

Xyger · 10 Mar 2015 at 12:55

Those cables looks so neat! Really want to give cable braiding a go myself.

jacob1995knight · 11 Mar 2015 at 11:28

Xyger said:
Those cables looks so neat! Really want to give cable braiding a go myself.

Thanks bro, you should see it now

looks sooo nice in the case

jacob1995knight · 11 Mar 2015 at 11:32

UPDATE 14 A Tease

Just a sneak for now

acrylic bending currently taking place and quite easy

jacob1995knight · 15 Mar 2015 at 02:16

Complete build will be released tomorrow, stick around as its going to be good
