Project "Paint it Black"

Discussion in 'Project Logs' started by Kaapstad, Dec 20, 2013.

  1. Kaapstad

    Man of Honour

    Joined: May 21, 2012

    Posts: 28,158

    Location: Dalek flagship



    I have started this thread as my new 900D case has just arrived (about 5PM today) so tomorrow morning I will start my new build.

    The aim of the build is to make a home for my 4 x R9 290Xs along with a RIVE BE, an i7 3970X or 4930k (see which runs best), 2 x 1200i Corsair PSUs, a set of C9 2400mhz Corsair Dominator Platinums and a whole pile of waterblocks.

    Step 1, Get the cards running on air to make sure there is no problems.

    Step 2, Get the cards on water.

    Step 3, Tidy the build up.

    I start tomorrow morning.:)


    Thread Navigation Links.



    Last edited: Mar 29, 2017
  2. Kaapstad

    Man of Honour

    Joined: May 21, 2012

    Posts: 28,158

    Location: Dalek flagship

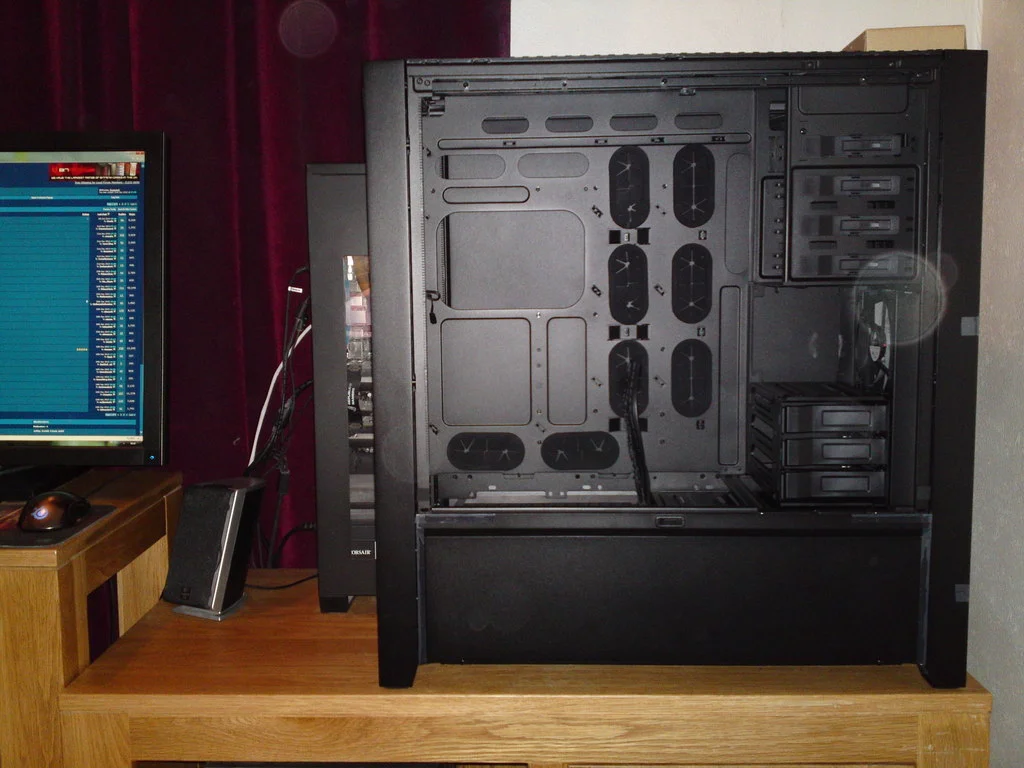

    Well here's the case, it's quite big but not as large as a LD V8. The case behind in the pic is a 800D with my GTX 690s in it.
    [​IMG]

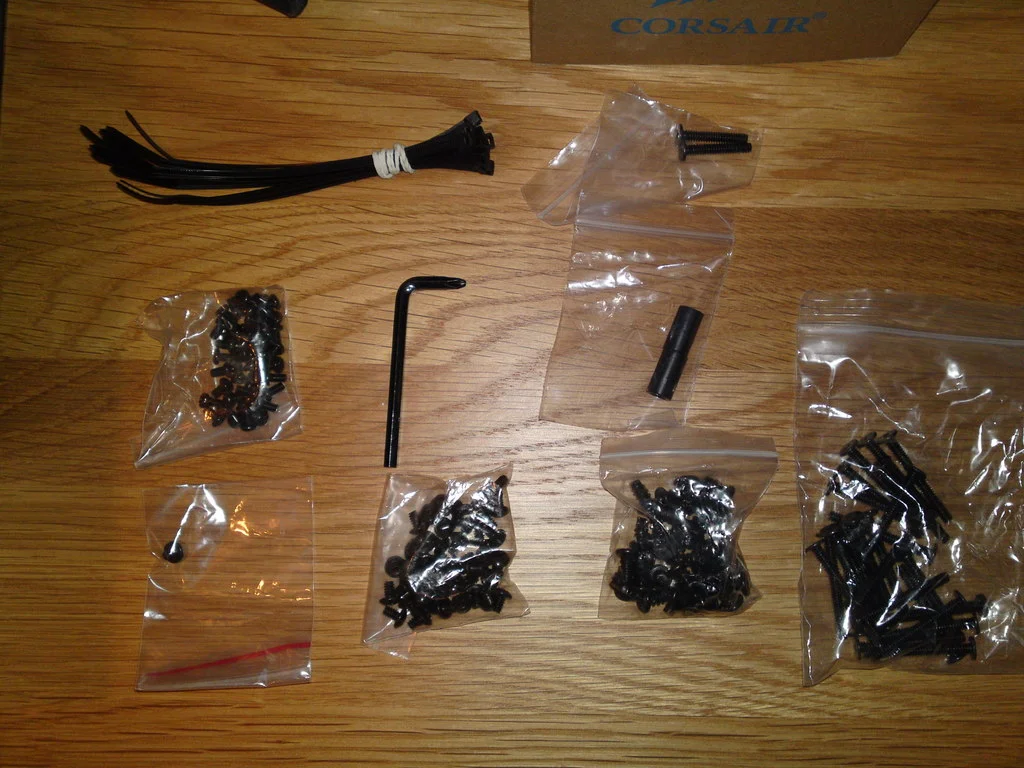

    Some screws etc.
    [​IMG]

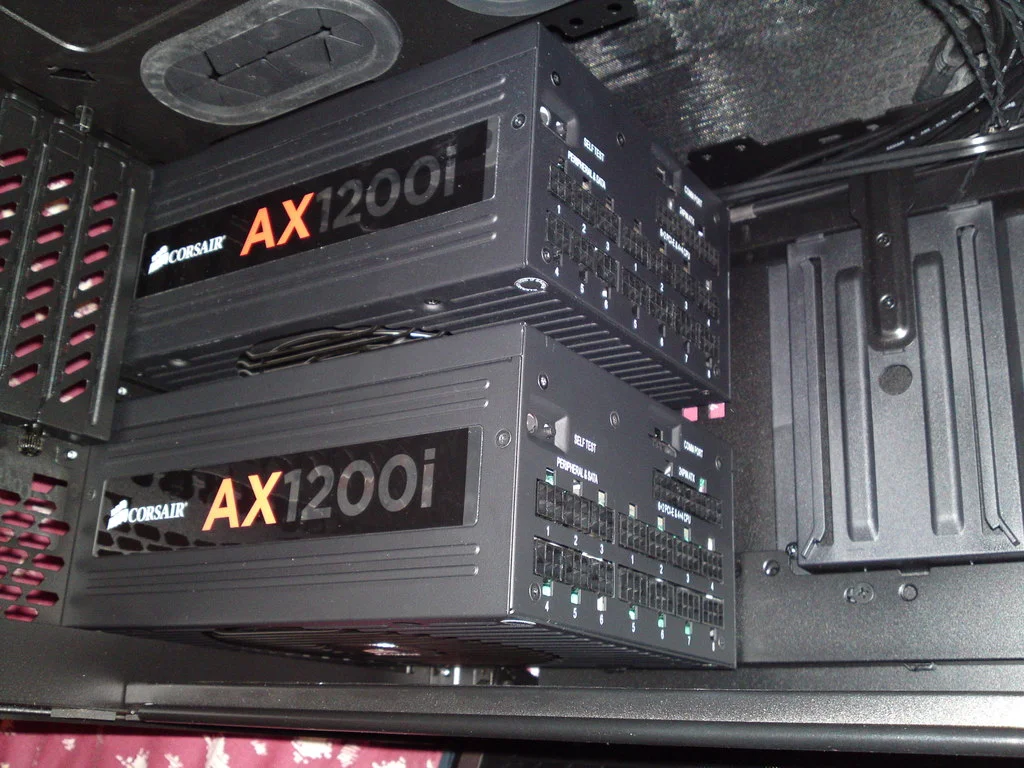

    Some PSUs
    [​IMG]

    That's better
    [​IMG]

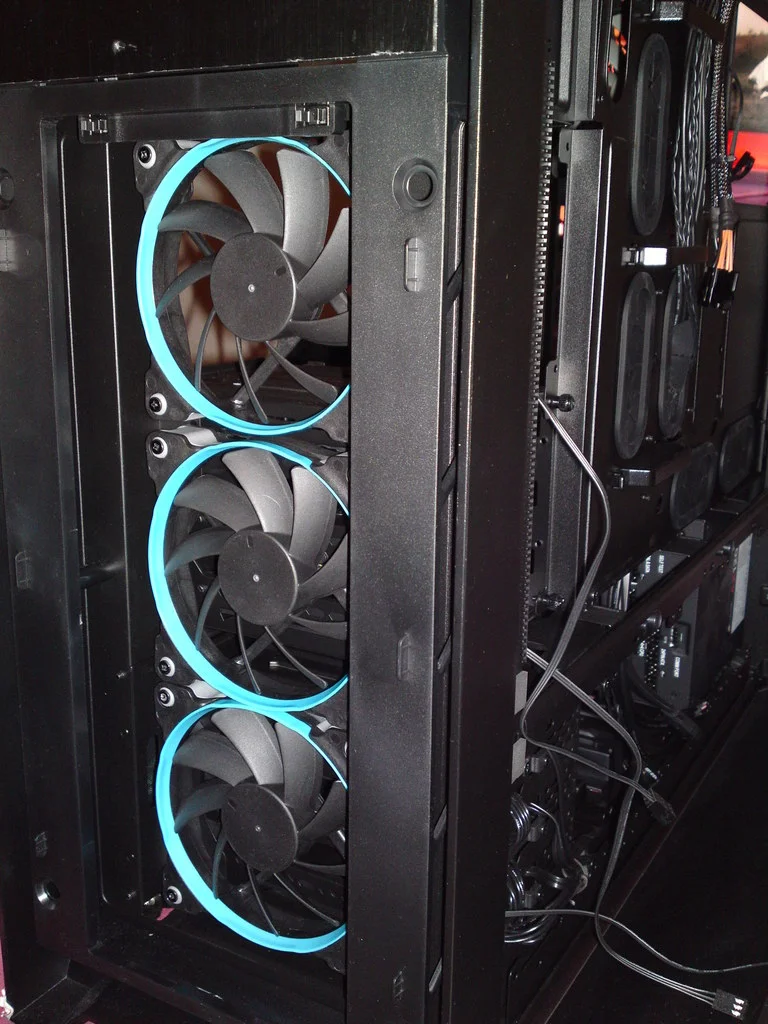

    Yet more fans
    [​IMG]

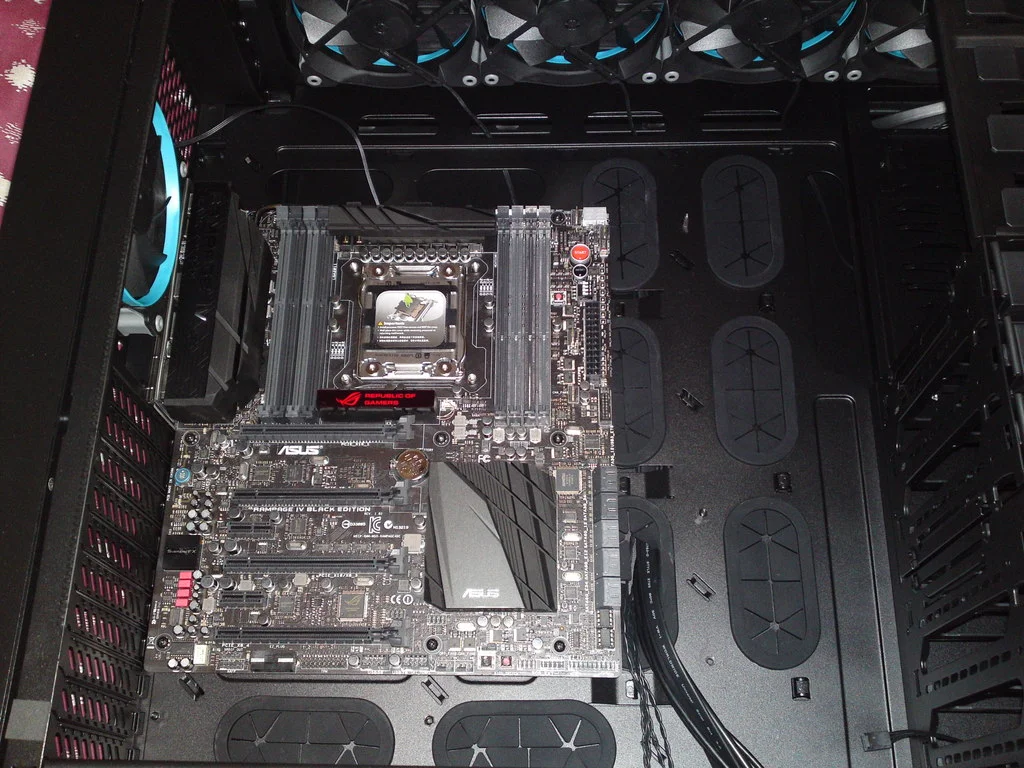

    In with the mobo
    [​IMG]

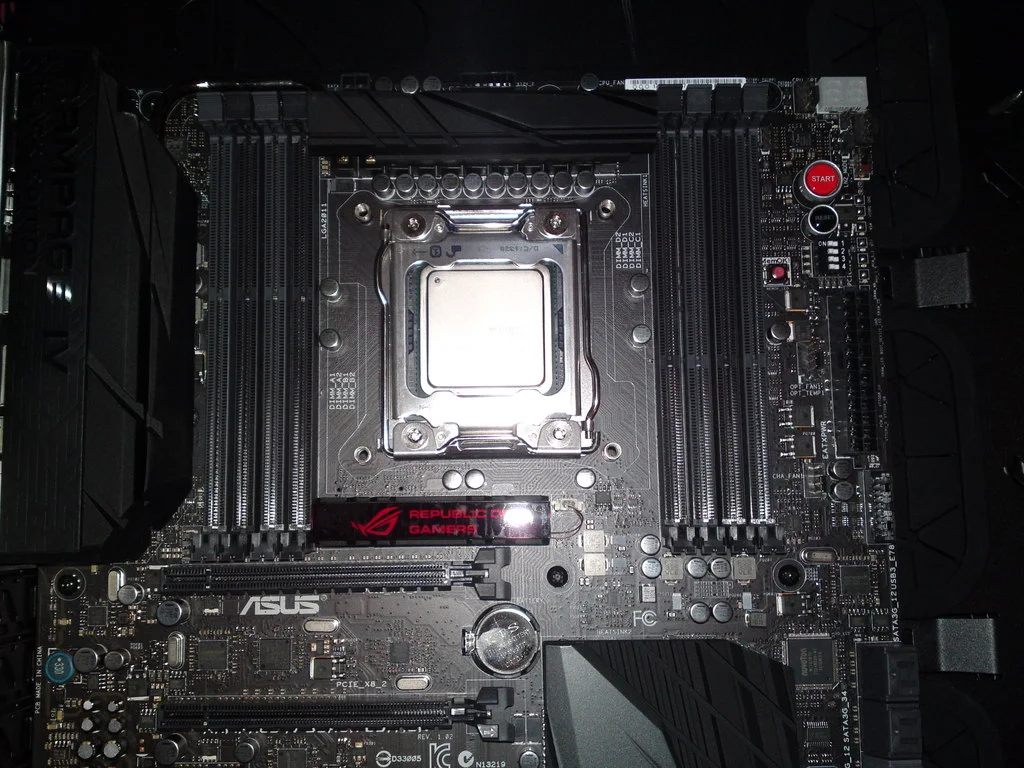

    3970X fitted
    [​IMG]

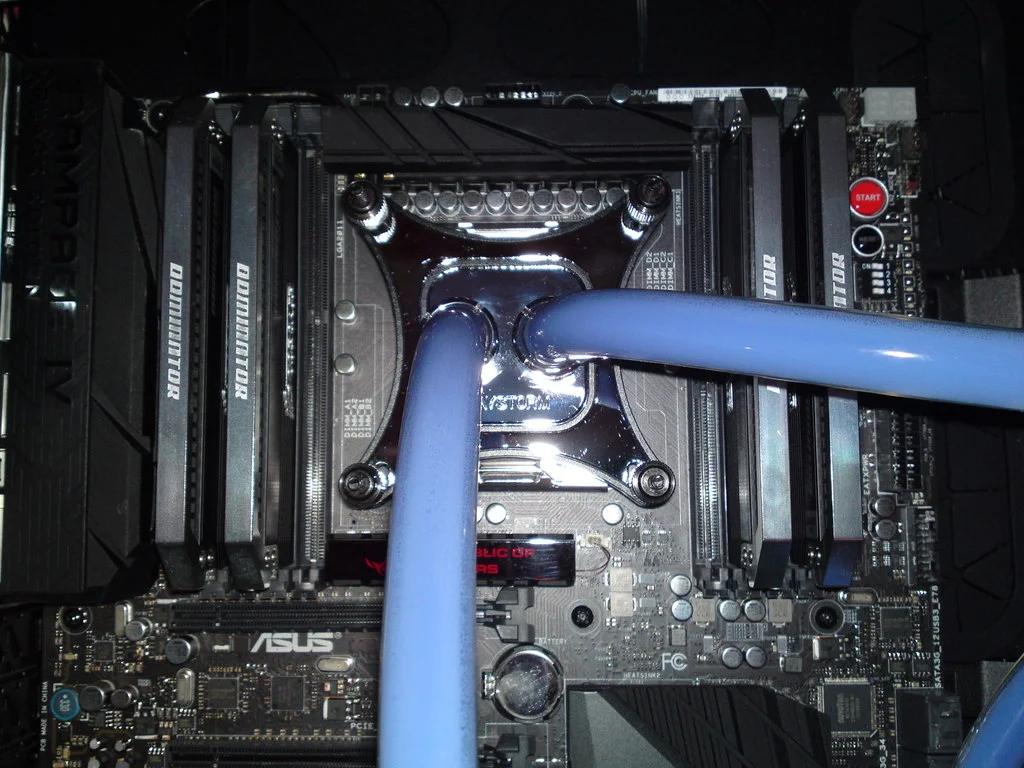

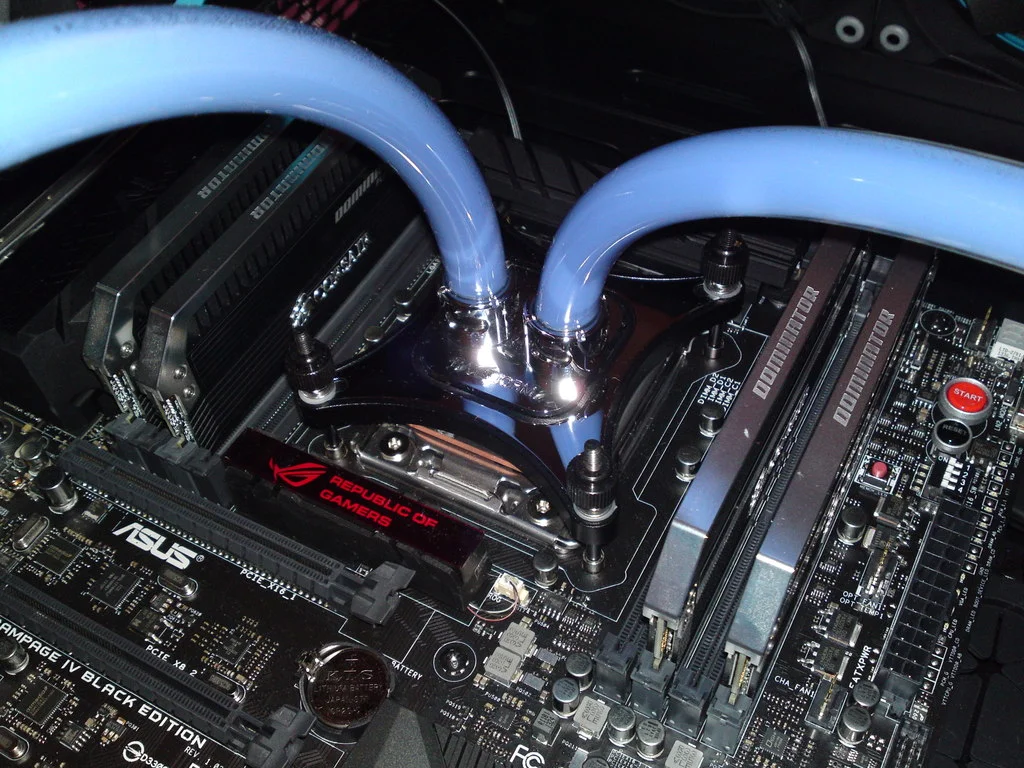

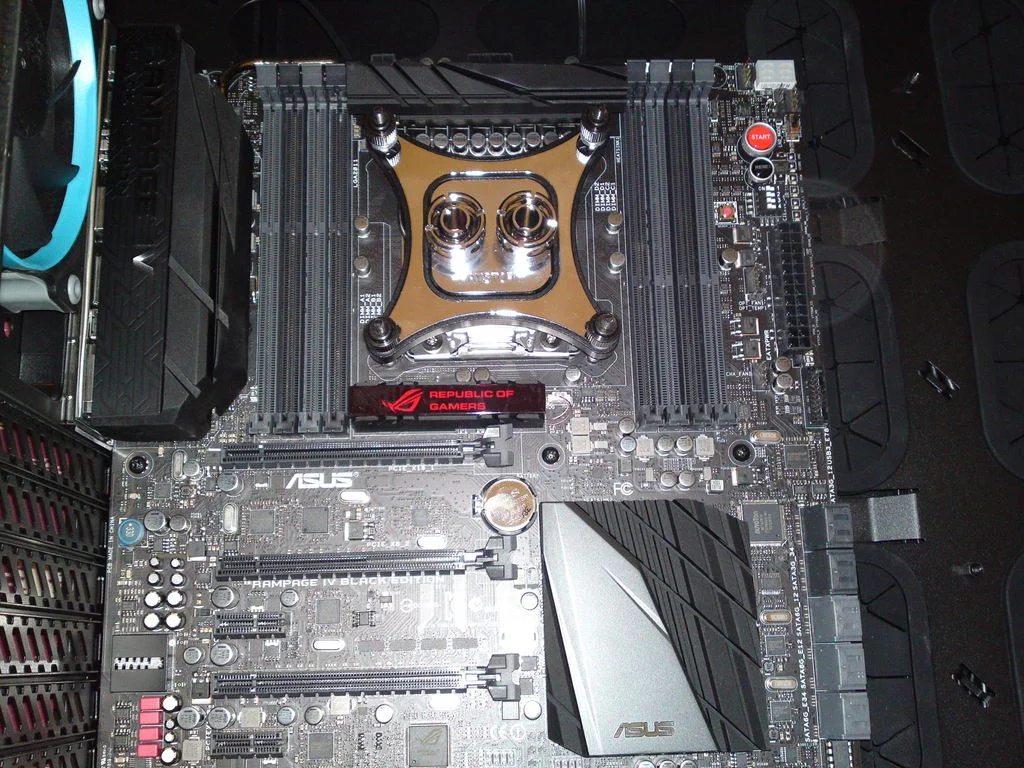

    And on with the block
    [​IMG]

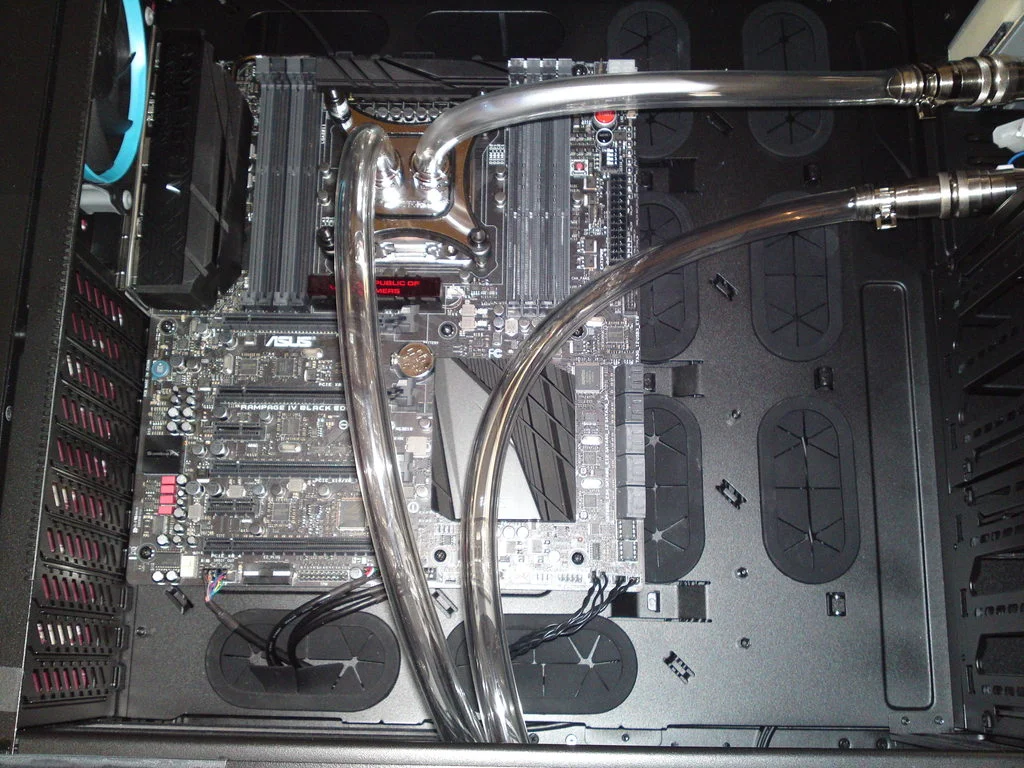

    Some tubing
    [​IMG]

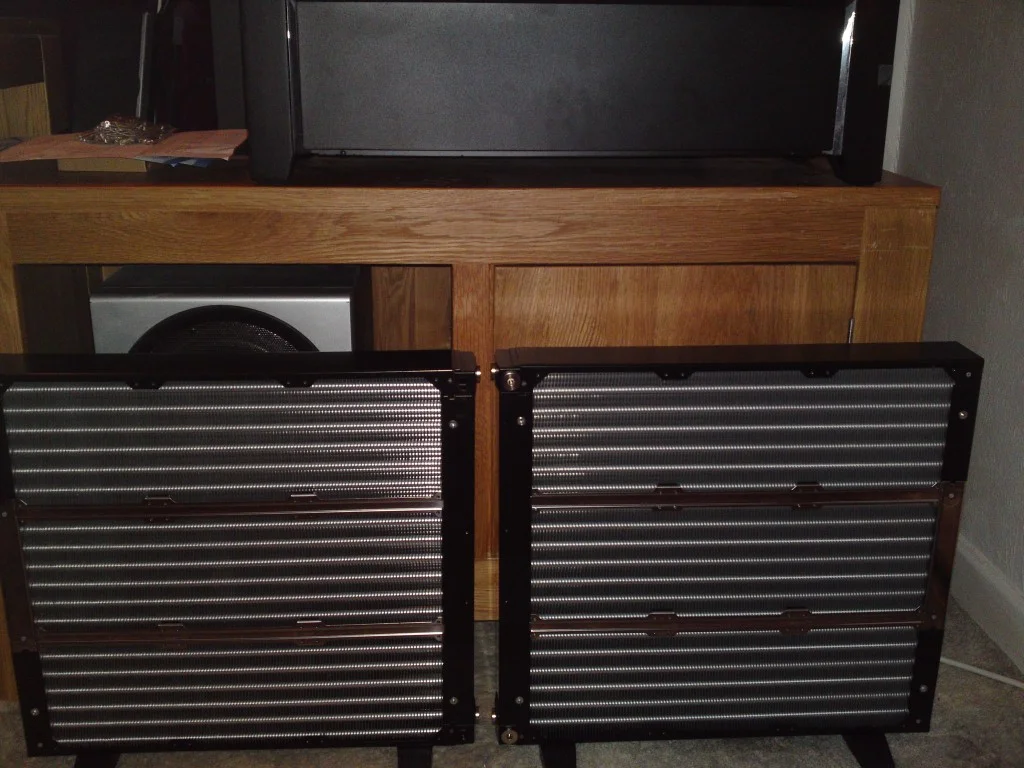

    Some rads, not even a 900D will take these.
    [​IMG]

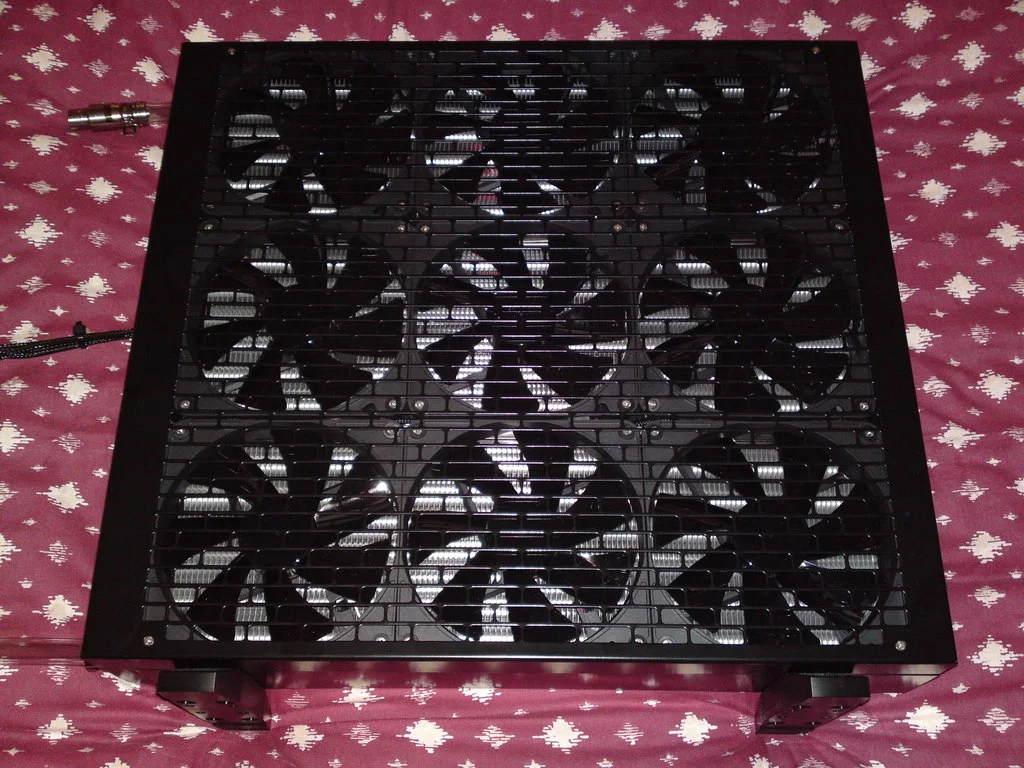

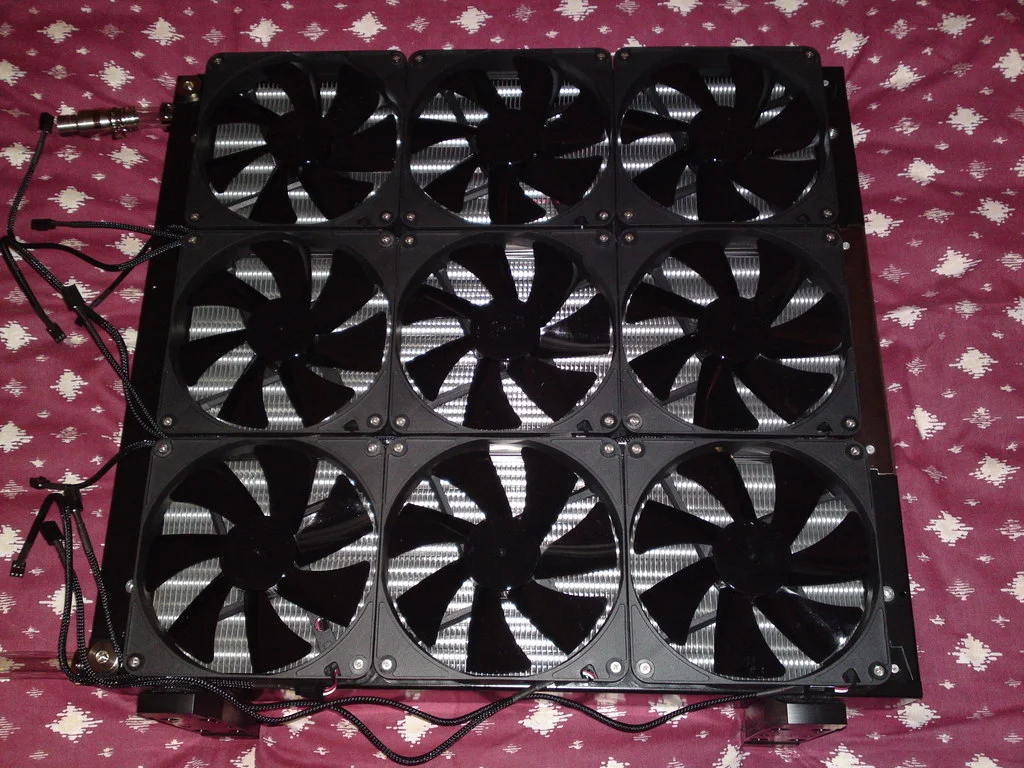

    Here is one of the rads with it's 9 x 140mm fans fitted.
    [​IMG]

    With the grill in place.
    [​IMG]

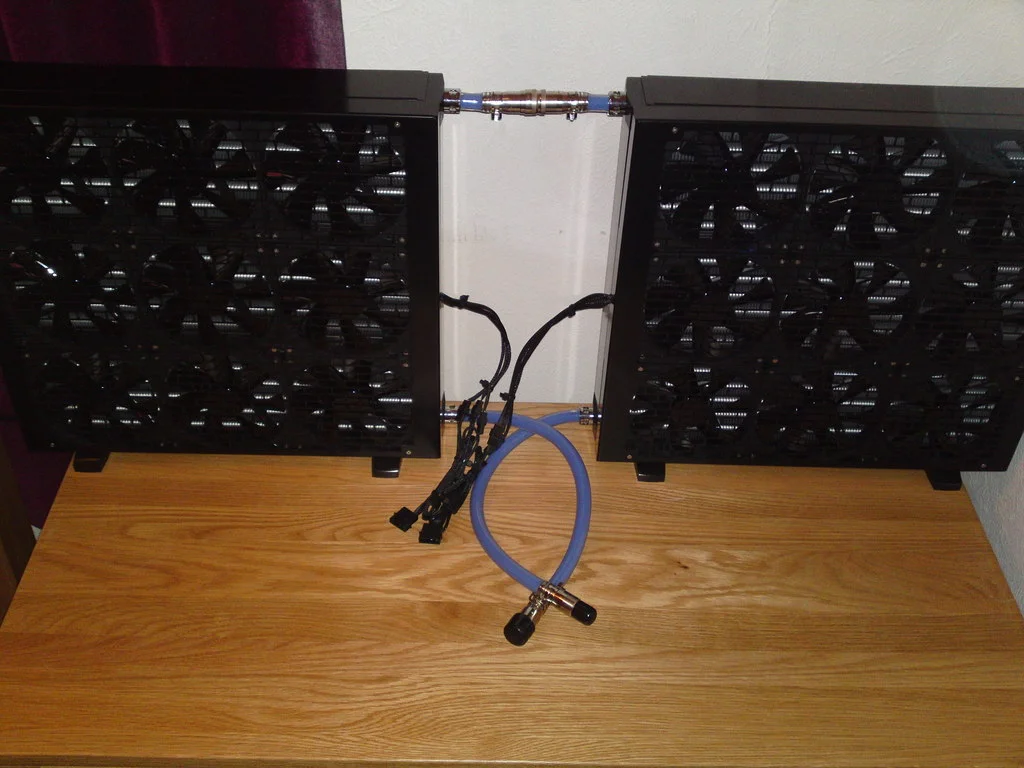

    The rads filled and ready to go, just add PC.
    [​IMG]

    Corsair Dominator Cas 9 2400mhz
    [​IMG]
    [​IMG]

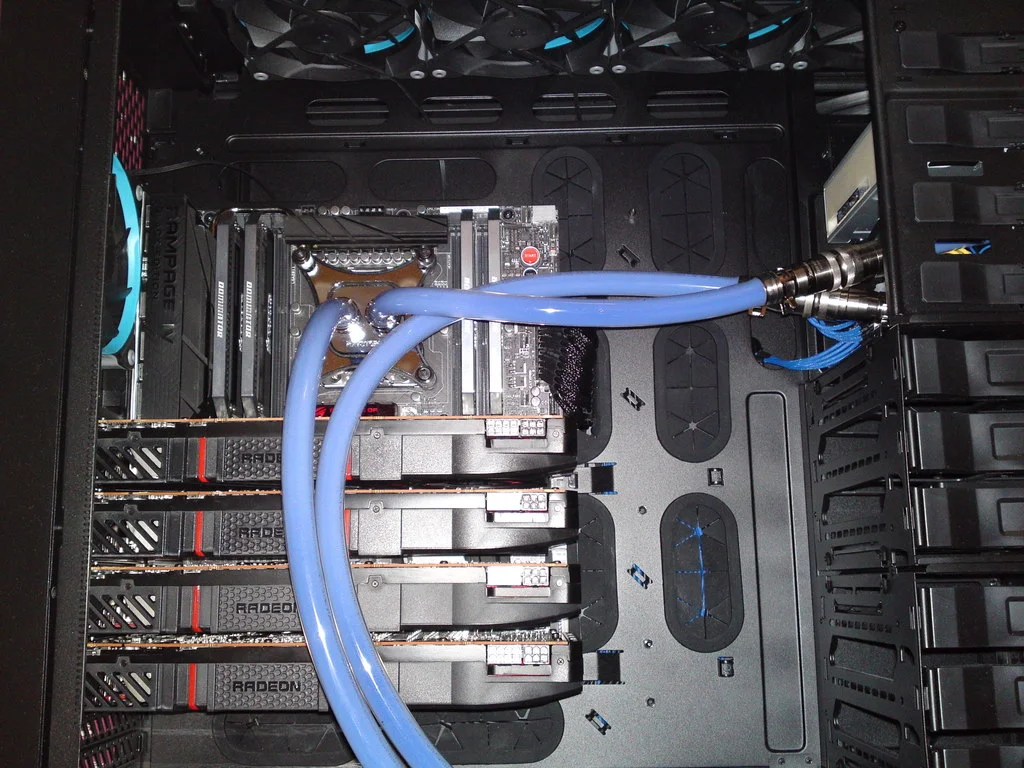

    Suddenly this case is not looking so roomy with four GPUs in it.:D
    [​IMG]

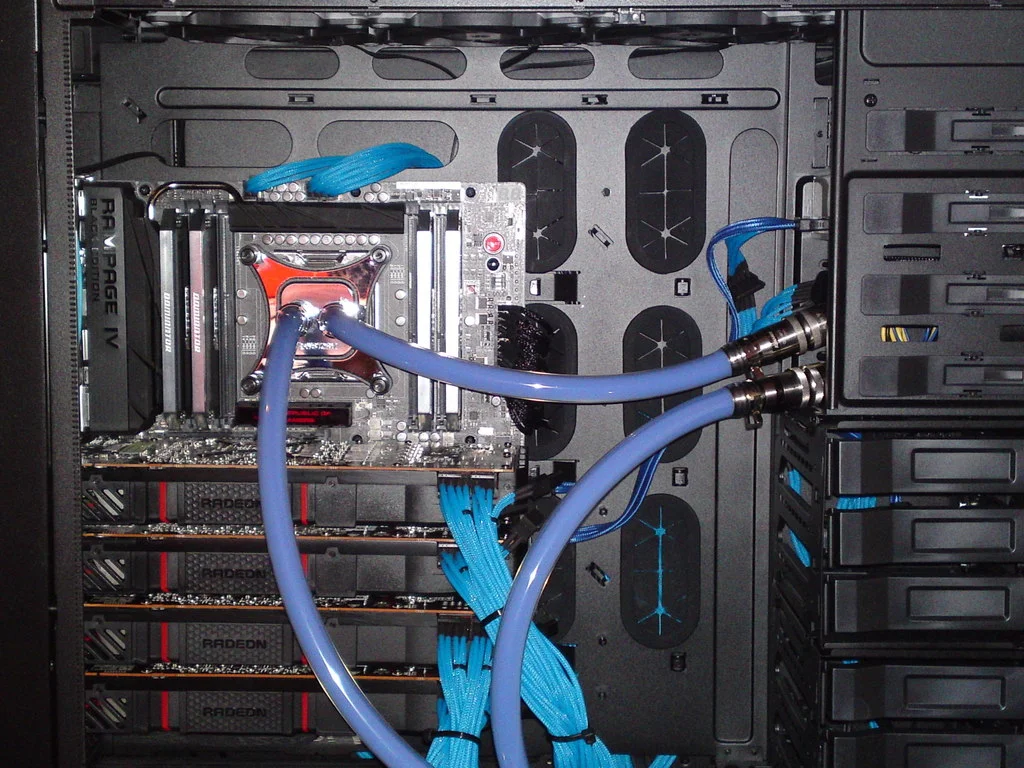

    Some cabling
    [​IMG]

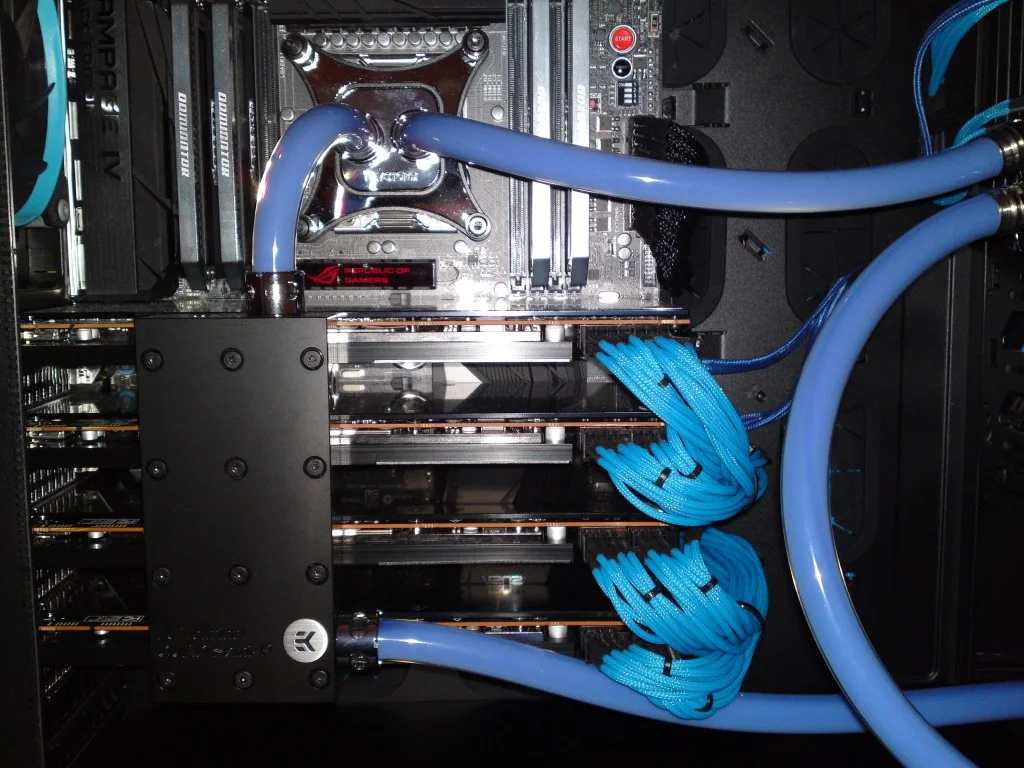

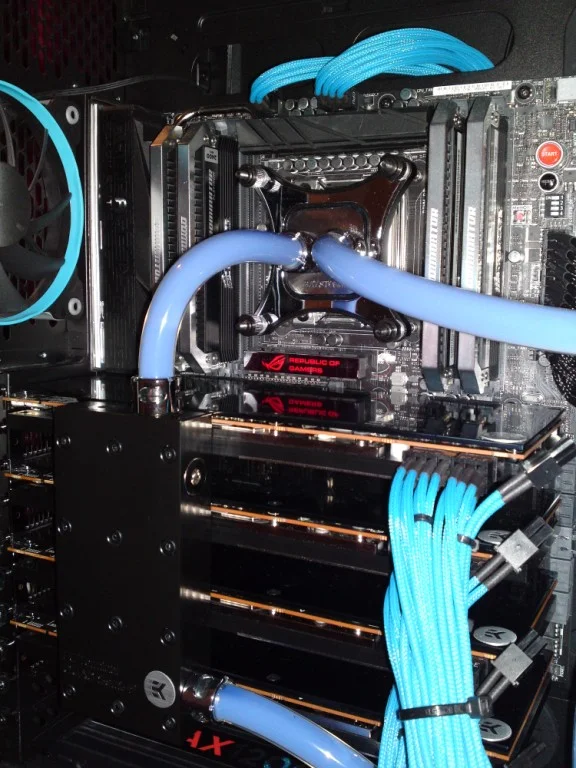

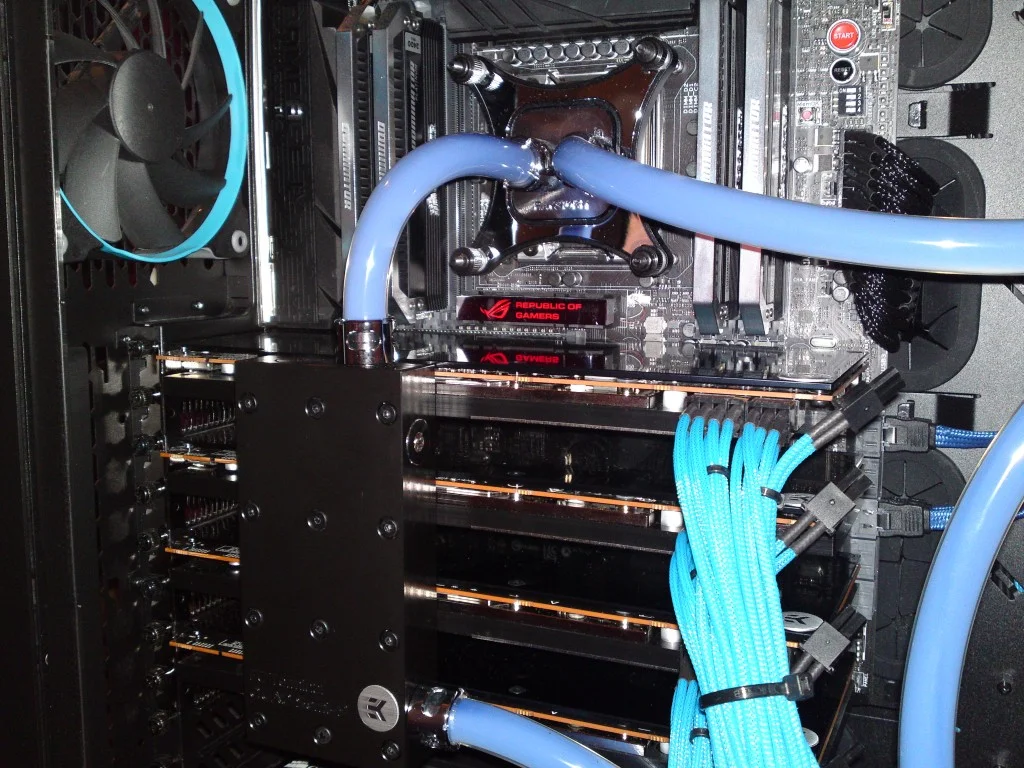

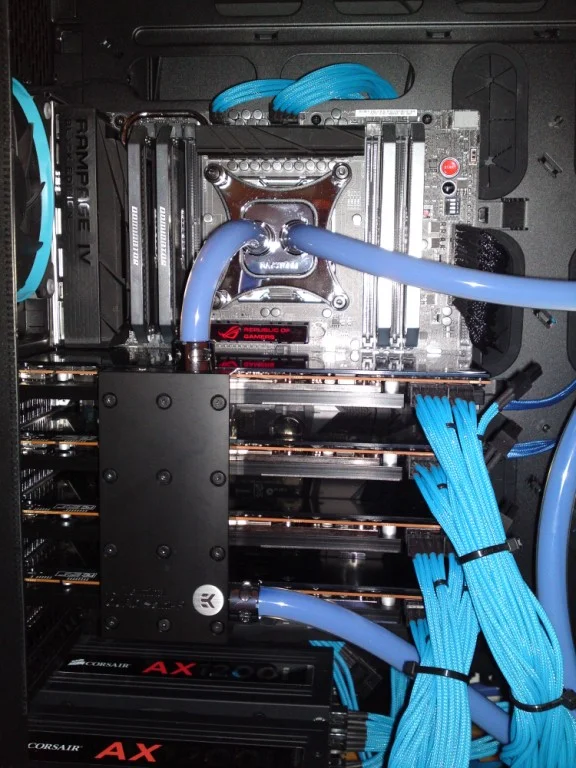

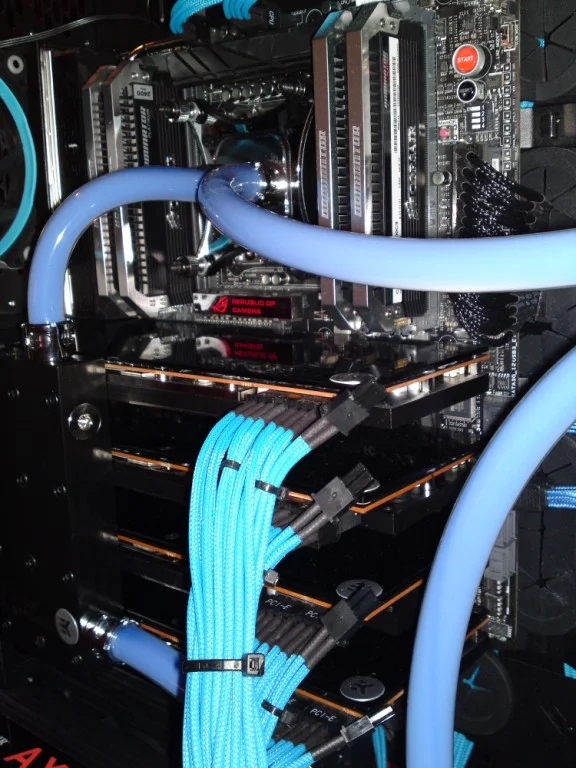

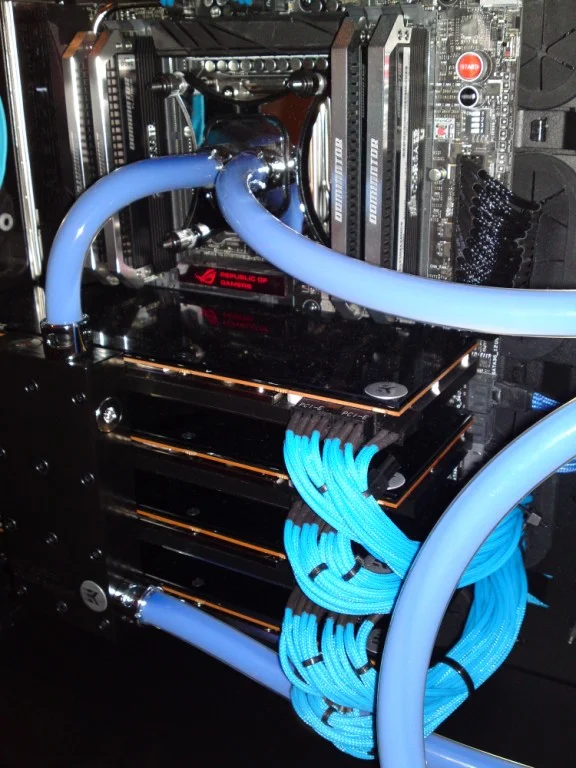

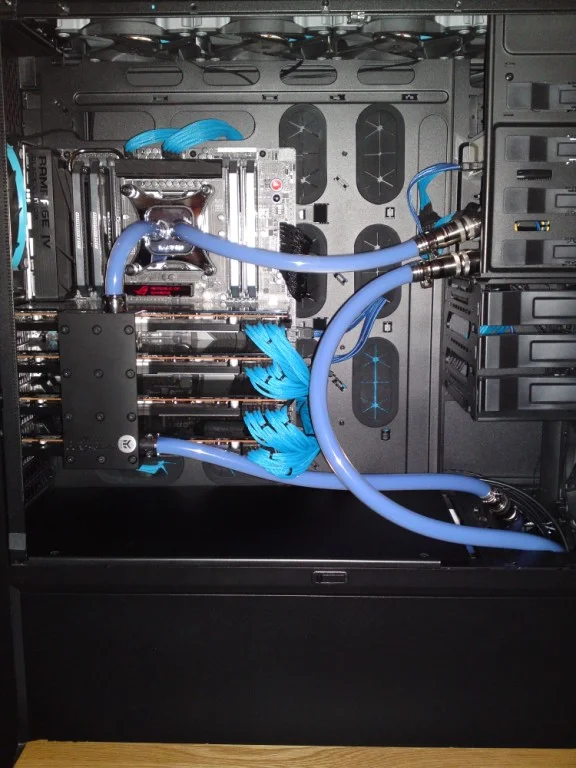

    Finally got some water onto the cards.
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    Some more pics with the mid plate in
    [​IMG]
    [​IMG]
    [​IMG]

    Last edited: Apr 13, 2014
  3. Kaapstad

    Man of Honour

    Joined: May 21, 2012

    Posts: 28,158

    Location: Dalek flagship

    Edit

    Last edited: May 28, 2016
  4. Gregster

    Caporegime

    Joined: Sep 24, 2008

    Posts: 37,728

    Location: Essex innit!

    Looking forward to this. Also interested in your thoughts on the 900, as I have seen some mixed reactions.

  5. Appleby

    Gangster

    Joined: Jul 23, 2011

    Posts: 156

    Rolling Stones - Yup
    4 x R9 290X - Yup
    i7 3970X or 4930k - Yup

    You have my interest!

  6. Kaapstad

    Man of Honour

    Joined: May 21, 2012

    Posts: 28,158

    Location: Dalek flagship

    When I start working on it I will give some feedback.

    One thing I think Corsair should have included is exit points for the hoses when using external radiators.

  7. whyscotty

    Sgarrista

    Joined: May 6, 2012

    Posts: 9,396

    Location: Wigan

    Can't wait for this - but i will :)

  8. CharlieRich

    Gangster

    Joined: Nov 3, 2013

    Posts: 320

    Location: Surrey

    Jeeeeeez this is pretty beast

  9. Gregster

    Caporegime

    Joined: Sep 24, 2008

    Posts: 37,728

    Location: Essex innit!

    Sounds more than reasonable, as there is some 1080 rads that could be used externally. Seems lazy to not put them in in truth but nothing a drill wouldn't sort.

  10. PhysicsMan94

    Wise Guy

    Joined: Feb 28, 2013

    Posts: 2,469

    Location: Birmingham

    This should be good, look forward to seeing the progress.

    I have a 900D and it is an amazing case in my opinion, very nice to work with (easy cable management, lots of room and so forth) and is excellent quality all around - looks great too, especially the brushed aluminium finish on the front faceplate.

  11. fantasticCG

    Wise Guy

    Joined: Feb 29, 2012

    Posts: 2,110

    Location: London

    +1 it's a really beautiful case to work with

  12. Acme

    Caporegime

    Joined: Jul 29, 2011

    Posts: 30,624

    Location: Acme's chair

    Why not get a single 1350 - 1500W PSU? It would be tidier and perfectly adequate. A grand total of 2400W is absolutely ludicrous and nowhere near necessary for anything. :p

  13. PhysicsMan94

    Wise Guy

    Joined: Feb 28, 2013

    Posts: 2,469

    Location: Birmingham

    I'd agree with this and it would give you the opportunity of sticking a large rad at the top of the 900D (as I assume you'll be putting 1 PSU top and 1 bottom, but I may be wrong?), however I'd imagine that the power draw of those 4 290X's will be pretty large at full load. And as loud as a jet engine too :p

  14. Hotwired

    Soldato

    Joined: Aug 17, 2009

    Posts: 7,100

    Perhaps they chose not to because it would fly against their selling line of it being the case you can get EVERYTHING inside :)

  15. Acme

    Caporegime

    Joined: Jul 29, 2011

    Posts: 30,624

    Location: Acme's chair

    Fixed. :p

  16. colinmcr

    Wise Guy

    Joined: Mar 17, 2009

    Posts: 2,469

    Location: Scotland

    Sounds awesome, look forward to this one.

  17. Kaapstad

    Man of Honour

    Joined: May 21, 2012

    Posts: 28,158

    Location: Dalek flagship

    The power draw of 4 x R9 290Xs and an i7 3970X all overclocked is going to be around 1800 watts so unfortunately two PSUs are needed.:eek:

  18. Something Else

    Mobster

    Joined: Feb 19, 2012

    Posts: 4,359

    Obviously it will be watercooled but its gonna need some massive rad space! Do you have a chiller or is it just radiators?

  19. Kaapstad

    Man of Honour

    Joined: May 21, 2012

    Posts: 28,158

    Location: Dalek flagship

    I have got two MO-RA3 420 PRO black rads and a chiller if I need to use it.

  20. Nickolp1974

    Soldato

    Joined: May 15, 2012

    Posts: 5,385

    Location: Louth, lincs

    looking forward to this Kaap, are you putting the BE under water once blocks are available???
