Project: Rebuild (Name Change Pending)

[GAM8LE]

Looking good!

I am in the process of doing a lightbox as well - acrylic and strip LED's. Already got the acrylic bent and installed, just trying to decide what LED's to get.



[GAM8LE]

Search "900D Long Lightbox (Rev.2)"
They come from Portugal.

Coldzero?



[Deathjester]

It's all over the box on the first page



[ALEXZ360]

Looks good man can't wait for some more updates



[fantasticCG]

How's the progress going?



[Deathjester]

How's the progress going?

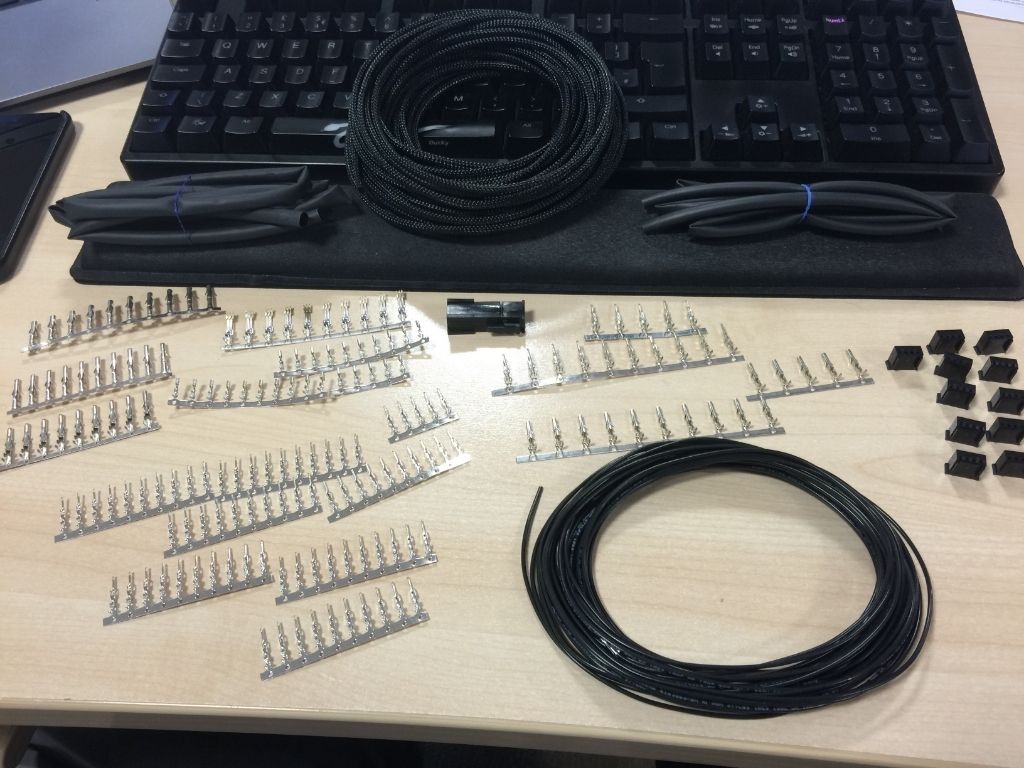

I was waiting for my Step drillbit so I could start attacking the Lightbox, however that has now arrived, along with a bunch of terminals, connectors and some lovely Telios Black.

(I tend to do all the cables I want to be hidden in just black (it's easier).



[Deathjester]

I've been thinking about this quite a bit reacently, and I'm debating if I should go to dual serial loops and add an additional 2 pumps.
Although Space could be challenging I might have to put in some Res / Pump combos or rethink some of the locations.



[Deathjester]

So the latest updates:

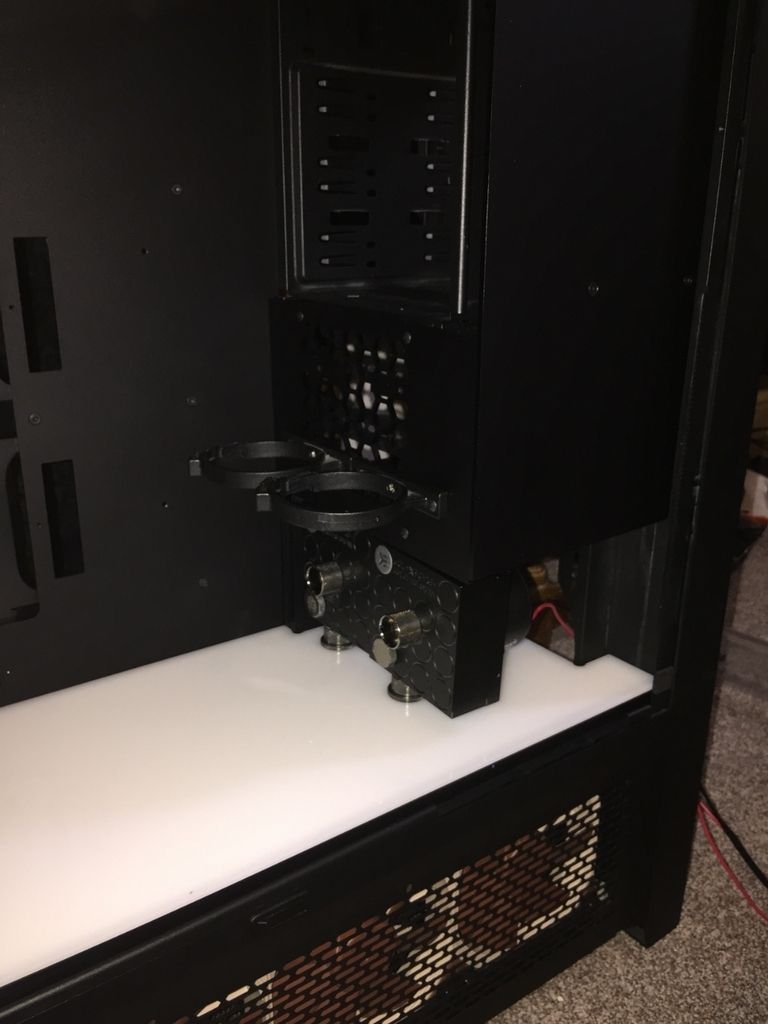

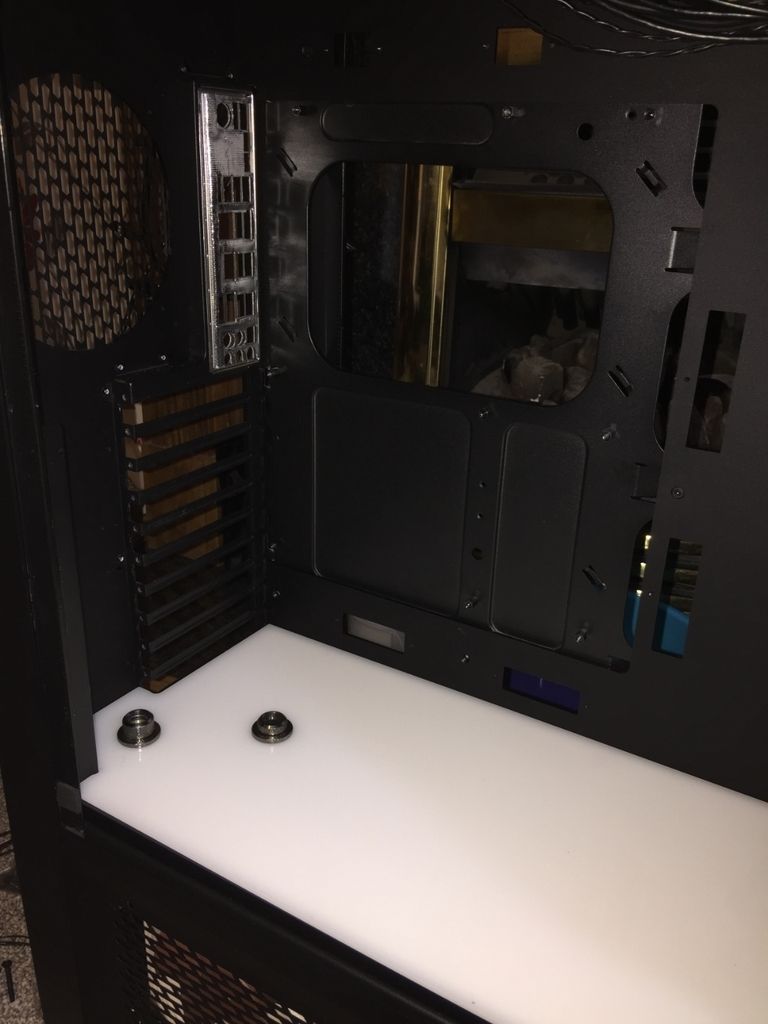

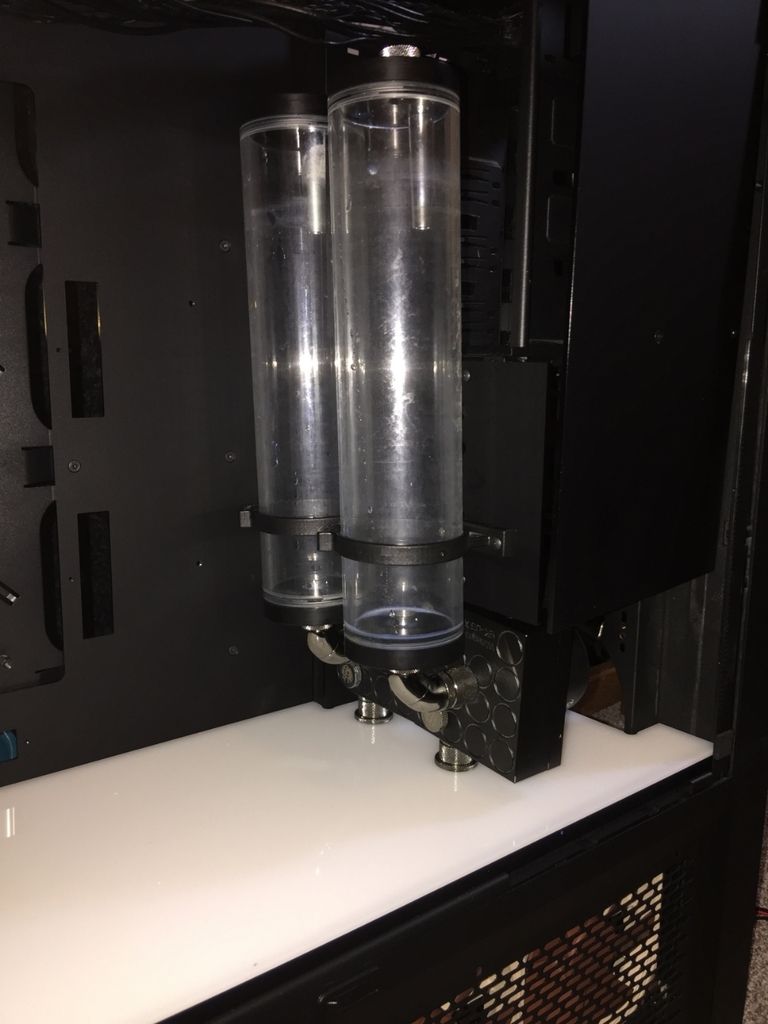

Lightbox drilled and installed:

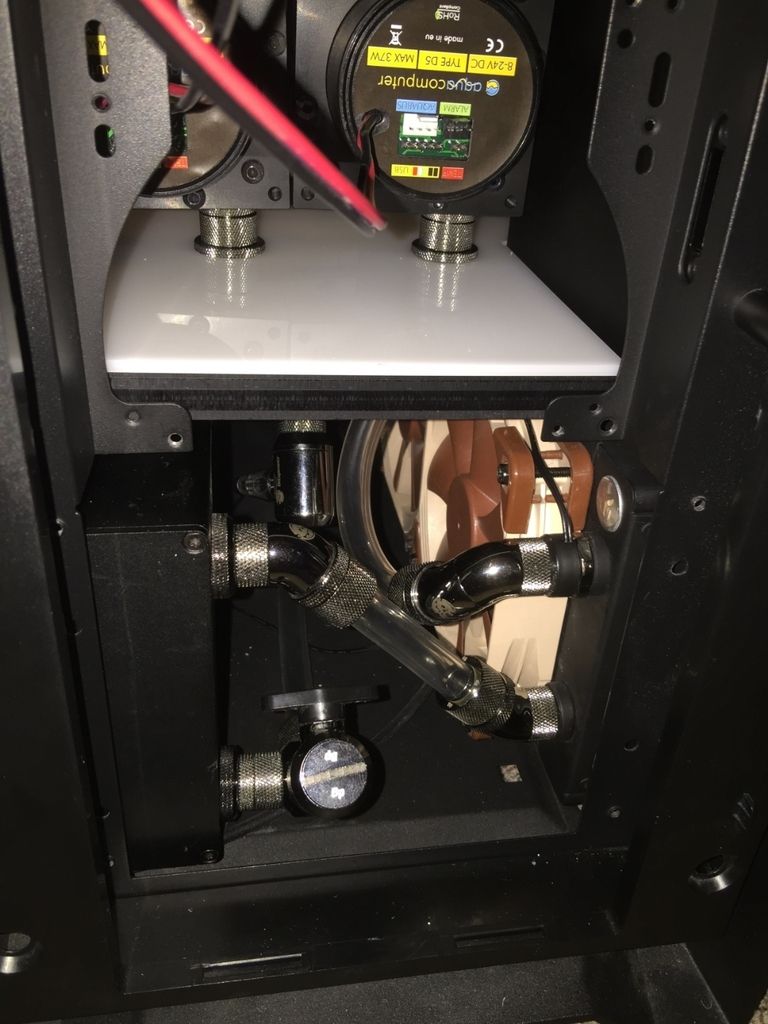

Under the lightbox - all tubed up.

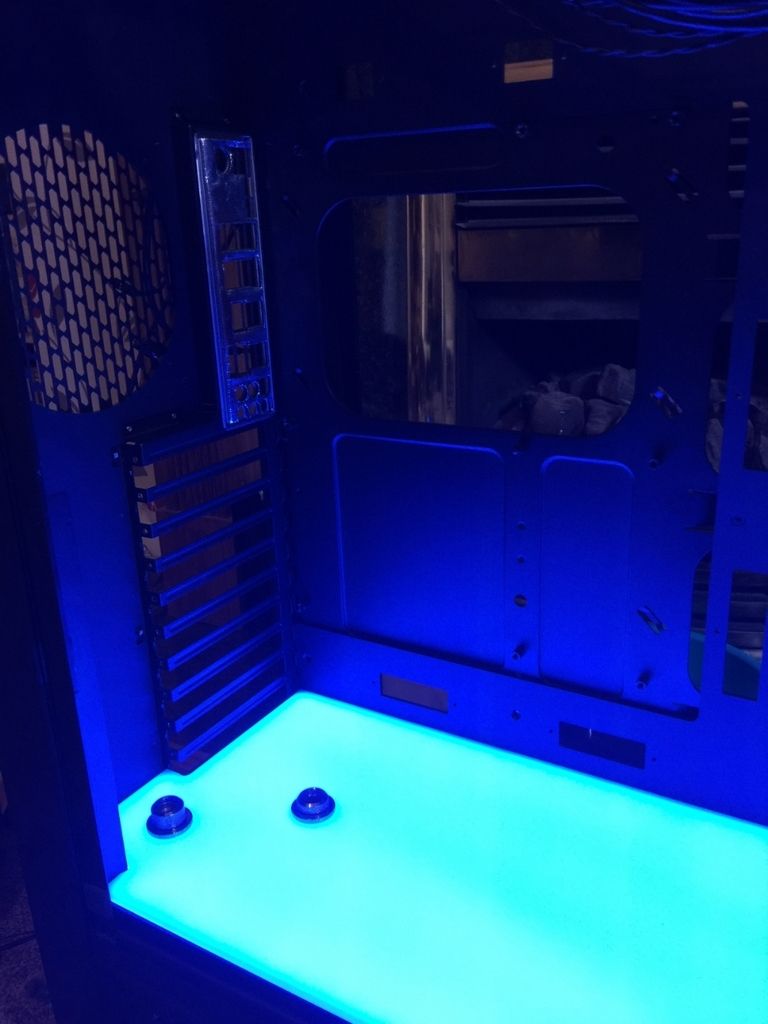

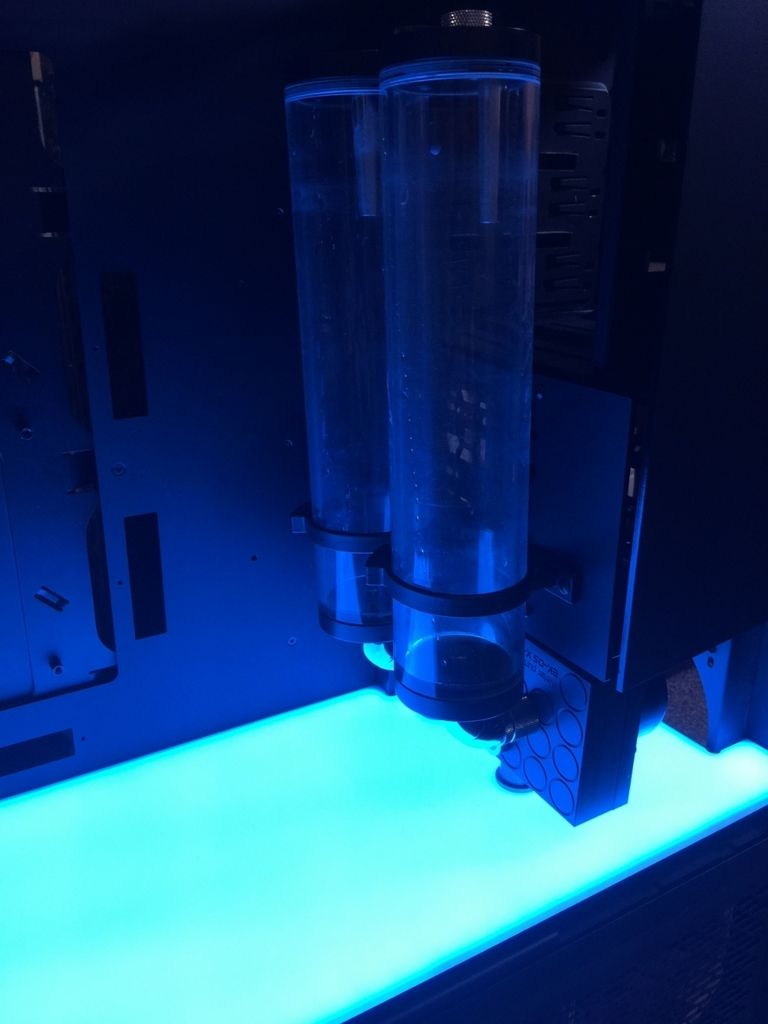

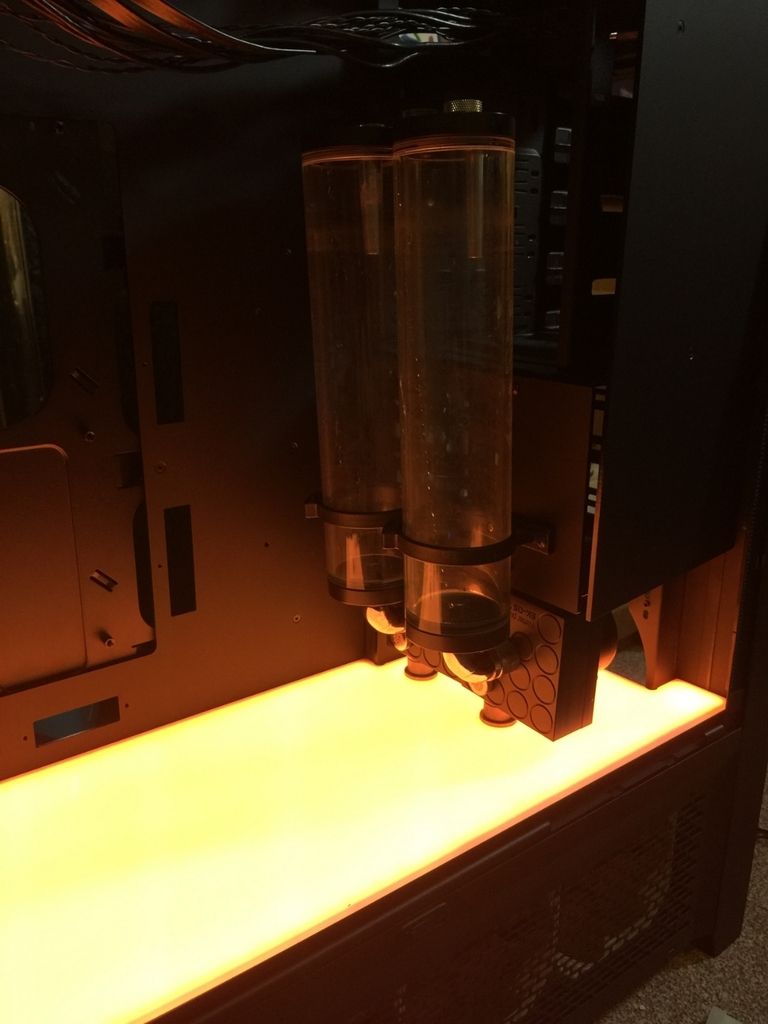

With the lightbox on:

Pretty pleased so far; a long way still to go however!



[Deathjester]

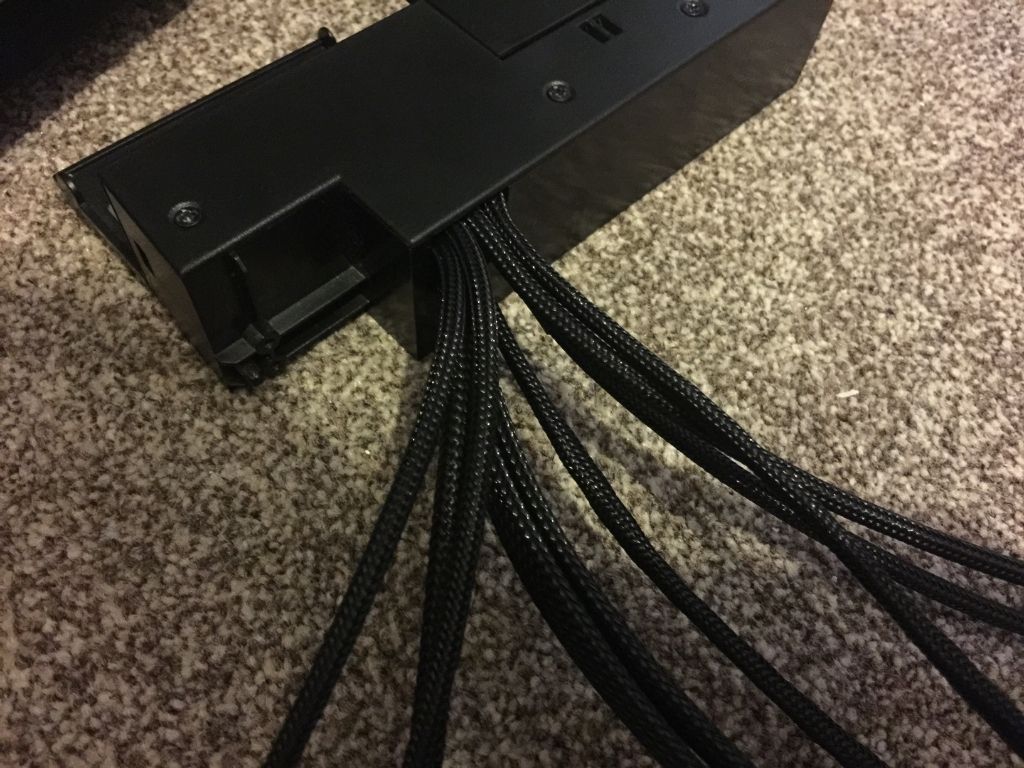

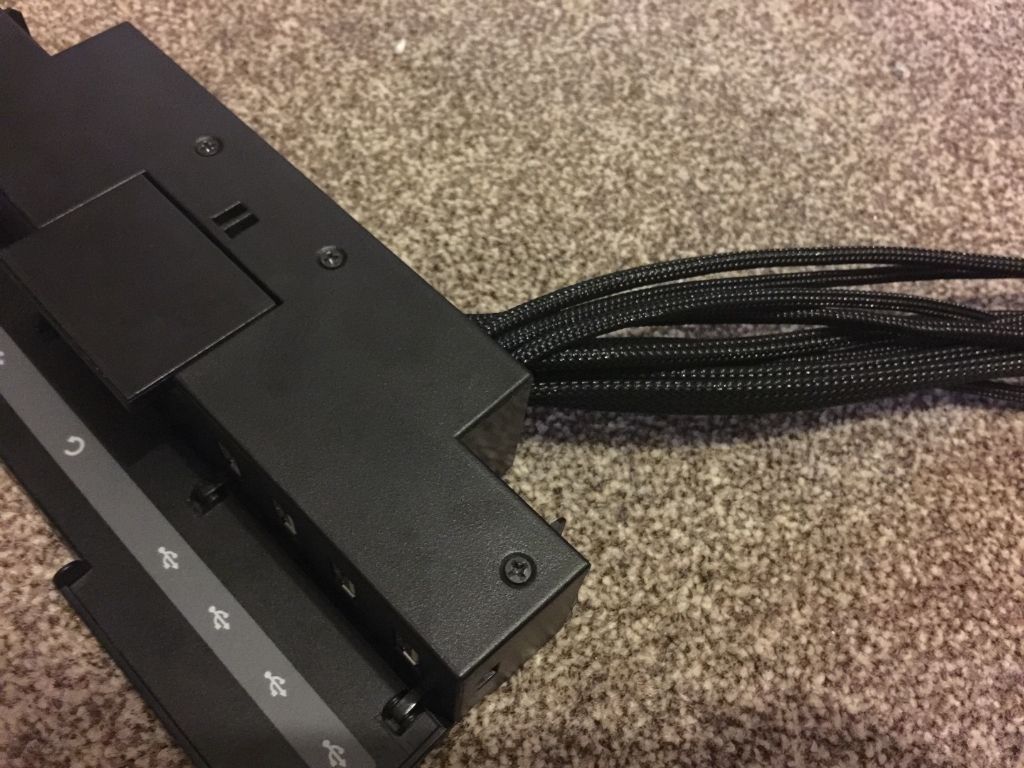

Spent last night sleeving the front IO panel (which I should have done last time).

This has caused me to realise that I'm missing a ton of connectors, terminals and wires that I need to complete the build.

These were therefore ordered today; hopefully they will arrive soon.

I will update with pictures of the sleeved front IO panel once it's completed, I also need to figure out where the Aquaeros, Farbwerk & NZXT usb devices will live.



[Brian18741]

Man that light box looks amazing, love it! Nice plumbing also, the twin reservoirs look great!



[TechMinerUK]

I'm loving that light through the plastic. Also the tubes look clean as if installed by a professional plumber in the way they go through the plastic.

Excellent work



[gradyhawks]

Yeaaah, thats nice.



[Deathjester]

So here's the final results of the last 2 evenings:

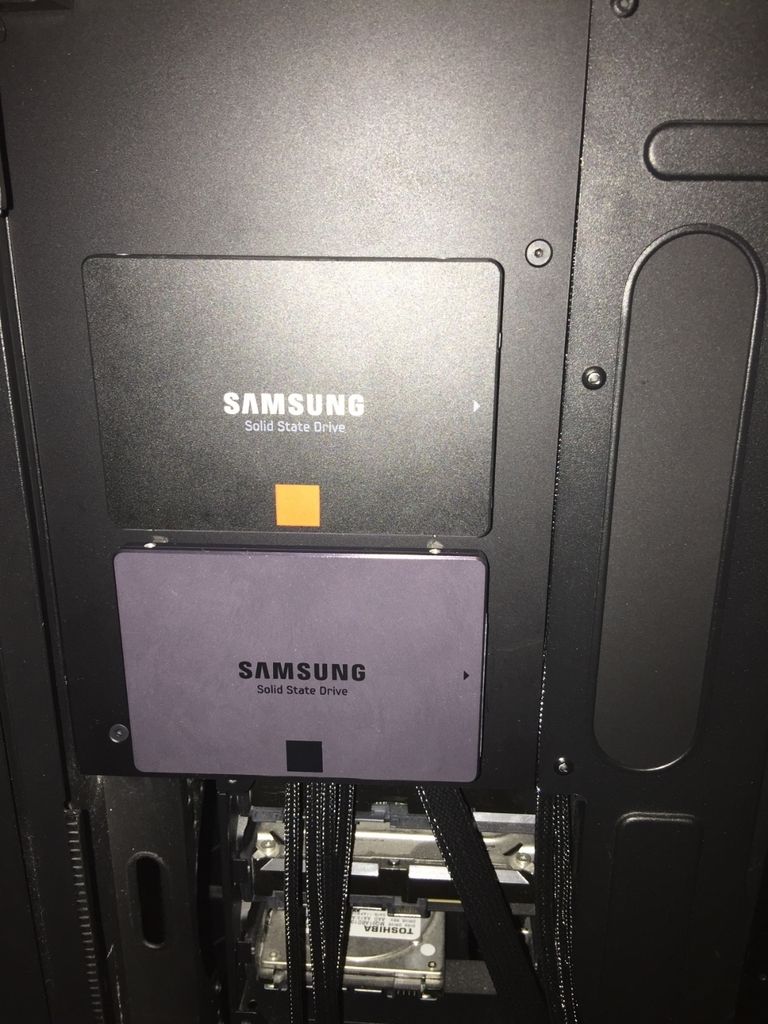

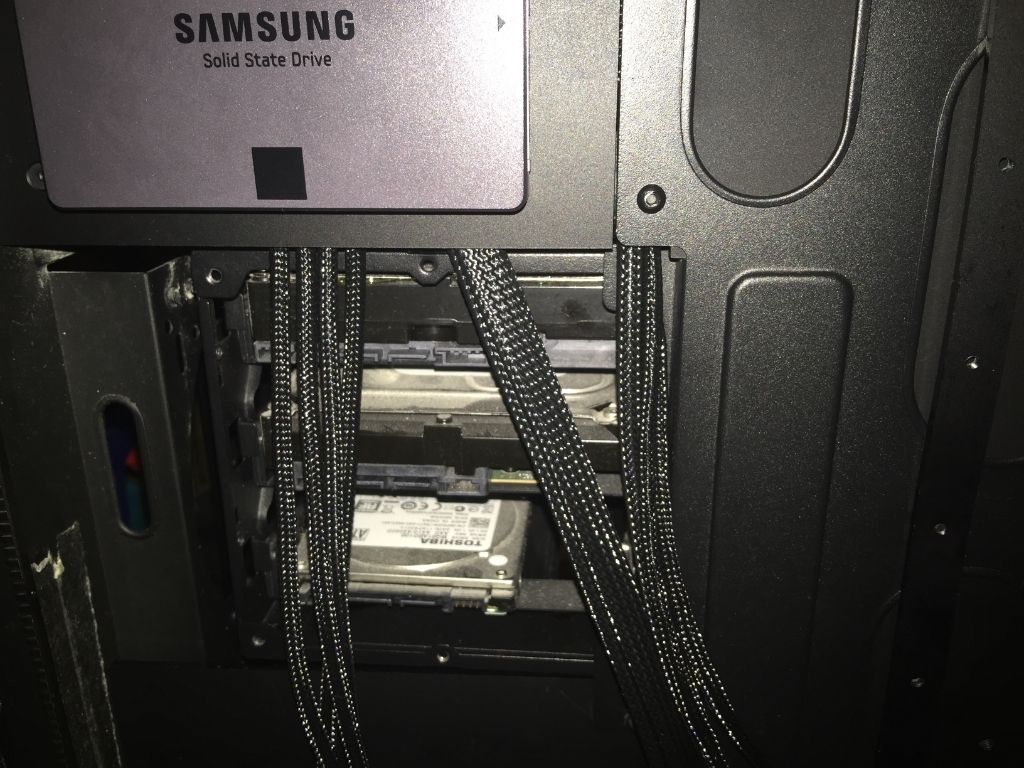

The HDD placement on the motherboard side of the PC: (And where the newly sleeved cables will be run:



[Brian18741]

Very tidy work on the cables dude, well done! That's the last big job on my build and I keep putting it off!



[Deathjester]

Very tidy work on the cables dude, well done! That's the last big job on my build and I keep putting it off!

It's one of those things that I really don't mind.
I find that it really easy to do while watching TV.



[Brian18741]

Yea you're probably right, just need to get my finger out and get stuck in!



[faheemrazzaq]

light box looks amazing. very nice job



[Deathjester]

Sooooo here's the next few evenings...

Screwing the fans onto the radiators and building the fan looms! YAY!!



[Deathjester]

So I forgot to upload the pictures of this:

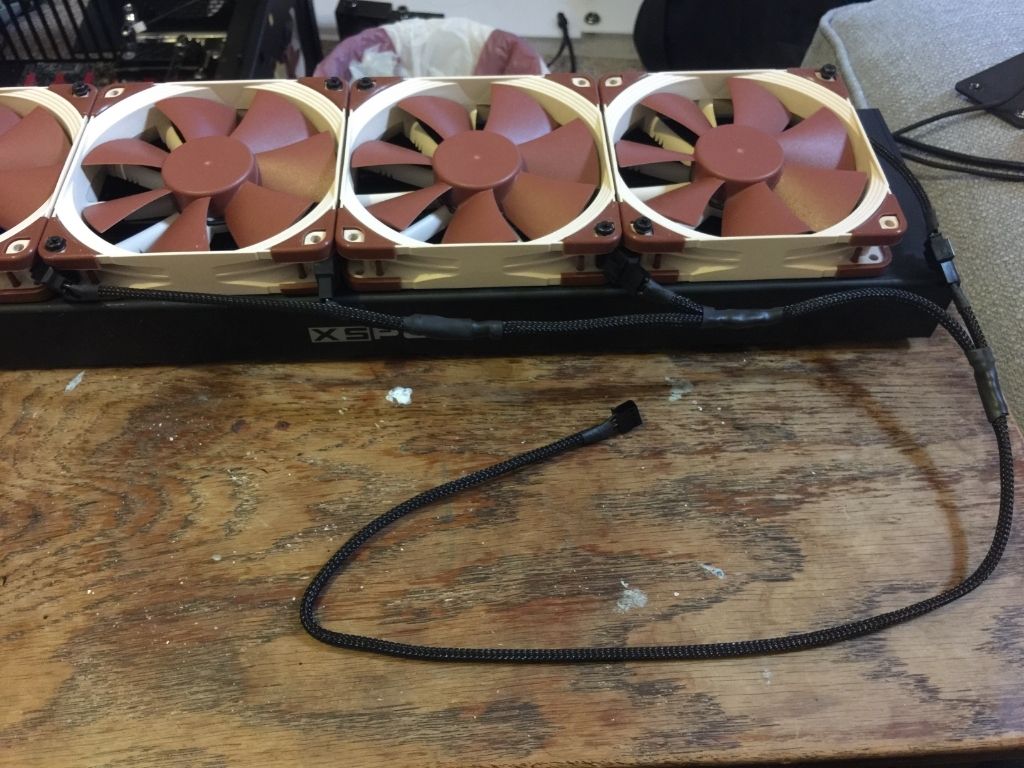

Fan loom 1 completed; still need to do a 2 fan version and another 4 fan one.

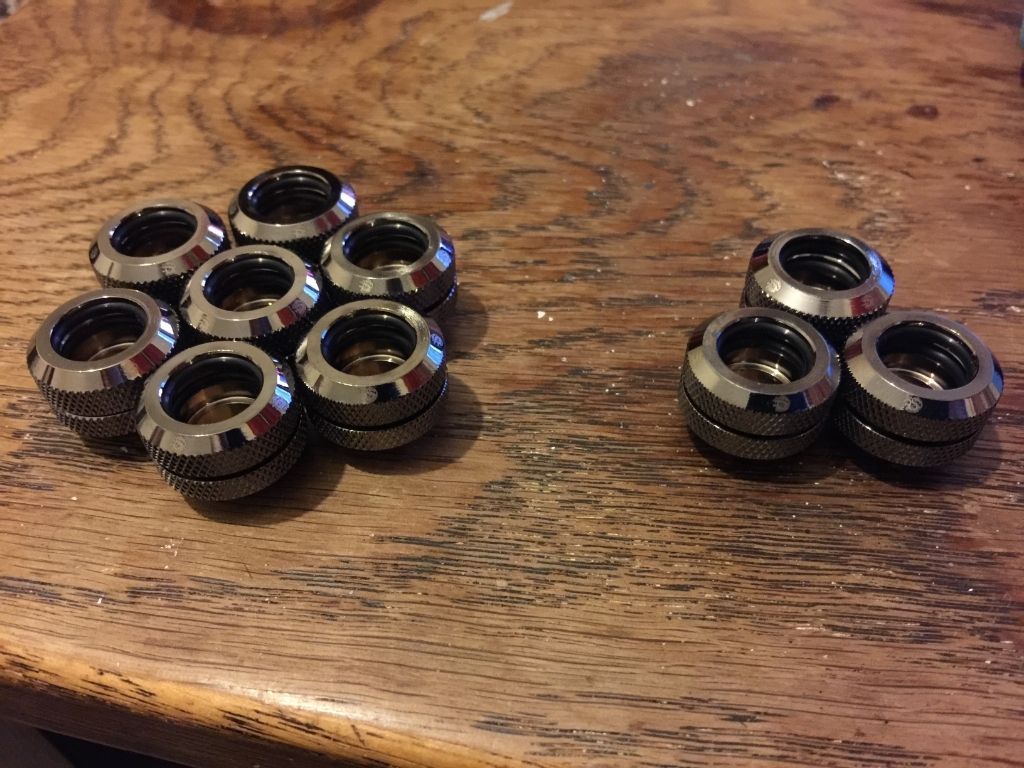

The new fittings arrived for the long tubing runs:

My deburring tool arrived, as well, but I forgot to photgraph that, along side 2L of Mayhems Ice White Pastel and the passive cooler for my Aquaero 6 which was finally in stock!

Just waiting on a new rear case fan (Noctua A14 Industrial PWM 2000RPM) which should arrive today, and a few more terminals / connectors to finish off my fan looms.

I totally forgot about shortening the fan cables so I bought very few extra female terminals for these... such an idiot...



[Deathjester]

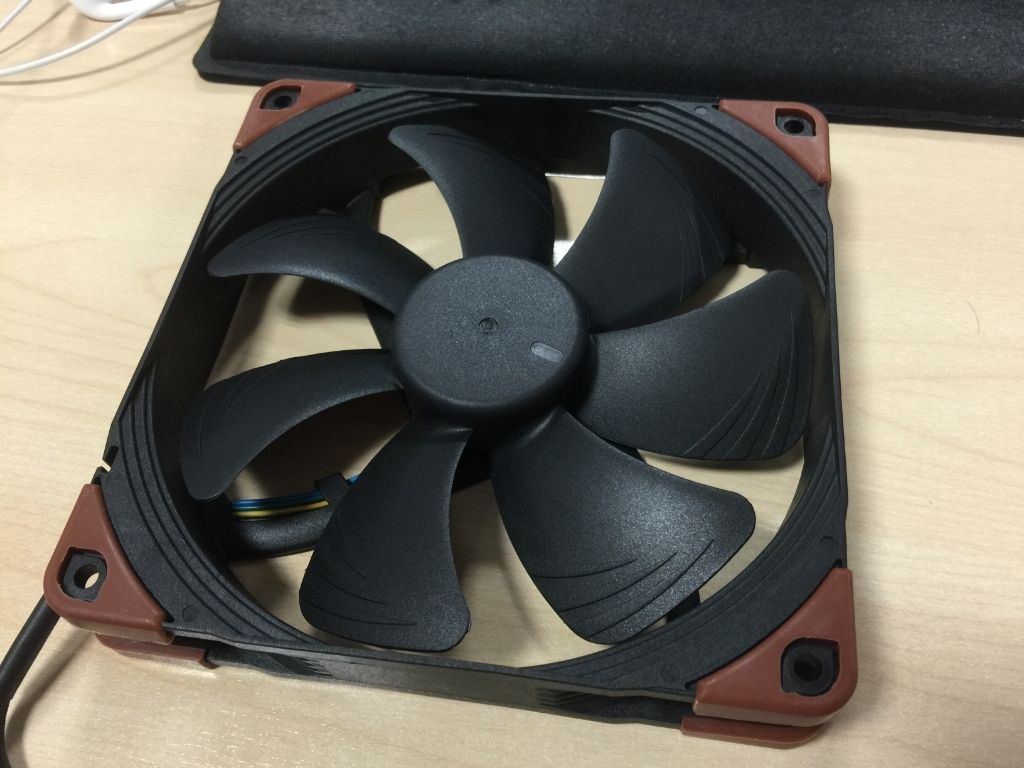

Fan just arrived:

It's so nice... but work has nothing to connect it to so I can't test it until I get home...
