Bit of an update. Decided I needed a NVME drive so picked up a cheap one Im told is pretty quick.
Ordered some Custom PSU cables which should take about a month to be made and be with me in time for the 3950X
Measured Cut and tested some glass tube runs as well as a minor leak test which failed due a troublesome glass cut.
Found out 1 of my alphacool 20/40 glass runs is actually 13mm and not 16mm OD so I dont have any spare but at least im on the last one now (I HOPE)
I also found that one of the premade 10/30 runs is 1-2cm shy of being perfectly made for the distroplate to motherboard run.

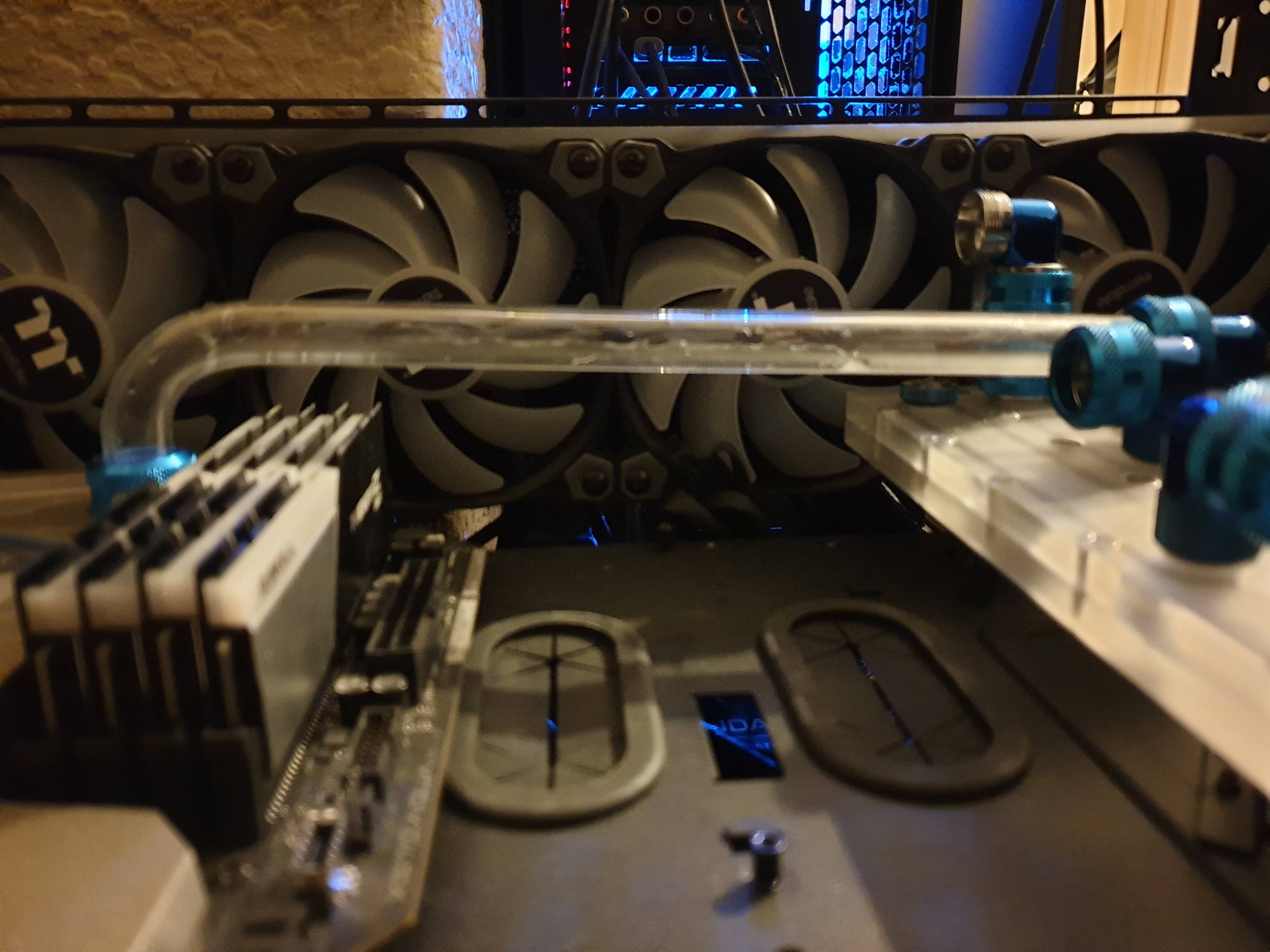

The Problematic run that I may have cut too far so might redo.

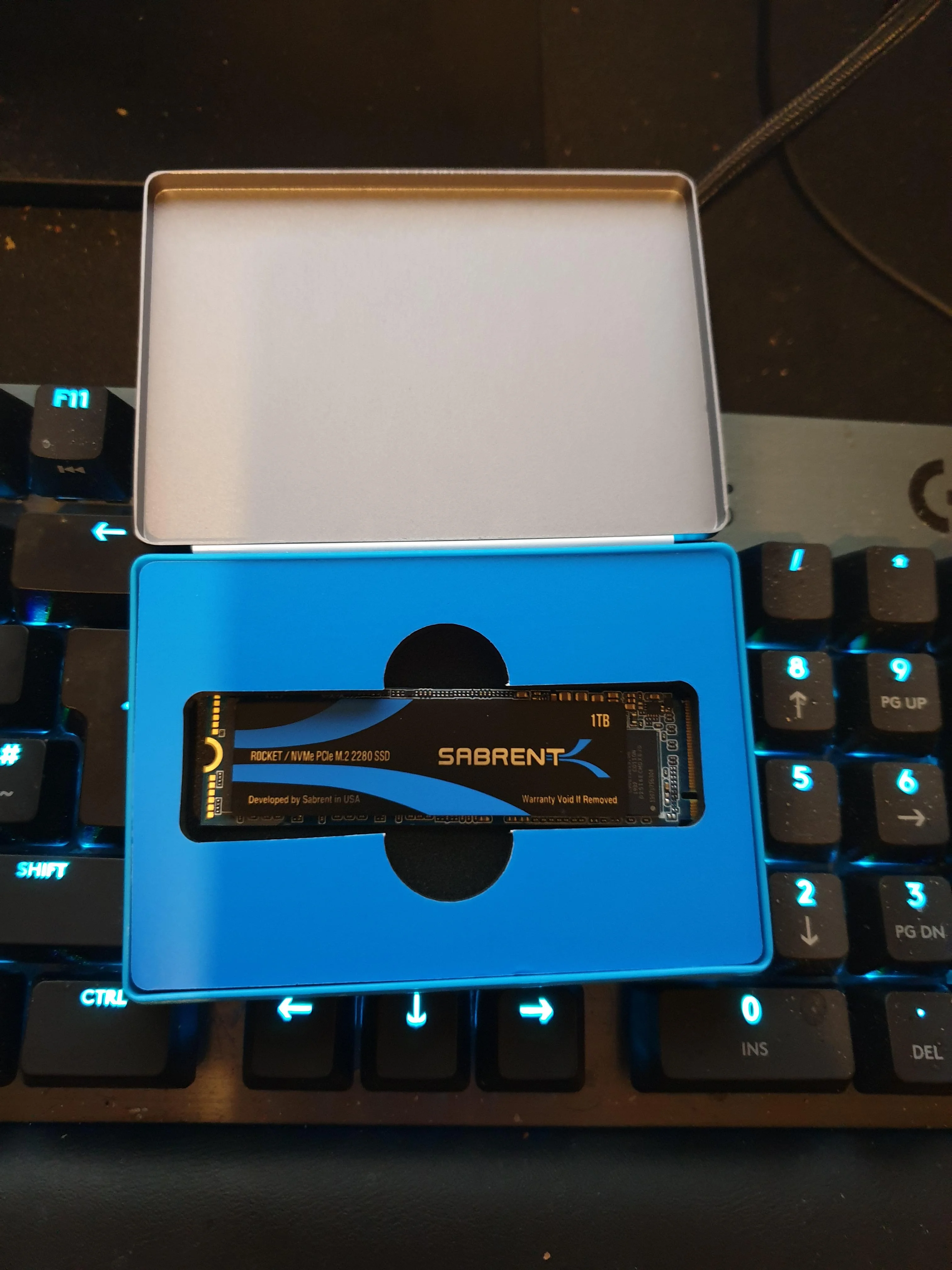

The new temp 1TB NVME Drive I will use until Samsung release PCI4 SSDs

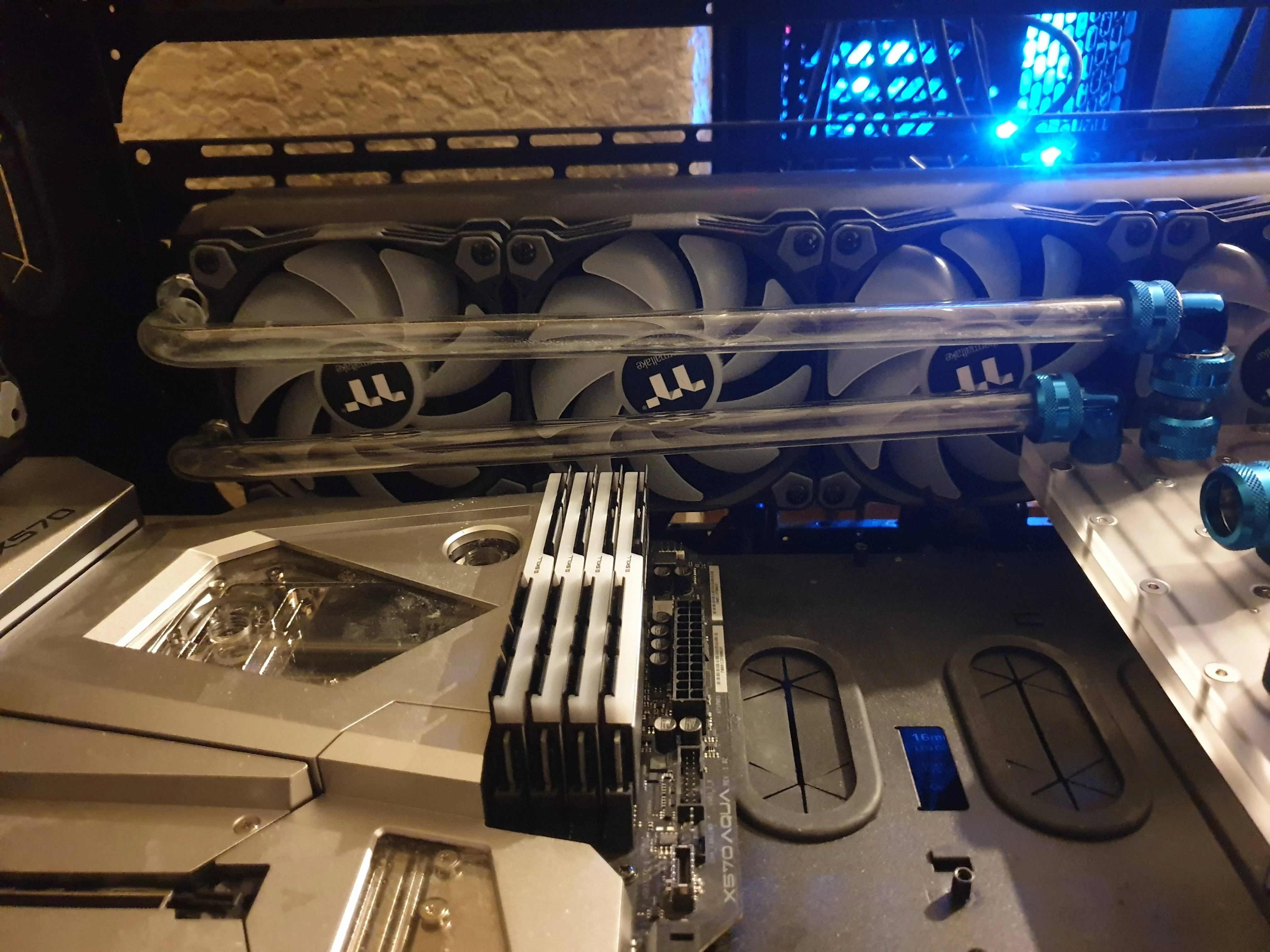

The Distropate to top rad runs which will be straighter once secured but I need to take the motherboard out to until the screws to get the block off to install the cpu and unwrap the thermal pads

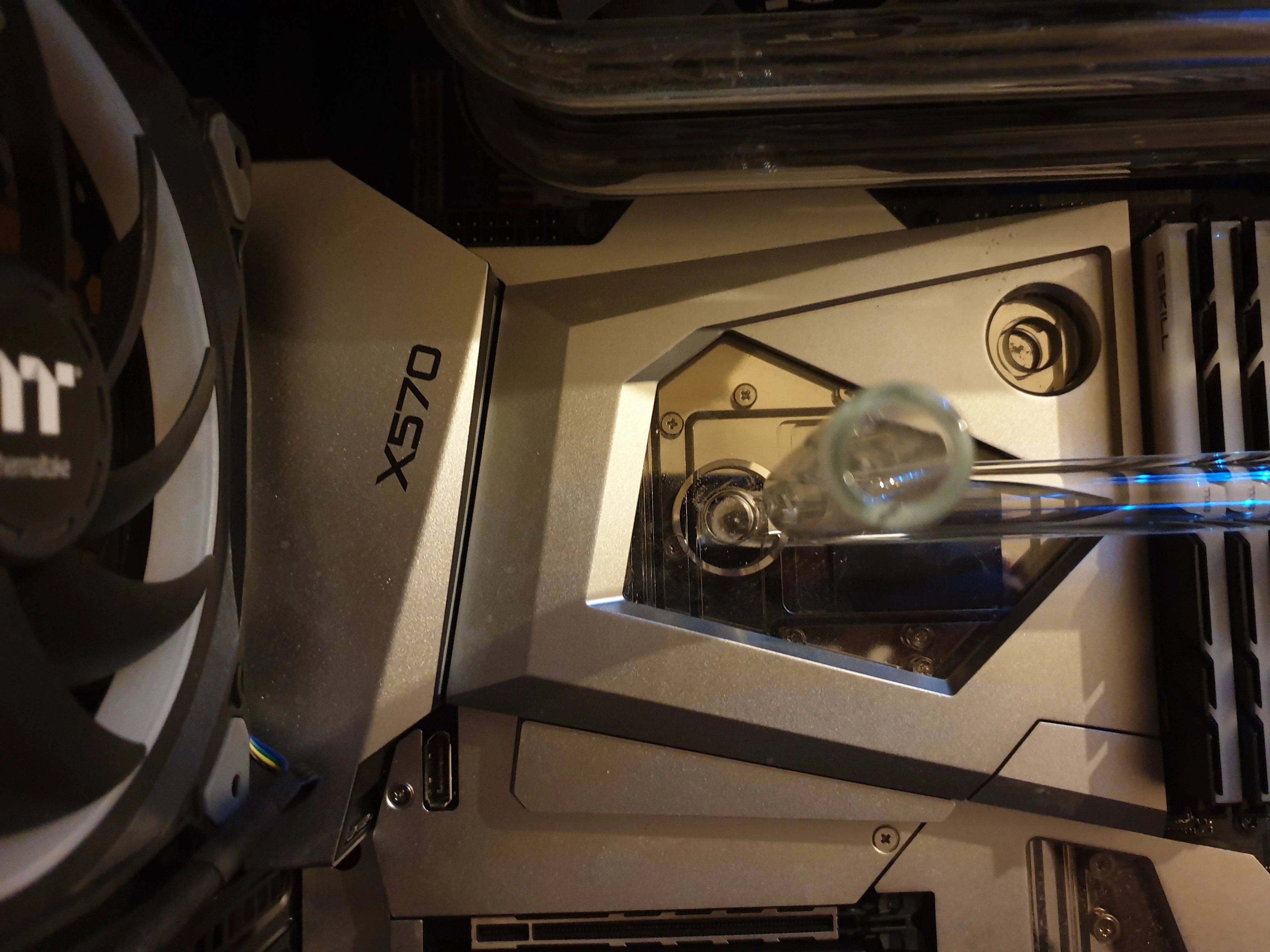

The Motherboard output to the distroplate run

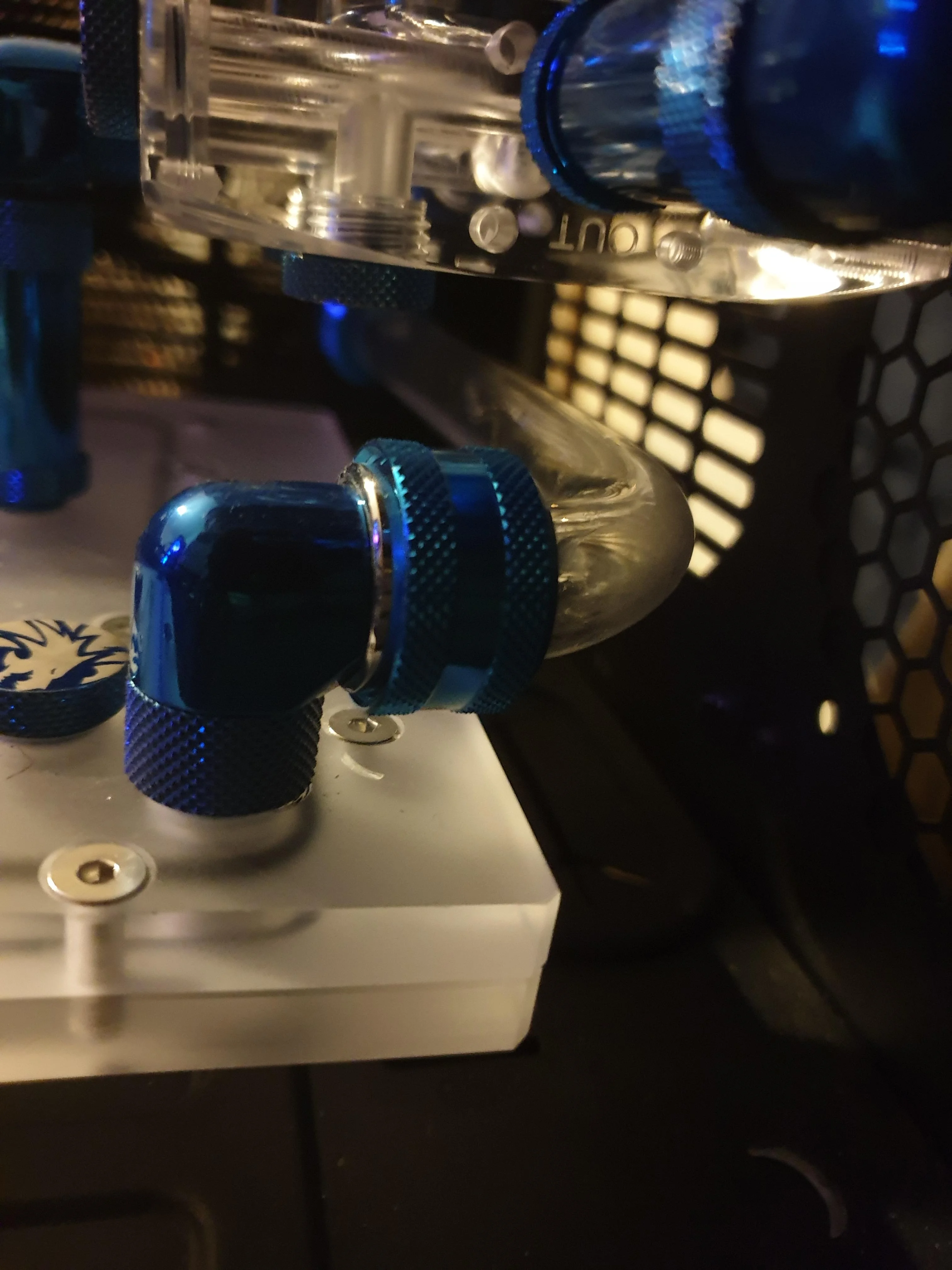

This is just how shy I was from using a premade 10/30 part.

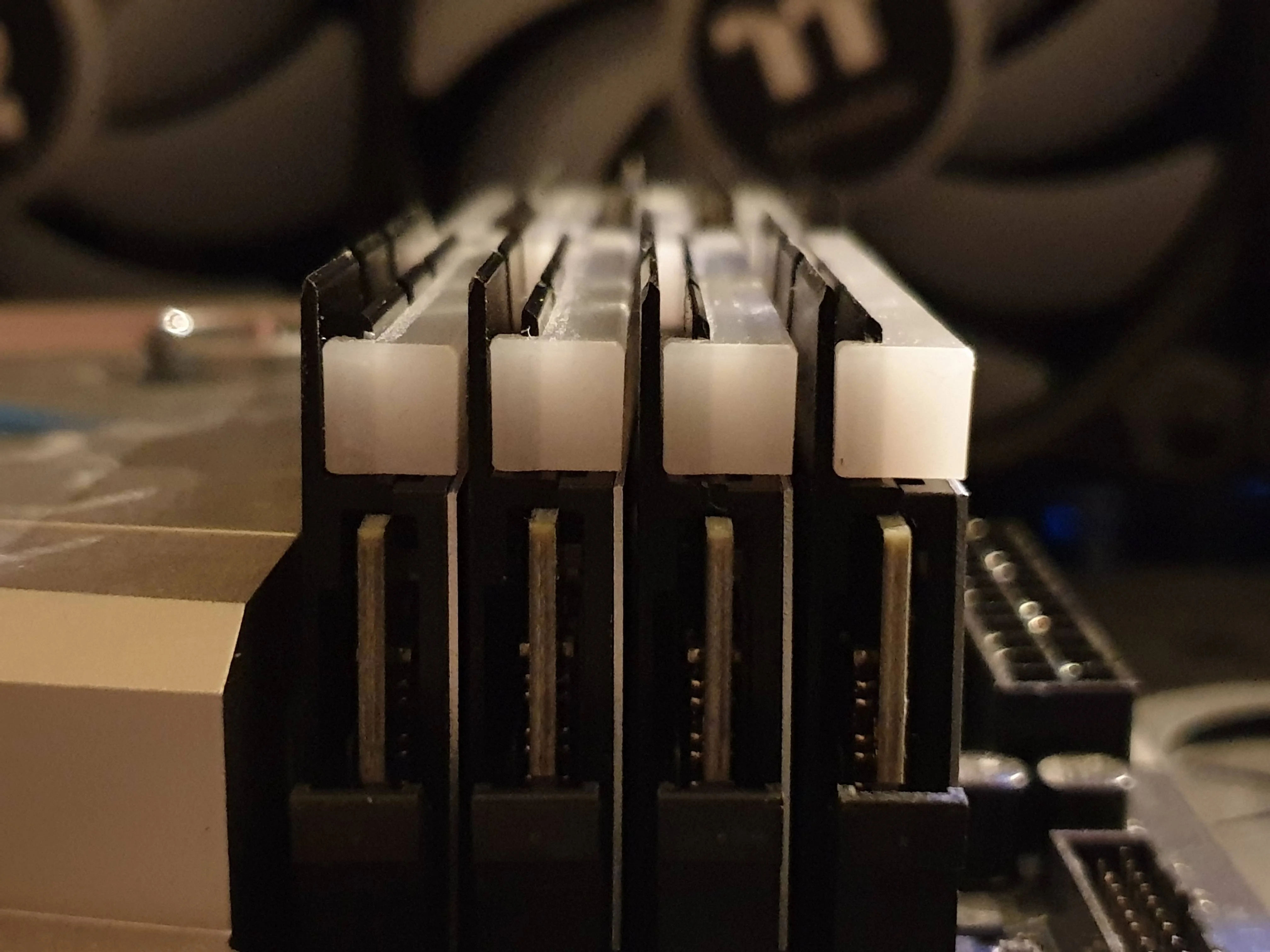

Someone complained my ram wasnt straight so I resat and took the straightest photo I could have them
