quick question, will my cooler fit?

Reaper 392 · 8 Jun 2011 at 13:00

height wise the cooler i am about to buy should fit in my case with 1mm to spare, but ive just had a thought - will it hit my PSU?

the cooler is the zalman CNPS9900 MAX (blue LED). the PSU is at the top of the case, about 1cm above my motherboard

rig is in my sig

*edit*
is it possible to mount it so it is pulling air up from the bottom of the case to the top if it doesnt fit going acrosswards?

it wouldnt be ideal, but it would be better than the crappy AMD stock cooler

ScratchFive · 8 Jun 2011 at 19:38

Reaper 392 said:
it wouldnt be ideal, but it would be better than the crappy AMD stock cooler

this...

I don't know may coolers that go higher than the mobo so you should be fine, don't quote me on that though.

Reaper 392 · 8 Jun 2011 at 21:26

i was about to say 'my cooler is a prime candidate for overhanging the mobo', but then i realised that the 135mm fan is just as wide as the cooler, so as long as theres 6.75cm between the center of the standard cooler's fan and the PSU, i should be fine

Confused Stu · 8 Jun 2011 at 23:05

Sure you should be fine, my CNPS9900 MAX comfortably sits within the shape of my motherboard with room to spare, so as long as your PSU doesn't overhang your motherboard, it should be fine. I know it's a completely different board to yours (P8P67 Pro) but they wouldn't put the CPU socket that close to the edge of your board would they?

There's a couple of pictures of the cooler installed in this thread: http://forums.overclockers.co.uk/showthread.php?t=18274849 to show the clearance to the edge of the board itself.

Reaper 392 · 8 Jun 2011 at 23:33

i would say its quite a bit closer to the edge of the motherboard than the one you linked because i dont have a massive heatsink between the edge of the mobo and the processor, but that thread does fill me with confidence having seen the big gap between the mobo edge and cooler edge

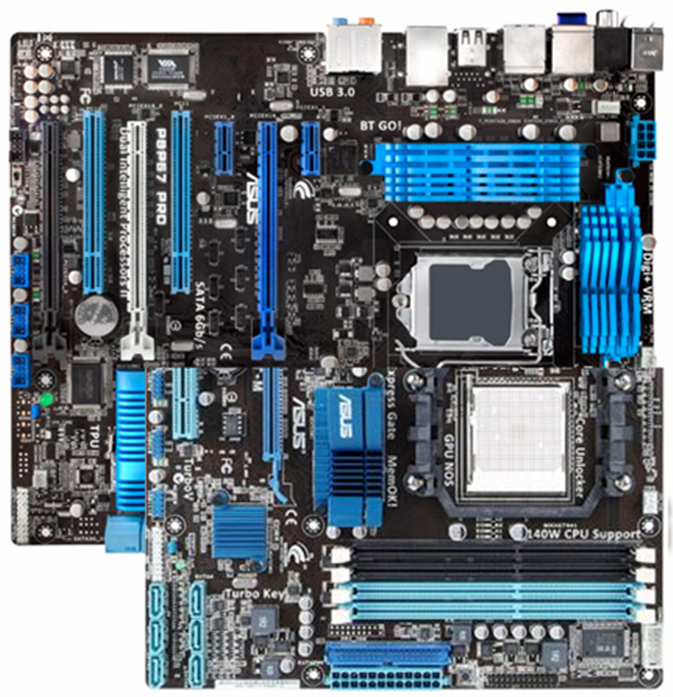

heres a comparison picture of the motherboard i think the guy has (asus P8P67 pro) against my one:
(i resized the individual pictures to make sure the RAM slots and PCIe x16 slots were the same length in both)

pretty big difference, but i should be fine.

if the worst comes to the worst and it doesnt fit then its ~£5 to send it back, going by my recent DVD RMA

thanks for pointing the thread out to me

*edit*
this picture fills me with a lot more confidence
http://www.techpowerup.com/reviews/Zalman/CNPS_9900_NT/images/mounted6.jpg

*2nd edit*
going by their review i can expect ~15C improvement under load :eek:

(similar performance to the coolermaster V8)

Confused Stu · 9 Jun 2011 at 01:14

You're absolutely right that the motherboard is P8P67 Pro - the thread I linked is of my current PC, was just being lazy and couldn't be bothered to re-post the pictures.

Looking at mine straight on, the Zalman covers three out of the six fins on the blue heatsink between the CPU socket and the nearest edge, so the gap is 3 heatsink fins and the "Digi+ VRM" writing. From your composit picture (nice job, by the way) you should definitely not overhang the edge of your motherboard, and so clear your PSU.

Reaper 392 · 9 Jun 2011 at 11:35

Confused Stu said:
You're absolutely right that the motherboard is P8P67 Pro - the thread I linked is of my current PC, was just being lazy and couldn't be bothered to re-post the pictures.

Looking at mine straight on, the Zalman covers three out of the six fins on the blue heatsink between the CPU socket and the nearest edge, so the gap is 3 heatsink fins and the "Digi+ VRM" writing. From your composit picture (nice job, by the way) you should definitely not overhang the edge of your motherboard, and so clear your PSU.

lol, i didnt even notice it was your PC.

thanks for the extra info, that puts my mind at rest, and also thanks for the compliment at the picture
