***Rajintek Ereboss cooler review***

Discussion in 'Latest News, Deals & Special Offers' started by stulid, Nov 9, 2013.

  1. stulid

    Capo Crimine

    Joined: Jan 17, 2010

    Posts: 66,849

    Location: weston-super-mare

    [​IMG]

    OcUK Product page - http://www.overclockers.co.uk/showproduct.php?prodid=HS-000-RT&groupid=701&catid=2330&subcat=2666
    RaJintek home page - http://www.raijintek.com/en/products_detail.php?ProductID=4


    [​IMG]


    Packaging and Accessories.

    [​IMG]

    [​IMG]

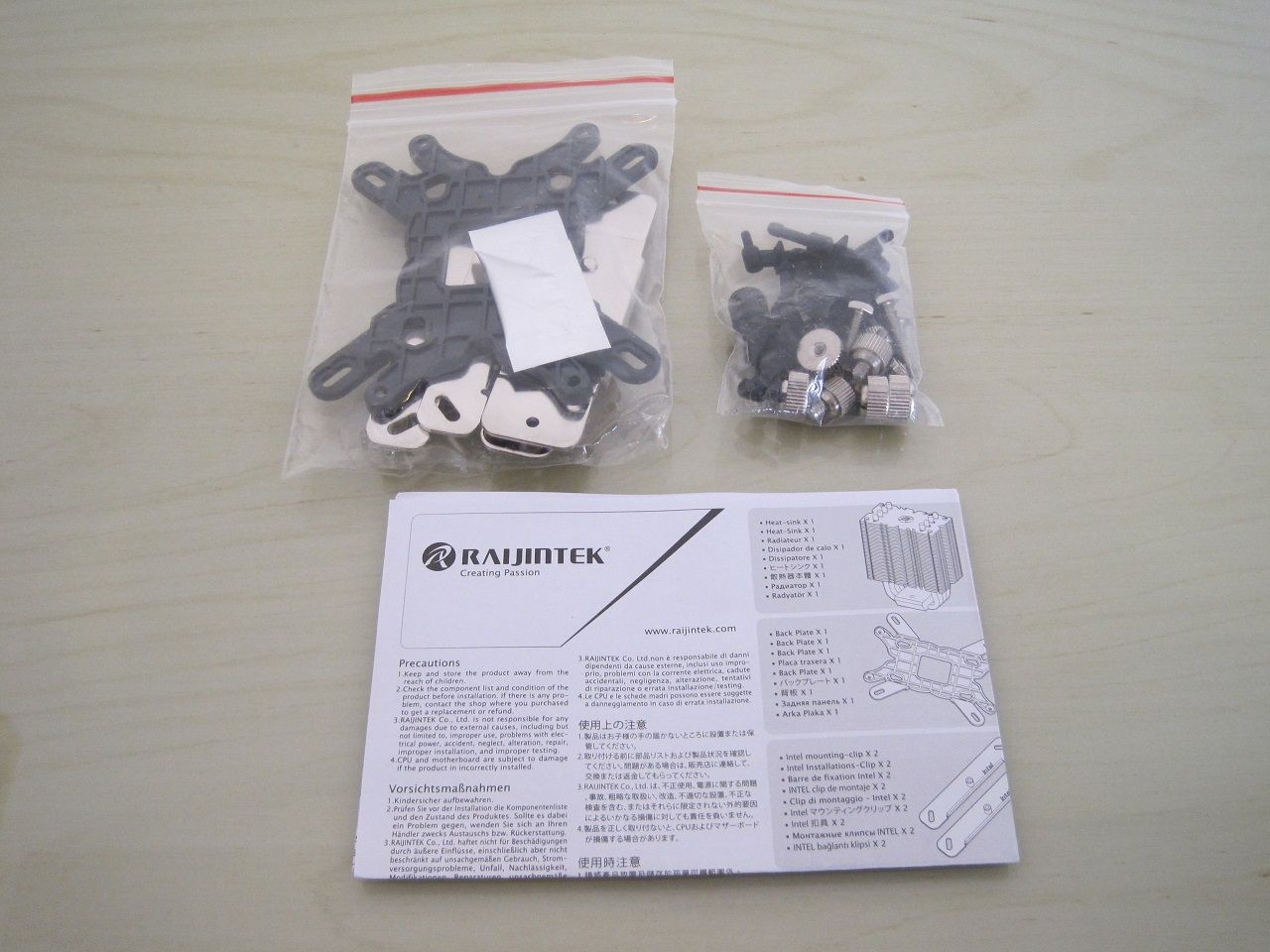

    Easy instructions to follow and a sturdy set of metal plates to hold the heatsink securely, extra rubber mounts are provided to allow push/pull with an identical fan and a sachet of thermal paste is also included.


    The heatsink body and fan.

    [​IMG]

    First impression is wow that's a large heatsink for £32.

    [​IMG]

    [​IMG]

    Six 6mm heatpipes help take heat from the base and up into the fin stack to be cooled by passing air.

    [​IMG]

    [​IMG]

    Highly polished base looks and feels smooth.

    [​IMG]

    But its not totally flat with it having a slight curve on one side.


    [​IMG]

    Quite like it.

    [​IMG]

    Look at how thin it is at 13mm compared to a 25mm thick (normal) fan.

    [​IMG]

    Nice quality braid from end to end with no bare wires showing.


    The complete heatsink.

    [​IMG]

    [​IMG]

    Massive fan also blows air around the sides of the heatsink body (could help cooling VRM heatsinks?)

    The total height with fan fitted is around 173mm give or take 1mm.

    [​IMG]

    [​IMG]

    The fan is so big the rubber mounts are bending out to cope!


    Fitting.

    So lets look at how it fits both Socket 2011 and Socket 1155.

    [​IMG]

    Its very simple and follows the sort of standard I am use to when it comes to fitting on these sockets.

    • For Socket 2011 its as simple as screwing four stand-offs in each corner of the socket, fit a brace arm across them on either side and secure these down with the four knurled nuts, apply the thermal paste and screw the cooler onto both brace arms with a single screw at each end till it is secure.

    • For socket 1155 (and 1156 and 1150) make sure the rear mounting bracket is the right way around and pass four screws through the PCB and secure these four screws with four plastic threaded stand-offs (this helps leave a hand free as you don't need to hold the rear mounting bracket any more), then place the two brace arms across the four screws/stand-offs and secure down with the four knurled nuts, apply the paste and then again screw the heatsink onto these two brace arms.

    But,

    [​IMG]

    Now the heatsink body has a hole and a notch in the heat fin stack to allow you to get a screwdriver onto the top of the two screws that secures it to the braces.

    [​IMG]

    Make sure you have a screwdriver with a long shaft of around 15cm otherwise you will never tighten it down.

    It would have been wise if Rajintek had included something suitable, the picture above shows an accessory that came with my Noctua NH-U12S which was perfect for the job.


    Memory clearance.

    [​IMG]

    The fan hangs over the first slot and may touch some RAM, the above RAM is Gskill Ares.

    [​IMG]

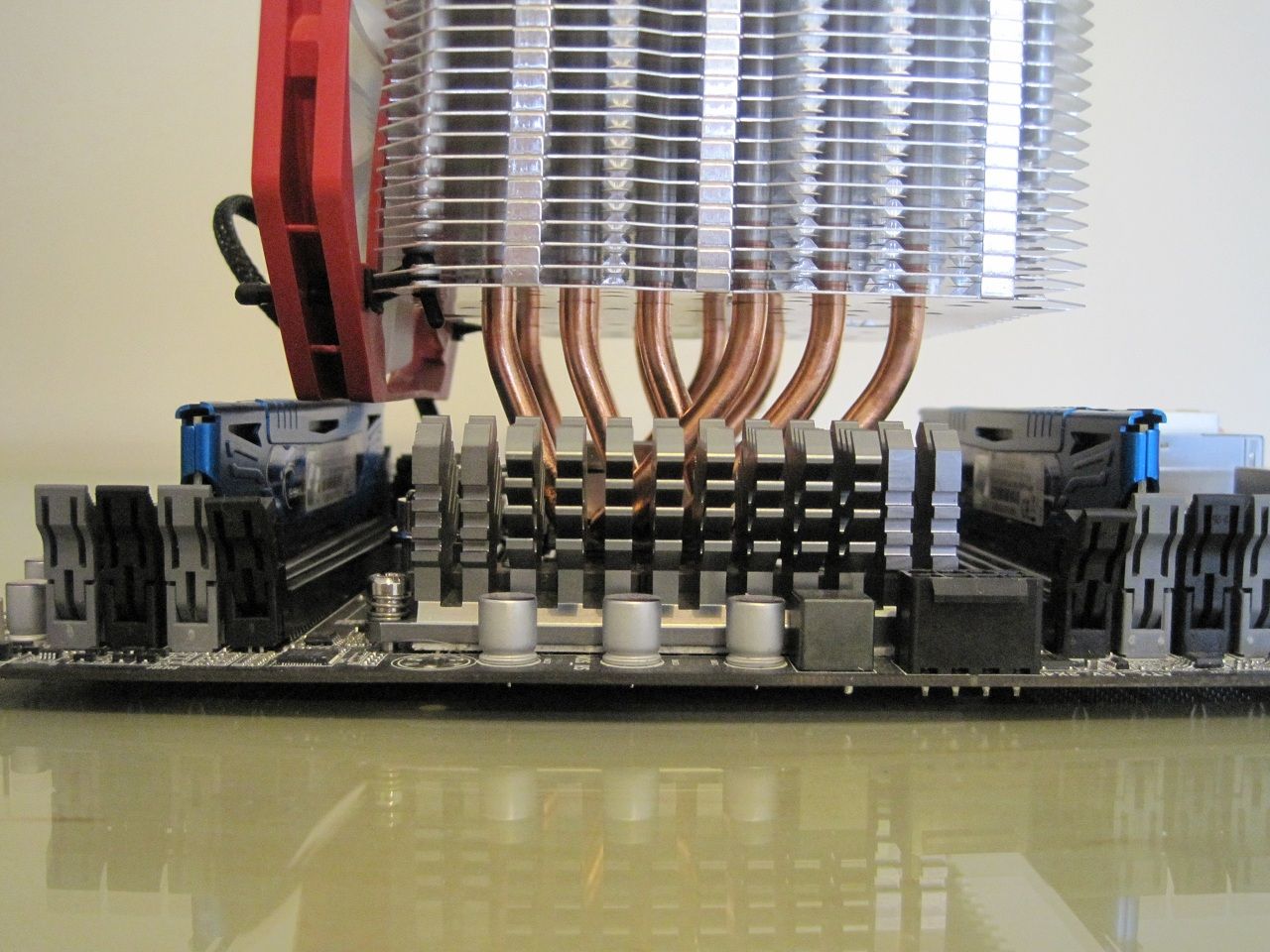

    The rear hangs over the first RAM slot too, but without a fan there is plenty of room for all but the tallest of RAM.

    [​IMG]

    Say goodbye to your top PCI-E slot on X79.

    [​IMG]

    Similar story for Z77 with the fan over hanging the first RAM slot, I could still get my GFX card in the first 16X slot as there is a PCI-E 1X slot in-between.


    Performance.


    Z77 Stock.

    [​IMG]

    [​IMG]

    [​IMG]


    Z77 Overclocked.

    [​IMG]

    [​IMG]

    [[​IMG]


    X79 Stock.

    [​IMG]

    [​IMG]

    [​IMG]


    X79 Overclocked.

    [​IMG]

    [​IMG]

    [​IMG]


    Conclusion.

    Rajintek are new to the PC cooling scene and not as well known as more established manufacturers yet the Ereboss cooler left me with very positive thoughts about it. For its £32 RRP it represents wonderful value for money with performance as good as some of the £40+ coolers.

    It was relatively quiet during use but not as quiet as the Noctua NH-U12S for example. Fitting was overall very easy but Rajintek really should include some sort of basic Philips headed screwdriver which will reach the two fixing screws. The size will be an issue with X79 user who will want to be able to use their top slot, but you can mount the heatsink and fan facing north to south or visa versa which may help.


    Pros.

    Plenty of surface area.
    Solid performance.
    Good fan/quiet.
    Keen price.


    Cons.

    Fitting is impossible if you don't have a long enough screwdriver.
    The fan mounts could be better positioned to stop the rubber mounts from looking like they will pop out.
    RAM clearance is not the best if you need the first RAM slot.



    [​IMG]


    Thanks to OcUK and Rajintek for the sample cooler.

    Thanks to Ethermaster for the artwork.



    *
    Review amendment/update,

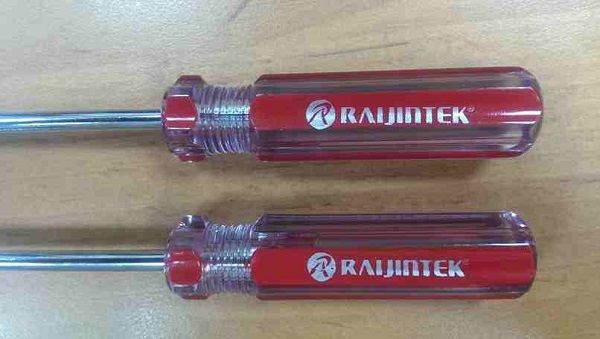

    I have been told that Rajintek are now bundling a screwdriver long enough to reach the screws with this cooler now.

    [​IMG]

  2. tamzzy

    Sgarrista

    Joined: May 26, 2012

    Posts: 8,556

    is the corsair h100i really *that* good? o.0

  3. Acme

    Caporegime

    Joined: Jul 29, 2011

    Posts: 29,563

    Location: Acme's chair

    I am quite surprised too... My H100 is nowhere near that effective with a pair of Venom Vipers pushing in cool air.

    *edit* No wait, yes it is, I was looking at the wrong table. :p

    I wouldn't call 70°C stress testing with a 4.5GHz/1.35v 3570K on vacuum cleaner mode and 77°C on quiet mode particularly impressive though.

    Last edited: Nov 9, 2013
  4. Uther

    Sgarrista

    Joined: Jun 16, 2005

    Posts: 9,103

    Thats pretty good for the price. I would guess its better at cooling than my cooler master 212 evo, and only for a couple of quid more.

  5. shadow_boxer

    Sgarrista

    Joined: Oct 9, 2009

    Posts: 8,415

    Location: Stoke-On-Trent

    Good review. Thanks stulid. Seems a good cooler for the price but I just can't help but think at this price range are a similarly good cooler with a physically small footprint so you don't loose the both the first PCI-e slot or RAM slot.

  6. RJC

    Don

    Joined: May 29, 2005

    Posts: 28,212

    Location: Kent

    Nice review there Stulid :)

  7. tamzzy

    Sgarrista

    Joined: May 26, 2012

    Posts: 8,556

    yea but run the h100i on pwm mode and its as good as a k2 mount doom, for a clc that's pretty impressive no?

  8. Acme

    Caporegime

    Joined: Jul 29, 2011

    Posts: 29,563

    Location: Acme's chair

    Not when you consider that it costs £40 more, is considerably louder, and also carries the slight risk of leakage :p

    I'm reasonably happy with my H100 which I got for £36, but if I had paid £100, or even £70 for it I would be less than impressed.

  9. Ethermaster

    Mobster

    Joined: Nov 23, 2011

    Posts: 2,722

    Location: London

    Great Review mate :)

  10. scotsdragon

    Wise Guy

    Joined: Apr 1, 2013

    Posts: 2,042

    Location: Dundee, Scotland

    seem descent for the money but it is getting to the point where you think people are churning things out instead of thinking e.g. over hanging the pci slot or blocking ram slots

  11. Addicted

    Mobster

    Joined: Jul 23, 2007

    Posts: 2,628

    Location: Worcester

    This.

    The RAM is a common thing (though pretty dumb), but hanging over a PCI-E slot too? That is poor.

    Nice cooler if on a budget, bad cooler for anything else imo.

  12. stulid

    Capo Crimine

    Joined: Jan 17, 2010

    Posts: 66,849

    Location: weston-super-mare

    Just to clarify, its on X79 that the top slot goes, on the Z77-UD5H there is a 1xPCI-E in between that means you don't lose the top 16X slot and you maybe able to get a small (length) card such as a WiFi card still in the 1X slot without getting near the fan.

  13. Minstadave

    Capodecina

    Joined: Jan 8, 2004

    Posts: 24,064

    Location: Rutland

    You know your sig is spelt wrong and it's extraordinaire?

    Last edited: Nov 9, 2013
  14. gt_junkie

    Underboss

    Joined: Mar 20, 2006

    Posts: 8,090

    Location: The Lakes

    Good review Stu! :)

    Nice looking and pretty well priced heatsink.

    As ever with large coolers like this the ram interference is essentially a guarantee - they could of course extend the heatpipes and move the whole assembly up and away from the board but this would make it 1) more expensive and 2) probably foul the side panel of any (other than the very largest) cases. Obviously low profile ram like Samsung Green's would not have any problems.

    I wonder about the likelihood of shifting the fan vertically slightly since my Scythe Ninja had this very issue. Fortunately there was sufficient play in the mounting system to allow me to sit the fan above any standard sized DIMMS. A possible solution?

    A little surprised at the PCIe fouling but since that's the very first slot on the board however I'd imagine that still leaves a fair chunk of perfectly compatible high performance boards out there. My current Z68, and many of the boards I have used in the fairly recent past all had primary 16x slots at either the second and third expansion slot positions meaning this cooling solution would likely cause no major installation problems.
    ^ ^ ^
    I see Stu's already mentioned that... :D


  15. Acme

    Caporegime

    Joined: Jul 29, 2011

    Posts: 29,563

    Location: Acme's chair

    Extraudinary spelling. :D

  16. Hyburnate

    Capodecina

    Joined: Jul 29, 2011

    Posts: 14,152

    Location: NN4

    Guess he's not so extraordinary at spelling ;)

  17. Kosmiche

    Perma Banned

    Joined: Oct 3, 2009

    Posts: 14,040

    Location: North Wales

    How is this pronounced?

    I quite like the idea of owning a cooler called 'ere boss :D

  18. hakank68

    Wise Guy

    Joined: Nov 13, 2012

    Posts: 1,091

    Location: Welling

    how much time have you spend doing those graphs stulid? truly awsome :D

  19. stulid

    Capo Crimine

    Joined: Jan 17, 2010

    Posts: 66,849

    Location: weston-super-mare

    Ethermaster does them for me.

  20. Ethermaster

    Mobster

    Joined: Nov 23, 2011

    Posts: 2,722

    Location: London

    Cheers fella :)
