I'm enjoying the designing and sketching of things to print immensely! Designed my own modular ITX/MATX open test bench thing - so that I can print an MATX motherboard tray on a 220x220mm bed.
I've printed a few prototypes in PLA and I think I'm nearly there with a final layout / design which allows an SFX PSU, 2 x 80mm fans, a 2.5" SSD and a 12mm round power switch to be located underneath the motherboard mounted to the side/front/rear panels - I have some CF PETG on its way to print the final version for heat resistance and a matte finish.
One further thing I want to add and prototype is proper support for the PCI-E cards, using this guide to adapt my drawings and sketches.
Fun, but very complicated for a Fusion 360 noob like me!
I've printed a few prototypes in PLA and I think I'm nearly there with a final layout / design which allows an SFX PSU, 2 x 80mm fans, a 2.5" SSD and a 12mm round power switch to be located underneath the motherboard mounted to the side/front/rear panels - I have some CF PETG on its way to print the final version for heat resistance and a matte finish.
One further thing I want to add and prototype is proper support for the PCI-E cards, using this guide to adapt my drawings and sketches.
Fun, but very complicated for a Fusion 360 noob like me!
Last edited:
I was watching a video showing a lady who had designed her own parts and then printed them off on her Flashforge 5M Pro printer.
They included bracket supports where she could fit a big piece of wood to cover an otherwise entrance to a storage area. Some plastic blanks to cover open electrical terminals and some pla (?) Irwin clamp type covers.
Good to watch that happen, the clamp covers had already been designed and shared by someone else
Soldato
- Joined
- 19 Jan 2006
- Posts
- 4,668

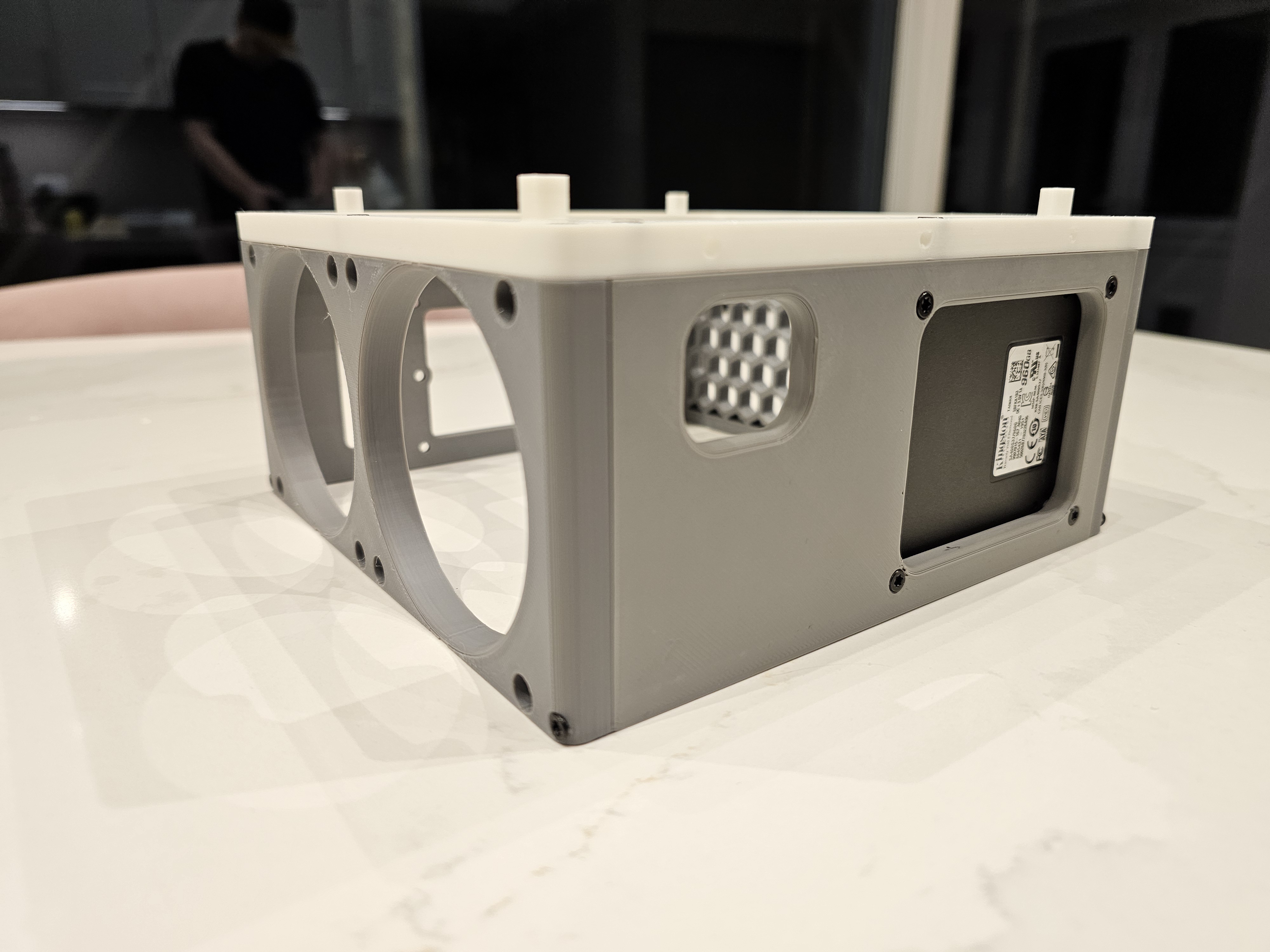

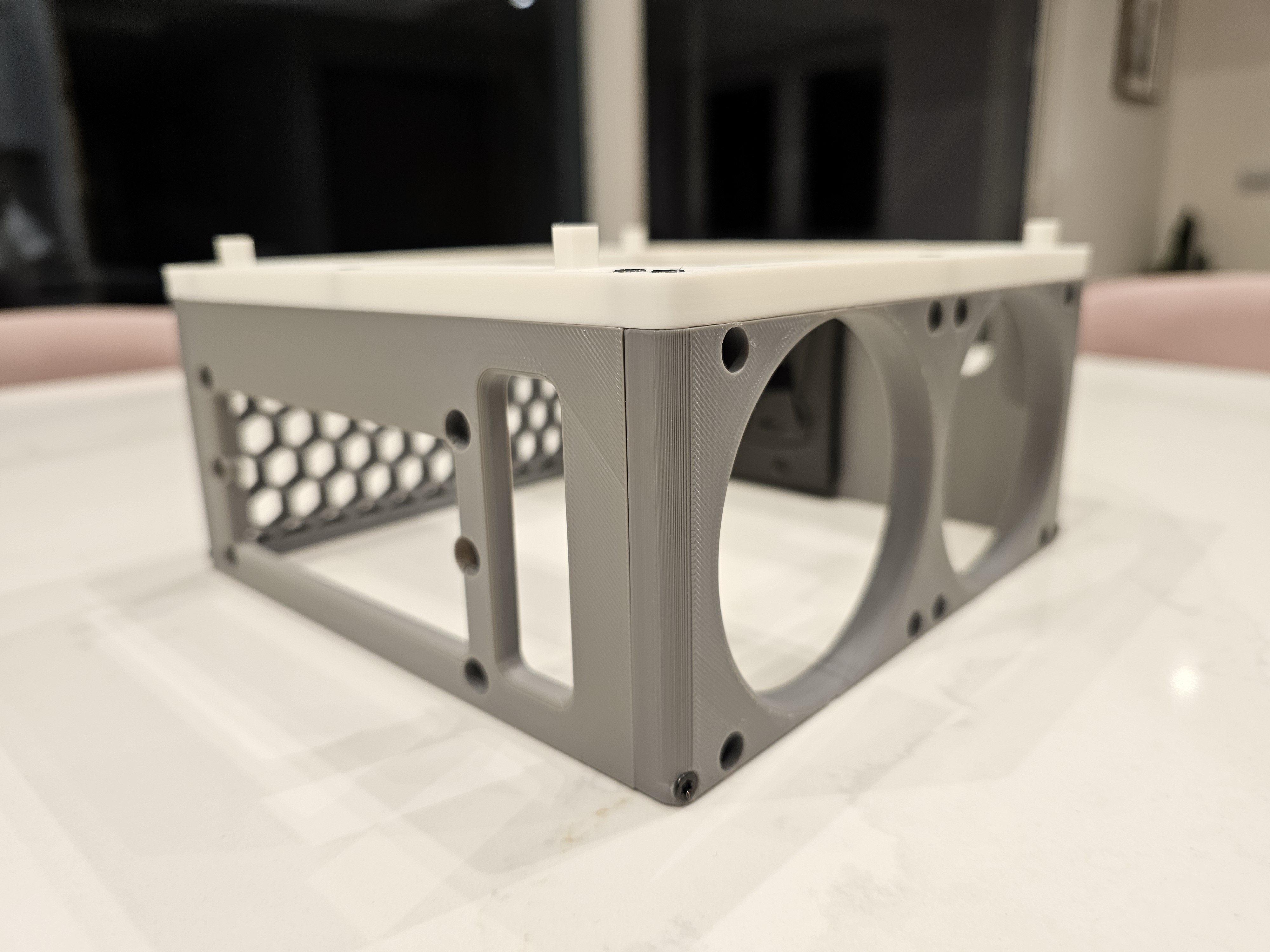

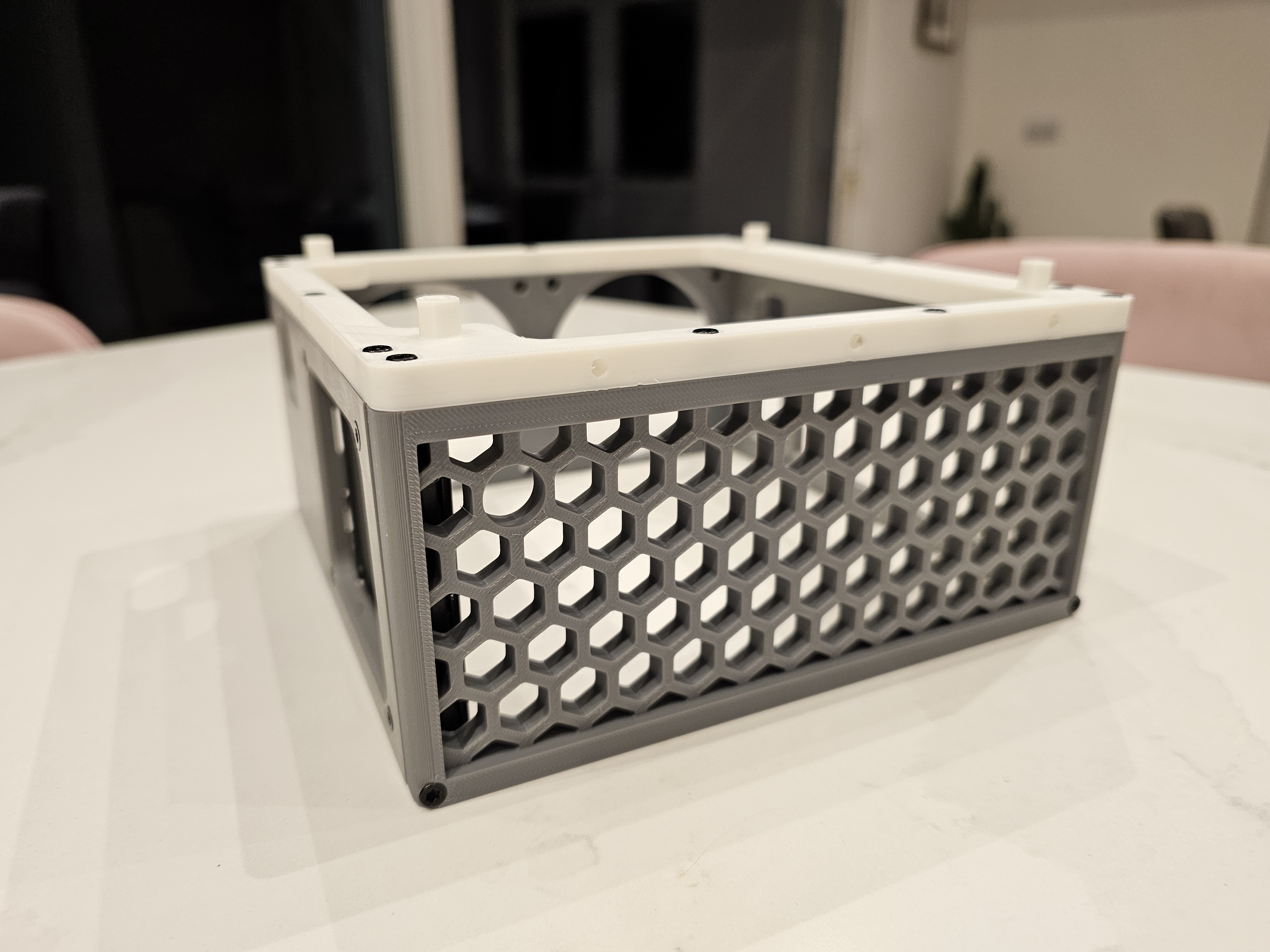

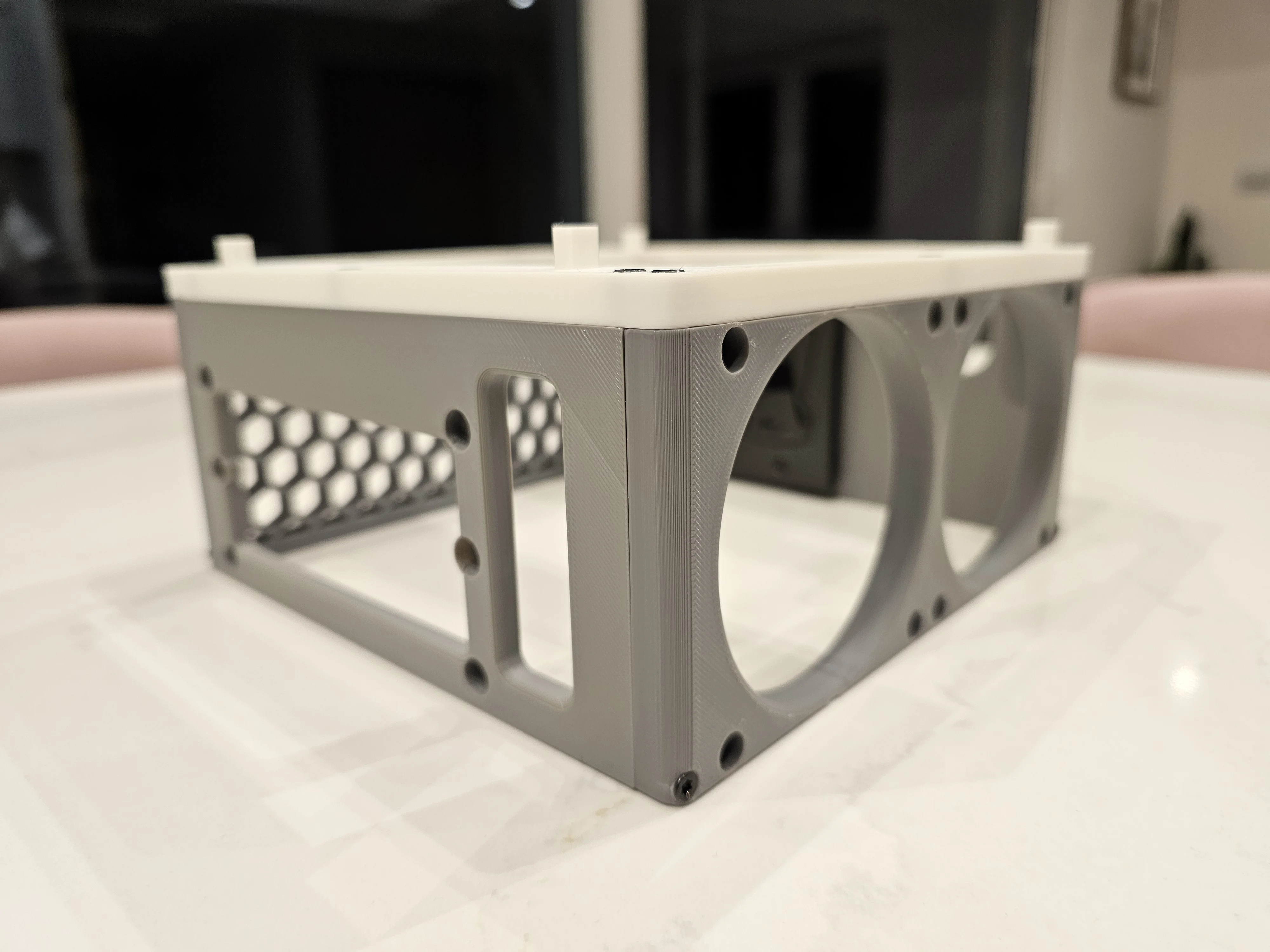

Just to give an idea of what I described here;
Additional panels bolt to the ITX tray to increase its size up to MATX, and the panels move in the same direction as those extensions.
Last edited:
Associate
- Joined
- 30 Nov 2010
- Posts
- 2,312
- Location
- UK
Looks good, what are you using to thread the bolts in to? I'm also assuming that it's 100% infill?
Last edited:
Soldato
- Joined
- 19 Jan 2006
- Posts
- 4,668
I've added threaded inserts between all parts of the motherboard tray (there are 3 additional pieces to turn it from ITX to MATX not pictured) and I'll be using them within the motherboard standoffs too purely due to the volume of use they'll get compared to the panels.
The side panels are printed with 2.65mm holes which M3 screws tap themselves in to - having watched this video I feel they're going to be perfectly strong enough for this purpose, especially as mavity is forcing the pieces together too.
Infill - just the default per the Creality slicer at the moment, which seems perfectly strong enough as there's more meat around the screw holes naturally - this is when in PLA though which has great rigidity naturally. When I print final version in CF PETG I will likely up the infill as it's a less rigid filament.
Still some prototyping left before I'm ready for that though!
The side panels are printed with 2.65mm holes which M3 screws tap themselves in to - having watched this video I feel they're going to be perfectly strong enough for this purpose, especially as mavity is forcing the pieces together too.
Infill - just the default per the Creality slicer at the moment, which seems perfectly strong enough as there's more meat around the screw holes naturally - this is when in PLA though which has great rigidity naturally. When I print final version in CF PETG I will likely up the infill as it's a less rigid filament.
Still some prototyping left before I'm ready for that though!
The other thing that works well is to print the threads fully-modelled into the hole. It'll come out too small (especially when you're talking M3) but all the plastic will be in roughly the right place - ie the number of walls and so on. Then you run a tap down the hole to bring them to size. The printed threads at least partially guide the tap so it's easier to get it straight too. The only place this doesn't work are shallow blind holes....you just can't get the tap in because it's got a pointy end and a taper. You might get away with using a screw as a blunt-ended tap (more extreme than a bottoming tap) given that it's plastic and the threads are already printed but too small.
Soldato
- Joined
- 19 Jan 2006
- Posts
- 4,668
imgur.com
Discover the magic of the internet at Imgur, a community powered entertainment destination. Lift your spirits with funny jokes, trending memes, entertaining gifs, inspiring stories, viral videos, and so much more from users.
imgur.com
I think we're done!
Last edited:
Associate
- Joined
- 30 Nov 2010
- Posts
- 2,312
- Location
- UK
Anyone ordering the Prusa Core One? The kit went live today with March being the expected delivery. The assembled units are starting to ship now. I am considering getting the kit to go along side the Bambu.
Last edited:
Soldato
- Joined
- 19 Jan 2006
- Posts
- 4,668

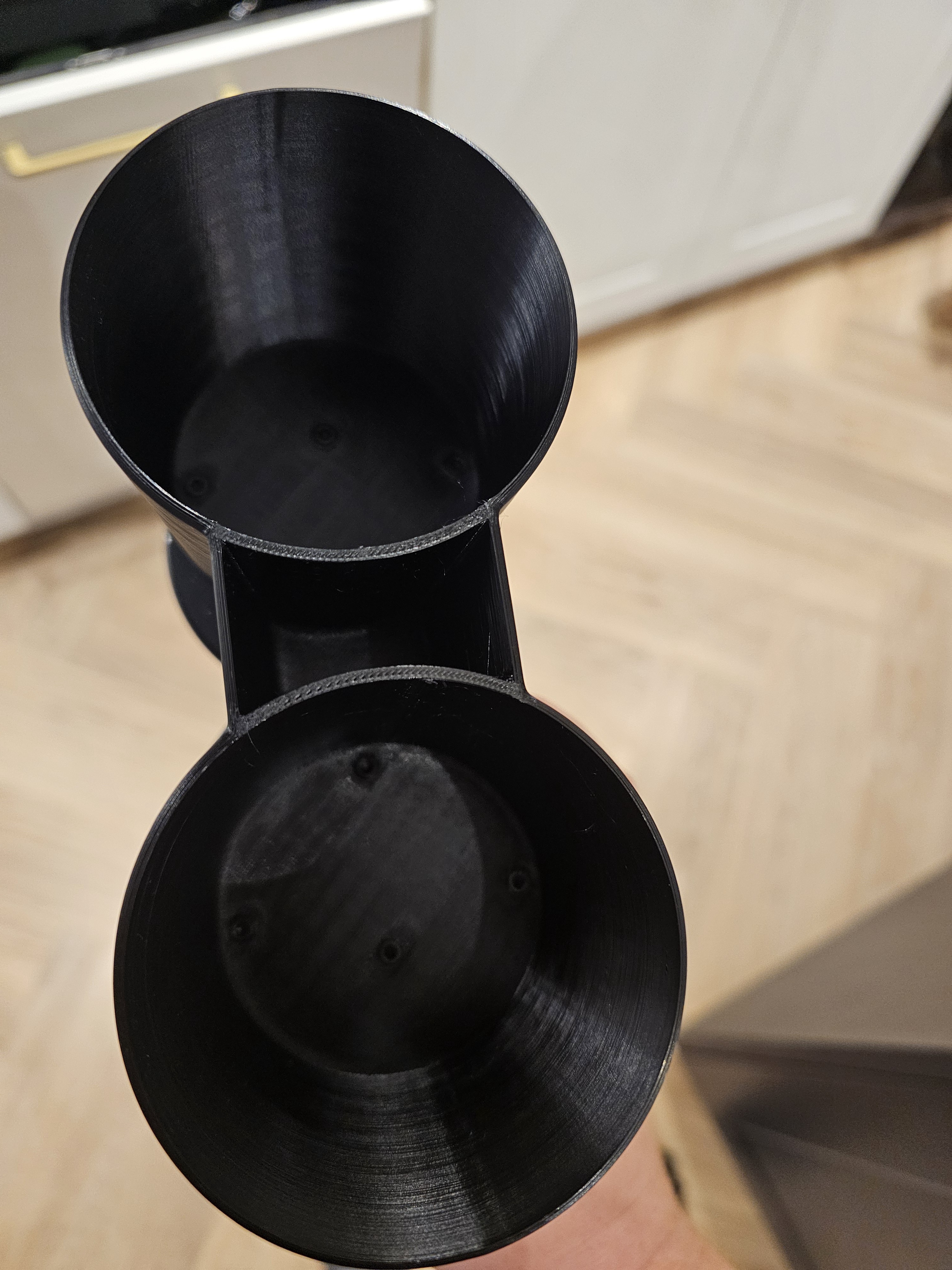

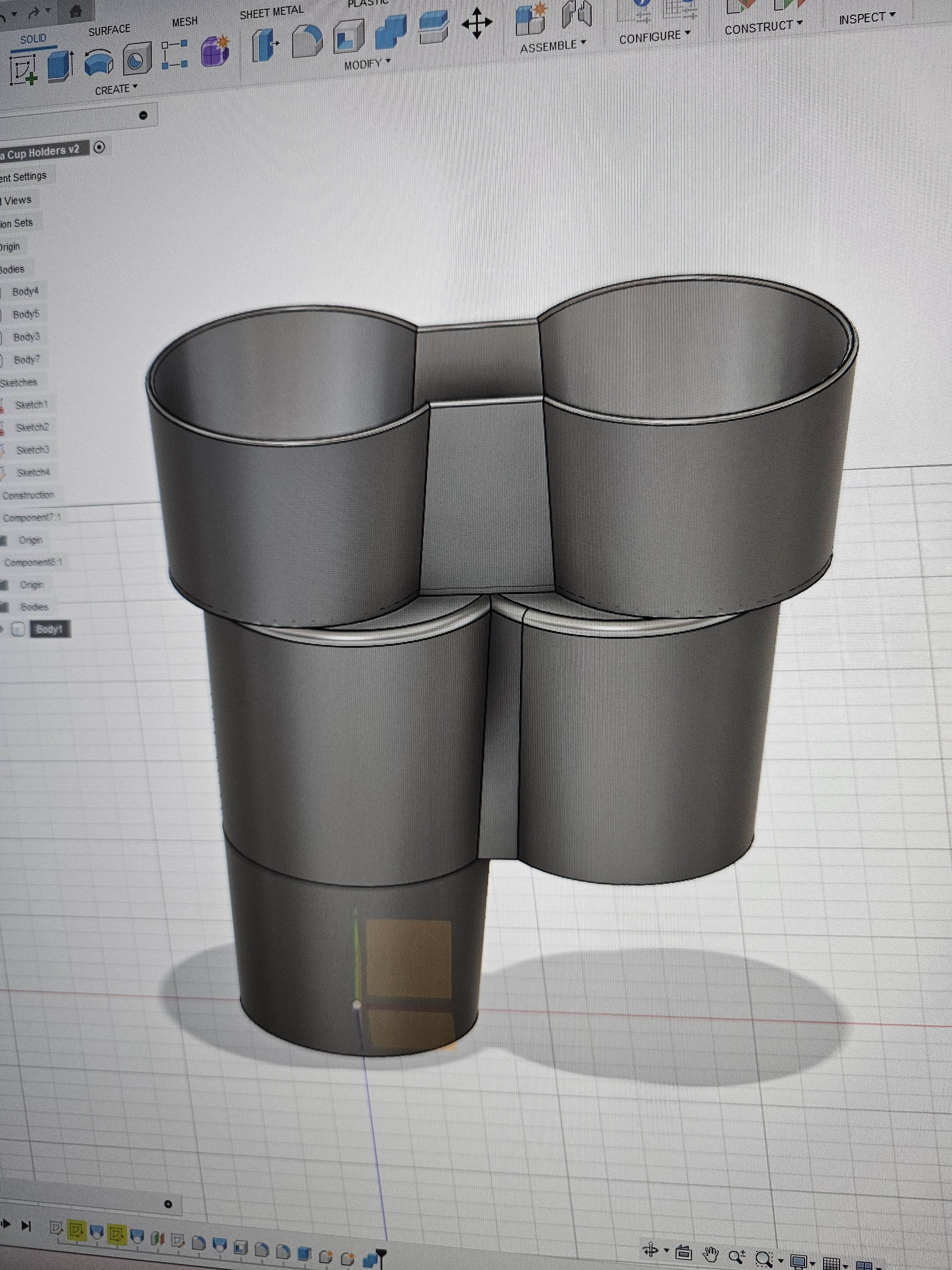

Latest design and print
