Server specing

no, the boards will not be compatible, the core 2 duo is a socket 775 CPU, the boards we specced are socket 1155.

Those specs are fine for fileserving, you should have just asked which board to get :p

This is the only board in stock and available on OcUK, it takes DDR3, so I have put 4GB of that in the basket too. It has 4 SATA ports.

YOUR BASKET
1 x ASRock G41M-VS3 R2.0 Intel G41 Chipset (Socket 775) Micro ATX Motherboard £34.99
1 x Avexir Blitz Series 4GB (2x2GB) DDR3 PC3-10666C9 1333MHz Dual Channel Kit (AVD3U13330902G-2GW) £14.99
Total : £59.88 (includes shipping : £8.25).



There will be other boards which can support you CPU and RAM, that will have 4+ SATA ports elsewhere, but there are rules surrounding mentioning competitors and what-not. So I will have a look later, and just quote you the model name/number so you can look it up for yourself.

that would be brilliant, do cheap SATA PCI cards exist? i can only find 2 port ones which iss what i have and im looking for 4+

Yes they do I believe, how cheap are you thinking though?

Also I found this, it supports you CPU and RAM + has integrated graphics onboard and 4 SATA sockets. http://www.asrock.com/mb/Intel/G31M-GS%20R2.0/ I have seen it around for about £35.

You could also look on a popular auction site for socket 775 DDR2 motherboards. Just make sure it is socket 775, supports core 2 duo's, supports DDR2 RAM, has sufficient SATA ports, onboard graphics if you need it, and that is is the right size (ATX or M-ATX depending on the size of your case, though of course M-ATX will fit in either an M-ATX or ATX case) + that is is of a decent brand (e.g Asus, Asrock, MSI, Intel, Gigabyte etc and not OEM brands like Dell, Acer, HP etc or brands with a bad pedigree like Foxconn)

I have a friend who had a Gigabyte GA-G41M-ES2L which would also fit the bill. http://www.gigabyte.com/products/product-page.aspx?pid=3500#sp can be found for around £35 - £40

Last edited:
I'd be looking about £30 for the sata card.

Brilliant I will look into that board. Would it be comparable eth windows home server 2011? It's not listed, but it's not a mainstream os

Last edited:
I'd be looking about £30 for the sata card.

Brilliant I will look into that board. Would it be comparable eth windows home server 2011? It's not listed, but it's not a mainstream os

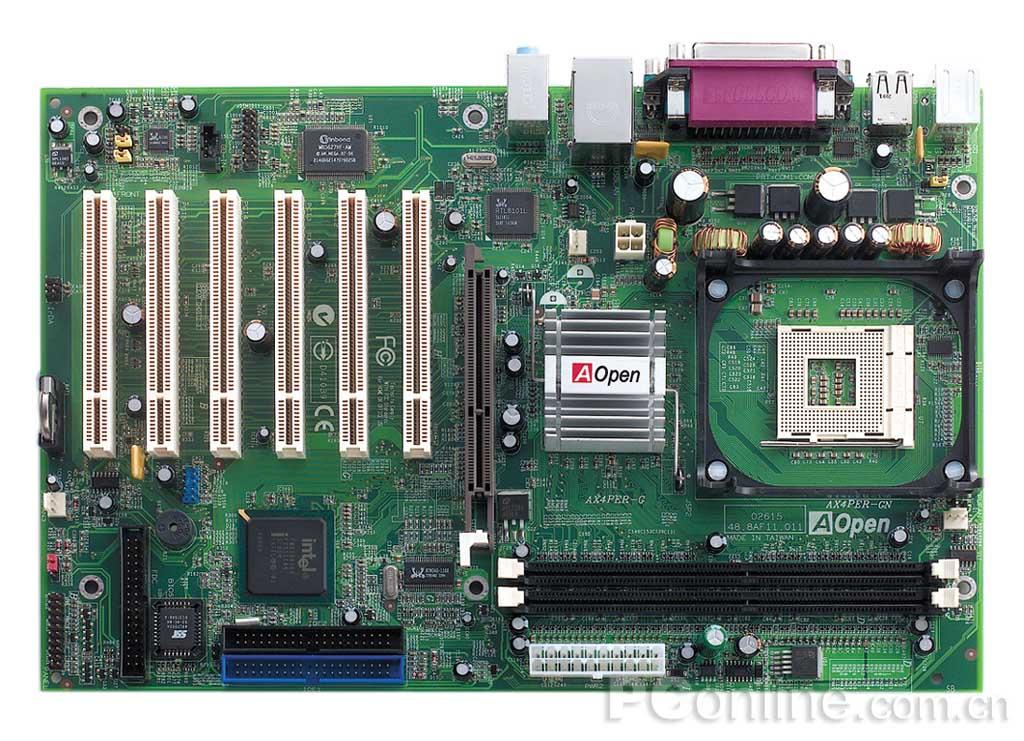

Yes. Windows home server 2011 will install just as any other OS would. I have had home server on loads of machines (just to play around) including an old socket 478 Pentium 4 rig on an Aopen AX4PER-GN motherboard. look at it, isnt it beautiful haha

Hmm it seems that there are not many decent RAID cards around for that price with 4+ ports. There is one that keeps popping up but it is competitor branded so I cant really point you to it. Personally I would much rather get another motherboard and keep the RAID card you have currently since it will cost about the same, and the RAID card isnt of a great brand lets say. But you could probably find it through google, it is rated as 4 stars, costs just under £30, and as I say, is of a competitor brand. the brand name has .com on the end, its easy to spot.

Have you thought about maybe just getting another 2 port RAID card so you have 2 RAID cards installed? Or do you not have enough PCI slots on your motherboard for that?

Found it. I wouldn't have enough pci cards to add another one. I might go for the new motherboard and see how sorage goes.

Could I use an IDE hdd to install whs2011 on and that would free up a sata port for a storage drive...

Found it. I wouldn't have enough pci cards to add another one. I might go for the new motherboard and see how sorage goes.

Could I use an IDE hdd to install whs2011 on and that would free up a sata port for a storage drive...

If the motherboard has an IDE connector on it, then yeah. But the primary disk performance will be reduced... Not sure if that actually matters here though.
