Sesto Elemento (Sixth Element)

MT Mods · 22 Jul 2017 at 16:03

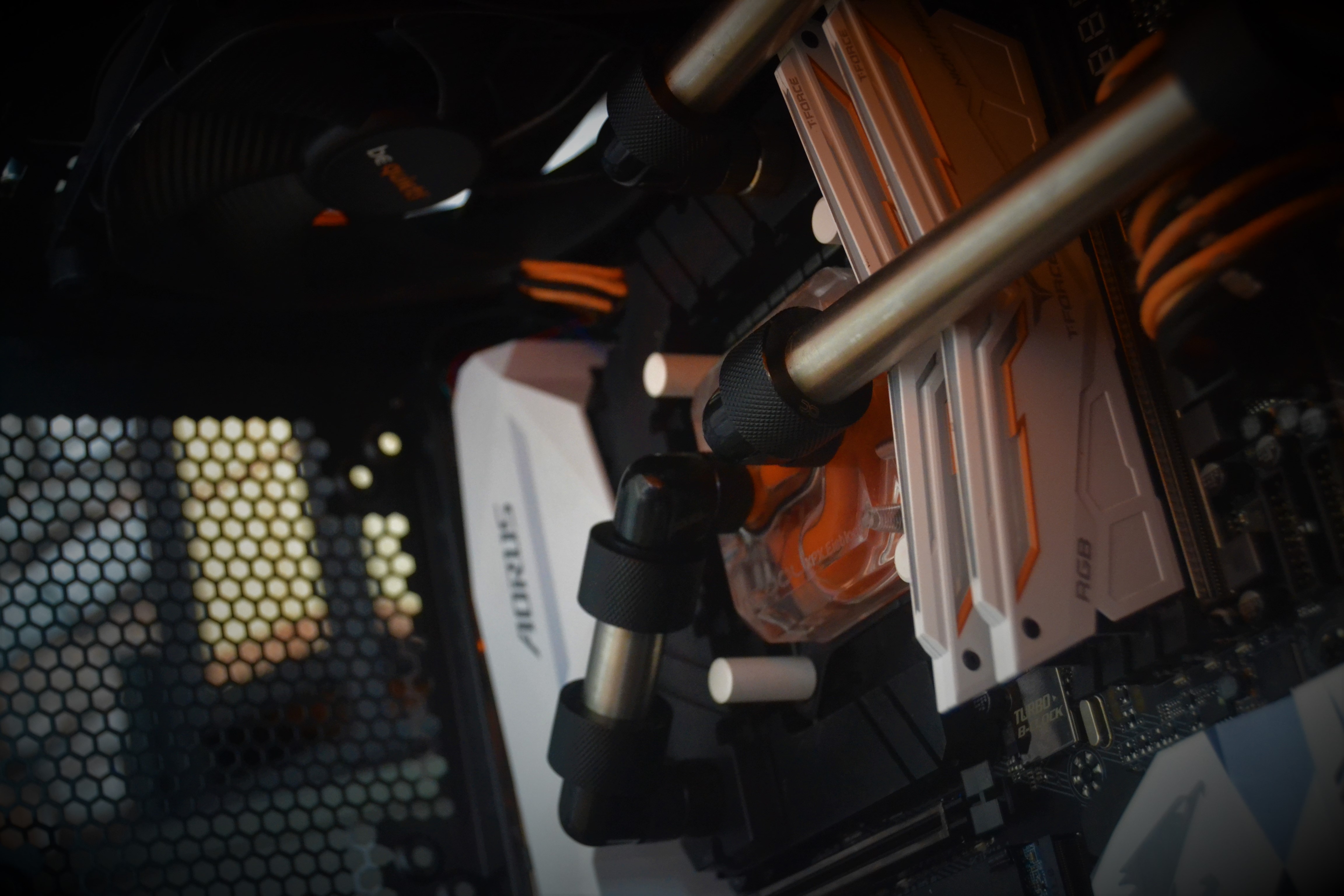

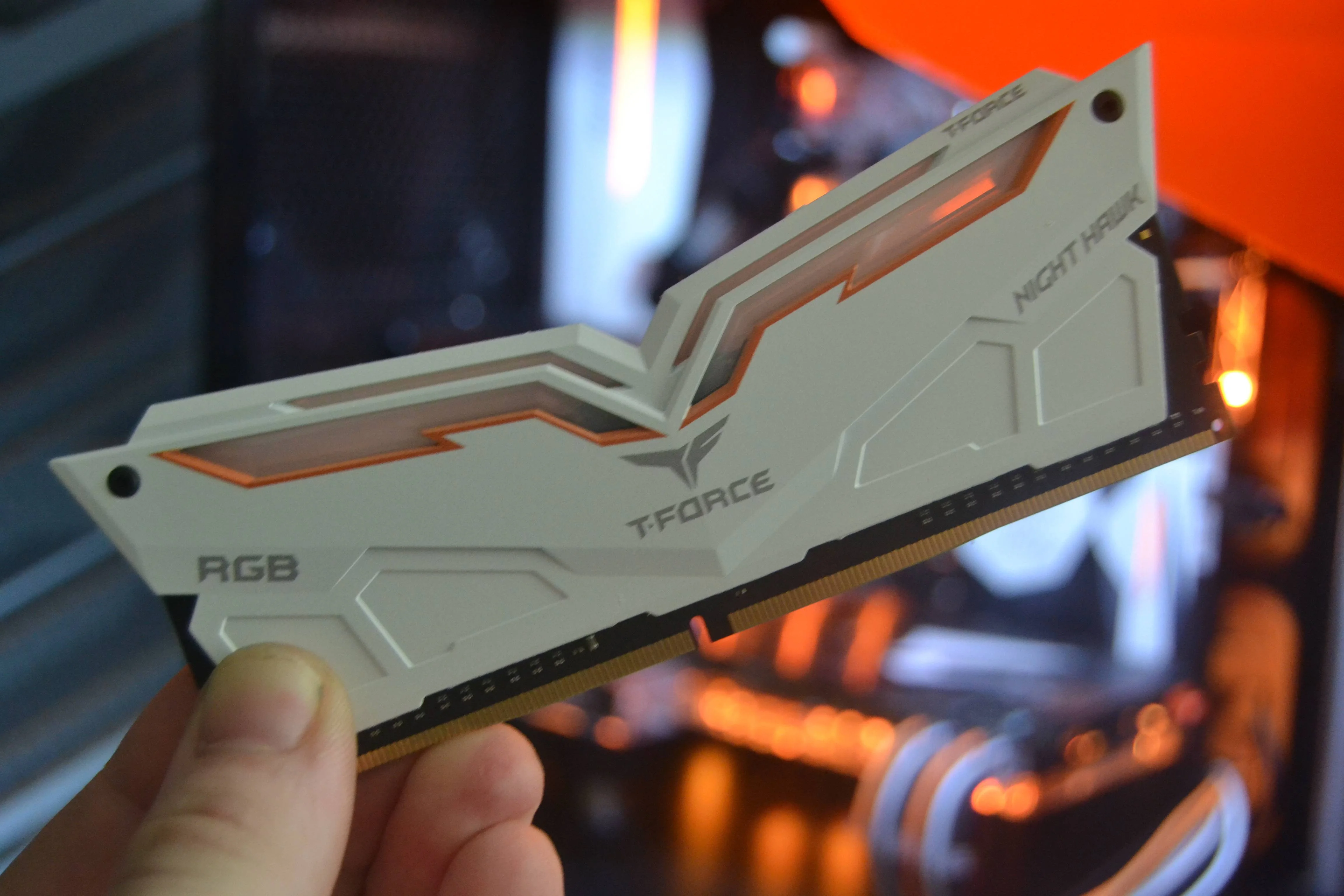

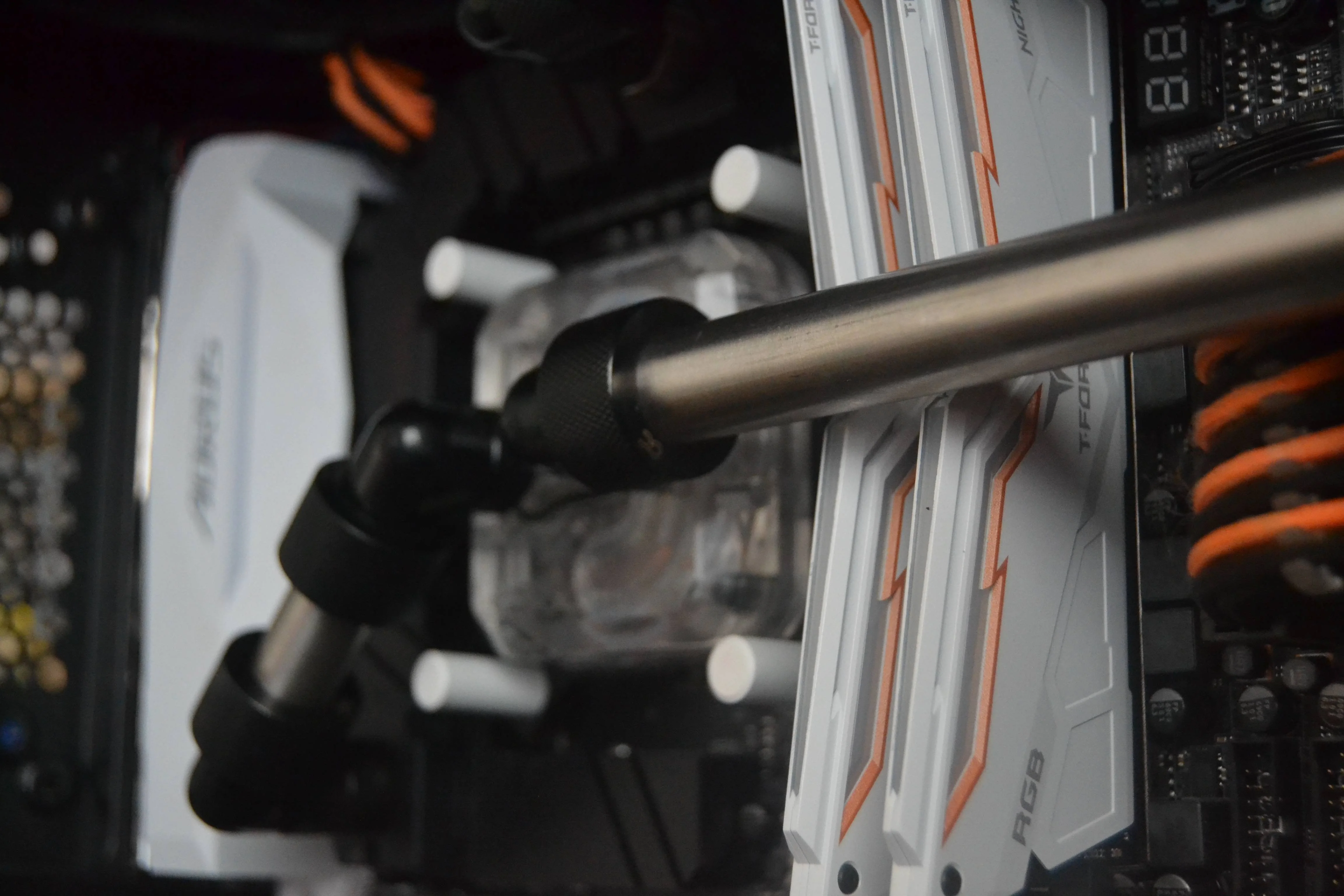

The RAM is here! And by god is it pretty!

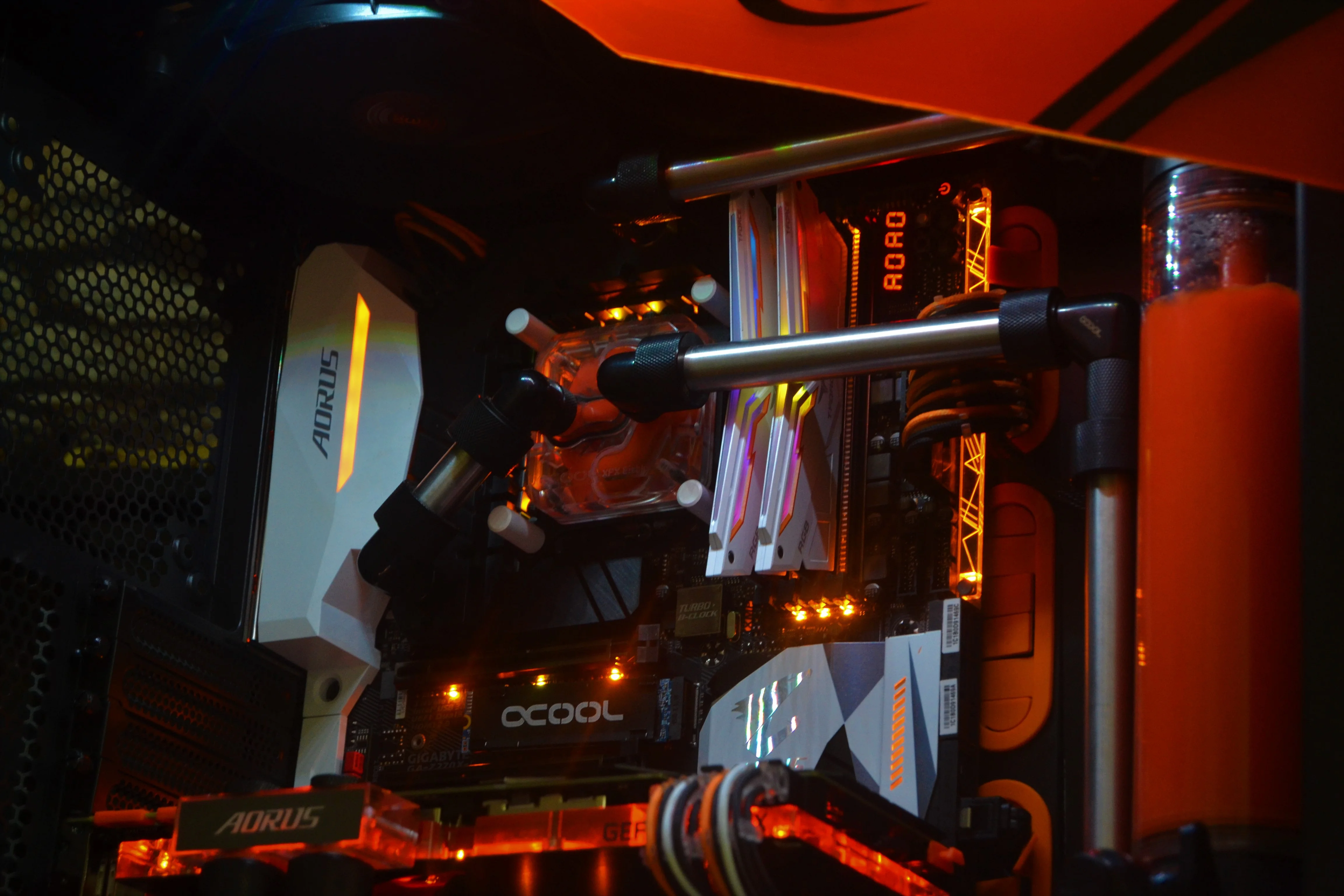

Fits this project perfectly, also look at how close the tube run is!
I had to adjust the height of the top run to squeeze in the RAM, but it's in now and working

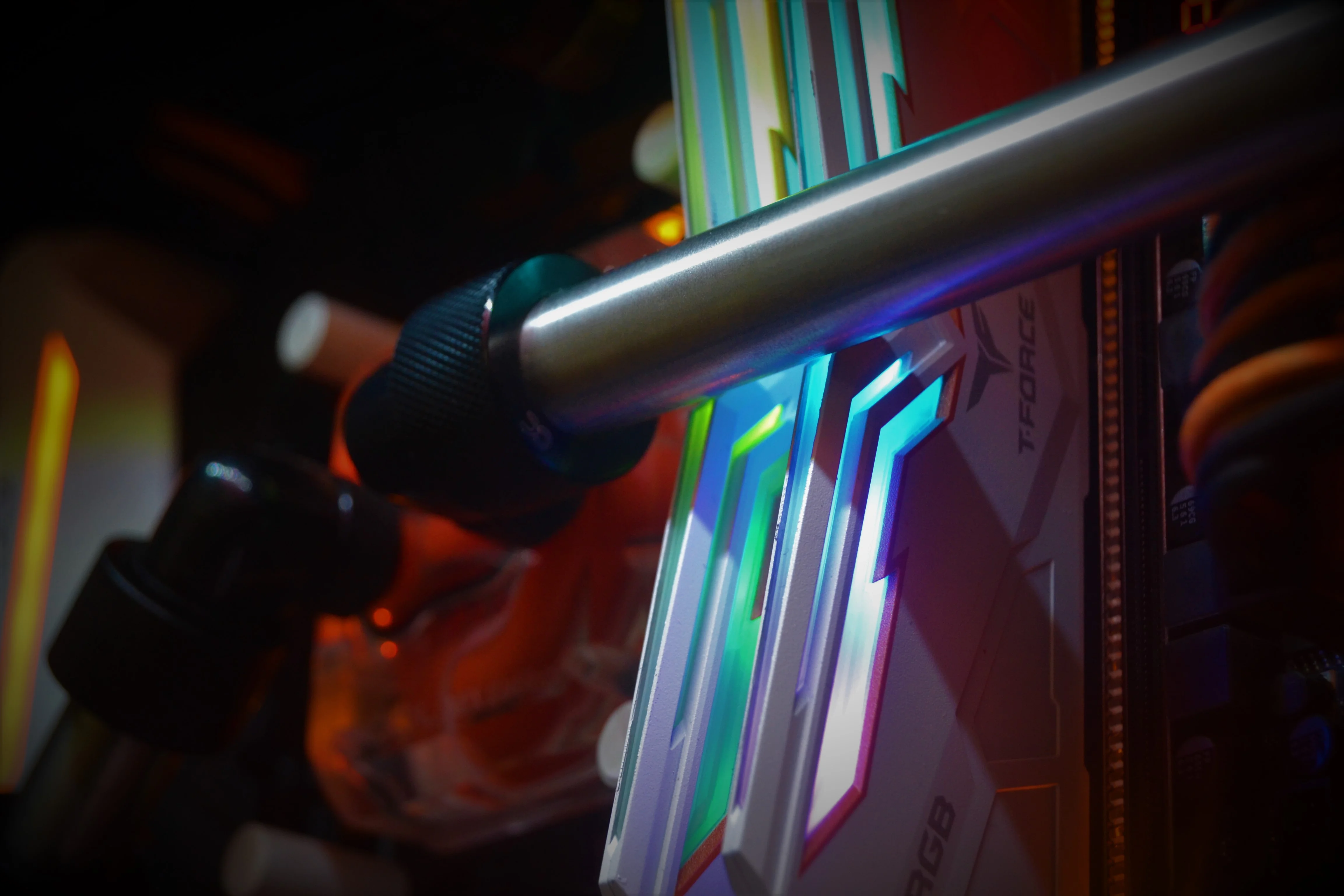

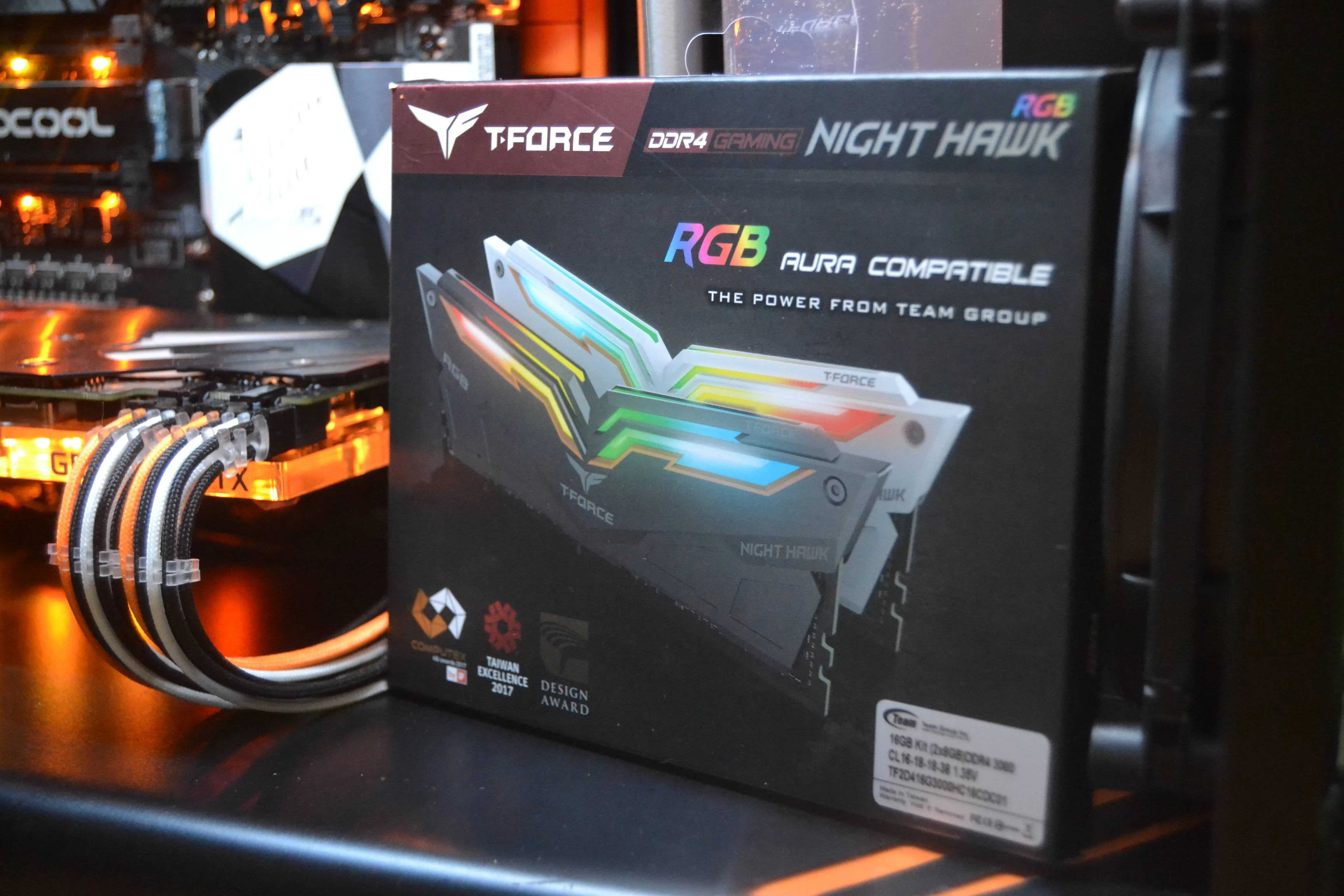

Specs: 2x8GB DDR4 @3000mhz
Team Group T-Force NightHawk RGB White

MT Mods · 2 Aug 2017 at 23:47

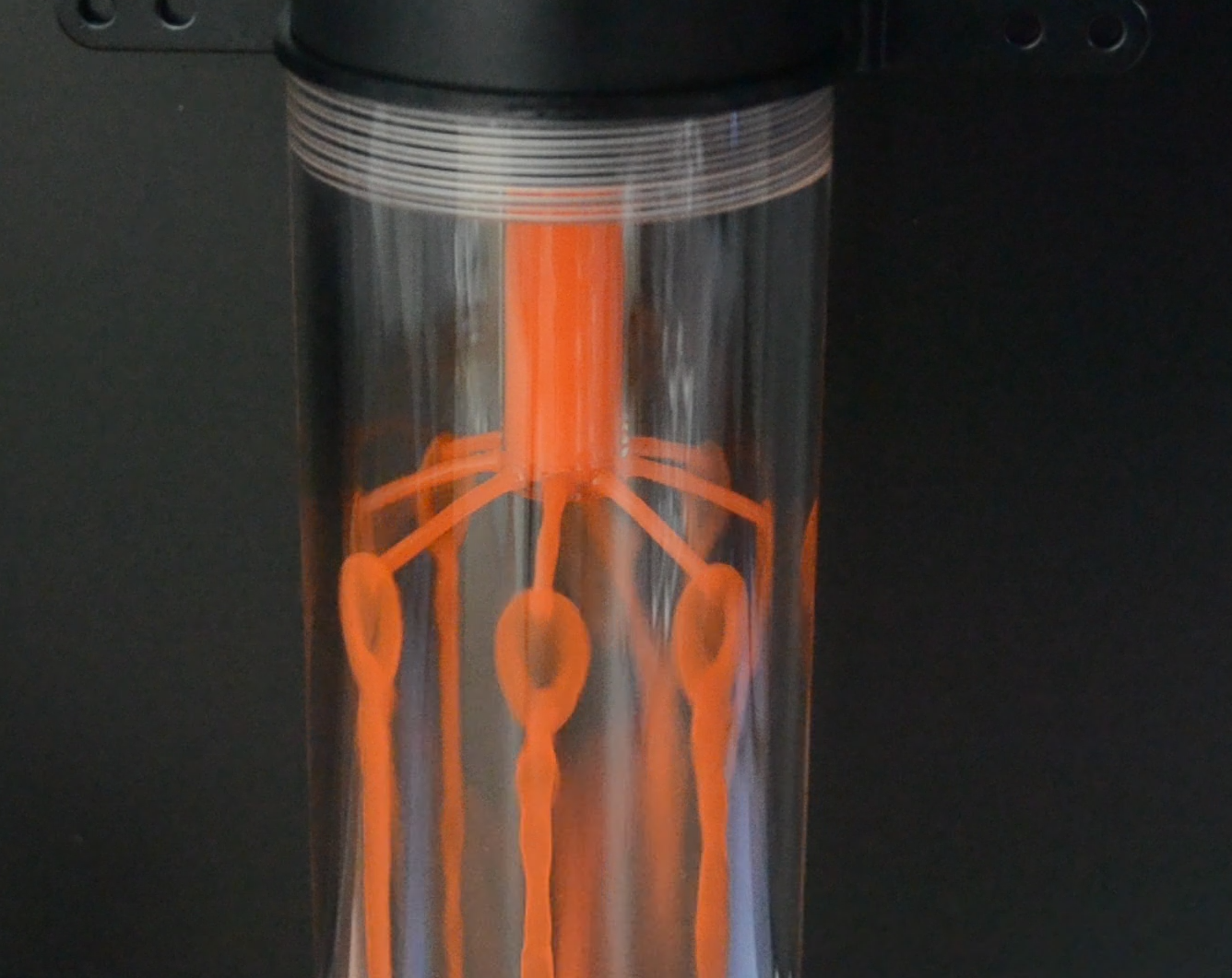

Sooo.... We ran into complications with the custom res and bubble cooling.
While it works 100% well with the CPU only, it really didn't like the 1080Ti included.
In fact, the reservoir split in the bottom after 4 hours of stress testing.

So i had to quickly re-think some things to get this project done as fast as possible.
While the idea for bubble cooling may be a bust, the design idea is still in play.

From Alphacool

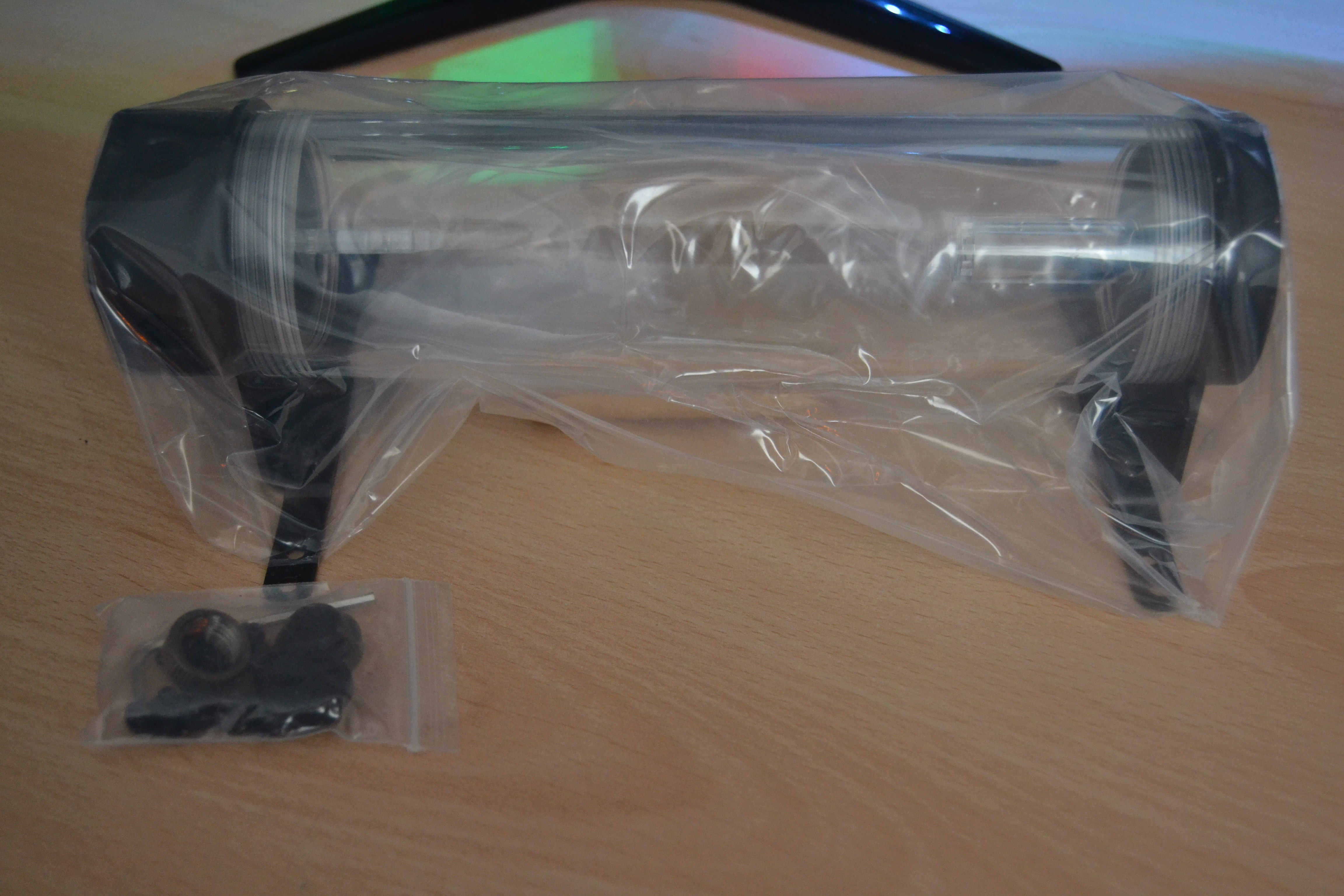

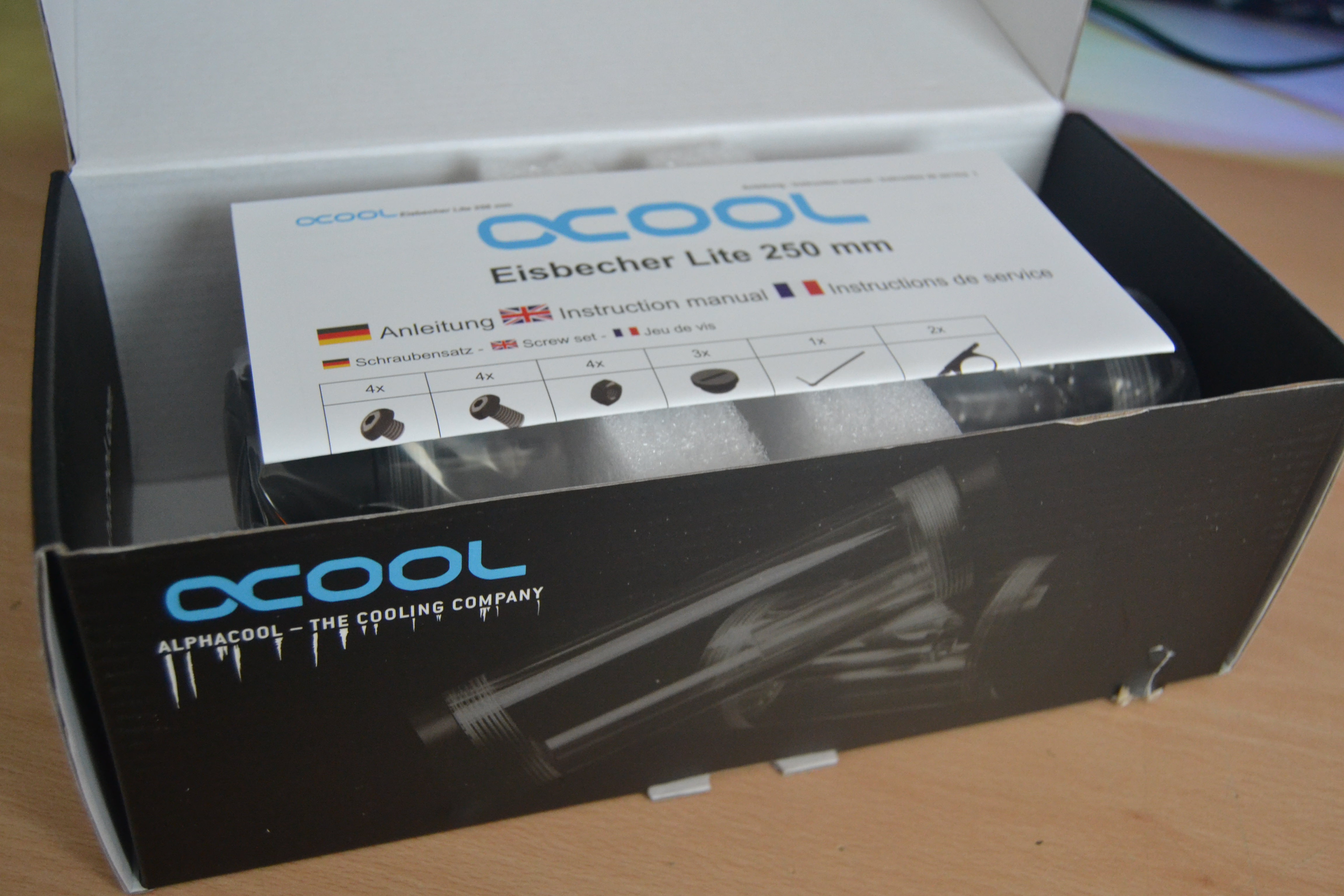

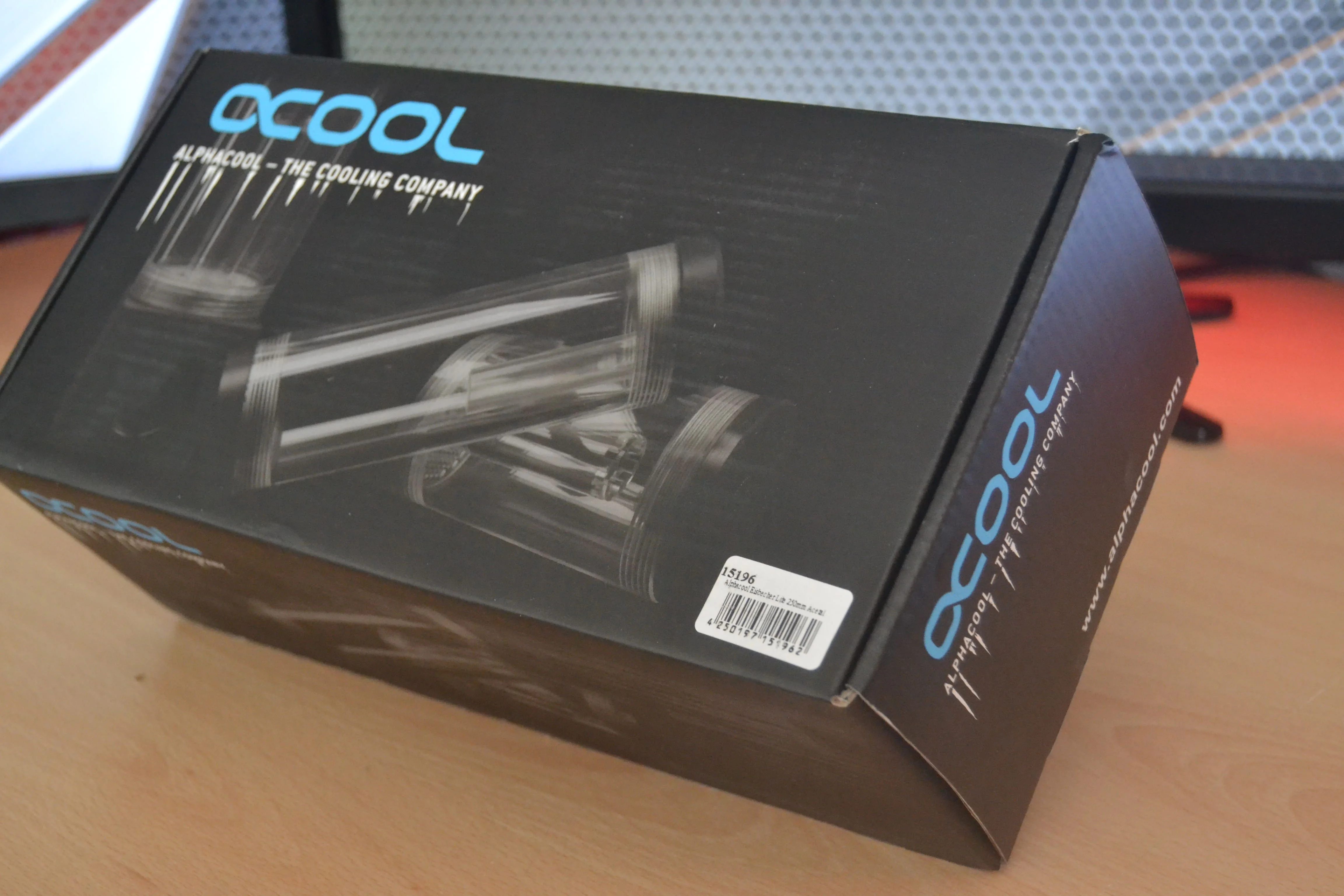

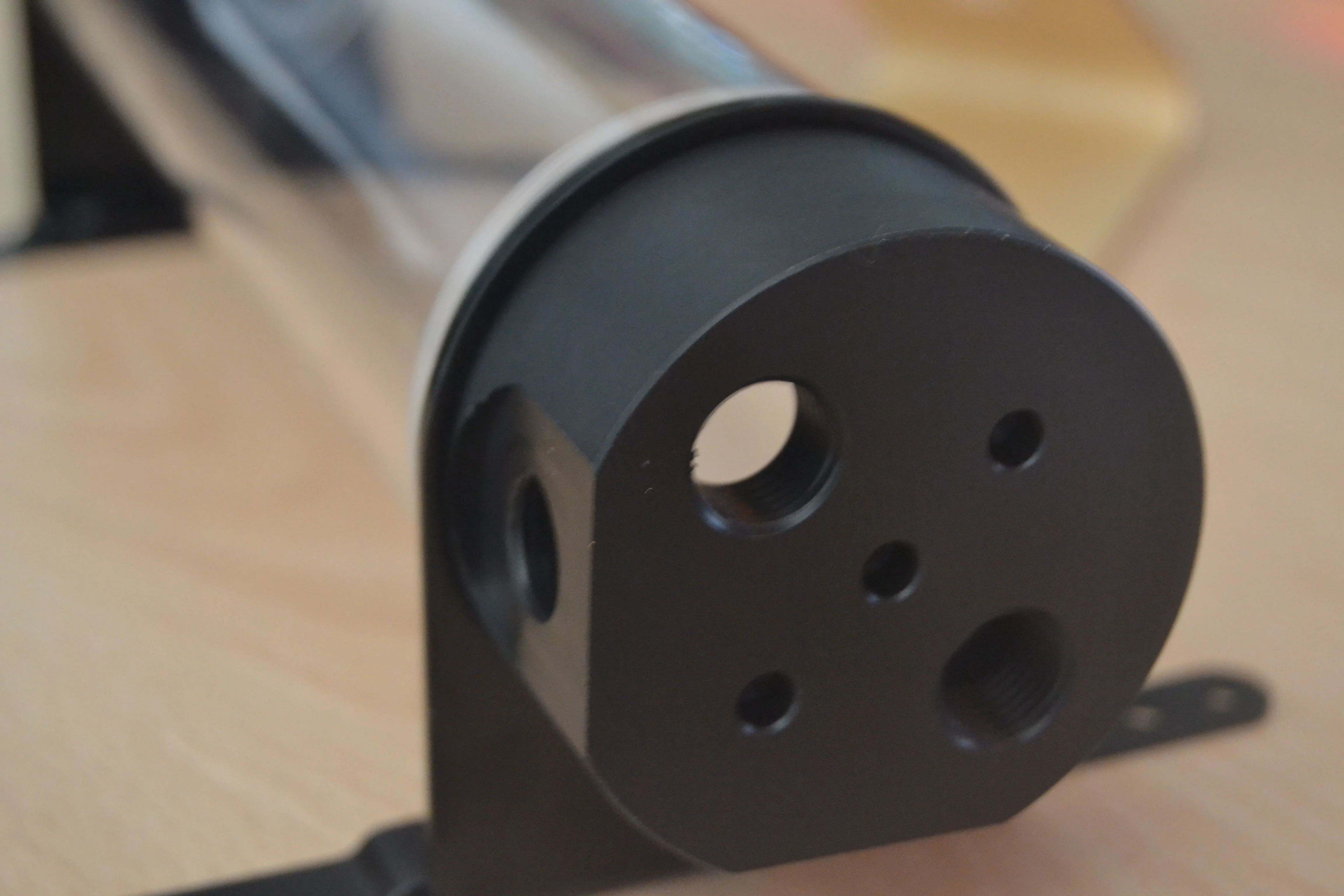

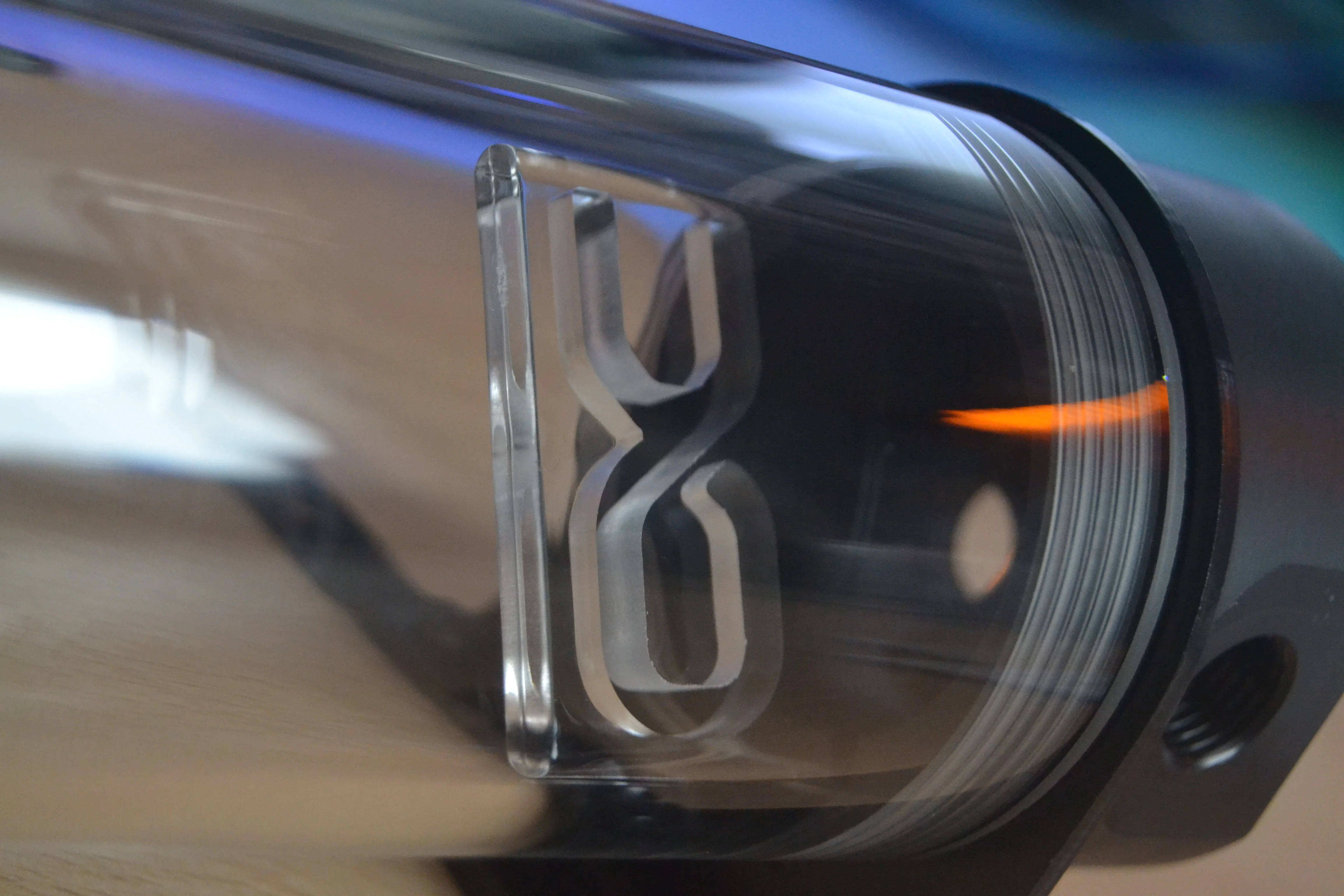

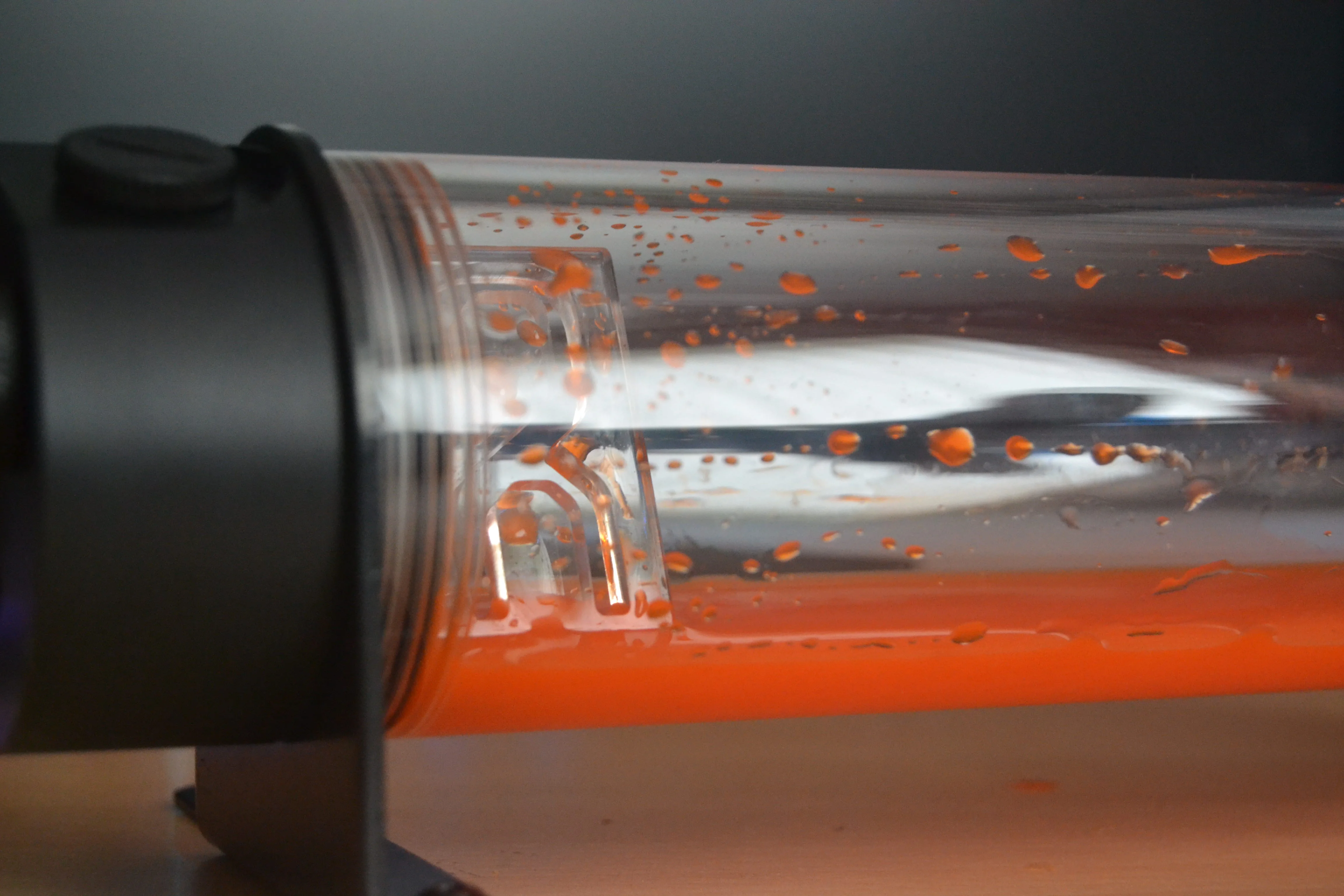

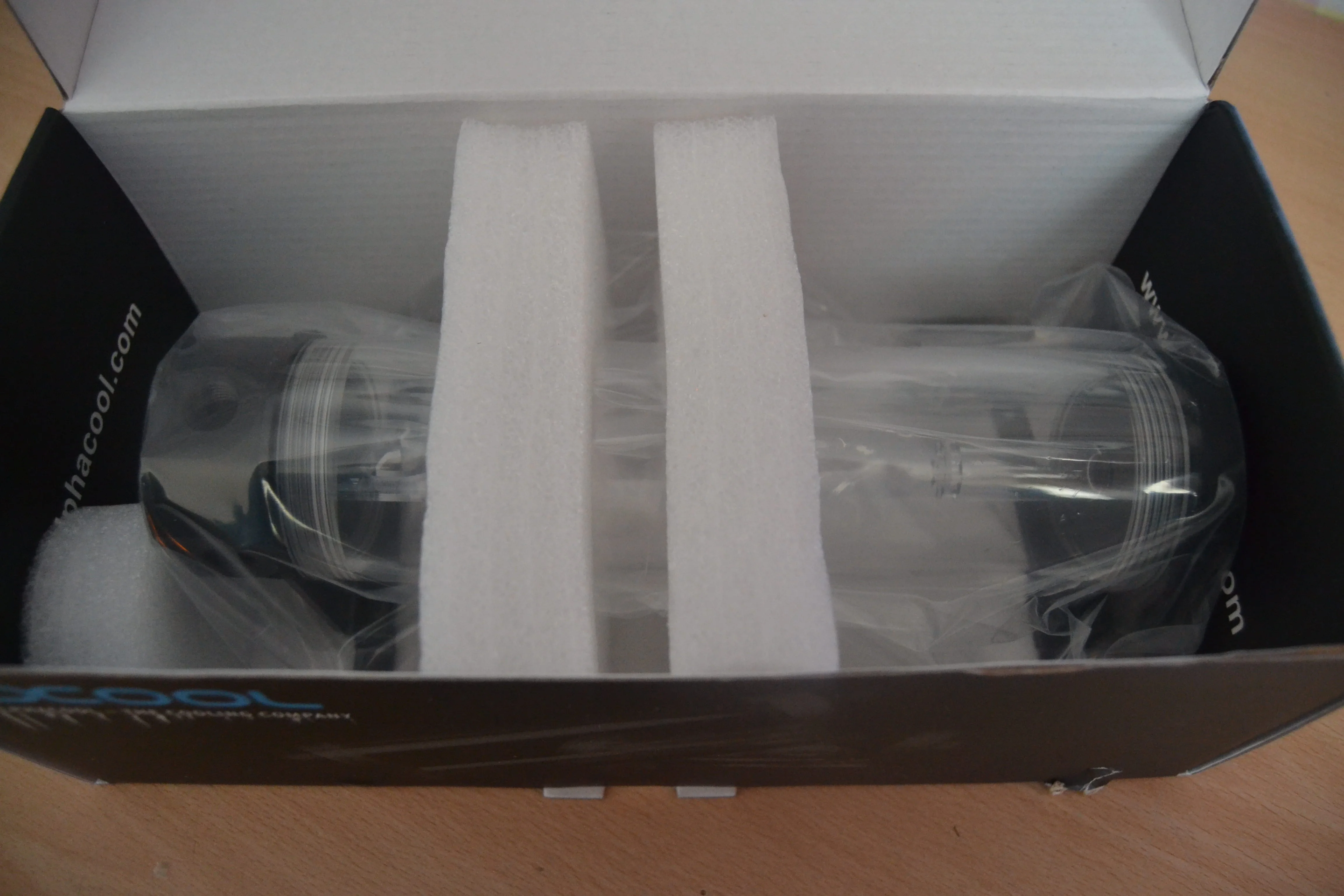

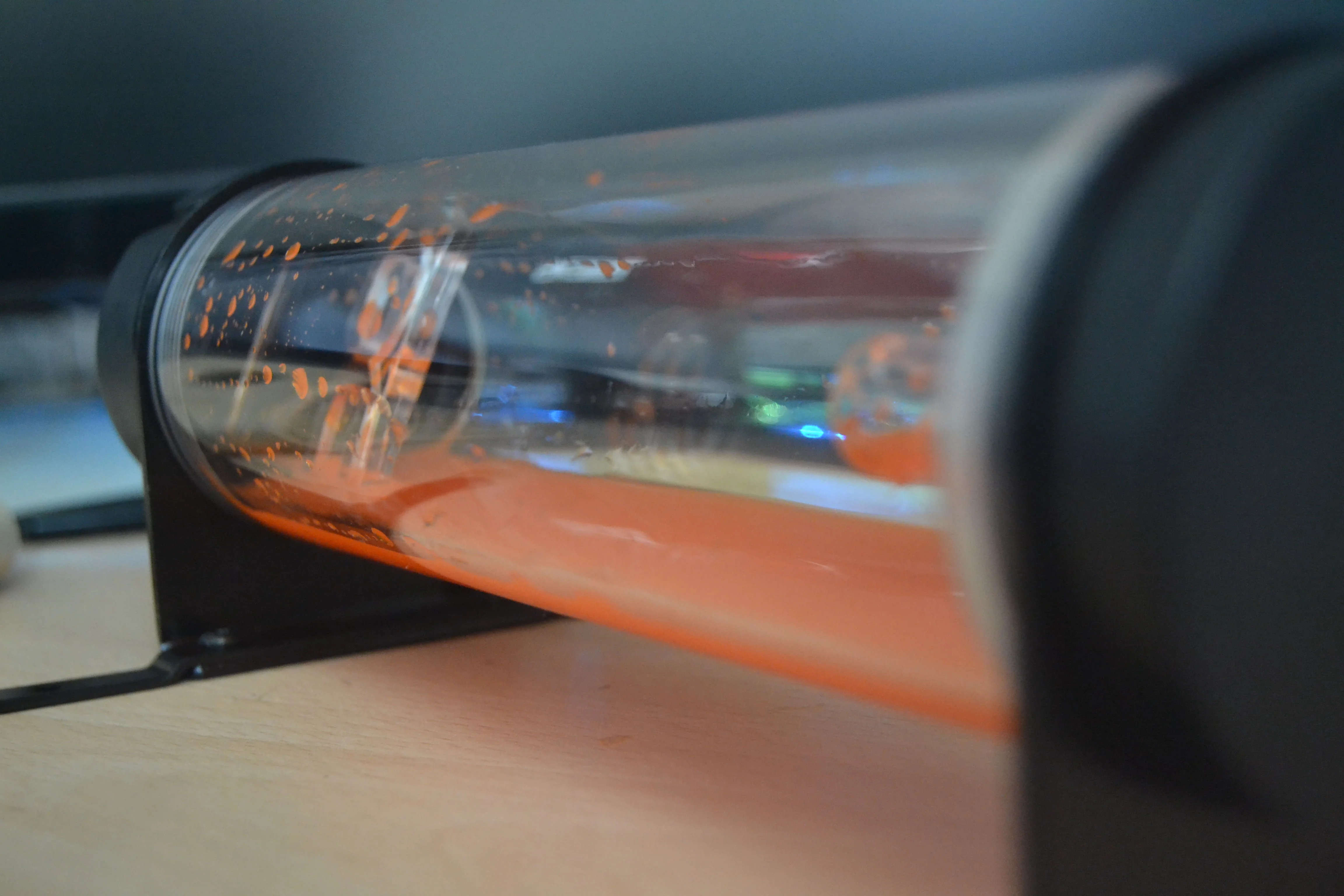

The Eisbecher Lite 250mm reservoir

I'm using Mayhems pastel orange coolant for this

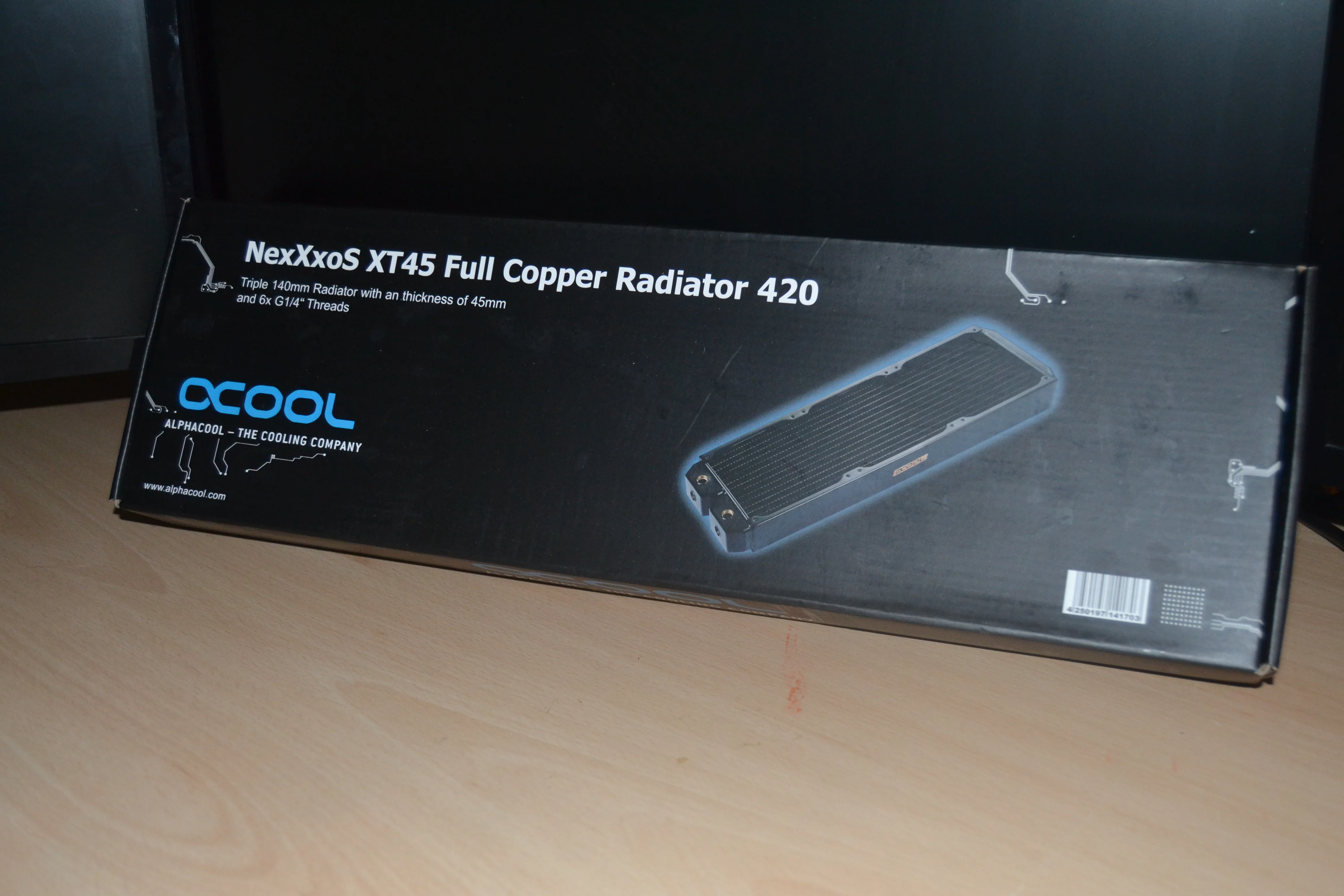

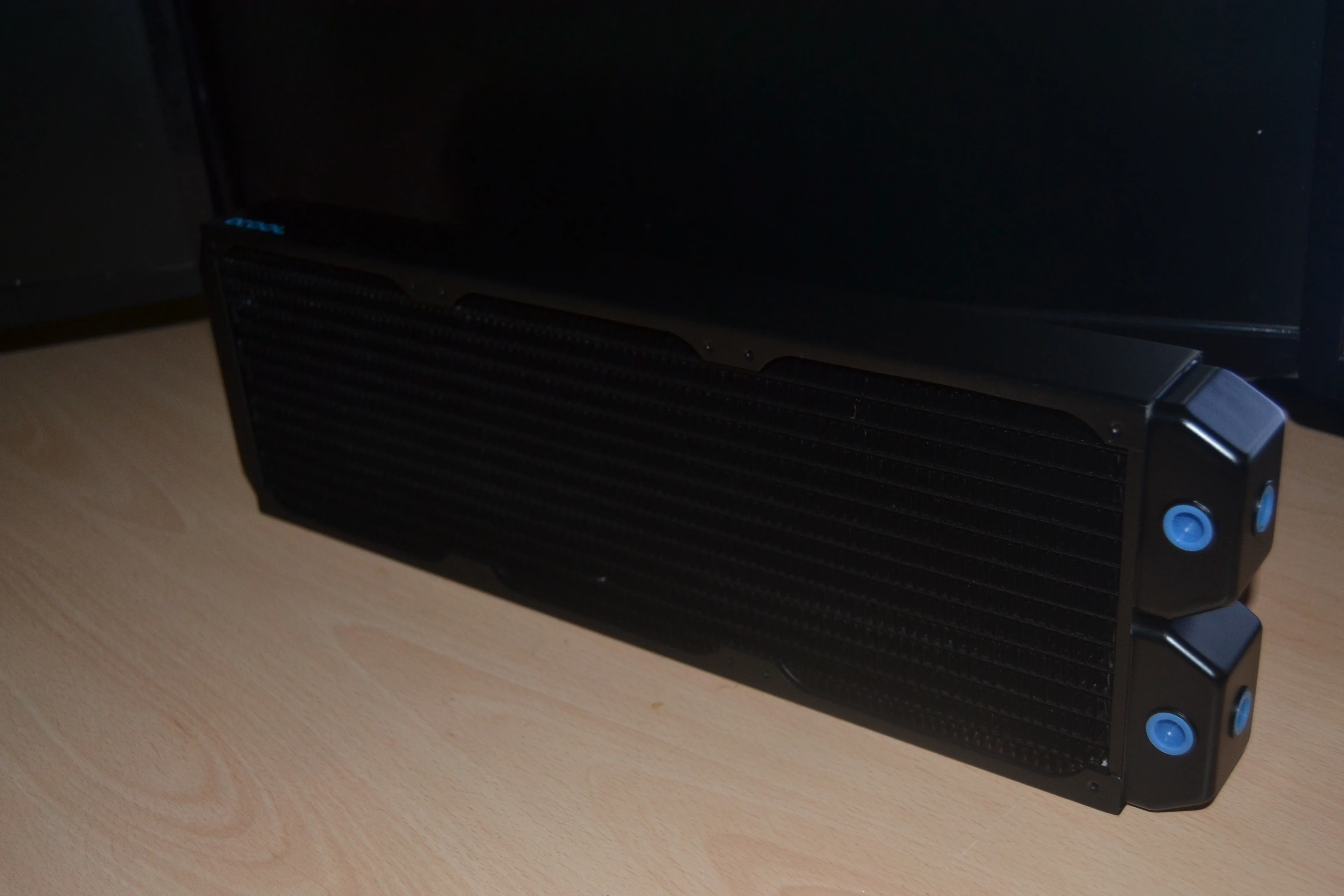

The NexXxoS XT45 420MM Radiator

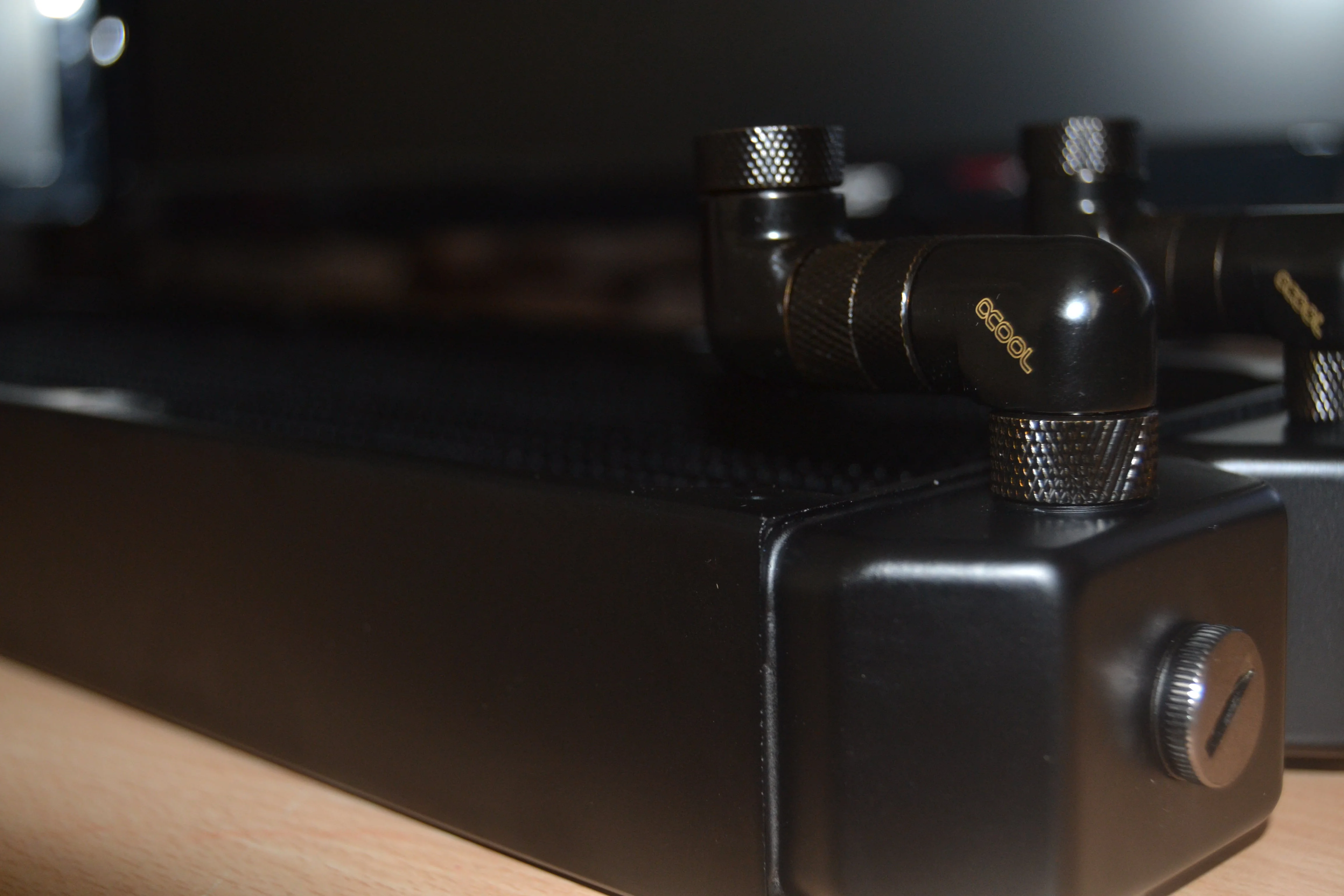

And those fittings you see are the Alphacool Eiszapfen angled adaptor 90° rotatable

I changed out the legs to something much much better and more fitting.
But i'll reveal them later this week with the finished build.

orbitalwalsh · 3 Aug 2017 at 10:15

sorry to hear about the bubble. Would you not be able to do that for its own loop and then the Aorus Ti in its own standard loop?

still get to keep the concept but tweaked to get it working

MT Mods · 3 Aug 2017 at 11:01

orbitalwalsh said:
sorry to hear about the bubble. Would you not be able to do that for its own loop and then the Aorus Ti in its own standard loop?

still get to keep the concept but tweaked to get it working

If the reservoir hadn't burst yes, but i don't have time to order more acrylics, seal and get the rig out to show.
Will need to wait until it's back, then re-do it all. Time is always the issue

orbitalwalsh · 3 Aug 2017 at 12:38

both due for i61 or gamescon ?

MT Mods · 4 Aug 2017 at 18:28

orbitalwalsh said:
both due for i61 or gamescon ?

This one is heading out to Gamescon.
my other is heading out to i61.
Busy busy busy. lol

Maybe after Gamescon, i'll re-do it and get it ready for another show.

orbitalwalsh · 4 Aug 2017 at 19:12

Good luck with the shipping !

MT Mods · 7 Aug 2017 at 19:36

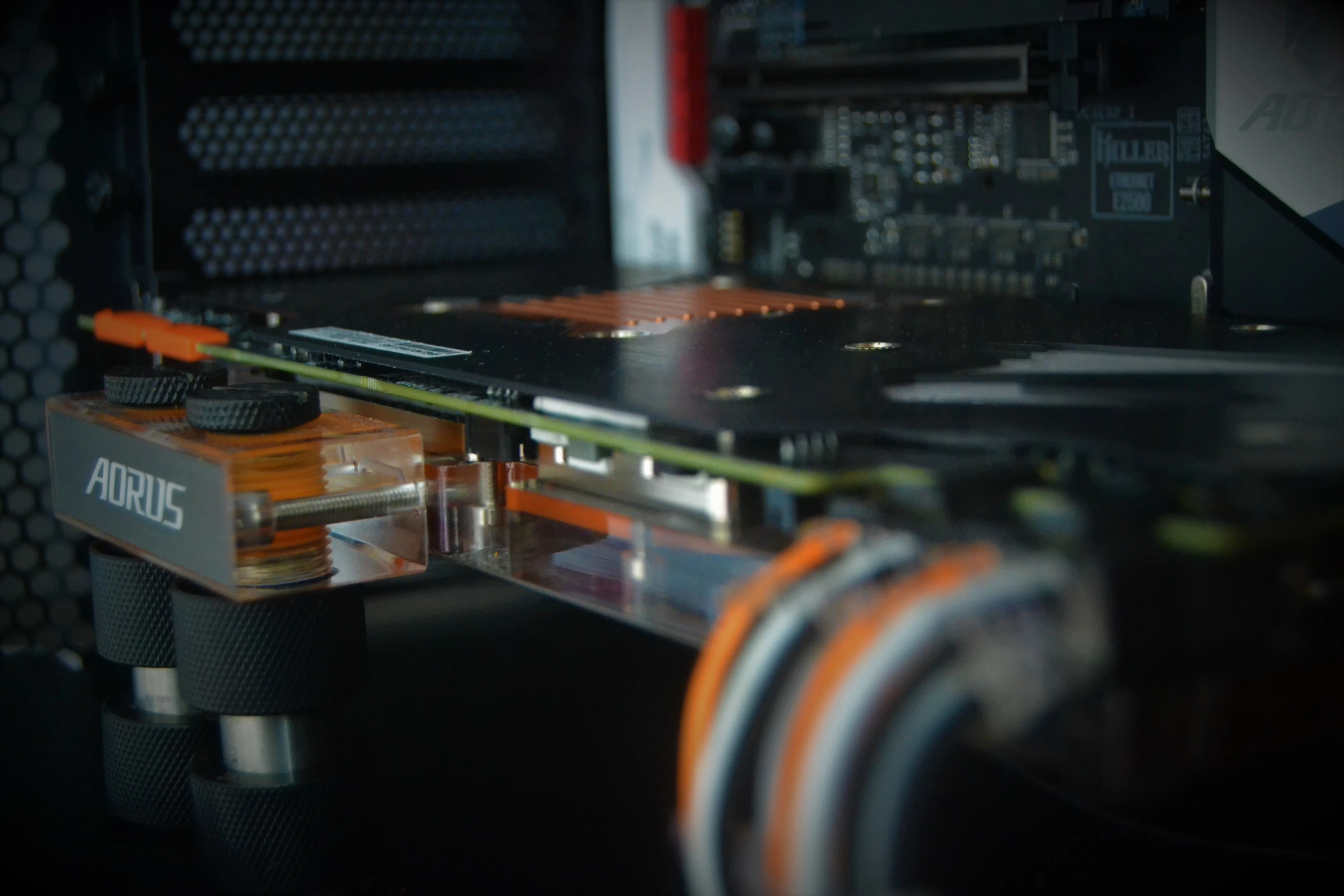

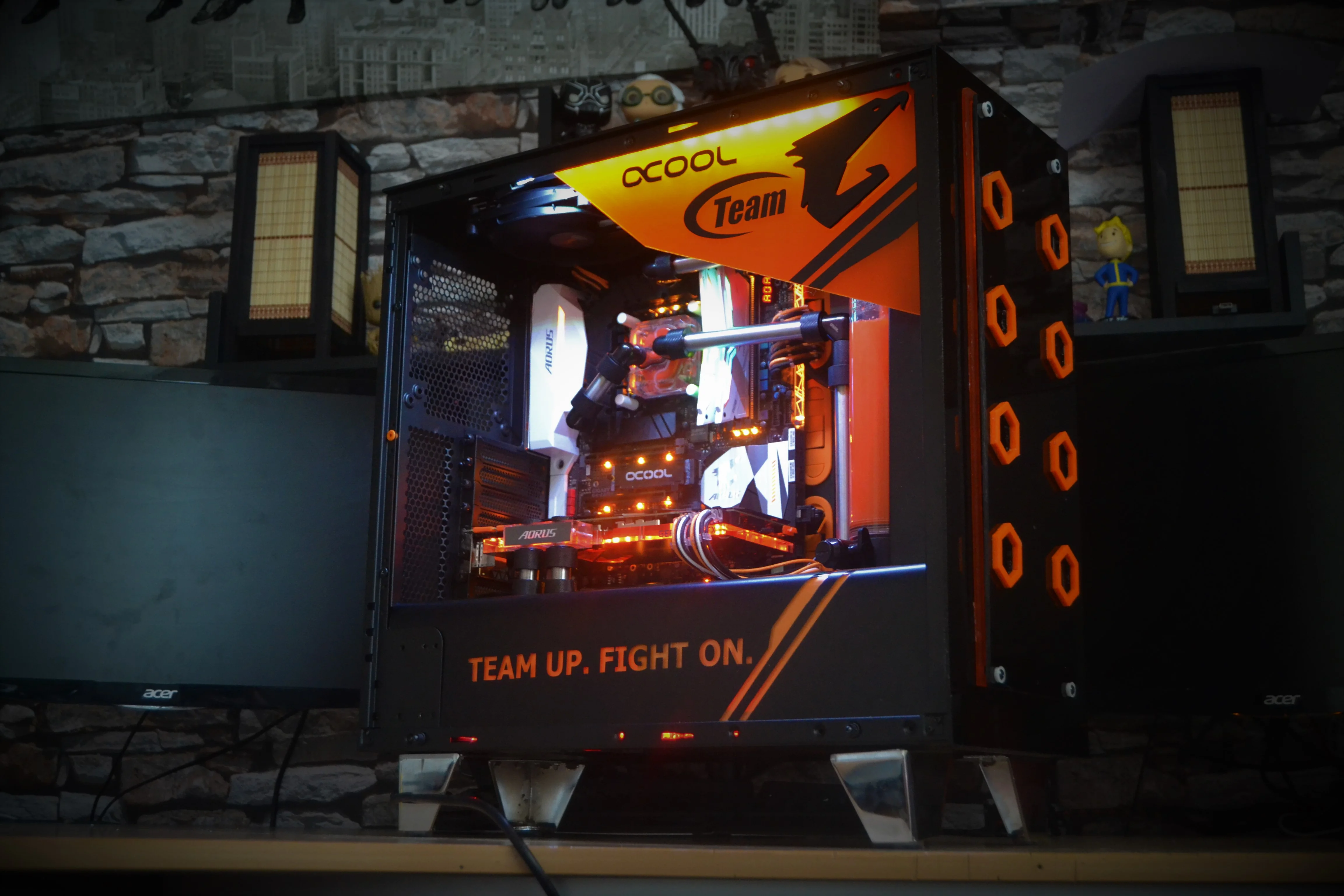

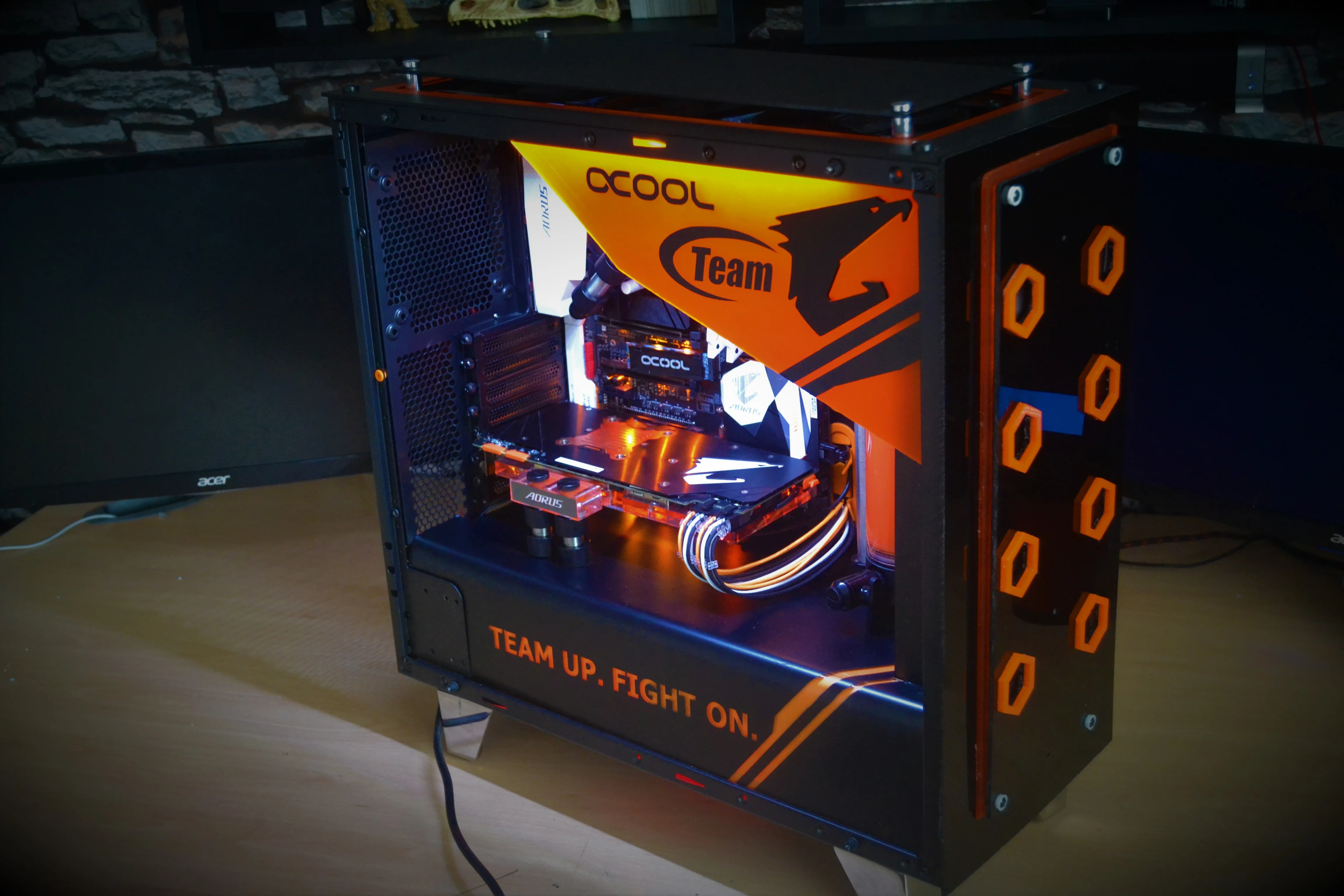

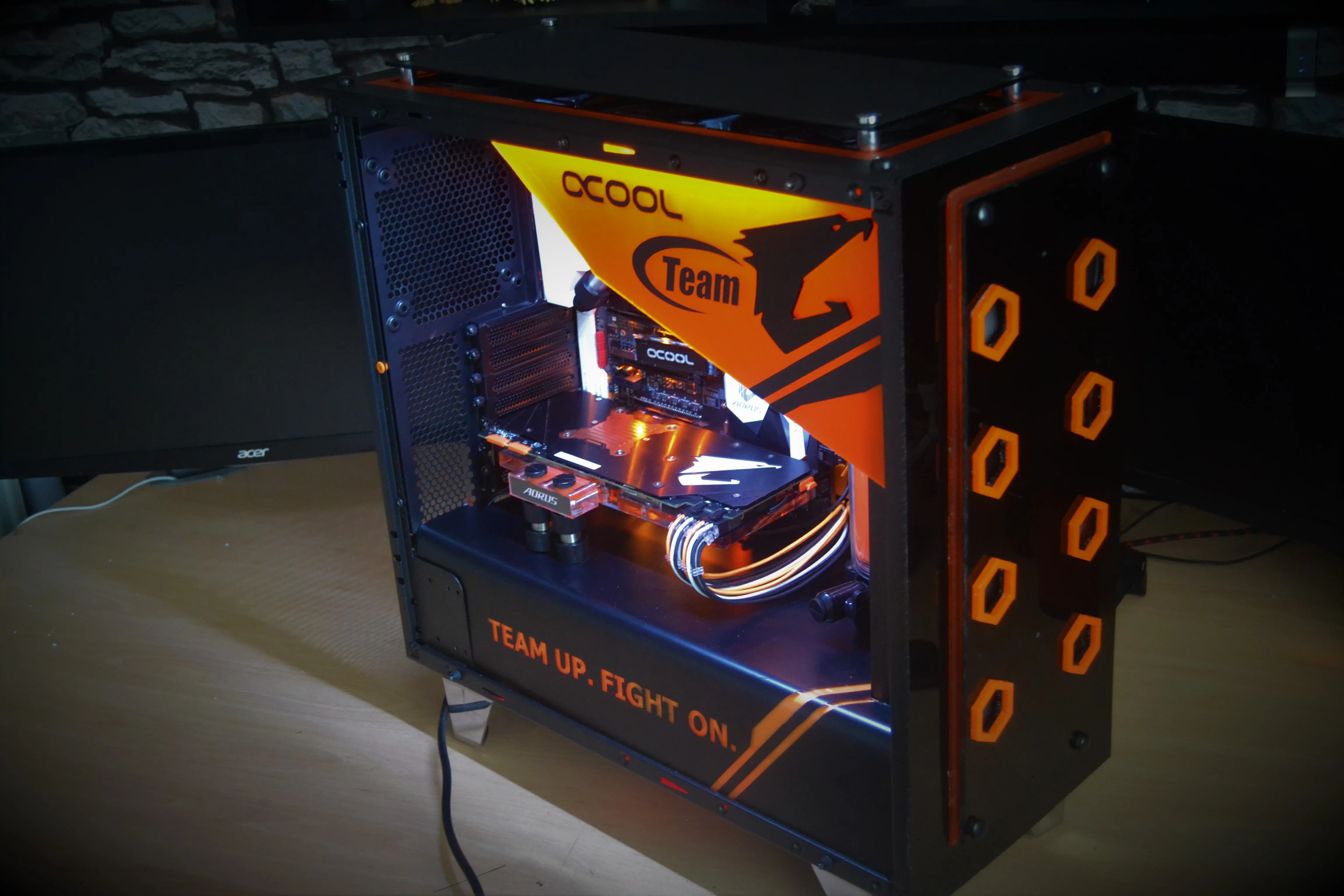

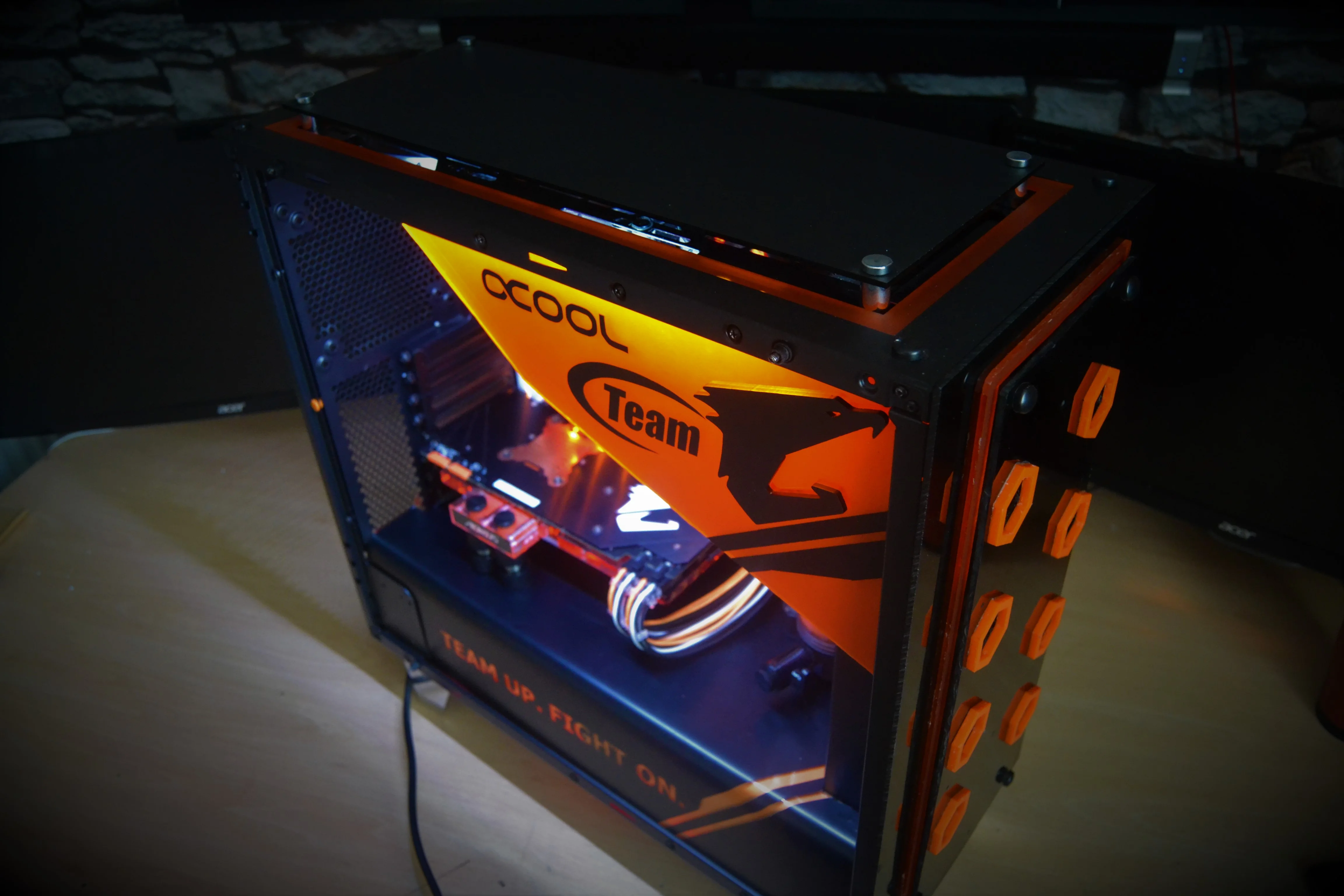

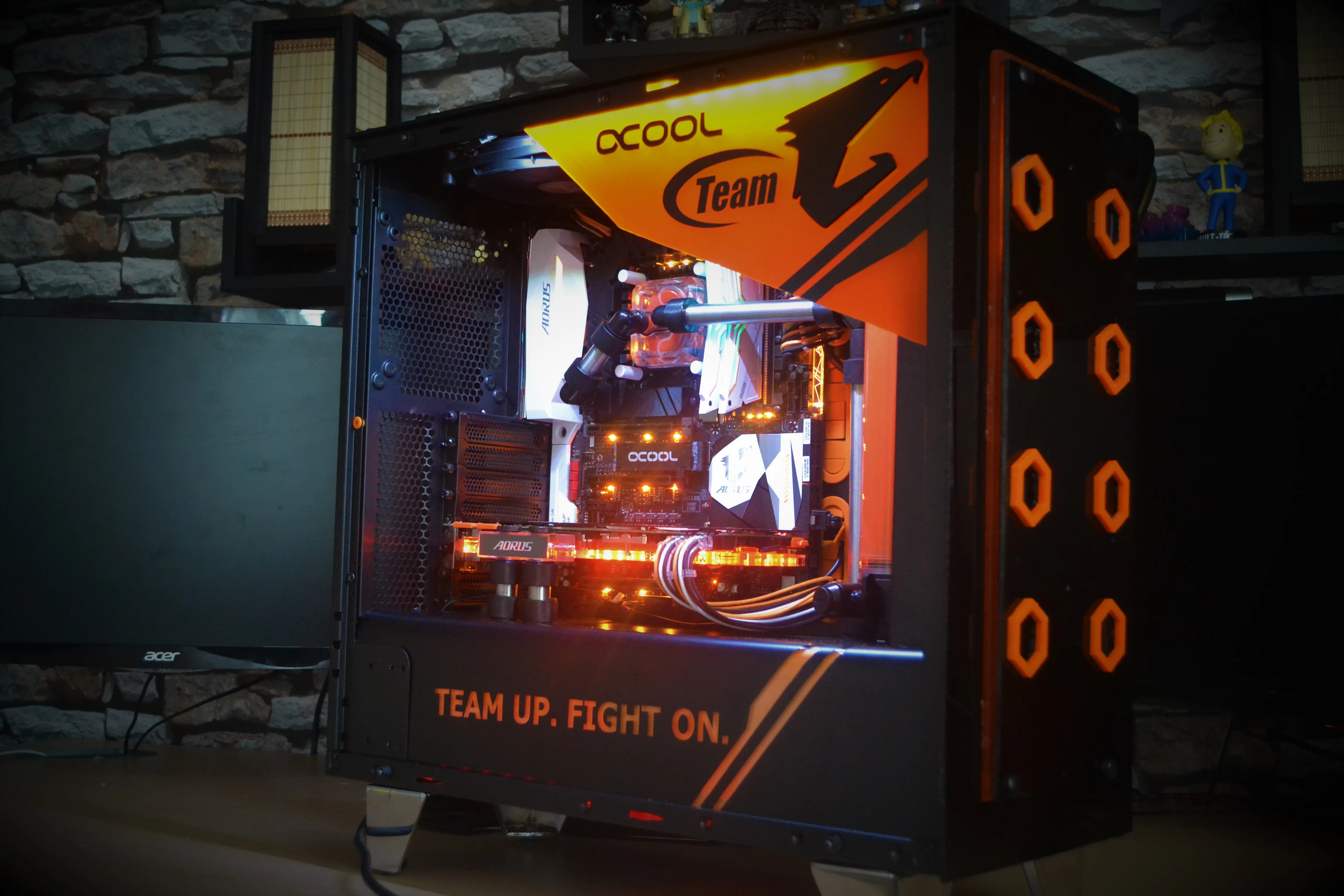

Some final photo's before it travels oversea's
(I do realise now after taking photo's that the M.2 was not screwed in lol)

Will take more after show and have someone take some during the show

MT Mods · 7 Aug 2017 at 19:58

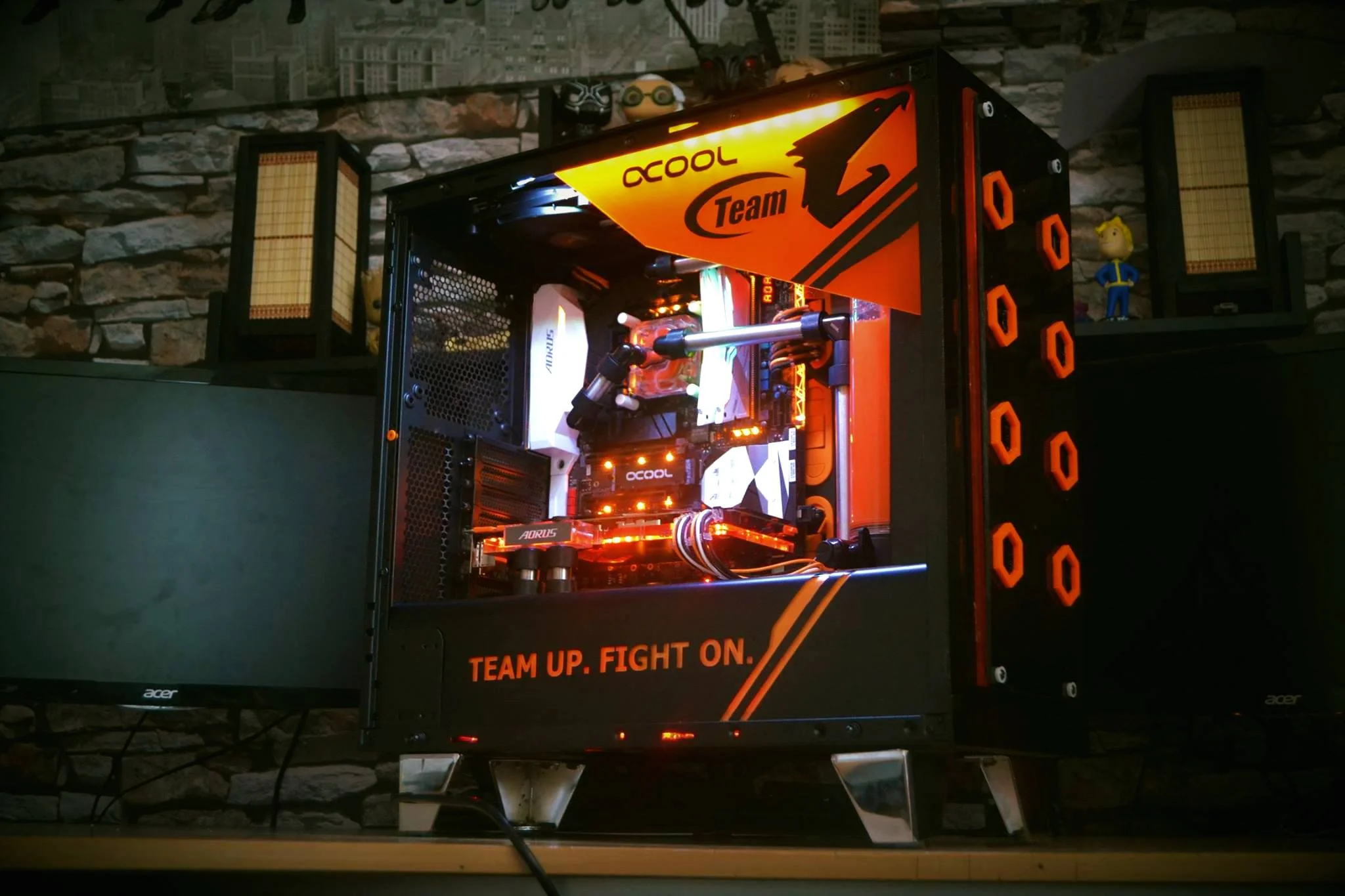

2 Photo's with different lighting worth placing

Brizzles · 7 Aug 2017 at 20:22

Very nice.

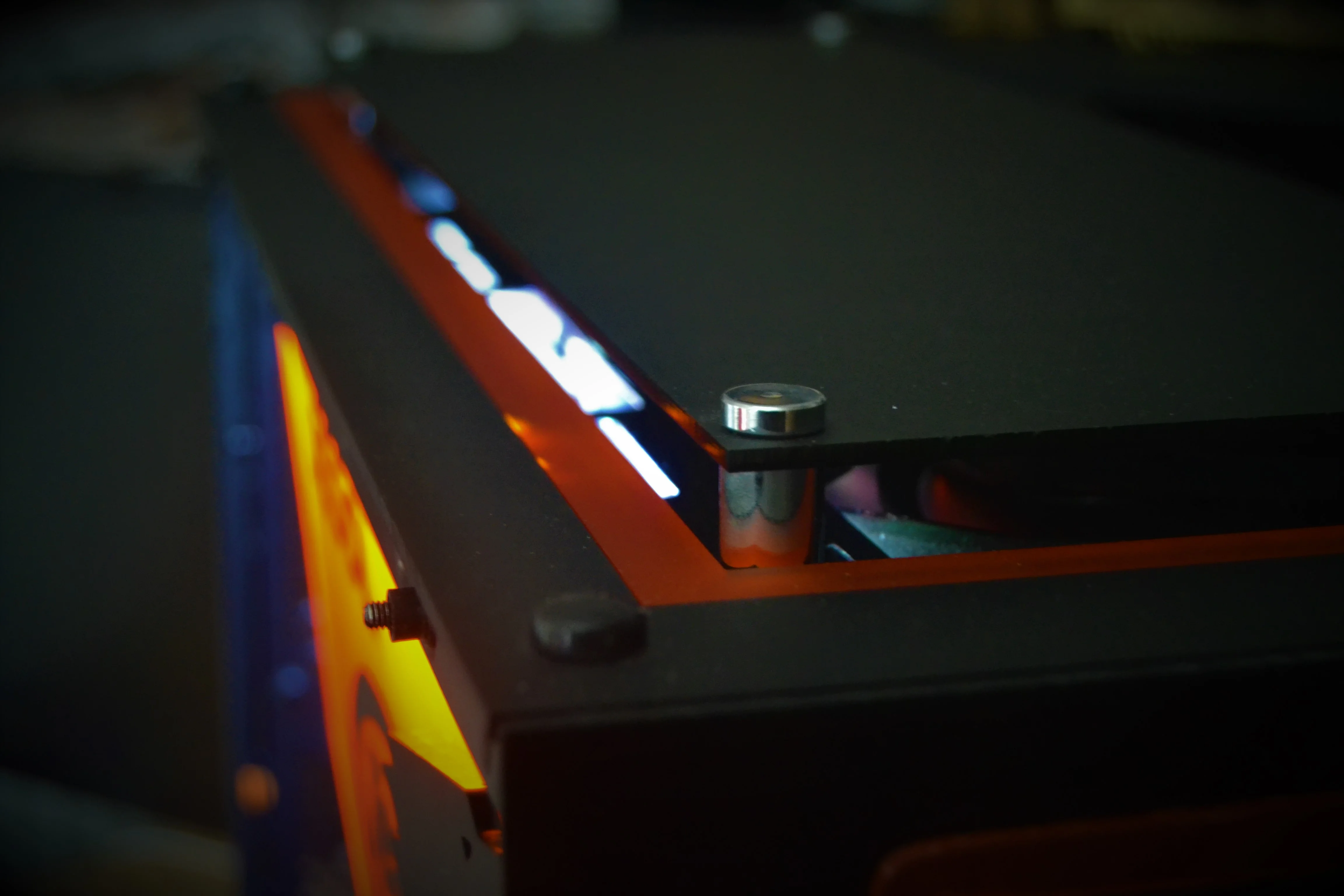

Quick question, where did you get these ' stand-offs ' from ?

MT Mods · 7 Aug 2017 at 20:32

Brizzles said:
Very nice.

Quick question, where did you get these ' stand-offs ' from ?

Ebay: http://www.ebay.co.uk/itm/STAND-OFF...hash=item43e29041e6:m:mdCOdWDrqN7DgDRYI54xHQA

orbitalwalsh · 7 Aug 2017 at 20:58

What Alphacool Pump are you using ? Guessing your running Mayhem's Pastel ?

MT Mods · 7 Aug 2017 at 21:51

orbitalwalsh said:
What Alphacool Pump are you using ? Guessing your running Mayhem's Pastel ?

Running the Alphacool VPP655
And mayhems Pastel orange.

Reminds me, need to put up list of alphacool parts, was a big list lol

orbitalwalsh · 7 Aug 2017 at 21:54

MT Mods said:
Running the Alphacool VPP655
And mayhems Pastel orange.
Reminds me, need to put up list of alphacool parts, was a big list lol

Ah sweet, Mayhem's and Alpha finally getting the warranty claims and issues sorted with using the fluids with the pumps, seems they are fine bar the 775 which is recommended by both they are incompatible .
