Associate
What case is it? Looks pretty awesome tbh.
*** The New Cases Gallery ***
- Thread starter ThundyCat
- Start date
Associate
Hexgear R40.
Associate
Ahh, for some reason I didn't clock it would be mATX.
It's a shame, looks awesome.
It's a shame, looks awesome.

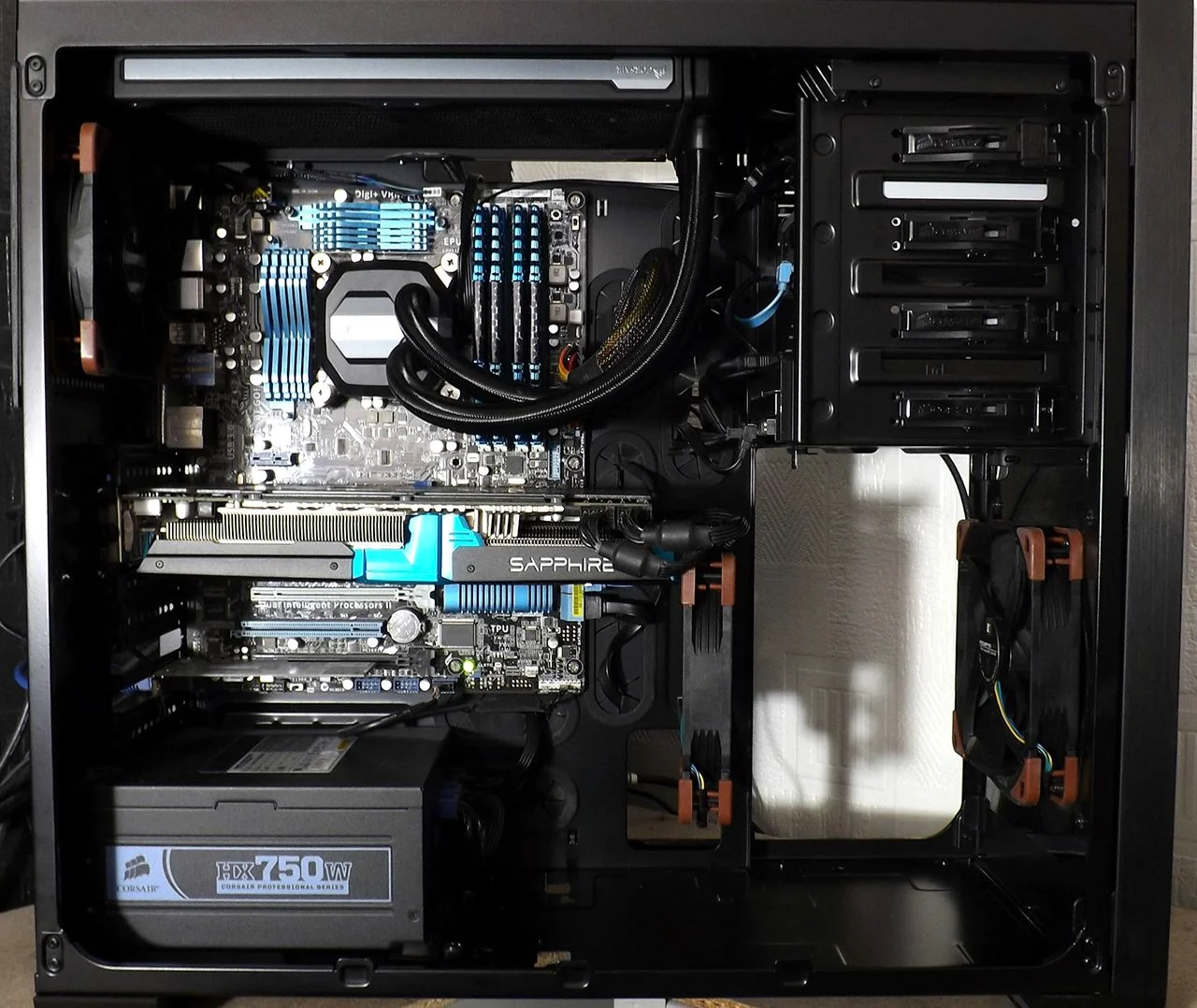

cheers, since upgrading to a r9 290 the 200mm fan wasn't blowing enough cold air into my case so increase in temps. So removed the front fan grill, using plasticard made a mount for the 140mm fan which is attached to the 200mm fan screw holes, doesn't look too pretty from the otherside but does the job
The fan mounted near the GPU was a spare ready to return but seen on here members with multiple gpus mount a fan in the same position to push air to both cards, thought I would give it a try and my max gpu load temps are about 65 degress. Big drop from 80+ when using the 200mm Bitfenix fan.
fan is attached by 2 cable ties and 2 mounting bases.
Associate
cheers, since upgrading to a r9 290 the 200mm fan wasn't blowing enough cold air into my case so increase in temps. So removed the front fan grill, using plasticard made a mount for the 140mm fan which is attached to the 200mm fan screw holes, doesn't look too pretty from the otherside but does the job
The fan mounted near the GPU was a spare ready to return but seen on here members with multiple gpus mount a fan in the same position to push air to both cards, thought I would give it a try and my max gpu load temps are about 65 degress. Big drop from 80+ when using the 200mm Bitfenix fan.
fan is attached by 2 cable ties and 2 mounting bases.
What fans are they and are they loud or not quiet?
At full 3000 rpm fans are very noisy but have them connected to a PWM splitter and controlled via Asus fan xpert with a custom curve. Have the curve set to 45 degrees the fans spin at around 700-800 rpm and are quiet and still supply a good airflow.
4x fans are Noctua NF-A14 (140mm)
https://www.overclockers.co.uk/showproduct.php?prodid=FG-027-NC
Rear fan Noctua NF-A12
https://www.overclockers.co.uk/showproduct.php?prodid=FG-022-NC
4x fans are Noctua NF-A14 (140mm)
https://www.overclockers.co.uk/showproduct.php?prodid=FG-027-NC
Rear fan Noctua NF-A12
https://www.overclockers.co.uk/showproduct.php?prodid=FG-022-NC
Two Titan X GPUs and a Nofan CR-95 in a FT05
Outside view:
Inside view:
Close-up of cabling at bottom:
Those are a couple of adhesive clamps from B&Q keeping the cables sort-of-tidy.
The horror story at the back:
I could not keep the 3.5" drive bay and decided to remove the optical bay as well.
Outside view:
Inside view:
Close-up of cabling at bottom:
Those are a couple of adhesive clamps from B&Q keeping the cables sort-of-tidy.
The horror story at the back:
I could not keep the 3.5" drive bay and decided to remove the optical bay as well.
Associate
My Galaxy S5 refuses to take a decent picture.

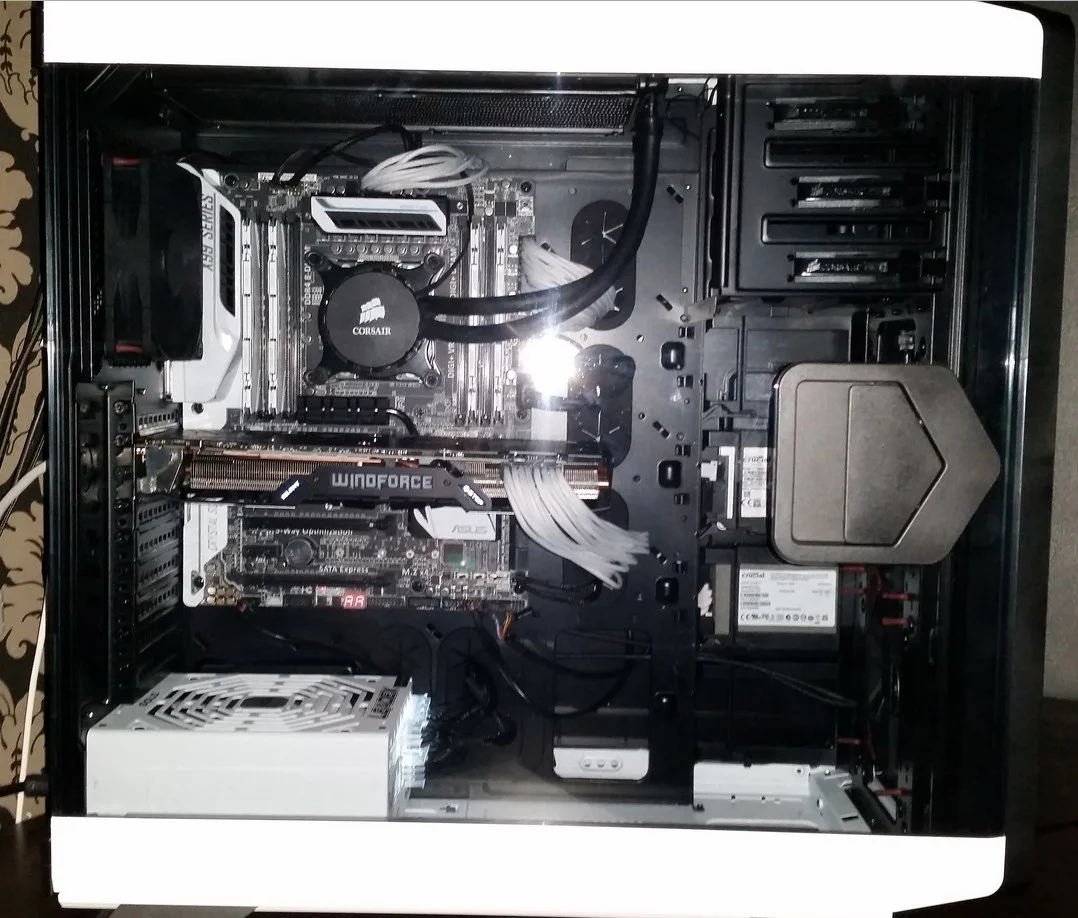

I need to do the visible cables a bit better but I'm pretty happy with it. The loudest thing is now my AIO cooler.
I need to do the visible cables a bit better but I'm pretty happy with it. The loudest thing is now my AIO cooler.

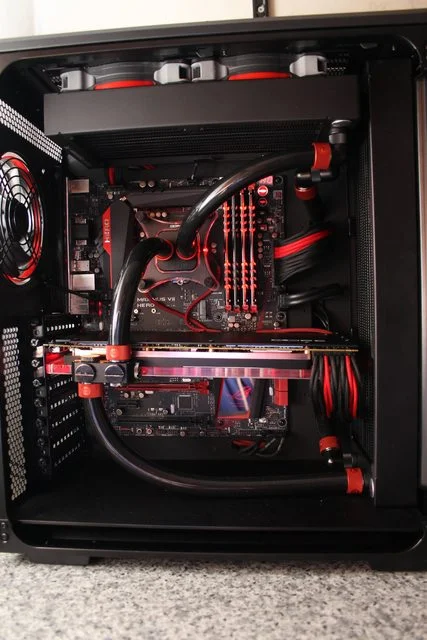

something for the weekend!
corsair air 540
ek pe 360 and 240 rads
xs pc cpu and gpu waterblocks
ek res and pump combo
ek fittings
barrow 90`s
primochill tubing
got a few jobs left to do like sort out sag on graphics card and cabling oh my god the cabling
p.s i dont know how others have faired with 360 rads and lower plate but i had to butcher the front of this case to get it in.
Having the power cables go the other way might help there - essentially they'd be pulling it up.
Associate
AMD FX-6300 @ 4.3ghz 1.3v
Asus M5A99FX Pro R.20 Motherboard
16gb Hyper X Fury @ 2133mhz
VTX Radeon R9 390 8gb
EVGA 1000G PSU
Kingston 120gb SSD (for Windows 7 Ultimate)
3x 500gb HDD (Games Drive, Programs Drive, and Random Junk Drive)
NZXT Source 340 Case
Cooler Master Seidon V120 2.0 Water Cooler
Corsair SP120 fans all round..
Associate
That looks awesome. I want to get into Watercooling but I am not a fan of soft tubing... And I don't trust myself to do hard tubing.
Air it is!
Associate
Not sure, if I am the first one to post a Lian Li desk build, but here's mine anyway
3 x Corsair SP120 Quiet fans drawing cool air into case from left hand side.
1 x Corsair SP120 Quiet fan exhausting warm air out of rear.
2 x Corsair SP120 Quiet (either side of rad) exhausting warm air out of right hand side.
1 x Corsair PWM SP120 Quiet fan (rad) exhausting warm air out of right hand side
Apart from the radiator fan, the other 6 are connected to, and controlled by, a Phanteks fan hub.
A very quiet system at the moment, but still tinkering with fan noise levels vs temperature.
I can also install 3 fans at the front of the case, if need be as well.
3 x Corsair SP120 Quiet fans drawing cool air into case from left hand side.
1 x Corsair SP120 Quiet fan exhausting warm air out of rear.
2 x Corsair SP120 Quiet (either side of rad) exhausting warm air out of right hand side.
1 x Corsair PWM SP120 Quiet fan (rad) exhausting warm air out of right hand side
Apart from the radiator fan, the other 6 are connected to, and controlled by, a Phanteks fan hub.
A very quiet system at the moment, but still tinkering with fan noise levels vs temperature.
I can also install 3 fans at the front of the case, if need be as well.
Last edited:
Caporegime
Oh that is nice.
Soldato
Where'd you get the desk, was it custom made?
