The SFF Case Gallery And Specs Thread

Priapus said:
Hey Guys here's mine! :cool:

Form Factor: SFF
Manufacturer: ShuttleX
CPU: AMD 3400 +
RAM: 1gb OCZ Enhanced Latency
HDD(s): 80GB SATA.
GFX: Hercules 9800 pro.
Speed (if overclocked): Stock.
Temps: 66c

Pictures.




:D

Edit - Drive will be sprayed matt black in the next few days. :cool:
Click to expand...

What a blast from the past. I loved this machine and took it back with me to South Africa when I moved there for a bit.

Actually considering a new build for a sim racing rig setup.

Xtia sent us their XSlim configurable and modular ITX case to play with. In it's compact mode 3.6L but can be expanded to 4.7L up to 5.8L for larger GPU's!

Specs here:

Intel 12700K
Asus Z690i Rog Strix motherboard
Kingston Fury Renegade 64gb DDR5 Memory
Gigabyte RTX 4060 LP Graphics Card
Enhance ENP 7660B Modular PSU
Xtia XSlim Mini ITX Case in 5.8L mode.













joelk2 said:
Really keep wanting to build an itx system for myself. I’m about as small as I can get with matx now.
Click to expand...

I started off at MATX years ago back in 2012 then moved to ATX and really didn't like it so transitioned to ITX. Haven't had a ATX system in 6 or so years now, it's the best move ever if you don't mind working in confined spaces and having small hands is a plus :cry:.

Jay85 said:
I started off at MATX years ago back in 2012 then moved to ATX and really didn't like it so transitioned to ITX. Haven't had a ATX system in 6 or so years now, it's the best move ever if you don't mind working in confined spaces and having small hands is a plus :cry:.
Click to expand...
my matx is just under 22l so not exactly that small but one of the smallest budget cases i could find. smaller would be better though.

joelk2 said:
my matx is just under 22l so not exactly that small but one of the smallest budget cases i could find. smaller would be better though.
Click to expand...
I've got a ZZAW C2 which is pretty small for matx at 13.9l.
Horrific for cooling, and could never hold the giant flagship GPUs, but I did like having that on the desk. C2P exists too, which is a bit more friendly, at the cost of a little extra size.

Also have an SKTC A10, which is very small, but only decent for APU builds, or low profile PCIe cards.

Last edited:
Emlyn_Dewar said:
Looks great.

I'd like to see an even small version even, without the room for the GPU.
Could quite happily go with a little APU ITX build on the desk.
Click to expand...

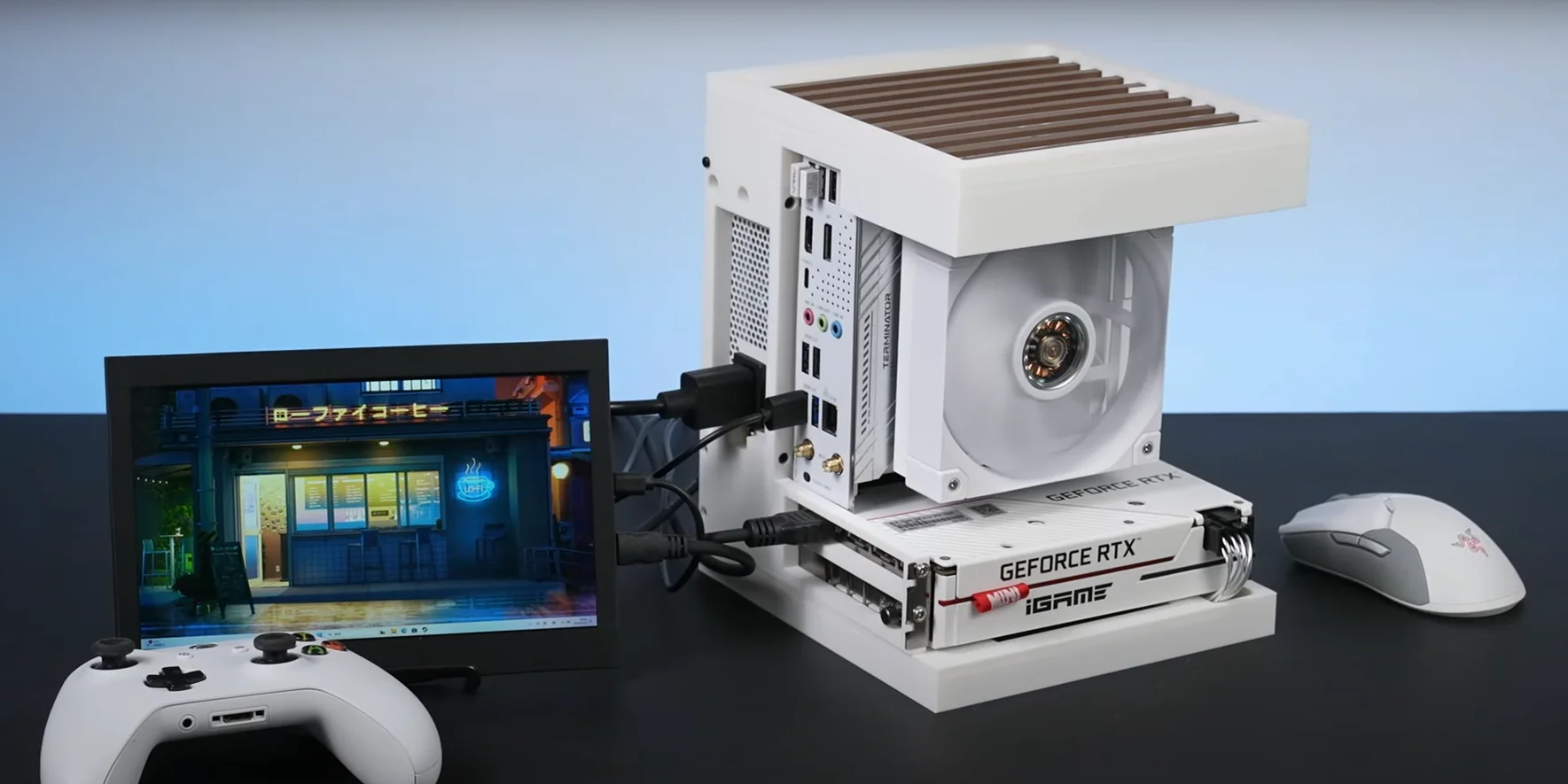

the 3d files are on this website. not sure it would take all that much modifcations to sort out

makerworld.com.cn

DER case S1 迷你海景房 来自 Anderの装机实验室

本机箱是本人设计的第一个作品，尚在优化中感兴趣的话可以试试，还有其它更好的正在设计注意事项：1.电源开关是16MM圆形电脑开关2.螺母是M3*5*4通孔滚花螺母3.螺丝是6、8、12mm长度 M3螺丝，螺丝头部直径5.4以下（视频中的是5.2，用5.3也行）4.主板推荐用铭瑄B760i这种自带主板挡板的，某些CPU位置偏上的主板，可能无法完美兼容5.顶部安装两个风扇的话，内存限高40mm6.散热器只能用IDcooling...
makerworld.com.cn makerworld.com.cn
