Usb 3.1 help

[Scottthomas]

Hi, I have put my old pc into a new case. The new case has a usb 3.1 on front panel but my mobo only has 2.0 and 3.0. Is there an adapter I can use to make use of it (I don't mind it running at 2.0 speed). Thanks.
Asus M5A97 EVO R2.0



[CuriousTomCat]

Just plug the USB 3.1 from the case to the USB 3.0 on the motherboard



[Scottthomas]

Thanks for your response, it's a different connection I would add an image of I knew how from mobile?



[CuriousTomCat]

I think I know what you mean. You need an InLine USB 3.1 to 3.0 adaptor. You can google the product code 4043718277414.



[b00merang69]

Not sure I have ever seen the above or if it is needed.

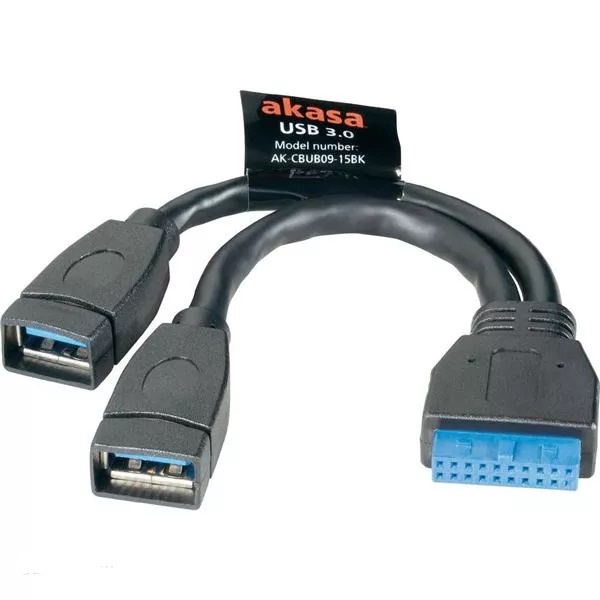

AFAIK USB 3.0 to 3.1 to 3.2 will be the same but there is two type of USB 3.0 connectors one being internal like on your Mobo and the other external like a female USB socket.

+


https://www.overclockers.co.uk/akasa-usb-3.0-internal-adapter-cable-ak-cbub09-15bk-cb-072-ak.html



[EsaT]

USB3.1 is same as USB3.
So is also USB3.2, because of marketing scammers keeping renaming it.

Only USB-C different.
For that you need something like this:
https://www.silverstonetek.com/product.php?pid=871&area=en
But remember that means having only one USB port in case instead of two:
USB3 header has wiring for two USB-A ports



[an0nym0us]

Does the front panel connector look like it'd connect to a header like this (the black coloured connection)?
https://www.silverstonetek.com/images/products/cp14/cp14-34right-top.jpg

** No Hotlinking of images please **



If so, this PCIe expansion card looks like it should do the job (no idea about its performance though):

Silverstone SST-ECU02, 1x USB 3.1 Internal, PCIe 3.0 x2



[Scottthomas]

Thank you all for your help, much appreciated.
EsaT that's the one and an0nym0us the top picture thank you. Any ideas on its name? Or a link to a UK shop. Thanks everyone.



[Scottthomas]

No worries I found it, thanks guys.
