What flux are you using? Im using (depending on the job and how much I like the person)... either amtech rma-223 or kingbo rma-218 i find them both really decent.
Permabanned
- Joined
- 10 Nov 2005
- Posts
- 2,554
You BEST have taken that Porka to Swanage to collect them? One of my favorite places to drive, pretty much everywhere leading to and from there is a national and freshly paved, barely any traffic after 8pm whatever the day, and zero cops, the town always seems so clean and civilized too, no rubbish/louts shouting/falling in the roads drunk etc...Gentlemen... I give you swanage...
That should be enough pcb's to get me going.
When I say swanage they are for a console called the wonderswan
- It's a very long time since I have been to swanage... The came from the US of A
- And that sir is a very long way to drive!
Permabanned
- Joined
- 10 Nov 2005
- Posts
- 2,554
Damnnnn, I love swanage, and Corfe Castle and all the surrounding roads leading to either, you will go there with the Porsche!When I say swanage they are for a console called the wonderswan
Mechanic AD-223 according to the packaging. Initially I thought it was watery, but once I got past the first few mm, it seems much better. Looks good to me, although I’m no expert.
Back again but this time with some fun... image dump and im going through giving some context

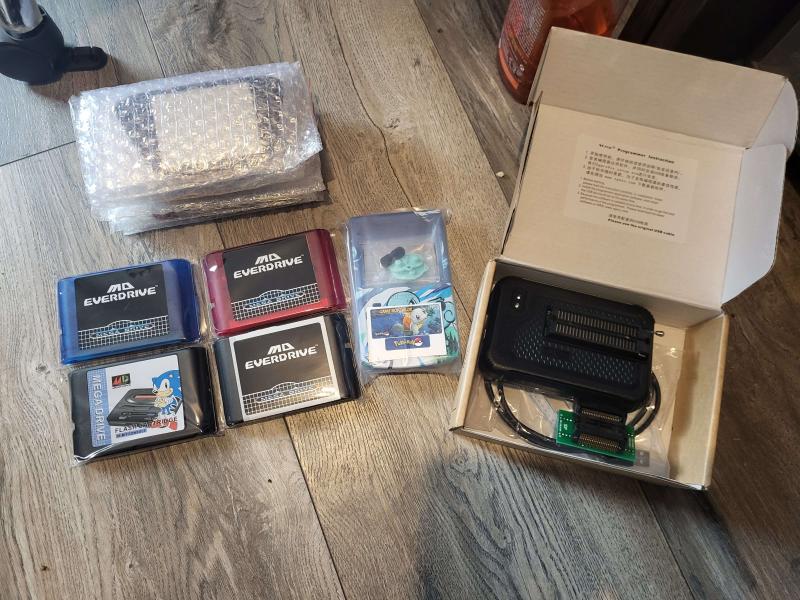

Finally some alix junk turned up - a load of gg mods, a squirtle shell because i havent done a squirtle yet... and that all important t56 and sop48 adapter - Now my t56 is here I can crack on

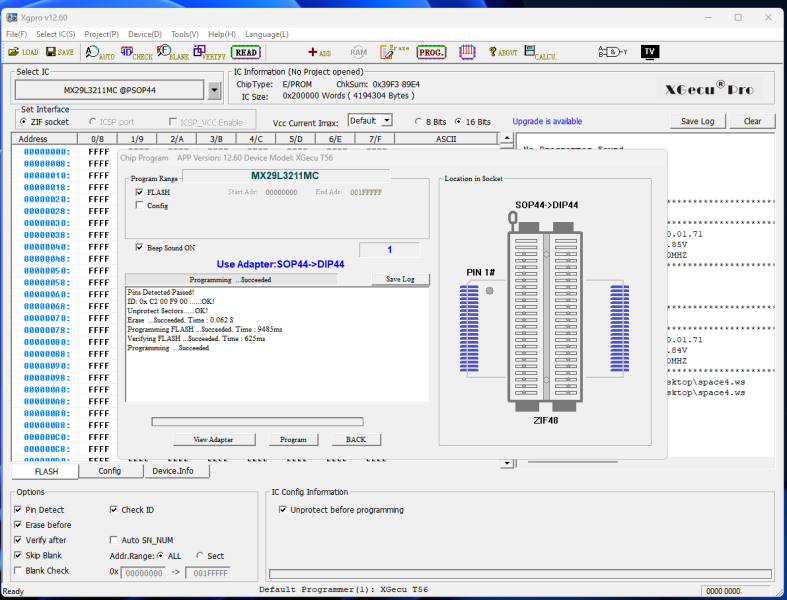

First up I'm going to just make a swan cart. I go down the list and see space invaders is on this layout board so that's what im making, its not a translation for now just a normal space invaders swan cart just to make sure i know what im doing. First up we plug in the MX rom chip and just check we can read it and that all is well... of course we are good to go.
So I pull a space invaders rom and things get weird, the swan needs a 4mb rom and space invaders is 1mb so we just need to make it into a 4mb to do that we just open up command prompt, and "copy /p space.ws+space.ws+space.ws+space.ws space_4mb.ws" and boom we have our 4mb rom file which we then write to our chip...

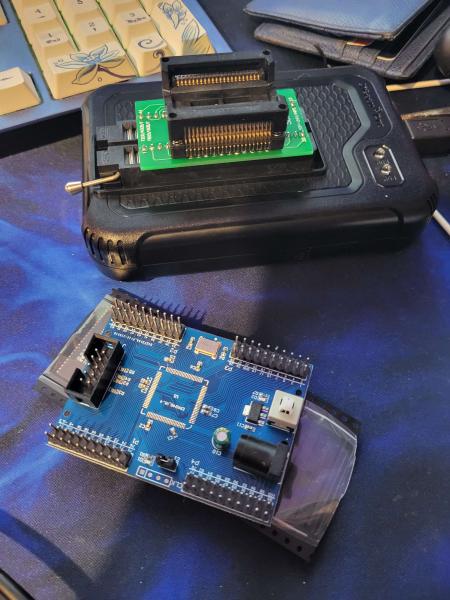

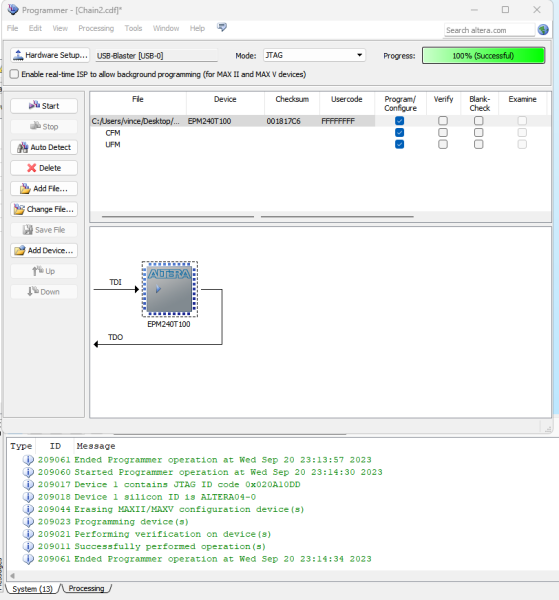

Next up we need our fpga programmed up, the pcb files have a program for this chip so i open up the fpga file, load it into quartus 2 and using my altera blaster dev board i program a chip so far so good!
Chips removed, and ready to put on my pcb:

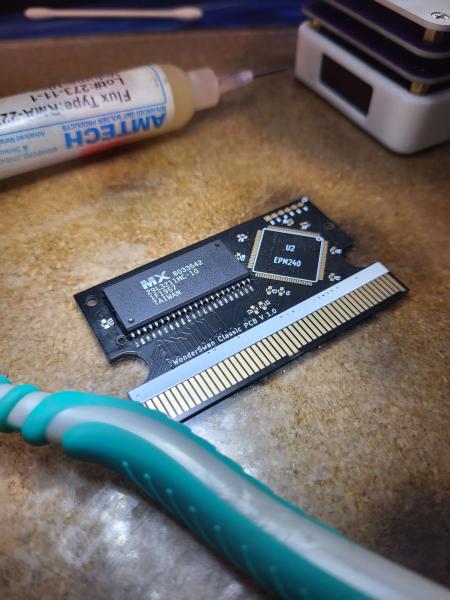

First one on!

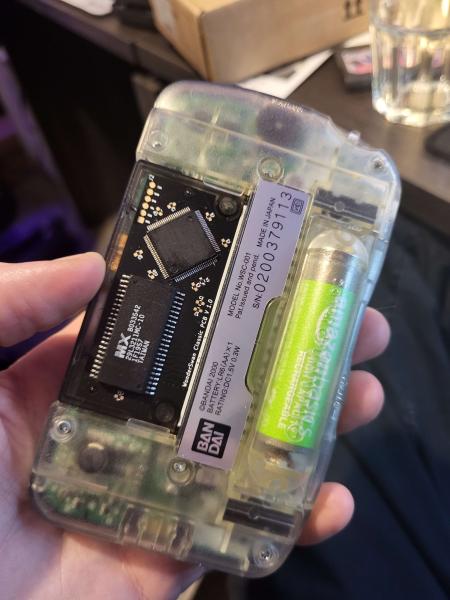

And both chips ready!
Down side im still waiting on filter caps but it should work right?

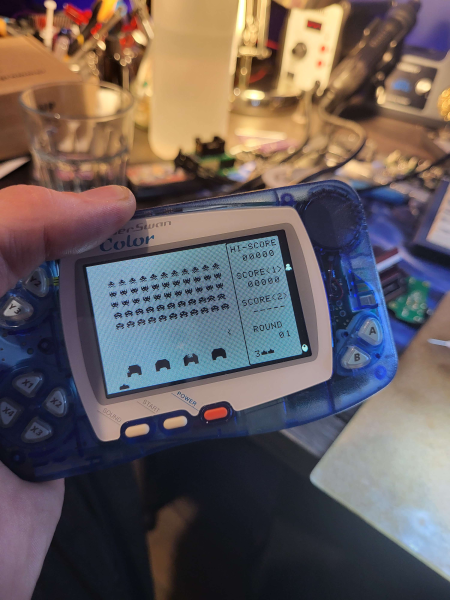

First mission accomplished, as i say not quite ready yet as I am waiting on some caps etc and then I need to design and 3d print some cart holder things! But so far so good. Next up some translations!
Finally some alix junk turned up
- a load of gg mods, a squirtle shell because i havent done a squirtle yet... and that all important t56 and sop48 adapter - Now my t56 is here I can crack on First up I'm going to just make a swan cart. I go down the list and see space invaders is on this layout board so that's what im making, its not a translation for now just a normal space invaders swan cart just to make sure i know what im doing. First up we plug in the MX rom chip and just check we can read it and that all is well... of course we are good to go.
So I pull a space invaders rom and things get weird, the swan needs a 4mb rom and space invaders is 1mb so we just need to make it into a 4mb to do that we just open up command prompt, and "copy /p space.ws+space.ws+space.ws+space.ws space_4mb.ws" and boom we have our 4mb rom file which we then write to our chip...
Next up we need our fpga programmed up, the pcb files have a program for this chip so i open up the fpga file, load it into quartus 2 and using my altera blaster dev board i program a chip
so far so good!Chips removed, and ready to put on my pcb:
First one on!
And both chips ready!
Down side im still waiting on filter caps but it should work right?
First mission accomplished, as i say not quite ready yet as I am waiting on some caps etc and then I need to design and 3d print some cart holder things! But so far so good. Next up some translations!
Last edited:
@Meatball
On and its battery was shorted so I put a new one in for you
And this should be a reminder to us all - Dont put keys in washing machines
My hero!!
My partner still gives me gyp for not checking their trouser pockets before putting them in the wash. I still think it’s his fault
.Thank you so much for your time and effort, I’ve sent you a pm
.
Last edited:
My hero!!
My partner still gives me gyp for not checking their trouser pockets before putting them in the wash. I still think it’s his fault
Thank you so much for your time and effort, I’ve sent you a pm
Awesome - Let us know that its doing what it should when it gets back home
@Vince - what’s the wire you use for jumpers, and could you provide a link to it on eBay or something? Wouldn’t mind getting a bit of that as it would no doubt be handy for the times when I inevitably remove a solder pad - have done several times now trying to remove through hole components!
Hopefully the new flux will help prevent that in future.
Hopefully the new flux will help prevent that in future.
Last edited:
Sure I mostly use one of these two for all things jumpers...
0.01mm magnat or solid core wrapping wire which I think is somewhere around 28aug ish
Gentleman, thank you!Sure I mostly use one of these two for all things jumpers...
0.01mm magnat or solid core wrapping wire which I think is somewhere around 28aug ish
Caporegime
- Joined
- 7 Apr 2008
- Posts
- 26,447
- Location
- Lorville - Hurston
A. Brilliant threadQuickly stuck it back together while I wait for the remaining parts to arrive
Ill update once its fixed, currently 3d printing a little stand for it!
Ahh you see that was my first GG' I still have it but in a blue case now
- Speaking of which...
Might have fixed and modded quite a few GG's yesterday evening!! The dark blue one is a USA only special edition. Screen was bad so I had to give it some mods!
For its age it is in amazing condition.
Last edited:
Turns out the repair on the mazda key was a success! its apparently doing what it should be - I quite enjoyed it as well was something a bit different.
@rare That power supply is 2 things away from being up for repair - I am building a GG for somebody and I have a switch lite repair for somebody and then it shall be on the bench again. All the caps for it are here lets just hope we can get it all repaired without scratching that finish... being so careful tearing it down but the next bit is going to be a nightmare.
- I quite enjoyed it as well was something a bit different.@rare That power supply is 2 things away from being up for repair
- I am building a GG for somebody and I have a switch lite repair for somebody and then it shall be on the bench again. All the caps for it are here lets just hope we can get it all repaired without scratching that finish... being so careful tearing it down but the next bit is going to be a nightmare.
Last edited:
