3570k overclocking - easy?

opethdisciple · 29 Apr 2012 at 13:44

If I buy the components seperatly and overclock myself, is it easy enough to do?

Was tempted by one of the preoverclocked bundled, but obviously when you update bioses etc, the overclock could become unstable, so probabl better off doing it my self.

jeff6475 · 29 Apr 2012 at 13:58

increase the multi 45 etc job done anything above 45 needs a volt tweak

stulid · 29 Apr 2012 at 14:01

You said in the previous thread you wanted 4.5ghz, this isnt hard to do at all.

Disable Turboboost and the four power saving features,

C1E, C3/C6 state, thermal monitor, CPU EIST

- this will set the CPU to 4.5GHZ all the time

Set the CPU clock ratio to 45X

Add a touch of Vcore ( I need 1.32-1.325v on mine, add a touch of LLC to counteract the droop.

Test for stability.

Or if you want the CPU to flip from 1.6Ghz-3.4Ghz upto 4.5Ghz, then you set the Turbo values to 45X and add the Vcore etc.

opethdisciple · 29 Apr 2012 at 14:06

stulid said:
Or if you want the CPU to flip from 1.6Ghz-3.4Ghz upto 4.5Ghz, then you set the Turbo values to 45X and add the Vcore etc.

This is what I would want to do.

So rather than overclocking the CPU clock ratio, you overclock the turbo ratio?

Do you still need to play with LLC in this scenario?

Roverno · 29 Apr 2012 at 14:09

If i was you i would turn off turbo as it can be unstable, well it was on SB I would turn off turbo but keep speed step. This will make it run 1.6 - 4.5 and is good for stability and cool temps on idle

Subliminal Aura · 29 Apr 2012 at 14:12

No experience here yet but a few peeps are talking yes easy oc but higher temps.

No one is talking about memory overclocks. All treading carefully

stulid · 29 Apr 2012 at 14:29

opethdisciple said:
This is what I would want to do.

So rather than overclocking the CPU clock ratio, you overclock the turbo ratio?

Do you still need to play with LLC in this scenario?

There are four Turbo values which you set to 45X each, the amount of extra Vcore/LLC needed will vary from board and chip.

Krono5 · 30 Apr 2012 at 00:33

Autotune or whatever it's called on most motherboards should be able to get you upto 4.4/4.5 without you needing to do anything much lol

Ali Man · 30 Apr 2012 at 05:07

Krono5 said:
Autotune or whatever it's called on most motherboards should be able to get you upto 4.4/4.5 without you needing to do anything much lol

Those auto OC'ing profiles would give it more voltage than required, enabling it to get more hotter. First stability at stock volts and then manual OC'ing from there is the best way to go.

Matt2532 · 2 May 2012 at 18:07

I am having same issue i want to overclock my i5 3570k but my board doest have turbo v autotune and the bios one doesnt seem to do anything. Any suggestions on easiest way to get more performance.

Idleman · 2 May 2012 at 19:38

Matt2532 said:
I am having same issue i want to overclock my i5 3570k but my board doest have turbo v autotune and the bios one doesnt seem to do anything. Any suggestions on easiest way to get more performance.

http://www.hitechlegion.com/reviews/motherboards/18247?start=27

Check the link and see if this is any help.

Curve · 11 Jun 2012 at 16:20

Just followed your instructions stulid so thank you.

What temps should I be avoiding? (Built my system on your advice)

doodah · 11 Jun 2012 at 16:29

How does overclocking this chip fair with the stock HSF? What is the best bang for buck HSF to get 4-4.5Ghz with reasonable temps?

Attu90 · 11 Jun 2012 at 16:37

Matt2532 said:
I am having same issue i want to overclock my i5 3570k but my board doest have turbo v autotune and the bios one doesnt seem to do anything. Any suggestions on easiest way to get more performance.

What motherboard have you got ?

arekgreenman888 · 11 Jun 2012 at 16:44

What percent or fps you gonna notice due going from 3.3 to 4.5 ghz on 3570k? ta

Curve · 11 Jun 2012 at 16:54

arekgreenman888 said:
What percent or fps you gonna notice due going from 3.3 to 4.5 ghz on 3570k? ta

Depends on the game

WoW will certainly benefit as that's very CPU dependent but not sure about the rest sorry

Geo-Gamer · 11 Jun 2012 at 19:22

Hi mate, i can shed some light as iv been testing my i5 3570k and im very suprised how easy the overclocking is on it

Iv managed to pull 4.5ghz just by disabling turbo boost and setting the volts to 1.25! Max load temps at the moment are:

Core1: 58
core 2: 64
core3: 62
Core4: 54

Nuclear Fusion · 11 Jun 2012 at 21:34

Geo-Gamer said:
Hi mate, i can shed some light as iv been testing my i5 3570k and im very suprised how easy the overclocking is on it

Iv managed to pull 4.5ghz just by disabling turbo boost and setting the volts to 1.25! Max load temps at the moment are:

Core1: 58
core 2: 64
core3: 62
Core4: 54

Make sure it is stable during Prime95, I would advise 4+ hours at least.

Curve · 11 Jun 2012 at 23:09

Following this vid here: http://www.youtube.com/watch?v=NxCPyF-1tTc

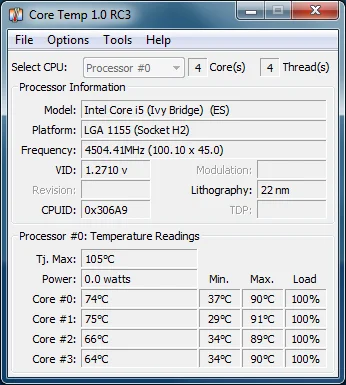

This is what I'm getting at the moment whilst running Aida64:

Which seems hot to me. I'm using a Coolermaster Hyper 612S.

What should I be lowering in order to reduce the temps?

---------------------------------------------------
Core Temp version 1.0 RC3 - 64bit
---------------------------------------------------

Number of processors: 1
Number of cores: 4
Number of threads: 4

Processor information:
---------------------------------------------------

Processor 0
Package 0
Cores: 4 (Max 8)
Threads: 4 (Max 16)
Processor model: Intel Core i5 (Ivy Bridge) (Engineering Sample)
Processor name string: Intel(R) Core(TM) i5-3570K CPU @ 3.40GHz
Platform: LGA 1155 (Socket H2) (PlatformID: 0x1)
Processor signature: 0x306A9
Process node: 22 nm

Processor speed: 3103.04MHz (100.10 x 31.0)
Default speed: 3400.00MHz
Multiplier range: x16.0 - x34.0
Max. turbo speed: 4500.00MHz
Max. turbo multiplier: x45.0
Maximum voltage: 1.0875V
Maximum TDP: 0.0 Watts
Instruction set: MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2, AES, AVX, EM64T
Feature set: VT, XD, EIST
L1 data cache: 2 x 32 KiB, 8-way set associative, 64-byte line size - 2 thread(s)
L1 unified cache: 2 x 32 KiB, 8-way set associative, 64-byte line size - 2 thread(s)
L2 cache: 2 x 256 KiB, 8-way set associative, 64-byte line size - 2 thread(s)
L3 cache: 6 MiB, 12-way set associative, 64-byte line size - 16 thread(s)

Jokester · 11 Jun 2012 at 23:11

What have you set Vcore to?
