CPU Cooler Clearance Issues

Can you flip it around... I'm sure mine is asymetrical... I'd assume they all are?

Mine is quite tight at the top where the cpu fan headers are, but clears the GPU easily and yours looks like theres loads of room at the top?

ATX is ATX so the spacing on the board should be the same regardless between CPU socket and top PCIE-e socket


Last edited:
mattyfez said:
Can you flip it around... I'm sure mine is asymetrical... I'd assume they all are?

Mine is quite tight at the top where the cpu fan headers are, but clears the GPU easily and yours looks like theres loads of room at the top?

ATX is ATX so the spacing on the board should be the same regardless between CPU socket and top PCIE-e socket

Click to expand...
The new version of the DH15 G2 is asymmetrical so you can flip it to gain more space, however the DH15 to the best or my knowledge is symmetrical so I wont gain any more space by flipping the orientation.

Samwise.Gamgee said:
however the DH15 to the best or my knowledge is symmetrical
Click to expand...

Not being funny but are you sure? Have you actually looked?

I mean yours does look ti be sitting suspiciously low with a good amount of headroom at the top...

The top plate height of the gpu should be the same across the board (assuming the GPU is ATX compliant) so that cooler wouldn't fit in *any* pc without fouling the GPU in that case... No pun intended

Edit.. I'm sure mine is a chromax black.. Dunno what specific generation it is though but it shouldn't matter.

Last edited:
Looking at your pic again... The cooler is also way out of line with your rear exhaust fan.

You've just mounted it upside down, that's all.

mattyfez said:
Looking at your pic again... The cooler is also way out of line with your rear exhaust fan.

You've just mounted it upside down, that's all.
Click to expand...

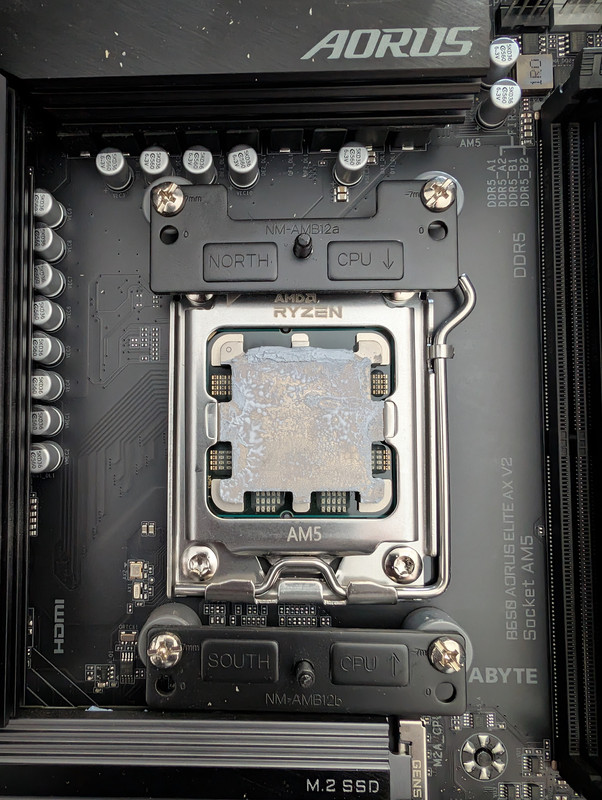

Just flipped it, I'm afraid it didn't make any difference to clearance. I might try and remove the offset bracket and put the original one back to see how that affects clearance.

postimg.cc

Album — Postimages

postimg.cc postimg.cc

Yeah my first thought is remove the offset bracket from the equation.. It might me muddying the waters..

And see what's what.

But if you look at the cooler itself when it's out of the case, it should be pretty obvious if it's asymmetrical or not, as per the pic I posted up thread.

Last edited:
mattyfez said:
Yeah my first thought is remove the offset bracket from the equation.. It might me muddying the waters..

And see what's what.

But if you look at the cooler itself when it's out of the case, it should be pretty obvious if it's asymmetrical or not, as per the pic I posted up thread.
Click to expand...
Just remounted with the normal brackets and the spacing seems about the same to be honest. Might just go down the AIO or smaller AIO cooler route as the spacing is driving my OCD a bit mental.

mattyfez said:
Well is are the radiators symmetrical or not? Can you take a pic?
Click to expand...

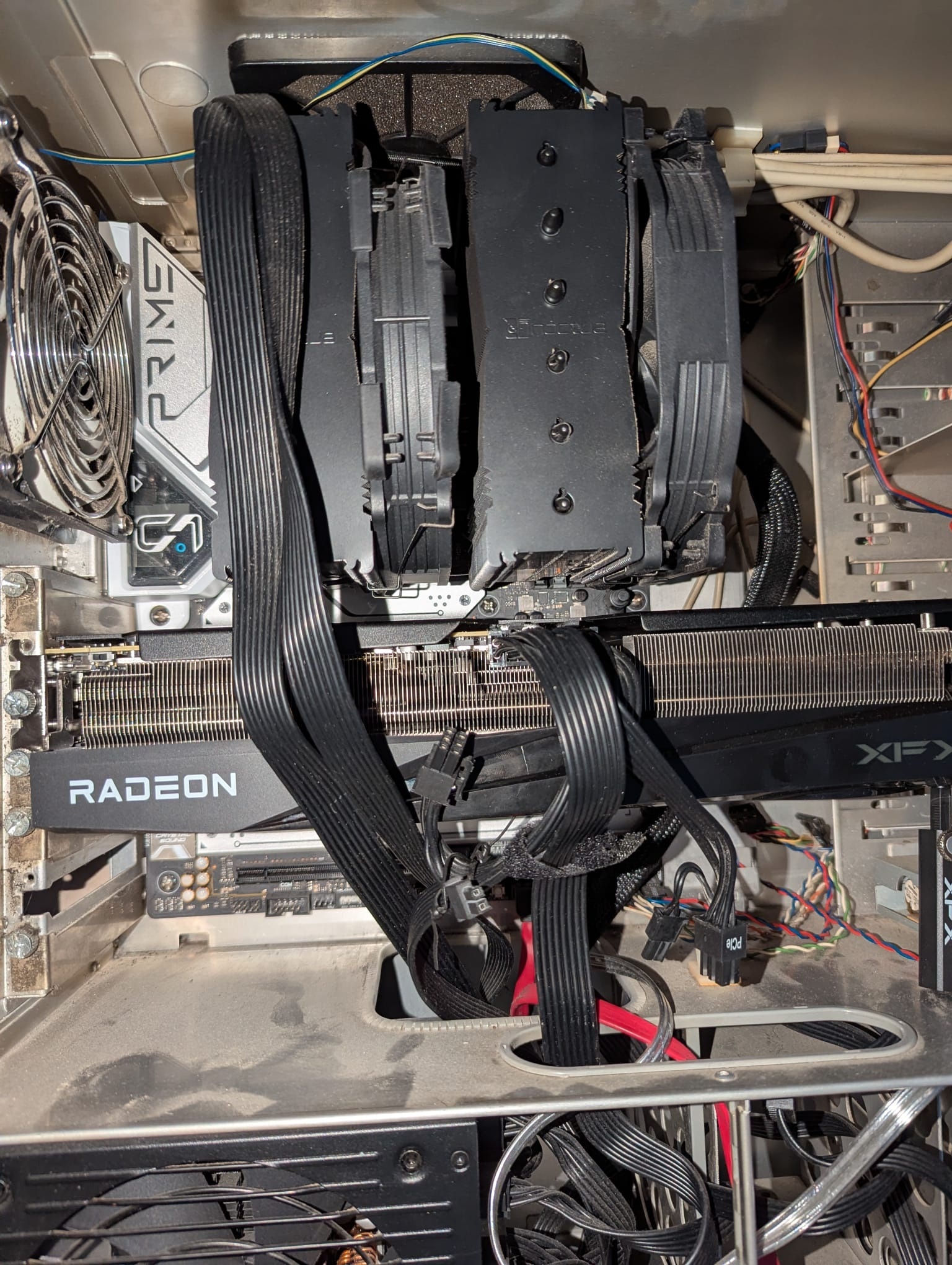

Looking at the cooler it does appear symmetrical to me, please see photos.

imgur.com

imgur.com

Discover the magic of the internet at Imgur, a community powered entertainment destination. Lift your spirits with funny jokes, trending memes, entertaining gifs, inspiring stories, viral videos, and so much more from users.
imgur.com imgur.com

mattyfez said:
Well is are the radiators symmetrical or not? Can you take a pic?
Click to expand...
imgur.com

imgur.com

Discover the magic of the internet at Imgur, a community powered entertainment destination. Lift your spirits with funny jokes, trending memes, entertaining gifs, inspiring stories, viral videos, and so much more from users.
imgur.com imgur.com

Sorry a better image here, definitely symmetrical.

throwaway4372 said:
Is that offset or non offset?
If you can move it up slightly I'd do that then it's ok.
Click to expand...
I already suggested this :P
deviation said:
Does the NH-D15 allow you to offset it? Some HSF's do, although not as efficient going against the offset mountings intended direction, in your situation, it would gain you clearance from the GPU.

If you've got some spare thermal paste, it may be worth you seeing if you can flip the mounting 180 degrees. I know the Peerless Assassin and Phantom Spirit offer an offset AM4/5 mounting, to add the spread over the cache IIRC, as I've seen someone test fit it 180 degrees the wrong way.
Click to expand...

That sucks..

I just checked and mine is this, I bought it in January 2023;



I mis-remembered..the logos on mine are the 'right' way up

For reference, mine's a z790 board, with a 9070xt


Last edited:
mattyfez said:
That sucks..

I just checked and mine is this, I bought it in January 2023;



I mis-remembered..the logos on mine are the 'right' way up

For reference, mine's a z790 board, with a 9070xt

Click to expand...

hornetstinger said:
I have Noctua as well, about as much clearance as mattzfez, logo on the left. D14
Click to expand...

So was I right? If he removes the offset bracket, he'll have more than enough clearance?
