G5ive

V F said:
Mmm! It's nearly Apple styling build quality. The little gap top right on the curve is killing it a little but I love it!
Click to expand...

Samaus said:
Its come out really well. Nice work dude!
Click to expand...

Thanks! I was hoping for a kind of Apple-inspired interior to go with the case itself.
Sadly there's not much I can do about the gap, without removing the only part of the case which is riveted in place. The steel I used as cover has a much smaller gap than the foam I used as mock up though at least.

Some benchmarks for those interested:

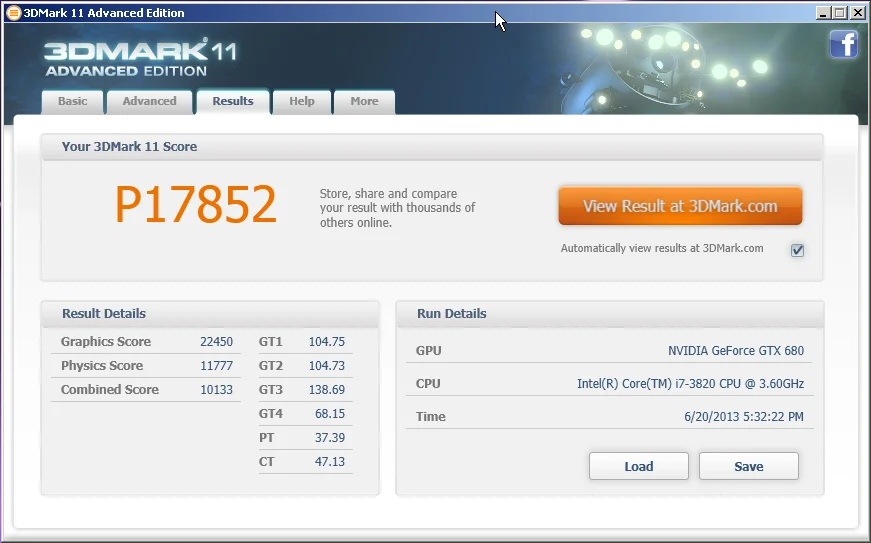

3Dmark 11
  • P Score: 17,852

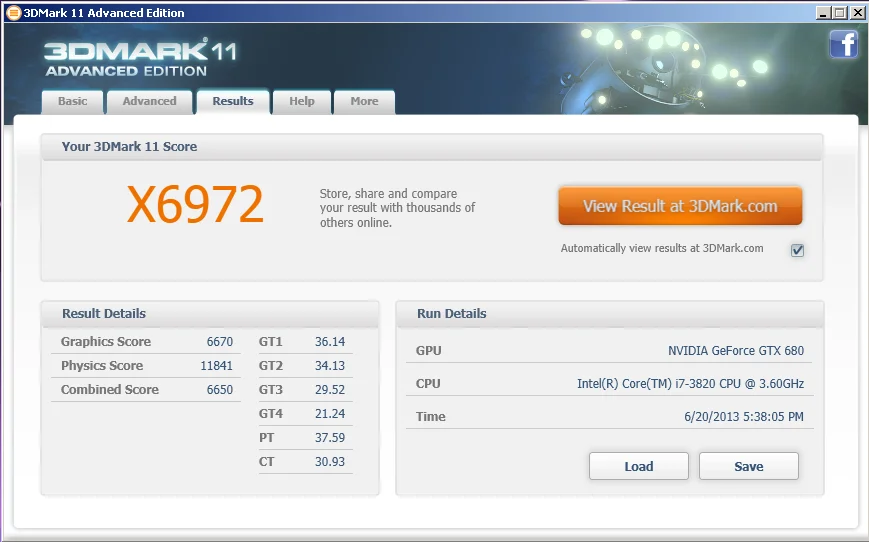

  • X Score: 6,972

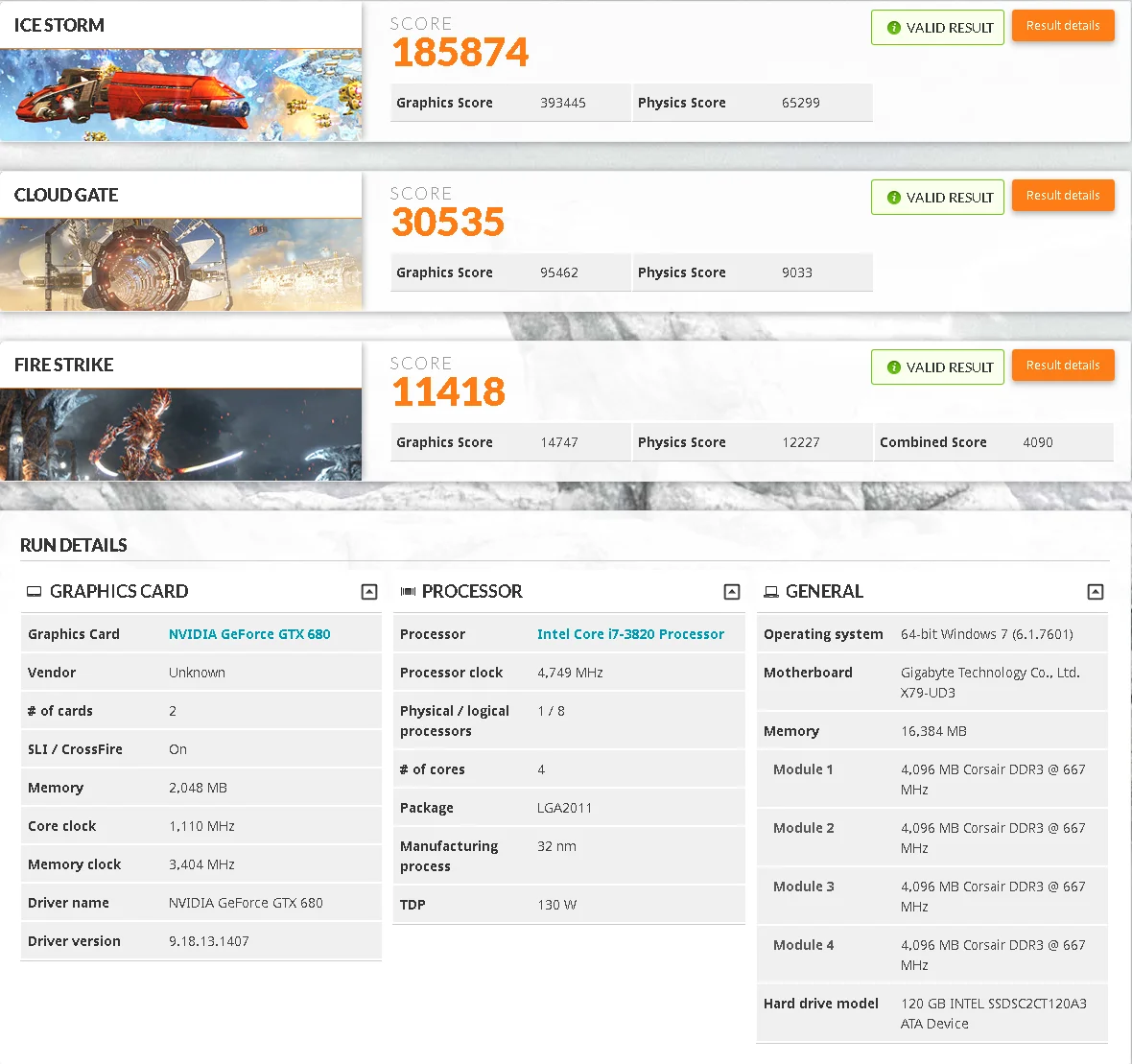

Latest 3Dmark:
  • Ice Storm 185,874
  • Cloud Gate 30,535
  • Fire Strike 11,4181

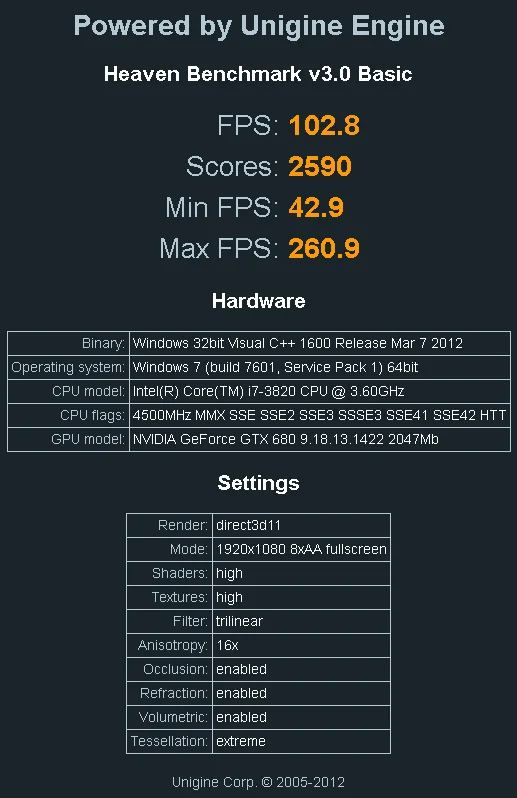

Heaven:
  • FPS 102.8
  • Scores 2590
  • Min FPS 42.9
  • Max FPS 260.9

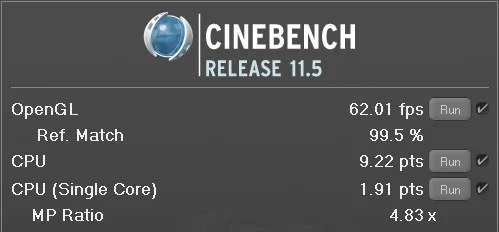

Cinebench:
  • CPU 9.22
  • CPU (Single Core) 1.91
  • OpenGL 62.01 FPS

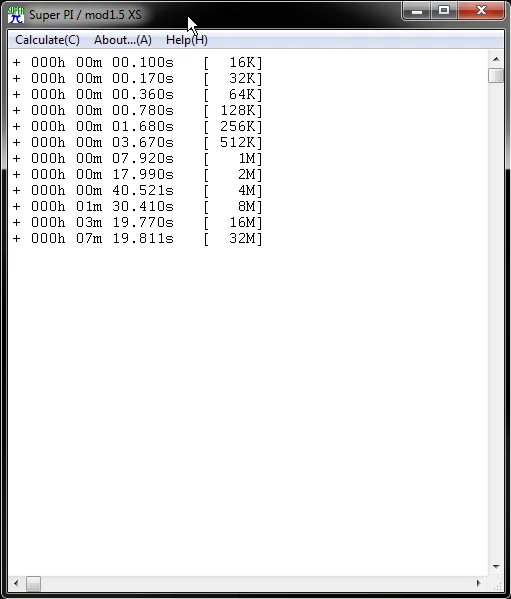

Super Pi:
  • 16K 0.100s
  • 32K 0.170s
  • 64K 0.360s
  • 128K 0.780s
  • 256K 1.680s
  • 512K 3.670s
  • 1M 7.920s
  • 2M 17.990s
  • 4M 40.521s
  • 8M 1m 30.410s
  • 16M 3m 17.770s
  • 32M 7m 19.811s


CPU temperatures under IBT is range from 52°C to 60°C (~30°C idle 22°C ambient)
GPU temperatures under Furmark reach 45-49°C (~30°C idle 22°C ambient)

All in all I'm really happy with the temps. I knocked the CPU down from 4.75GHz to 4.625GHz just because of the voltage, the temperatures were well under control.

I know I've said this build was finished.. BUT.. It finally is! I had a little trouble with the acrylic window but I'm happy to say that everything is now sorted!

I'm just going to leave this little gif here for now, more pics should follow soon...

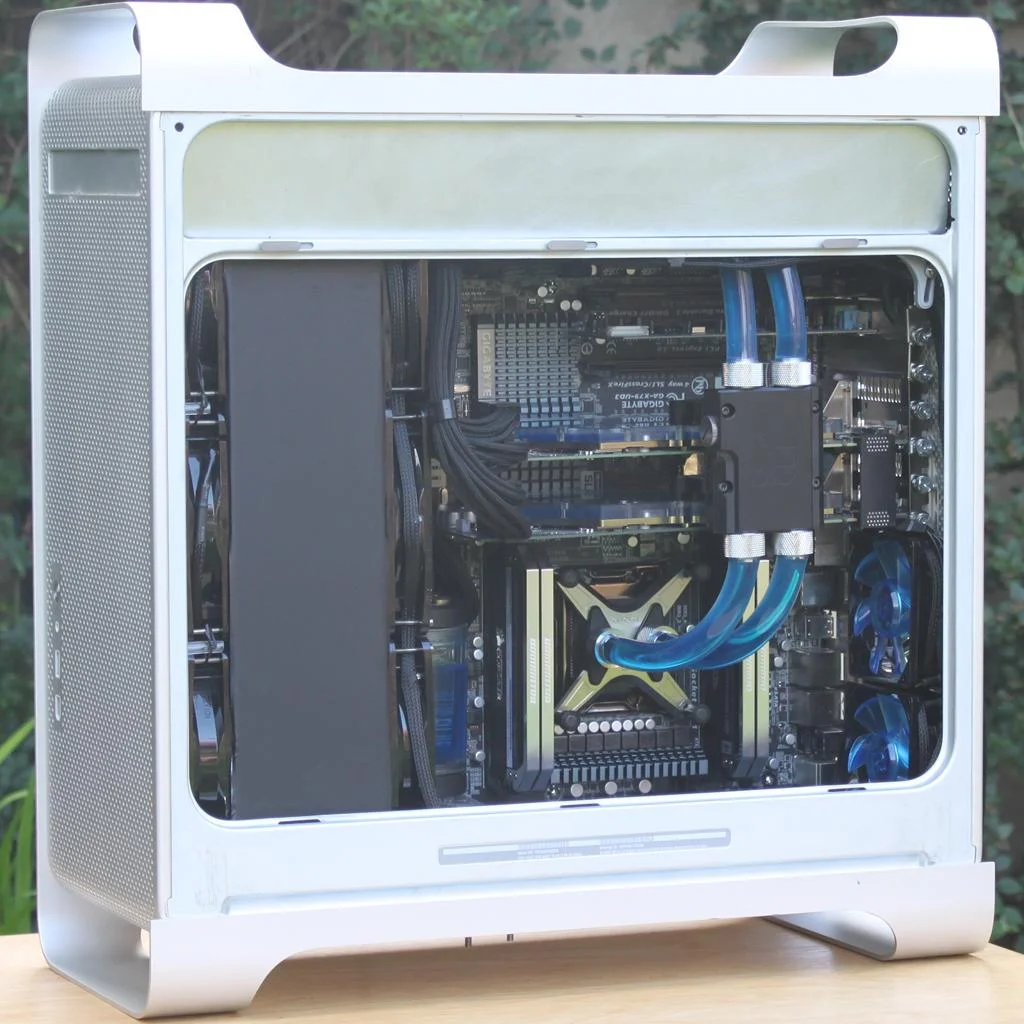

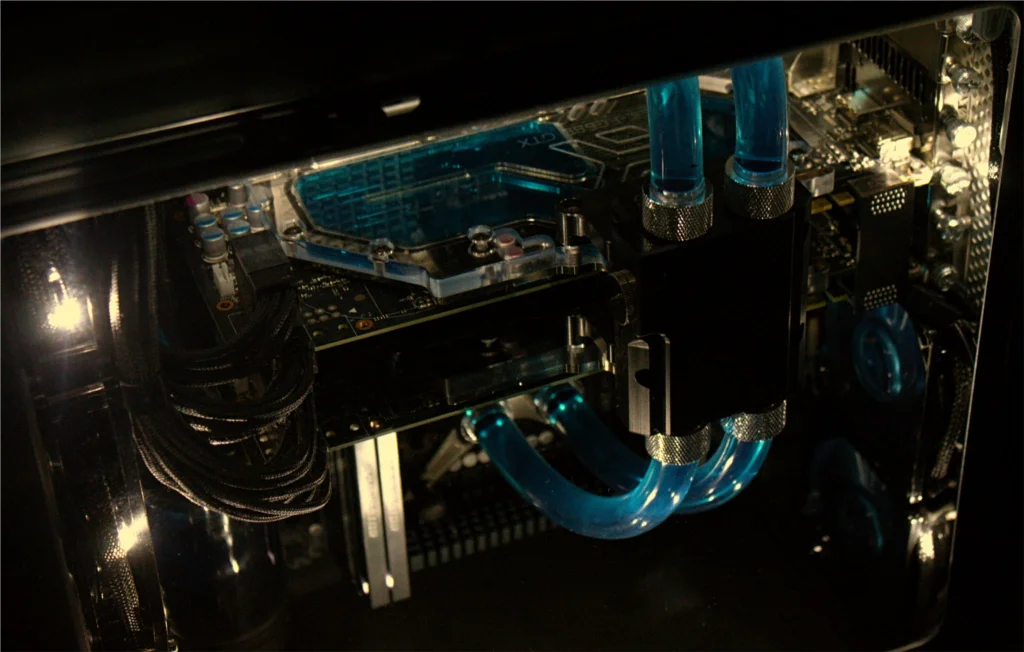

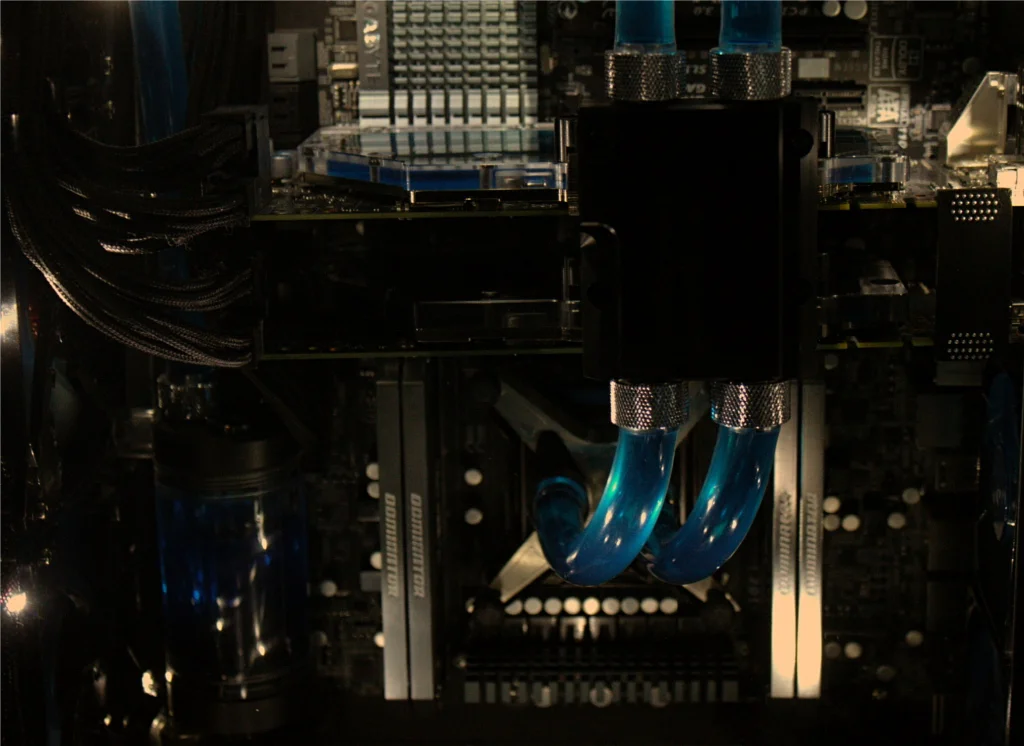

And a still of the cleaned up insides - removed Alphacool logo (and ended up vinyl wrapping the radiator after the paint chipped off), made a cover for the top compartment, and fixed the GPU cables:

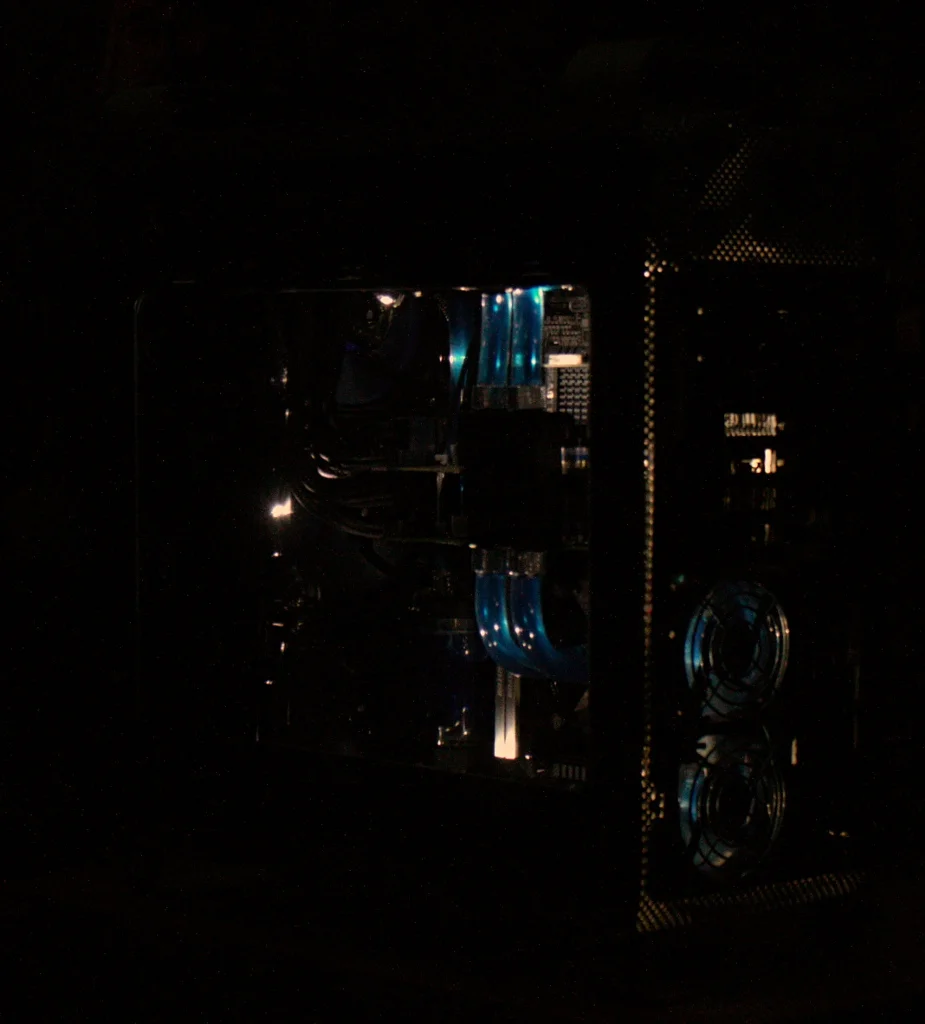

And here's a little gif showing how the 2 way mirror works:


If it's lighter outside the case, the acrylic is mirrored, if it's lighter inside the case then the acrylic is transparent. It looks amazing in the dark, the exposure in the gif doesn't really do it justice.

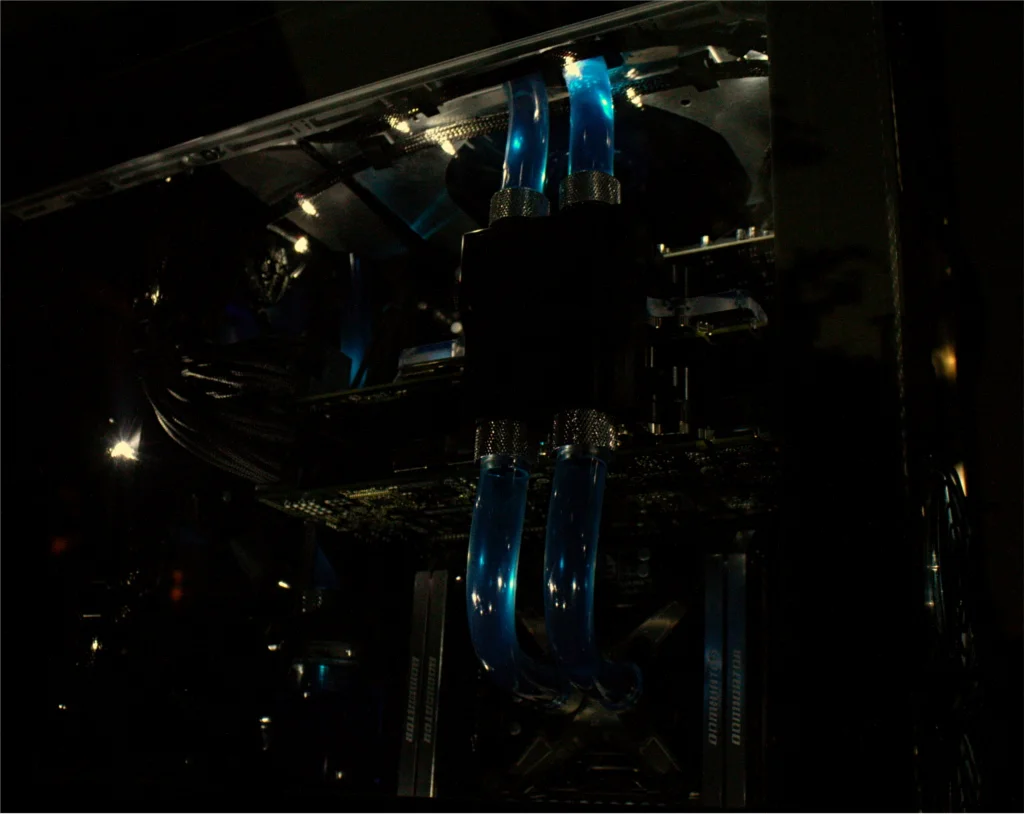

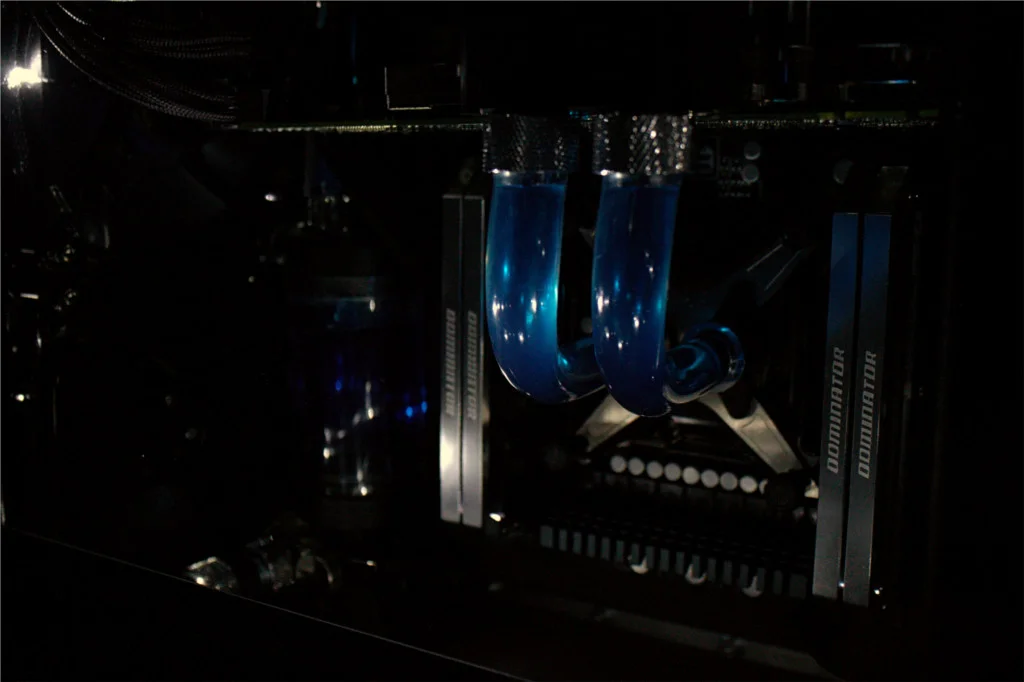

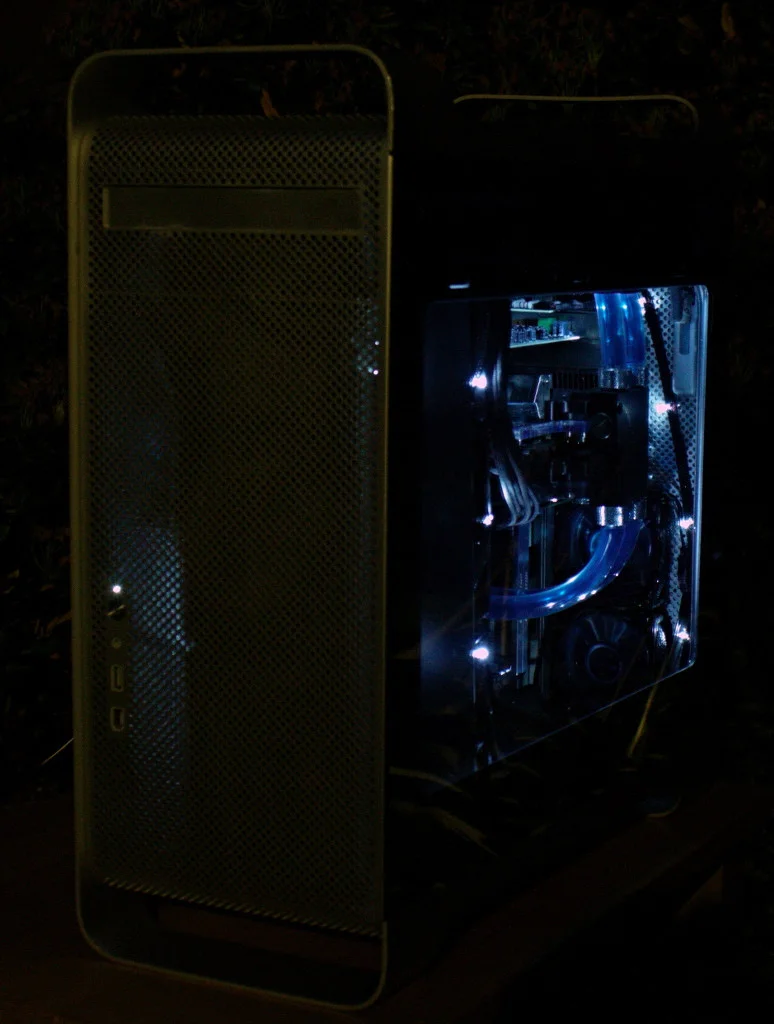

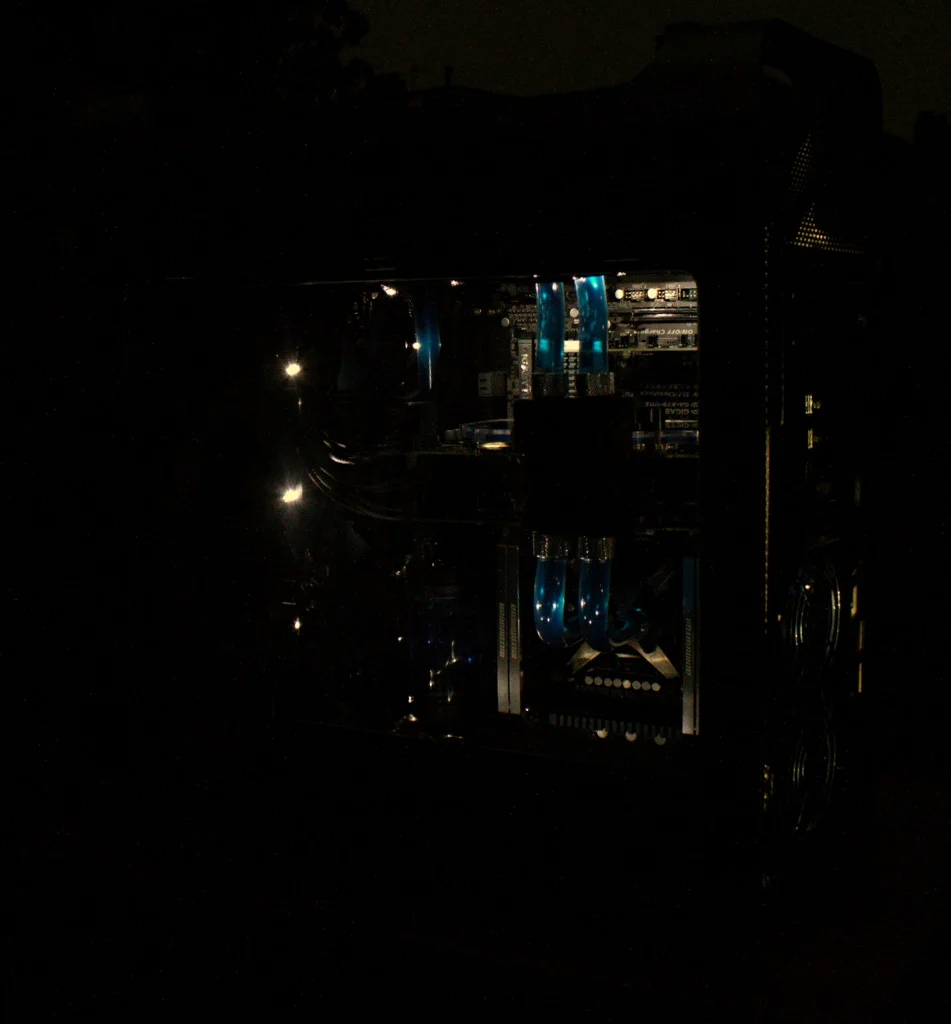

Here's a couple more shots of the build in the dark. Believe it or not these are all taken with the mirrored side panel on.














Absolutely stunning build.

Hows performance on the MIPS cpu block? Tis' very nice :D

Edit: Just seen MIPS have closed down, damn :(

Shawy said:
And here's a little gif showing how the 2 way mirror works:

If it's lighter outside the case, the acrylic is mirrored, if it's lighter inside the case then the acrylic is transparent. It looks amazing in the dark, the exposure in the gif doesn't really do it justice.
Click to expand...

That is! really something.

pgi947 said:
Absolutely stunning build.

Hows performance on the MIPS cpu block? Tis' very nice :D

Edit: Just seen MIPS have closed down, damn :(
Click to expand...

I love the MIPs block! Great performance with minimal restriction - perfect for my parallel loop.

V F said:
That is! really something.
Click to expand...

jonnyp1993 said:
I love the way you have looped it. Its looks top notch.

Very well done :)
Click to expand...

silk300 said:
Wow excellent stuff mate.
Click to expand...

Thanks guys! I wasn't sure how the PC community would take to the Mac case, but so far so good - I'm chuffed you all like it!

Absolutely stunning! :D I might have said it at an earlier point in your thread but I wish I had the skills and the balls to tackle a project like this! I love the G5 cases. So much.

I actually cut a few corners on this build - especially with the cables - there's no where to hide anything in my new build though!
