fireman999 · 14 Oct 2014 at 10:41

Cant wait to see the finished project.

DynoDaz · 14 Oct 2014 at 14:45

Looking good...

B N3GATIVE · 18 Oct 2014 at 19:12

fireman999 said:
Cant wait to see the finished project.

DynoDaz said:
Looking good...

Thanks,it will still have steady if smaller updates.

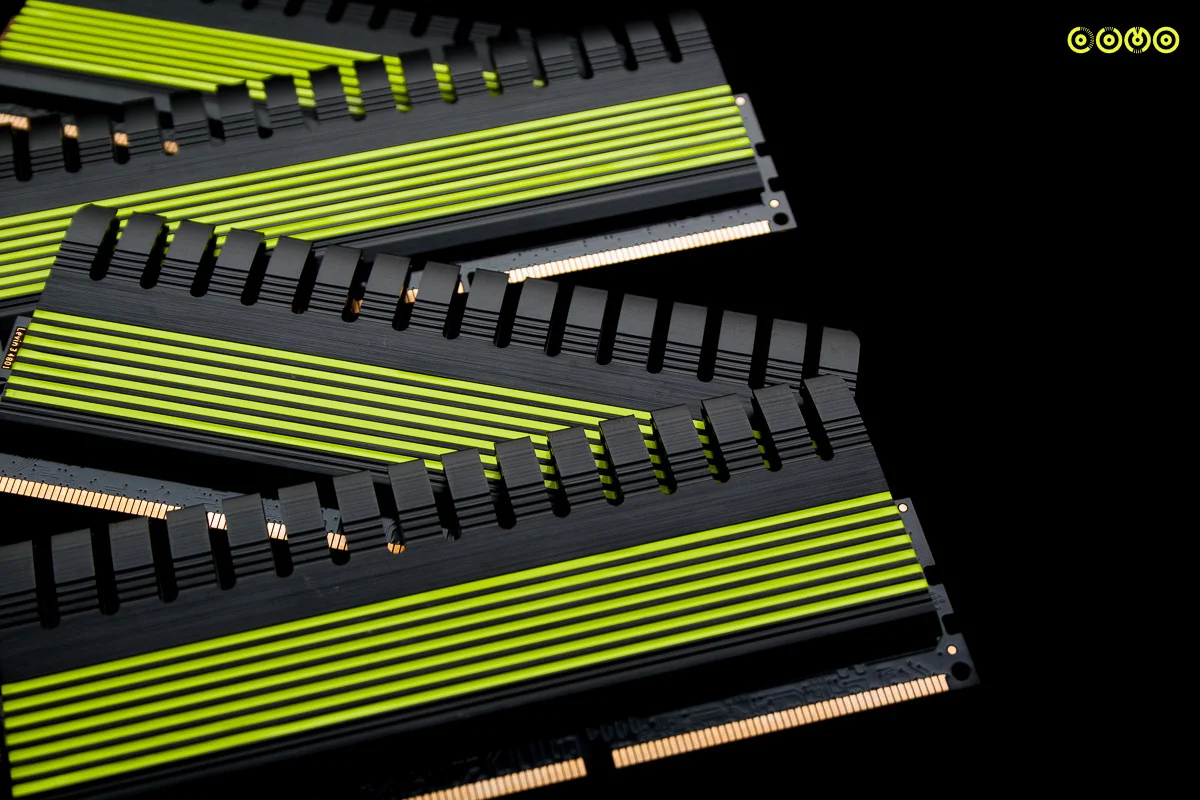

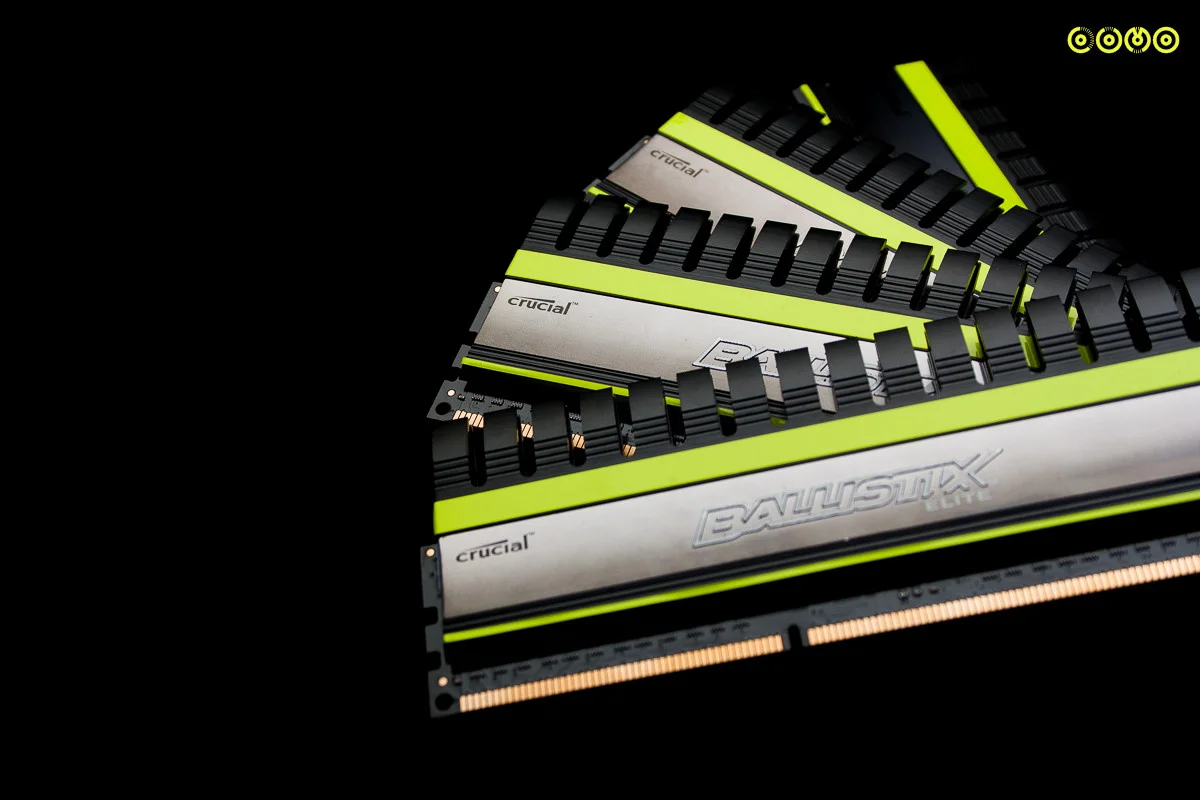

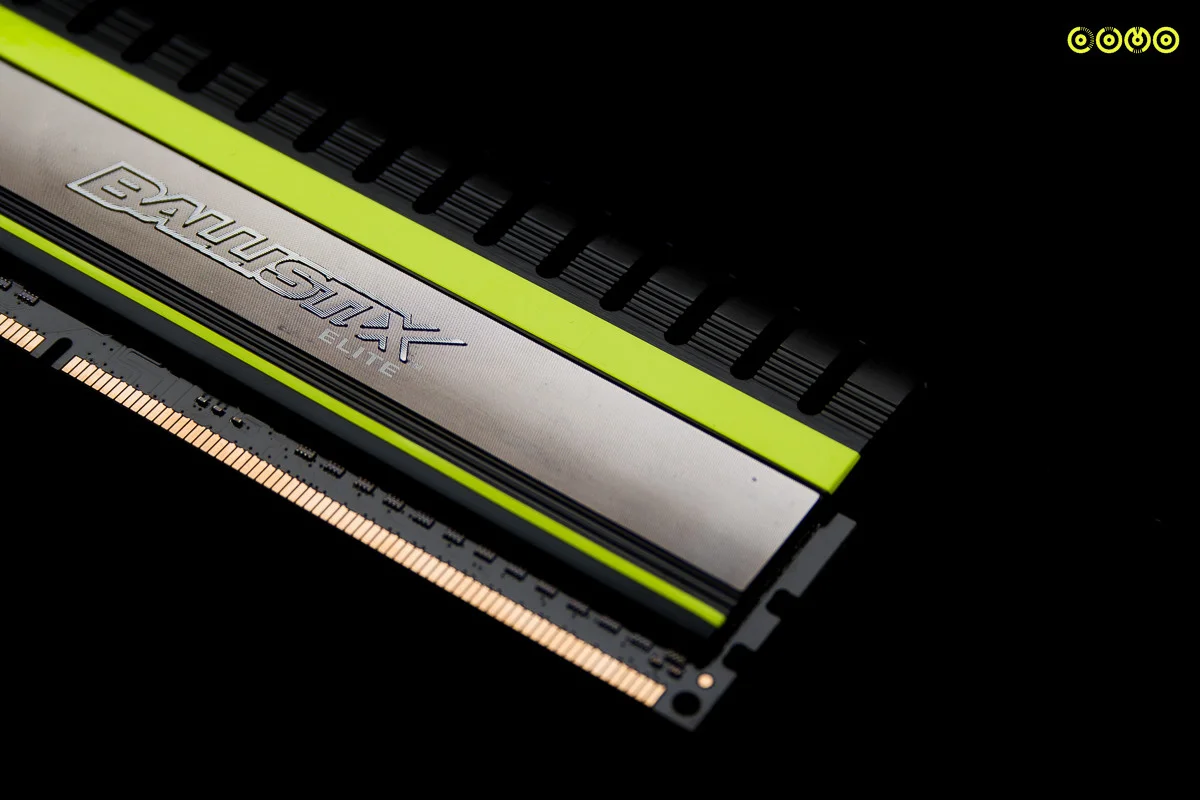

Today was all about the RAM.

Pinstriped and left otherwise untouched.

B N3GATIVE · 22 Oct 2014 at 17:29

The EK package arrived!

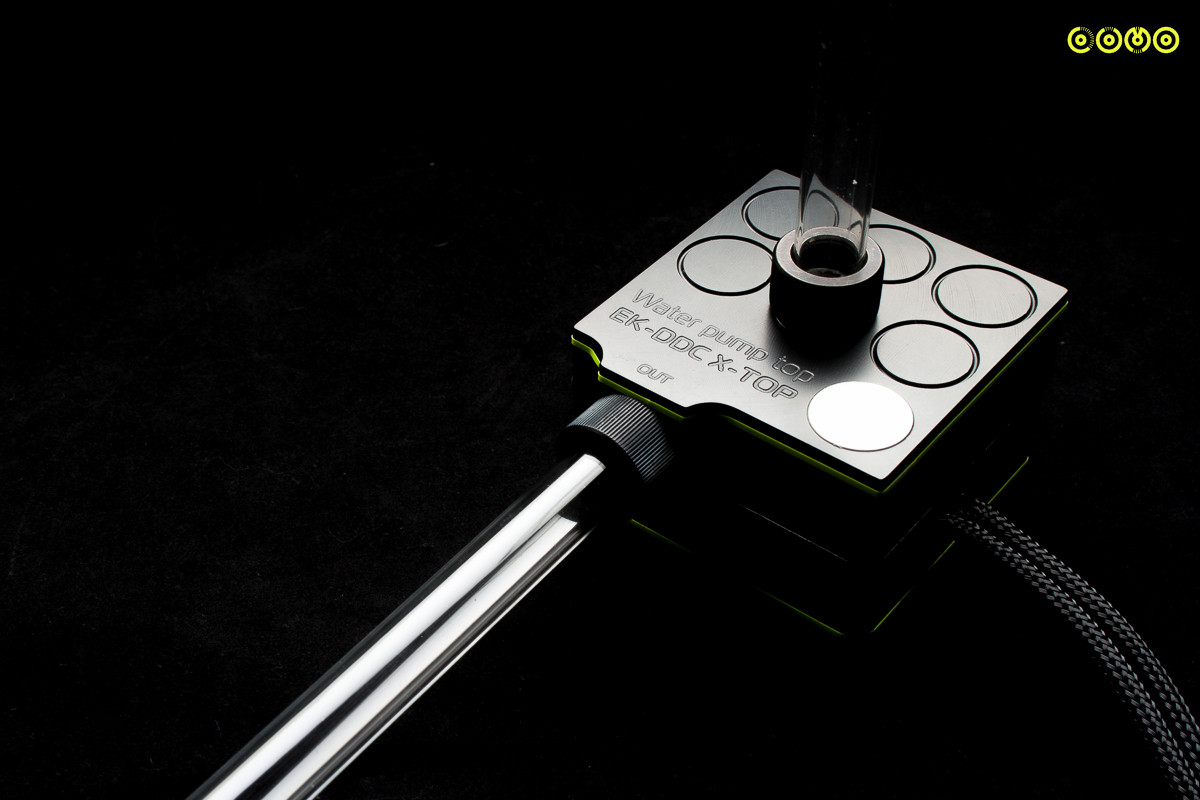

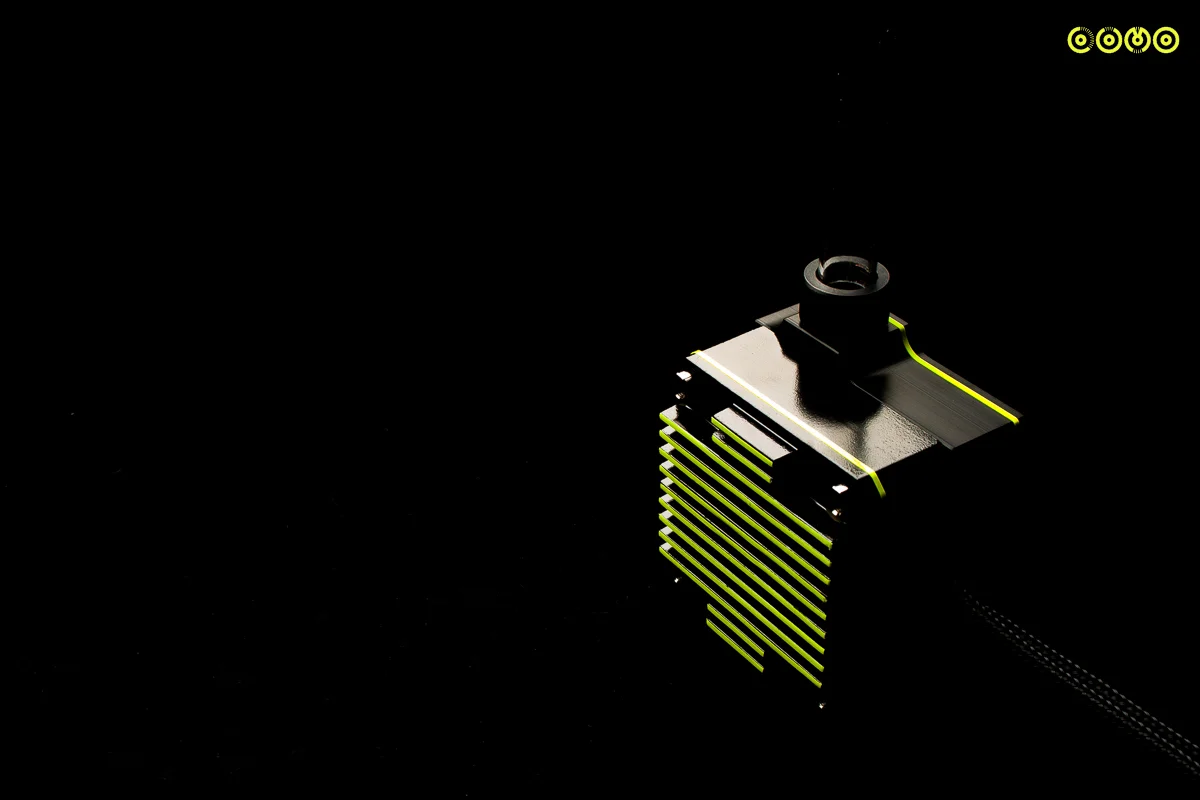

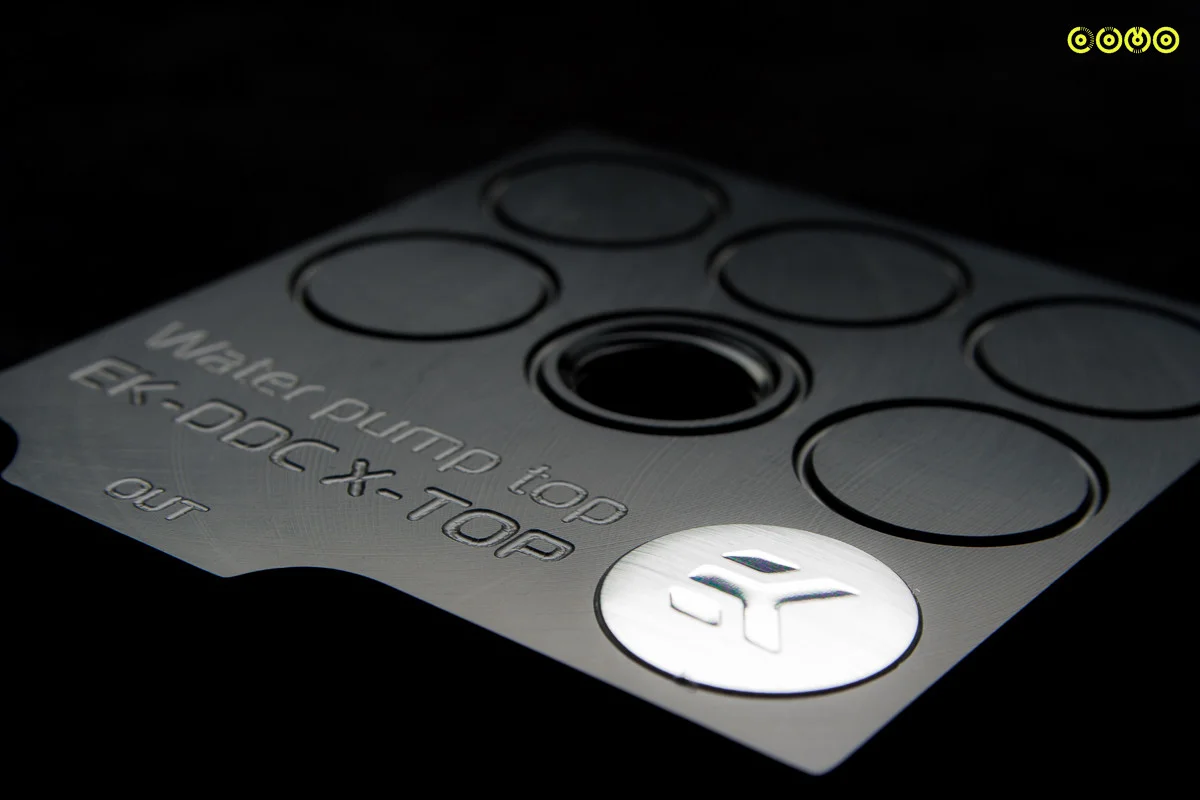

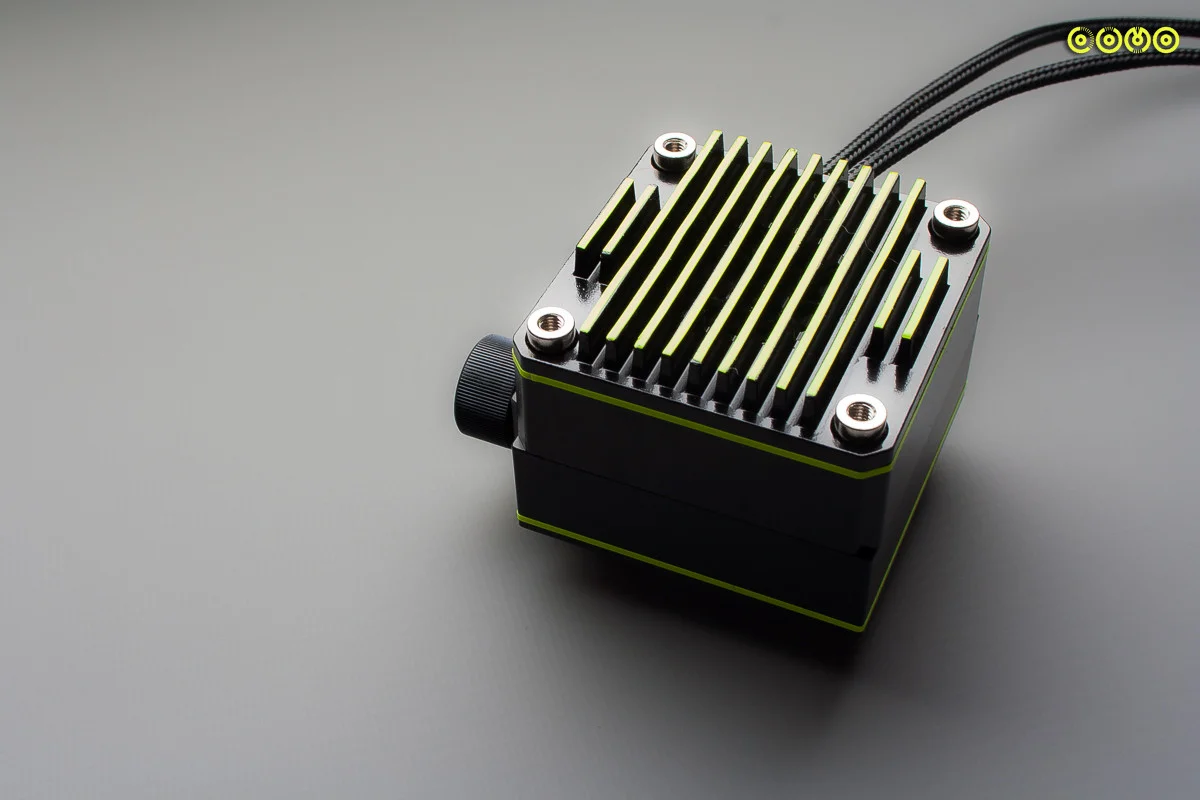

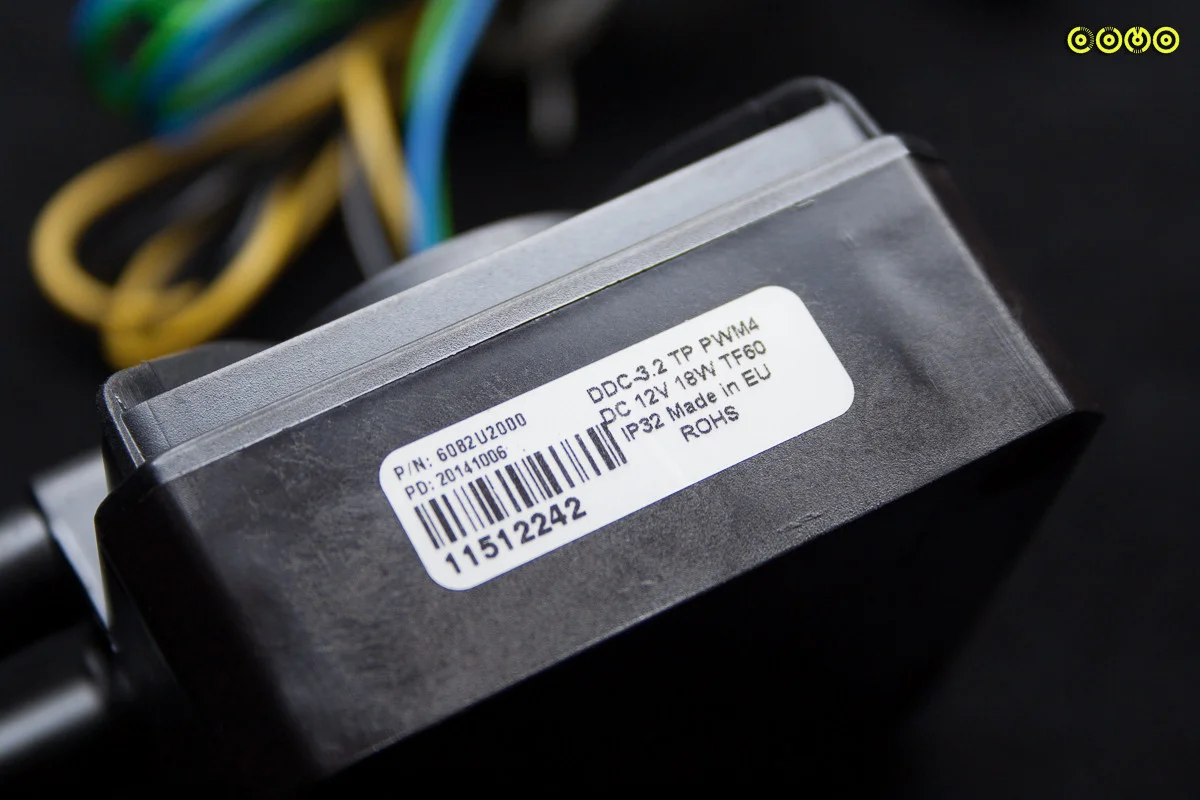

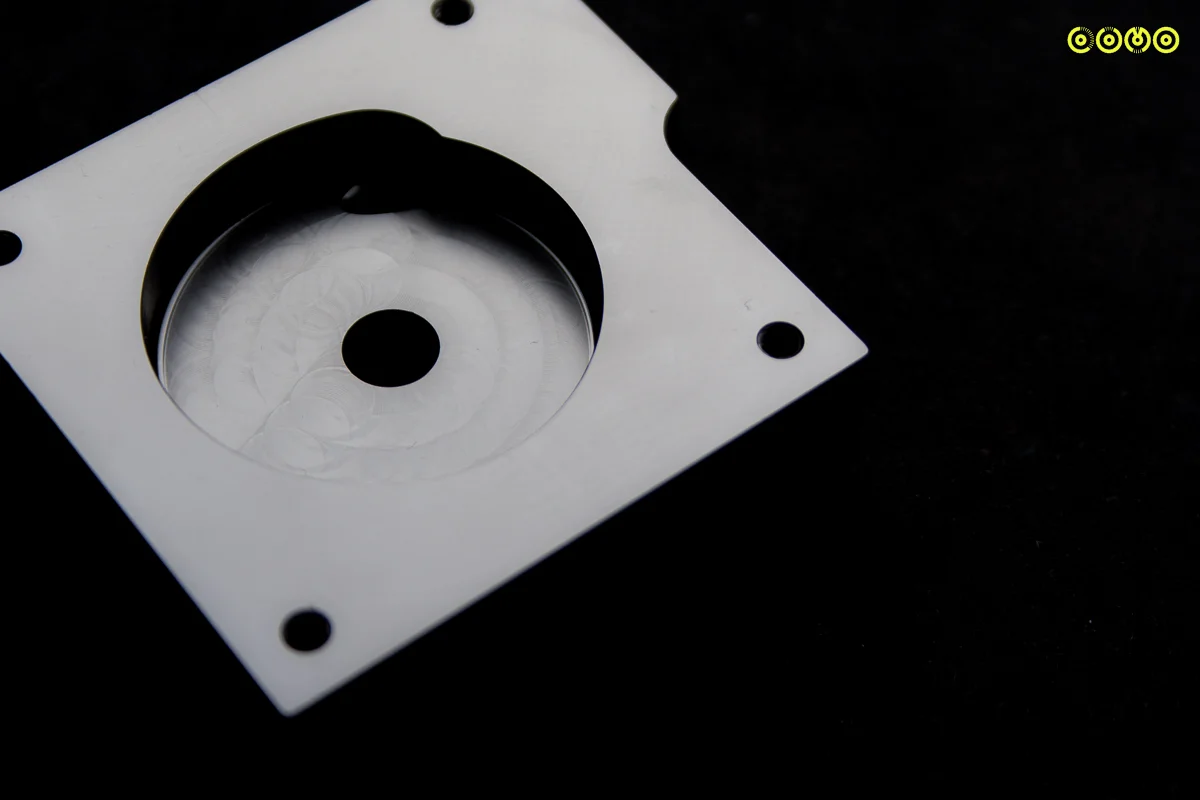

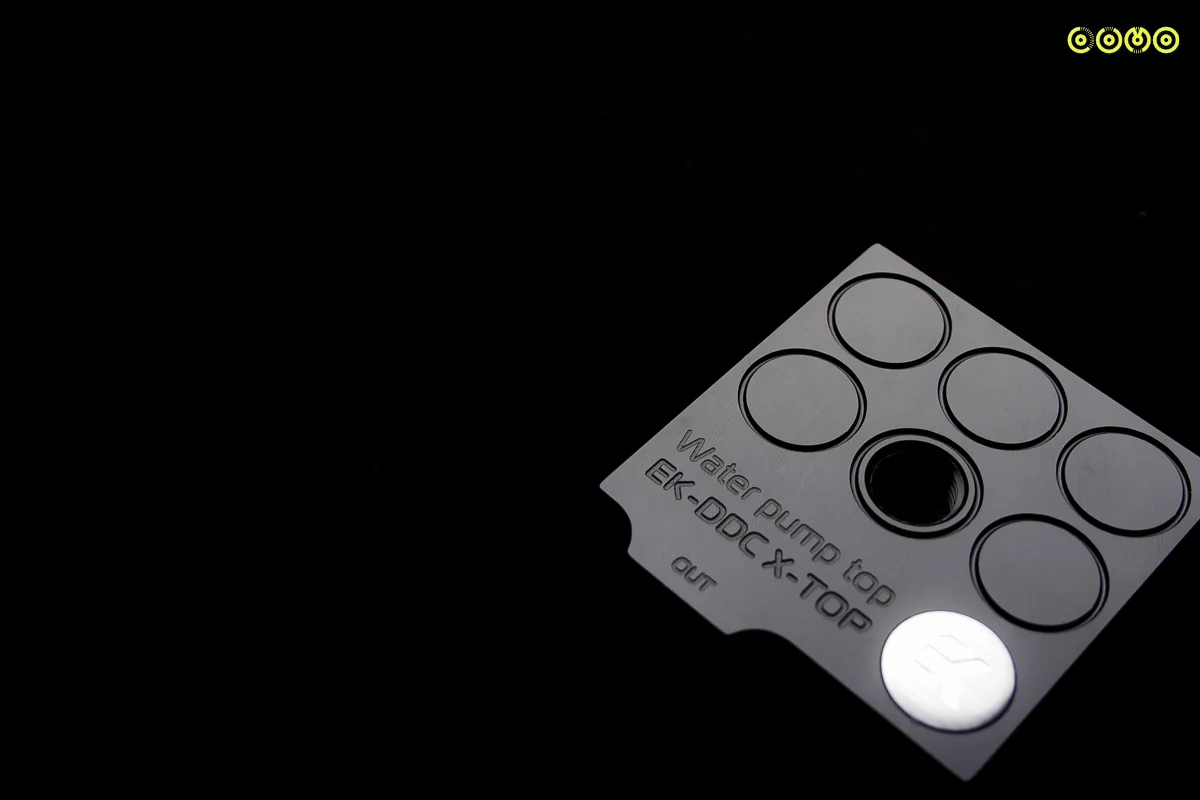

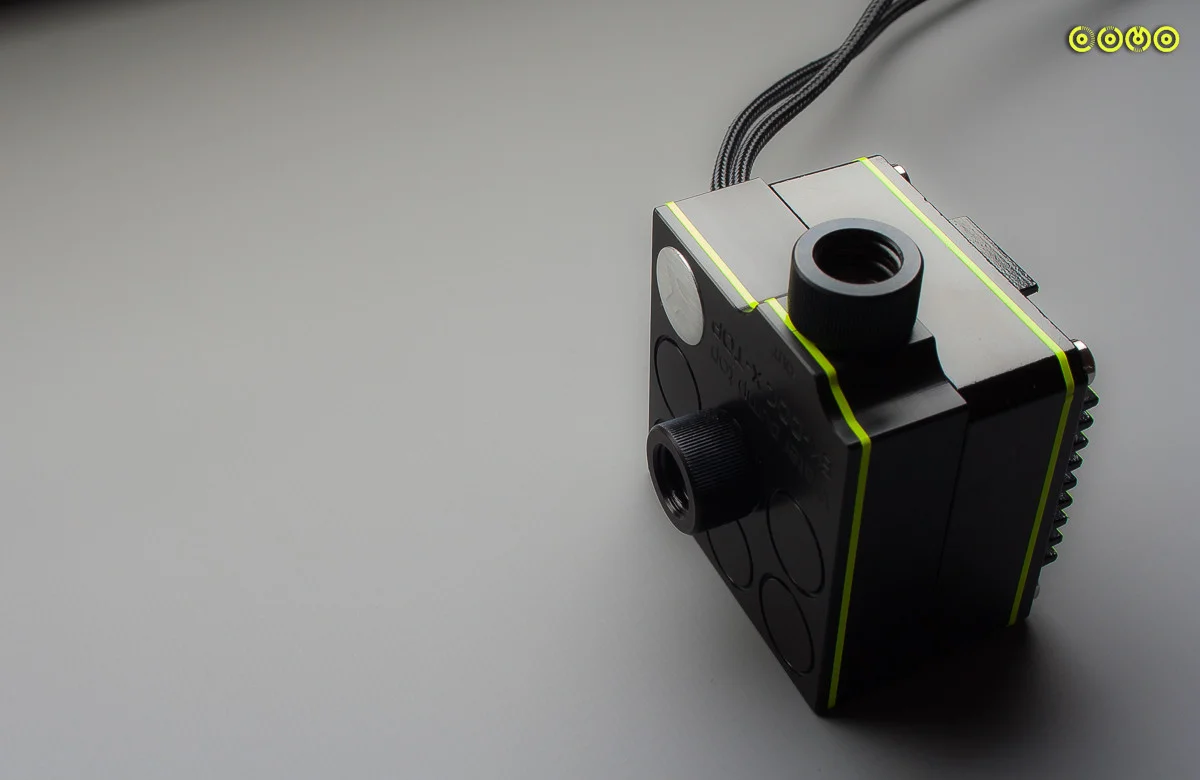

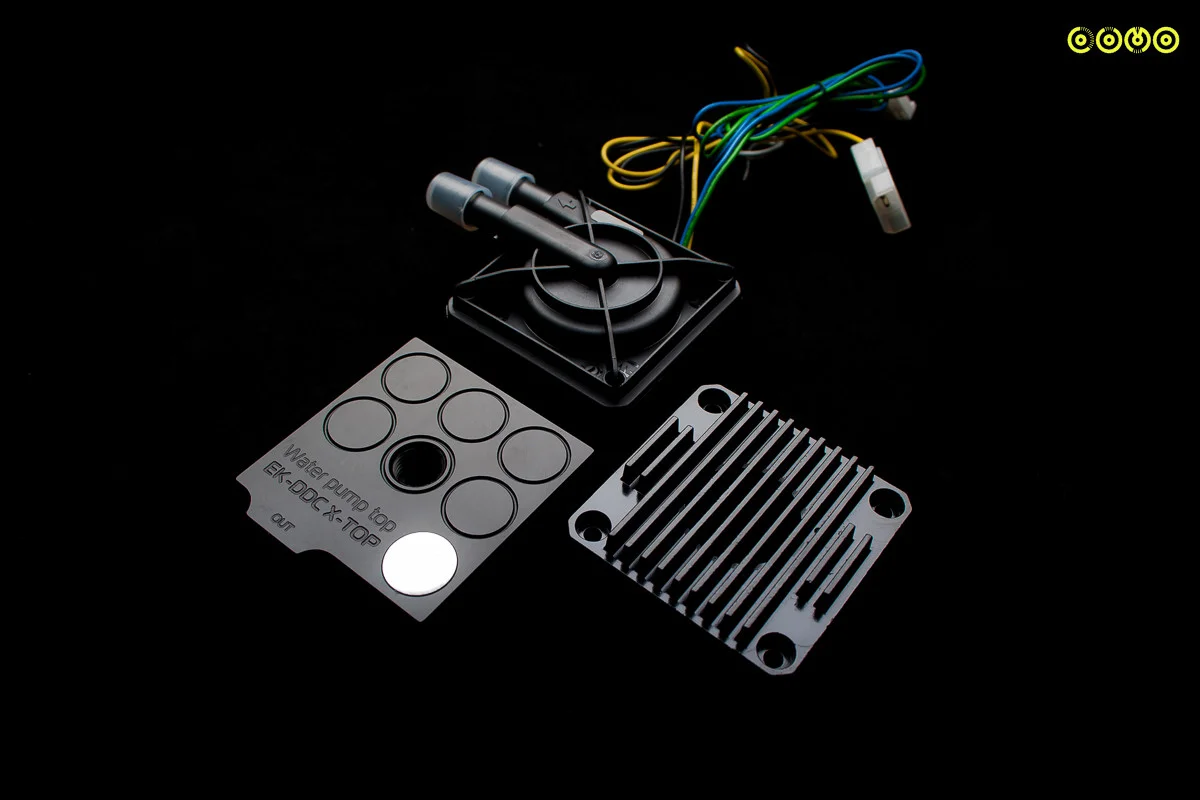

Lets start with the pump...

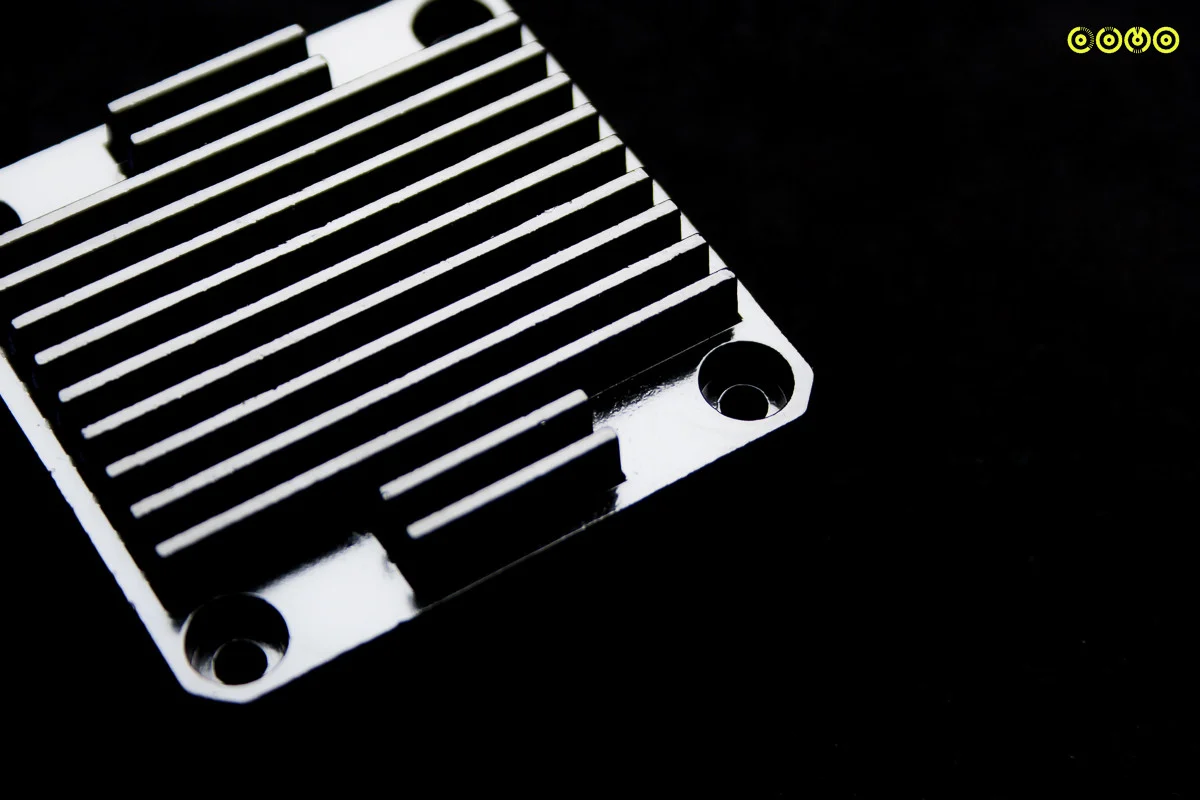

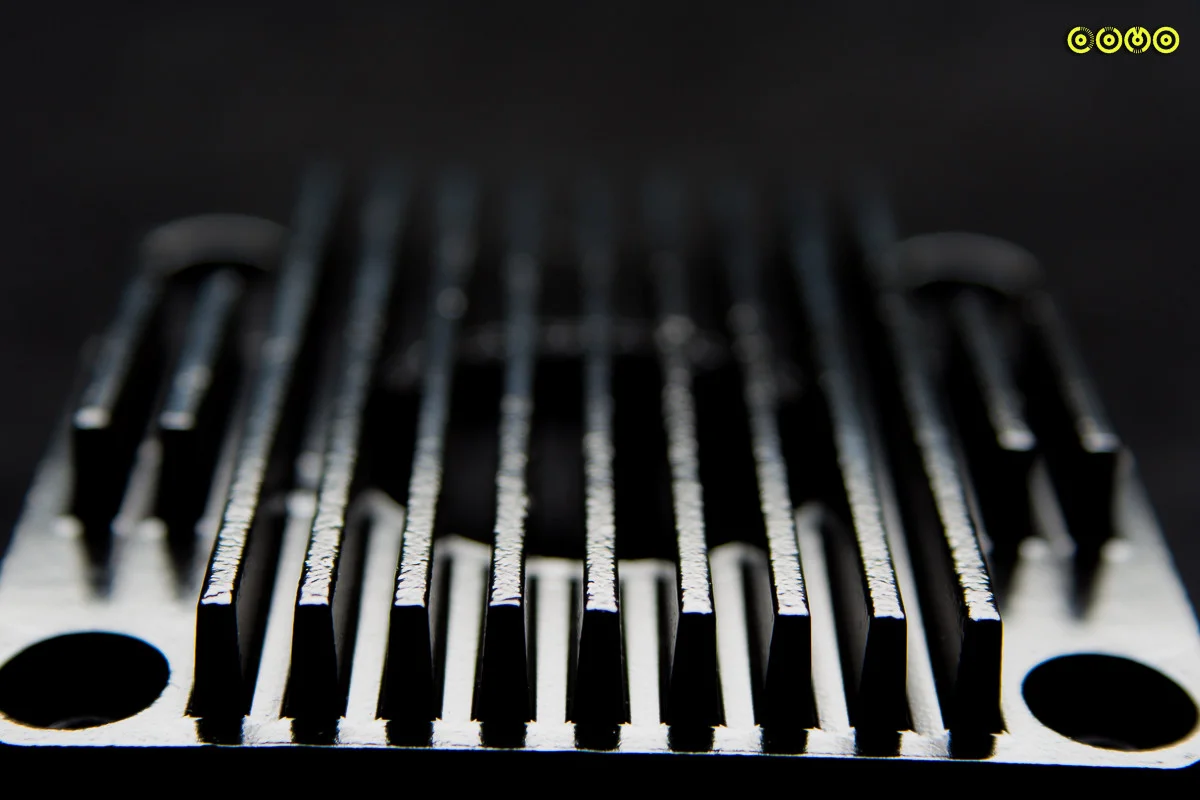

Now,im a well known advocate of the mighty D5 but this build doesnt have the space so I had to go with the DDC. As any watercooling enthusiast will tell you,there are caveats for running DDC's at high speeds,namely keeping it cool. The heatsink kit will go a long way in to doing just that.

If you are going to have a DDC then go PWM,your pump will thank you for it.

Fittings and rads were also sent....pics later,you have all seen fittings before but I made the fatal mistake of washing my black background with normal detergent and its ruined for close up stuff,the optical brighteners just shagged it proper for macro stuff...

Lesson learnt!

P4Clock · 22 Oct 2014 at 19:10

this is looking fantastic. i like the vinyl on the GFX pcb's

B N3GATIVE · 23 Oct 2014 at 20:29

Did a bit more striping on the finished top to tie it in too.

I have a new background coming tomorrow,a nice dark grey vinyl,should allow me to make dark shots without having to make severe adjustments to kill the background out.

Ewanb75 · 23 Oct 2014 at 20:38

That ram looks the nutz.. nice job.

B N3GATIVE · 24 Oct 2014 at 18:09

Ewanb75 said:
That ram looks the nutz.. nice job.

Thanks!

The new backdrop arrived today so I took a few quick shots.i think its worked wonders!

Opinions welcome.

B N3GATIVE · 24 Oct 2014 at 19:50

Double post....

kris8583 · 24 Oct 2014 at 20:43

Looking super, great vinyls and excellent pictures

I need to spend more time with my Canon 1000D!

B N3GATIVE · 24 Oct 2014 at 22:29

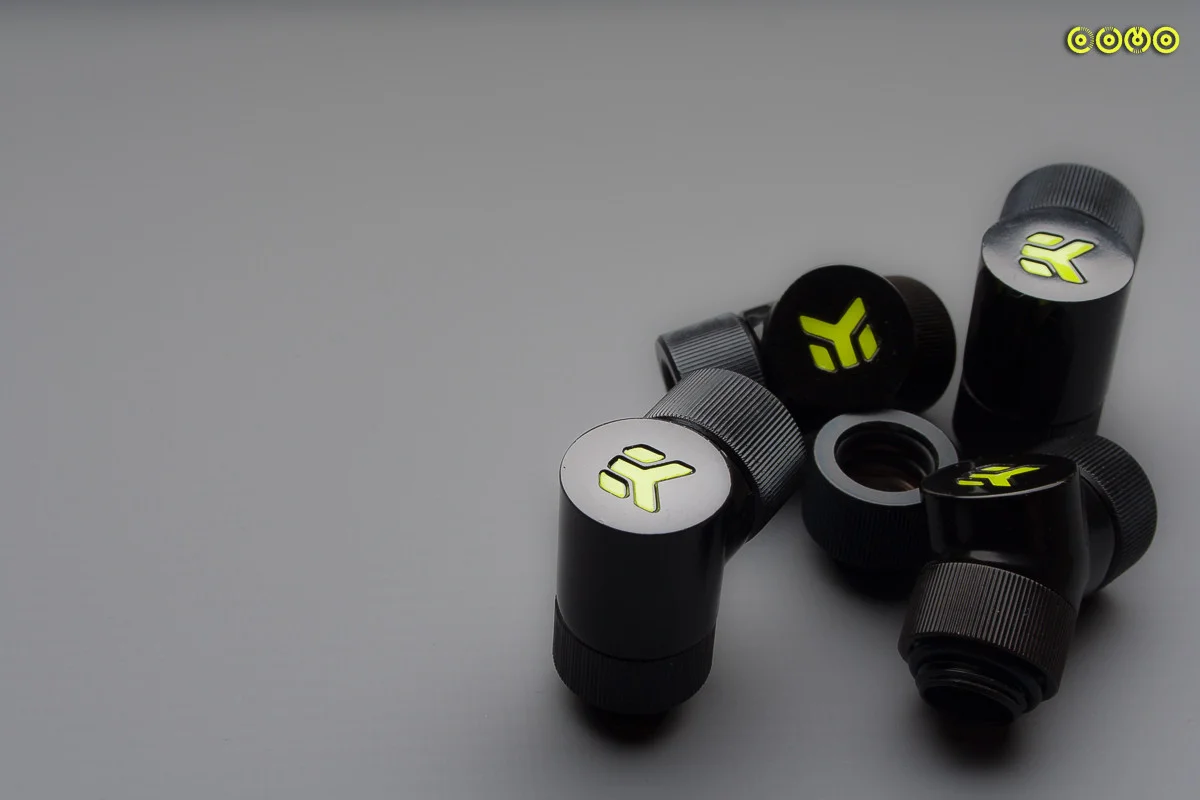

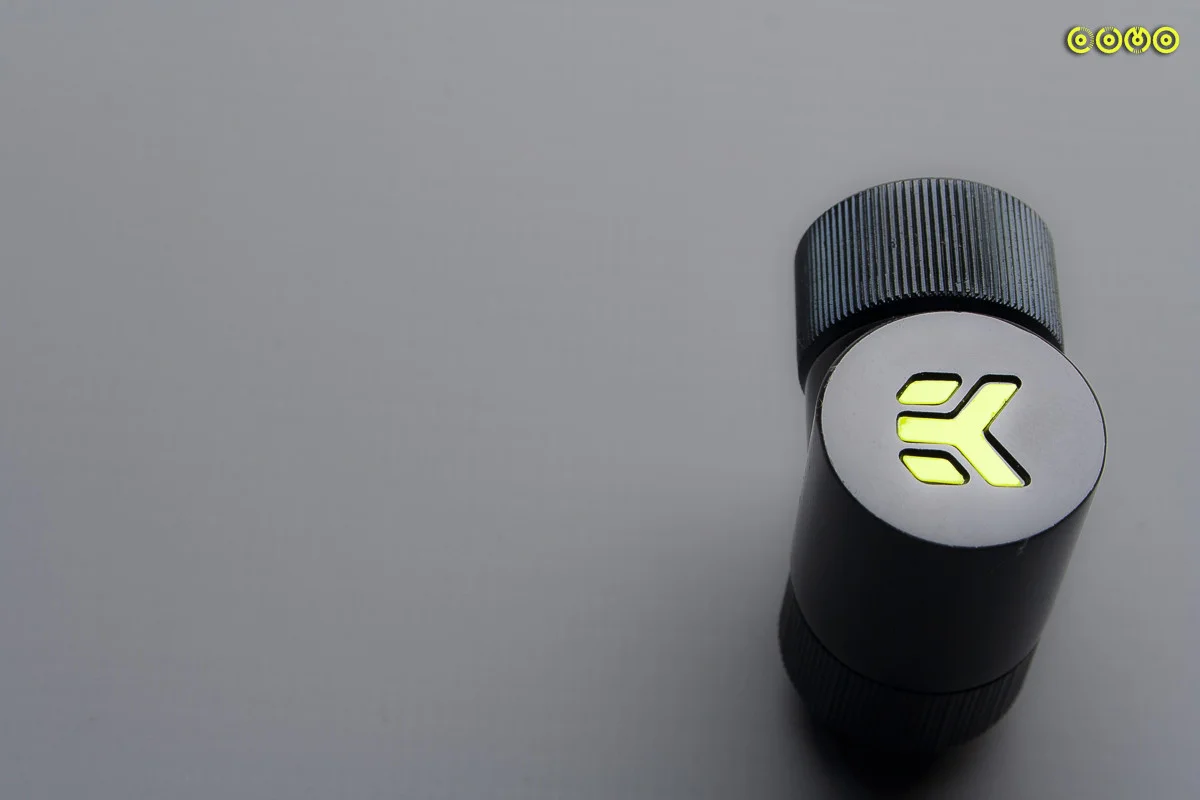

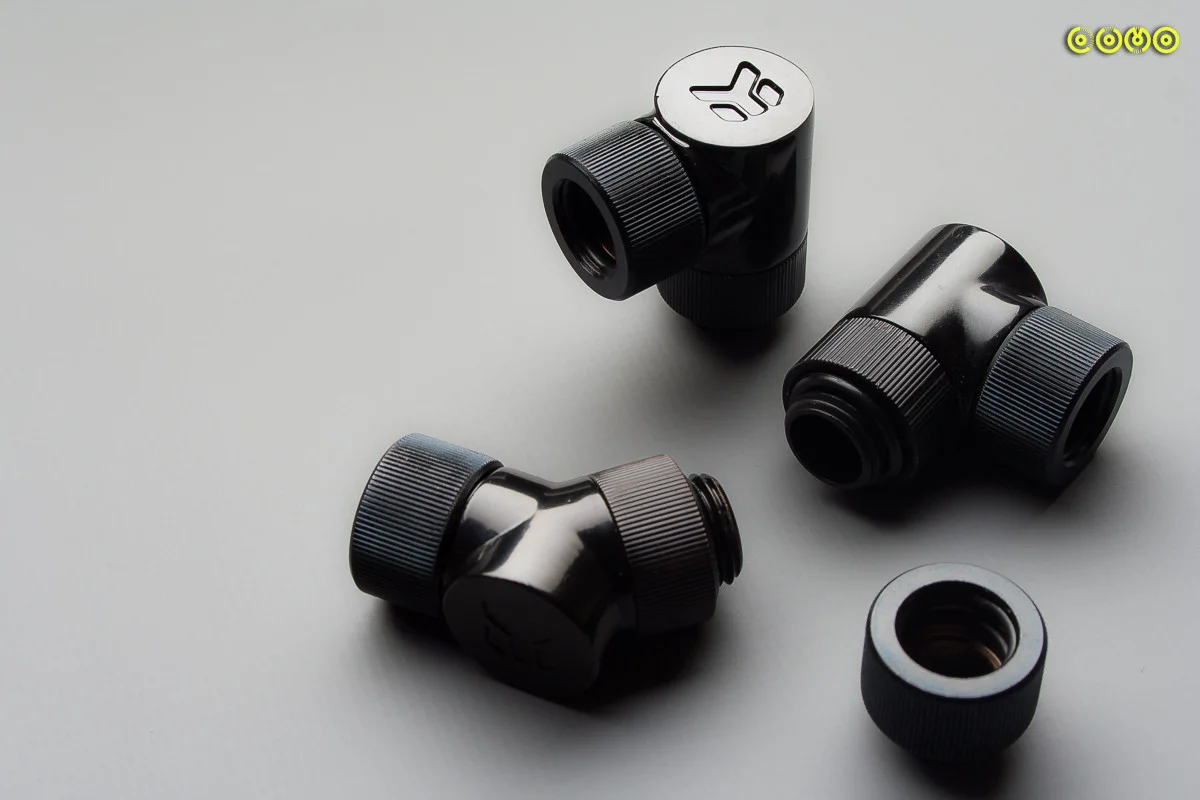

I got deluged in posts on another site about the subject of me modding the fittings....and ,yes,I am.....

This was supposed to be for tomorrow....

B N3GATIVE · 25 Oct 2014 at 17:15

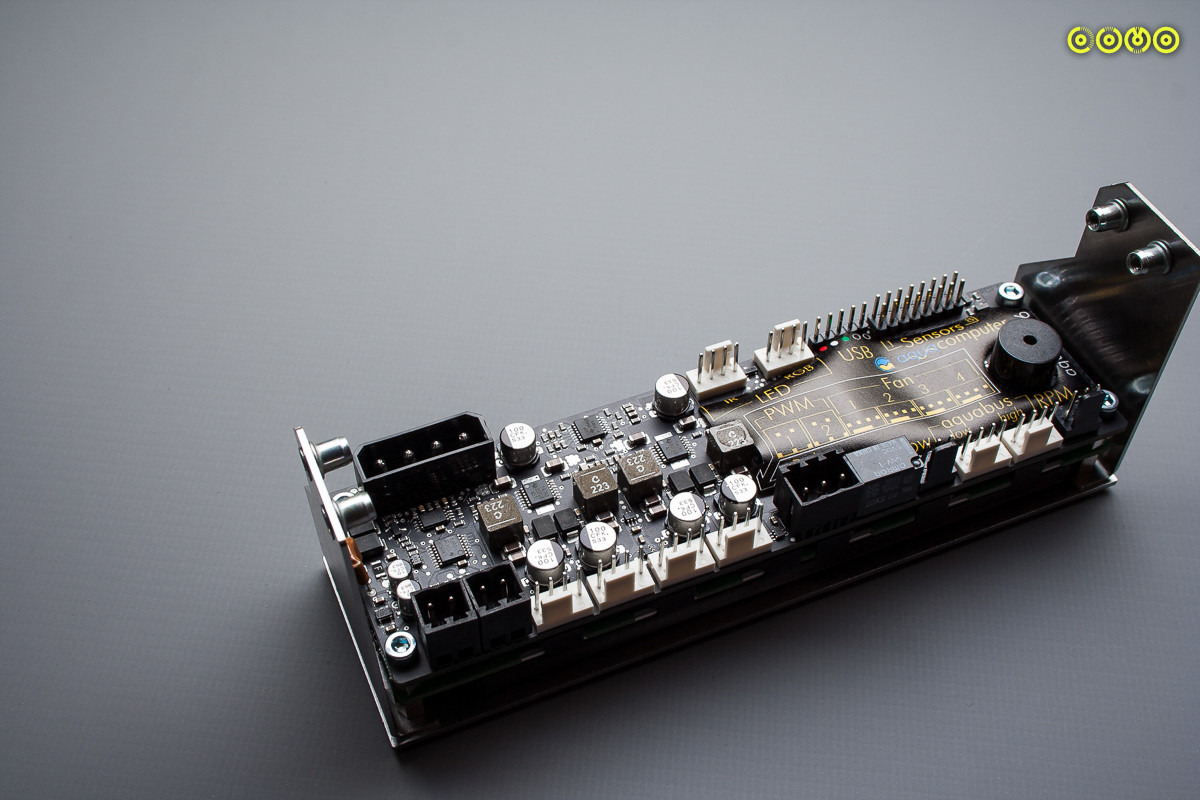

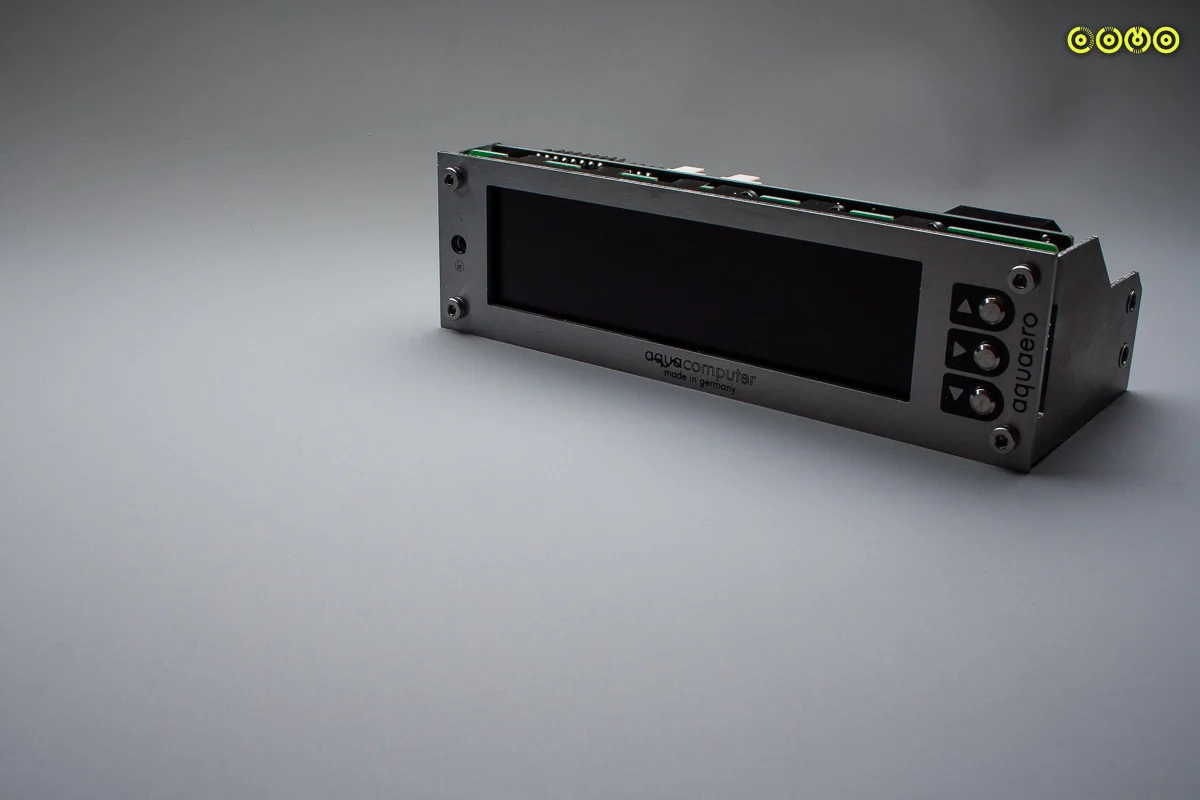

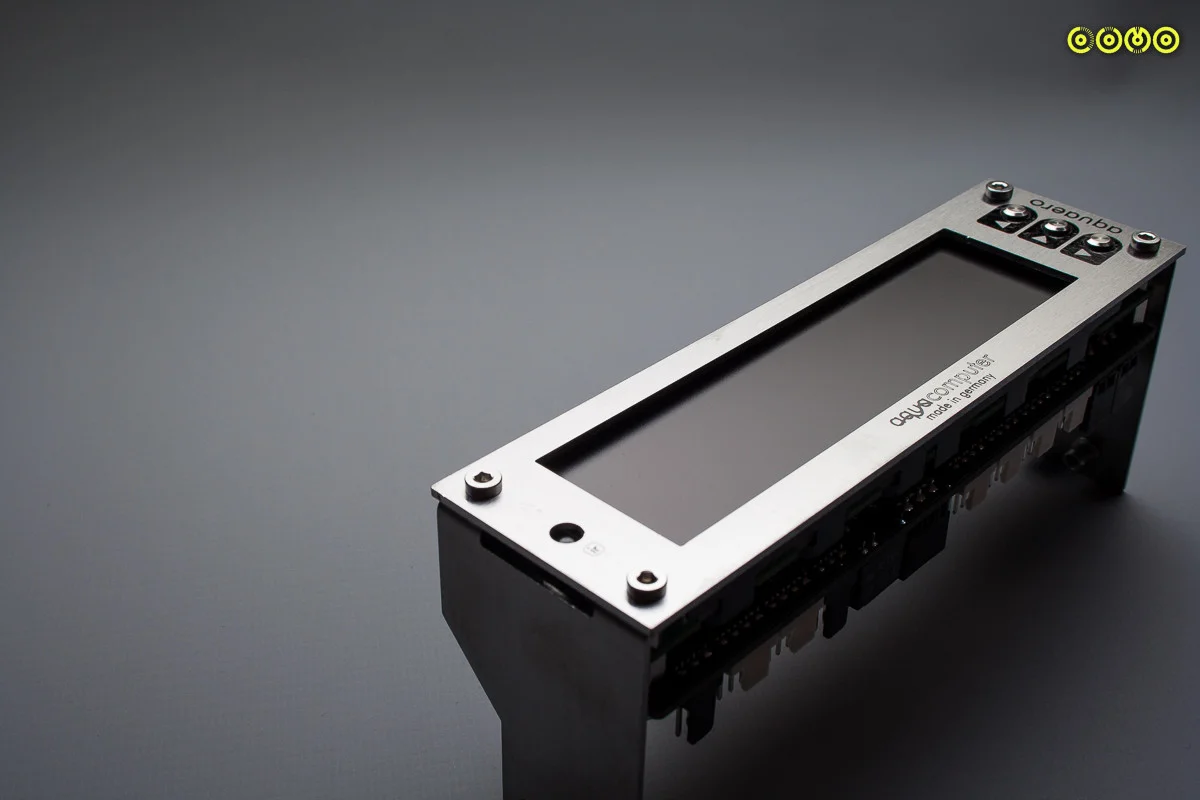

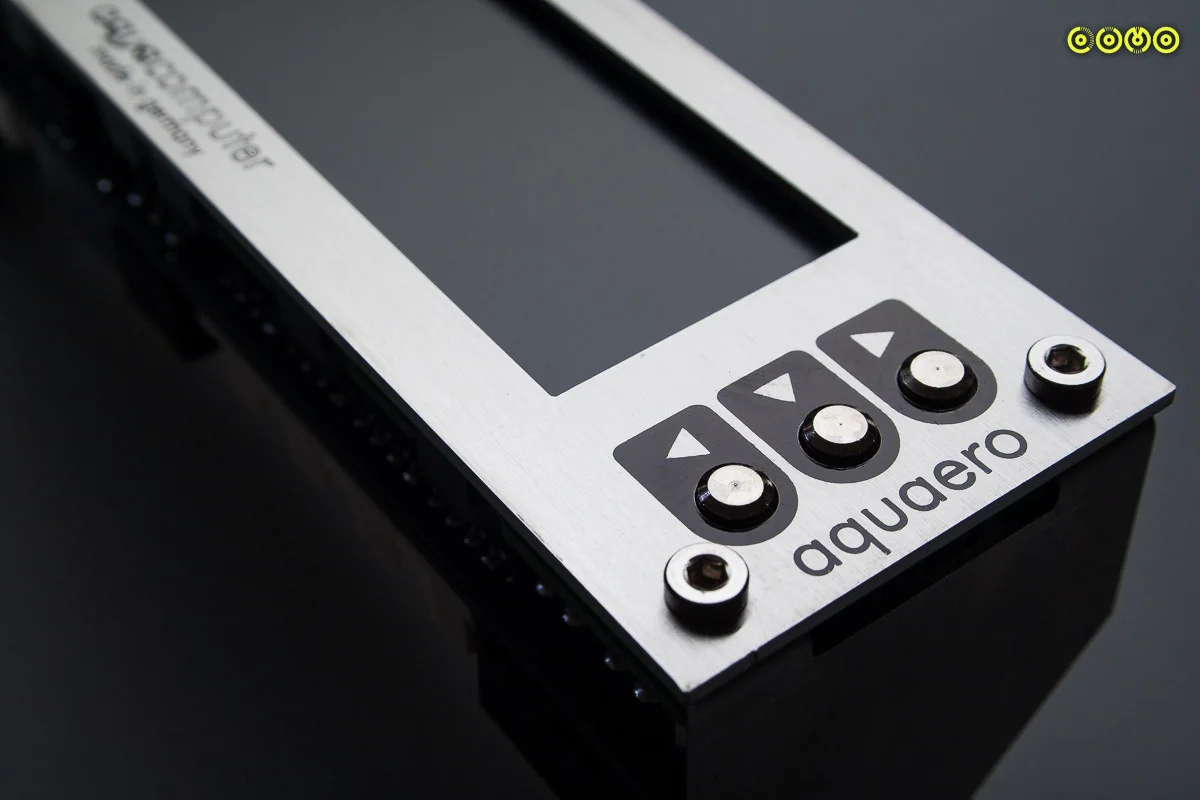

No watercooling loop is complete without control and again I turn to Aquacomputer for their Aquaero 6 Pro controller,provided by my goto watercooling supplier,[REDACTED]

I decided against the touchscreen number,mainly as I normally just disable i anyway and this has a better look to it,just the screen and the 3 buttons. The heatsink is on route as we speak.

I love the functionality of the unit,particularly the IR on/off,it totally declutters the front and carries everything I would want to know about the state of the rig.

B N3GATIVE · 27 Oct 2014 at 20:09

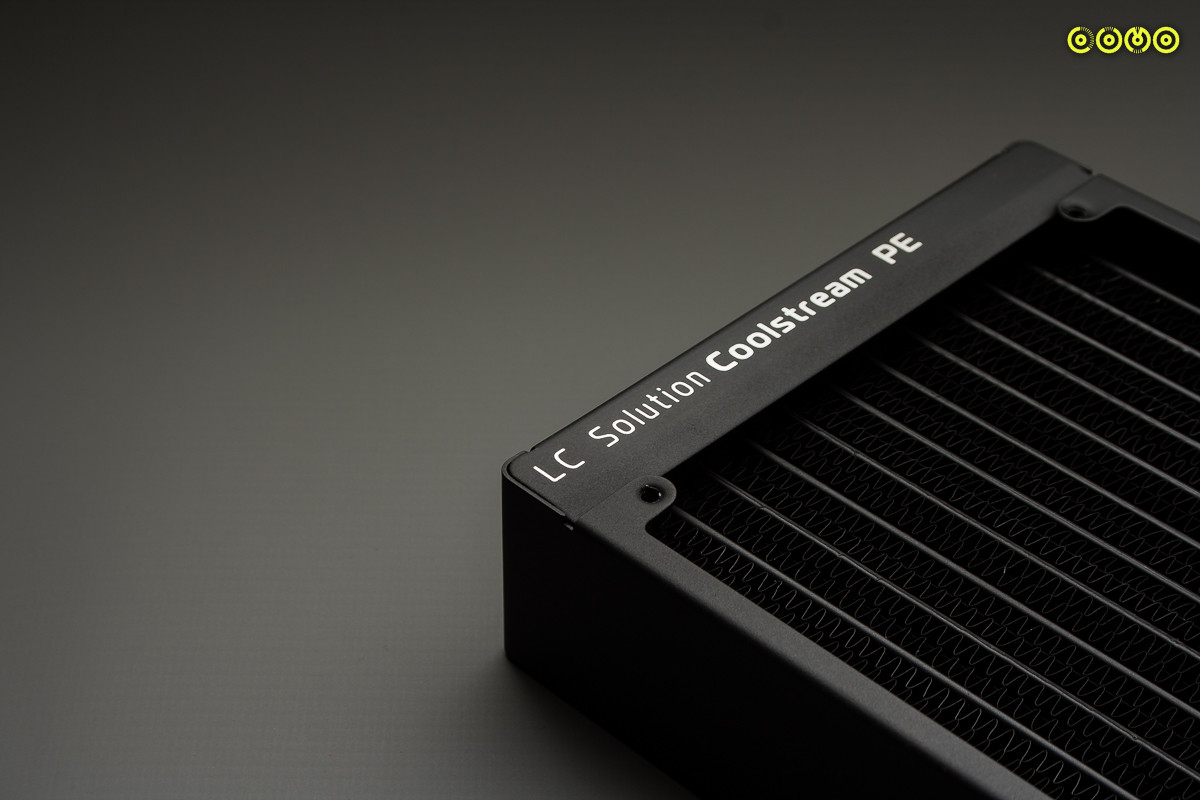

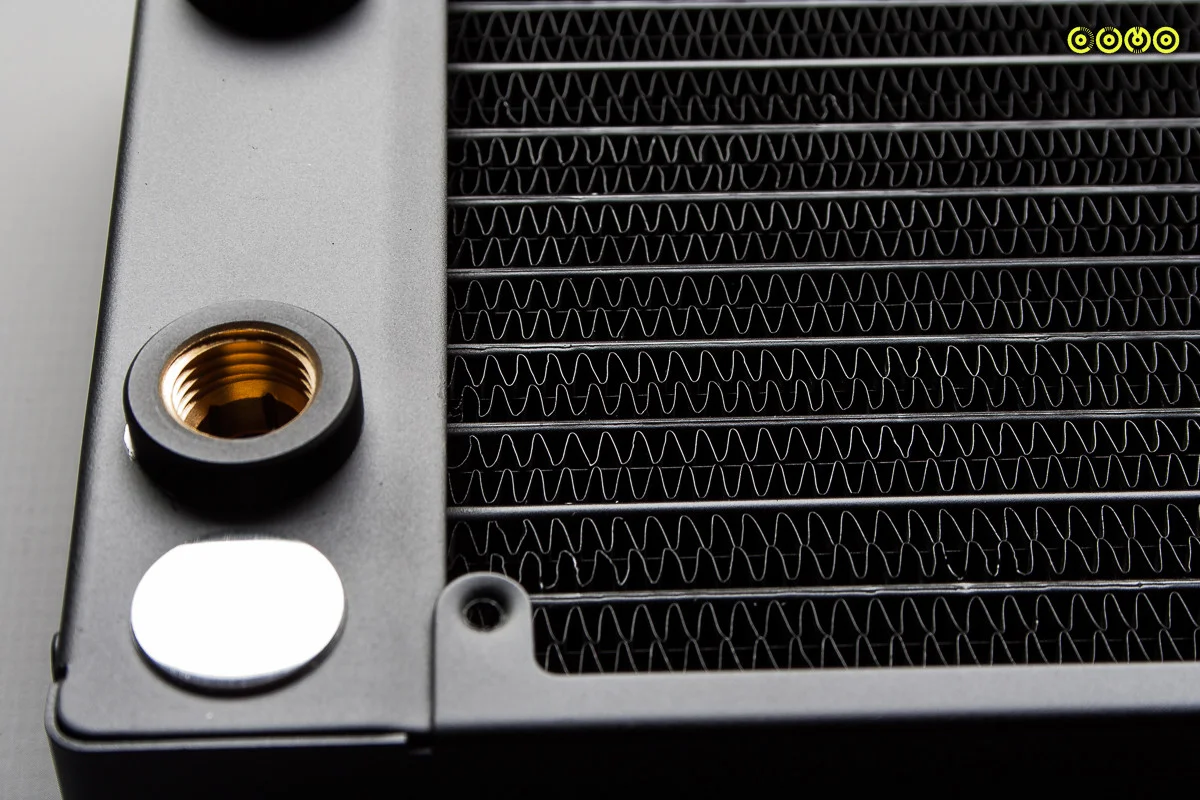

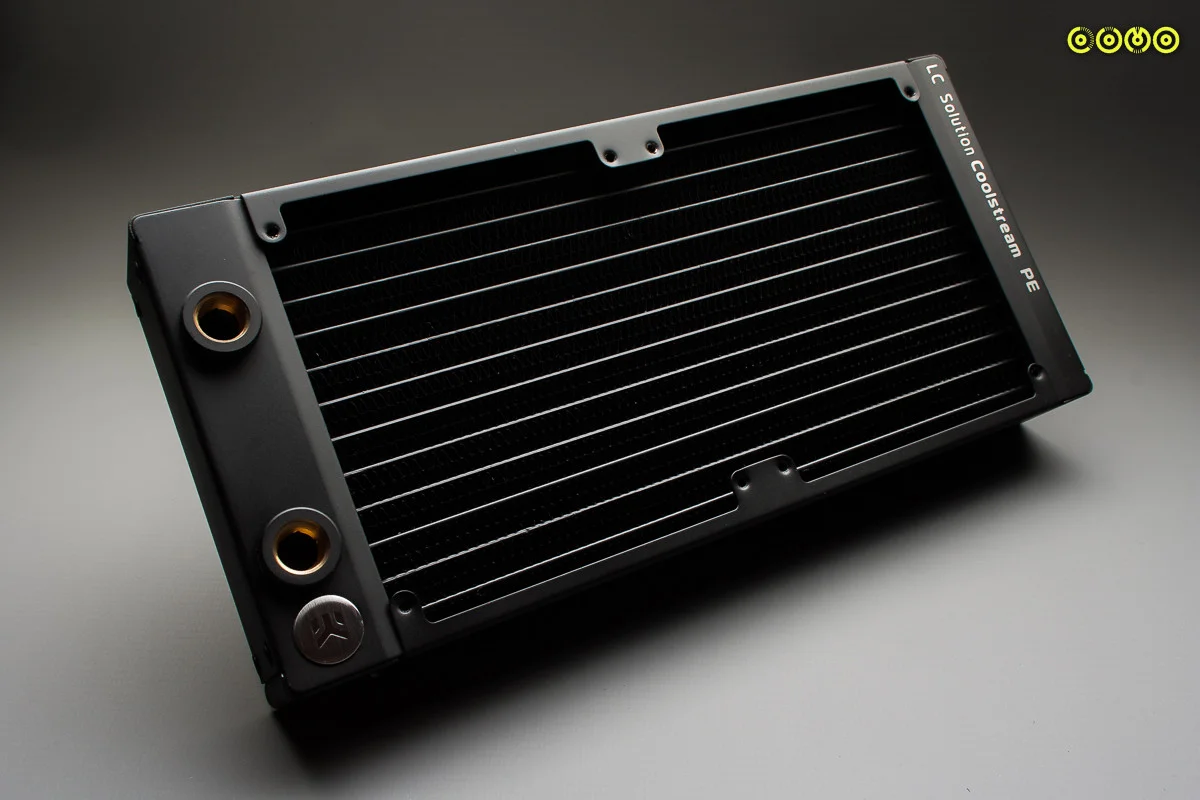

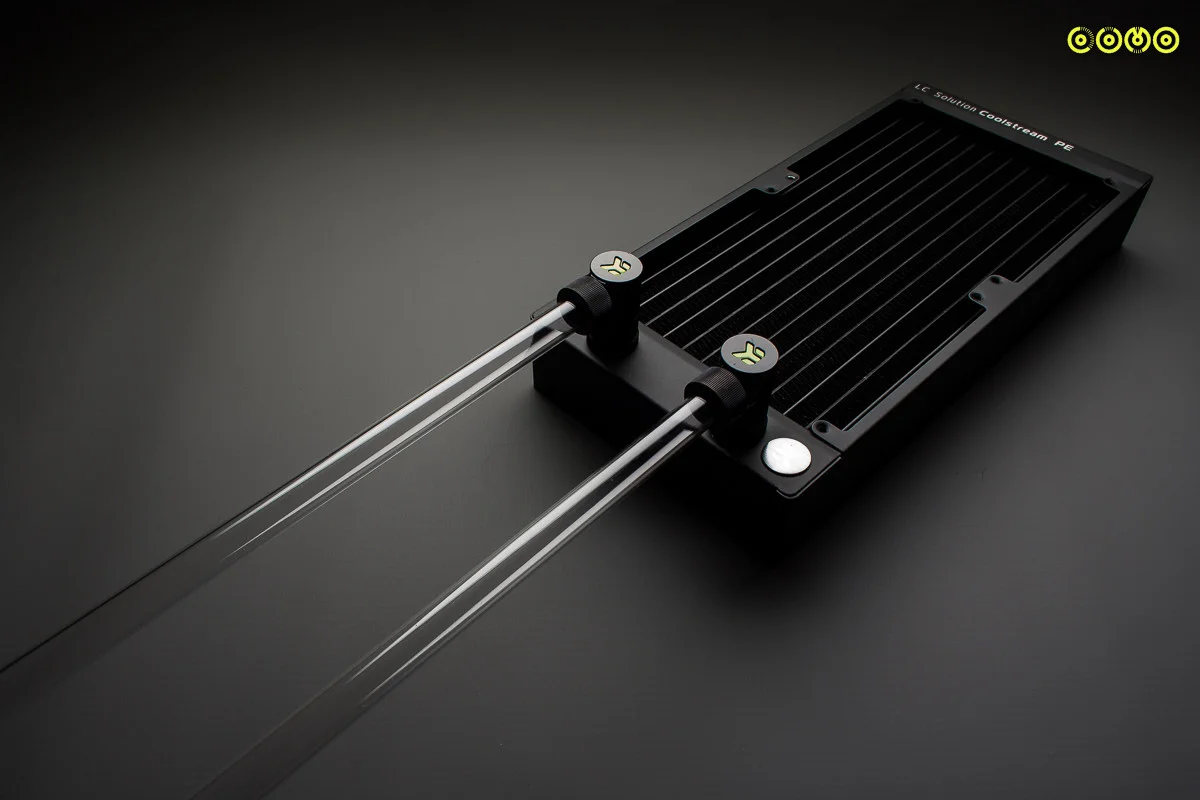

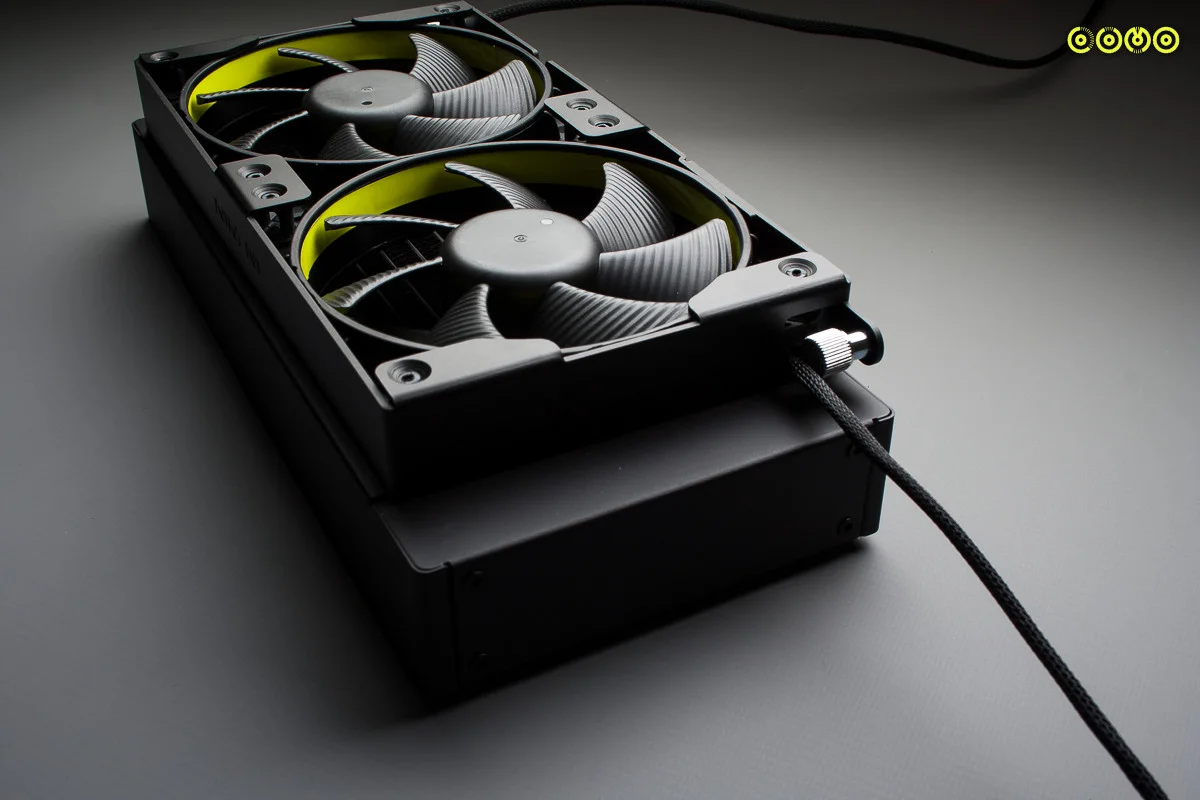

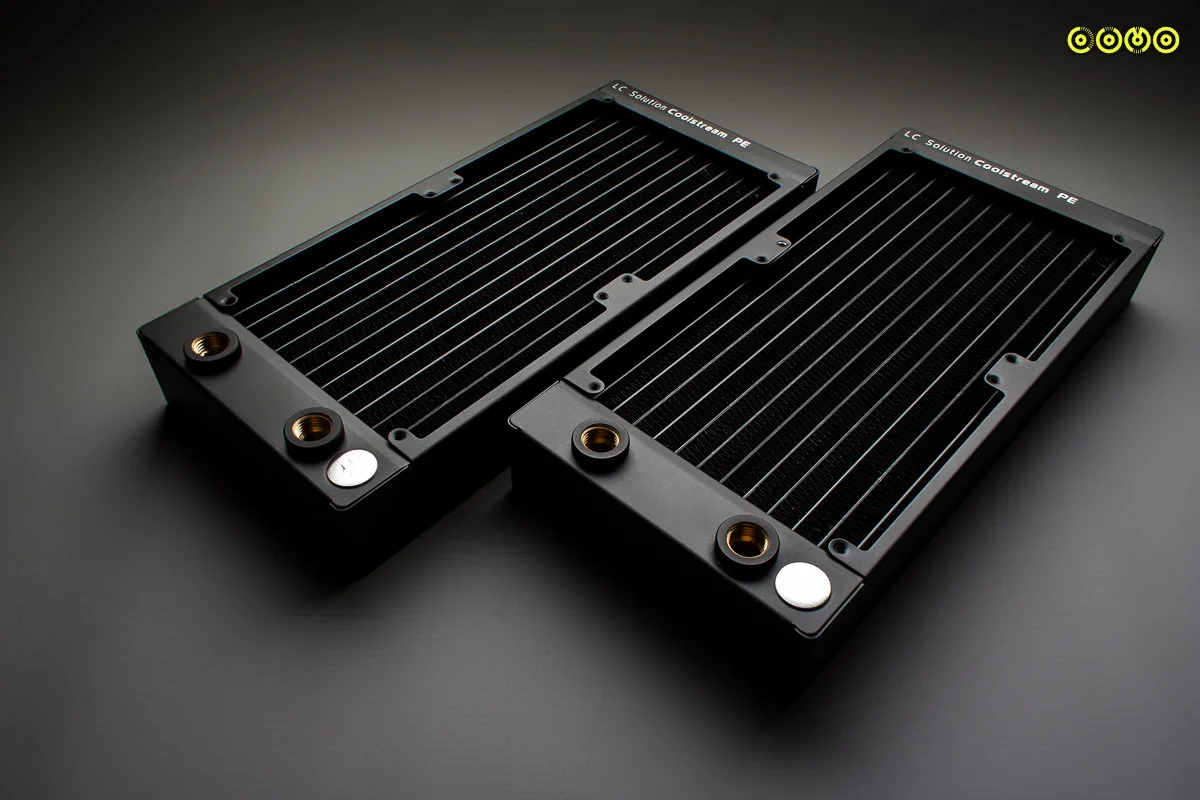

Keeping the updates thick and fast,the EK PE rads have arrived!
This is great as the trays should be in my hands this week and I need to start betting the rad/fan assemblies ready for on tray placement. I dont have a massive amount of room so thickness could be an issue...we will soon see how well i judged it.

Or not.

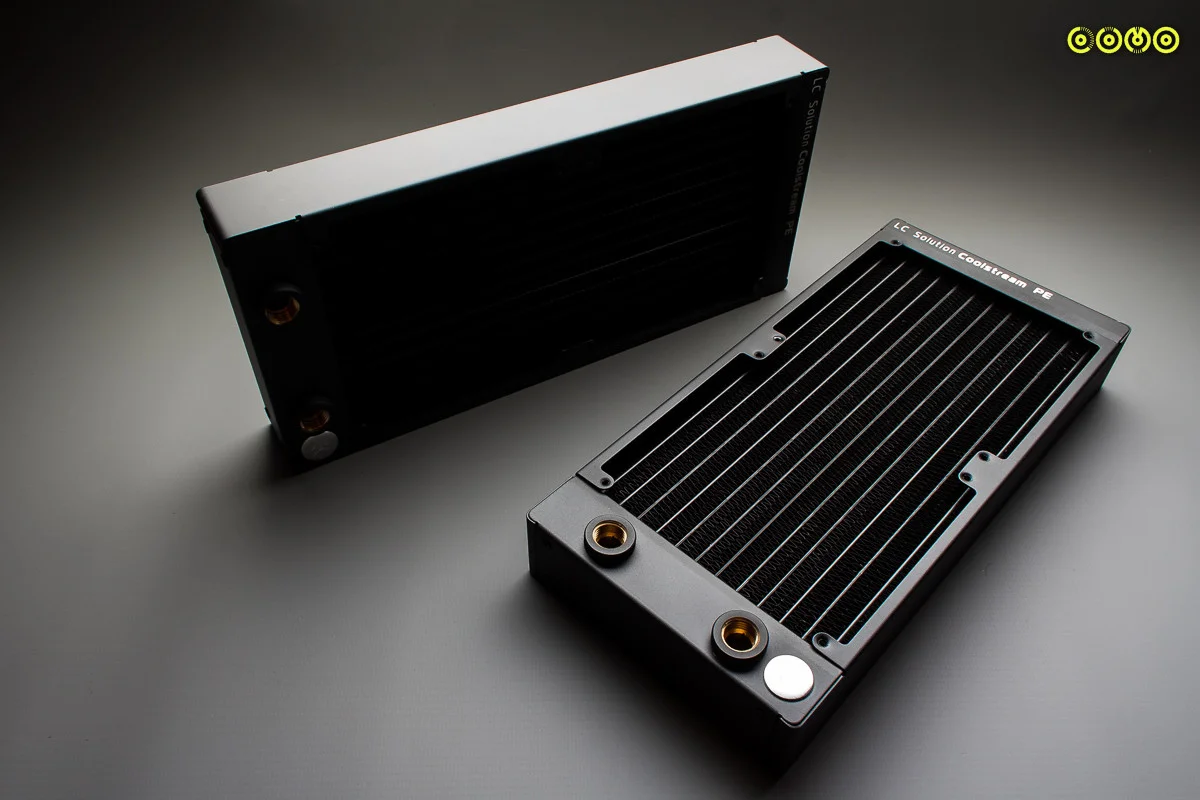

Thin but high FPI,just what I need!

The reason I went with these rads specifically is size and the ability to remove the sides for painting,black marbling will look very tidy with the graphics going over the top of it.

B N3GATIVE · 29 Oct 2014 at 20:14

The flouro plugs arrived!,the whole PSU is being decked out in Teleios Dark grey and those lumo plugs,

Should look good plugged into the exposed backside of the Aquaero...which has the heatsink arriving tomorrow also.

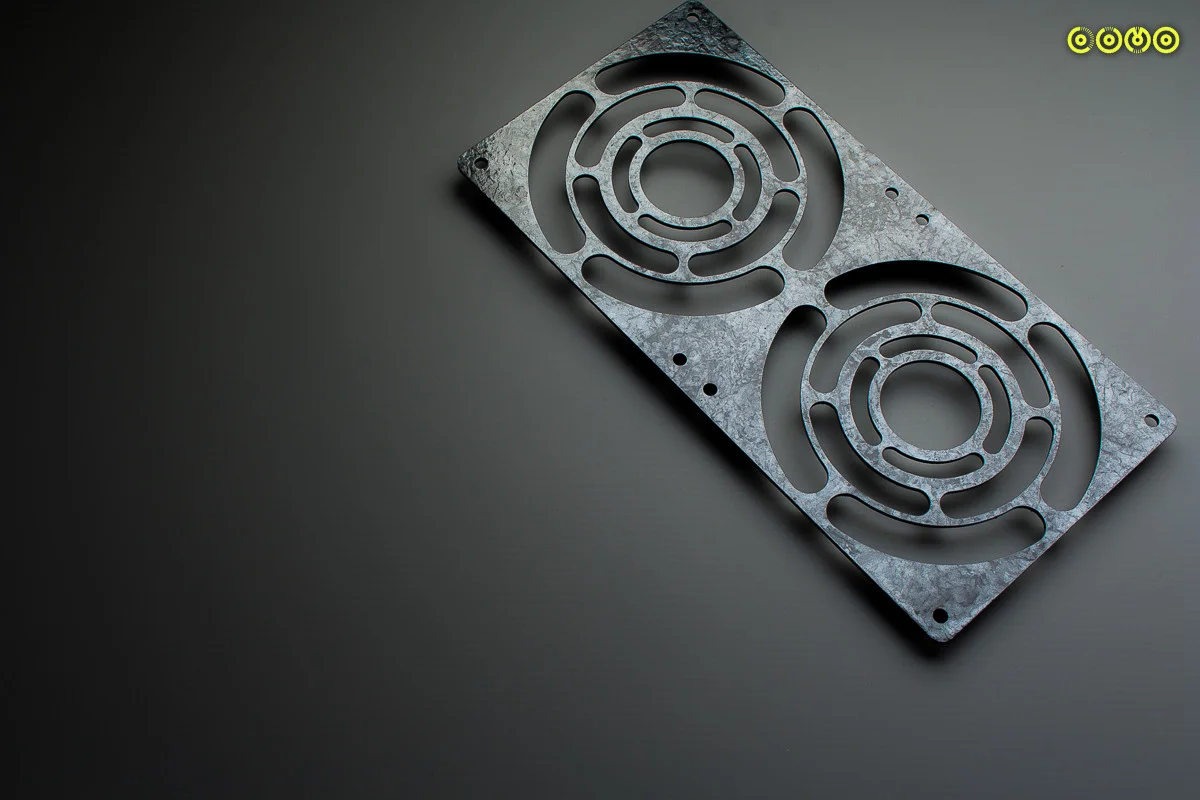

In Win provide a very tidy 240 rad holder that shrouds the fans completely...I like this very much so I called In Win and they sent a second shroud for the second rad,great success!

There will be an E22 FG03 going on to the face to tidy it up....

THE STAINLESS STEEL TRAYS ARRIVE TOMORROW!!!!

rjk · 31 Oct 2014 at 13:01

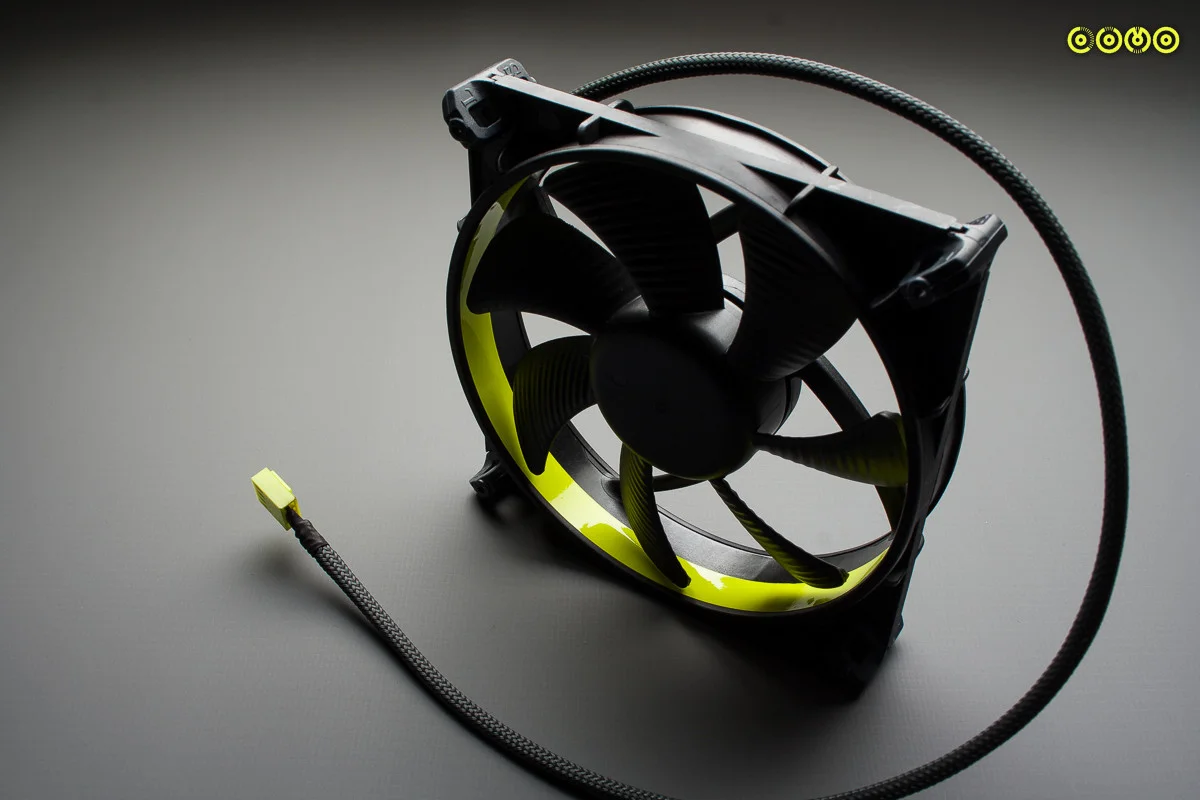

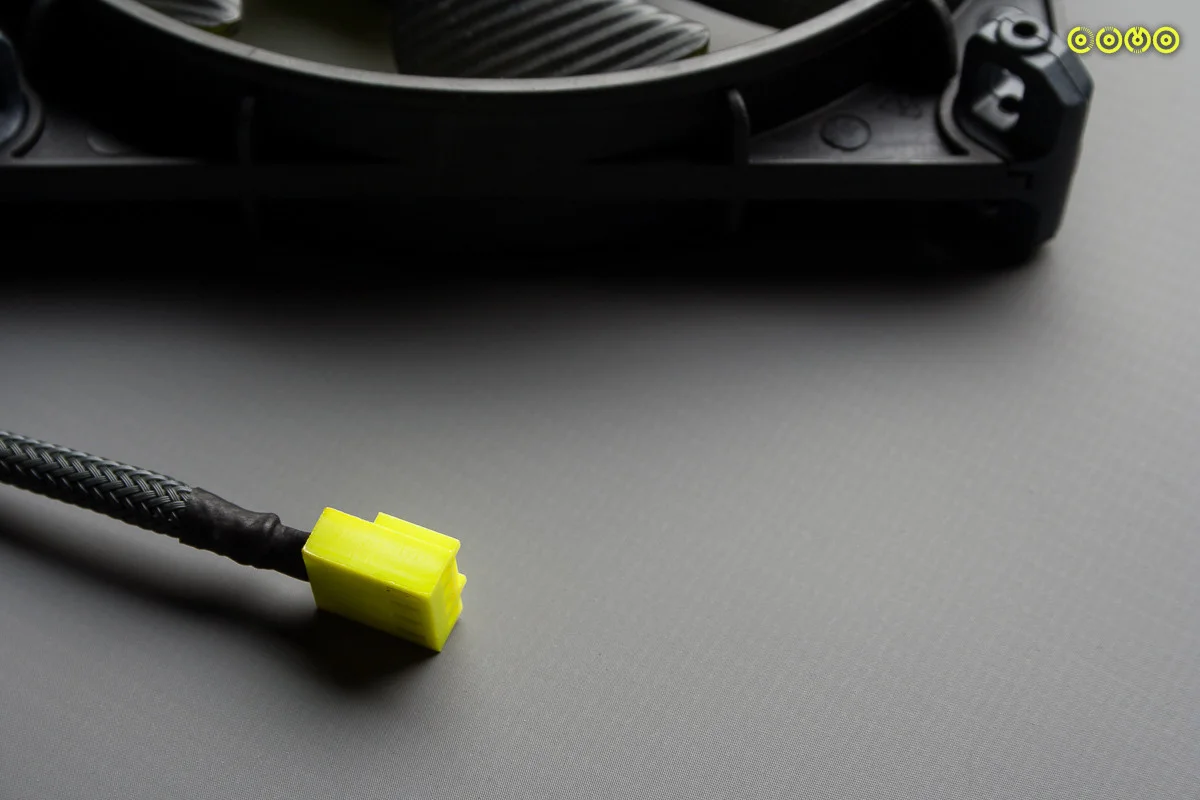

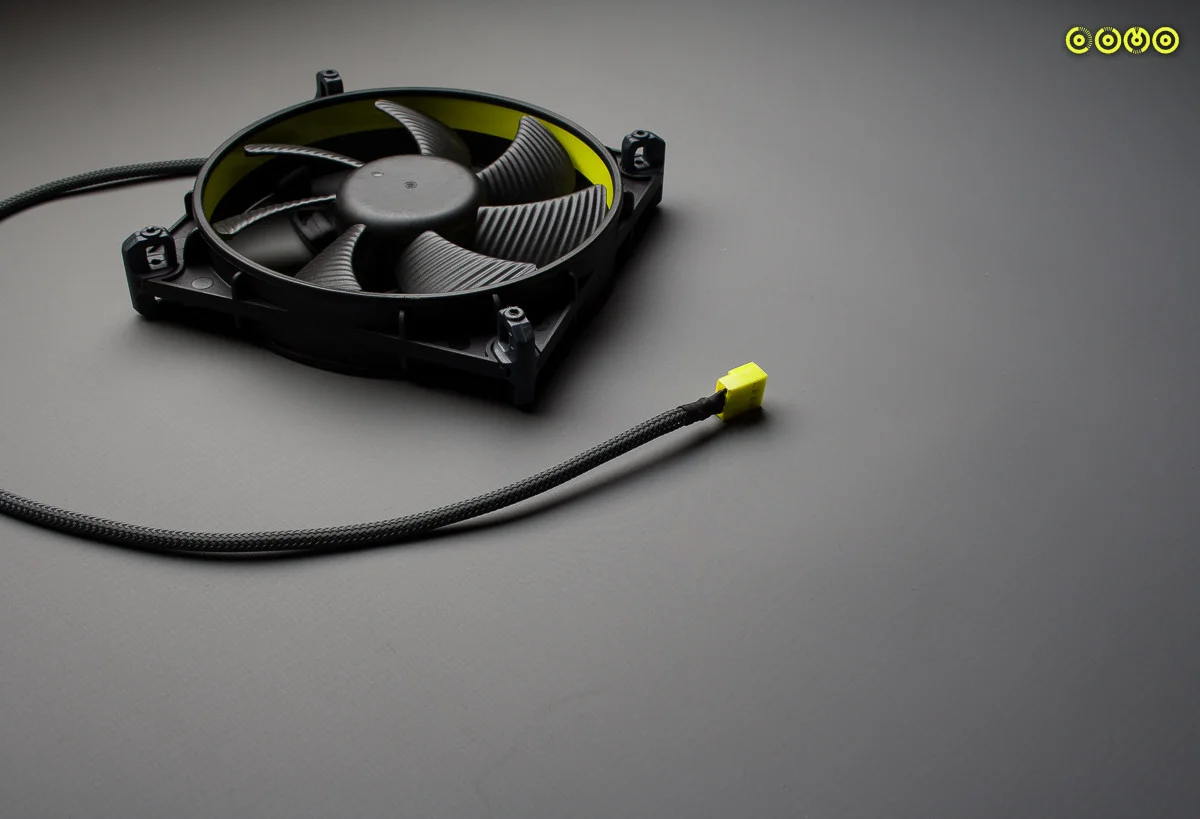

the fan headers on the BQ fans are perfect. really like the subtle accents on the hardware.

B N3GATIVE · 31 Oct 2014 at 20:07

rjkoneill said:
the fan headers on the BQ fans are perfect. really like the subtle accents on the hardware.

Thanks,because the layout is so simplistic you need to add texture of detail to break it up a little.

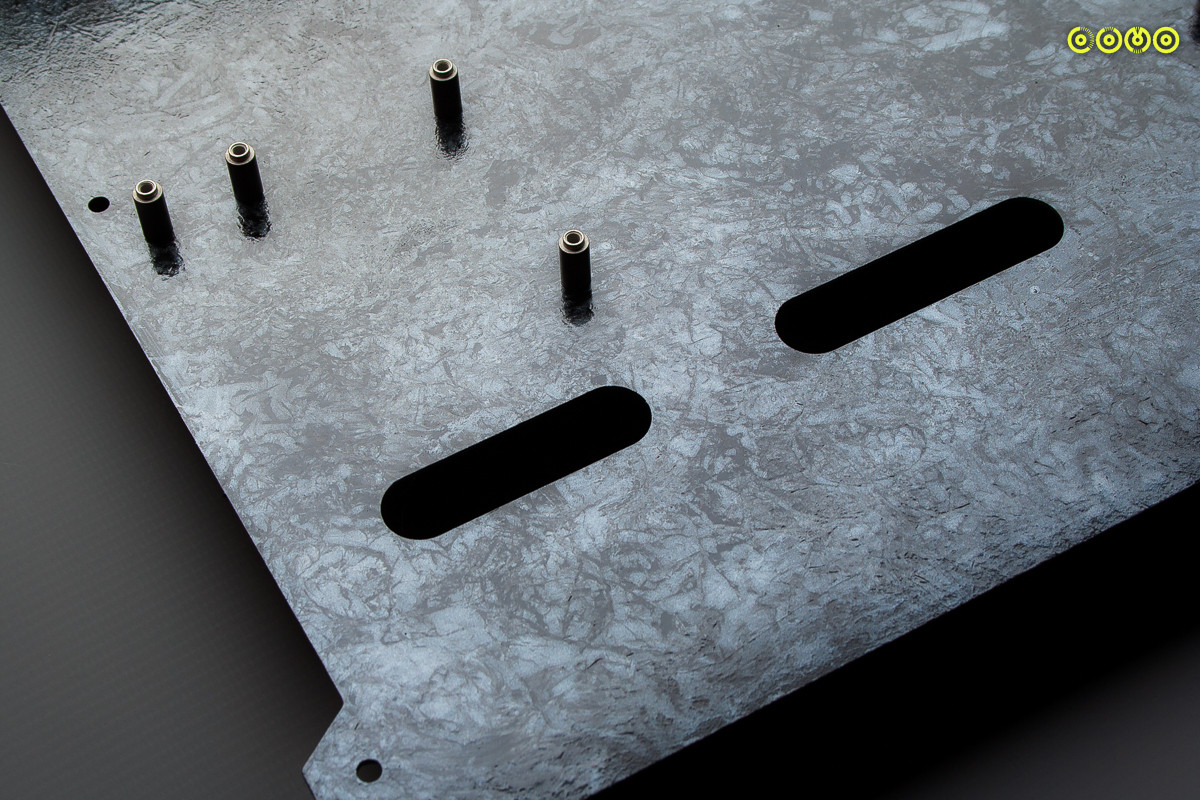

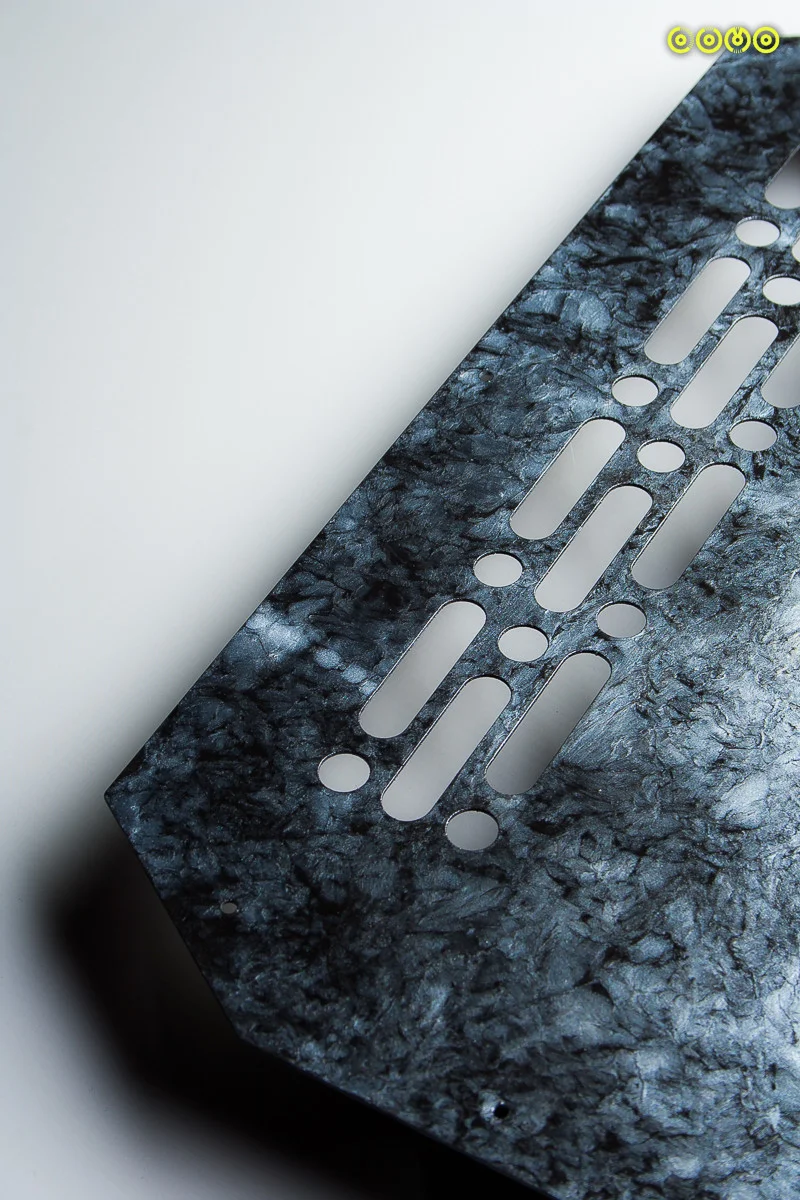

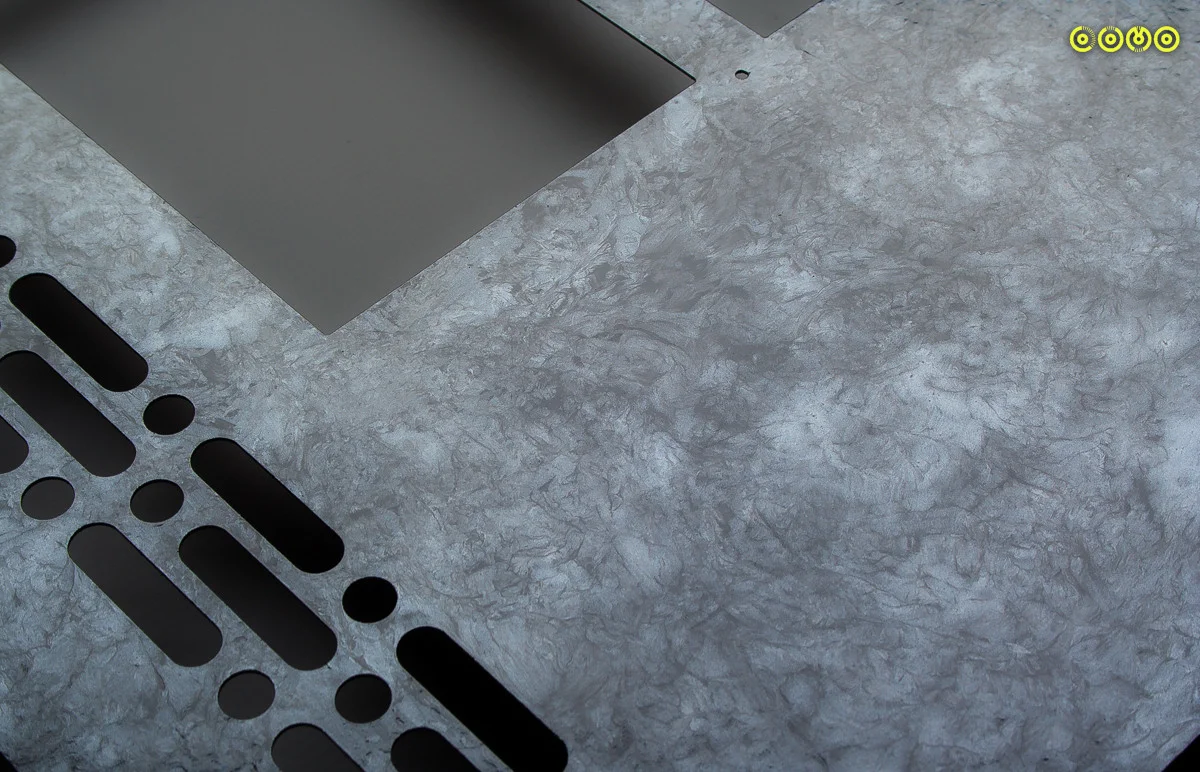

The trays arrived yesterday and I got the marbling done today,this is still raw with no clearcoat so its a bit bumpy. I still have to smooth it a little with some wet and dry and then lots of clear,sanding in between to flat of the high points but fill the low. It will get depth and the clear will soften the edges of the marble.

The standoffs are bolt thru M3 from Wurth Electronik,11mm. This is so I can use the banchetto PCI clamps.

And the FG03 from E22 to go one the front facing rad/fan assembly.

Dempsey22 · 31 Oct 2014 at 20:12

Amazing work as always !

Can I send you my credit card to build something ?

B N3GATIVE · 1 Nov 2014 at 17:15

Dempsey22 said:
Amazing work as always !

Can I send you my credit card to build something ?

If you want something built,Im sure I can do something for you.

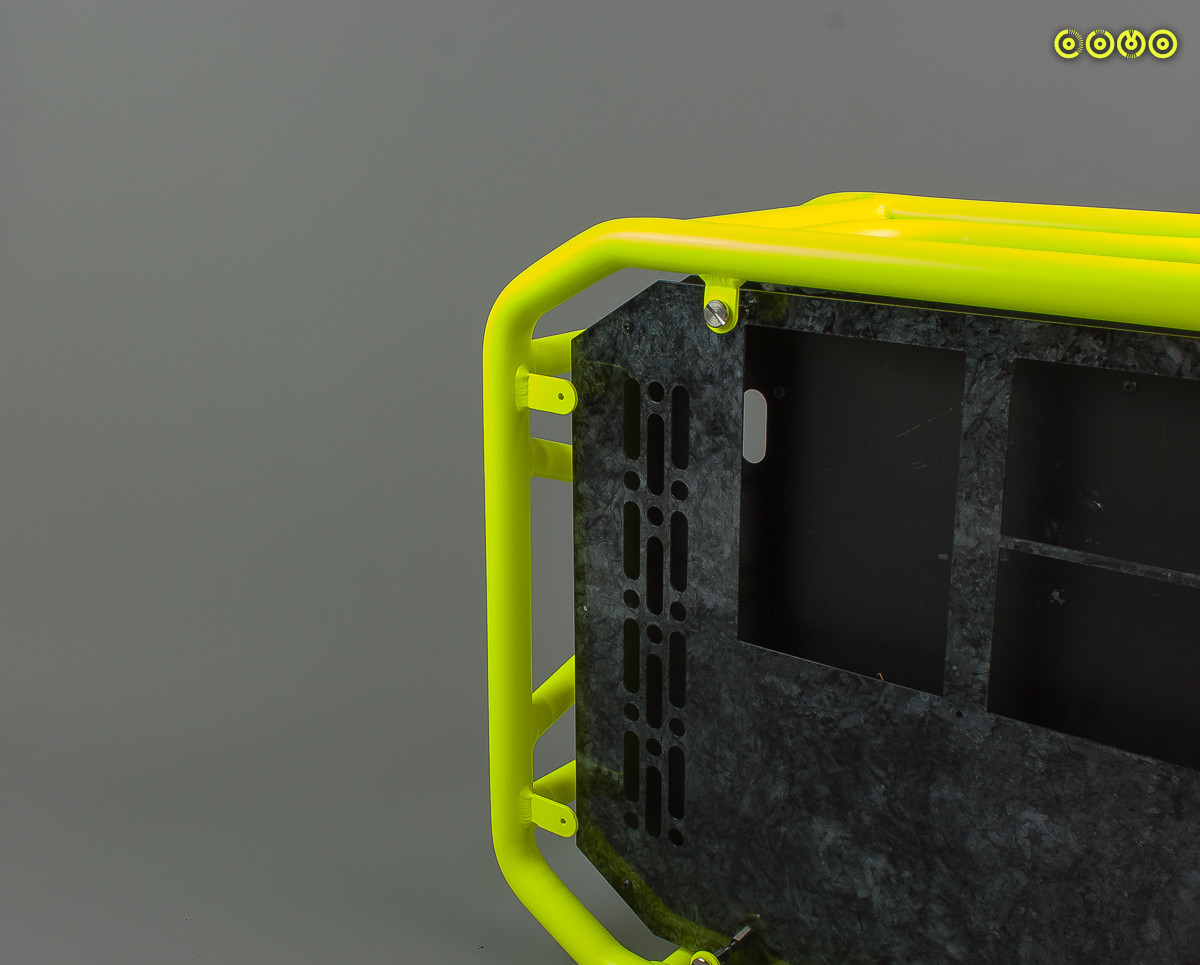

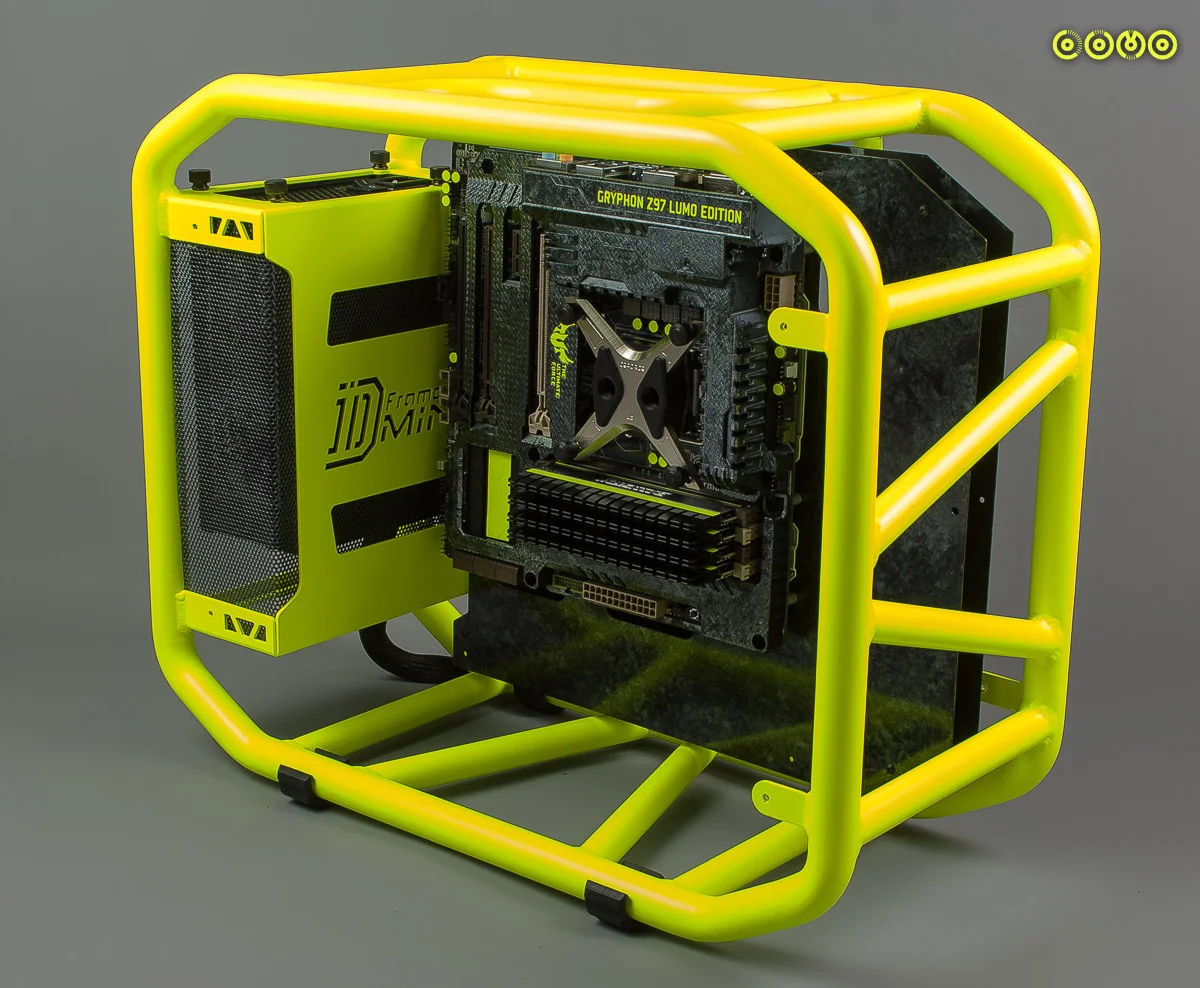

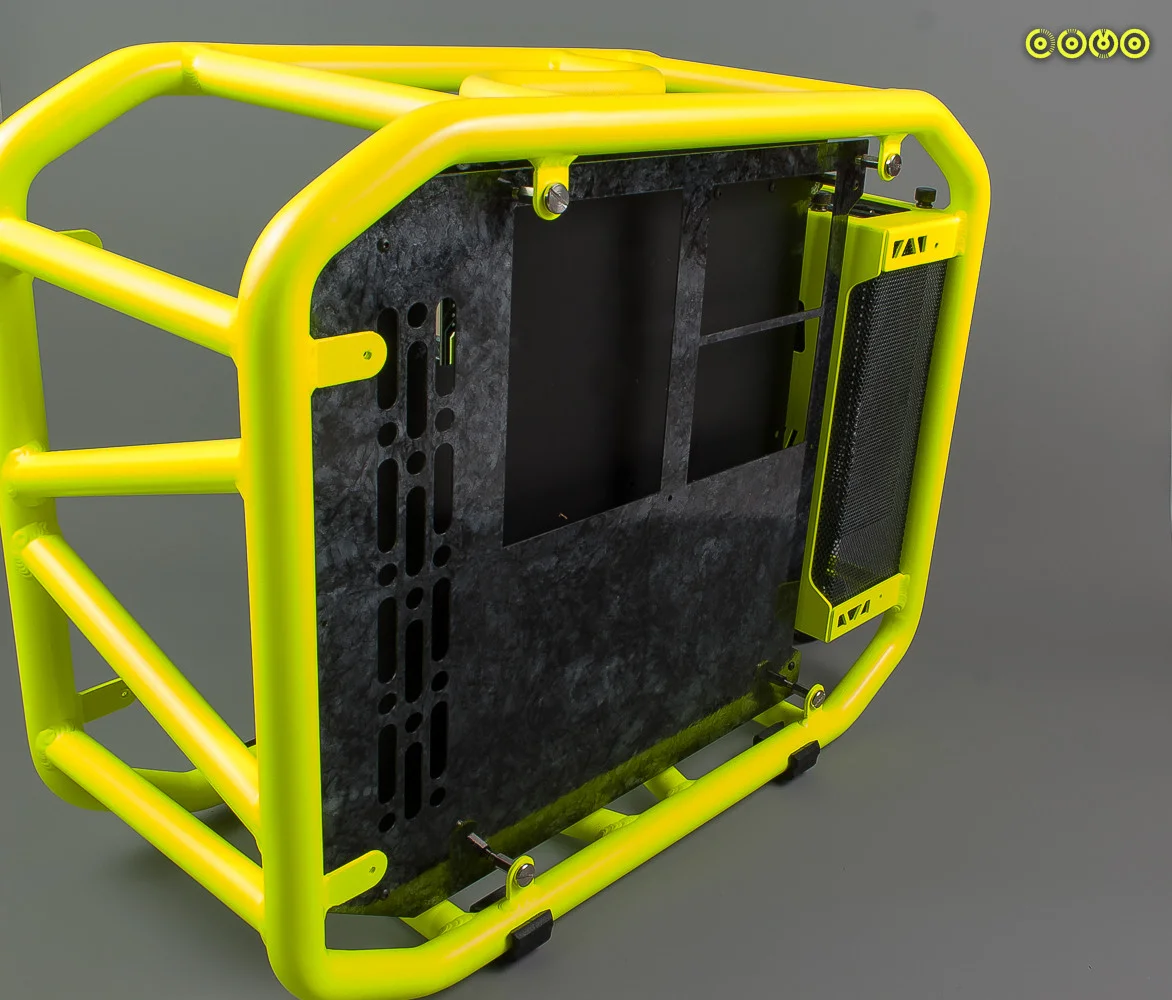

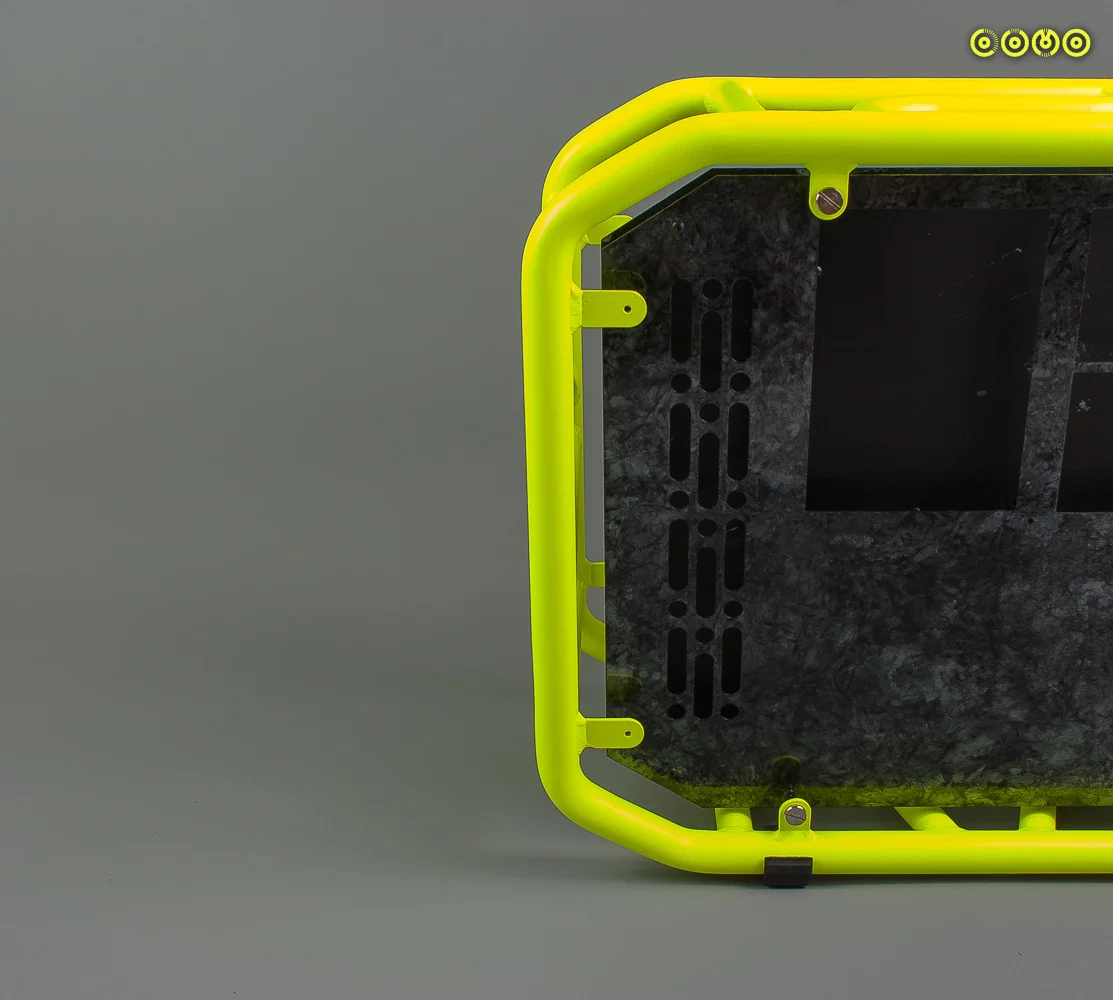

So...The trays are painted and fitted with some 25mm spacers until the acrylic arrives.
Also,first time out for the grey backdrop with all that yellow!

Nate@e22 turned these around very quickly for me,I thought the renders looked cool but to see it in the case has made up my mind that I am on the right track.

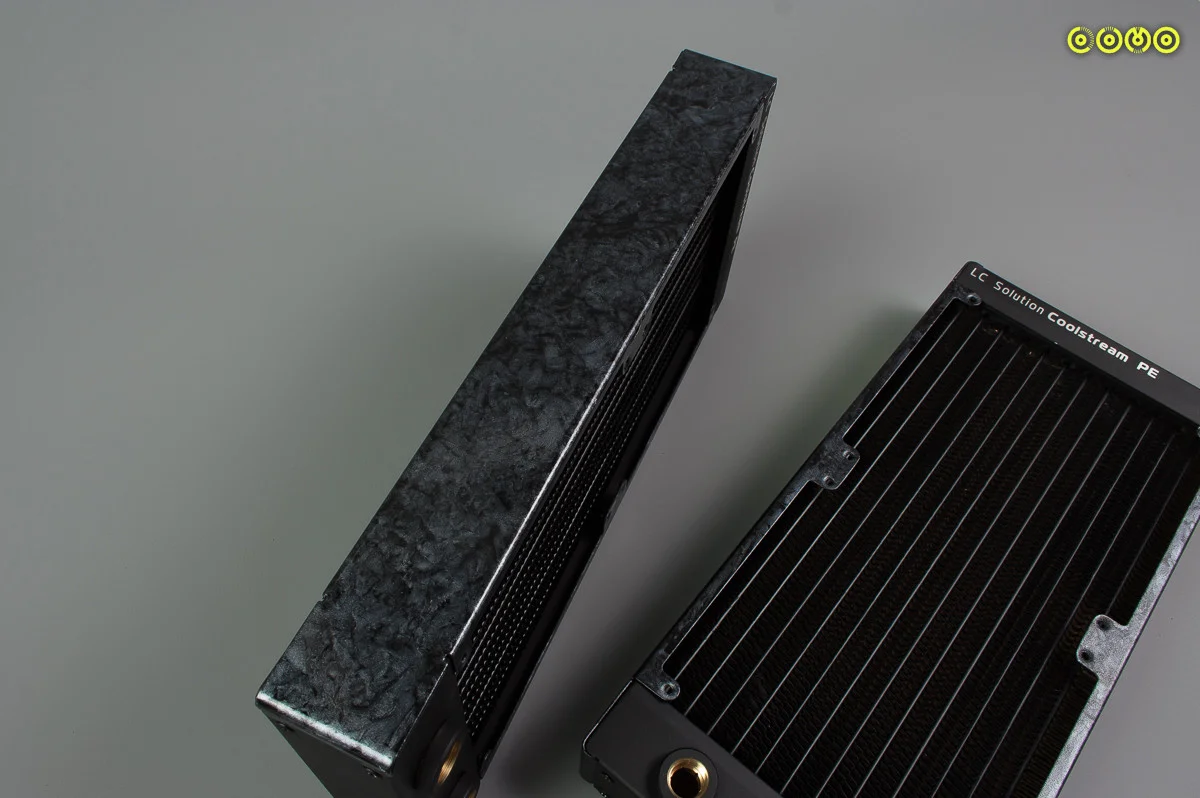

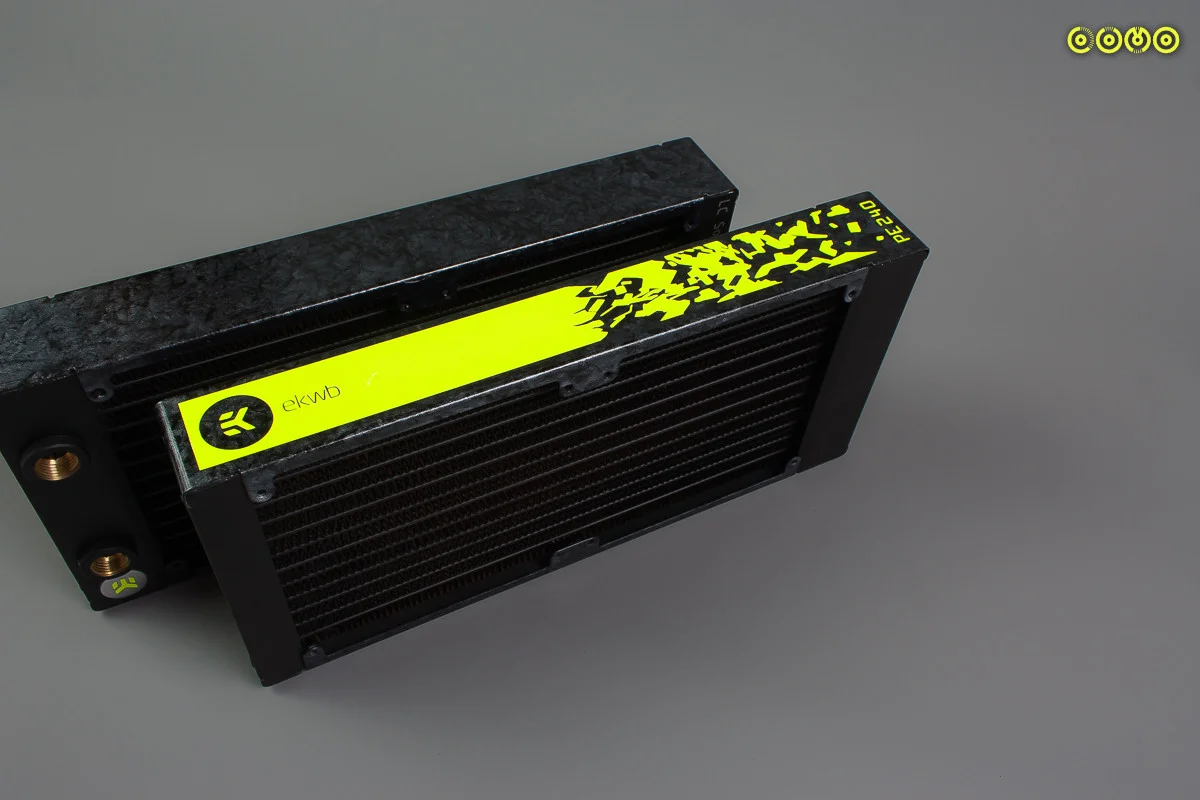

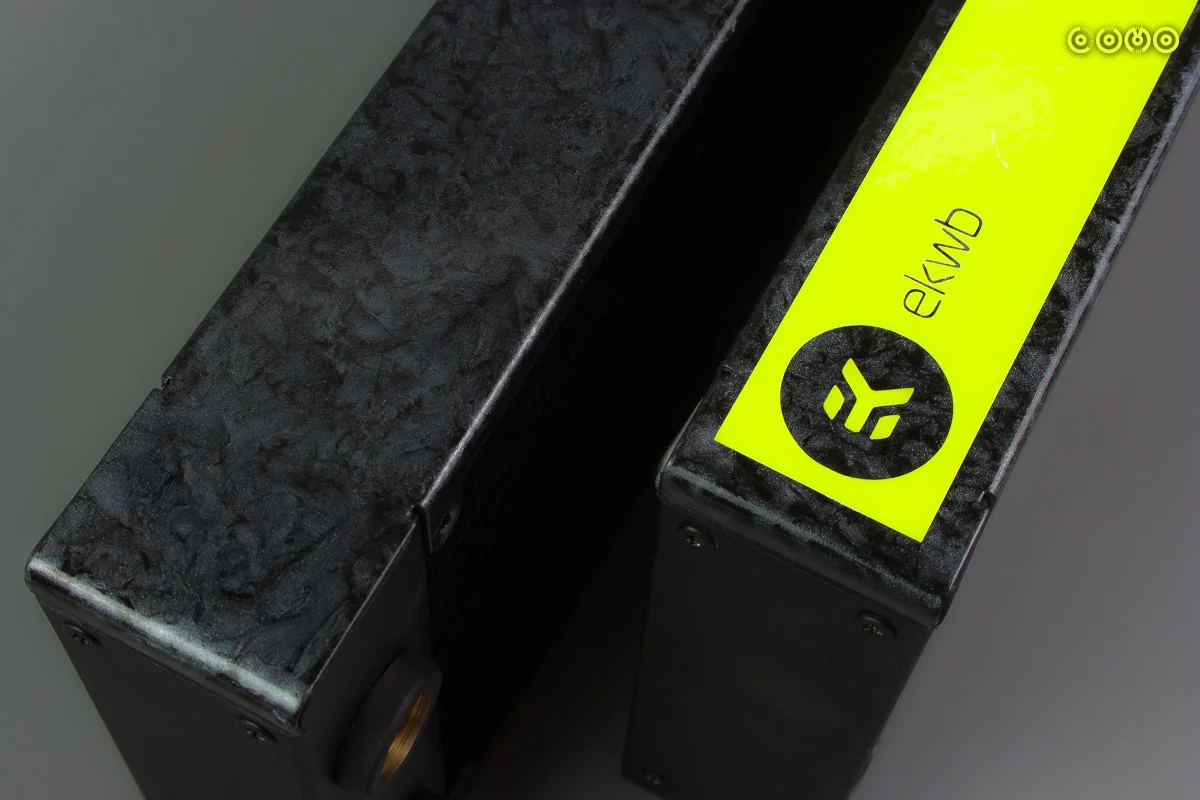

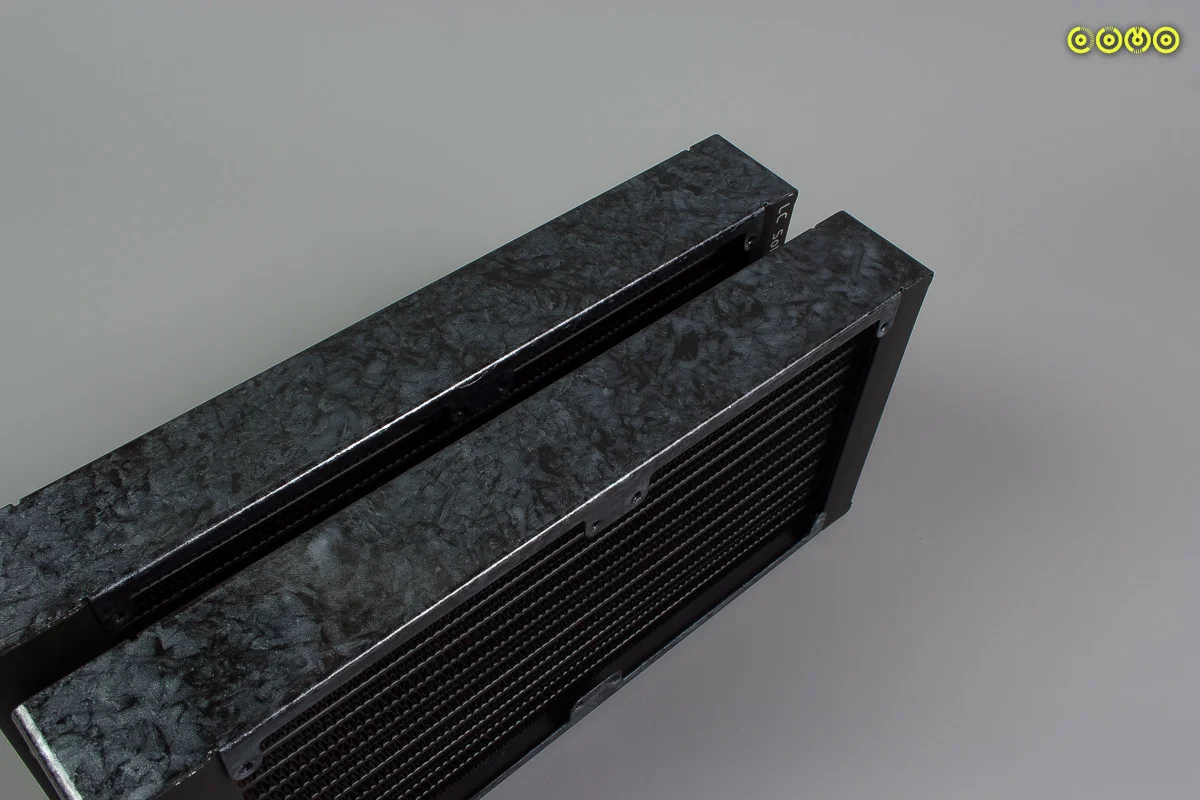

I marbled the rad sides and made a graphic for them,jury is out as to whether I use it or not...thats a job for after fitment and a little look-see.

Due to the incredibly tight space in the frame,I reckon that if I use 20" of tube I will be amazed!

shanestatham · 1 Nov 2014 at 18:06

Looking stunning!

haxxbaxx · 2 Nov 2014 at 14:34

looks so good
