If you have the time then give me a vote on Bit tech MOTM?
http://forums.bit-tech.net/showthread.php?t=279969
GWF!
http://forums.bit-tech.net/showthread.php?t=279969
GWF!
| LUMO |
- Thread starter B N3GATIVE
- Start date
- Joined
- 25 Aug 2014
- Posts
- 282
So,as im in Bit techs MOTM,I thought LUMO needed a update.

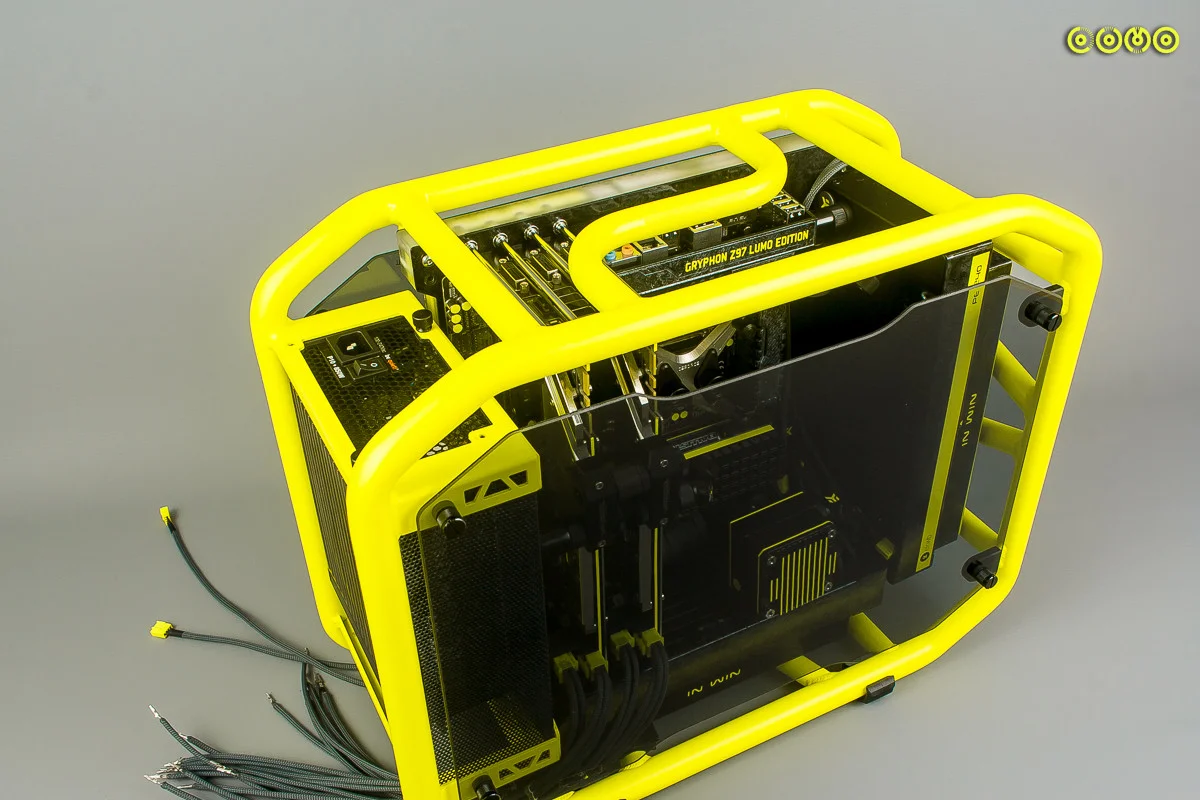

Its looks like not much has happened,its because everything is behind the scenes,the wiring is all run behind the tray,no room for the GPU power like first thought,you will see a bundle of wiring coming out the back in one shot as they need to be trimmed back,they were cut extra long to go behind the tray but it didnt happen.
Plus I get to try out my polarizing filter!

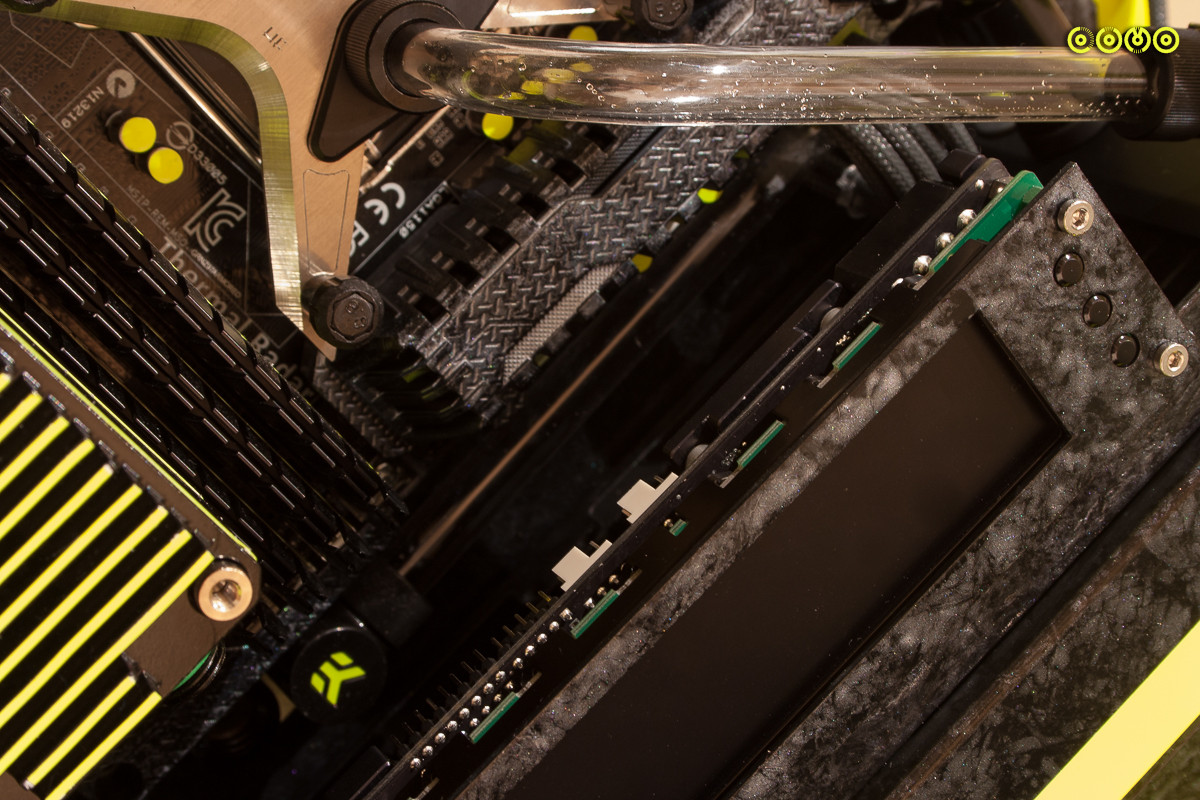

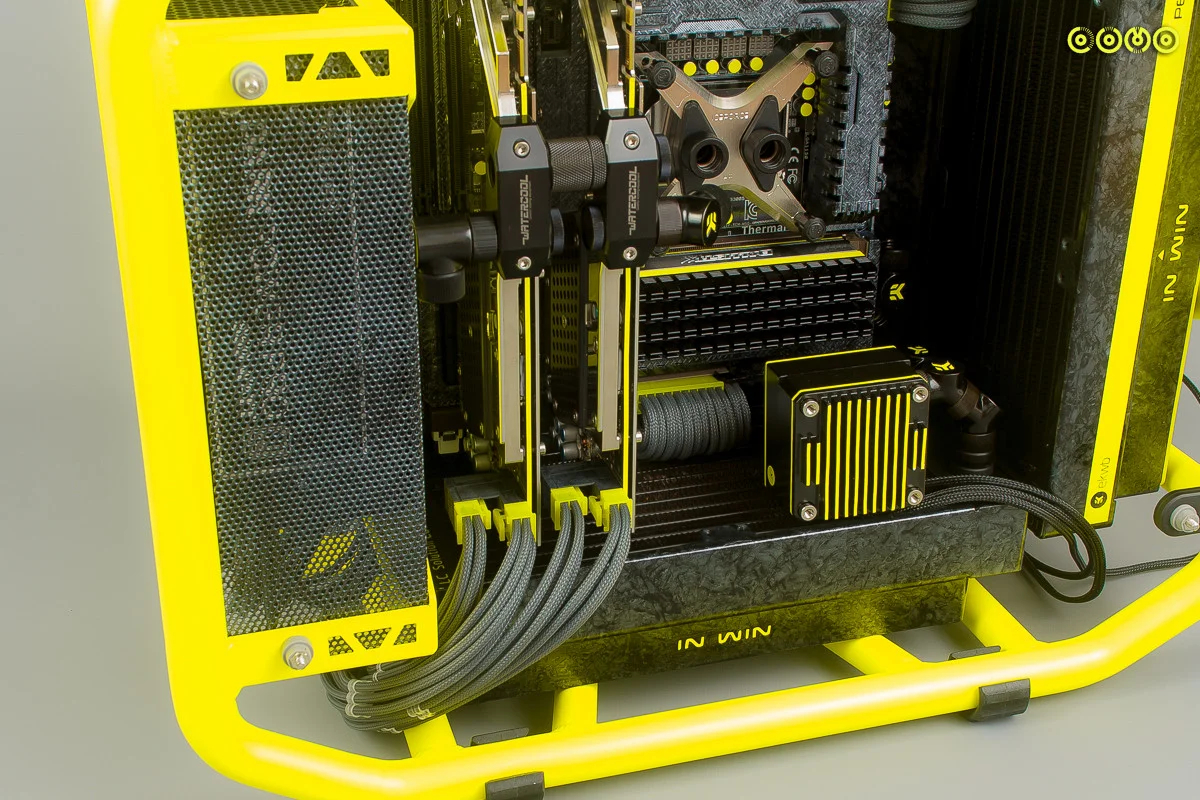

You can barely see the brown board plug terminals now.
Next up is the Aquaero/pump/rad bracket that will tie it all together,these brackets were not designed to have this kind of weight on so there is a little sag on the bottom rad box. The bracket will tie it into the vertical rad,adding strength and eliminating the sag.
For the tubing,its looking like the usual mouse gynecology,its tight in that bottom corner!
Thanks for looking and leave a comment!
- Joined
- 25 Aug 2014
- Posts
- 282
So.....I did say I would make a video......
https://www.youtube.com/watch?v=HTAP46EzbYw
Pics up later when the clear coat has dried and everything is fitted.
https://www.youtube.com/watch?v=HTAP46EzbYw
Pics up later when the clear coat has dried and everything is fitted.
Last edited:
- Joined
- 25 Aug 2014
- Posts
- 282

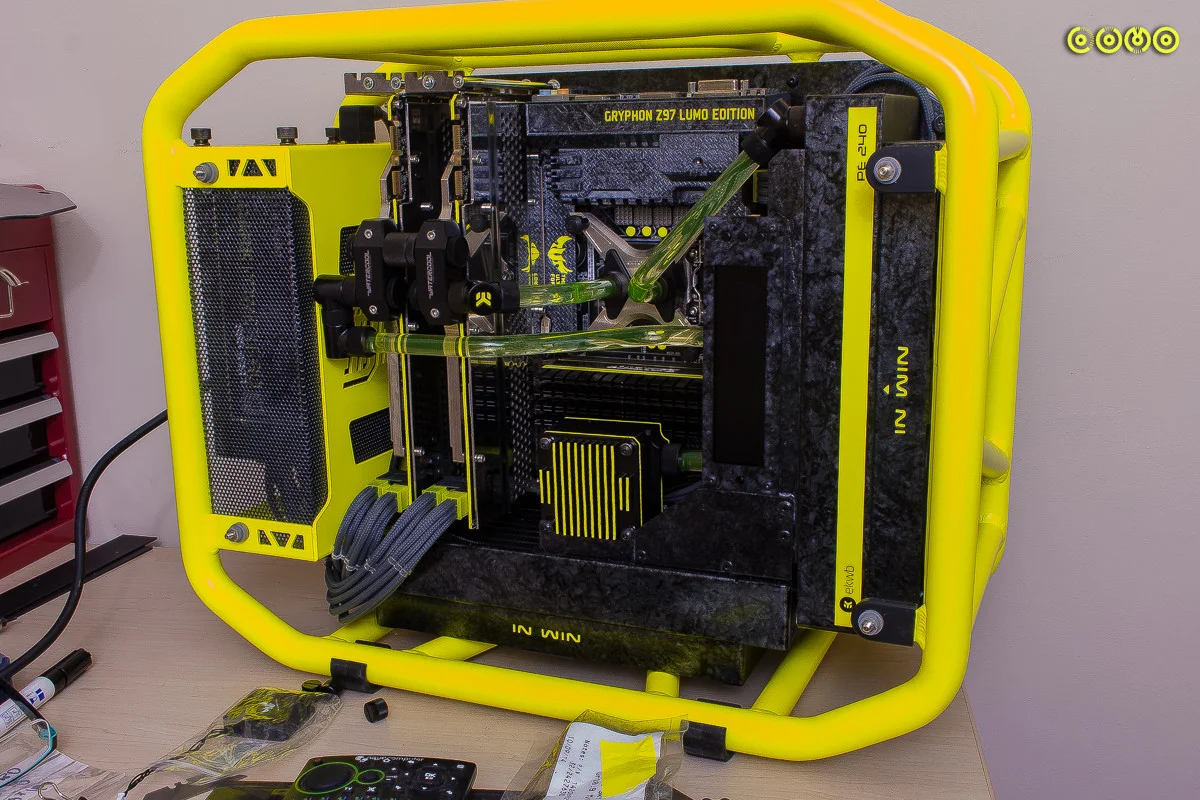

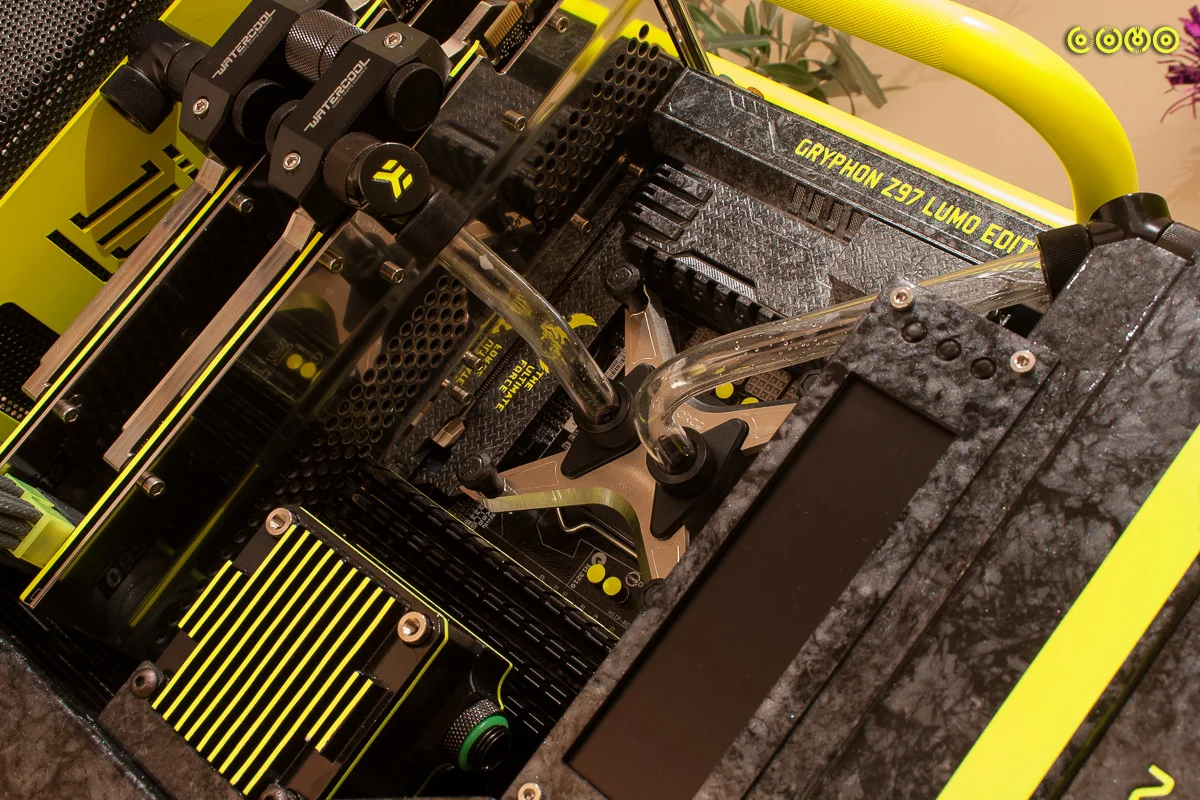

The rad/pump/Aquaero support is done and I have begun tubing up.
Very very tight work indeed!
I still need to make up a 4 pin molex for the Aquaero,I forgot all about it,and finish the last 3 bits of tube.
So very nearly there.....
You dont even want to know how tight that tube was to get in there......
On the home stretch now.
Soldato
nice
Associate
- Joined
- 6 Mar 2013
- Posts
- 444
So good
- Joined
- 25 Aug 2014
- Posts
- 282
So good
Just waiting on a fitting...its always the one fitting you think you have but dont...then the tube is finished.
Hopefully it will be done by next weekend!
Then I will be making a start on the HEXGEAR case and get prepped for the EK Vulture case mod off in Feb,I need to get Gibbo's mail from you J for that,I want one of his blueprinted 970's in it.
Busy boy all round!
Associate
- Joined
- 16 Jul 2012
- Posts
- 280
love this case. attention to detail is second to none.
can't wait to see it with the coolant in
can't wait to see it with the coolant in
- Joined
- 25 Aug 2014
- Posts
- 282

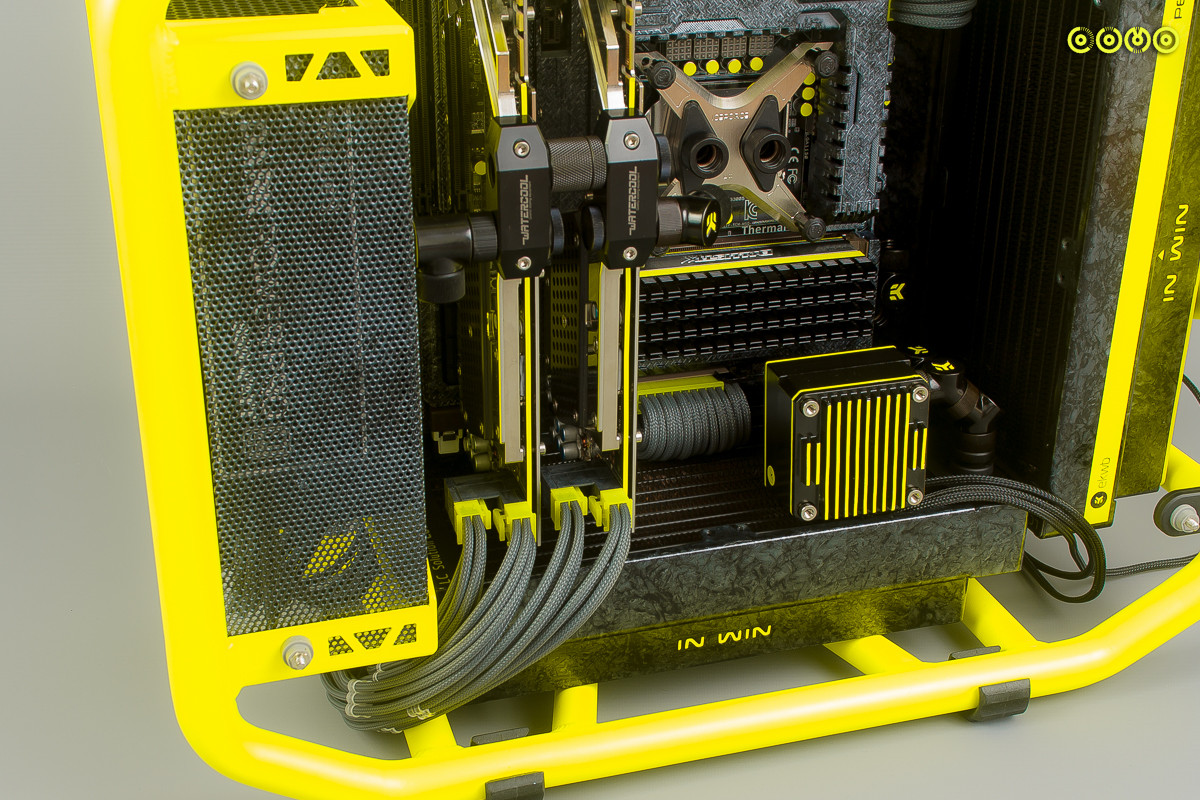

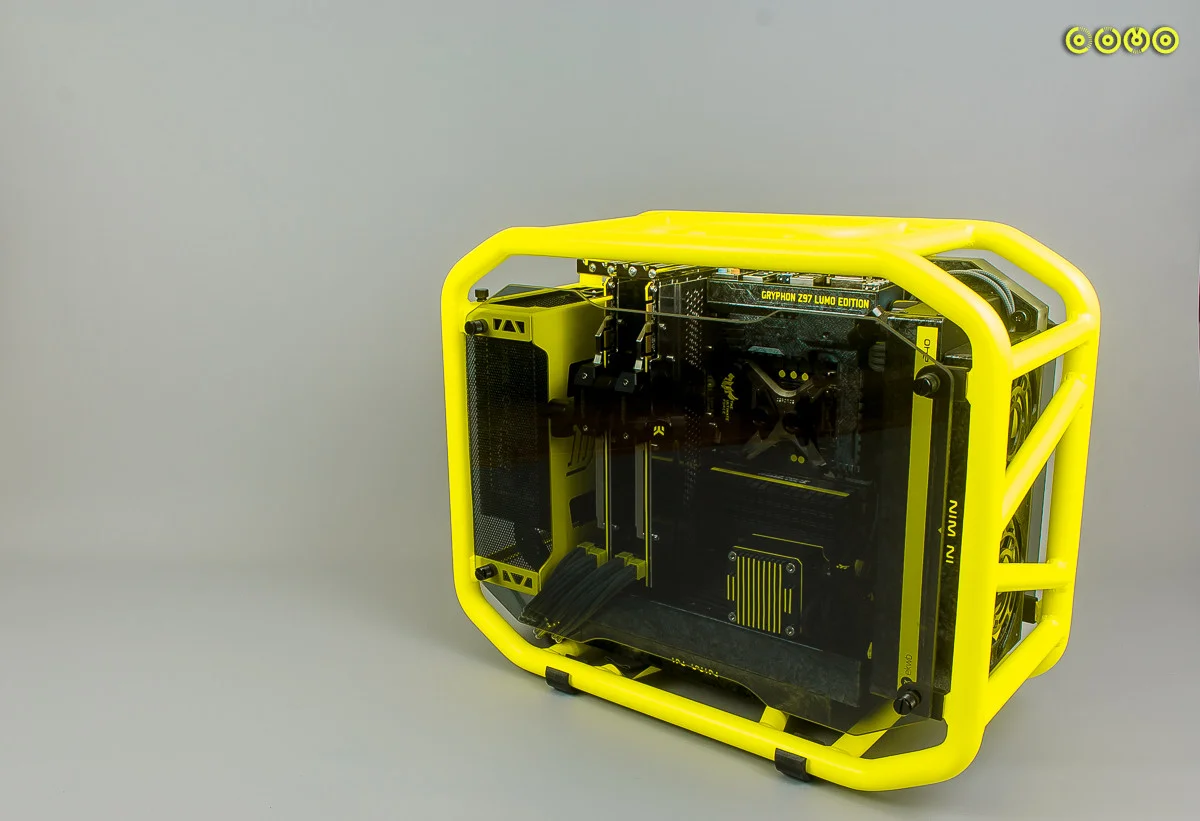

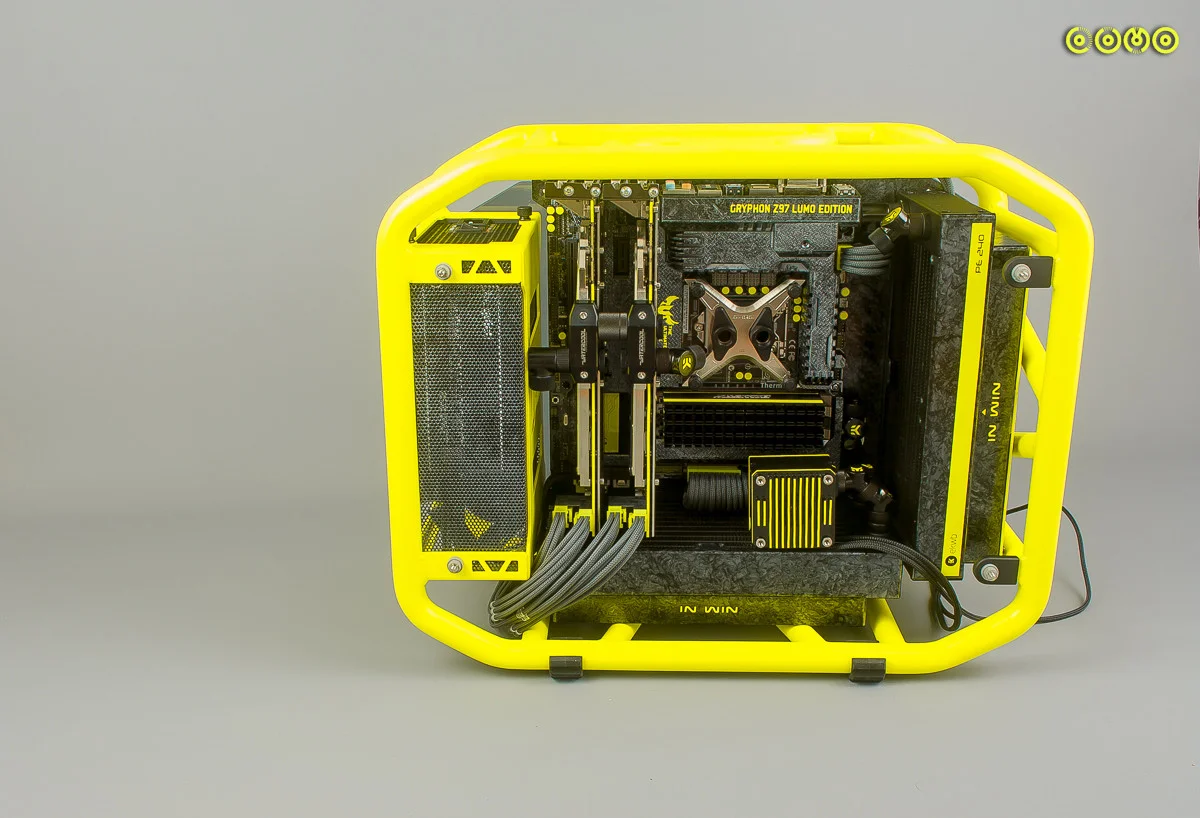

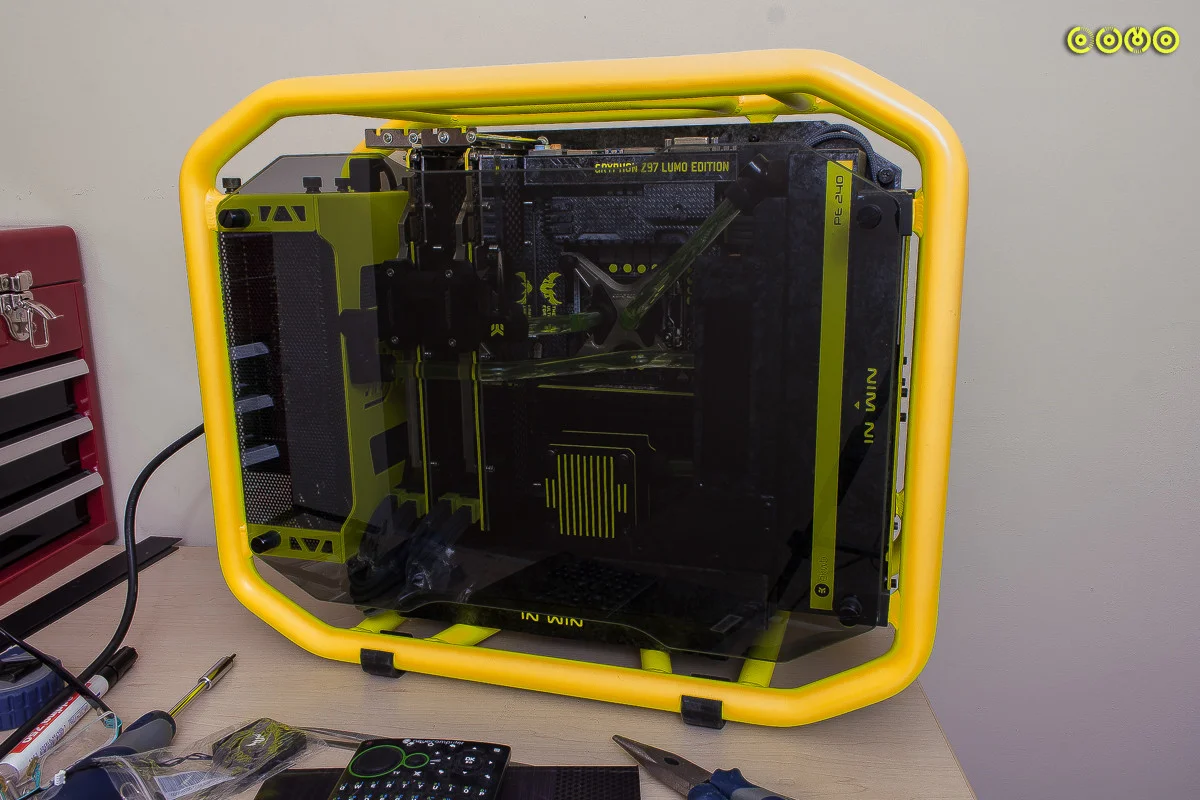

I know this log has been quiet for a few weeks but its not been wasted time.

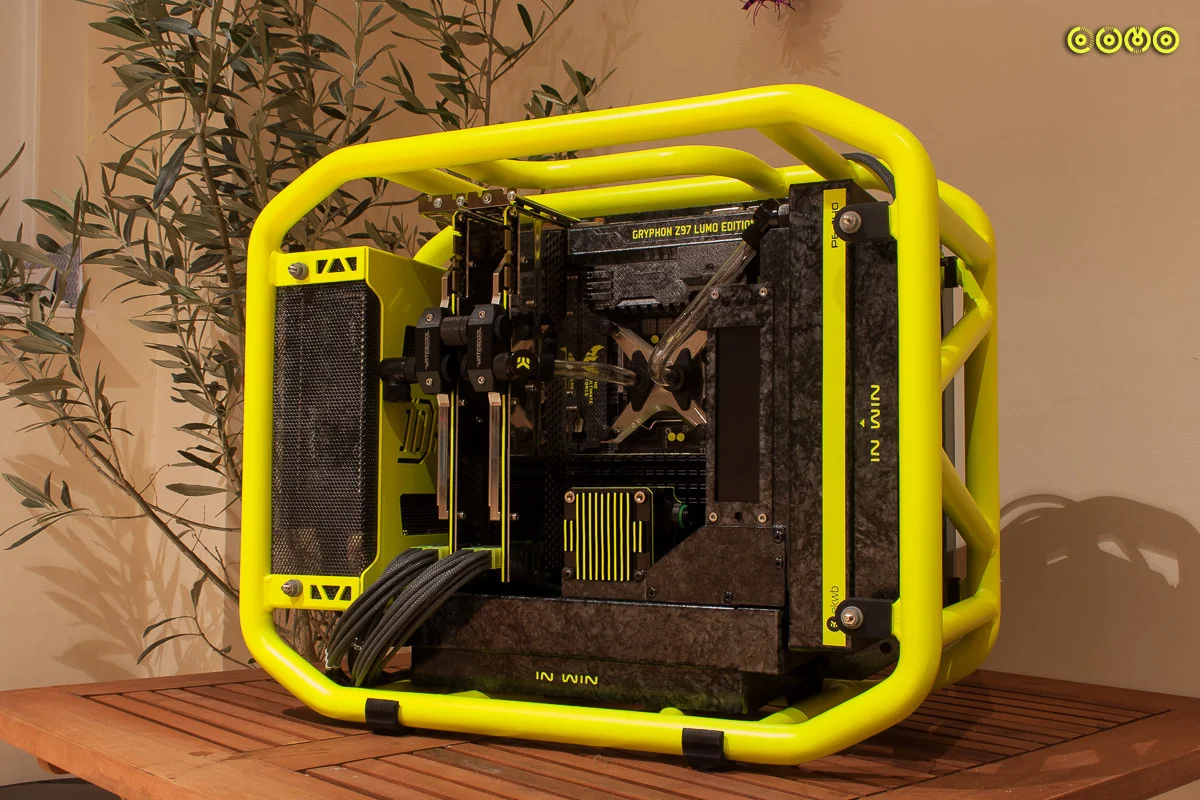

The loop is in and everything is wired,just the rad and window graphics to do!
Have a couple of quick snaps to show whats been happening?
Final shots are being done this week!
The loop is in and everything is wired,just the rad and window graphics to do!
Have a couple of quick snaps to show whats been happening?
Final shots are being done this week!
- Joined
- 25 Aug 2014
- Posts
- 282

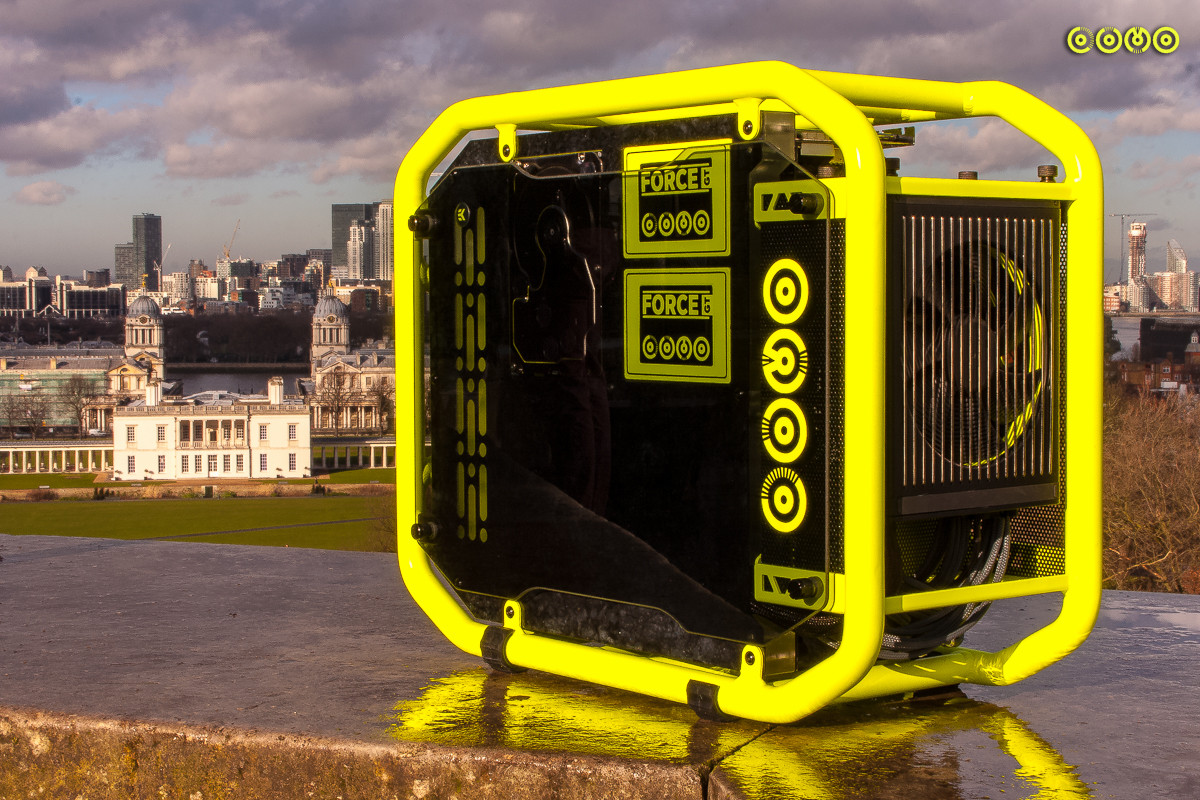

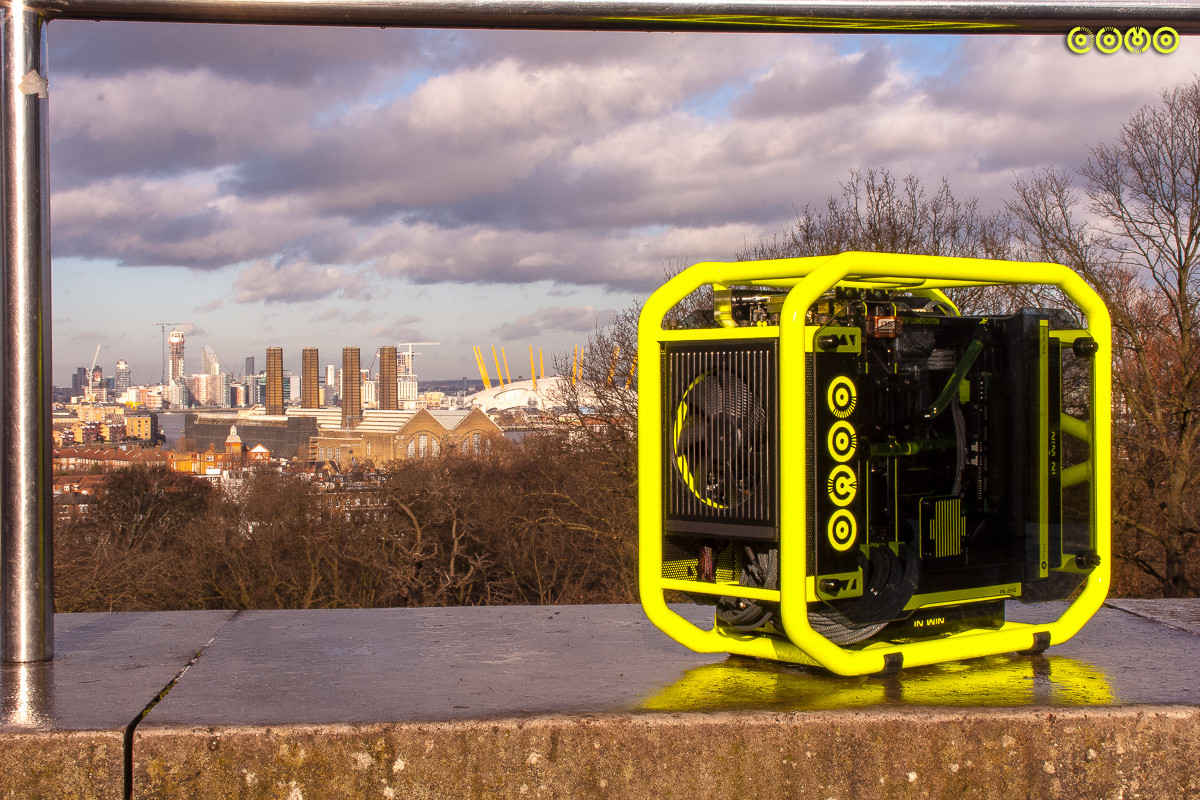

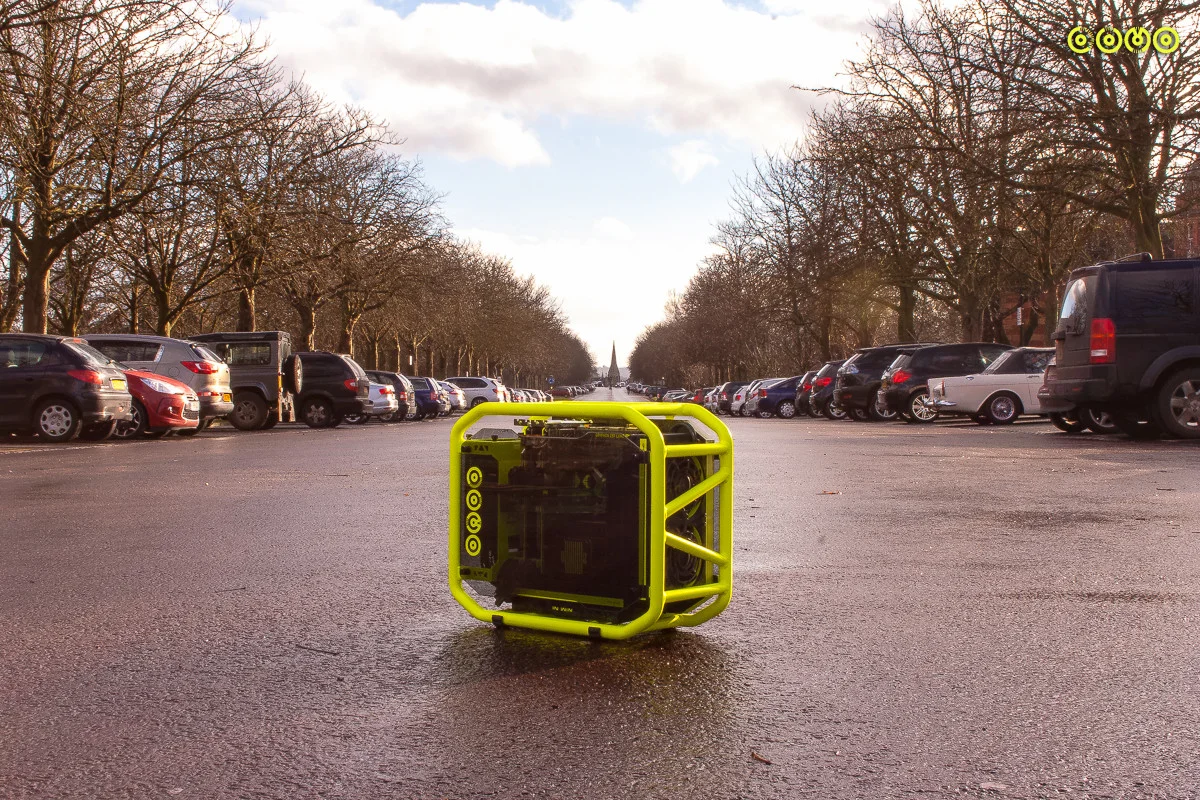

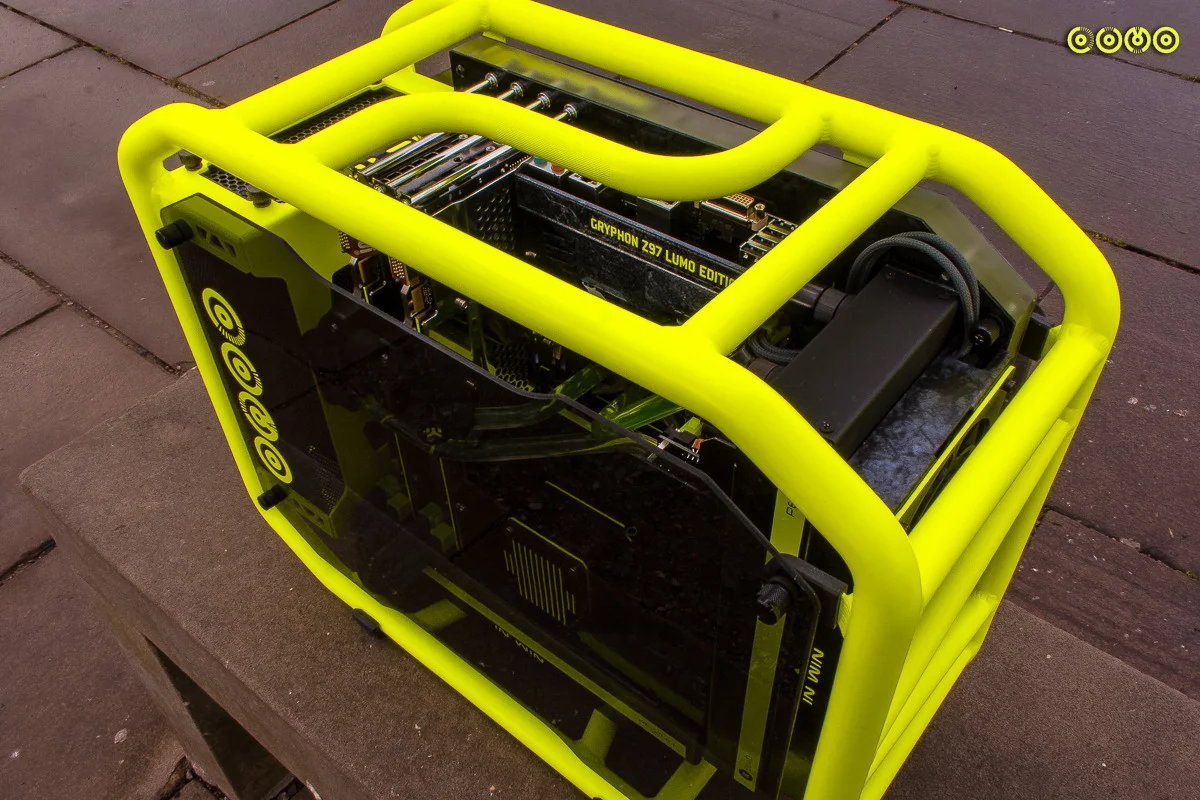

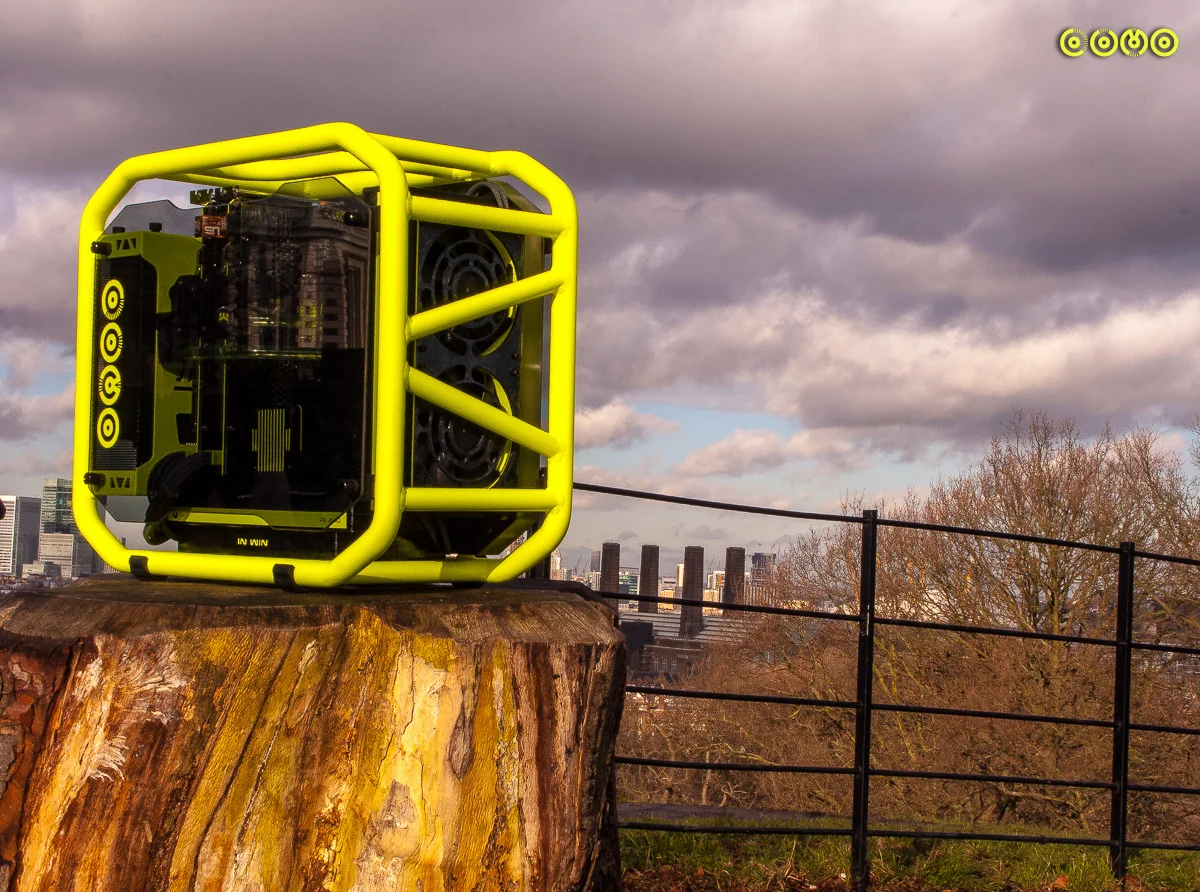

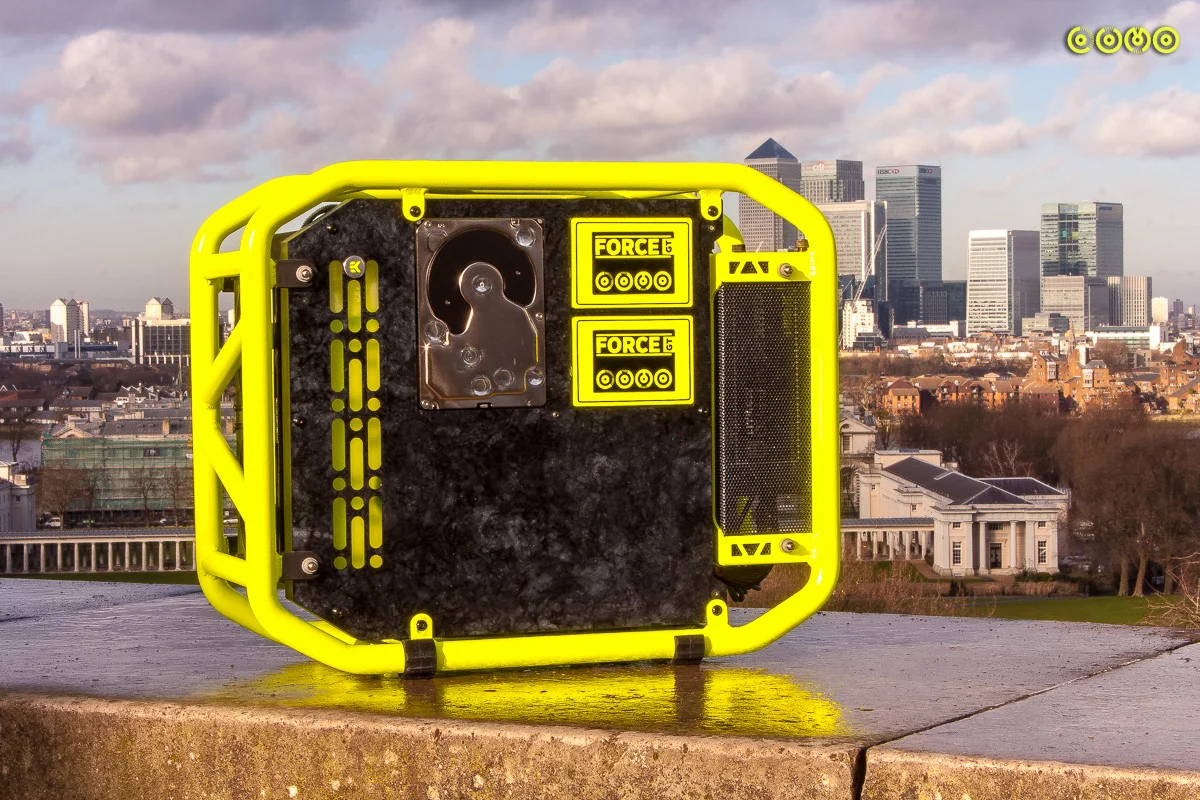

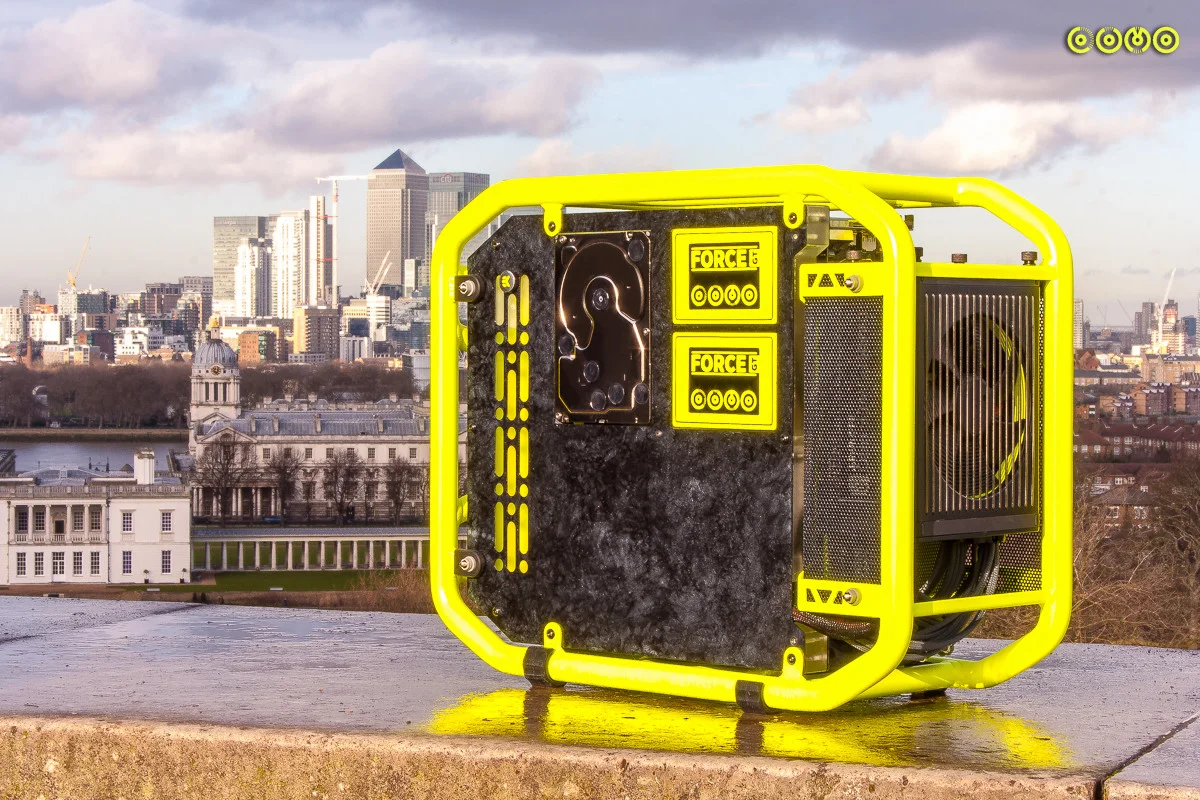

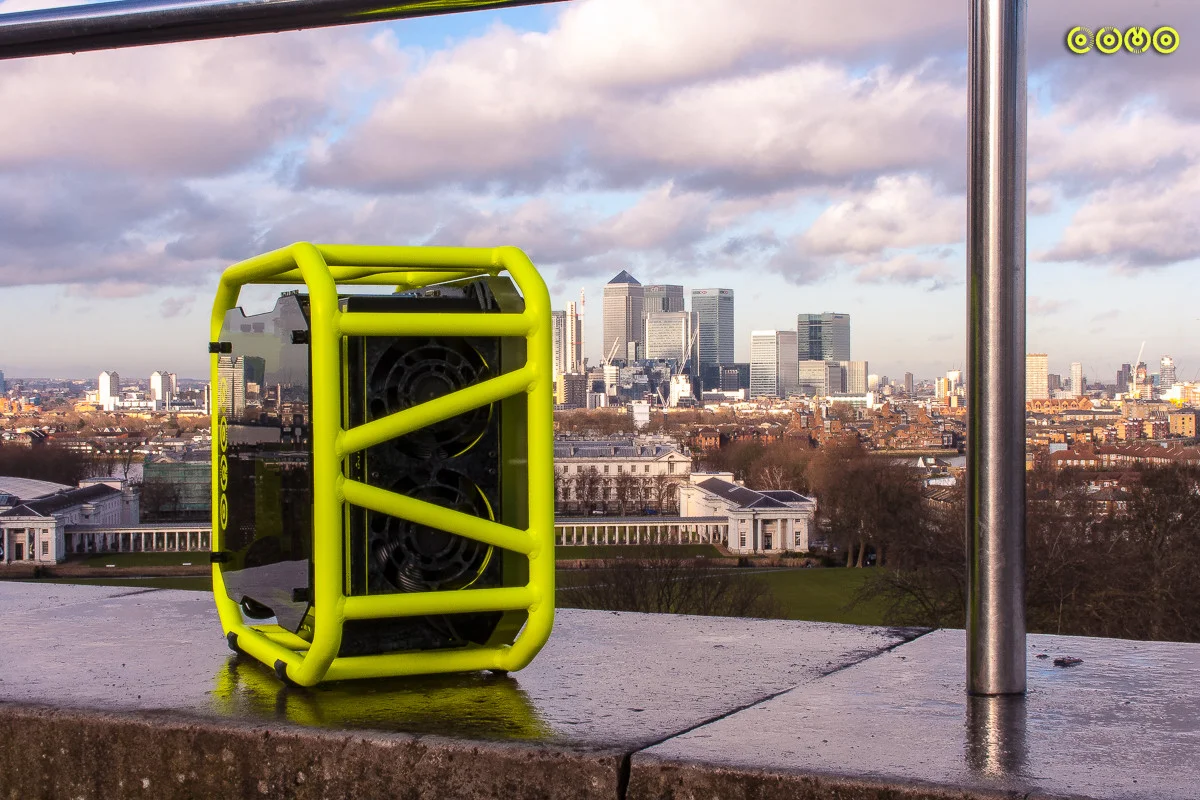

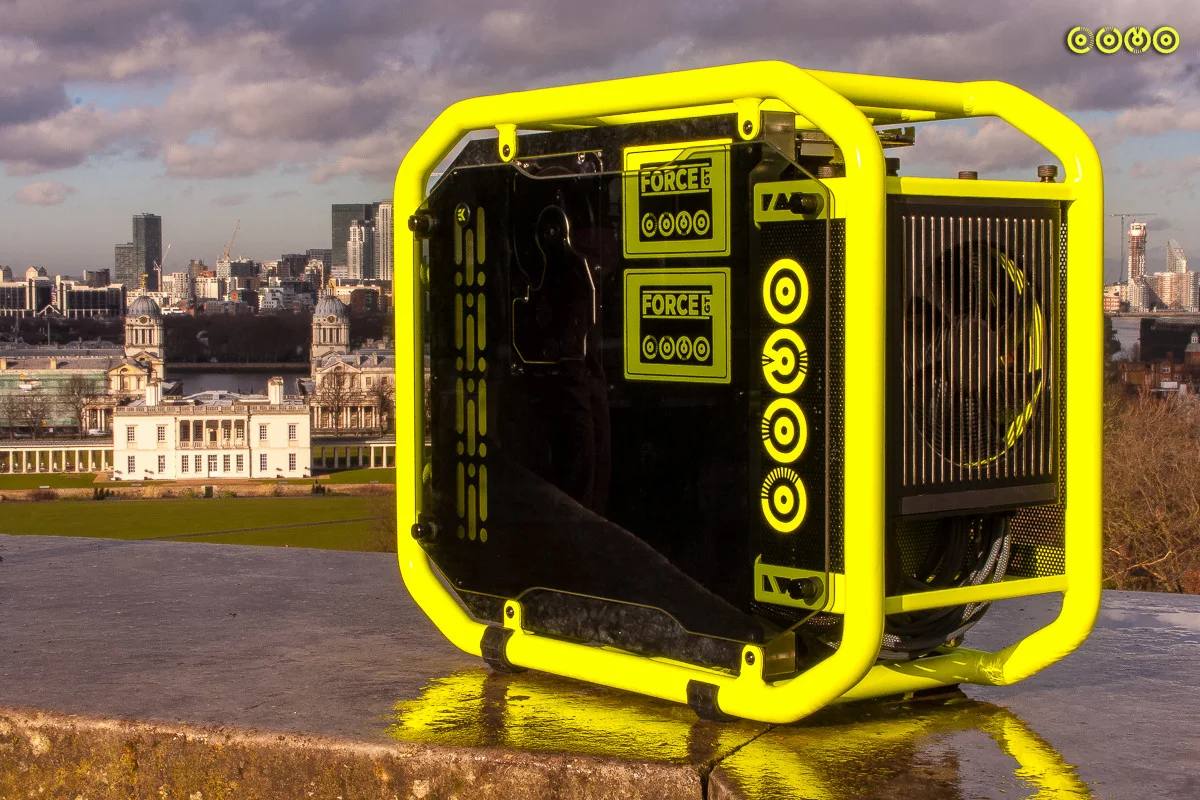

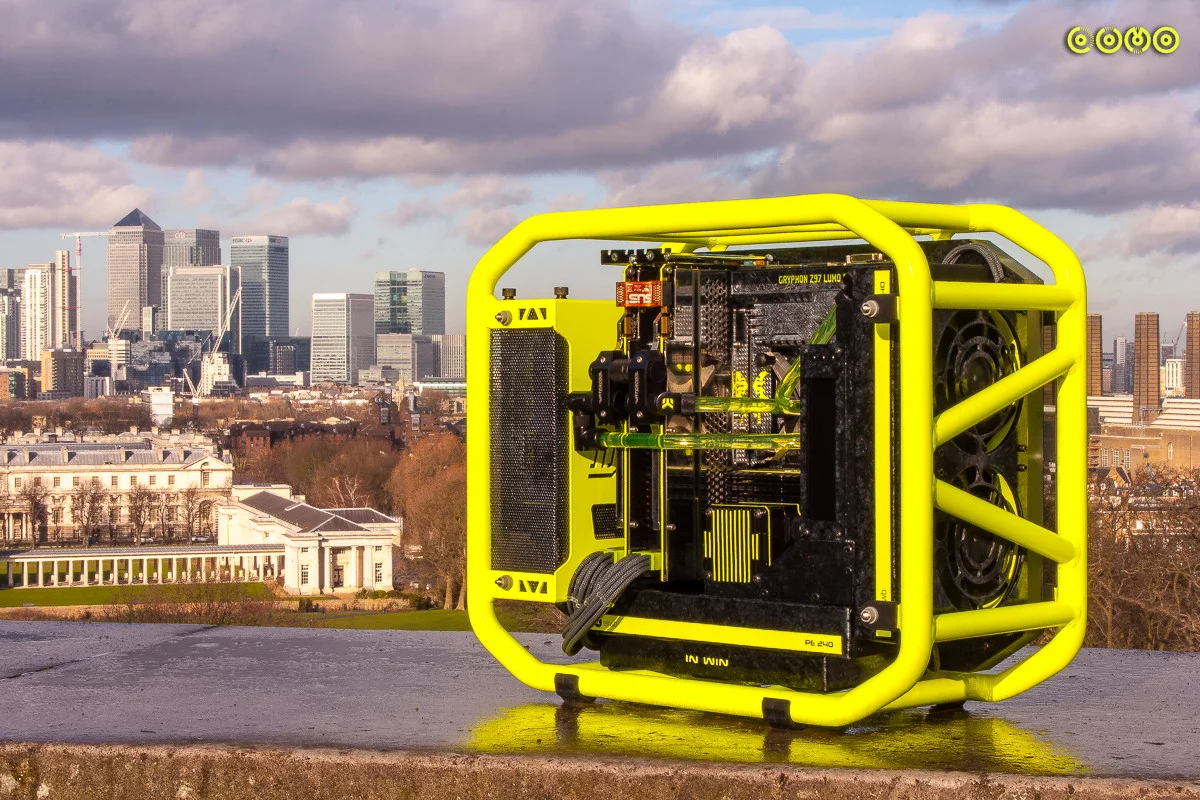

A nice view over London from Greenwich park by the observatory,2 offers to buy and a million "What is it?" questions later.....
'Studio' shots later on!
'Studio' shots later on!
- Joined
- 25 Aug 2014
- Posts
- 282
Tom is a good lad neh?
http://www.overclock3d.net/articles/systems/lumo_-_oc3d_featured_mod_by_b-negative/1
http://www.overclock3d.net/articles/systems/lumo_-_oc3d_featured_mod_by_b-negative/1
- Joined
- 25 Aug 2014
- Posts
- 282
when I go for a lovely day out in London, I always take my system with me.
awesome build
This one weighs in at around 20-25kg....a LAN box that you dont want to carry far!
The EK case that I will be starting soon should weigh in much lighter..
Lol! Funny because its nearly true! London police are famed for being miserable.
Associate
Stunning build. Colours are great, spot on.
