Sorry for the lack of posts the last few weeks, been away for most of it and run in to a few problems during the time I have had to work on the build.
First up I realised that the mounting screws provided with the reservoir were not long enough to mount it to the Parvum case. A minor annoyance but delayed things for a few days whilst I ordered some new screws which obviously when they arrived were the wrong ones. I gave up in the end and drilled the holes out to m4 size to match the incorrect screws I was sent. It was relatively easy to drill holes in the case using a slow speed setting on the drill.

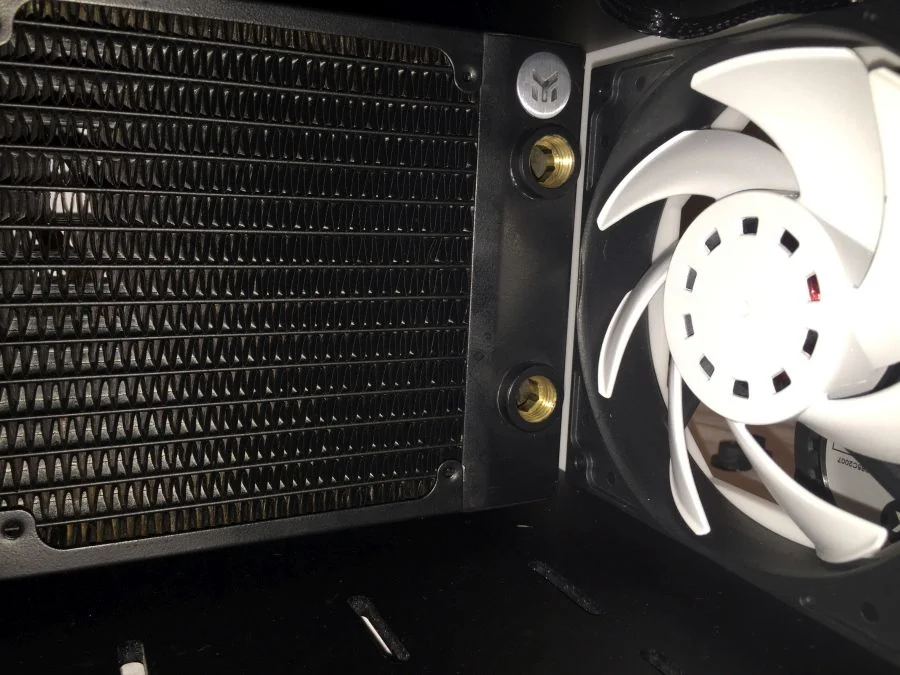

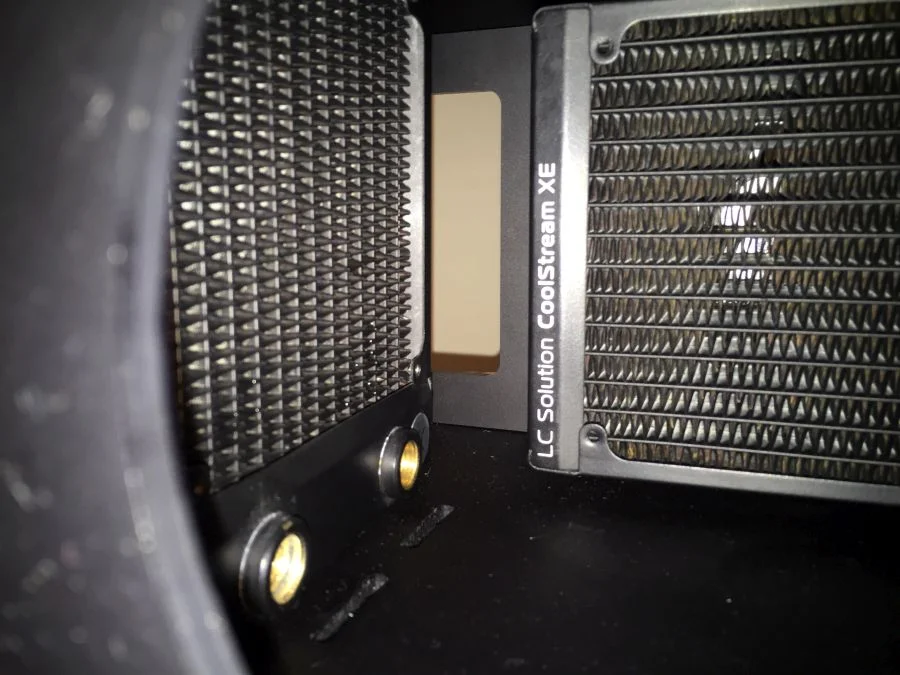

Next up I realised that as I was using very wide radiators in the lower compartment that I needed some 90 degree fittings as the radiators were too close to each other to allow straight connections to fit without kinking the soft tubing, so this added another few days wait for parts. The lower compartment is now finished and all the tubing and pump are connected.
Finally I wasn't happy with the bends on my Acrylic tubing as no matter what I did they were all going slightly flat. Turns out that not all 10mm silicon inserts are equal, the monsoon one I was using is only 9mm when I measured it! Have now ordered the Primochill 10mm insert which should arrive tomorrow so will start the acrylic tubing from scratch this weekend. A word of warning that not all 13/10mm tubing is actually the same size, a trap I fell straight in to on my first Hard tube build. Using 13/10mm parts from different manufacturers is not a good idea it turns out.

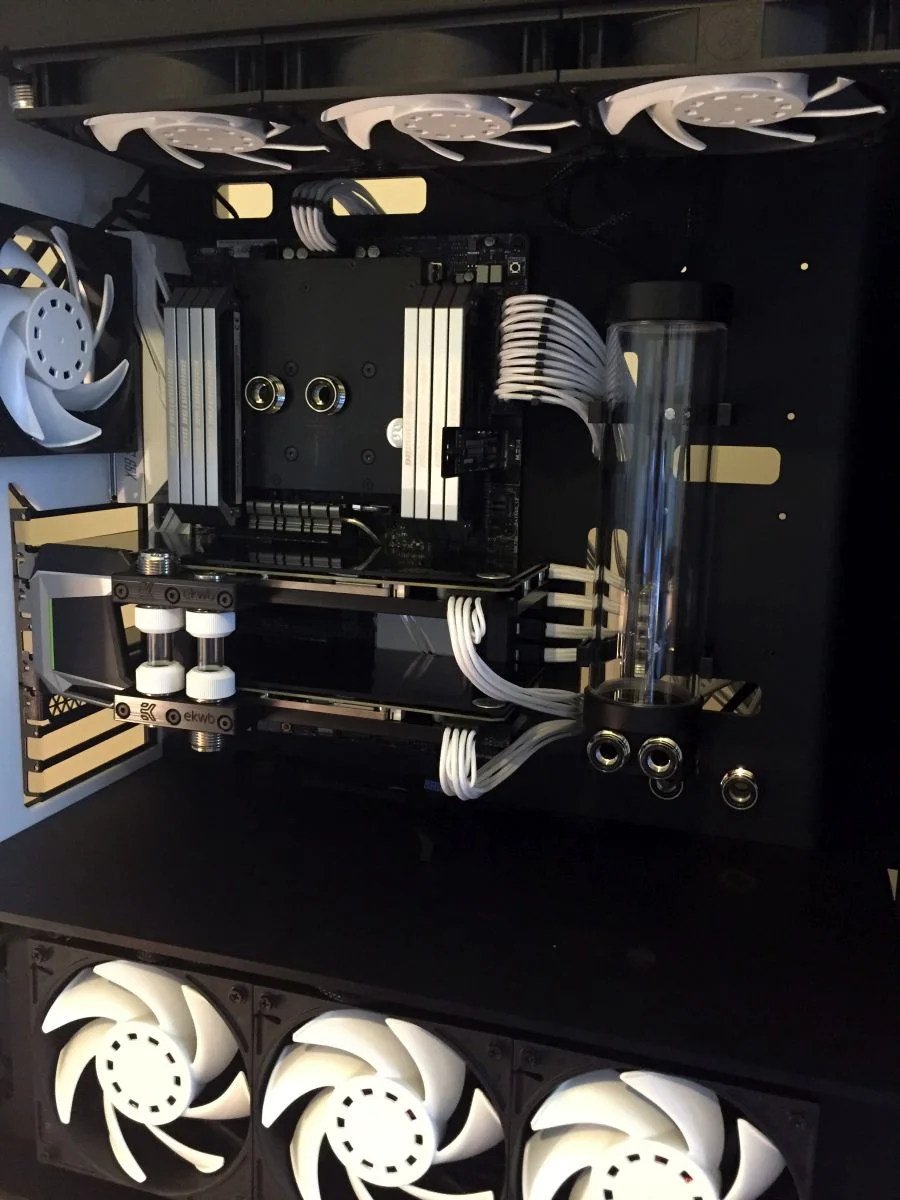

A quick picture below to show the build as it is currently, just the new tubing to do and then its time to fill the loop. Also need to tidy up the cables a bit.
