Samsung Green Ram

LtMatt · 13 Feb 2013 at 08:17

Hi 8Pack,

Just bought some 16gb samsung green ram. My system spec is in my sig. What settings should i use to get it running at 2133? Will i need to increase any bios settings like VCCIO? Currently i have it at 1.0000, default it 1.0500 i think. Anything i should be aware of ? I'll go as high as 1.5v ideally.

8 Pack · 13 Feb 2013 at 11:39

1.5!!! Dear me is this an Overclocking or a green party save the trees forum!!! 1.65v and we will talk!!!

JoeF1 · 13 Feb 2013 at 11:42

Please do as he says so i can get this info too!

LtMatt · 13 Feb 2013 at 11:52

8 Pack said:
1.5!!! Dear me is this an Overclocking or a green party save the trees forum!!! 1.65v and we will talk!!!

I like to stay within safe sandybridge values.

8 Pack · 13 Feb 2013 at 12:01

Thats safe though in my eyes!!! Many XMP where certified by Intel at 1.65v.

I have 50 at least SB boxes in servers world wide with the RAM at 1.75v for 2 years and 5ghz overclocks all fine.

Also I have several Sandy I have hammered myself and they are all fine with 1.9v through the RAM.

Yes its my opinion but an educated one built from overclocking a lot of SB with memory clocking on em too.

Its your call though. You want 1.5 I will put come in and test.

LtMatt · 13 Feb 2013 at 12:09

I will push it further when going for benches of course. But my 24/7 gaming speed id want at 2133 CL10 @1.5v if possible. I'm just unsure if id need to increase VCCIO or not bearing in mind id be using 16gb.

8 Pack · 13 Feb 2013 at 12:36

Yeah you probably will need to inc VCCIO a touch to between 1.075 and 1.1v.

Go 10-12-12-25 1T first up and see how that goes If all is OK go 10-11-11-21 1T. PLL test 1.9 and 1.55 see which end works.

LtMatt · 13 Feb 2013 at 12:37

8 Pack said:
Yeah you probably will need to inc VCCIO a touch to between 1.075 and 1.1v.

Go 10-12-12-25 1T first up and see how that goes If all is OK go 10-11-11-21 1T. PLL test 1.9 and 1.55 see which end works.

Pll? Hmm i didn't even think about that. At my current 24/7 settings i have Pll at 1.6 volts with my cpu @4.5ghz.

At 5ghz i think i have it (pll) at 1.75v.

8 Pack · 13 Feb 2013 at 13:12

Test its effect mate. Each CPU is different.

LtMatt · 13 Feb 2013 at 13:40

Roger that will do!

~Mike~ · 13 Feb 2013 at 15:39

Let me know how you get on clocking the Sammy Green Matt. Haven't installed mine yet. Will most likely need some help though.

Out of curiosity, why did you get 16gb?

wazza300 · 13 Feb 2013 at 15:46

youll do 8gb on 1.55v but 16gb will need more dram v

currently running 8gb @2133mhz 9-11-11-21-1t and 96 trfc

LtMatt · 13 Feb 2013 at 18:48

Mike306 said:
Let me know how you get on clocking the Sammy Green Matt. Haven't installed mine yet. Will most likely need some help though.

Out of curiosity, why did you get 16gb?

Will do mate.

wazza300 said:
youll do 8gb on 1.55v but 16gb will need more dram v

currently running 8gb @2133mhz 9-11-11-21-1t and 96 trfc

Hmm i probably should have just got 8 gig. I guess ill have to see how i get on. I really want 2133 CL10. If i can't get that ill have to weigh up my options.

wazza300 · 13 Feb 2013 at 19:50

LtMatt said:
Will do mate.

Hmm i probably should have just got 8 gig. I guess ill have to see how i get on. I really want 2133 CL10. If i can't get that ill have to weigh up my options.

it depends what board your using,on my asus z68 I can do cas 10 no trouble but not on my gigabyte z77

8 Pack · 13 Feb 2013 at 22:28

wazza300 said:
youll do 8gb on 1.55v but 16gb will need more dram v

currently running 8gb @2133mhz 9-11-11-21-1t and 96 trfc

This is the way I would go!!! and good settings to match.

8 Pack · 13 Feb 2013 at 22:30

Wazza which Giga is it??? I can try and see whats possible with Sammy 8g and Z77 Giga.

wazza300 · 13 Feb 2013 at 22:33

It's the z77x up4 th,they have improved the bios's to support this ram but Idk what other giga boards it applies to

I can do 2200mhz same timings/voltages but read/write/copy figures tend to drop off

8 Pack · 13 Feb 2013 at 23:05

hmmm could be a setting under the hood or a sub timing causing the drop in figures.

LtMatt · 14 Feb 2013 at 12:04

Ok 8Pack it arrived.

I have it runnuing at 2133 @1.5v. Everything else is on auto voltage wise. So pll is 1.8, VCCIO is at 1.050v.

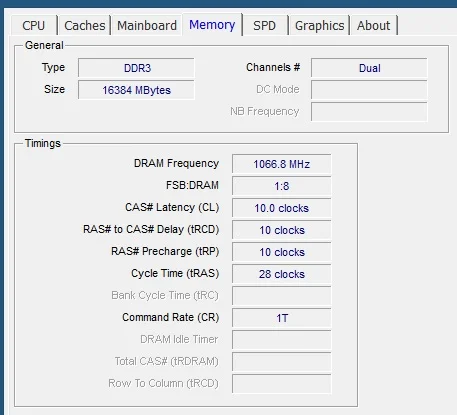

Here is my cpu-z.

What tests/benchmarks should i run to ensure its running at optimum speed and not losing performance?

~Mike~ · 14 Feb 2013 at 12:30

You could run Super PI

http://www.superpi.net/Download/
