The Silence

After purchasing FT02 I decided that my next build will be in SS case as well and there it is. I'm sure some of You recognized the logo
Silverstone TJ07 :)

This build log will start in about 8 weeks, I started working in sketchup with desing for the case, looking for covers that I would like to have and I can say that 99% of desings are ready. There will be acrylic and barrow fittings with no fill ports so image the lenght of the tube :)

There is not going to be x99 tri sli 64gb build. I'm using my old hardware which is:

CPU - i5 2500k / EK Supremacy Clean CSQ
GPU - Asus GTX670 DC2 / EK GTX 670 Plexi (polished)(this probably will be swapped for 970 strix since block is compatible)
SOUND - Xonar D2X
RAM - 2x4GB Kingston HyperX 1600mhz
MOBO - Biostar TP67XE -> replaced with GB Z77X UP7
SSD - Samsung 128GB + 2TB External HDD
PSU - Super Flower 650W Golden Green
Radiator - HW Labs SR1 560mm -> replaced with XSPC RX 480
Pump - Alphacool MCP655 PWM / EK D5 Plexi Top (Polished)
Res - XSPC Photon 170

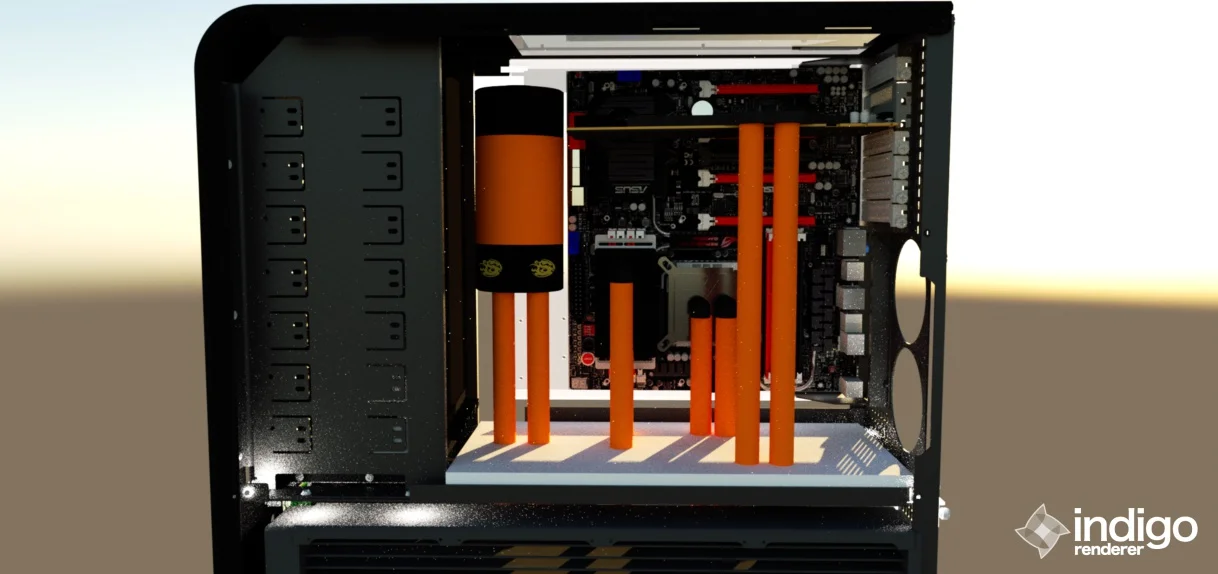

As I mentioned the desing of the loop is ready and this is how it looks. Originally there was supposed to be 2 photons but I decided It would be to crammed in there and now there is only one.

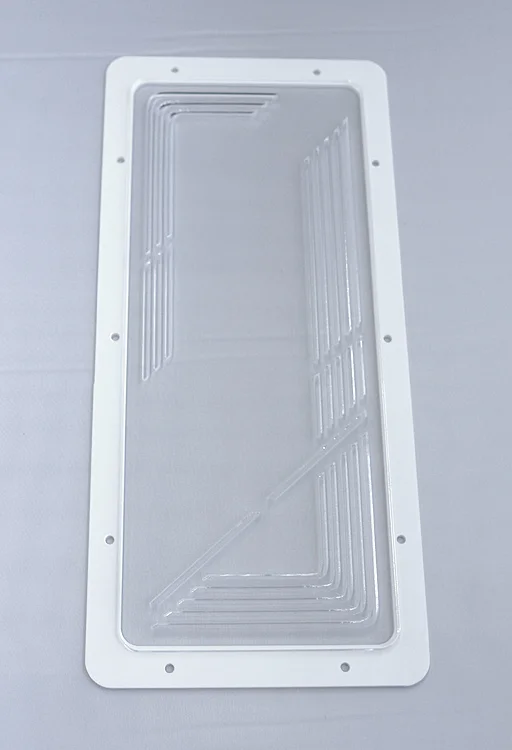

Top window will be slighlty modified version of this

On ther other hand I have a big headache with front cover and will need Your input on which one should I choose.

Can't decide between something like this

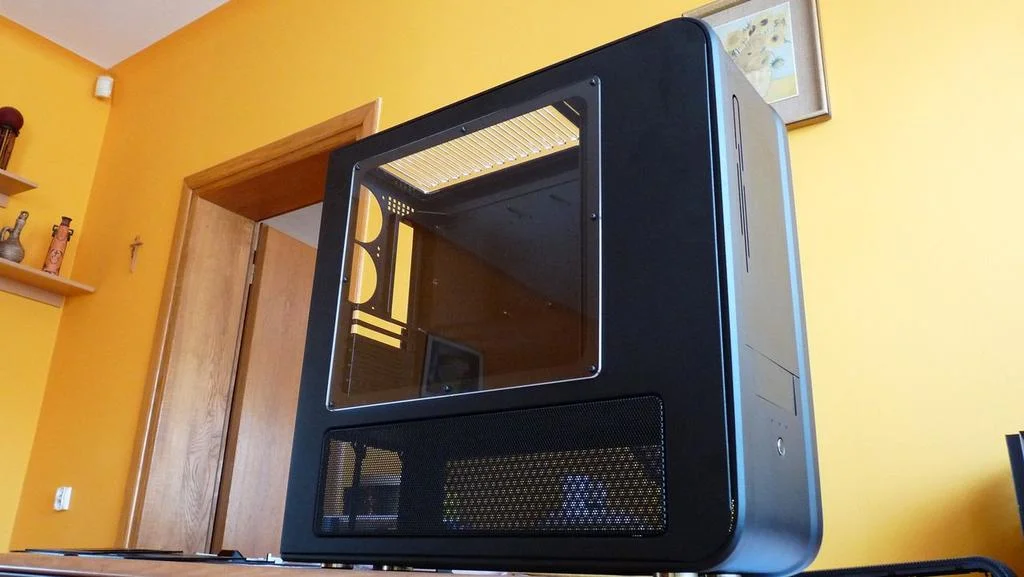

And more common covers that we could see in murdemod


There will be custom desing cut out but I can't decide which way to go with it

Absolutely love the layout of the loop. Looking forward to seeing the end result.

Out of the fronts I have had a soft spot for the look of the murder mods fronts. They suit the case very well.

Loving the pipe work Natsu! Great layout and I'm a fan of orange and reds.

I like the clean look of the murdermod.

Good luck with the rest of the build dude!

Thanks people :) Nice to see some input :)
As far as it goes for the front cover. The logo has been chosen yesterday and this is how the front will look like. Found it when I was googling and I love it. Modified SS logo will go also on my fans and ssd


Can't decide which coolant should I choose. Aurora 2 silver + orange dye or pastel orange

Last edited:
On another forum I have 3 votes on blue. I'm torn between blue and orange. The latter will be safe option but curious how would blue look like with orange board

natsu said:
As far as it goes for the front cover. The logo has been chosen yesterday and this is how the front will look like. Found it when I was googling and I love it. Modified SS logo will go also on my fans and ssd
Click to expand...

It's a bit phallic, isn't it?

LoL yeah but im not using whole design . It will be modified, might not even use it at all.
The front cover and coolant color is the most problematic thing for me.

Another question for you guys.
What do You think about routing the tubes hotizontaly instead of vertically?
