5700X overheating
- Thread starter locrieth
- Start date
Caporegime
Your PPT reading is 126 watts, CPU cores is 102 watts
That's the same as a 5800X, CPU cores should only be reading around 65 watts.

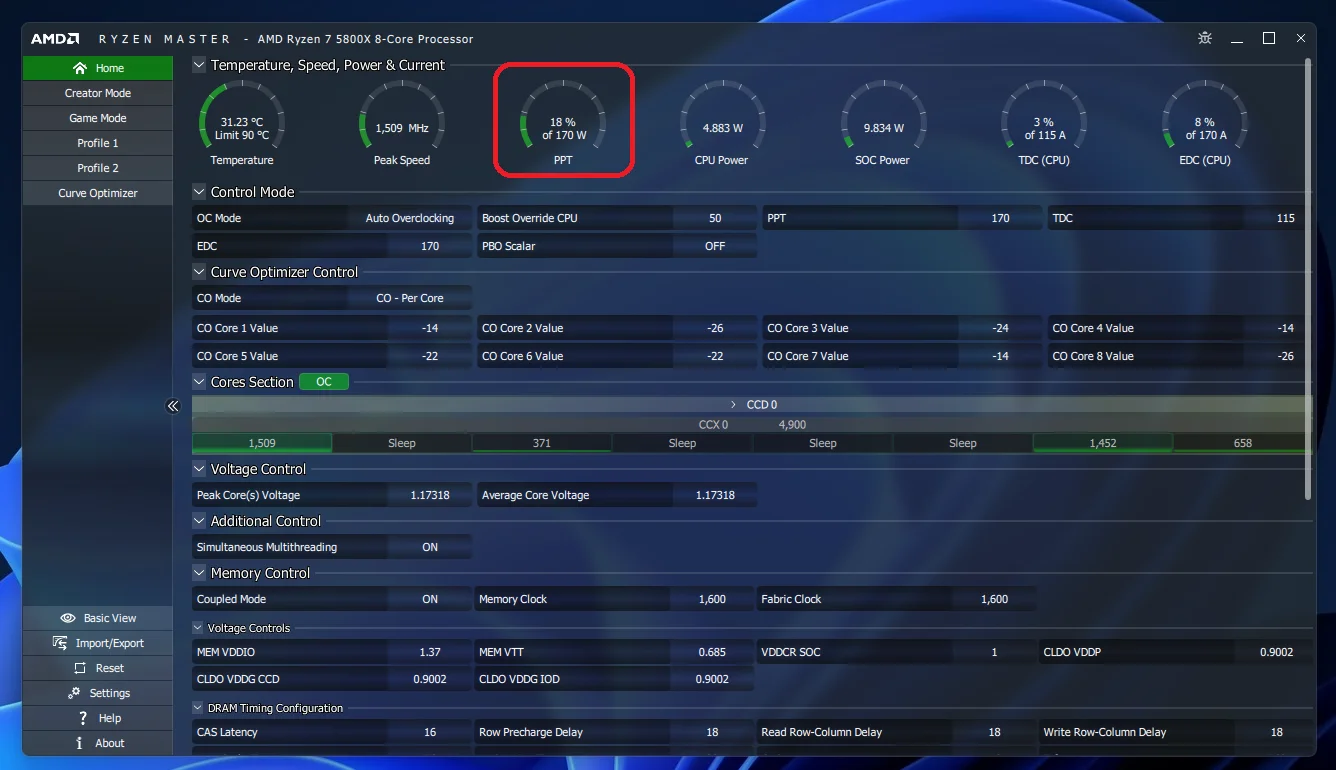

Download Ryzen Master, i need to see what the highlighted in red value is for your CPU, just take a screenshot like you see here.
Caporegime
"PBO Fmax Enhancer" WTF is that?
As a reminder....
The one thing that crossed my mind when i first read this was "has his Motherboard unlocked PBO and is it due to that pulling far too much juice" but then i tested my own CPU on smallest FFTs and it also shot right to 90c, which it never does in anything else, it usually maxes around 80c.
You could be right, some motherboard vendors are a bit thick and treat these CPU's like Intel CPU's and have their version of MCE for it, that's a disaster for Zen 3 temps and performance as unlike Intel they don't respond well to just ramming a crap tonne of amps and volts in to them.
Lets see what his temps are when he tests it in Cinebench, we will take it from there
Caporegime
Ok that's as it should be.
What is that "PBO Fmax Enhancer" in your BIOS? That is not an AMD feature, that is something from MSI and i suspect its the same thing as MCE on the Intel side.
Have you set that to disabled, if so did you disable it before or after this screenshot?
Caporegime
Ah Asus, yeah.....
Disable it, that has nothing to do with AMD and i think IT is why your CPU is running hotter than it should, i suspect its overriding AMD's defaults for that CPU and pushing too much power into the CPU wich will cause it to run hotter than it should.
Set PBO Fmax Enhancer to disabled, everything else shoul'd be as in that BIOS screenshot.
Caporegime
Its my dinner time, i'll be back in a couple of hours.
Caporegime
Hows it going?
Soldato
5700X looks great.

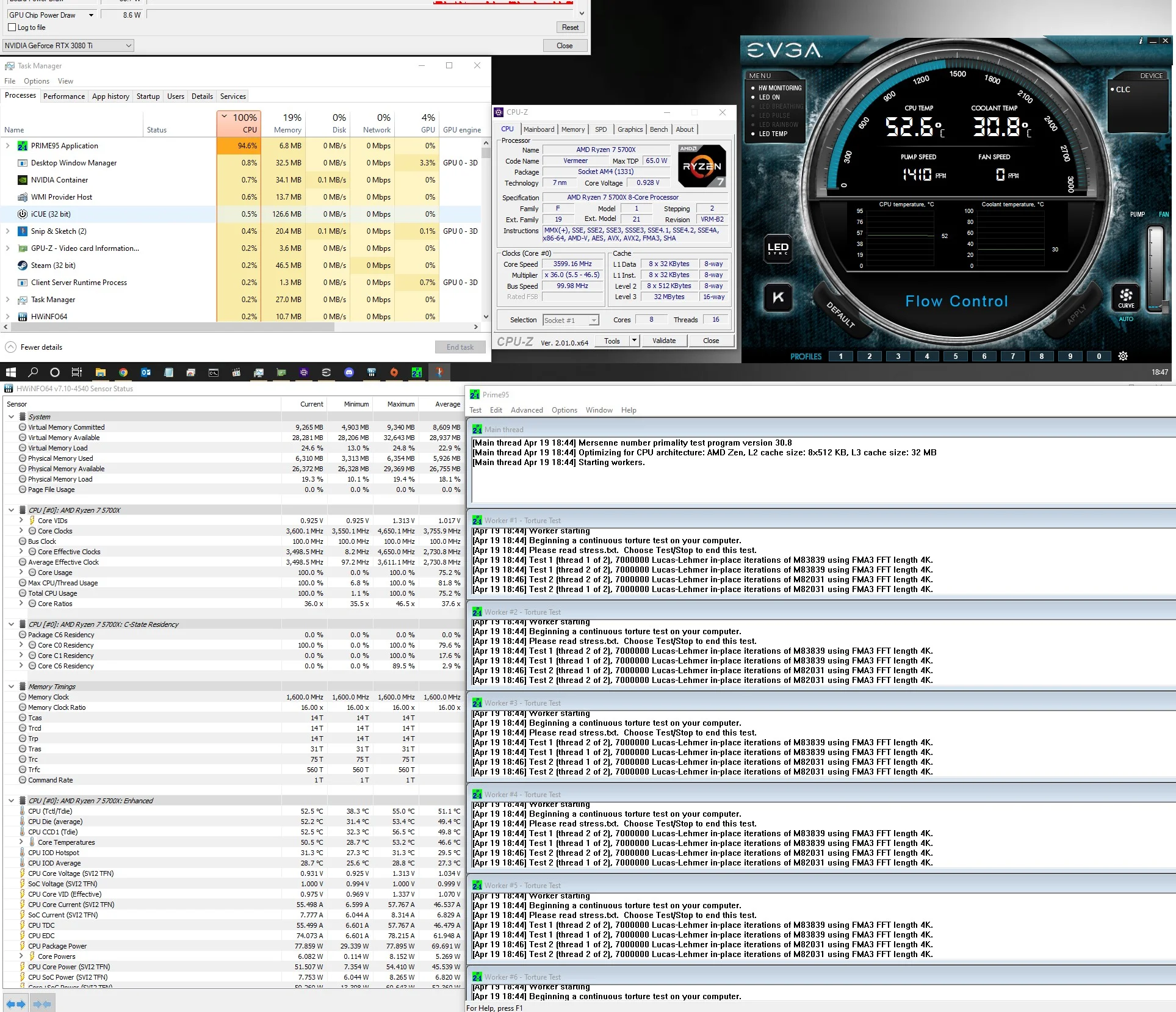

90 degrees with P95 Is to be expected.
90 degrees with P95 Is to be expected.
Sorry got a little side tracked trying to fix an ancient laptop for my wife's uncle. So ran a single core cinebench with PBO Fmax Enhancer set to disabled and PBO set to Auto and I got 1495 and temps haven't gone above 54.5C, just running multicore now.
im gona try a cinebench multicore now mate see what i get
ill post a screenshot
Caporegime
Its difficult to know what the score is supposed to be, the 5600X is also a 65 watt CPU but 6 cores, it scores 11,000, the 5800X is 8 core but 105 watts, it scores around 15,500. So somewhere between that.
Your 12.172 run looks perhaps a little low but temps are excellent and its only drawing 62 watts on the cores.
The 14,579 was a higher? over 100 watts on the cores.
@locrieth what are you getting on yours, stock?
Your 12.172 run looks perhaps a little low but temps are excellent and its only drawing 62 watts on the cores.
The 14,579 was a higher? over 100 watts on the cores.
@locrieth what are you getting on yours, stock?
