Component level board repair. Watch me fail here!

Discussion in 'General Discussion' started by Vince, Jan 31, 2019.

  1. Hades

    Capodecina

    Joined: Oct 19, 2002

    Posts: 21,280

    Location: Surrey and London

    He runs a business repairing Apple products (independent, not authorised Apple). From memory I think he uses a piece of paid software which has them. He mentions it in one of his videos. I don't know where that company gets them. But Apple actively prevent spares being bought by end users. For example you can't buy OEM batteries or screens so he has to rely on non-OEM products. Apple recently managed to get US Customs to confiscate a shipment of batteries on the grounds that they were counterfeit. But the batteries were apparently clearly marked as non Apple products so not counterfeit at all. This is just one example.

    In fact he also has a video on how he can source compatible non-OEM spares; when Apple design a new device they go to several manufacturers for parts and ask them to design and build some samples. Apple then choose one of the companies to supply them. But the other companies who also designed prototypes are now stuck with the cost of developing them and losing the contract. So to recoup their costs they still produce them but remove all Apple branding and hope to sell them to companies such as his.

    His comments about the quality of Apple products and their restrictive practices to prevent users being able to repair their own devices, in the hope that they will buy a new phone/Macbook, have been quite an eye opener. I'm not sure I want to buy another product from them now.

  2. Vince

    Man of Honour

    Joined: Oct 30, 2003

    Posts: 6,864

    Location: Essex

    His apple rants can be absolutely epic :) I think for me it was pretty much just confirmation on what I already know. I love the way he proper goes to town on them but is also straight up about the fact that his business is built around their shady practices and that he is not willing to pay to be authorised.

  3. h4rm0ny

    Mobster

    Joined: Jun 25, 2011

    Posts: 4,803

    Location: Yorkshire and proud of it!

    I would love to see some pics of your set up for trying to fix this. I'm imagining a desk with clamps and a big magnifying glass on a bendy neck, micro-sized tweezers and a soldering iron so fine it could give an ant an enema.

  4. Street

    Soldato

    Joined: Jan 17, 2005

    Posts: 7,019

    Location: Liverpool

    That sounds very much like my attempts at repairing boards! :D

  5. Vince

    Man of Honour

    Joined: Oct 30, 2003

    Posts: 6,864

    Location: Essex

    Your not that far wrong, I have a magnifying glass with clamps and lights, hot air station, my irodo solderpro, volt meter, tweezers, kaptop polimide tape, track tape, IPA, flux etc etc. I shall set it all up on my little portable workstation and get some pics when it is all here but will also grab a few images as things arrive.

  6. h4rm0ny

    Mobster

    Joined: Jun 25, 2011

    Posts: 4,803

    Location: Yorkshire and proud of it!

    Awesome. :D

  7. darael

    Mobster

    Joined: Jul 10, 2010

    Posts: 3,728

  8. Vince

    Man of Honour

    Joined: Oct 30, 2003

    Posts: 6,864

    Location: Essex

    Oh I am as well! I have an Atari ST in line next which was donated to me by a friend this morning! I'm also planning on a zx specky 48k if I can find one that is broken enough, all for no other reason than retro is cool, I would also quite like to play some hitchhikers guide and some other retro games from my childhood. Cheers for the link, I will have a little watch :)

  9. benjii

    Mobster

    Joined: Apr 26, 2013

    Posts: 3,287

    Location: Plymouth

    You've peaked my interest. I've learnt how to replace larger, contained components (audio jack, usb ports etc.) in phones and tablets through Youtube and the like. However, it never struck me to try and replace the smaller parts. If I find the right broken device and the components aren't too expensive, I'll be sure to take it on a fun project.

  10. Minusorange

    Mobster

    Joined: Nov 25, 2005

    Posts: 2,922

    I hope you have a stereo microscope and a lot of spares for trial runs



    He's also built an iphone from scratch using refurbished/discarded parts (although he didn't attempt any logic board soldering that time)

    But good luck

  11. Vince

    Man of Honour

    Joined: Oct 30, 2003

    Posts: 6,864

    Location: Essex

    I don't have an oscilloscope because at this stage it's a bit early to be spending £500 when I'm still finding my feet. Ive put pobably put around £100 in so far but will do a little breakdown as things arrive. I do appreciate that the more of this I decide to do, the more the need for an oscilloscope will likely surface. This is especially the case on older hardware that is particularly sensitive to fluctuations and noise on power rails. I'm sure as all this progresses and I mess about that somebody in here will tell me that it's time to invest ;)

    Also just realised you said stereo microscope.. Googled that and nope, going to be using the assets of god for this one.

    Last edited: Jan 31, 2019
  12. Minusorange

    Mobster

    Joined: Nov 25, 2005

    Posts: 2,922

    You're going to struggle with SMD soldering using just your eyes, even a jewellers magnifying visor will be better than eyes and doesn't cost much

  13. Vince

    Man of Honour

    Joined: Oct 30, 2003

    Posts: 6,864

    Location: Essex

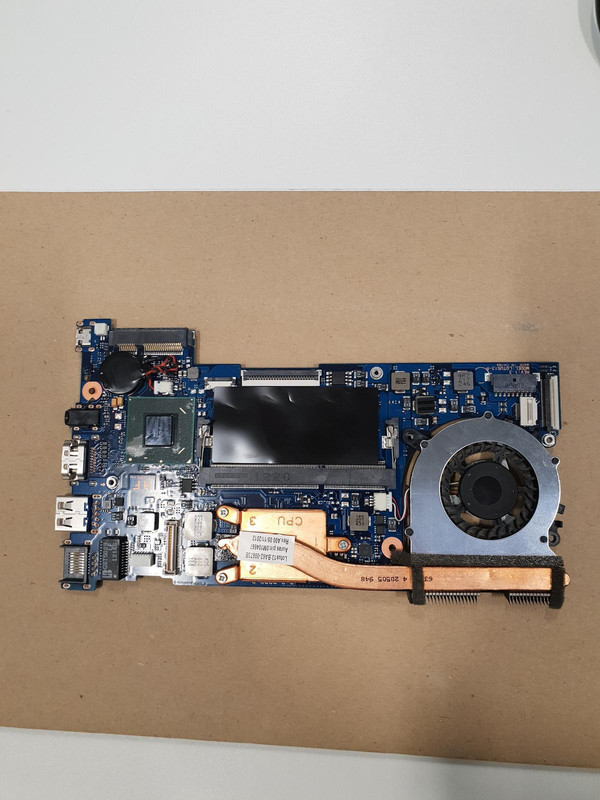

    Little update... 5 things arrived today but not the key bits. I'll post some pics of what ive bought and prices! First though I needed a test board so stripped this "broken" board today. The soldered SSD on this one is done and it's an old enough machine that I have no intention of finding parts for it. It's also a machine I have lots of so not at all interested in getting this up and running. First picture bottom top right.. that ic is similar to the one im replacing so ill whip that off and see what happens :)

    [​IMG]

    [​IMG]

    Next up some of the soldering tools including all the bits that came today, a bit disappointing as it stands but ill price it all up below, including the stuff still to come and you will be able to see just how much of a tight arse I am being for this at the moment:

    [​IMG]

    Already here:

    Solder Wick: £1.89
    High Temp Kaptop Polyimide Tape: £8
    IPA: £3
    Liquid solder Flux: £3.19
    Cheap Multimeter: £8.99 (I have like 4 other multimeters so this was a random buy but its got tiny probes)

    To Come:

    High Precision stainless tweezers: £4
    Hot air rework station: £28 (you just know this is going to be a shocker but I remain hopeful :))
    Magnifying glass / led light soldering stand thing with clamps £10.99
    Gel Flux £6

    Total Spend on equipment: £74.06.

    Things like my old soldering iron that i've had for years and pcb repair tape etc I haven't included.

    Last edited: Jan 31, 2019
  14. Vince

    Man of Honour

    Joined: Oct 30, 2003

    Posts: 6,864

    Location: Essex

    Oh no I have this magnifying soldering flexible thing with clamps coming, I will use my eyes to look through that :D

  15. 233

    Capodecina

    Joined: Nov 21, 2004

    Posts: 12,328

    Location: Glasgow

    can we send you all our broken gpus now :)

    i'd happily pay a decent fee to have you attempt repairs on a dead 280x sitting under my desk at work

  16. Rroff

    Man of Honour

    Joined: Oct 13, 2006

    Posts: 59,747

    I regular do down to and including SSOP and SMD 3216 metric (sometimes smaller) without any magnifying - dunno how much longer as I'm getting upto the age where the human eye's power of accommodation starts to diminish but no problems so far. (The trick for DIY stuff is some good tweezers and a dab of non-conductive, non-corrosive glue).

    You won't get far trying to do BGA and similar using a regular soldering iron in most cases - needs hot air or infrared.

  17. Vince

    Man of Honour

    Joined: Oct 30, 2003

    Posts: 6,864

    Location: Essex

    How dead is it? What does it do? I want some stuff to work on but wouldn't want any money to change hands. I would even pay postage and send it back if we succeed/fail. Sharing all the fun in here of course :) If you were up for that and @Maccy and the other lads say it's ok I would love to have a go.

    Last edited: Jan 31, 2019
  18. itchy

    Mobster

    Joined: Mar 29, 2011

    Posts: 4,688

    I screwed fixing phones and motherboards years ago just not worth the hassle unless its your hobby.

    I found over the years it was hit and miss so just gave up in the end.

    Your phone screwed buy a new one, you motherboard screwed buy a new one.

    Bloody using a hair dryer to open a phone, motherboards don't go there done reflows in the oven, done it with graphics card. Its just not worth it.

  19. Vince

    Man of Honour

    Joined: Oct 30, 2003

    Posts: 6,864

    Location: Essex

    This is literally just a bit of fun and to learn something new. Plus a 128gb iPhone 7 is still worth a few quid so rather than pay somebody £130 to fix it, I can spend less than that on stuff and learn something new in the process. I'm not bothered if it breaks, it's one of a fleet of 20 odd phones so that's really not what it's about. It's more about, can a bloke go out and spend £80 odd quid to do something that a professional outfit will charge more than £100 for. I've taken apart so much over the years that something like removing a screen on a phone generally goes decently and isn't much of a problem.

    Half the problem here is exactly as your saying, your using the wrong tools for the job :) Although it can work, you don't use an oven to fix a gpu. It's the same thing when fixing cars, jobs are easy with the right tools and knowledge, without those things it's an insurmountable task.

  20. Ahleckz

    Capodecina

    Joined: Nov 7, 2009

    Posts: 17,147

    Location: Glasgow

    I have no idea about electronics, but I’m glad that a beer is an essential part of your work bench!
