Component level board repair. Watch me fail here!

Discussion in 'General Discussion' started by Vince, Jan 31, 2019.

  1. Maccy

    Commissario

    Joined: Nov 23, 2004

    Posts: 35,169

    Location: Back in Blighty

    I don't have a problem with it, just have to make sure that both parties agree to terms and if anything should get lost in the post who deals with it etc?

  2. Vince

    Man of Honour

    Joined: Oct 30, 2003

    Posts: 7,581

    Location: Essex

    It's an essential part of all workbenches, isn't it? :)

  3. Vince

    Man of Honour

    Joined: Oct 30, 2003

    Posts: 7,581

    Location: Essex

    Cheers dude. @233, balls in your court dude, if you want to see me attempt to break your gpu further then hit me up with a trust and we can work it out. :)

  4. h4rm0ny

    Soldato

    Joined: Jun 25, 2011

    Posts: 5,475

    Location: Yorkshire and proud of it!

    Reading this thread all that keeps going through my head is...


  5. Vince

    Man of Honour

    Joined: Oct 30, 2003

    Posts: 7,581

    Location: Essex

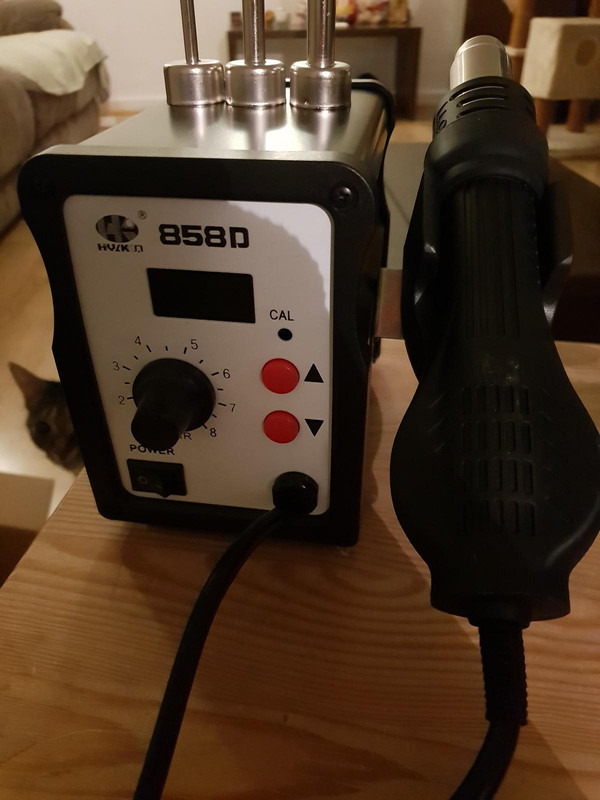

    Gentlemen! I present to you the cheapest of equipment!! It's a shame that the hot air station told me it wouldn't be here until Monday as I left the phone in the office. TBH I'm pretty much set now just waiting on precision tweezers (essential kit!), gel flux and that is about it! Perhaps a bit later ill have a go at ripping some chips off of a board!

    [​IMG]
    [​IMG]
    [​IMG]

    Only small issue I have right now then is nothing to fix! That is unless my mate brings up that Atari but still, Ill need parts for that I am sure!

  6. darael

    Mobster

    Joined: Jul 10, 2010

    Posts: 3,920

    Have you given any thought about the potentially nasty fumes generated by the solder and flux? I've seen extractors at the workbench with it's hose going out the window, but I'm not sure how feasible that would be.

    I can't justify an extractor as I only do the very occasional spot of soldering. But if you're looking into making this into a little hobby, I certainly wouldn't dismiss one.

  7. paradigm

    Caporegime

    Joined: Aug 26, 2003

    Posts: 34,720

    Location: Staffordshire

    Nothing that a 12v bench supply, a high flow 80mm fan and some tumble dryer hose can’t solve.

  8. Street

    Soldato

    Joined: Jan 17, 2005

    Posts: 7,235

    Location: Liverpool

    Solder cat is watching you.. Solder?

  9. Vince

    Man of Honour

    Joined: Oct 30, 2003

    Posts: 7,581

    Location: Essex

    I think solder cat was actually eyeing up the box that it came in :D You cant blame her, looks a comfortable one!

  10. CREATIVE!11

    Soldato

    Joined: Apr 21, 2007

    Posts: 6,332

    Hmmm this inspires me.

    I'd love to say be able to buy a broken pc part gpu etc or cpu and somehow fix it.....

    I always fix majority of my stuff but never things like soldering small components etc. Just soldering fixing my headphones drill etc here and there.... I've used same pair of sennheiser hd 595's for about 12 years now because i've repaired them so much. They still sound good though (Compared to my brand new hd 650's that pretty much sit in a box majority of time because I only use them for music editing here and there).

    Edit: Also keep us updated on your progress + pics. I'm interested to see how it goes.

  11. Rroff

    Man of Honour

    Joined: Oct 13, 2006

    Posts: 62,727

    Exactly what I do.

    For casual use and quick jobs a small desktop fan sat the opposite side (pointing away) isn't a bad idea either.

  12. Vince

    Man of Honour

    Joined: Oct 30, 2003

    Posts: 7,581

    Location: Essex

    I'll keep you updated :) The iPhone 7 fix will be next week now but I do have a whole bunch of broken iPhone 6 phones plus about 4 iCloud locked devices so I could do something with them even if its just practising removing their audio IC's. I did want to wait until I had some of that gel flux that everybody seems to use but I do have liquid flux so perhaps I could have just a little go. I was going to try and make a semi decent video of the phone repair but if my previous youtube attempts are anything to go by it will be unedited, unscripted and badly filmed with a lot of "errr" involved.

    Last edited: Feb 1, 2019
  13. Minusorange

    Mobster

    Joined: Nov 25, 2005

    Posts: 3,931

    I built my own from a spare 120mm fan, 12v DC power supply, a charcoal filter and a 3d printed housing

    I modified the design from this - https://www.thingiverse.com/thing:17086 so I could add a Rocker Switch/Kettle Plug adapter and to house the power supply all in one unit, total cost was about £10

  14. Vince

    Man of Honour

    Joined: Oct 30, 2003

    Posts: 7,581

    Location: Essex

    Thats awesome... I could put some carbon filter in it that I have in the garage, I have a load of small ITX power supplies as well as some 120mm fans... I recon I can make a little extractor. and I could also get it all 3d printed... hmmm

    If you modified that to be a bit longer than a itx supply you could also make a housing for the whole thing in 1 unit as you say. I think I might do this, mind you I think I could easily make a better/different one out of a load of wood I have and that won't cost me a penny.

    Last edited: Feb 1, 2019
  15. 233

    Capodecina

    Joined: Nov 21, 2004

    Posts: 12,537

    Location: Glasgow

    it seems to have no video output, although still spins up, its currently doing nothing other than sitting as a dead weight in a box so nothing ventured nothing gained :)##would be nice to get my xfire setup back again

  16. Vince

    Man of Honour

    Joined: Oct 30, 2003

    Posts: 7,581

    Location: Essex

    I'd be happy to have a look. I do know a trick for and cards which I've used to bring cards back to life before. And it doesn't even include an oven.

    Last edited: Feb 2, 2019
  17. LuckyBenski

    Mobster

    Joined: Dec 28, 2017

    Posts: 2,865

    Location: London

    Super interested to see how this goes. Known my way around a soldering iron for years but surface mount was always tricky. I've also been permanently shelving the hot air station idea. For now... :)

  18. 233

    Capodecina

    Joined: Nov 21, 2004

    Posts: 12,537

    Location: Glasgow



    sent you a trust can you fire me your address over and I'll post it over.

  19. slipperydave

    Gangster

    Joined: Apr 30, 2006

    Posts: 288

    Location: Derby

    as is an Amiga

  20. hominid

    Wise Guy

    Joined: Nov 22, 2002

    Posts: 1,824

    Location: South UK
