Can anyone confirm my thoughts before i kill myself hard wiring my dash cam?
I have a Citroen DS4, the fuse box is pretty handily tucked away in the glove compartment so getting to it is quite easy.

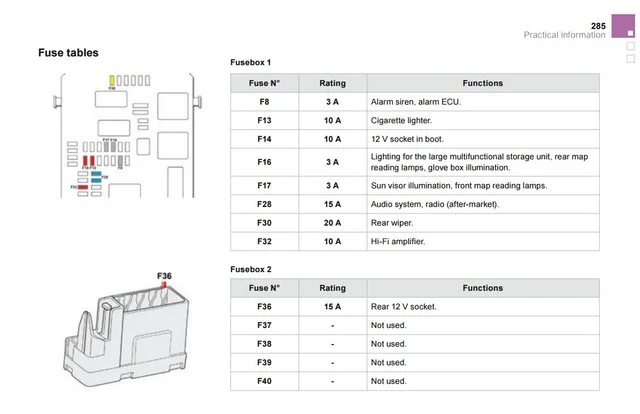

This is the fuse layout,

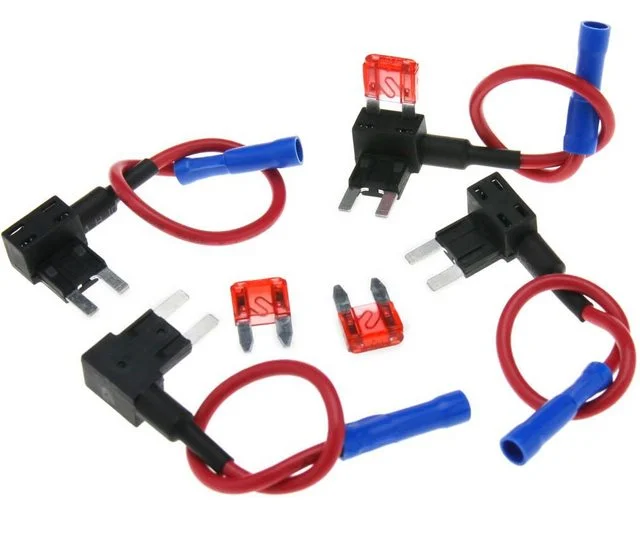

I was thinking of using a tap like this, on the F14 Boot 12v fuse

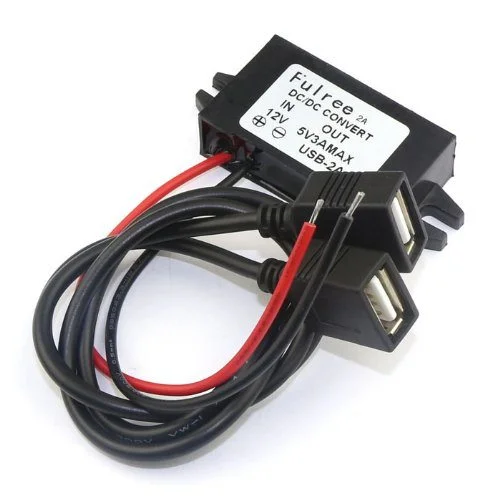

With a cable like this,
To have a spare usb in my glove box to wire to the dashcam on windscreen.
Tap is rated for 12v 10A, so should be fine, I'm not sure where to ground the cable but i assume there must a screw somewhere nearby.
I was thinking of buying a Goluk T2, and since it is Micro USB, i could get a flat cable to run to my rear view where the camera will be.
My only question is, will this work? if I do tap it, i do have another dash i could put in the boot to look out back, will having 2 dash cams connected be fine on a 10A fuse. My current dashcam uses mini USB, so should be around 3A. Is my thinking reasonable?
Edit: Just looking at a video, the tap should have 2 fuses rated at 10A connected? So i assume this will split the load.
