Should have them somewhere but will have to see.
-
Competitor rules
Please remember that any mention of competitors, hinting at competitors or offering to provide details of competitors will result in an account suspension. The full rules can be found under the 'Terms and Rules' link in the bottom right corner of your screen. Just don't mention competitors in any way, shape or form and you'll be OK.
Fallout 4 CPU benchmark thread(need some Zen3 and Zen4 results!)
- Thread starter CAT-THE-FIFTH
- Start date
@themontanio
Didnt' have them backed up anywhere (at least that I could find!), but put the things I did have going by the original AT thread:
forums.anandtech.com
However, I am unsure about the ini files - certainly when I tried to fire up FO4 it seemed to be default settings not the 480P we need for this.
So it may be that I only have save games.
Don't have anywhere to host them, so I'll try sending you a PM and then I could email them. They aren't that big (3MB for a zip, 2MB for a 7zip), so that should work.
No, ignore that: I found the 7z files which should be what what we all benched with.
Didnt' have them backed up anywhere (at least that I could find!), but put the things I did have going by the original AT thread:
Draw Call Performance In Fallout 4
Riding on the back of my previous thread, where users ran an old instancing demo to investigate AMD's draw call performance, I'm extremely curious as to where Ryzen falls in a "modern" game; lots of draw calls, lots of background processing, and huge draw distances. The reason why, is that all...
forums.anandtech.com
So it may be that I only have save games.
Don't have anywhere to host them, so I'll try sending you a PM and then I could email them. They aren't that big (3MB for a zip, 2MB for a 7zip), so that should work.
No, ignore that: I found the 7z files which should be what what we all benched with.
Associate
Thanks to @KompuKare for sending over the files!
As expected, older HEDT chips perform poorly
On my i9-7920X (mostly stock 4.4GHz / 2.7GHz mesh) and 4x16GB DDR4-3200 (15-17-17-34-T1) + RTX3080:
~8118: 56.6 FPS
~11793: 44.9 FPS
As expected, older HEDT chips perform poorly
On my i9-7920X (mostly stock 4.4GHz / 2.7GHz mesh) and 4x16GB DDR4-3200 (15-17-17-34-T1) + RTX3080:
~8118: 56.6 FPS
~11793: 44.9 FPS
Yes, that's a pretty poor showing for such a power hungry system. At least you should have plenty of PCIe slots for multiple NVMe etc. (all those 2TB being cheap now but being only able to have a few NVMe slots - even with using a PCIe slot for another - means I am still holding on for 4TB to get cheap!).
So about the same as that Zen APU with onboard (not that these benches test the GPU much but the iGPU will rob the CPU of memory bandwidth) with slightly more power usage.
Sweclockers tested the Intel HEDT chips of that generation and Fallout 4 didn't like them. Must be the Mesh topology they use.Yes, that's a pretty poor showing for such a power hungry system. At least you should have plenty of PCIe slots for multiple NVMe etc. (all those 2TB being cheap now but being only able to have a few NVMe slots - even with using a PCIe slot for another - means I am still holding on for 4TB to get cheap!).
So about the same as that Zen APU with onboard (not that these benches test the GPU much but the iGPU will rob the CPU of memory bandwidth) with slightly more power usage.
@KompuKare They stopped using Fallout 4 after Zen+ was released:
www.sweclockers.com
AMD Ryzen 7 2700X och Ryzen 5 2600X "Pinnacle Ridge" - Test - Speltest: Fallout 4
Det har blivit dags att lyfta på locket för andra generationens Ryzen-processorer, där förhöjda klockfrekvenser och optimeringar under huven ska lyfta familj...
www.sweclockers.com
Can you bundle all the links into a 7z and upload somewhere? Almost every link is broken@themontanio
Didnt' have them backed up anywhere (at least that I could find!), but put the things I did have going by the original AT thread:
However, I am unsure about the ini files - certainly when I tried to fire up FO4 it seemed to be default settings not the 480P we need for this.Draw Call Performance In Fallout 4
Riding on the back of my previous thread, where users ran an old instancing demo to investigate AMD's draw call performance, I'm extremely curious as to where Ryzen falls in a "modern" game; lots of draw calls, lots of background processing, and huge draw distances. The reason why, is that all...
So it may be that I only have save games.
Don't have anywhere to host them, so I'll try sending you a PM and then I could email them. They aren't that big (3MB for a zip, 2MB for a 7zip), so that should work.
No, ignore that: I found the 7z files which should be what what we all benched with.
It's the somewhere part I have trouble with.
Can't think of any decent place to share things without having to sign up etc., and don't want to use my Google Drive for this.
Last edited:
Okay, pCloud it is then:
Fallout 4 benching.7z - Shared with pCloud
Keep, share and access your files whenever you need from wherever you are. Create a free pCloud account and make your life easier.
f2d09283642b85a4af11580adcefaf850e26e0f9fdc1f94ace5b8316b51225ba
Those are the files I send to @themontanio in post #342 above. Ini and saves are the ones we should use. For the ENB version there may be a newer one, but I don't think it matters much.
@KompuKare
Made a new thread WRT to CPU performance in Starfield:
forums.overclockers.co.uk
Made a new thread WRT to CPU performance in Starfield:
Starfield CPU performance reviews
Now a few reviews have come out,I thought it will be useful to have the information in one thread. CPU benchmarks 1.)PCGameshardware(05/09/23) CPUs run at default RAM speeds https://www.pcgameshardware.de/Starfield-Spiel-61756/Specials/cpu-benchmark-requirements-anforderungen-1428119/...
forums.overclockers.co.uk
Last edited:
I edited my post - I put CPU benchmarks in a new thread.
Associate
My system:
- 5800x3d @ stock
- 2x16GB DDR4 3600 MHz
- Radeon 6800 stock
Results:
- 8000 drawcalls = 112 fps
- 11700 drawcalls = 91 fps
Question: How comes the combination of a 5800x3d and a 980ti scores so much higher than the same processor combined with newer generations of GPU's?
- 5800x3d @ stock
- 2x16GB DDR4 3600 MHz
- Radeon 6800 stock
Results:
- 8000 drawcalls = 112 fps
- 11700 drawcalls = 91 fps
Question: How comes the combination of a 5800x3d and a 980ti scores so much higher than the same processor combined with newer generations of GPU's?
Last edited:
Welcome to the thread and forum!
Those results put you at #42 overall
For some reason FO4 and Skyrim really prefer Nvidia. Most be something about the way the drivers handle the calldraws or similar.
Of the 5800x3D's, yours is the highest scoring Radeon system.
Also, while Ryzen 3D really appeals for its plug-and-play nature, you will note that the top scoring systems mostly have tightly tuned RAM as well.
Anyhow, here we are measuring mostly theoretical drawcall limits at 480P, and the 980 Ti soon runs out of power when asked to run FO4 at 1440P with tons of texture mods.
Associate
Thanks for the detailed response. So your saying that the 980ti only scores that much higher than more modern GPU's because of the memory having better timings? So that means that it would be also more worthwhile to invest in faster ram if you are drawcall limited in modded Skyrim / Fallout 4? Compared to investing into a more power GPU I mean.Welcome to the thread and forum!
Those results put you at #42 overall
For some reason FO4 and Skyrim really prefer Nvidia. Most be something about the way the drivers handle the calldraws or similar.
Of the 5800x3D's, yours is the highest scoring Radeon system.
Also, while Ryzen 3D really appeals for its plug-and-play nature, you will note that the top scoring systems mostly have tightly tuned RAM as well.
Anyhow, here we are measuring mostly theoretical drawcall limits at 480P, and the 980 Ti soon runs out of power when asked to run FO4 at 1440P with tons of texture mods.

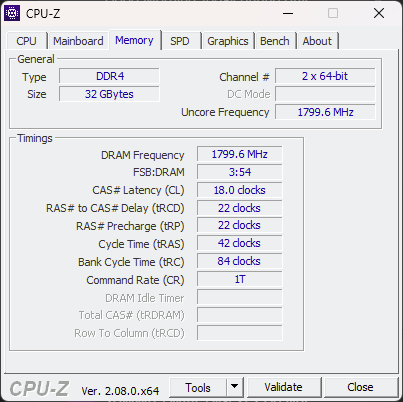

Here are my timings btw:
Last edited:
Well, the 980 Ti is Nvidia so even with the same timings as, for example, @Robert896r1 it is unlikely that your Radeon 6800 would score the same. However, if the 980 Ti was the only competition then at resolutions and with mods the experience of the 6800 would be better. Now against an Nvidia card with enough grunt and VRAM like a 3090 etc., the Radeon driver overhead (for DX11 anyhow, for DX12 AMD's overheads are better than Nvidia's) would kick in.Thanks for the detailed response. So your saying that the 980ti only scores that much higher than more modern GPU's because of the memory having better timings? So that means that it would be also more worthwhile to invest in faster ram if you are drawcall limited in modded Skyrim / Fallout 4? Compared to investing into a more power GPU I mean.
Here are my timings btw:
The top scorers here aren't just those running a high RAM clock but more those who have good RAM which is able to handle good timing (for which the RAM modules, motherboard and CPU are a factor).
But basically, this test running at 480P is mostly in spite of the GPU. The only major factor GPU wise is the GPU vendor with Nvidia's DX11 driver stack having a very noticeable advantage versus AMD's DX11 driver stack - at least in these games.
On the other hand, the Radeon 6800 has 16GB of VRAM and there are Skyrim Wabbajack modlists which state that even for 1440P they want 12GB VRAM so as long as the 16GB 6800 is cheaper than a 12/16/24GB Nvidia card (used 3090s are probably the cheapest) then it is good value for playing modded FO4/Skyrim.
Associate
Hmmm, thanks for the info, very insightful. Did already order a 7900 xtx and a 4080 to compare, so I also ran the test with them.
7900 xtx:
8000 drawcalls = 113 fps
11700 drawcalls = 93 fps
4080:
8000 drawcalls = 130 fps
11700 drawcalls = 108
Rest of the system was the same. These results do seem to confirm that in general NVidia drivers are more efficient when it comes to drawcalls. There was basically no improvement from a 6800 to a 7900 xtx, but a massive jump with the 4080.
At the same time, in my heavily modded Skyrim at full resolution (3440x1440) you see no significant difference between the 7900 xtx and 4080.
7900 xtx:
8000 drawcalls = 113 fps
11700 drawcalls = 93 fps
4080:
8000 drawcalls = 130 fps
11700 drawcalls = 108
Rest of the system was the same. These results do seem to confirm that in general NVidia drivers are more efficient when it comes to drawcalls. There was basically no improvement from a 6800 to a 7900 xtx, but a massive jump with the 4080.
At the same time, in my heavily modded Skyrim at full resolution (3440x1440) you see no significant difference between the 7900 xtx and 4080.
Last edited:
Dedication!Hmmm, thanks for the info, very insightful. Did already order a 7900 xtx and a 4080 to compare, so I also ran the test with them.
7900 xtx:
8000 drawcalls = 113 fps
11700 drawcalls = 93 fps
4080:
8000 drawcalls = 130 fps
11700 drawcalls = 108
Rest of the system was the same. These results do seem to confirm that in general NVidia drivers are more efficient when it comes to drawcalls. There was basically no improvement from a 6800 to a 7900 xtx, but a massive jump with the 4080.
At the same time, in my heavily modded Skyrim at full resolution (3440x1440) you see no significant difference between the 7900 xtx and 4080.
The same setup with just different GPUs is a really useful.
We also got a new result over on the AT forum (the original place for these benchmarking attempts).
As for Skyrim SE with mods, it seem the 7900 XTX has far better mins than the 6800 there.
Guess the question there is, what and where did you bench? Dragon's Reach was popular with reviewers but not sure if there is that much NPC activity there. As @CAT-THE-FIFTH can tell you, the most taxing part of Fallout 4 is settlements with tons of NPC and automation contraptions - which is harder to measure in Skyrim.
@q974739

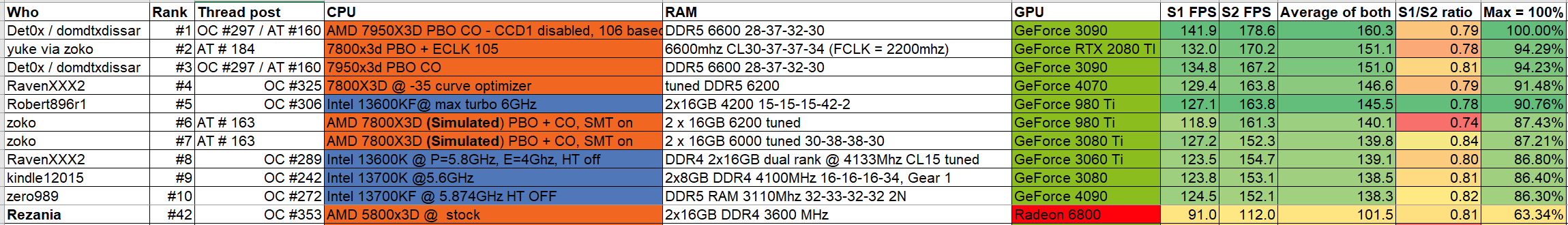

Unsure, but here is the full chart of all results:
Most like a 7800X3D @ stock is the best bet at this although for Starfield the 3D cache seems mostly wasted - no guarantee that those changes will ever make it back to FO4 though.

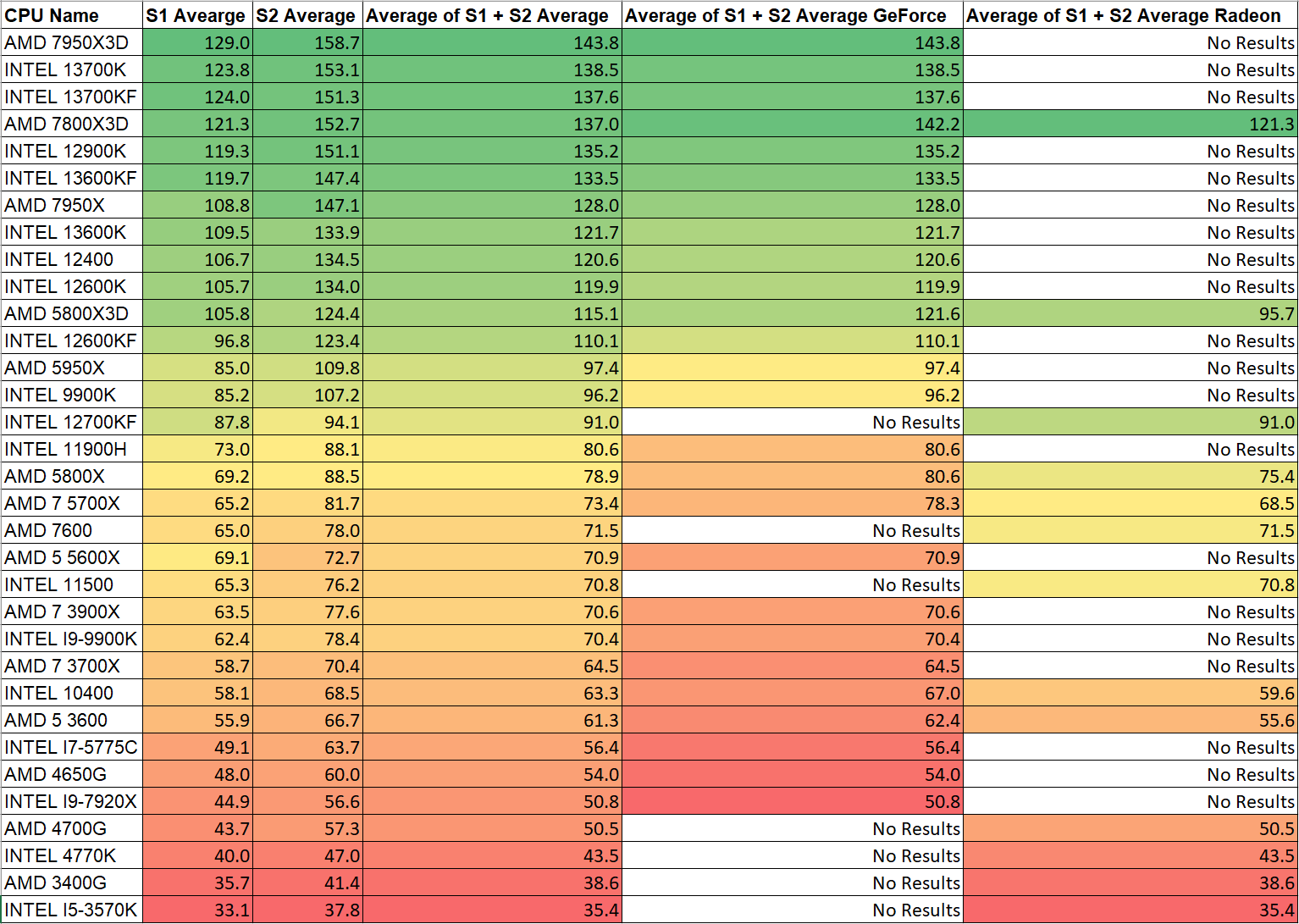

Decided to add two others columns to the results: CPU Name and GPU make so I could use some AVERAGEIFS, here is the results:
Yes, I know this ignores all the hard work of people with their tuned memory etc. which might get some people the wrong idea - as someone who doesn't tune their memory (or whose RAM or motherboard are poor) will get below the average - but it is a far easier to digest thing.
Might be an even easier thing to digest if I took out the 10-20 of the worst performers.
Yes, I know this ignores all the hard work of people with their tuned memory etc. which might get some people the wrong idea - as someone who doesn't tune their memory (or whose RAM or motherboard are poor) will get below the average - but it is a far easier to digest thing.
Might be an even easier thing to digest if I took out the 10-20 of the worst performers.
