-----'PARVUM MATE'-----



I don't think this update is going to need many words ^_^



Houston we have touch down...















Just when you thought it was over...

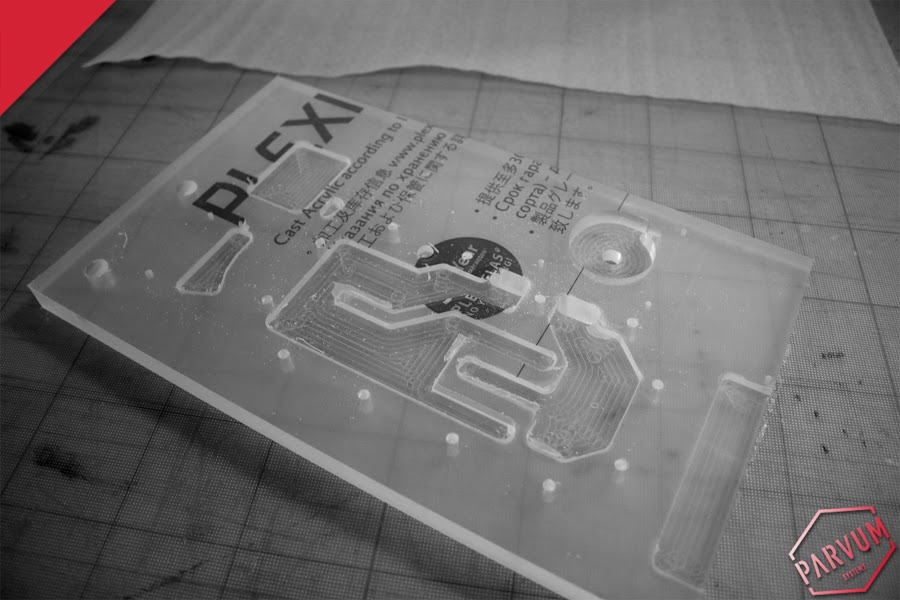

...the boys only went and cut the loop into the same block of acrylic.







Now I don't know if it's as slick as JR2.0, but it's pretty slick :D

JR



Hey guys, i'm back with some toys from HyperX.





Time to break out the dremel and find somewhere to show them off!





Victory is mine, the motherboard tray has yielded.







I hope you can see where this is going XD



Don't worry I know how this goes back together.



...told you













I think the motherboard should manage to magically levitate for a photo :)







Next up i'll be figuring out how to mount everything, which I of course gave some considerable thought to before cutting out the entire motherboard tray ^_^

JR



Hey guys, i'm back with a very short and sweet update. I spent the last few days at Parvum HQ and among other things we cut a new motherboard tray for MATE. I prepared a cunning design before leaving home to maintain the magical levitating feeling and also support the PSU in the same way.



I visited my local fastenings supplier and picked up some nice M3 screws and nuts to use around the build.

rQmHLe99ODYTv4m50NrmOg6fEF0bLb1KNrqt--B7pcc=w900

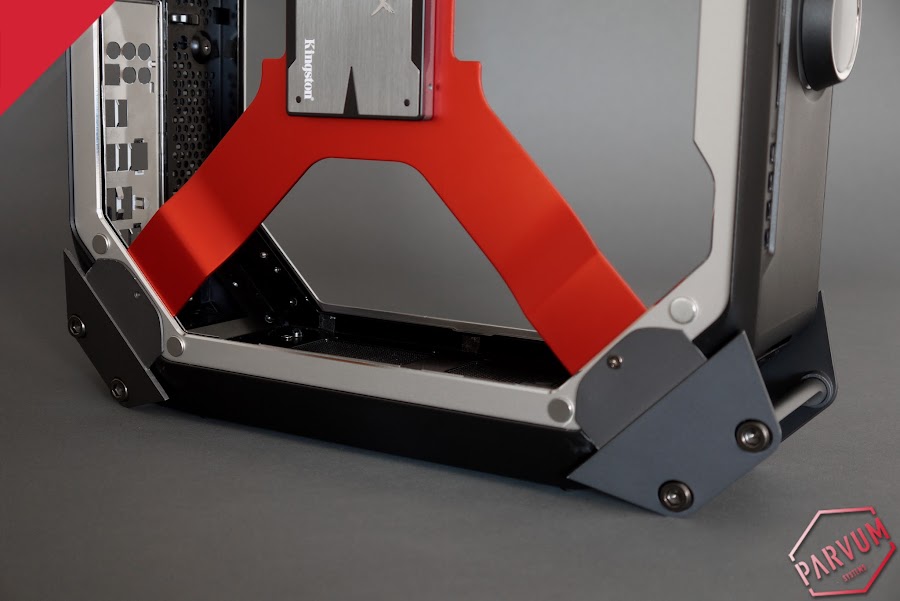

Everything went together beautifully and I managed to get away with just one screw attaching the motherboard tray to the brace which is neatly hidden underneath the SSD.







The PSU bolts directly to the plate, 4 of the stock screws in the casing were replaced with 6-32 3/8" countersunk screws cleanly holding it in place.



While I was at Parvum I also picked up the test block, it's now officially passed leak testing and looking rather slick with EKWB blood red coolant. Although just a cheeky tease this time I will get some close ups in the next update. Soon we can start work on the final block :D



JR



Hello guys, with such radical progress on the other PARVUM-JR23 projects it's time to give MATE a little attention. Now that the radiator has been positioned all of the port locations were known so drawing work could start on the final full cover MATE block.





Probably one of the most ambitious single parts attempted at Parvum the block itself features an integrated DDC pump top, GPU block and reservoir not forgetting all of the pass through channels required to complete the loop. There will be only four pieces of tubing dropping down to the CPU and radiator. Unfortunately due to the unique shape of the case and the shear size of the GTX980 we will have to use fittings in the radiator ports so the tubing can be staggered around the card.

Ok ok ok.... you can haz renders...



The lid which seals against rubber o-rings surrounding each of the coolant channels will also form the window of the case, so naturally it will be adorned with a little Parvum branding.

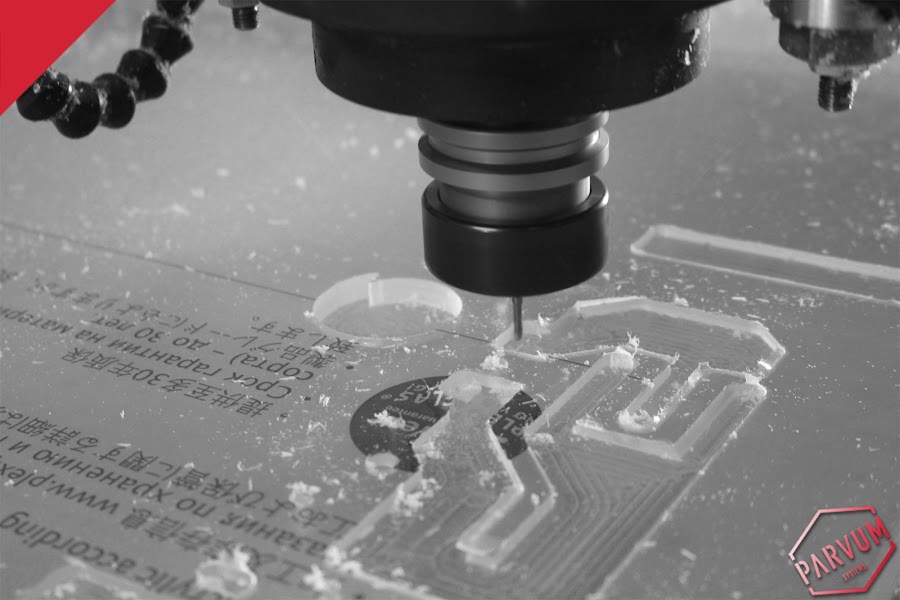

Hopefully all goes well with the cutting tomorrow/wednesday and i'll have the nice problem of figuring out how to mount it in the case. Which I have of course given much thought, lol jk, see if it fits first.

JR
