The R9 Nano Fiji Owners Thread

Benny144 · 5 Mar 2016 at 22:21

AMDMatt said:

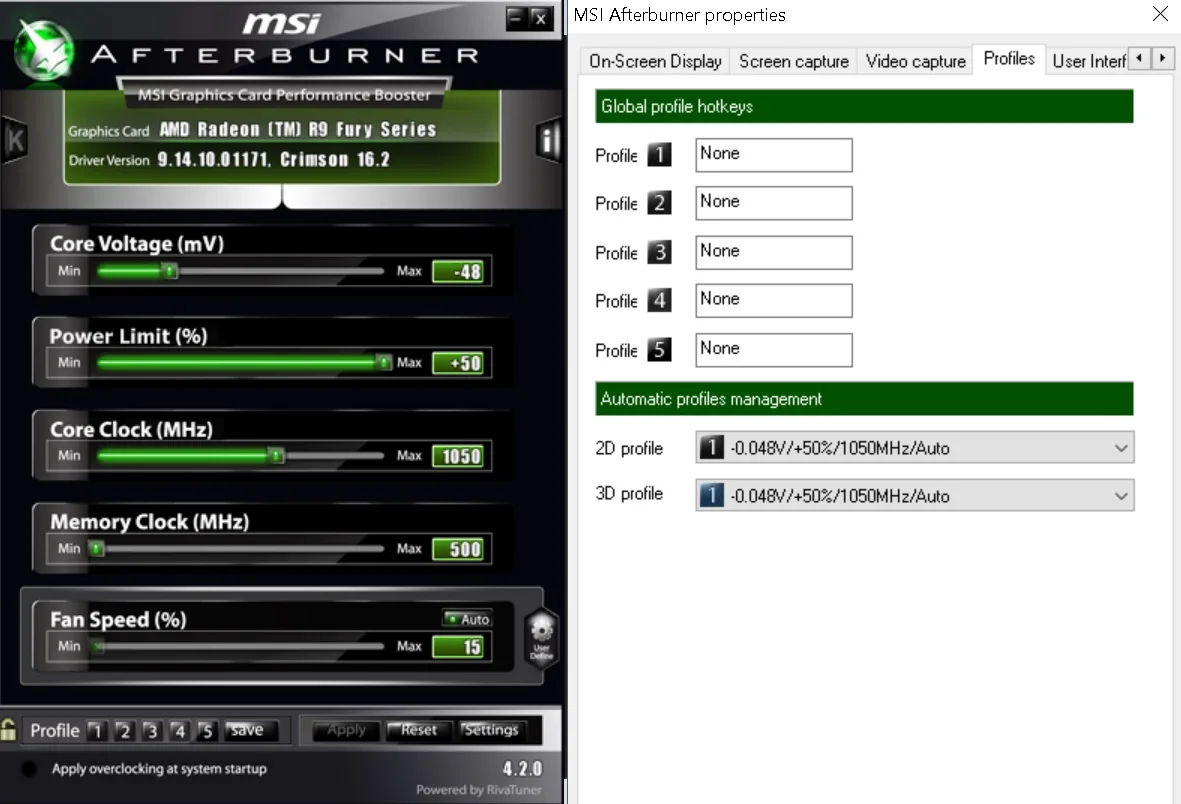

I use MSI Afterburner and 2D/3D profiles to undervolt. No need to mess about with anything, it's applied automatically.

Voltage control will never be added to Overdrive.

Do you leave the memory clock?
Is that stock fan and fan profile?

Thanks for the help.

LtMatt · 5 Mar 2016 at 22:29

Benny144 said:
Do you leave the memory clock?
Is that stock fan and fan profile?

Thanks for the help.

You might be able to run the memory at 545.

I'm using a Fury X remember, so i can leave the fan speed running slowly and temperatures remain low.

Benny144 · 5 Mar 2016 at 22:33

AMDMatt said:
You might be able to run the memory at 545.

I'm using a Fury X remember, so i can leave the fan speed running slowly and temperatures remain low.

Ah ok.

Running Aidia 64 now, 100% GPU load and the nano at

-36mV
+50 Power
1050 Core
500 memory
96% Fan speed
and its at 80 degree, if i swap it to default fan map it goes to abotu 82% fan speed and sits at 84 degree.
How hot do you push these cards? Should I try increasing the clock next or see how low i can push the voltage first? Can't find nay overclocking guides my voltage is reduced rather than added when the increased clock causes instability. Loving the chance to learn, thanks for the help.

LoadsaMoney · 5 Mar 2016 at 22:35

AMDMatt said:
You might be able to run the memory at 545.

I'm using a Fury X remember, so i can leave the fan speed running slowly and temperatures remain low.

Thats a cracking price on that Nano

Benny144 · 5 Mar 2016 at 23:10

So I've got
- 30 mV
+50 power
1075 core
545 memory
(stuck fan at 100%)
and ran a few benchmarks, it got the highest Firestrike graphics score i ever had with this card (my CPU is auto overclocked by my BIOS and i think its tweaked something which has reduced my combined and physics score) all seems pretty stable at the moment (weird squares still remain at idle), real test will come with far cry primal and the like during the week
http://www.3dmark.com/compare/fs/7794325/fs/7794434/fs/7528298

LtMatt · 6 Mar 2016 at 09:33

Benny144 said:
Ah ok.

Running Aidia 64 now, 100% GPU load and the nano at

-36mV
+50 Power
1050 Core
500 memory
96% Fan speed
and its at 80 degree, if i swap it to default fan map it goes to abotu 82% fan speed and sits at 84 degree.
How hot do you push these cards? Should I try increasing the clock next or see how low i can push the voltage first? Can't find nay overclocking guides my voltage is reduced rather than added when the increased clock causes instability. Loving the chance to learn, thanks for the help.

Benny144 said:
So I've got
- 30 mV
+50 power
1075 core
545 memory
(stuck fan at 100%)
and ran a few benchmarks, it got the highest Firestrike graphics score i ever had with this card (my CPU is auto overclocked by my BIOS and i think its tweaked something which has reduced my combined and physics score) all seems pretty stable at the moment (weird squares still remain at idle), real test will come with far cry primal and the like during the week
http://www.3dmark.com/compare/fs/7794325/fs/7794434/fs/7528298

That's good going.

Benny144 · 10 Mar 2016 at 11:23

AMDMatt said:
That's good going.

Thanks.
My artefacts at idle seem to be getting worse though, is it worth a return or are all nano the same?

ICDP · 10 Mar 2016 at 11:26

Benny144 said:
Thanks.
My artefacts at idle seem to be getting worse though, is it worth a return or are all nano the same?

I don't get any corruption at idle on my Nano, or my Fury. If you have a spare HD try a fresh Windows install on it as a test with nothing but Windows and latest AMD drivers.

LtMatt · 10 Mar 2016 at 12:15

Benny144 said:
Thanks.
My artefacts at idle seem to be getting worse though, is it worth a return or are all nano the same?

Can you try updating to the Crimson 16.3 driver? Run DDU first to uninstall your current drivers.

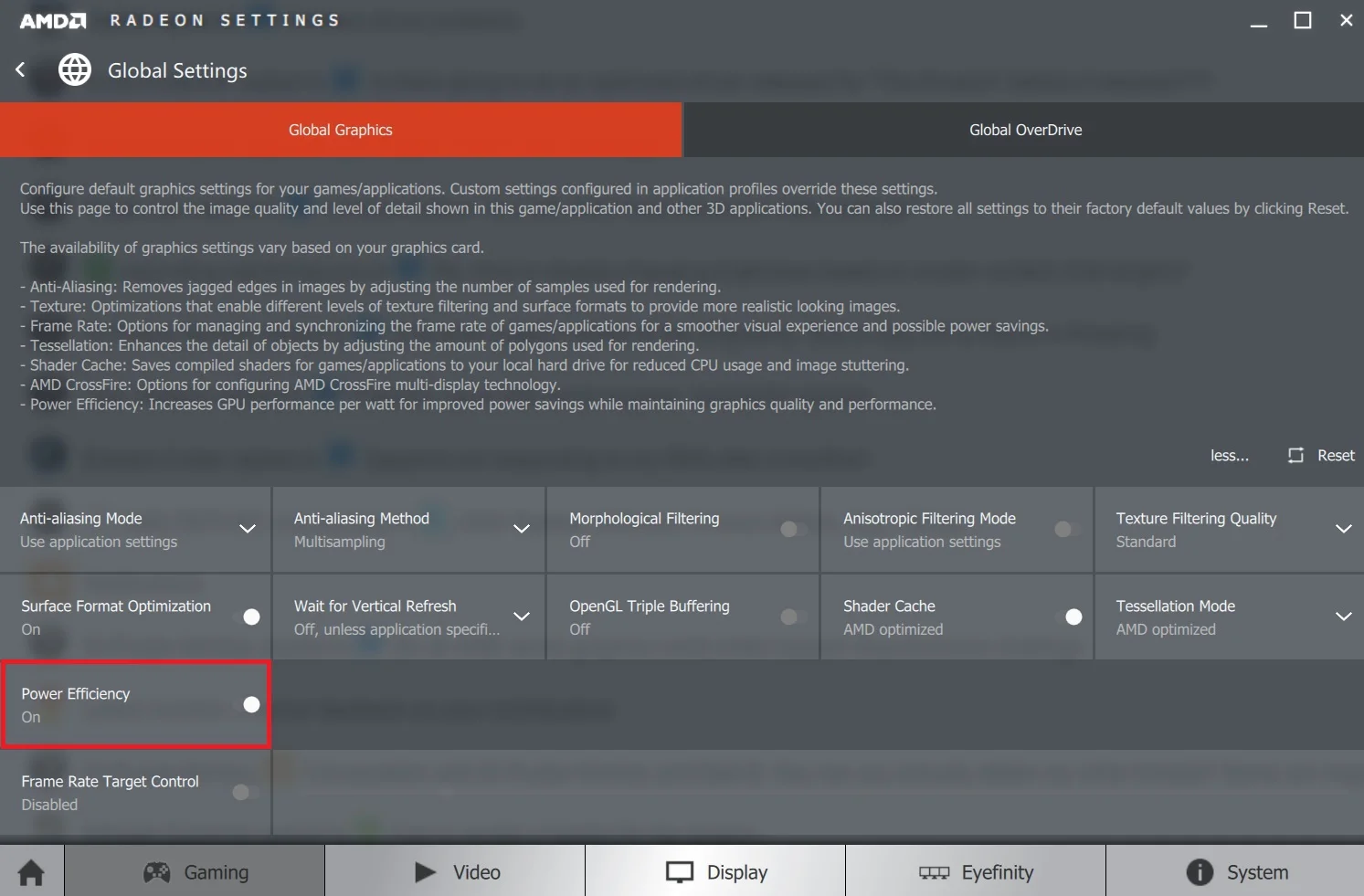

In Radeon Settings disable Power Efficiency and see if that has any effect on the issue.

Panos · 10 Mar 2016 at 12:36

AMDMatt said:
Can you try updating to the Crimson 16.3 driver? Run DDU first to uninstall your current drivers.

In Radeon Settings disable Power Efficiency and see if that has any effect on the issue.

It looks like is not there on R9 Nano. Mine doesn't have that Power option and I use 16.3 after uninstalling 16.2, DDU and clean install.

Benny144 · 10 Mar 2016 at 12:36

AMDMatt said:
Can you try updating to the Crimson 16.3 driver? Run DDU first to uninstall your current drivers.

In Radeon Settings disable Power Efficiency and see if that has any effect on the issue.

Done the driver thankyou. Nano doesnt seem to have a power efficiency setting though.

LtMatt · 10 Mar 2016 at 12:39

Panos said:
It looks like is not there on R9 Nano. Mine doesn't have that Power option and I use 16.3 after uninstalling 16.2, DDU and clean install.

Benny144 said:
Done the driver thankyou. Nano doesnt seem to have a power efficiency setting though.

Thanks, I'll look into this.

LtMatt · 10 Mar 2016 at 15:41

Panos said:
It looks like is not there on R9 Nano. Mine doesn't have that Power option and I use 16.3 after uninstalling 16.2, DDU and clean install.

Benny144 said:
Done the driver thankyou. Nano doesnt seem to have a power efficiency setting though.

AMDMatt said:
Thanks, I'll look into this.

The power efficiency setting does not apply to the Nano and R9 2xx.

Please let me know if you are experiencing any issues with clock fluctuation with +50% power set in Overdrive.

Benny144 · 10 Mar 2016 at 17:38

AMDMatt said:
The power efficiency setting does not apply to the Nano and R9 2xx.

Please let me know if you are experiencing any issues with clock fluctuation with +50% power set in Overdrive.

i've got afterburner set at +50, how do i know if clock is fluctuating?

LtMatt · 10 Mar 2016 at 17:40

Benny144 said:
i've got afterburner set at +50, how do i know if clock is fluctuating?

Setup an overlay.

Benny144 · 10 Mar 2016 at 19:56

Artefacts still around, strangely appear more on my desktop than my browser. Or along my windows bar.

Benny144 · 11 Mar 2016 at 22:30

So running the overlay like you asked, sits quite happy at 1050 core clock with no fluctuation.
Couldn't handle a 1075 clock when running games (crashed just trying to launch FC: Primal) gonna try pushing the memory clock another day.
Is it worth try to find a setting between 1050 and 1075? Or go up on the voltage? It sits nicely in mid 60s when gaming now or 80s when benching

abui1806 · 11 Mar 2016 at 23:14

Does the Nano scale well in Crossfire setup? I am thinking about getting another one since single card is struggling a little bit at 1440p 144hz.

Panos · 12 Mar 2016 at 02:01

Benny144 said:
So running the overlay like you asked, sits quite happy at 1050 core clock with no fluctuation.
Couldn't handle a 1075 clock when running games (crashed just trying to launch FC: Primal) gonna try pushing the memory clock another day.
Is it worth try to find a setting between 1050 and 1075? Or go up on the voltage? It sits nicely in mid 60s when gaming now or 80s when benching

Have you tried the settings wrote before?

-42mv, +21% is enough to get run the card at 1050, while cutting heat.

Benny144 · 12 Mar 2016 at 07:32

Panos said:
Have you tried the settings wrote before?

-42mv, +21% is enough to get run the card at 1050, while cutting heat.

I did yes, it wasn't stable with far cry. Matt also said there's no point using anything other than +50% power
