Vince said:
Whats your reading in central position either side? Should read pretty much 5k on all of them in central position.
Click to expand...
Hmm OK...

So if I do central.. On the left stick as i look at it from the soldering side.

Closest to end
Left + centre = nothing
Right + centre = 5.6

Closest to side
Left + centre = nothing
Right + centre = 5.73


Right stick as i look at it

Closest to end
Left + centre = nothing
Right + centre = 5.69

Closest to side
Left/right + centre both nothing.

Last edited:
Defy Belief said:
Hmm OK...

So if I do central.. On the left stick as i look at it from the soldering side.

Closest to end
Left + centre = nothing
Right + centre = 5.6

Closest to side
Left + centre = nothing
Right + centre = 5.73


Right stick as i look at it

Closest to end
Left + centre = nothing
Right + centre = 5.69

Closest to side
Left/right + centre both nothing.
Click to expand...

So your bottom lines are the issue something on that line is being pulled down to ground. time to trace that back looking likely for a bad resistor or shorted cap. something like that on that line.

Last edited:
Vince said:
So your bottom lines are the issue something on that line is being pulled down to ground. time to trace that back looking likely for a bad resistor or shorted cap. something like that on that line.
Click to expand...
Honestly not a clue what I'm looking at, I can't see anything massively untoward? Uploaded some higher rez photos of the pcb on either side.

imgur.com

imgur.com

Discover the magic of the internet at Imgur, a community powered entertainment destination. Lift your spirits with funny jokes, trending memes, entertaining gifs, inspiring stories, viral videos, and so much more from users.
imgur.com imgur.com

Defy Belief said:
Honestly not a clue what I'm looking at, I can't see anything massively untoward? Uploaded some higher rez photos of the pcb on either side.

imgur.com

imgur.com

Discover the magic of the internet at Imgur, a community powered entertainment destination. Lift your spirits with funny jokes, trending memes, entertaining gifs, inspiring stories, viral videos, and so much more from users.
imgur.com imgur.com
Click to expand...

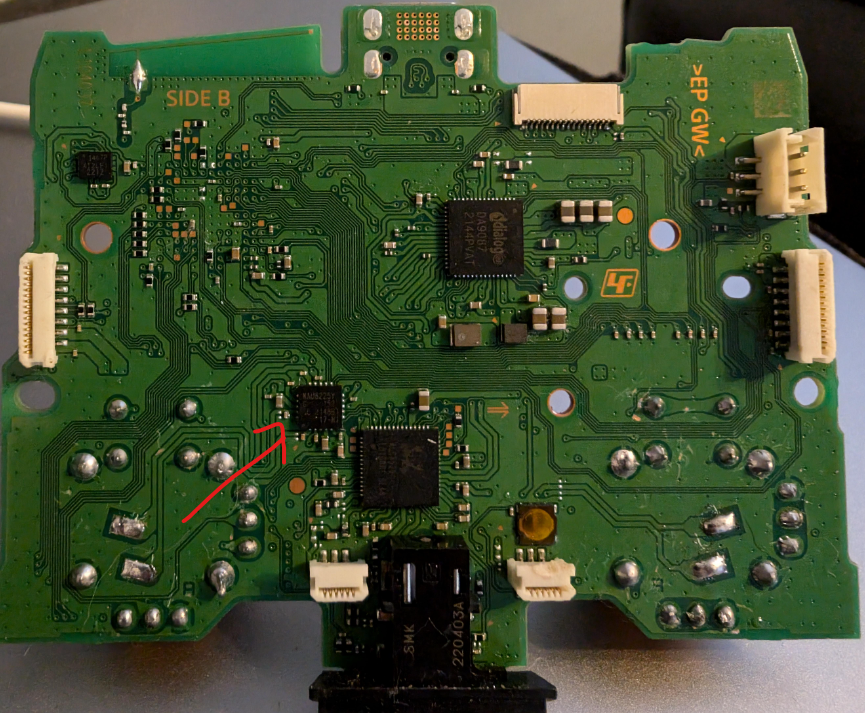

Everything analogue related appears to run into this chip...



so worth checking all the caps around that. make sure none of them are dead short across. you could trace back the specific line most likely...

Vince said:
Everything analogue related appears to run into this chip...



so worth checking all the caps around that. make sure none of them are dead short across. you could trace back the specific line most likely...
Click to expand...
The caps look fine (to me :p but they're tiny and I don't have a lens to look through closer)

But I am wondering if the mark in the pcb to the left of the 2nd solder point by your accross, is affecting the line somewhere..

Vince said:
It sounds broken... what is it with you lot wanting to send me massive boxes, why can't you have broken small things.
Click to expand...

Its a 10 incher so not too big :D

I will dig it out at some point, I did pull the control panel board off it had a quick visual look, nothing obvious and yes I did check the plug fuse and the fuse on the board too :D

Before it stopped working it would crackle a little bit and cut out, the power light flickered etc, then it just stopped.

SupraWez said:
Its a 10 incher so not too big :D

I will dig it out at some point, I did pull the control panel board off it had a quick visual look, nothing obvious and yes I did check the plug fuse and the fuse on the board too :D

Before it stopped working it would crackle a little bit and cut out, the power light flickered etc, then it just stopped.
Click to expand...

If its anything like my "little" 10 inch sub it weighs about a million KG... Probably not something we can simply send around cheaply... Unless we just look at the board I guess.
