Vince's Repair Thread - (Console Repairs & Mods)

Heres a pic it looks terrible and i had no flux so just soldered without a scope as well so just by eye

https://postimg.cc/kV6j7xVx

kV6j7xVx

Does it work? The connector itself looks OK to be honest, that chip below it looks like it may have taken some surface damage though.

Does it work? The connector itself looks OK to be honest, that chip below it looks like it may have taken some surface damage though.

No, i still cannot get it to connect no matter what i do, yea when zoom into the picture it does look like i may have hit that chip below it

The switch was off a customer never got back to me

I have a load of laptop motherboards if you want them for a tinker with

You and me both on the laptop board front. To be honest though the laptops haven't been something I've busted out yet, having far too much fun on the console front.

No, i still cannot get it to connect no matter what i do, yea when zoom into the picture it does look like i may have hit that chip below it

You could test the chip, get its pinout and see what it does.

What markings does it have on top of the chip?

You could test the chip, get its pinout and see what it does.

What markings does it have on top of the chip?

I have nothing to test it plus i wouldnt know where to start, Ive defo hit it from these pics my own daft fault rushing into something i have no idea about




I have nothing to test it plus i wouldnt know where to start, Ive defo hit it from these pics my own daft fault rushing into something i have no idea about




Let me do some digging looks like a 9 ball bga, could be an IC that deals with battery charge levels or similar.

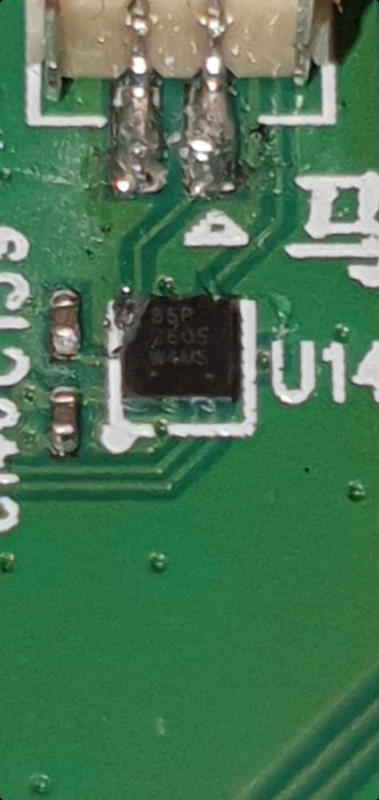

If we can find the chip I'll happily swap it over for you. Its hard to properly see the markings looks like 85P 2605 W4MS possibly.

Edit: what's the exact model of the remote?

Last edited:
Let me do some digging looks like a 9 ball bga, could be an IC that deals with battery charge levels or similar.

If we can find the chip I'll happily swap it over for you. Its hard to properly see the markings looks like 85P 2605 W4MS possibly.

Edit: what's the exact model of the remote?

Yea that is the numbers on the top, its A harmony elite remote or a Harmony 950 both considered the same

Yea that is the numbers on the top, its A harmony elite remote or a Harmony 950 both considered the same

I'm not sure if the part number should be 260S its a bit hard to tell. Either way I haven't been able to find out what the chip is. Google hasn't been kind.

I'm not sure if the part number should be 260S its a bit hard to tell. Either way I haven't been able to find out what the chip is. Google hasn't been kind.

Thanx for looking anyways il just keep it for spare until i try and fix it again lol

Well pink switch has a faulty Max77812 and you guessed it there are none of that chip anywhere apart from china... So I have ordered from China but have also ordered up a switch reball template which includes this chip... Looks like I shall be stealing it from one of my donors and reballing it onto the pink one.

The yellow GG is another one with Trace/Asic damage - Figures to be honest as half the twin Asic ones I have seen need a lot more work. First off it was one of those ones that like to turn on and straight off. Worked out that the 35v rail was pulling 5v low so given the fact the screen was smashed anyway I went ahead and removed the 35v circuitry. Ive now got the GG to red light stable boot and have managed to stabilise the 5v rail. This is good!

Next up I decided to check pre game ASIC operation, when you turn a GG on it should produce 3 signals without a game inserted, you should see VSYNC, HSYNC and CLK signals so last night I finally got the scope installed and started probing the board to see where we are at in terms of ASIC operation...

What a valid VSYNC data signal looks like:


This is HSYNC:


And our 3mhz clock signal:


With all of these valid signals being pumped out by ASIC B we can be pretty sure that this ASIC is functioning, next up I checked from the cart slot to VRAM and SDRAM on all other data lines D0 through D12 (Not the read lines etc just the data lines) and noticed that we have an issue with both D1 and D0 data lines between the VRAM and SDRAM, all other data lines we are seeing clean signals, basically we have a rusted out VIA so will need to run some Jumpers on the two data lines where we have a load of resistance that shouldn't be there. Being an early Japanese revision board there isn't a whole load of documentation but its super similar in terms of layout to early revision EU boards so im sort of using them as a baseline.

Next up I need to check all lines from the cart slot to SD/VRAM back to the ASICS so that is where I will focus next. Once we have all the core data lines up I should then be able to test a bit further but having removed all of the 35v circuitry I will need to do a screen mod on it anyway and that will take its time to come in from china... Still I am going to get the board working, reading carts etc before that comes in.

I also plan on probing the GG I broke to see where it all went wrong so will update this thread with details of that investigation as well, mind you I will need to recap it again as I removed them all when my other donors came in for mine and nutritions GG's last week. But yea the "silly" scope is super useful for these kind of repairs.

Love this thread, it's like stuff I wish I could do but also have no intention of learning to do.

Well you are still coming along on the adventure and we are learning as we go - I'm by no means an expert or anything so for me a lot of this is kind of me teaching myself how it all works. It's fun but challenging at times.

Well you are still coming along on the adventure and we are learning as we go - I'm by no means an expert or anything so for me a lot of this is kind of me teaching myself how it all works. It's fun but challenging at times.
I’m far from an expert lol more like a try and hope for best and pick up knowledge as I go :)

I’m far from an expert lol more like a try and hope for best and pick up knowledge as I go :)

Ah man you need a scope like this in your life. Honestly I found it for 50 on ebay and now I think I have 99% of what I need for proper in depth dives into stuff. Without some sort of scope on data lines it's almost impossible to tell if something is working exactly like it should. Now though I can say with complete certainty that's asic b on this board is fully functioning.
