Watercooled Case Gallery

the wopster · 28 Dec 2021 at 17:15

max247 said:

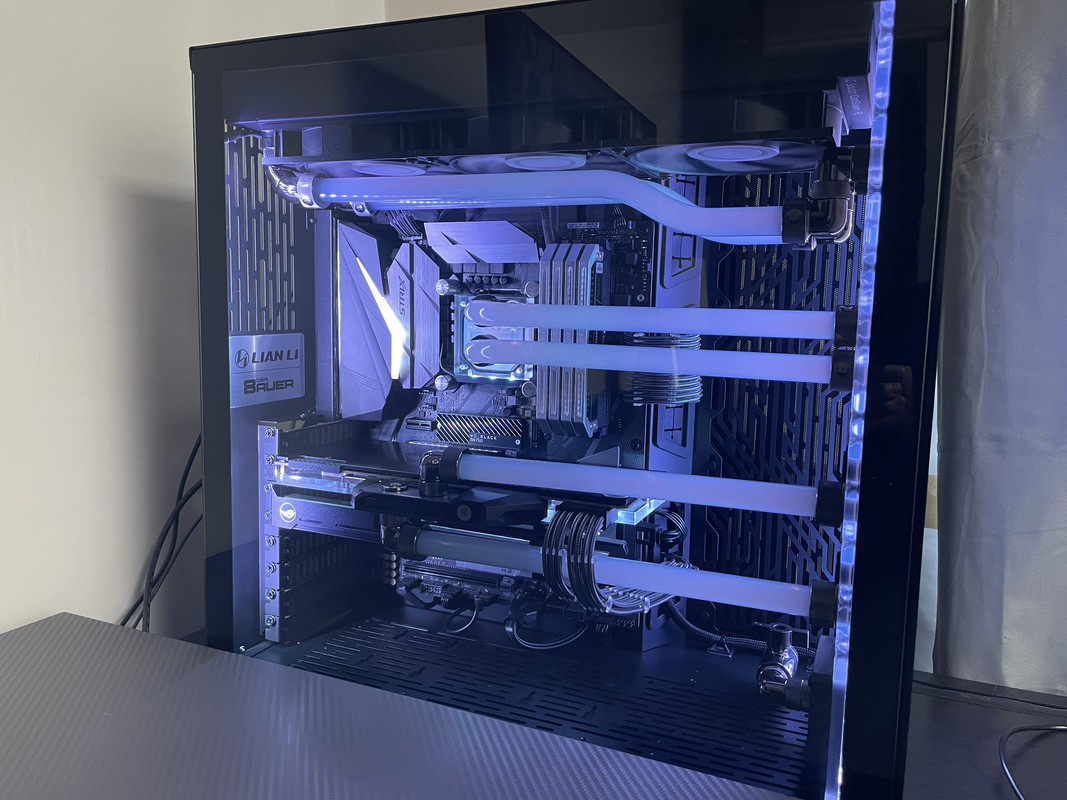

Msi Edge Z690 / Intel 12900k / 3090 Suprim X / EK Quantum Loop / 32gb Gskill 3733 C14 / Samsung 980 Pro 2TB + 1TB MP600 / Corsair RM850x / Win 11 Pro / LG 34" Ultra Gear Ultrawide / Lian Li O11D XL

Looks amazing, how are your temps?

max247 · 28 Dec 2021 at 17:42

Temps could be better about 10c above delta with the glass panel off and about 15c above with side panel on but back panel off after a good hour of gaming. Maybe the 12900k is adding a quite a bit more heat and the lack of pull push on XE. However the PC is in the corner and room area is a cut out 2.5m buy 1m off a hallway. Use to be an old utility room which I got converted to an office gaming area

the wopster · 12 Feb 2022 at 21:46

Well I decided to redo my loop again
Before

After

Sulfatron · 30 Apr 2022 at 14:41

Here's my build, I just swapped cases, went from a Corsair 570x to the 011D, I really like the case, easy to work with.

Next upgrade will be the GPU, planning to upgrade to a RTX 3080ti

andy_mk3 · 30 Apr 2022 at 14:49

Sulfatron said:
Here's my build, I just swapped cases, went from a Corsair 570x to the 011D, I really like the case, easy to work with.

Next upgrade will be the GPU, planning to upgrade to a RTX 3080ti

Image broken

midweek · 30 Apr 2022 at 22:55

Sulfatron said:
Here's my build, I just swapped cases, went from a Corsair 570x to the 011D, I really like the case, easy to work with.

Next upgrade will be the GPU, planning to upgrade to a RTX 3080ti

Looks really clean! Is it just 1 radiator and 3 fans?

Sulfatron · 30 Apr 2022 at 23:31

midweek said:
Looks really clean! Is it just 1 radiator and 3 fans?

Thanks! Yes, just one rad, EK PE360 with 3 EK Vardar PWM fans. Temp are good enough for me, 8700k tops at around 75c and the GPU-1080ti never goes above 60c.

clone · 1 May 2022 at 17:16

Felt I was lacking some rgb rainbow puke in my life

david_xr · 3 May 2022 at 11:37

meant to upload this monthsss ago..

011 Dynamic Mini - full ATX Asus z390 apex, 9900ks, 3090 with active backplate block, 2x 360 radiator 1x 240 radiator and a lot of Noctua fans, soon to be swapped out for black versions

seweryn · 11 May 2022 at 09:43

Jay85 · 22 May 2022 at 12:12

No one done a watercooled build in the Phanteks Shift XT?

Radox-0 · 22 May 2022 at 16:09

Jay85 said:
No one done a watercooled build in the Phanteks Shift XT?

Sort of contemplating it, but I actually like the normal Shift X with full glass side panels and standing upright. I think XT would be an amazing option though if I did not have an external rad as airflow is much better. I wish there was a mish mash of the two cases tbh.

Jay85 · 22 May 2022 at 16:34

Radox-0 said:
Sort of contemplating it, but I actually like the normal Shift X with full glass side panels and standing upright. I think XT would be an amazing option though if I did not have an external rad as airflow is much better. I wish there was a mish mash of the two cases tbh.

Same but im thinking of building with an external rad anyway so at least i could keep the internal components cool while all the rad heat is expelled elsewhere like i have it now.

Radox-0 · 22 May 2022 at 19:35

Jay85 said:
Same but im thinking of building with an external rad anyway so at least i could keep the internal components cool while all the rad heat is expelled elsewhere like i have it now.

Yeah thats what I mean sorry. I think with external Rad, the XT is less attractive. IMO the XT fix's the normal Shift cases in terms of airflow and more so if you install radiators. The Normal Shift I think look prettier with large tempered glass side panels but that sucks for temps. Non-issue when you have an external rad. There are some elements of it I do like so would love to see them translated back to the normal shift cases.

All personal pref I suppose.

Jay85 · 2 Jun 2022 at 13:12

Radox-0 said:
Yeah thats what I mean sorry. I think with external Rad, the XT is less attractive. IMO the XT fix's the normal Shift cases in terms of airflow and more so if you install radiators. The Normal Shift I think look prettier with large tempered glass side panels but that sucks for temps. Non-issue when you have an external rad. There are some elements of it I do like so would love to see them translated back to the normal shift cases.

All personal pref I suppose.

I've decided to finally move away from Phanteks for now, going ultra compact with a Dan A4 H20 and migrating my itx build into it with an external rad. Will keep the inside fairly roomy without having to squeeze a radiator in there so should be pretty clean.

I really wanted to go with the Phanteks shift XT but the pcie 4.0 put me off as it bumps the price up a fair bit. If they did a 3.0 version i probs would have gone for it.

Jay85 · 5 Jun 2022 at 17:30

Annnnnnnd here it is! Dan A4 H20 custom loop with a MoRa360 external radiator.

Mr Mcgoo · 6 Jun 2022 at 14:20

Not the master piece of most builds on here but limited for space on this lian li o11 clone. You don't want to see the rear cable management. just no space :cry:

Radox-0 · 7 Jun 2022 at 13:43

Jay85 said:
Annnnnnnd here it is! Dan A4 H20 custom loop with a MoRa360 external radiator.

Ahh that has turned out awesome. How you like it compared to the shift?

Jay85 · 7 Jun 2022 at 16:16

Radox-0 said:
Ahh that has turned out awesome. How you like it compared to the shift?

Yeah really pleased with it, its so much lighter compared to my shift build haha. Weighs a fraction of what that did and so much easier to move around the desk.

The temps are actually better surprisingly, might have a lot to do with the less amount of fittings used and better placement of the main components with fans directly flowing over them too. The single D5 pump is more than upto the job so i've gone from 3 x D5's to just the one now which has reduced the amount of hum noise from the all the pumps in use.

CPU temps have dropped significantly from around 68-75c to a mere 55c now under gaming load. The only thing really left to do is to add a flow meter and a water temp sensor so i can keep track of those.
