****7950 (disabled) BOOST BIOS thread****

LtMatt said:
Ah good stuff can you post a link to the new bios as and when its posted.
Click to expand...

Yep, no problem I will update this thread once the BIOS will be ready ;)

bodybag said:
Hi

at 1500, I get tiny red dots in Metro. Now if I set it back down to 1450 all is ok. but as soon as I restart PC it jumps back up to 1500, the underclocking is not sticking.

In GPUZ, it reports 1500, but I flashed the 1400 mem bios..I also tried 1050 1400 and memory still shows as 1500. I have re-installed drivers/trixx aswell

It seems that no matter what bios I flash to it, it sticks on 1500 memory...
Click to expand...

Fixed :)

EDIT:

I've tested the BIOS with lower voltage, kahboom will update the profiles in no time. :)

EDIT:

Before


Now (Lower Voltage)

Last edited:
I've been reading this thread with interest and I'm interested in giving this a go. Very daunting though, as I've never flashed a GPU before. Are there any good guides?

My card is a MSI 7950 TFIII Boost Edition and I've got it running at 1140/1500. As my ASIC is quite low at 67.7%, is there much benefit in flashing my card? I'd like to continue running my current overclock so will I be able to do so at a lower voltage? Can my overclock go higher with this new BIOS?

Thanks in advance, sorry if these are stupid questions.

Jamezinho said:
I've been reading this thread with interest and I'm interested in giving this a go. Very daunting though, as I've never flashed a GPU before. Are there any good guides?

My card is a MSI 7950 TFIII Boost Edition and I've got it running at 1140/1500. As my ASIC is quite low at 67.7%, is there much benefit in flashing my card? I'd like to continue running my current overclock so will I be able to do so at a lower voltage? Can my overclock go higher with this new BIOS?

Thanks in advance, sorry if these are stupid questions.
Click to expand...

Make sure to have the swithc at position 1 which you can find next to crossfire.

http://www.overclock.net/t/1353325/tutorial-atiwinflash-how-to-flash-the-bios-of-your-ati-cards

or

Flashing through DOS

http://www.techpowerup.com/forums/showthread.php?t=57750

I flash through Windows but lots of people don't like to do it that way. I never had any issues by using Windows Ati flash ;)
After flashing make sure to reinstall drivers and OCing tools e.g. MSI AB

This has to be the best bios i have used. I could never get near 1200 core before now everything is great. A welcome boost to my eyefinity setup thanks so much.

LtMatt said:
This bios makes msi afterburner work with my his cards. It also enables voltage control so i dont have to use that crappy his tool any more. Very happy.
Click to expand...

I chaged Trixx to MSI AB as well, had problems with Trixx which were very annoying :mad:
kahboom still didn't upload the profiles with lower voltage but I will edit this post with a link to that BIOS as it works.

EDIT

HIS 7950 IceQ low voltage.rar

This is superb work guys :D

Sorry I couldn't help much IC, I was in the states on hols while we were emailing! But looks like you got there with Kahboom.

Can't wait to try out myself :)

I'm not sure, but am I missing something here? This bios mod runs then card at 1070/1500 with lowered voltage and disabled boost. But couldn't you do that anyway with MSI AB?
And can you flash one of the 7970 bios on a 7950?

I need to be enlightened.

Kerazee said:

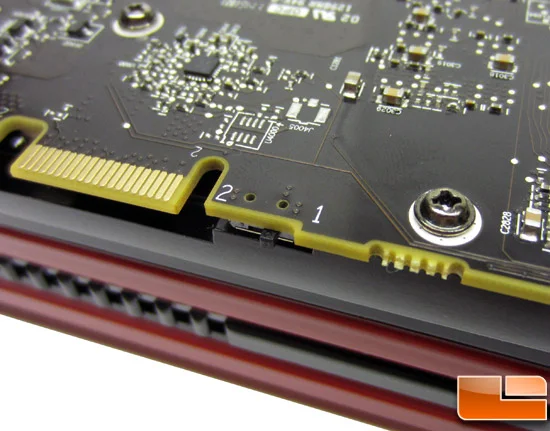

Can some one just clarify for me, in the OP the picture of the bios switch is that in position 1?? the reason I ask is to me I would say that was position 2.

Just wanting to check before I flash.
Click to expand...

Correct the post in the OP shows bios 2 selected. You want to use bios 1 so flick the switch. Hopefully IC3 will update the picture when he see's this. Bios 2 is the protected one so never try to write to that.

LtMatt said:
Correct the post in the OP shows bios 2 selected. You want to use bios 1 so flick the switch. Hopefully IC3 will update the picture when he see's this. Bios 2 is the protected one so never try to write to that.
Click to expand...

Kerazee said:
Can some one just clarify for me, in the OP the picture of the bios switch is that in position 1?? the reason I ask is to me I would say that was position 2.

Just wanting to check before I flash.
Click to expand...

It clearly says switch the BIOS to position 1 ;)

EDIT

Made it bigger, hope that helps :P

skyjawa said:
This is superb work guys :D

Sorry I couldn't help much IC, I was in the states on hols while we were emailing! But looks like you got there with Kahboom.

Can't wait to try out myself :)
Click to expand...

No worries ;)

Last edited:
Futures said:
I'm not sure, but am I missing something here? This bios mod runs then card at 1070/1500 with lowered voltage and disabled boost. But couldn't you do that anyway with MSI AB?
Click to expand...

No and no, it won't reduce voltage and boost is constant regardless the tool/forcing constant voltage on the Ice-Q.

Futures said:
And can you flash one of the 7970 bios on a 7950?
Click to expand...
Some 50's can be flashed with a 70 bios, but it only runs the clocks/voltage/fan profiles, it won't unlock the shaders and on the earlier Ice-Q' Boosts, the dvi iirc was disabled.

Futures said:
I need to be enlightened.
Click to expand...

Done.;)

tommybhoy said:
Some 50's can be flashed with a 70 bios, but it only runs the clocks/voltage/fan profiles, it won't unlock the shaders and on the earlier Ice-Q' Boosts, the dvi iirc was disabled.
Click to expand...

But the 50's on 7970 pcb and the memory timings are much better from what I heard.
