Monster Studio A45 Collaboration Project - Sponsored

Abit more progress on the Black Version tonight, custom brackets to mount the radiators have been designed so i just need to take them to get laser cut next.

It's starting to look pretty wild :cry:





Last edited:
Jay85 said:
Abit more progress on the Black Version tonight, custom brackets to mount the radiators have been designed so i just need to take them to get laser cut next.

It's starting to look pretty wild :cry:
Click to expand...

The dual res's look great, is the pump getting tucked away underneath the frame?

Also for the rad, what size are you using and do the brackets you've designed attach to the side (where res was in previous pics) or elsewhere?

As always, looking great and can't wait to see what you do with it :)

TrojanWhore said:
The dual res's look great, is the pump getting tucked away underneath the frame?

Also for the rad, what size are you using and do the brackets you've designed attach to the side (where res was in previous pics) or elsewhere?

As always, looking great and can't wait to see what you do with it :)
Click to expand...

Undecided yet, originally i was gonna hang it off the back using the mounting points on the Res brackets but it will highly depend on which pump unit i use.

I'm using 2 x 240mm radiators and they will be hanging off each side of the mounting brackets for the Reservoir in like a wing design.

The CPU block might be replaced with something else... i have something arriving shortly that's quite special :D but will over complicate the build and it's gonna depend on space as well.

Test mount radiator (temp) with the new bracket and also test mounting the Storm T3 Fans. The non RGB Fans was definitely the right choice! Though im curious as to how the Tranquil 120mm fans would have looked here instead. The actual radiators should arrive tomorrow along with a possible replacement cpu block (space dependent).

Also testing out my Sigma 23mm f1.4 lens here to replace the 30mm lens i've been using. The quality is a lot better! Much happier with the sharpness and overall picture quality.







oh boy it's here! Bitspower Revo series cpu waterblock! Tubeless waterblock we saw at CES this year in collaboration with Modding Cafe. I have number 17 it seems according to the serial number. I had to modify the psu mount at the back to allow for the cpu block to fit but it wasn't too much work. Bitspower also sent over their new Leviathan II radiators in 240mm and 120mm flavours though i haven't quite figured if im going to mount the 120mm radiators yet.





TrojanWhore said:
Didn't realise you were going for the Revo block - this is going to look incredible!

Do you know how they compare in terms of restriction vs normal blocks?
Click to expand...

Oh yes! Been waiting for a good 2 months for my sample to arrive. Its well worth the wait!

Restriction wise, i reckon it won’t be any worse than having QD’s in the loop. I will test this though.

I’m currently thinking a dual loop system but i also want the ability to connect this to my MORA setup if need be.

Lots of brainstorming still.

Yeah fair.... If I need a new block I might be kinda tempted, but not at £1200! (I assume that's a placeholder price for AMD lol)
Not sure how how it works, would it be 'lesser of #N evils', or additive?....
I'm still at 2xRads with one DDC and no GPU block/QDC stages!

TrojanWhore said:
Yeah fair.... If I need a new block I might be kinda tempted, but not at £1200! (I assume that's a placeholder price for AMD lol)
Not sure how how it works, would it be 'lesser of #N evils', or additive?....
I'm still at 2xRads with one DDC and no GPU block/QDC stages!
Click to expand...

It's absolutely a placeholder LOL, i think they're the same price as the intel version i have.

Nah honestly it's nothing extra compared to a normal block, just everything has been routed behind the motherboard. There's 6 G1/4 points at the rear to route the tubing so plenty of options too.

I will test to see how one D5 fairs compared to the 2, i still think 1 is enough though.

Tbh I'm more tempted by that than spending £100+ on a 'normal' block. but still it seems kinda mad to spend that much on a CPU block... same with GPU, last time I watercooled was an EOL 780ti block (£30!) would love to get back to fully WC but £300+ on CPU and GPU blocks is bat-**** crazy lmao... I'm on the brink of binning my rads and going fully AC lol

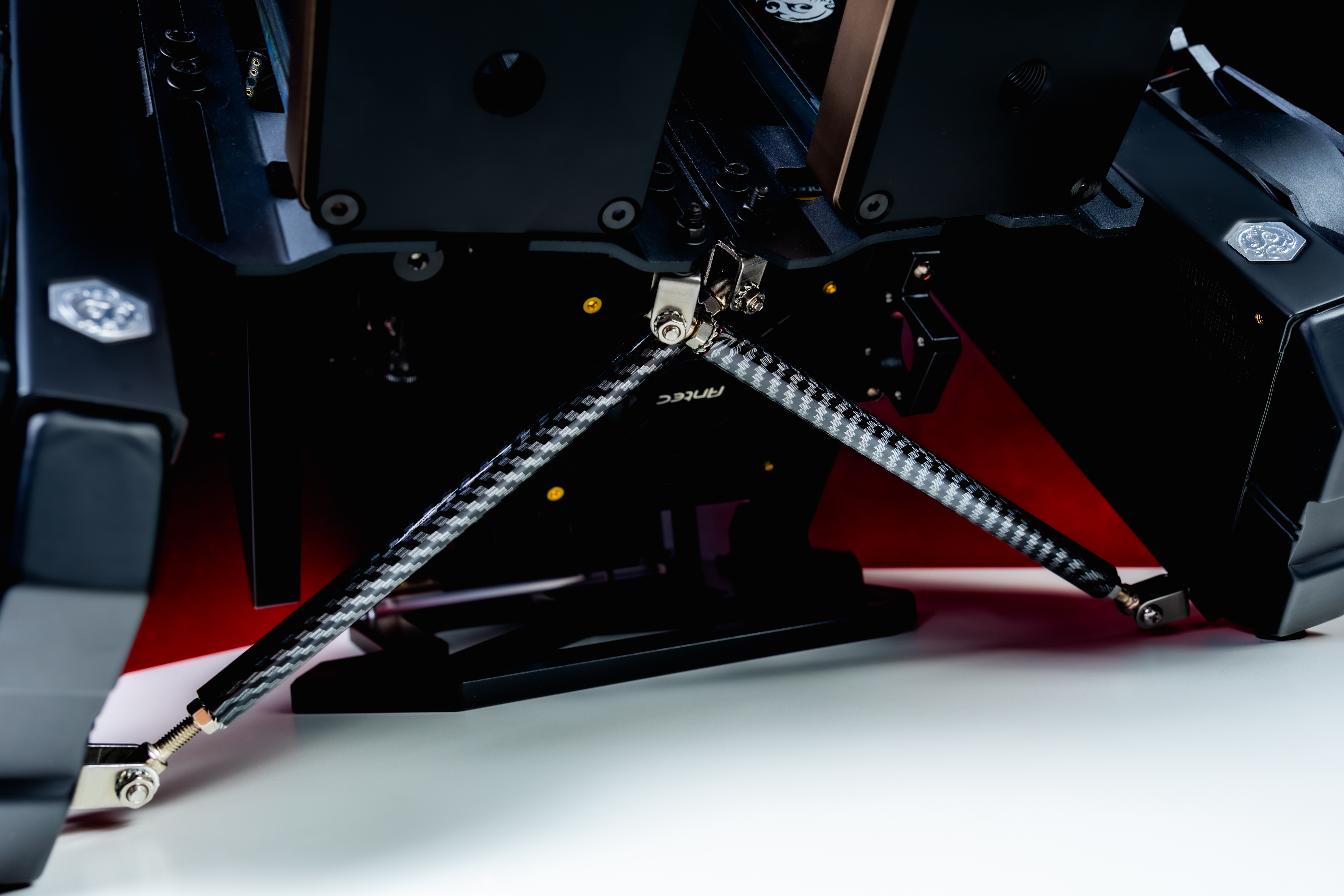

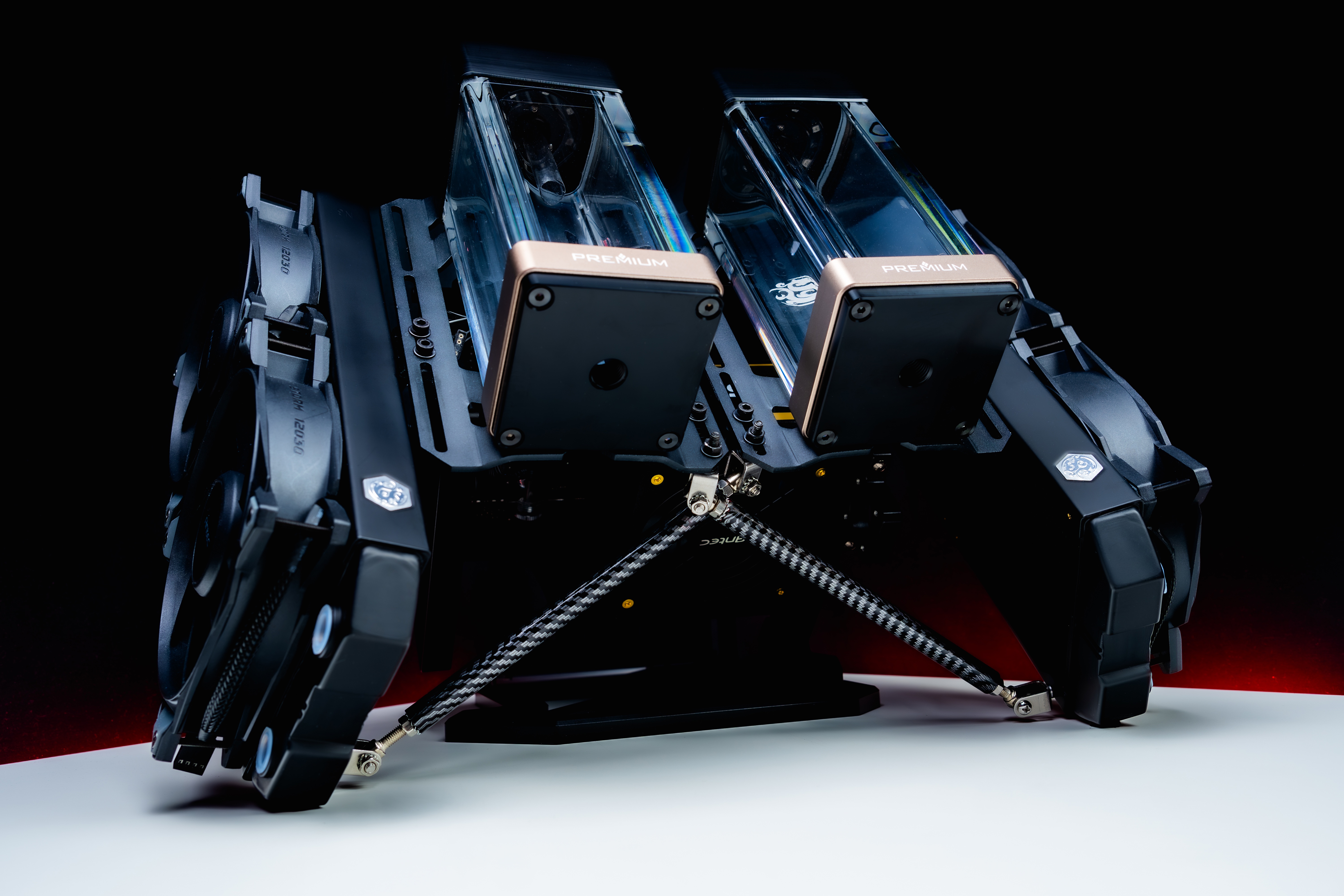

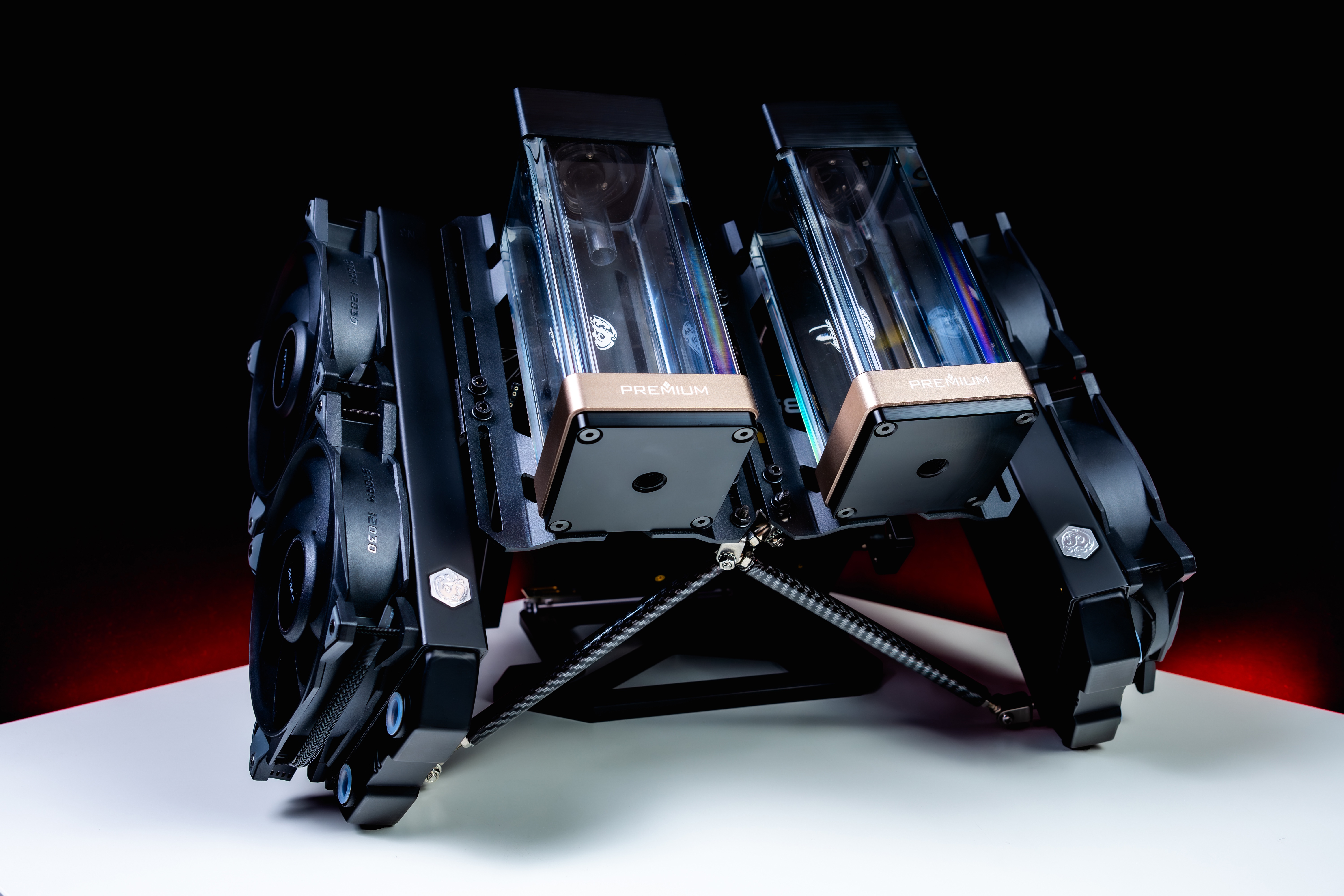

I needed something to support the radiators as they were bending quite abit on the mounting frame. What better than to utilise Tie Rods for splitters and Canards in motorsport. I had to change out the mounting points with my own hardware to fit on both ends but it worked out great.





Last edited:
TrojanWhore said:
Tbh I'm more tempted by that than spending £100+ on a 'normal' block. but still it seems kinda mad to spend that much on a CPU block... same with GPU, last time I watercooled was an EOL 780ti block (£30!) would love to get back to fully WC but £300+ on CPU and GPU blocks is bat-**** crazy lmao... I'm on the brink of binning my rads and going fully AC lol
Click to expand...

If you had a look at how much EK was charging for some of their special edition blocks, i would much rather pay this for a actual special block that is designed by an actual modder and collaborated with a brand for mass release, it's a fantastic idea tbh. The frames are interchangeable too since its on magnets so you could ask Ban from Modding Cafe for some custom ones or even make your own :eek:.

Don't (****ng) tempt me lol......
My first loop cost me about £100... that seems like a strangley old memory now :P
Still hanging on to my Enthoo Primo cos 480 rad, although could downsize and mount that under my desk!

TrojanWhore said:
Don't (****ng) tempt me lol......
My first loop cost me about £100... that seems like a strangley old memory now :P
Still hanging on to my Enthoo Primo cos 480 rad, although could downsize and mount that under my desk!
Click to expand...

go onnnnn, it'll be the last waterblock you ever buy :p. £100 is a dream, it closer to £1k now for a fully fledged, all bells and whistle custom loop with displays etc.

Can't tempt you with a Mini build at all? :D:p

Last edited:
Jay85 said:
go onnnnn, it'll be the last waterblock you ever buy :p. £100 is a dream, it closer to £1k now for a fully fledged, all bells and whistle custom loop with displays etc.

Can't tempt you with a Mini build at all? :D:p
Click to expand...
I could be tempted... But you can't do it on your own (unless you have 'assets' that you wouldn't want to allude to on the forums :p).... The issue is that I'm cheap - if my xspc raystorm (v3 I think) AM4 block will do, then I'm kinda tempted :D
