Rilot · 29 Nov 2013 at 21:33

Rilot · 1 Dec 2013 at 10:57

Gimbal:

pazza · 1 Dec 2013 at 11:05

Looking good,should work very well in the air

PinkFloyd · 1 Dec 2013 at 11:10

Nice build you have there Pazza, are those the NTM 1200kv motors? If so same as me, I've seen that they can take 4S but I've not for one second ever found 3S not fast enough :eek:

That thing must be absolutely ballistic on 4S!

Nice toys Rilot

pazza · 1 Dec 2013 at 11:33

PinkFloyd said:
Nice build you have there Pazza, are those the NTM 1200kv motors? If so same as me, I've seen that they can take 4S but I've not for one second ever found 3S not fast enough That thing must be absolutely ballistic on 4S!

Nice toys Rilot

Thanks Yes they are ntm 1200 kv,its like a rocket

Thrash · 2 Dec 2013 at 02:40

Knocked up my first cheap quad using a KK2.0 as the brains. Recently updated the firmware to 1.6 but still need some tuning done. Part of the test flight from last night:

https://www.youtube.com/watch?v=UpXmtrNn-KY

and was getting some oscillations when cutting the throttle.

Any recommendations on which flight controller (on the cheaper side) to go for next if I am wanting the option of altitude and position hold?

rhysduck · 2 Dec 2013 at 09:45

More progress, managed to get the tilt mech sorted, esc's attached to the frame and the battery connector soldered. This was by far the trickiest, the combination of the 3 ESC battery wires was way to thick to get into a XT60 terminal!

Loads left to do.. The Mrs actually took an interest last night too

pazza · 2 Dec 2013 at 10:25

That looks massive,what props you going to use?

What wood did you use,i was looking for something like that but couldnt find anything,is it lime?

rhysduck · 2 Dec 2013 at 10:45

pazza said:
That looks massive,what props you going to use?

What wood did you use,i was looking for something like that but couldnt find anything,is it lime?

It is rather big, should be stable and relatively tame hopefully for my first one!

B&Q - Pontypridd

10.5mm x 10.5mm pine strip I think it is. About £1.20 IIRC for 2/2.5 metres. Got plenty of spare arms just incase

PinkFloyd · 3 Dec 2013 at 13:04

Aw crap. Accidentally left my transmitter switched on since yesterday midday. Battery completely dead

Won't charge as the voltage has dropped too much, although I don't know how low it is as I don't have a voltmeter.

One for the bin I guess :/

Col_M · 4 Dec 2013 at 12:34

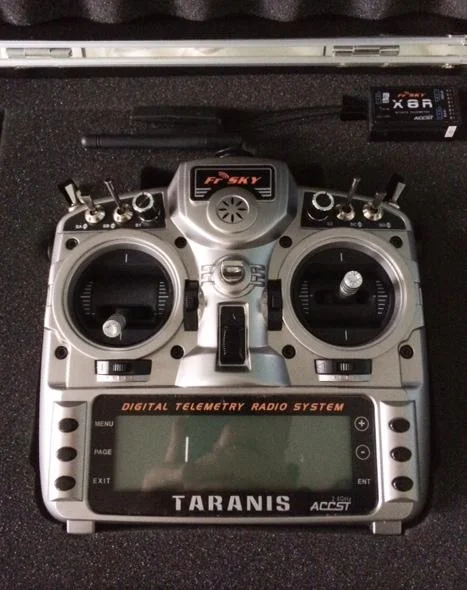

This early Xmas present for myself came today!

Also a quick video from a few weeks back, the Disco was very twitchy in the wind but I've since tuned the PIDs a bit and it should be better now

Russinating · 4 Dec 2013 at 13:37

Trying to setup the gimbal tilt with our DJI Phantom and having a mare!

Downloaded the assist software, X1 (tilt control on back of controller) is calibrated and responding to the controller in realtime. Cable going from F2 on the NAZA to the gimbal and the gimbal flashes when either end is disconnected (so assume it's 'seeing' the connection). But that's as far as I can get and the tilt control doesn't tilt the gimbal. Any ideas?

Cosimo · 4 Dec 2013 at 13:57

A nice little project for those with a Parrot AR.Drone 2:

http://samy.pl/skyjack/

rhysduck · 4 Dec 2013 at 14:48

Seriously have to get my Tri up and flying before Xmas!!

Rilot · 4 Dec 2013 at 15:00

Russinating said:
Trying to setup the gimbal tilt with our DJI Phantom and having a mare!

Downloaded the assist software, X1 (tilt control on back of controller) is calibrated and responding to the controller in realtime. Cable going from F2 on the NAZA to the gimbal and the gimbal flashes when either end is disconnected (so assume it's 'seeing' the connection). But that's as far as I can get and the tilt control doesn't tilt the gimbal. Any ideas?

What gimbal are you using? H3-2D should just work. Others based on AlexMOS or Martinez boards may need you to hook them up via USB and mess with the actual gimbal controller options.

Rilot · 4 Dec 2013 at 15:03

Col_M said:
This early Xmas present for myself came today!

Nice one. It's a fantastic transmitter for the money, if a little cheap feeling.

I just bought the 2Ah extended battery from T9 Hobbysport for mine as I was finding the stock battery tends to leak charge when left for a few weeks.

Col_M · 4 Dec 2013 at 16:59

Rilot said:
Nice one. It's a fantastic transmitter for the money, if a little cheap feeling.

I just bought the 2Ah extended battery from T9 Hobbysport for mine as I was finding the stock battery tends to leak charge when left for a few weeks.

I haven't had a good play with it yet as it came before I left for work but the body, overall weight and gimbals feel better than my DX6i, the side pots feel very flimsy though. I also don't like that the two pots on the top don't have centre detents but I'm sure I can replace them with better ones at some point.

The sheer amount of customisation of switches etc. is the big selling point, it's also ever so slightly smaller than my DX6i and from first impressions it feels better in my hands.

I have a lot of reading to do to learn how to program it though

Rilot · 5 Dec 2013 at 19:25

Another addition to my hanger:

Hubsan Q4. It's about 1/2 the size of the Hubsan X4.
Here it is sat on the prop / motor of my S800 EVO.

Hubsan Q4 by Rilot, on Flickr

PinkFloyd · 5 Dec 2013 at 20:10

That's minute! Looks like it is the same motors and props as the X4 which is handy

Shame the controller is still quite bulky.

Rilot · 5 Dec 2013 at 20:26

Motors are about 1/2 the length and the props are about 1/2 too.
It's tiny compared to the X4.

I just took a pic for you:

Q4 compared to X4 by Rilot, on Flickr
