The RX Vega 56 Owners Thread

Overclocker321 · 11 Sep 2017 at 21:08

Anybody in Essex or Hertfordshire who wants to do some Cross Fire testings with Vega 56? We can drink a beer/coffee, tweak and run benchmarks.
Edit: or are there LAN/ hardware parties around?

D1craig · 11 Sep 2017 at 21:37

Did any of you see the redgamingtech video where he done some tweaks to voltage and core and men clocks and it comes very close to a GTX 1080 nevermind beating a 1070?

erazor51 · 12 Sep 2017 at 00:47

Vega 56 UV/OC

Frequency: 1537/1592
Voltage: 1000/1000
HBM: 920
Power Limit: 50%

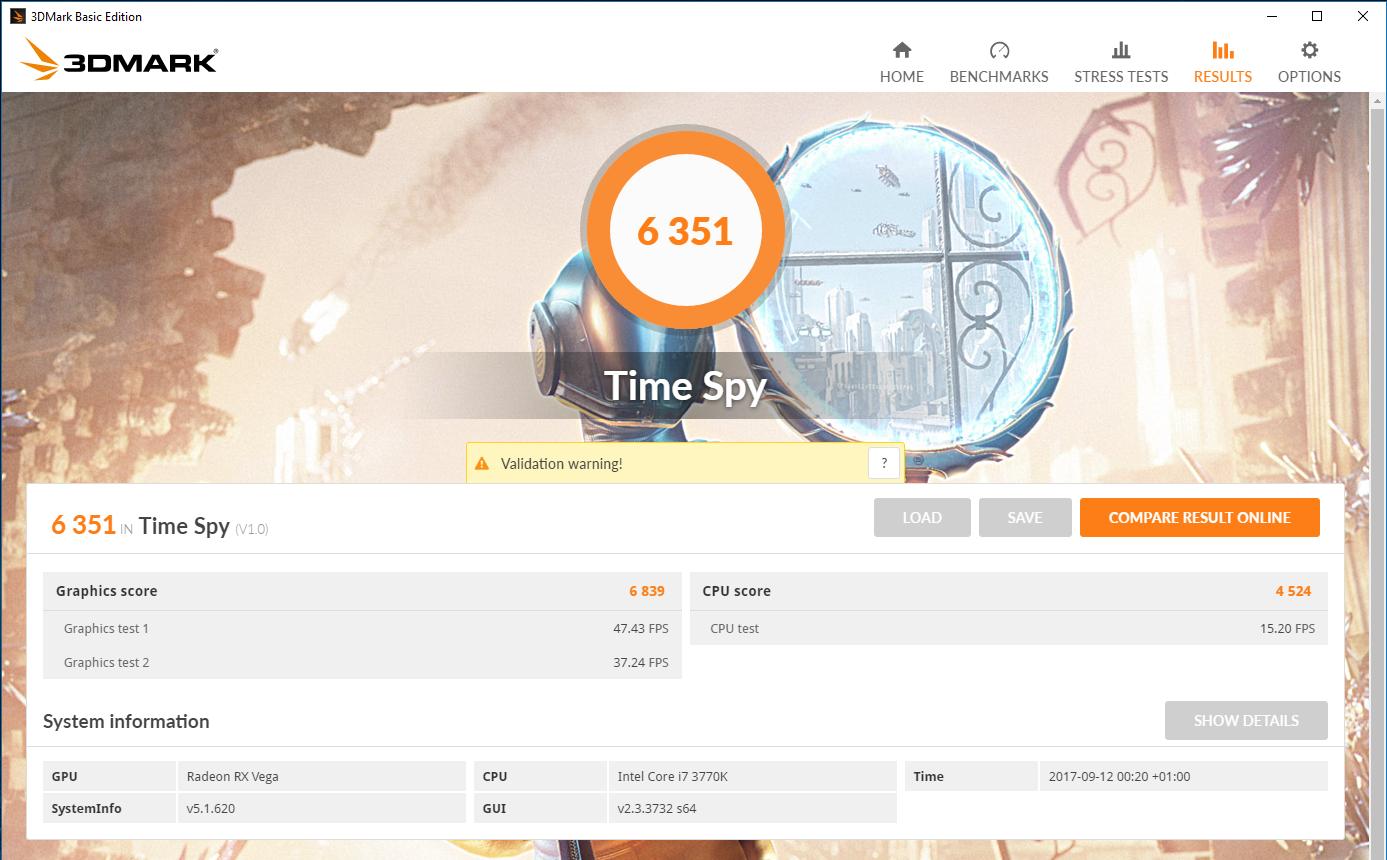

Time Spy

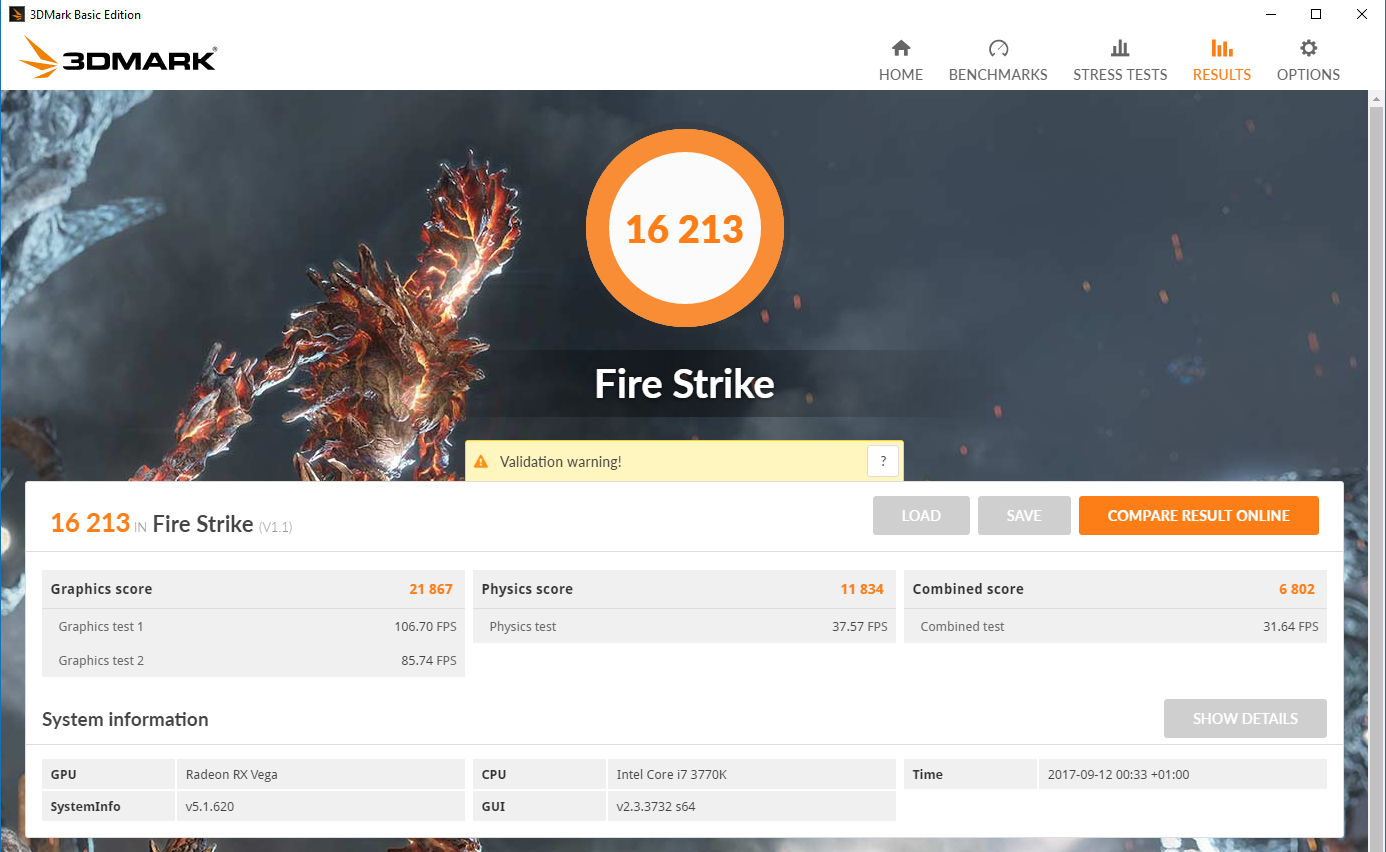

Fire Strike

Ticonderoga · 12 Sep 2017 at 08:49

erazor51 said:
Vega 56 UV/OC

Frequency: 1537/1592
Voltage: 1000/1000
HBM: 920
Power Limit: 50%

Time Spy

Fire Strike

Looks good. How does the cooler perform with those settings?

erazor51 · 12 Sep 2017 at 09:43

Ticonderoga said:
Looks good. How does the cooler perform with those settings?

It performs really well. I have a 5.1 speaker setup and while gaming I can't really hear the fan but during quiet scenes I can hear a low audible fan noise which is perfectly acceptable and really good for a blower.

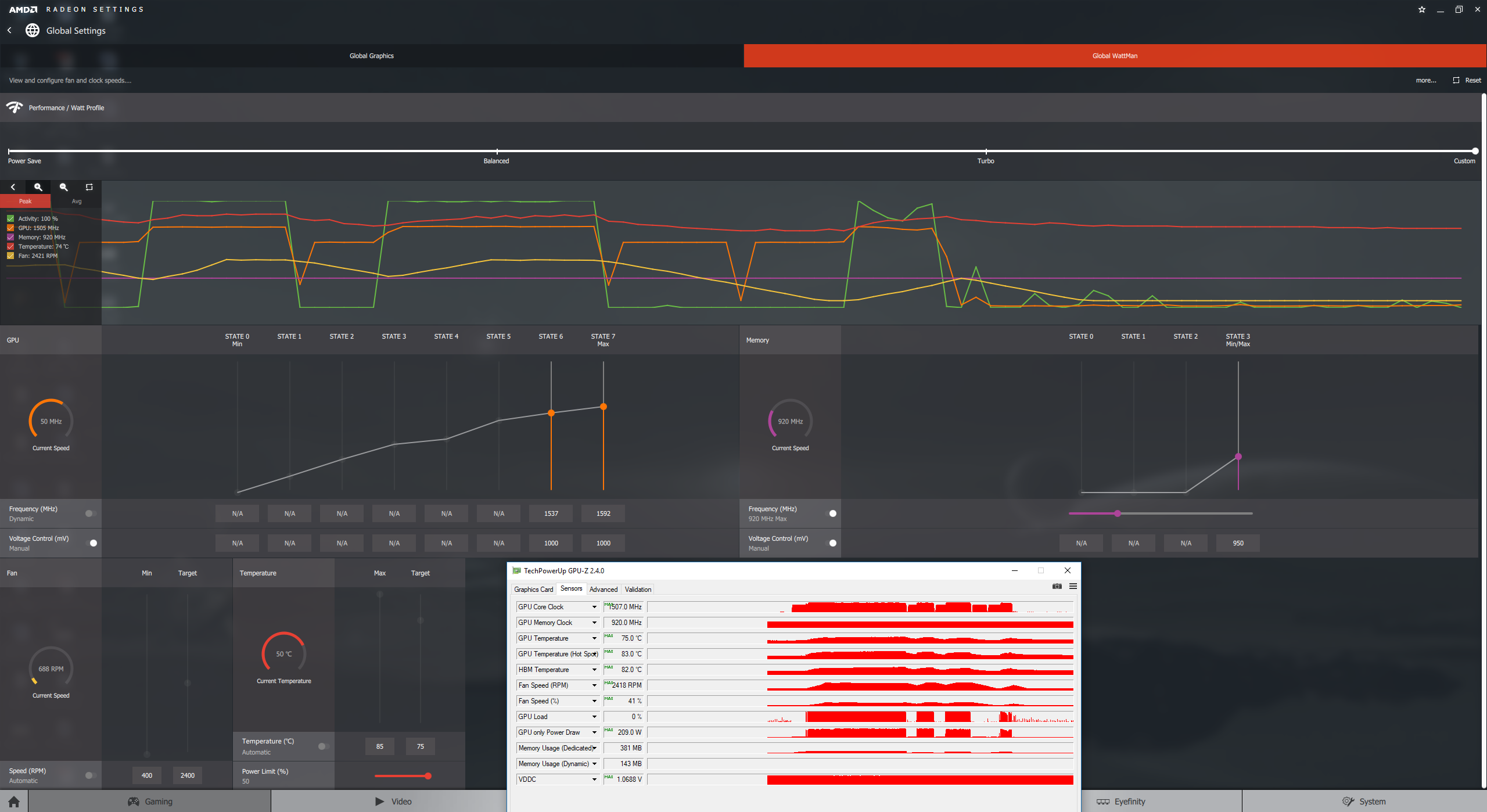

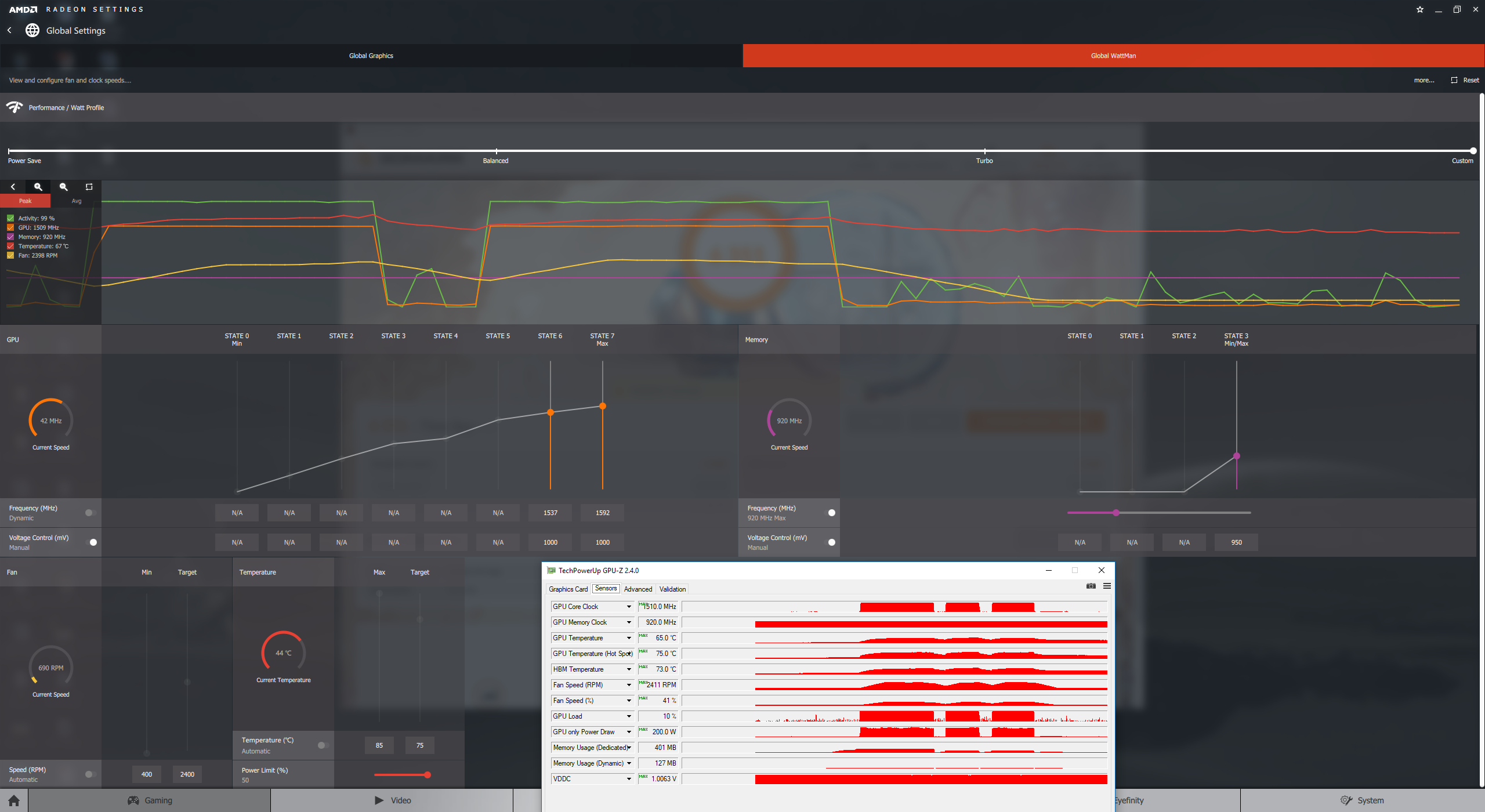

I have added the GPU stats which show the fan speed peaking around 2400rpm~

Those settings for me seem to be a sweet spot for a good balance of performance, thermals, noise and power consumption.

Jazz2k · 12 Sep 2017 at 10:41

erazor51 said:
It performs really well. I have a 5.1 speaker setup and while gaming I can't really hear the fan but during quiet scenes I can hear a low audible fan noise which is perfectly acceptable and really good for a blower.

I have added the GPU stats which show the fan speed peaking around 2400rpm~

Those settings for me seem to be a sweet spot for a good balance of performance, thermals, noise and power consumption.

Nice, im looking forward to fiddling with my v56 when i get time tomorrow. Got conf its delivered to shop for collection so hopefully get collected tonight when home late. Will up some pics when installed. Black and sed setup should look real nice with my other black and red bits.

Does the radeon name glow red or s that just on the ltd edition v64s?

erazor51 · 12 Sep 2017 at 10:53

Jazz2k said:
Nice, im looking forward to fiddling with my v56 when i get time tomorrow. Got conf its delivered to shop for collection so hopefully get collected tonight when home late. Will up some pics when installed. Black and sed setup should look real nice with my other black and red bits.

Does the radeon name glow red or s that just on the ltd edition v64s?

Nice, sounds good!

It glows red

old gamer · 12 Sep 2017 at 12:09

D1craig said:
Did any of you see the redgamingtech video where he done some tweaks to voltage and core and men clocks and it comes very close to a GTX 1080 nevermind beating a 1070?

is this the one
https://www.youtube.com/watch?v=thAF3FSRf_M

henson0115 · 12 Sep 2017 at 12:18

D1craig said:
Did any of you see the redgamingtech video where he done some tweaks to voltage and core and men clocks and it comes very close to a GTX 1080 nevermind beating a 1070?

easy enough to do to be fair, my timespy scorers are on par with a 1080, almost stock with an undervolt. flashing a 64 bios will achieve this pretty easy.

D1craig · 12 Sep 2017 at 12:43

old gamer said:
is this the one
https://www.youtube.com/watch?v=thAF3FSRf_M

Yes.

How did AMD miss this? Surely they could have done this stock so they would be less of a laughing stock...

henson0115 said:
easy enough to do to be fair, my timespy scorers are on par with a 1080, almost stock with an undervolt. flashing a 64 bios will achieve this pretty easy.

As far as I'm aware he didn't flash the bios though.

henson0115 · 12 Sep 2017 at 13:16

D1craig said:
As far as I'm aware he didn't flash the bios though.

i know, me neither. just saying in general as an option you can :-)

SpudMaster · 12 Sep 2017 at 18:25

What voltages and clocks are those running the Vega 64 bios using? Put the V64 bios on my 56 this morning. Stock setting on 64 bios gave me the same Timespy score as V56 bios with 1622mhz @ 1050mV, HBM at 925mhz and +50% power limit

henson0115 · 12 Sep 2017 at 20:18

SpudMaster said:
What voltages and clocks are those running the Vega 64 bios using? Put the V64 bios on my 56 this morning. Stock setting on 64 bios gave me the same Timespy score as V56 bios with 1622mhz @ 1050mV, HBM at 925mhz and +50% power limit

Just out of curiosity have you tried the same oc with stock voltsin timespy?

SpudMaster · 12 Sep 2017 at 20:45

henson0115 said:
Just out of curiosity have you tried the same oc with stock voltsin timespy?

No not yet, I flashed it this morning before work. Will have a play about with clocks later tonight

solarp · 12 Sep 2017 at 21:39

Had a go with undervolting and then OC'ing the memory, unbelievable improvement.

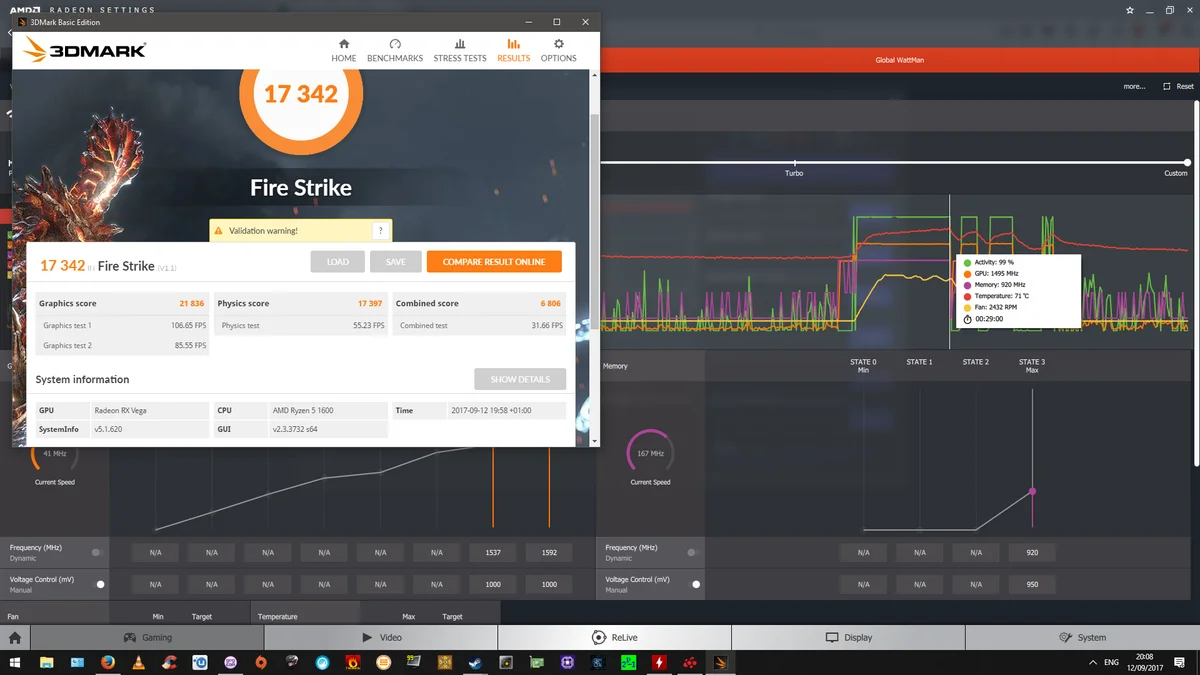

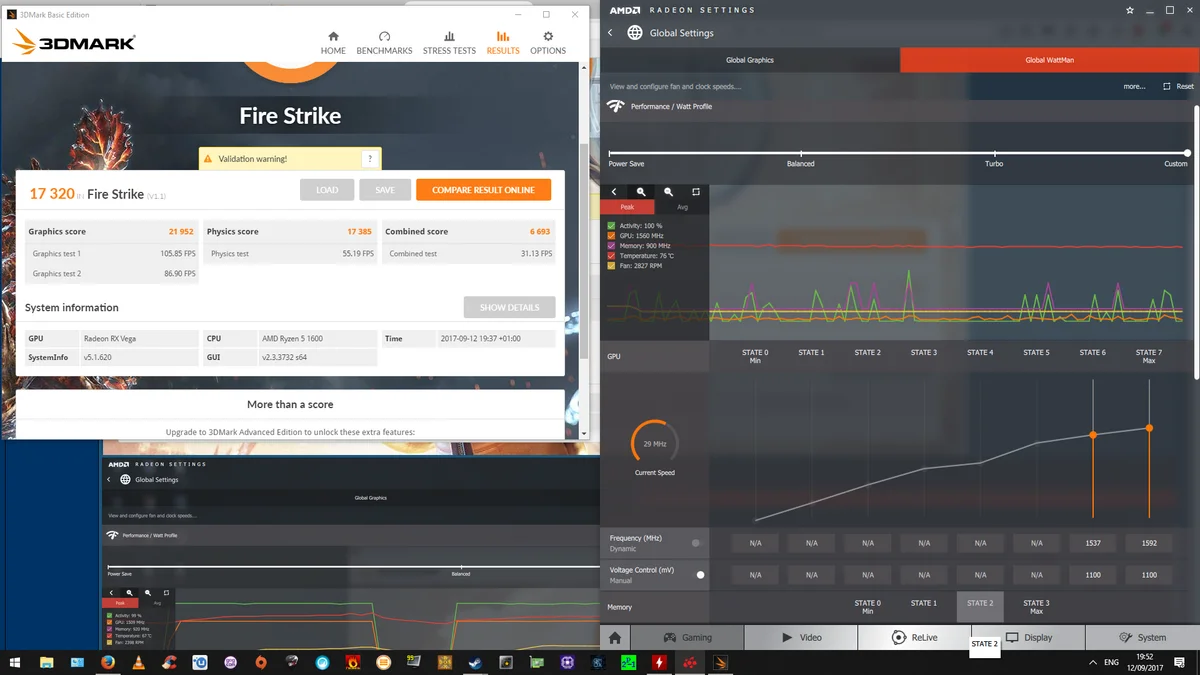

Before tweaking: 1080p firestrike on R5 1600 OC'ed 3.8 @ 1.25v, Stock Vega 56 came in at 15,956

First test: UV @ 1100mV, OC memory @ 900mhz, max power limit 50%+, Fan set to 2800rpm max (too loud imo) (max temps 76c)

Second test: UV @ 1000mV, OC memory @ 920mhz, max power limit 50%+, Fan set to 2400rpm max (better) (max temps 71c)

Jazz2k · 13 Sep 2017 at 01:12

Just about collected my delivery before Salisbury closed for the evening!!

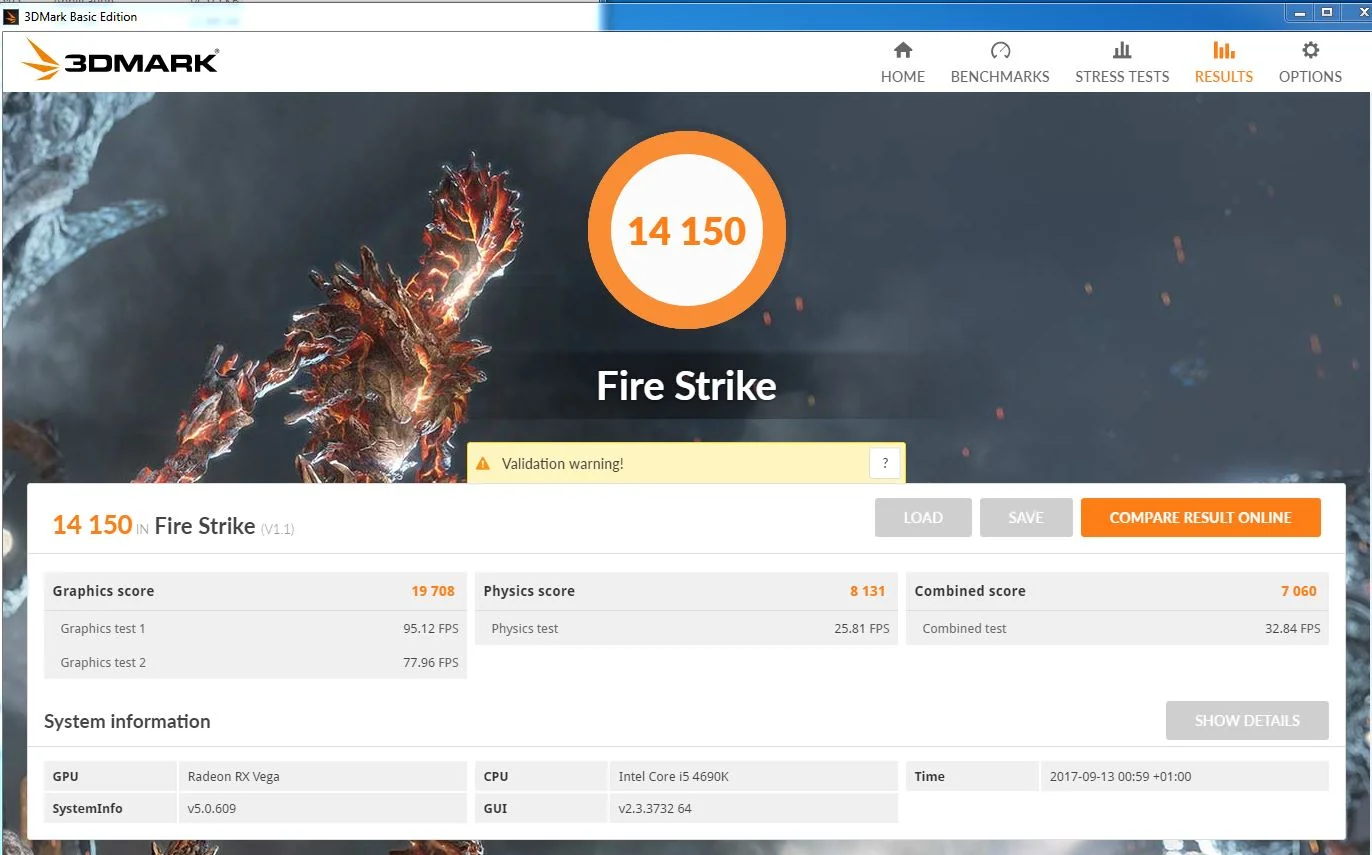

All stock no tweaking results.

Nice RADEON red letting through my S340 Elite matt Red/Black case.

Its late and been up since 5:15am. Will play more tomorrow and take some photos.

Evilmethod666 · 13 Sep 2017 at 13:13

This is my new temporary loop i setup last night until i order a water block for the Vega 56 in the next few weeks

https://drive.google.com/open?id=0B_sc5ERx_a1vVGJGRGw0RUhCeUE

Kaapstad · 13 Sep 2017 at 13:22

Evilmethod666 said:
This is my new temporary loop i setup last night until i order a water block for the Vega 56 in the next few weeks

https://drive.google.com/open?id=0B_sc5ERx_a1vVGJGRGw0RUhCeUE

Welcome and on TROH.

The Roll of Honour.

Date 13/09/2017, Make Reference Air, Evilmethod666, Link
Date 07/09/2017, Make Reference Air, jimhaumman, Link
Date 05/09/2017, Make Reference Air, FiremanSam, Link
Date 03/09/2017, Make Reference Air, erazor51, Link
Date 03/09/2017, Make Reference Air, Angst, Link
Date 01/09/2017, Make Reference Air, solarp, Link
Date 01/09/2017, Make Reference Air, slunge, Link
Date 01/09/2017, Make Reference Air, Narrack, Link
Date 01/09/2017, Make Reference Air, Daiyus, Link
Date 31/08/2017, Make Reference Air, icey_haj, Link
Date 31/08/2017, Make Reference Air, Vince, Link
Date 31/08/2017, Make Reference Air, sideways14a, Link
Date 31/08/2017, Make Reference Air, MagicBoy, Link
Date 31/08/2017, Make Reference Air, Roob65, Link
Date 31/08/2017, Make Reference Air, sjones1404, Link
Date 29/08/2017, Make Reference Air, bells, Link
Date 29/08/2017, Make Reference Air, Sybra, Link
Date 29/08/2017, Make Reference Air, docsonic, Link
Date 29/08/2017, Make Reference Air, Disjunto, Link
Date 29/08/2017, Make Reference Air, old gamer, Link
Date 29/08/2017, Make Reference Air, FelixB, Link
Date 29/08/2017, Make Reference Air, megatron, Link

To get on the Roll of Honour all you have to do is post a pic with your user name on it of your Vega 56.

henson0115 · 13 Sep 2017 at 20:40

Haven't had that much time to test but clocks at 1662/950 mv1080 stock bios gives me a timespy score of 6920 gpu score is 7212 cpu is 5629. Temps max at 71 degrees on the core and hbm with blower running at 3200rpm.

T.Kay · 13 Sep 2017 at 20:47

solarp said:
Had a go with undervolting and then OC'ing the memory, unbelievable improvement.

Before tweaking: 1080p firestrike on R5 1600 OC'ed 3.8 @ 1.25v, Stock Vega 56 came in at 15,956

First test: UV @ 1100mV, OC memory @ 900mhz, max power limit 50%+, Fan set to 2800rpm max (too loud imo) (max temps 76c)

Second test: UV @ 1000mV, OC memory @ 920mhz, max power limit 50%+, Fan set to 2400rpm max (better) (max temps 71c)

Nice score! Weird how I get the same at 1100mhz on hbm with everything else the same. Could an older cpu affect the graphics score?
