***Haswell -E Owners Thread***

[uksoldierboy]

It's funny you should say that because the same thing happened to me on Thursday. Wasn't booting etc until I discovered my HDD had died also.

Ah that's weird, well at least we are both sorted now

what sort of clocks are you getting Wiry?



[Wiry]

Ah that's weird, well at least we are both sorted now

what sort of clocks are you getting Wiry?

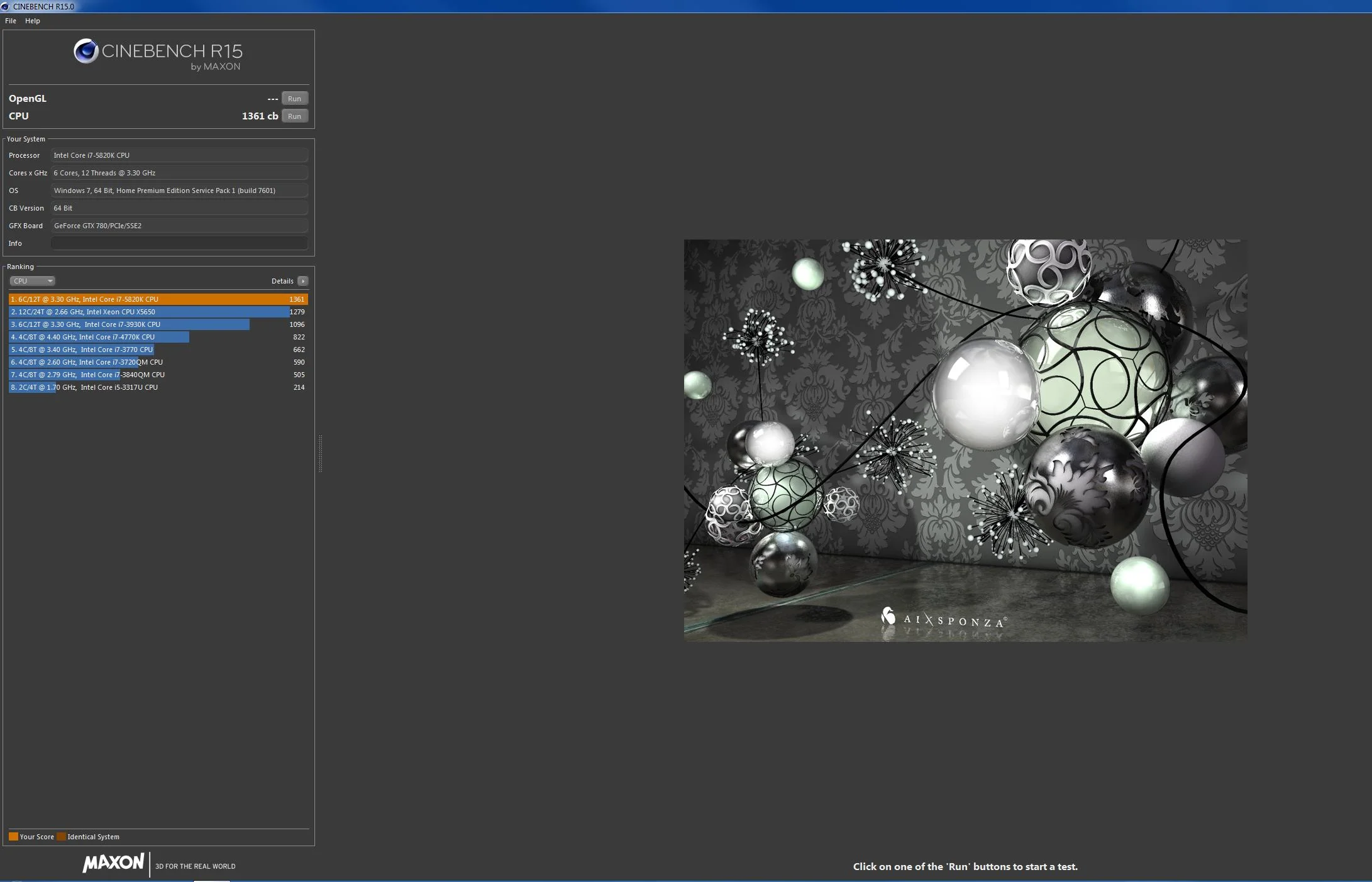

Quick run of Cinebench earlier @ 4.5GHz. I left strap alone, 1.31V on core. I'll have a go with the strap later

I've also tightened the avexir's timings a little, running them at 2666MHz CL12... I'm going to have a play at tuning them later also.

Spoiler



[uksoldierboy]

Wow nice,

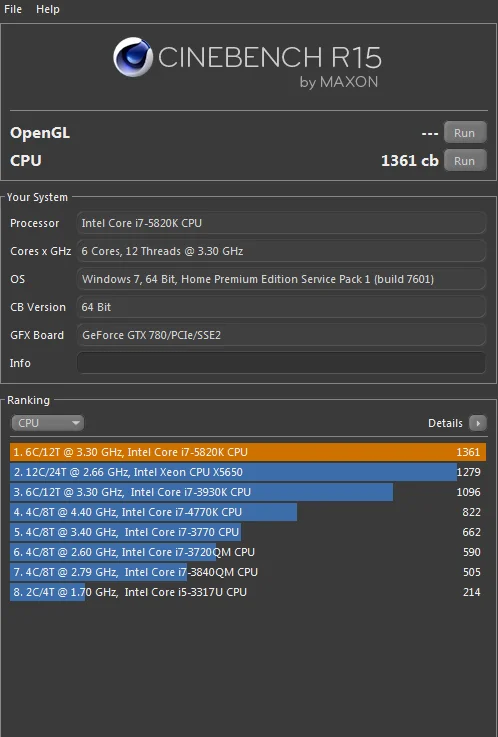

I get around 1290 @4.5, not touched the timings though, didn't realise they make that much difference!



[McstylisT]

Nice scores guys. Not sure its the exact same with x99 , but z97 and prior liked tight ram and a decent ring/uncore/catch speed to match the clock. Thats what brings the best results in general.



[Boomstick777]

Some nice scores in here, really liking X99 so far Hopefully future bios improvements will mean we can get better or more stable higher overclocks.



[uksoldierboy]

Boom are you using strap (125) to overclock? have you noticed any issues playing games or benchmarking?

The issue i have is that while using strap 125 helps me overclock, if i run any benchmarks like firestrike etc, on the gpu test it crashes



[Captain]

Should the CPU be upside down in the board?



[Wiry]

Should the CPU be upside down in the board?

Mine is upside down



[Captain]

Cheers, wasn't sure what was going on



[Boomstick777]

Boom are you using strap (125) to overclock? have you noticed any issues playing games or benchmarking?

The issue i have is that while using strap 125 helps me overclock, if i run any benchmarks like firestrike etc, on the gpu test it crashes

No mate, to get to 4.5Ghz I just change the multi to 4.5 on all cores, +0.200v on the auto voltage, + 1.15 vring. Then a little bump on the other voltages.



[uksoldierboy]

No mate, to get to 4.5Ghz I just change the multi to 4.5 on all cores, +0.200v on the auto voltage, + 1.15 vring. Then a little bump on the other voltages.

Rgr that,

I've started again, didn't touch the ram as that seems to be causing most of my issues.

left it @2133, cpu host@100mhz, cpu vrin @1.900, cpu vcore @1.3200 (max i'm happy with until we know more)

Got to 4.6 before it crashed in windows, happy with 4.5 on six cores, i then set about overclocking the memory, dram volts @1.35, memory @2666mhz 16-16-16-36.

No issues so far, will keep tightening the timings and see how that goes.


Edited- Memory now at 14-14-14-36



[Captain]

This is all i have to show atm, as i'm off out on the ****



[stulid]

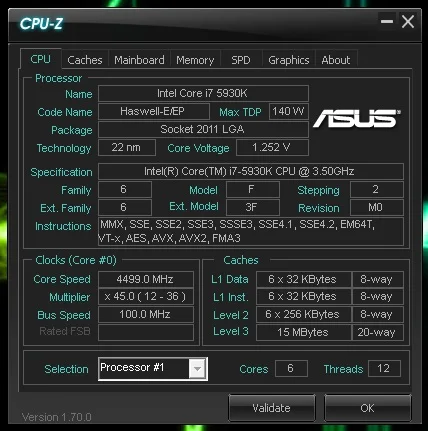

I'm happy with [email protected], passes all tests, runs cool.



[Boomstick777]

I'm happy with [email protected], passes all tests, runs cool.

Would be appreciated if you could post what setting etc you use.



[^JP^]

[email protected] sounds like an ES chip? Or very lucky silicone lottery?



[uksoldierboy]

Would be appreciated if you could post what setting etc you use.

1+ if you can please Stu.



[Boomstick777]

Found the sweet spot for my setup.

Leave all settings on default 'Optimized'.

Then change all cores turbo to > 4.4Ghz.

Then just set voltage to 'normal' +0.0200v.

Gives up to 1.35v.

No need to change anything else !

Awesome

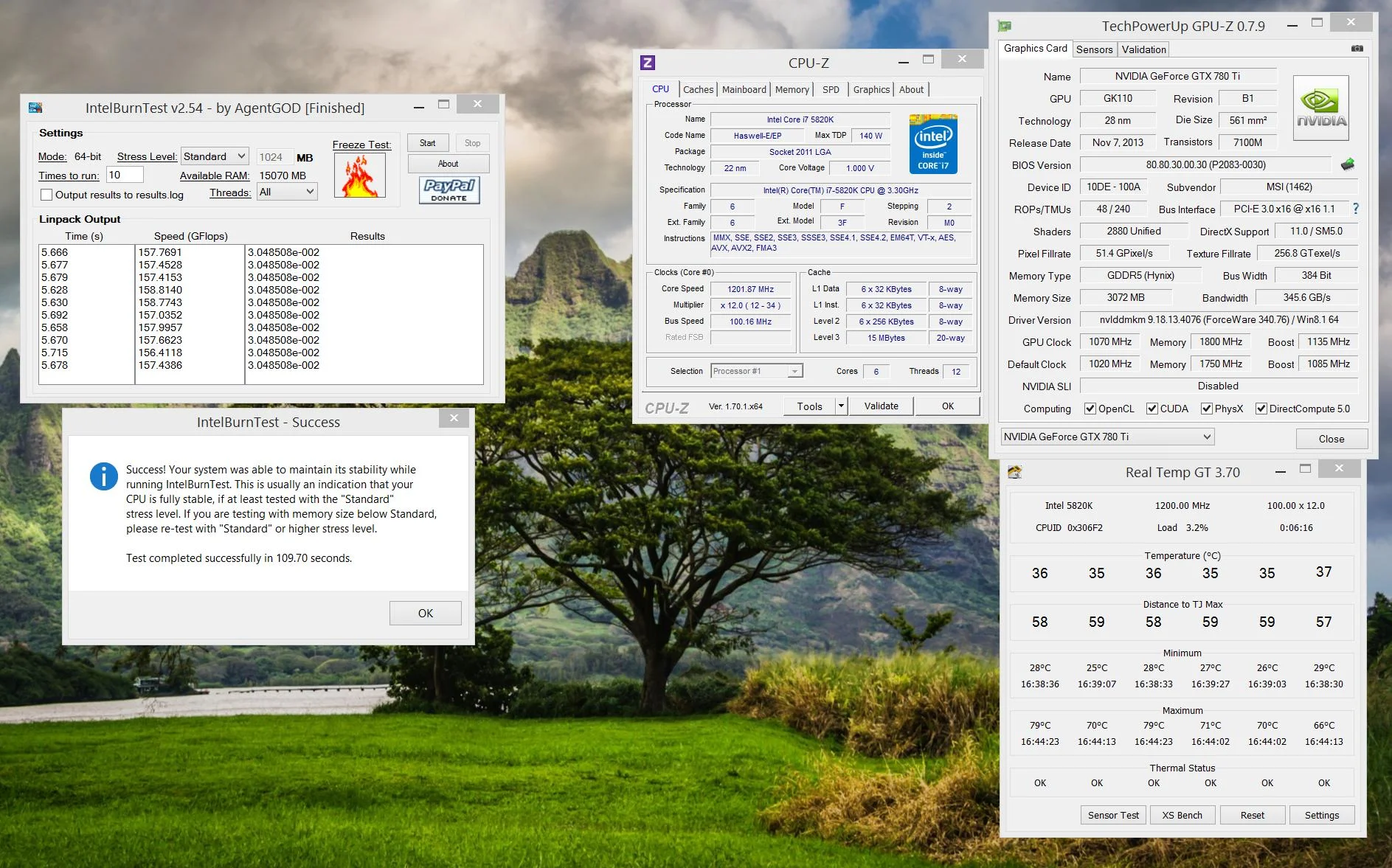

IntelBurnTest all cores under 80c.

Spoiler



[Streetlight]

Would be appreciated if you could post what setting etc you use.

or a walk though.



[stulid]

I will give more info later on the exact setings, but all I did was CPU/Turbo to 47X and LLC to extreme, vcore set to 1.31v



[Evokidda]

here is my current oc on my 5930k did aida64bit test today while at work and was running smothly sorry forgot to screen shot it
