That much isn't right - as per above would flash bios asap
200~MB is one thing, 8GB is a totally different issue
-
Competitor rules
Please remember that any mention of competitors, hinting at competitors or offering to provide details of competitors will result in an account suspension. The full rules can be found under the 'Terms and Rules' link in the bottom right corner of your screen. Just don't mention competitors in any way, shape or form and you'll be OK.
***Haswell -E Owners Thread***
- Thread starter Boomstick777
- Start date
That much isn't right - as per above would flash bios asap
200~MB is one thing, 8GB is a totally different issue
Soldato
- Joined
- 5 Sep 2011
- Posts
- 12,874
- Location
- Surrey
24/7 settings at the moment. Lowered cache voltage. It's nothing amazing but I'm a stickler for nice clean volts
4.25GHZ @ 1.185v Manual / C-State
2750Mhz C15
125BCLK
Uncore(Cache Freq) 3.5GHZ
Cache voltage offset 0.200 (1.13v)
Input Voltage 1.9v
PCH Core Voltage 1.1v
PCH I/O Voltage 1.5v
VCCIO CPU Voltage 1.1v
VCCIO PCH 1.1v
VDIMM 1.2v
LLC Level 5
CPU Current Capacity 130%
4.25GHZ @ 1.185v Manual / C-State
2750Mhz C15
125BCLK
Uncore(Cache Freq) 3.5GHZ
Cache voltage offset 0.200 (1.13v)
Input Voltage 1.9v
PCH Core Voltage 1.1v
PCH I/O Voltage 1.5v
VCCIO CPU Voltage 1.1v
VCCIO PCH 1.1v
VDIMM 1.2v
LLC Level 5
CPU Current Capacity 130%
- Joined
- 2 Jan 2012
- Posts
- 12,230
- Location
- UK.
I'm wondering if have faulty memory or board..
Have you re-formated? Try your ram in different slots, I'm using 4 x white slots. Registers all 16GB just for some reason doesn't let you use it all
Have you re-formated? Try your ram in different slots, I'm using 4 x white slots. Registers all 16GB just for some reason doesn't let you use it all
I'm using the rampage 5 extreme, using slots A1 B1 D1 C1 as in the bios for quad channel memory.
It it a clean install too.
Windows activated earlier, i have just restarted and windows needs activating again :/
Soldato
- Joined
- 14 Feb 2011
- Posts
- 7,490
Have you flashed to the latest bios as suggested?
Just about to now, 0603 is the latest i think.
Soldato
- Joined
- 14 Feb 2011
- Posts
- 7,490
That would be my 1st port of call. If that doesn't cure it. Remove all your ram and re-seat, making sure you have them in the right slot order.
Soldato
- Joined
- 15 May 2012
- Posts
- 5,828
- Location
- Louth, lincs
Just check in msconfig in boot, advanced and check the maximum memory box is clear/unchecked.
Last edited:
Soldato
- Joined
- 5 Sep 2011
- Posts
- 12,874
- Location
- Surrey
Set RAM speed to under 2800

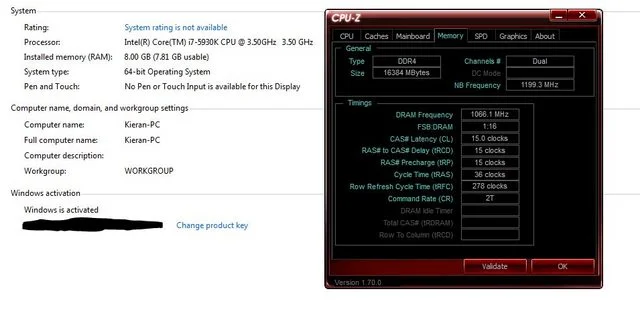

Have just taken 2 sticks out, moved the other 2 sticks over in slots A1 and C1 for dual channel memory, booted straight up into windows and showing full 8GB in windows now too.
That tells me i have 2 sticks of faulty memory or 2 faulty memory slots on my board.
That tells me i have 2 sticks of faulty memory or 2 faulty memory slots on my board.
X99 Deluxe here and half my RAM wasn't detected on boot once, full power shut down and reboot fixed it though... really strange
Edit: mine did not say 'X usable' though, it just came up as Installed memory: 16 GB, when I have 32. But as I said, a reboot fixed it and only had it happen once so far. I have ran MemTest on all sticks and no errors found.
Edit: mine did not say 'X usable' though, it just came up as Installed memory: 16 GB, when I have 32. But as I said, a reboot fixed it and only had it happen once so far. I have ran MemTest on all sticks and no errors found.
Last edited:
Soldato
- Joined
- 6 Aug 2009
- Posts
- 4,504
- Location
- Wales
How'd you fix it bud?
Soldato
- Joined
- 5 Sep 2011
- Posts
- 12,874
- Location
- Surrey
There are some issues on the ASUS boards with speeds at and above 3000mhz flagging System agent error (6d) on post.
Have moved the memory around to different slots, updated the BIOS and loaded the XMP profile, seems to have stabilized it now
Now for some reason though windows has de-activated itself!
- Joined
- 2 Jan 2012
- Posts
- 12,230
- Location
- UK.
Have moved the memory around to different slots, updated the BIOS and loaded the XMP profile, seems to have stabilized it now
Now for some reason though windows has de-activated itself!
Nice one, is your ram now installed in the light or dark slots?
Still installed in the red slots, but they now have one stick from each set together.
When i had set 1 together in slots A1 B1 and set 2 in C1 D1 they didn't work, so now moved one from each over and working fine
Soldato
- Joined
- 6 Aug 2009
- Posts
- 4,504
- Location
- Wales
God it's so damn difficult finding a stable overclock at the moment, not sure if it's the hardware or software.
