Can you mount any flight ctrl on the DJI F450 frame, as I've read that it will only take DJI or Naza...?
Multirotor, multicopter and quadcopter discussion - The Drone thread
- Thread starter RomanNose
- Start date
Can you mount any flight ctrl on the DJI F450 frame, as I've read that it will only take DJI or Naza...?
Associate
Taken from quadcopters.co.uk
DJI 450 Frame Kit is a great frame and can be used with other flight controllers if necessary although we do recommend the dji naza flight controller
http://quadcopters.co.uk/dji-f450-flamewheel-frame-kit-123-p.asp
Yes, I'd just found that but the image they have doesn't seem to match the one Col_M posted above. Theirs looks too thin around the motor mount point which is the one thing I'm trying to avoid.
However, their spare legs appear to be the "right" ones...
However, their spare legs appear to be the "right" ones...
Last edited:
Soldato
Looks nice and smooth, nice
. What's the tupperware for?
. What's the tupperware for?
Associate
pazza
Give us your spec ie which battery, motors and props you are using
Give us your spec ie which battery, motors and props you are using
Looks nice and smooth, nice
lol to protect the flight controller or store some food take your pick.

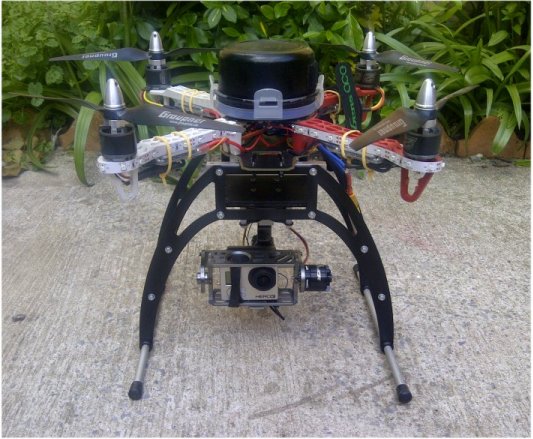

On that one:
Frame Dji 330
Motors = Ntm 1200 kv
Esc = hobbyking blue 30 amp (simonk flashed)
Props = graupner 9x5
battery = zippy compact 5000 mah 4s
Rctimer gimbal & gopro
Quadframes us landing gear
flight time = 14 mins.
Its a great little video rig.
Theres a tool you can buy from hobbyking that makes it easy:
http://www.multi-rotor.co.uk/index.php?topic=1079.0
Soldato
Do you just record videos for fun pazza?
Yeah,i run a local video making club, we make short films and stupid sketch's all for a laugh, we do make the odd serious film and enter a few film festivals.
Man of Honour
Film of local floods... main road into our village shut so thought I'd sent the quad to go investigate. Also sent to local paper so maybe they will use material.
Awesome view,they should get some great pictures from that.
That's the best option
I soldered some servo cables onto the pads which was just a ball ache, I'm going to buy the tool if I ever need to do it again.In other news, I got the Orange OpenLRS module for my Taranis and set it up over Xmas. The Rx is going on my 450 so once I've changed the VTx to a lower frequency one I can take it further away and fly behind stuff! Look out for some foresty proximity goodness
Last edited:
That's the best option
Was thinking about doing that then stumbled across the flash tool by accident,just as well
Man of Honour
Nice one.
