Multirotor, multicopter and quadcopter discussion - The Drone thread

MarkLP · 9 Jan 2014 at 18:20

rishy said:
The frame, get the verison with the PCB board if in stock

Battery alarm - there is one built into the KK2.1 but you will need a two pin lead to connect it

Try and majority of your stuff from the UK warehouse as your ordering a lot you may get hit by customs - for me a ordered the complete kit from the UK and the KK2.1 from the international warehouse.

Also Hobbyking do a thing called buddy codes and one time prices to get items cheaper ( I found this after i made my purchase)

Have a look at the website below to get cheaper prices. (this is a referal paid site but not directly to me but for anyone who post their buddy code online) Your allowed to use one buddy code per order.

http://rcsearch.info/hobbyking/buddy/?cid=501&SortBy=&dt=&wh=uk#catalog

(!! Mods I dont know if im allowed to be post this link if not let me know and i will remove it !!)

Last thing clear your cart and cookies, go to the item which is the most expensive wait on that page for about 100 second and it will give you a one time offer at a cheaper price.

Thanks for that, I'll make sure to wait on the expensive item page!

Seems everything I want from the UK warehouse is on backorder!

Also for the NTM Motors, is it necessary to buy the accessory pack?

rishy · 9 Jan 2014 at 18:25

I think dont quote me but the accessory pack is the prop holder and screws

PinkFloyd · 9 Jan 2014 at 18:34

Yes you'll need the accessory packs if you go with the NTM motors *unless* you buy the ones with a shaft and the appropriate fittings to mount like that.
I'd go with the accessory pack.

Russinating · 9 Jan 2014 at 18:48

Cuchulain said:
I had a couple that puffed, they're also pretty heavy for the low C rating, replaced mine with Overlander 2200's.

Thanks for the recommendation, two arrived today.

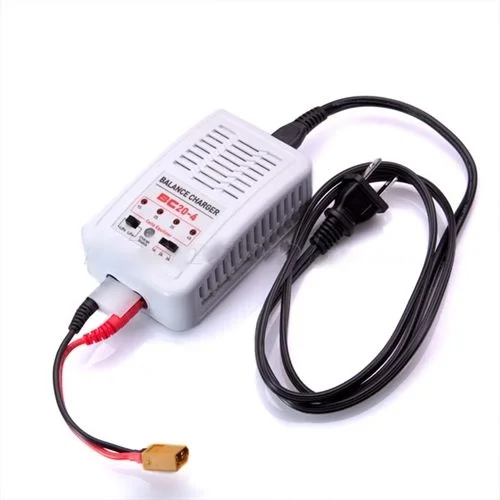

On the subject of batteries I just want to make sure I'm properly clued up. At the moment we just have the Phantom balance charger:

When people here, and the battery manuals, talk about checking cell voltages or discharging I'm assuming this can't be done with this charger? And if so how would one check voltages and discharge to a set level (or is that a case of just using the battery, which seems clunky)?

Also am I correct in thinking that the 1/2/3A options are simply a case of speed of charge? We've never used 3A but is it best to always use 1A when able?

rishy · 9 Jan 2014 at 19:18

Where did you buy the charger from so i can have a look at it ? So i can see if its a true balance charger

rishy · 9 Jan 2014 at 19:27

Found it the balance port are on the right hand side, plug you main charger lead in and the balace plug on the right and charge. You wont be able to see the charge values unless you get a meter

FunkyCowie · 9 Jan 2014 at 19:28

Tomsk said:
I use a portable jump starter/battery pack to power my charger (I also have a Blade 350qx).
Mine cost about £100, but even a cheap one (<£30) should work since all they contain is a 12V battery.

Tomsk: Not sure if you'll see this, but the jumpstarter I bought ( http://www.maplin.co.uk/p/maplin-jump-starter-digital-500a-150psi-compressor-n63nk ) works however I was just curious what the max amount of charges you gotten out of yours before you had to recharge the jumpstarter?

rishy · 9 Jan 2014 at 20:04

Well Pi**** off now just found out that my misses has thrown away my accessories for my quad and electric heli i was in the process of building

Russinating · 9 Jan 2014 at 20:14

rishy said:
Where did you buy the charger from so i can have a look at it ? So i can see if its a true balance charger

It's just the standard DJI Phantom one but thanks

. Understand where to plug the balance charger but not what to charge it at, how to decharge, etc.

Flukester · 9 Jan 2014 at 20:53

You can charge a lipos safely at 1C, so for a 2200mah battery that equals 2.2amps on the charger. The 3 amp setting on he DJI Charger is abit weird.... It's above the rule of thumb charge rate, but maybe they think their own cells can handle it. (Though I suspect it would shorten life)

You don't really need to discharge lipos, but there is a level you should discharge to for storage. Must admit I've never bothered, and tend to get new battery's every couple of seasons

I would use the 2A setting, twice as fast as 1A and the battery's will be fine

Col_M · 9 Jan 2014 at 21:00

rishy said:
Well Pi**** off now just found out that my misses has thrown away my accessories for my quad and electric heli i was in the process of building

Nothing too important or expensive I hope!

Tomsk · 9 Jan 2014 at 21:01

FunkyCowie said:
Not sure if you'll see this, but the jumpstarter I bought ( http://www.maplin.co.uk/p/maplin-jump-starter-digital-500a-150psi-compressor-n63nk ) works however I was just curious what the max amount of charges you gotten out of yours before you had to recharge the jumpstarter?

I couldn't say because I always keep my pack charged up in case I need it.

FunkyCowie · 9 Jan 2014 at 21:21

Russinating said:
It's just the standard DJI Phantom one but thanks . Understand where to plug the balance charger but not what to charge it at, how to decharge, etc.

For the DJI what does it actually say on the battery itself?

On the battery that comes with the Blade 350 qx it says 'Maximum charge Rate 3C', its basically the same battery... not that I would really trust it but there should be some info on the battery.

Tomsk said:
I couldn't say because I always keep my pack charged up in case I need it.

Tomsk: oh well I was just curious, thanks any way

Tackle_Berry · 9 Jan 2014 at 21:59

Flukester said:
Film of local floods... main road into our village shut so thought I'd sent the quad to go investigate. Also sent to local paper so maybe they will use material.

Good video, from the area myself so will sent it around.

rishy · 9 Jan 2014 at 22:02

Col_M said:
Nothing too important or expensive I hope!

All my bullet connections, USBASP programmer, heat shrink, solder pen tips and all my screws for my heli that im building, and 5 micro servos that were delivered yesterday

worst thing is that the bin men/women came today also

Narj · 9 Jan 2014 at 22:15

Just noticed that I will need a charger for the Lipo on my Fatshark. Can someone please recommend me one? The charger for the Phantom 2 is obviously proprietary....

Don't mind spending a few quid on something decent for max battery life.

rishy · 9 Jan 2014 at 22:26

Narj said:
Just noticed that I will need a charger for the Lipo on my Fatshark. Can someone please recommend me one? The charger for the Phantom 2 is obviously proprietary....

Don't mind spending a few quid on something decent for max battery life.

something similar to this

http://www.hobbyking.com/hobbyking/...Cells_GENUINE_with_UK_plug_UK_warehouse_.html

Russinating · 9 Jan 2014 at 22:43

Narj said:
Just noticed that I will need a charger for the Lipo on my Fatshark. Can someone please recommend me one? The charger for the Phantom 2 is obviously proprietary....

Don't mind spending a few quid on something decent for max battery life.

Are you sure? Ours charges from our Phantom charger with an adapter that the Fat Shark came with and a normal 3S balance lead.

englishpremier · 9 Jan 2014 at 22:44

So the QX350 has a return to home mode, but it only returns to where is took off.

is there a copter out there that out of the box will follow the controller?

Narj · 9 Jan 2014 at 22:45

Russinating said:
Are you sure? Ours charges from our Phantom charger with an adapter that the Fat Shark came with and a normal 3S balance lead.

Is that Phantom 1 or Phantom 2? Phantom 2 charger is a bit odd.
