Ive ditched my EVGA 580 and bought two Sapphire Toxics not done xfire yet,
But so far so good,will be a better gfx option personally
-
Competitor rules
Please remember that any mention of competitors, hinting at competitors or offering to provide details of competitors will result in an account suspension. The full rules can be found under the 'Terms and Rules' link in the bottom right corner of your screen. Just don't mention competitors in any way, shape or form and you'll be OK.
Unlock your ATI 6950 to a 6970 Thread
- Thread starter easyrider
- Start date
Ive ditched my EVGA 580 and bought two Sapphire Toxics not done xfire yet,
But so far so good,will be a better gfx option personally
Soldato

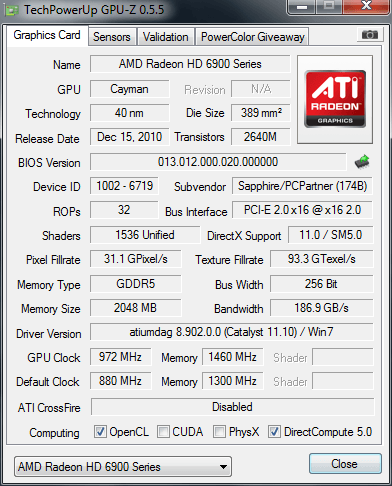

Ive got mine running at 900 / 1400 stable.
Havent tried tweaking higher - is that above below average?
Havent tried tweaking higher - is that above below average?
Soldato
thats stock i think
Thats me now running xfire with both cards at 6970 speeds and BF3 is running so smooth on all ultra settings on my dell U3011
Soldato
it isn't
Associate
Unlocked my 6950 Toxic, was stupidly easy and so far 100% stable. Result!
How did you do it? Please explain the process.
my two where easy just flicked the bios switch
in case its too much work to read the previous page the toxic comes with 2 bioses, 1 is the normal locked shader 6950 bios and the other is a pre-modified bios which has a chance of unlocking the extra shaders. you can easily switch between the 2 by the flick of a switch, the switch is hidden by the xfire connecter.
http://www.hardocp.com/article/2011/08/29/sapphire_toxic_hd6950_video_card_review
Associate
Just changed the switch and it unlocked perfecty.
Soldato
Flicked switch and my toxic was a 6970 too.
Associate
Currently have my 6950/70 clocked at 920/1375 stable but I want to go higher.. As soon as I enable voltage control in Afterburner I get artifacts?
Soldato
But of a strange one..
I've got a MSI Frozr II 6950 and a Sapphire Dual Fan Edition 6950 running in crossfire.
I did the Bios 'mod' on the Frozr II and it worked perfectly, extra shaders unlocked. I then go to try it on the Sapphire and it doesn't say it fails but it doesn't work either?
When flashing the MSI it popped up with a window giving me some details and would I like to restart.. With the Sapphire the loading bar pops up, gets half way and then nothing happens. No error message or success message
The question is what do I do now. I don't really need the Sapphire to unlock but it would be rather nice especially as it worked on the MSI card. Do I try my luck, sell the Sapphire and then get another MSI and hope for the best?
The Sapphire nor the MSI have the Bios switch either?
I've got a MSI Frozr II 6950 and a Sapphire Dual Fan Edition 6950 running in crossfire.
I did the Bios 'mod' on the Frozr II and it worked perfectly, extra shaders unlocked. I then go to try it on the Sapphire and it doesn't say it fails but it doesn't work either?
When flashing the MSI it popped up with a window giving me some details and would I like to restart.. With the Sapphire the loading bar pops up, gets half way and then nothing happens. No error message or success message
The question is what do I do now. I don't really need the Sapphire to unlock but it would be rather nice especially as it worked on the MSI card. Do I try my luck, sell the Sapphire and then get another MSI and hope for the best?
The Sapphire nor the MSI have the Bios switch either?
Last edited:
But of a strange one..
I've got a MSI Forza II 6950 and a Sapphire Dual Fan Edition 6950 running in crossfire.
I did the Bios 'mod' on the Forza II and it worked perfectly, extra shaders unlocked. I then go to try it on the Sapphire and it doesn't say it fails but it doesn't work either?
When flashing the MSI it popped up with a window giving me some details and would I like to restart.. With the Sapphire the loading bar pops up, gets half way and then nothing happens. No error message or success message
The question is what do I do now. I don't really need the Sapphire to unlock but it would be rather nice especially as it worked on the MSI card. Do I try my luck, sell the Sapphire and then get another MSI and hope for the best?
I wouldn't worry so much about unlocking the second card as it only provides very minimal gain at best. The highest gain comes from overclocking those bad boys!
Soldato
Caporegime
But of a strange one..
I've got a MSI Frozr II 6950 and a Sapphire Dual Fan Edition 6950 running in crossfire.
I did the Bios 'mod' on the Frozr II and it worked perfectly, extra shaders unlocked. I then go to try it on the Sapphire and it doesn't say it fails but it doesn't work either?
When flashing the MSI it popped up with a window giving me some details and would I like to restart.. With the Sapphire the loading bar pops up, gets half way and then nothing happens. No error message or success message
The question is what do I do now. I don't really need the Sapphire to unlock but it would be rather nice especially as it worked on the MSI card. Do I try my luck, sell the Sapphire and then get another MSI and hope for the best?
The Sapphire nor the MSI have the Bios switch either?
Did you do the flash with both cards in your system? only i had to remove the bottom card and flash one at a time when i first got them.. not your models!!
Soldato
Yes I did, both times I've flashed my cards I've done it with them both in the system, just used 0 or 1 for the card when flashing.
Solved my Sapphire problem
It appears that stupidly I flashed the Bios of the Sapphire card
when I was messing around with it before. Some how I had managed to mess it up and as such I forgot the switch was in position 1 and I couldn't re-flash the card ha. Thus I was left with a card that would artifact when the switch was in position 2 and wouldn't flash with the switch in position 1.Managed to find the original bios on the internet, download and modded that to unlock the extra shaders and bingo it works
